300DS Parts Catalog

1,049 part numbers across 3 sheets, 327 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.

Search all bikes Download Excel

Showing all 1,049 parts

LX300-6N

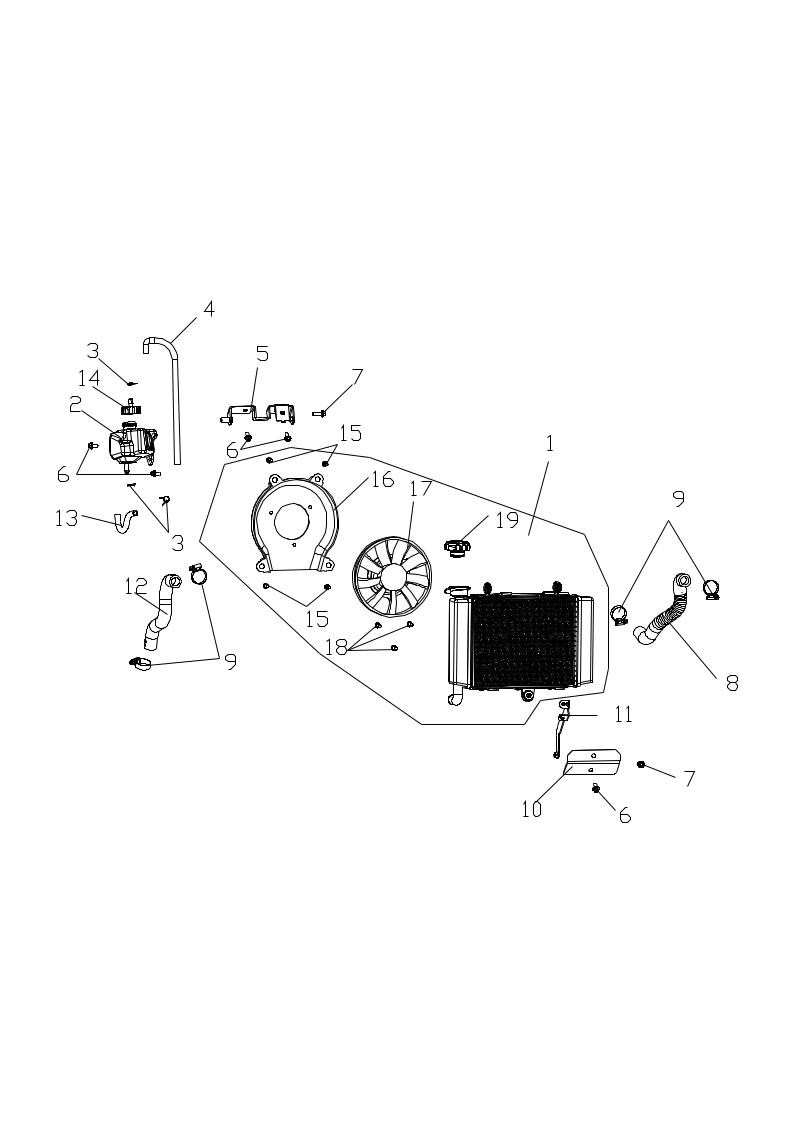

Assembly diagram

Ref	Part Name	Qty	Grade
F01-1	HEAT RADIATOR COMP.	- SET	B
F01-2	WATER TANK,COOLING	- PCS	B
F01-3	CLAMP,TUBE	- PCS	C
F01-4	TUBE,WATER	- PCS	B
F01-5	BRACKET, HEAT RADIATOR	- PCS	C
F01-6	BOLT,HEXAGON FLANGE	- PCS	C
F01-7	BOLT,HEXAGON FLANGE	- PCS	C
F01-8	TUBE,WATER	- PCS	B
F01-9	CLAMP ASSY.	- PCS	C
F01-10	BRACKET, HEAT RADIATOR	- PCS	C
F01-11	BRACKET, HEAT RADIATOR	- PCS	C
F01-12	TUBE,WATER	- PCS	B
F01-13	TUBE,WATER	- PCS	B
F01-14	CAP,WATER TANK	- PCS	B
F01-15	BOLT,HEXAGON	- PCS	C
F01-16	SHIELD,FAN	- PCS	B
F01-17	FAN ASSY.	- SET	B
F01-18	SCREW,CROSS RECESSED PAN	- PCS	C
F01-19	CAP,FILLER	- PCS	C

Assembly diagram

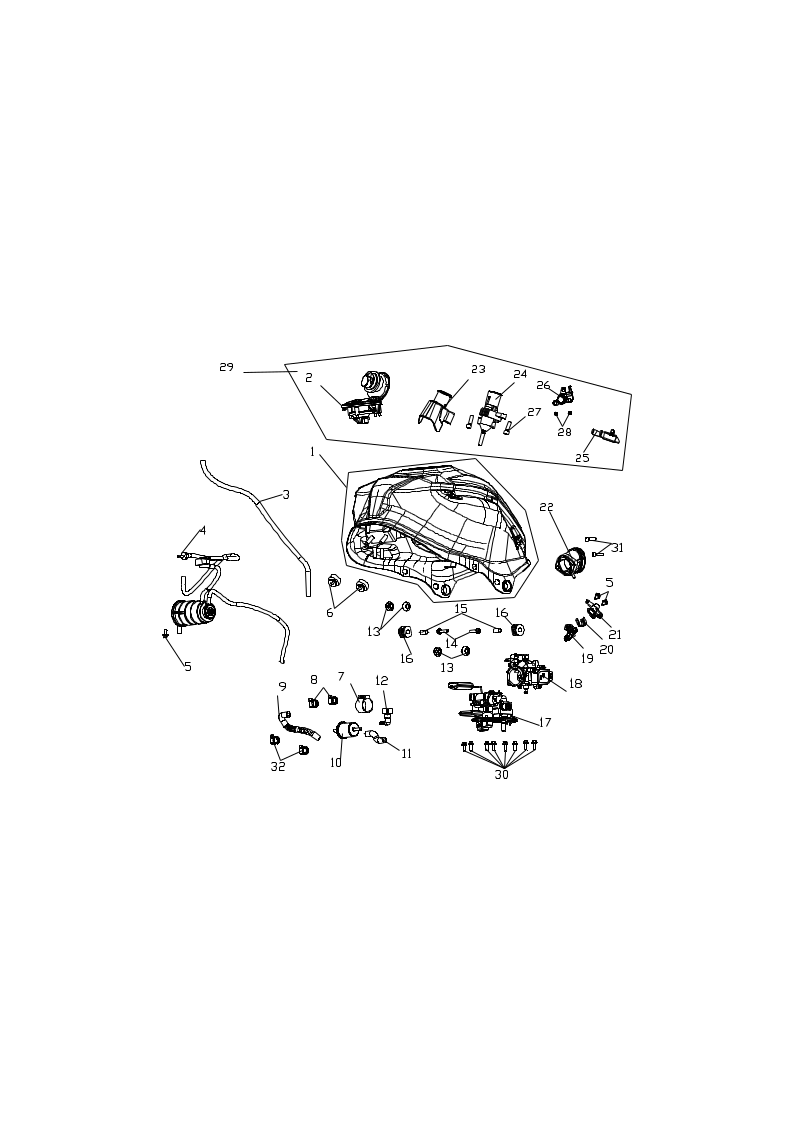

Ref	Part Name	Qty	Grade	Notes
F02-1	FUEL TANK COMP.	- PCS	C
F02-1	FUEL TANK COMP.	- PCS	C
F02-1	FUEL TANK COMP.	- PCS	C
F02-2	LOCK,FUEL TANK	- PCS	B	NOT FOR SERVCE
F02-3	TUBE,WATER	- PCS	B
F02-4	CONTROLLER ASSY.,FUEL EVAPORATION	- SET	C
F02-5	BOLT,HEXAGON FLANGE	- PCS	C
F02-6	PAD, FUEL TANK DAMPING	- PCS	C
F02-7	RUBBER JACKET,FUEL FILTER	- PCS	C
F02-8	CLAMP ASSY.	- PCS	C
F02-9	TUBE,FUEL	- PCS	B
F02-10	FILTER,FUEL	- PCS	B
F02-11	TUBE,FUEL	- PCS	B
F02-12	JOINT, SWIFT CHANGE	- PCS	C
F02-13	I-RUBBER	- PCS	C
F02-14	BOLT,HEXAGON FLANGE	- PCS	C
F02-15	COLLAR	- PCS	C
F02-16	PAD, FUEL TANK DAMPING	- PCS	C
F02-17	BRACKET ASSY.,ELECTRIC FUEL PUMP	- PCS	C
F02-18	VALVE BODY ASSY., THROTTLE	- PCS	C
F02-19	FUEL JET	- PCS	C
F02-20	CLAMP, FUEL JET	- PCS	C
F02-21	CAP, FUEL JET	- PCS	C
F02-22	TUBE,AIR INTAKE	- PCS	B
F02-23	COVER,IGNITION SWITCH	- PCS	B	NOT FOR SERVCE
F02-24	SWITCH ASSY.,IGNITION	- PCS	B	NOT FOR SERVCE
F02-25	DEVICE,SEAT LOCKING	- SET	B
F02-26	LOCK,SEAT	- PCS	B	NOT FOR SERVCE
F02-27	SCREW,HEXAGON SOCKET	- PCS	C
F02-28	SCREW,HEXAGON SOCKET	- PCS	C
F02-29	LOCK KIT	- SET	B
F02-30	BOLT,HEXAGON FLANGE	- PCS	C
F02-31	SCREW,HEXAGON SOCKET	- PCS	C
F02-32	CLAMP,TUBE	- PCS	C

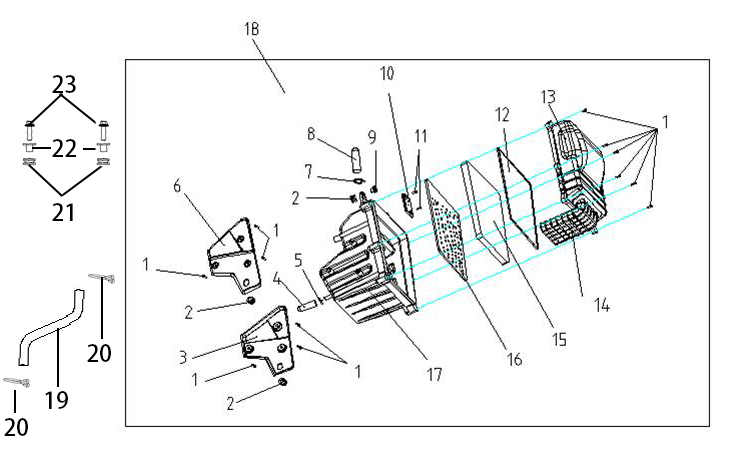

Assembly diagram

Ref	Part Name	Qty	Grade	Notes
F03-1	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C	NOT FOR SERVCE
F03-2	I-RUBBER	- PCS	C	NOT FOR SERVCE
F03-3	CASE,RIGHT AIR CLEANER	- PCS	C	NOT FOR SERVCE
F03-4	HOSE,OVERFLOW	- PCS	C	NOT FOR SERVCE
F03-5	CLAMP,TUBE	- PCS	C	NOT FOR SERVCE
F03-6	CASE,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F03-7	CLAMP,TUBE	- PCS	C	NOT FOR SERVCE
F03-8	PLASTIC CAP	- PCS	C	NOT FOR SERVCE
F03-9	WASHER,FLANGE	- PCS	C	NOT FOR SERVCE
F03-10	COVER OF WASTE GAS CIRCULATION CHAMBER	- PCS	C	NOT FOR SERVCE
F03-11	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C	NOT FOR SERVCE
F03-12	GLAND STRIP,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F03-13	CAP,AIR CLEANER CASE	- PCS	C	NOT FOR SERVCE
F03-14	INTAKE TUBE,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F03-15	ELEMENT,AIR CLEANER	- PCS	A
F03-16	FRAMEWORK,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F03-17	LOWER PART OF AIR FILTER	- PCS	C	NOT FOR SERVCE
F03-18	AIR CLEANER COMP.	- PCS	C
F03-19	TUBE,BREATHER	- PCS	B
F03-20	CLAMP,TUBE	- PCS	C
F03-21	I-RUBBER	- PCS	C
F03-22	COLLAR	- PCS	C
F03-23	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagram

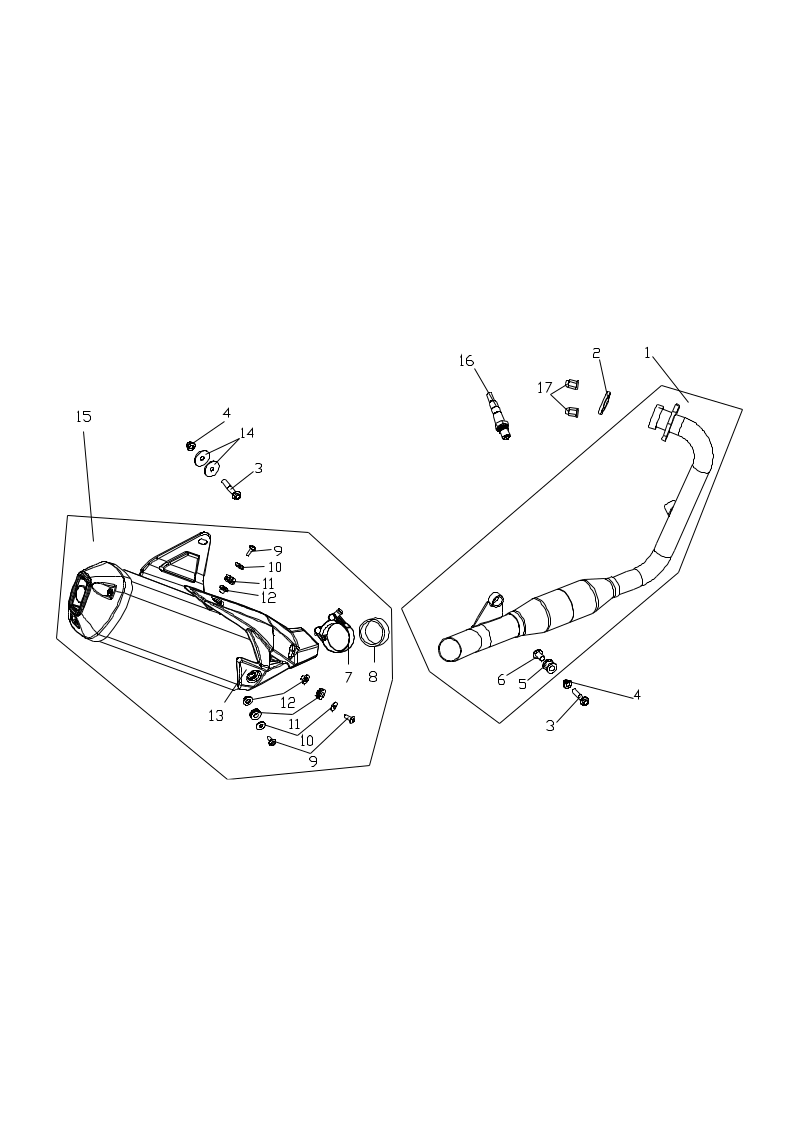

Ref	Part Name	Qty	Grade	Notes
F04-1	FRONT PART,MUFFLER EXHAUST	- PCS	C
F04-2	GASKET,AIR EXHAUST PORT	- PCS	A
F04-3	BOLT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVCE
F04-4	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C	NOT FOR SERVCE
F04-5	I-RUBBER	- PCS	C	NOT FOR SERVCE
F04-6	WASHER,FLANGE	- PCS	C	NOT FOR SERVCE
F04-7	TUBE,MUFFLER CONNECTING	- PCS	C
F04-8	GRAPHITE ANNULUS	- PCS	B
F04-9	SCREW,HEXAGON SOCKET	- PCS	C
F04-10	WASHER,PLAIN	- PCS	C
F04-11	I-RUBBER	- PCS	C
F04-12	WASHER,FLANGE	- PCS	C
F04-13	SHIELD,MUFFLER	- PCS	B
F04-14	WASHER,PLAIN	- PCS	C
F04-15	REAR PART,MUFFLER	- PCS	C
F04-16	OXYGEN SENSOR	- PCS	C
F04-17	CAP-SHAPED NUT	- PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade

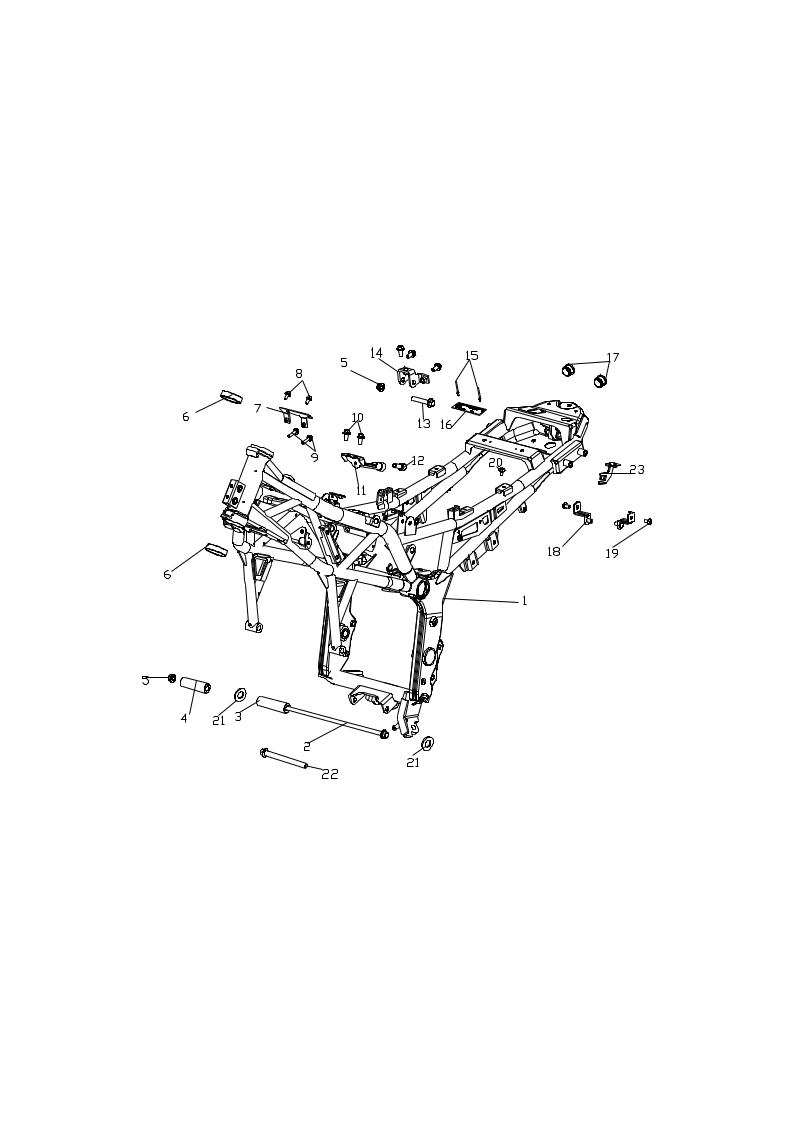

F05-1	BODY COMP.,FRAME	- PCS	D
F05-2	SOCKET,FRONT TURN SIGNAL	- PCS	C
F05-3	COLLAR	- PCS	C
F05-4	COLLAR	- PCS	C
F05-5	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F05-6	RING, STEERING BASE	- PCS	B
F05-7	BRACKET,IGNITION COIL	- PCS	C
F05-8	BOLT,HEXAGON FLANGE	- PCS	C
F05-9	BOLT,HEXAGON FLANGE	- PCS	C
F05-10	BOLT,HEXAGON FLANGE	- PCS	C
F05-11	PLATE,FRAME CONNECTING	- PCS	C
F05-12	SCREW,HEXAGON SOCKET	- PCS	C
F05-13	AXIS	- PCS	C
F05-14	PLATE,LEFT UPPER ENGINE HANGER	- PCS	C
F05-15	RIVET	- PCS	C
F05-16	NAMEPLATE,FRAME	- PCS	C
F05-17	STOPPER	- PCS	C
F05-18	SEAT,AIR CLEANER REAR MOUNTING	- PCS	C
F05-19	BOLT,HEXAGON FLANGE	- PCS	C
F05-20	SCREW,CROSS RECESSED PAN	- PCS	C
F05-21	WASHER,PLAIN	- PCS	C
F05-22	AXIS	- PCS	C
F05-23	BRACE,ELECTRICAL PARTS	- PCS	C

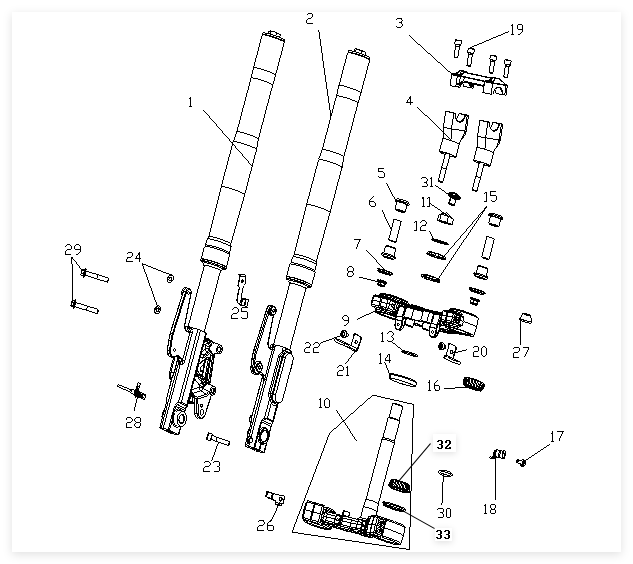

Assembly diagrams

Ref	Part Name	Qty	Grade
F06-1	SHOCK ABSORBER, RIGHT FRONT	- PCS	B
F06-2	SHOCK ABSORBER, LEFT FRONT	- PCS	B
F06-3	HOLDER,STEERING HANDLE PIPE	- PCS	B
F06-4	SUPPORT,STEERING HANDLE PIPE	- PCS	B
F06-5	T-RUBBER	- PCS	C
F06-6	COLLAR	- PCS	C
F06-7	WASHER,FLANGE	- PCS	C
F06-8	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F06-9	UPPER CONNECTIVE PLATE ASSY.	- SET	C
F06-10	STEERING STEM BODY/CIRCLIP ASSY.	- SET	C
F06-11	KEP NUT,STEERING STEM	- PCS	C
F06-12	WASHER,STEERING STEM	- PCS	C
F06-13	WASHER,LOCKING	- PCS	C
F06-14	DUST CAP,STEERING STEM	- PCS	C
F06-15	ADJUST NUT,STEERING STEM	- PCS	C
F06-16	CIRCLIP, STEERING BEARING	- PCS	B
F06-17	BOLT,HEXAGON FLANGE	- PCS	C
F06-18	CLAMP,WIRE	- PCS	C
F06-19	BOLT,STEERING HANDLE PIPE HOLDER	- PCS	C
F06-20	CLAMP,WIRE	- PCS	C
F06-21	CLAMP,WIRE	- PCS	C
F06-22	SCREW,HEXAGON SOCKET	- PCS	C
F06-23	SCREW,HEXAGON SOCKET	- PCS	C
F06-24	WASHER,PLAIN	- PCS	C
F06-25	CLAMP,WIRE	- PCS	C
F06-26	CLAMP,WIRE	- PCS	C
F06-27	PAD,CUSHION	- PCS	C
F06-28	SPEED SENSOR	- PCS	C
F06-29	BOLT,HEXAGON FLANGE	- PCS	C
F06-30	RING,SEAL	- PCS	B
F06-31		- PCS	B
F06-32	CIRCLIP, STEERING BEARING	- PCS	B
F06-33	DUST PACKING,STEERING STEM	- PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade

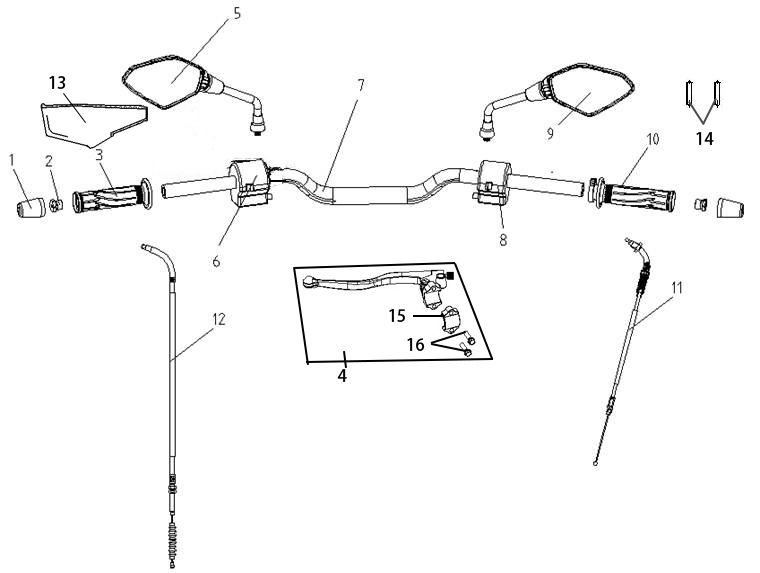

F07-1	DECORATIVE WEIGHT, LEFT	- PCS	B
F07-2	COUNTERWEIGHT,STEERING HANDLE PIPE	- PCS	B
F07-3	GRIP SET,HANDLE	- PCS	A
F07-4	LEVER COMP., LEFT	- SET	B
F07-5	MIRROR,LEFT BACK-VIEW	- PCS	A
F07-6	SWITCH ASSY.,LEFT	- SET	B
F07-7	HANDLE BAR ASSY.	- PCS	C
F07-8	SWITCH ASSY.,RIGHT	- SET	B
F07-9	MIRROR,RIGHT BACK-VIEW	- PCS	A
F07-10	GREASER COMP.	- PCS	A
F07-11	CABLE COMP.,THROTTLE	- PCS	A
F07-12	CABLE COMP.,CLUTCH	- PCS	A
F07-13	SHEATH,FRONT BRAKE CABLE	- PCS	C
F07-14	CLAMPING BAND	- PCS	C
F07-15	CLIP,LEFT LEVER	- PCS	C
F07-16	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade

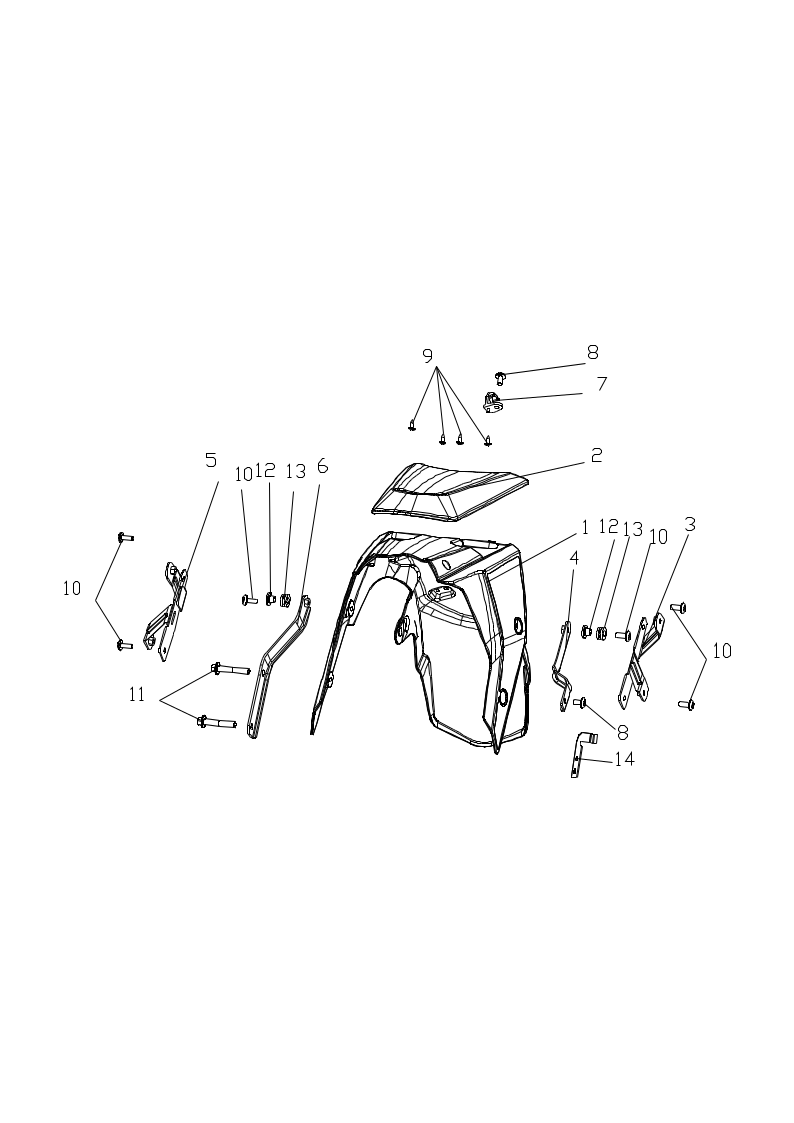

F08-1	FENDER COMP.,FRONT	- PCS	B
F08-2	EAVES BOARD,FRONT FENDER	- PCS	B
F08-3	BRACKET,FRONT FENDER	- PCS	C
F08-4	BRACKET,FRONT FENDER	- PCS	C
F08-5	BRACKET,FRONT FENDER	- PCS	C
F08-6	BRACKET,FRONT FENDER	- PCS	C
F08-7	CLAMP,TUBE	- PCS	C
F08-8	BOLT,HEXAGON FLANGE	- PCS	C
F08-9	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F08-10	SCREW,HEXAGON SOCKET	- PCS	C
F08-11	BOLT,HEXAGON FLANGE	- PCS	C
F08-12	COLLAR	- PCS	C
F08-13	I-RUBBER	- PCS	C
F08-14	CLAMP,WIRE	- PCS	C

Assembly diagram

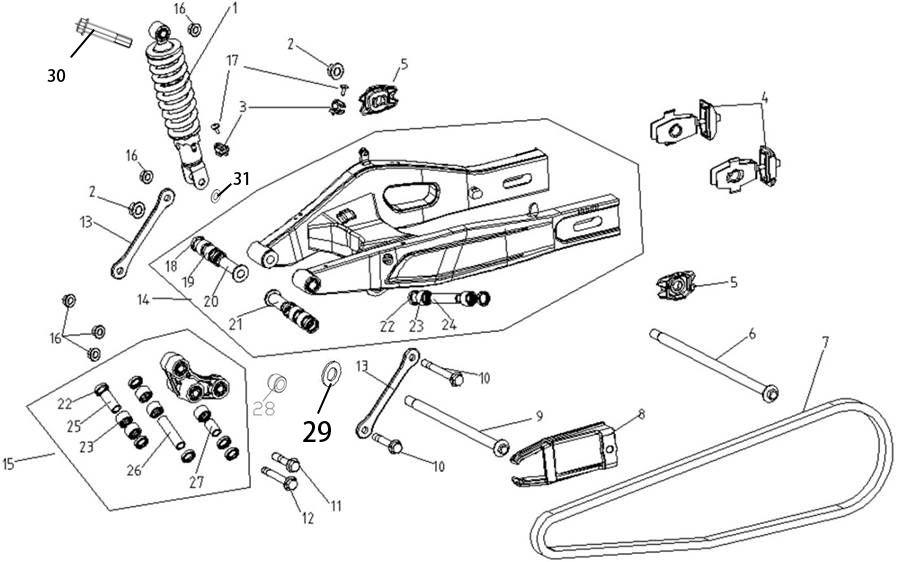

Ref	Part Name	Qty	Grade
F09-1	SHOCK ABSORBER, LEFT REAR	- PCS	B
F09-2	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F09-3	CLAMP,TUBE	- PCS	C
F09-4	ADJUSTOR,DRIVE CHAIN LEFT	- PCS	B
F09-5	PLATE,ADJUSTER HANGER	- PCS	C
F09-6	AXIS	- PCS	C
F09-7	CHAIN	- PCS	A
F09-8	SLIDER,DRIVE CHAIN	- PCS	B
F09-9	AXIS	- PCS	C
F09-10	AXIS	- PCS	C
F09-11	AXIS	- PCS	C
F09-12	AXIS	- PCS	C
F09-13	CRADLE COMP.,SUB	- PCS	C
F09-14	FORK COM.,REAR	- PCS	C
F09-15	BIG ROCKER RACK ASSY.	- SET	C
F09-16	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F09-17	SCREW,HEXAGON SOCKET	- PCS	C
F09-18	OIL SEAL	- PCS	B
F09-19	BEARING	- PCS	B
F09-20	COLLAR	- PCS	C
F09-21	COLLAR	- PCS	C
F09-22	OIL SEAL	- PCS	B
F09-23	BEARING	- PCS	B
F09-24	COLLAR	- PCS	C
F09-25	COLLAR	- PCS	C
F09-26	COLLAR	- PCS	C
F09-27	COLLAR	- PCS	C
F09-28	SLEEVE,THREAD	- PCS	C
F09-29	WASHER,PLAIN	- PCS	C
F09-30	AXIS	- PCS	C
F09-31	WASHER,PLAIN	- PCS	C

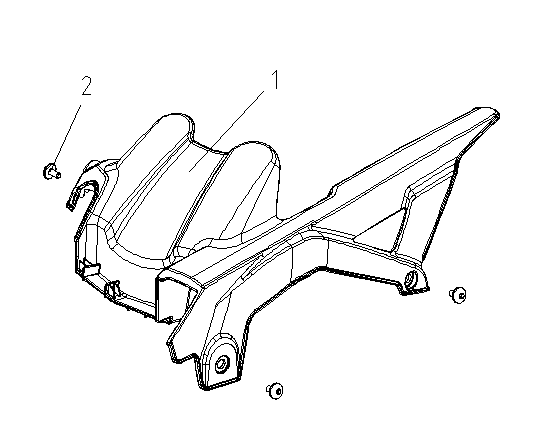

Assembly diagram

Ref	Part Name	Part Number	Qty	Grade	Notes
F10-1	CASE, CHAIN		- PCS	B
F10-2	SCREW,HEXAGON SOCKET		- PCS	C

Assembly diagram

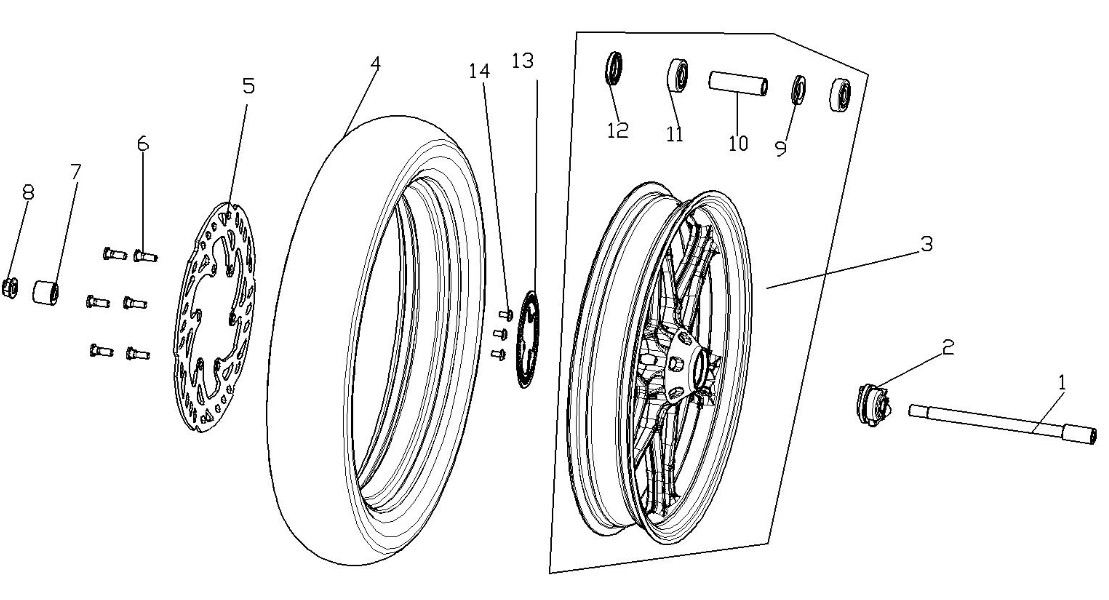

Ref	Part Name	Qty	Grade
F11-1	AXIS	- PCS	C
F11-2	SPEED COUNTER	- PCS	B
F11-3	WHEEL,FRONT	- PCS	B
F11-4	TYRE ASSY.	- PCS	A
F11-5	DISK COMP.,LEFT FRONT BRAKE	- PCS	C
F11-6	FASTENING BOLT,BRAKE DISK	- PCS	C
F11-7	COLLAR	- PCS	C
F11-8	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F11-9	PLAIN WASHER,RUBBER	- PCS	C
F11-10	COLLAR	- PCS	C
F11-11	BEARING	- PCS	B
F11-12	OIL SEAL	- PCS	B
F11-13	GEAR RING, ABS	- PCS	C
F11-14	SCREW,HEXAGON SOCKET	- PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade

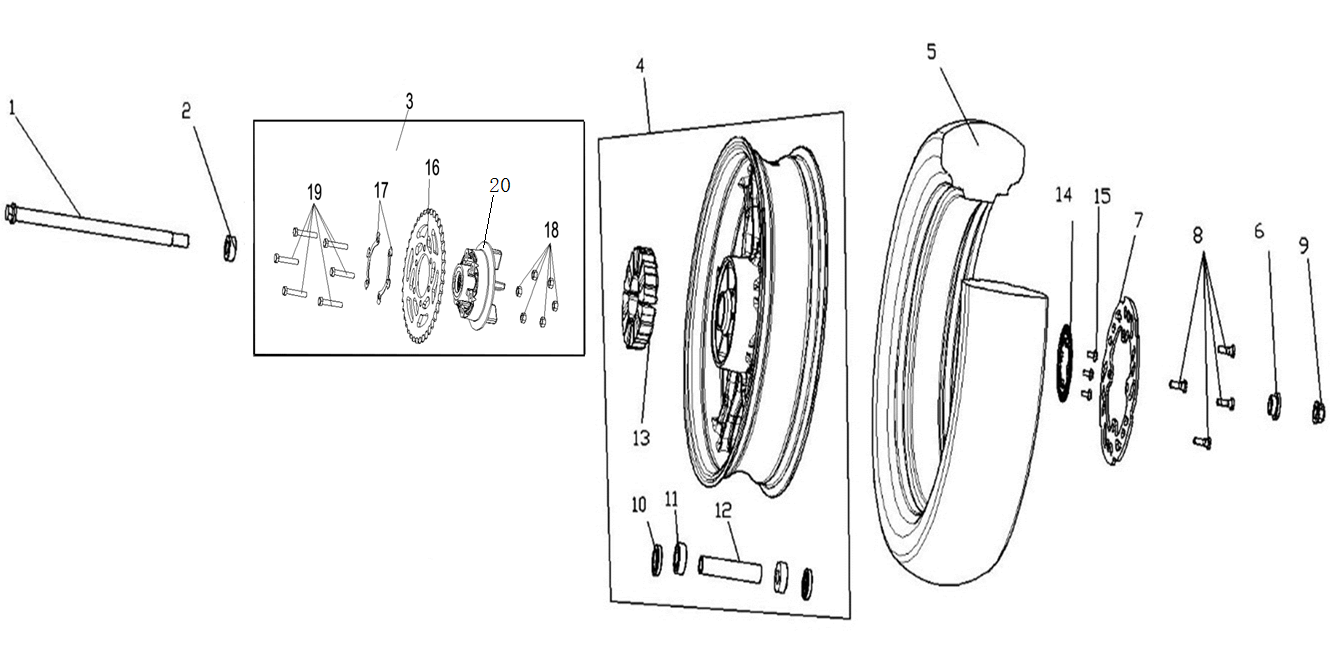

F12-1	AXIS	- PCS	C
F12-2	COLLAR	- PCS	C
F12-3	DAMPER COMP.	- SET	B
F12-4	WHEEL,REAR	- PCS	B
F12-5	TYRE ASSY.	- PCS	A
F12-6	COLLAR	- PCS	C
F12-7	DISK COMP.,LEFT REAR BRAKE	- PCS	C
F12-8	FASTENING BOLT,BRAKE DISK	- PCS	C
F12-9	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F12-10	OIL SEAL	- PCS	B
F12-11	BEARING	- PCS	B
F12-12	COLLAR	- PCS	C
F12-13	DAMPING PIECE,REAR WHEEL	- PCS	A
F12-14	GEAR RING, ABS	- PCS	C
F11-15	SCREW,HEXAGON SOCKET	- PCS	C
F11-16	SPROCKET WHEEL	- PCS	A
F11-17	LOCK WASHER	- PCS	A
F11-18	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F11-19	BOLT,HEXAGON	- PCS	C
F11-20	SEAT,SPROCKET WHEEL	- PCS	B

Assembly diagram

Ref	Part Name	Qty	Grade

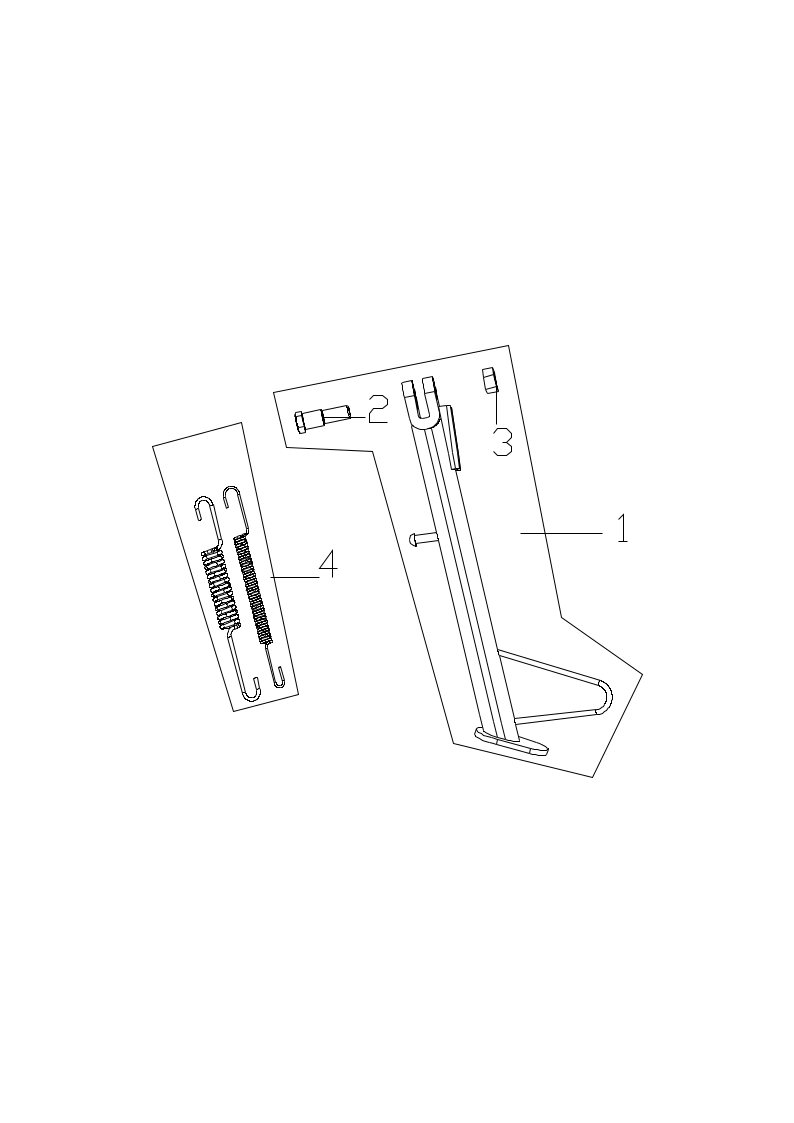

F13-1	SIDE STAND COMP.	- SET	B
F13-2	BOLT,HEXAGON HEAD SHOULDER	- PCS	C
F13-3	NUT,HEXAGON HEAD	- PCS	C
F13-4	SPRING, DRAWING	- PCS	B

Assembly diagram

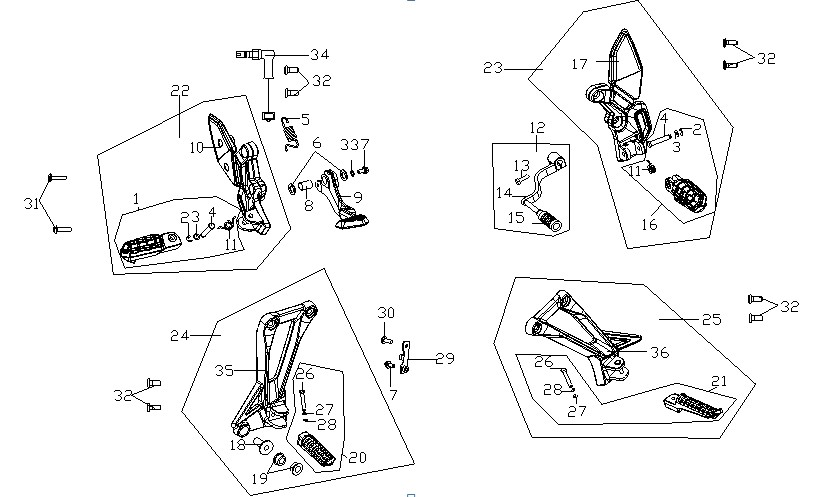

Ref	Part Name	Qty	Grade	Notes
F14-1	BODY,RIGHT FOOTREST	- PCS	B
F14-2	SPLIT WASHER	- PCS	C
F14-3	RING,SEAL	- PCS	B
F14-4	PIN,CLEVIS	- PCS	C
F14-5	RETURN SPRING,REAR BRAKE PEDAL	- PCS	B
F14-6	WASHER,PLAIN	- PCS	C
F14-7	BOLT,HEXAGON FLANGE	- PCS	C
F14-8	COLLAR	- PCS	C
F14-9	PEDAL,REAR BRAKE	- PCS	B
F14-10	BRACKET, RIGHT FOOTREST	- PCS	C
F14-11	SPRING, TURNING	- PCS	B
F14-12	PEDAL,GEAR CHANGE	- PCS	B
F14-13	BOLT,HEXAGON	- PCS	C
F14-14	WELDING SET,GEAR CHANGE PEDAL	- PCS	C	NOT FOR SERVCE
F14-15	RUBBER JACKET,GEAR CHANGE PEDAL	- PCS	C
F14-16	BODY,LEFT FOOTREST	- PCS	B
F14-17	BRACKET, LEFT FOOTREST	- PCS	C
F14-18	COLLAR	- PCS	C
F14-19	T-RUBBER	- PCS	C
F14-20	BODY SET,RIGHT PILLION STEP	- PCS	B
F14-21	BODY SET,LEFT PILLION STEP	- PCS	B
F14-22	FOOTREST ASSY., RIGHT	- SET	B
F14-23	FOOTREST ASSY., LEFT	- SET	B
F14-24	STEP ASSY.,RIGHT PILLION	- SET	B
F14-25	STEP ASSY.,LEFT PILLION	- SET	B
F14-26	PIN,CLEVIS	- PCS	C
F14-27	RING,SEAL	- PCS	B
F14-28	SPLIT WASHER	- PCS	C
F14-29	BRACKET,DISC-BRAKE OIL CUP	- PCS	B
F14-30	BOLT,HEXAGON FLANGE	- PCS	C
F14-31	SCREW,HEXAGON SOCKET	- PCS	C
F14-32	FASTENING BOLT,BRAKE DISK	- PCS	C
F14-33	WASHER,PLAIN	- PCS	C
F14-34	SWITCH ASSY.,REAR BRAKE	- PCS	B
F14-35	HOLD COMP.,RIGHT PILLION STEP	- PCS	C
F14-36	HOLD COMP.,LEFT PILLION STEP	- PCS	C

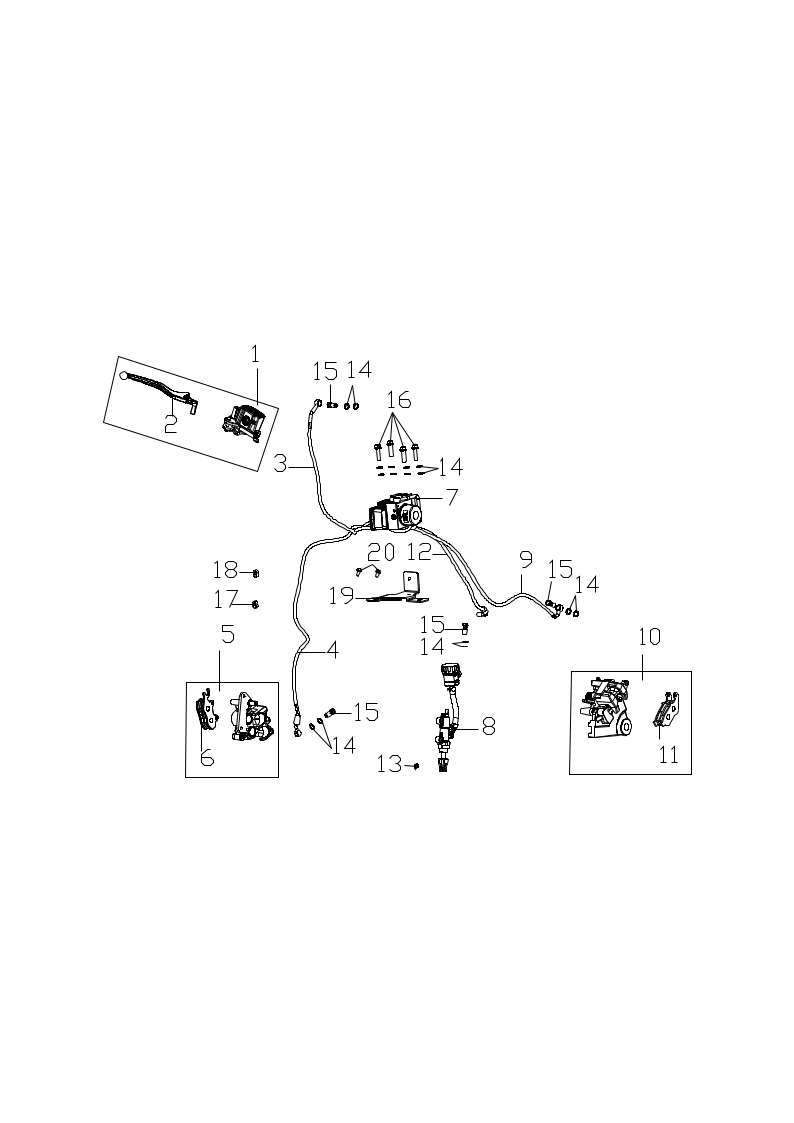

Assembly diagram

Ref	Part Name	Qty	Grade
F15-1	CYLINDER ASSY.,MASTER	- PCS	B
F15-2	LEVER COMP.,RIGHT STEERING HANDLE	- PCS	B
F15-3	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-4	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-5	CALIPER ASSY.,LEFT	- PCS	C
F15-6	PAD COMP.,REAR DISC-BRAKE LEFT	- PCS	A
F15-7	ABS.ANTI-LOCKING UP SYSTEM	- PCS	C
F15-8	PUMP, REAR DISC-BRAKE UPPER	- PCS	C
F15-9	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-10	PUMP, REAR DISC-BRAKE LOWER	- PCS	C
F15-11	PAD COMP.,REAR DISC-BRAKE LEFT	- PCS	A
F15-12	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-13	PIN,CLEVIS	- PCS	C
F15-14	WASHER,PLAIN	- PCS	C
F15-15	BOLT,DISC-BRAKE HOSE	- PCS	C
F15-16	BOLT,DISC-BRAKE HOSE	- PCS	C
F15-17	CLAMP,WIRE	- PCS	C
F15-18	CLAMP,TUBE	- PCS	C
F15-19	INSTALLATION BRACKET, ABS	- PCS	C
F15-20	BOLT,HEXAGON FLANGE	- PCS	C

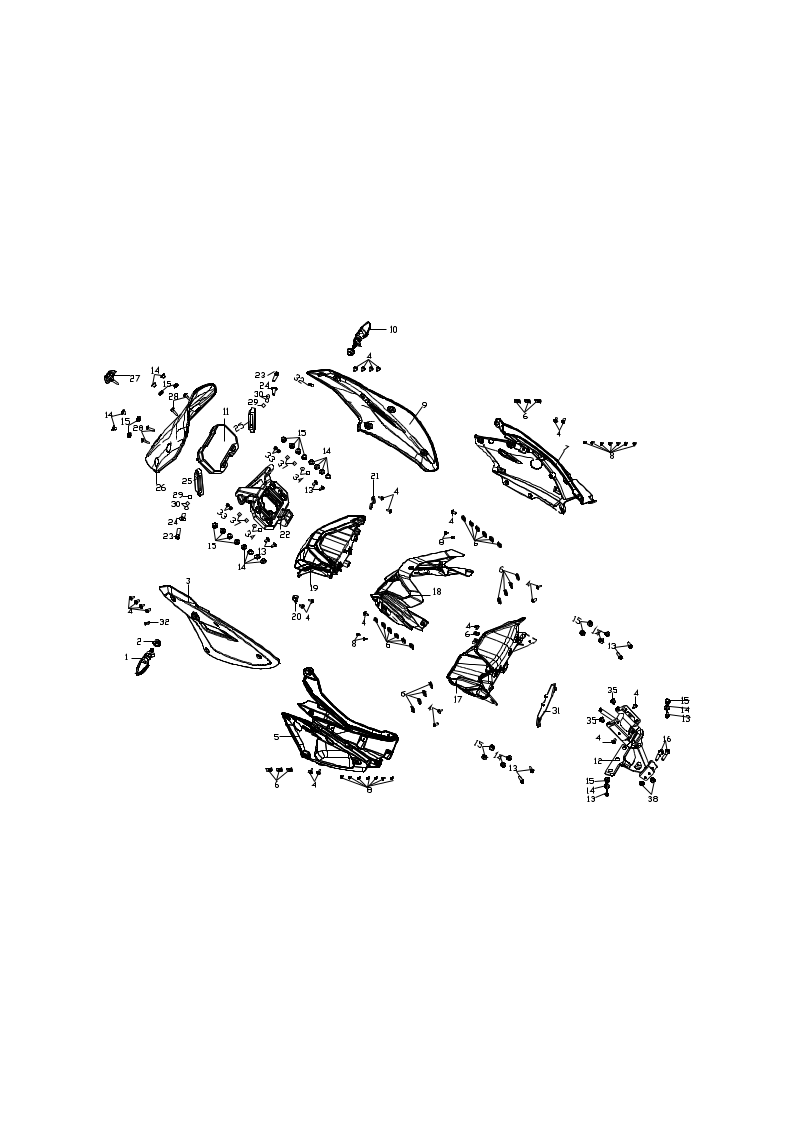

Assembly diagram

Ref	Part Name	Qty	Grade
F16-1	TURNING SIGNAL LIGHT, LEFT FRONT	- PCS	B
F16-2	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F16-3	COVER,LEFT FRONT SIDE	- PCS	B
F16-3	COVER,LEFT FRONT SIDE	- PCS	B
F16-3	COVER,LEFT FRONT SIDE	- PCS	B
F16-4	SCREW,HEXAGON SOCKET	- PCS	C
F16-5	INNER PLATE FUEL TANK LEFT D	- PCS	B
F16-6	NUT,CLIP	- PCS	C
F16-7	INNER PLATE FUEL TANK RIGHT DECORATIVE	- PCS	B
F16-8	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F16-9	COVER,RIGHT FRONT SIDE	- PCS	B
F16-9	COVER,RIGHT FRONT SIDE	- PCS	B
F16-9	COVER,RIGHT FRONT SIDE	- PCS	B
F16-10	TURNING SIGNAL LIGHT, RIGHT FRONT	- PCS	B
F16-11	INSTRUMENT SET	- SET	B
F16-12	BRACKET,HEAD LIGHT	- PCS	C
F16-13	SCREW,HEXAGON SOCKET	- PCS	C
F16-14	COLLAR	- PCS	C
F16-15	I-RUBBER	- PCS	C
F16-16	BOLT,HEXAGON FLANGE	- PCS	C
F16-17	BACKBOARD,FAIRING COVER	- PCS	B
F16-18	FAIRING COVER	- PCS	B
F16-19	HEADLIGHT ASSY.	- PCS	B
F16-20	LUG,COVERING PANEL	- PCS	C
F16-21	LUG,COVERING PANEL	- PCS	C
F16-22	MOUNTING DECK,WIND BOARD BRACKET	- PCS	C
F16-23	SCREW,HEXAGON SOCKET	- PCS	C
F16-24	COLLAR	- PCS	C
F16-25	PLATE,WINDSHIELD PRESSURE	- PCS	C
F16-26	GLASS, WIND SHIELD	- PCS	B
F16-27	0	- PCS	C
F16-28	SCREW,HEXAGON SOCKET	- PCS	C
F16-29	WASHER,PLAIN	- PCS	C
F16-30	WASHER,WAVE	- PCS	C
F16-31	BRACKET,AIR GUIDE SLEEVE	- PCS	C
F16-32	LUG,COVERING PANEL	- PCS	C
F16-33	NUT,HEXAGON HEAD	- PCS	C
F16-34	WASHER,ELASTIC	- PCS	C
F16-35	STOPPER	- PCS	C
F16-36	GLUE NAIL,BUFFER	- PCS	C
F16-37	WASHER,PLAIN	- PCS	C
F16-38	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C

Assembly diagram

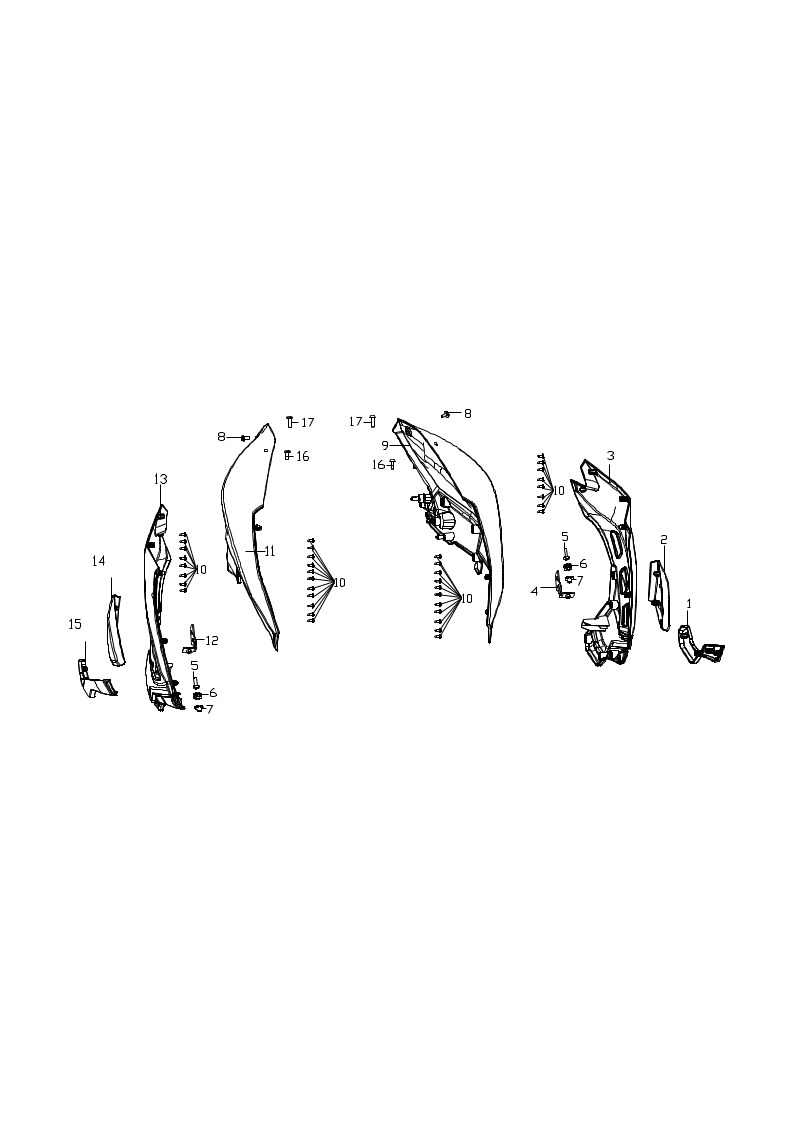

F17 COVER,FUEL TANK DECORATIVE - diagram 1

Ref	Part Name	Qty	Grade
F17-1	COVER,LEFT GUARD PLATE DECORATIVE	- PCS	B
F17-1	COVER,LEFT GUARD PLATE DECORATIVE	- PCS	B
F17-1	COVER,LEFT GUARD PLATE DECORATIVE	- PCS	B
F17-2	LEFT INNER PLATE DECORATIVE COVER	- PCS	C
F17-3	PROTECTIVE PLATE, FUEL TANK LEFT	- PCS	B
F17-4	BRACKET,FUEL TANK DECORATIVE COVER LEFT	- PCS	C
F17-5	SCREW,HEXAGON SOCKET	- PCS	C
F17-6	I-RUBBER	- PCS	C
F17-7	COLLAR	- PCS	C
F17-8	SCREW,HEXAGON SOCKET	- PCS	C
F17-9	COVER,FUEL TANK LEFT DECORATIVE	- PCS	B
F17-9	COVER,FUEL TANK LEFT DECORATIVE	- PCS	B
F17-9	COVER,FUEL TANK LEFT DECORATIVE	- PCS	B
F17-10	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F17-11	COVER,FUEL TANK RIGHT DECORATIVE	- PCS	B
F17-11	COVER,FUEL TANK RIGHT DECORATIVE	- PCS	B
F17-11	COVER,FUEL TANK RIGHT DECORATIVE	- PCS	B
F17-12	BRACKET,FUEL TANK DECORATIVE COVER RIGHT	- PCS	C
F17-13	PROTECTIVE PLATE, FUEL TANK RIGHT	- PCS	B
F17-14	FUELT TANK RIGHT PROTECTIVE PLATE	- PCS	C
F17-15	COVER,RIGHT GUARD PLATE DECORATIVE	- PCS	B
F17-15	COVER,RIGHT GUARD PLATE DECORATIVE	- PCS	B
F17-15	COVER,RIGHT GUARD PLATE DECORATIVE	- PCS	B
F17-16	SCREW,HEXAGON SOCKET	- PCS	C
F17-17	SCREW,HEXAGON SOCKET	- PCS	C

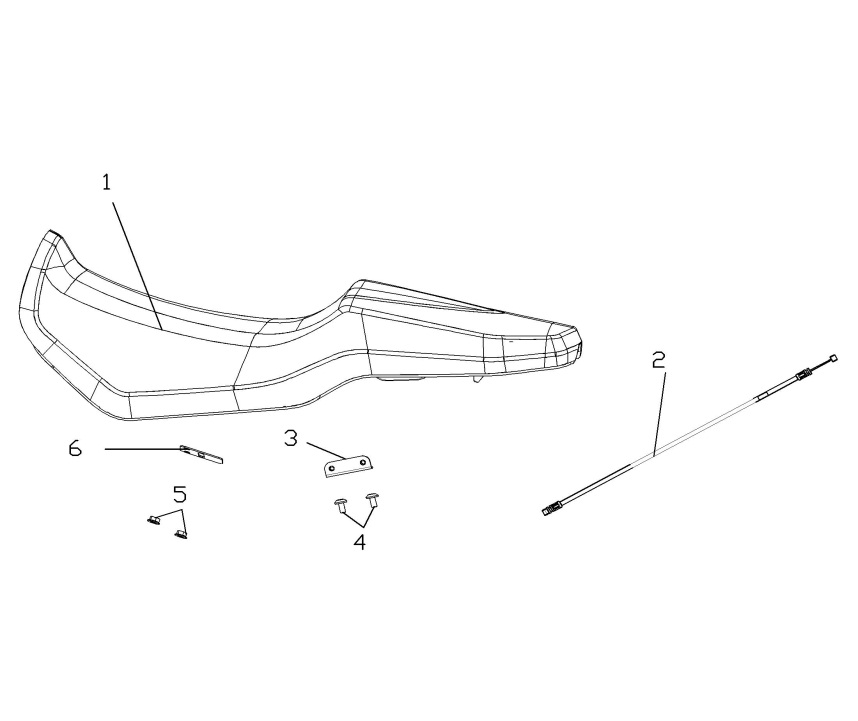

Assembly diagram

Ref	Part Name	Qty	Grade
F18-1	SEAT COMP.	- PCS	B
F18-2	CABLE,SEAT	- PCS	A
F18-3	BRACKET,SEAT LOCK	- PCS	C
F18-4	SCREW,HEXAGON SOCKET	- PCS	C
F18-5	NUT,HEXAGON FLANGE	- PCS	C
F18-6	WASHER,SEAT LOCK	- PCS	C

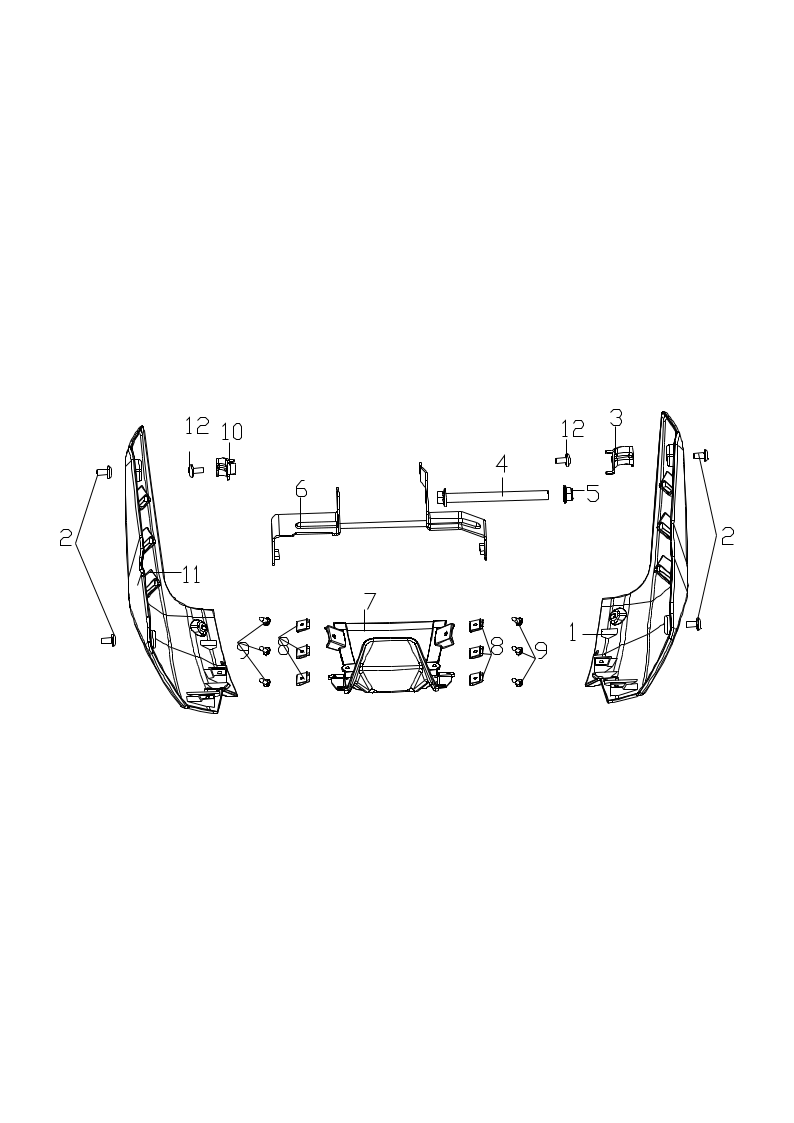

Assembly diagram

F19 AIR GUIDE SLEEVE,LEFT LOWER - diagram 1

Ref	Part Name	Qty	Grade
F19-1	FAIRING COVER,RIGHT LOWER	- PCS	B
F19-2	SCREW,HEXAGON SOCKET	- PCS	C
F19-3	BRACKET,LOWER FAIRING COVER	- PCS	C
F19-4	AXIS	- PCS	C
F19-5	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F19-6	BRACKET,LOWER FAIRING COVER	- PCS	C
F19-7	PLATE,LOWER FAIRING COVER CONNECTING	- PCS	B
F19-8	NUT,CLIP	- PCS	C
F19-9	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F19-10	BRACKET,LOWER FAIRING COVER	- PCS	C
F19-11	FAIRING COVER,LEFT LOWER	- PCS	B
F19-12	BOLT,HEXAGON FLANGE	- PCS	C

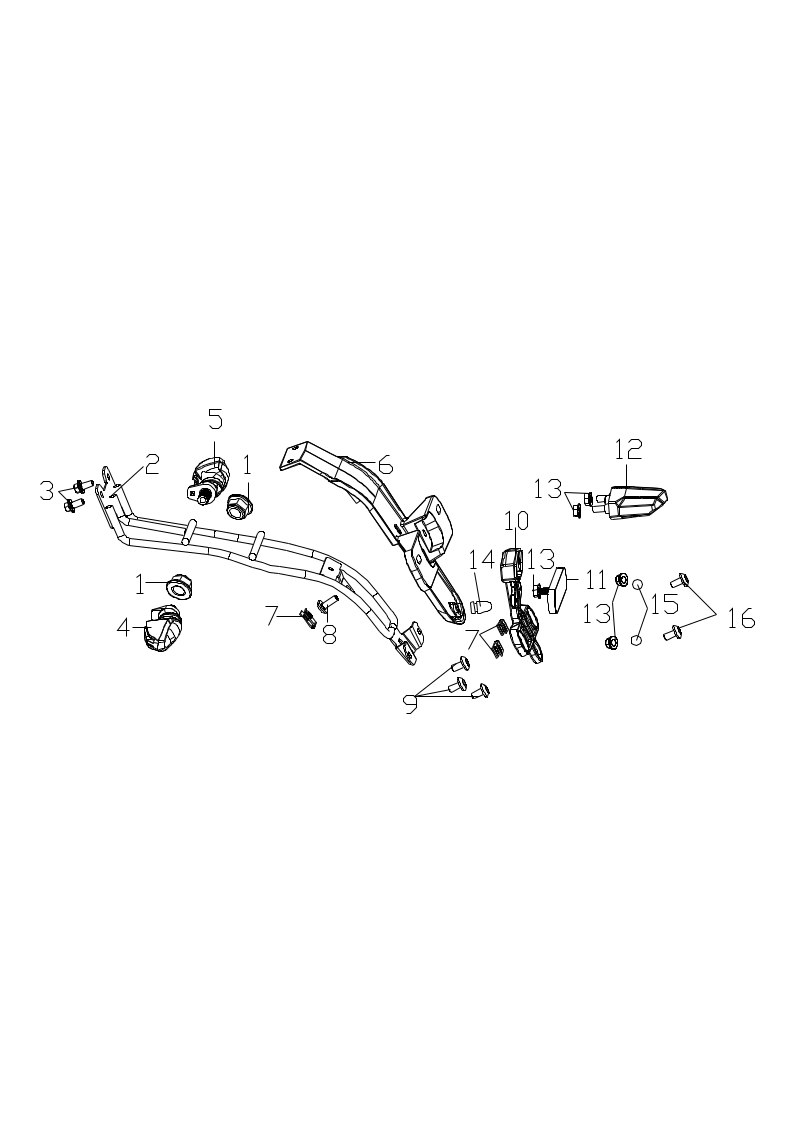

Assembly diagram

Ref	Part Name	Qty	Grade
F20-2	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F20-2	BRACKET,REAR FENDER	- PCS	C
F20-3	BOLT,HEXAGON FLANGE	- PCS	C
F20-4	TURNING SIGNAL LIGHT, LEFT REAR	- PCS	B
F20-5	TURNING SIGNAL LIGHT, RIGHT REAR	- PCS	B
F20-6	LINING,REAR FENDER	- PCS	C
F20-7	NUT,CLIP	- PCS	C
F20-8	SCREW,HEXAGON SOCKET	- PCS	C
F20-9	SCREW,HEXAGON SOCKET	- PCS	C
F20-10	REAR COVER OF REGISTRATION PLATE LIGHT	- PCS	C
F20-11	REFLECTOR,REAR	- PCS	B
F20-12	LAMP,REAR REGISTRATION PLATE	- PCS	B
F20-13	NUT,HEXAGON FLANGE	- PCS	C
F22-14	GLUE NAIL,BUFFER	- PCS	C
F20-15	WASHER,PLAIN	- PCS	C
F20-16	BOLT,HEXAGON FLANGE	- PCS	C

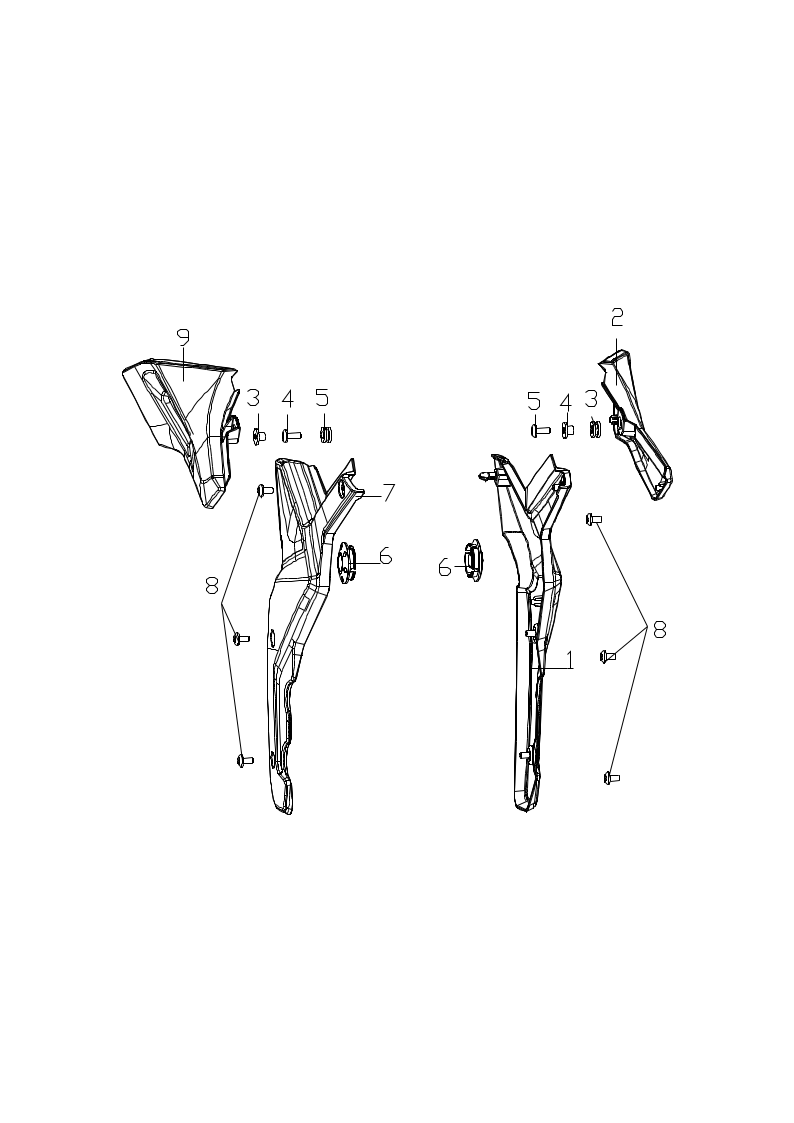

Assembly diagram

Ref	Part Name	Qty	Grade
F21-1	COVER,RIGHT LOWER SIDE	- PCS	B
F21-2	COVER,RIGHT SIDE	- PCS	B
F21-3	COLLAR	- PCS	C
F21-4	SCREW,HEXAGON SOCKET	- PCS	C
F21-5	I-RUBBER	- PCS	C
F21-6	CAP,FRAME DECORATIVE	- PCS	B
F21-7	COVER,LEFT LOWER SIDE	- PCS	B
F21-8	SCREW,HEXAGON SOCKET	- PCS	C
F21-9	COVER,LEFT SIDE	- PCS	B

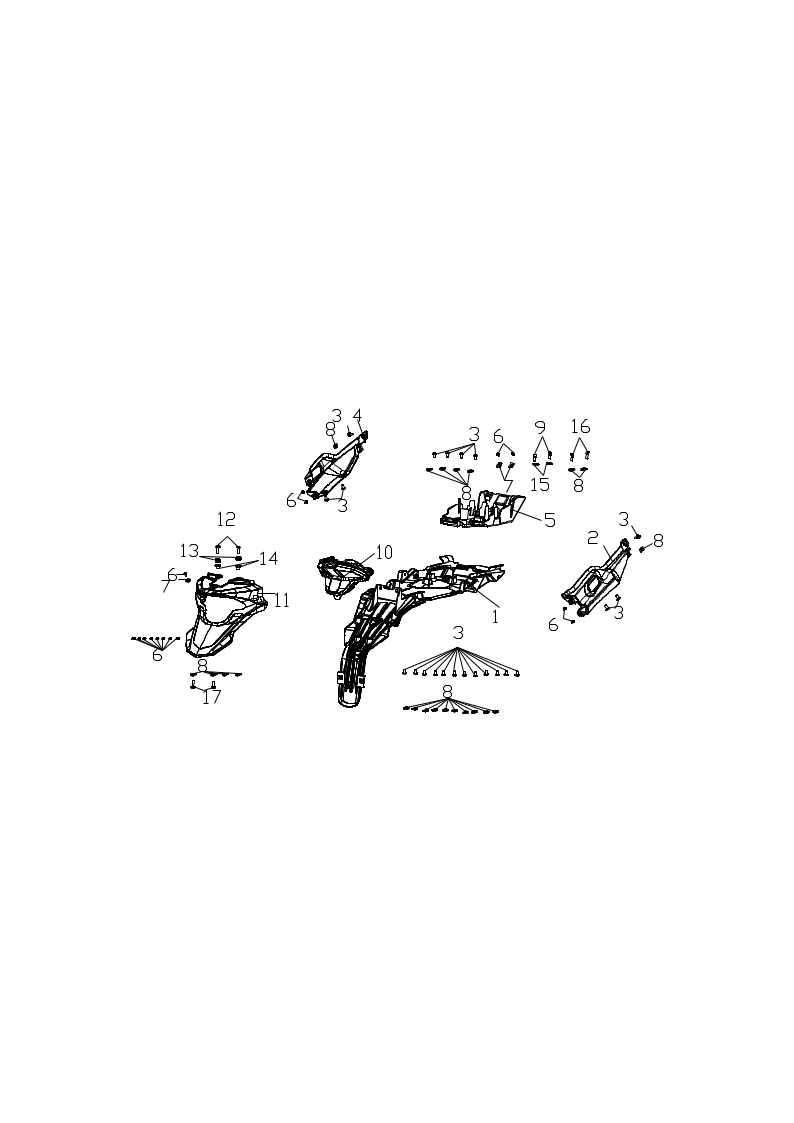

Assembly diagram

Ref	Part Name	Qty	Grade
F22-1	FENDER COMP.,REAR	- PCS	B
F22-2	BODY COVER.,RIGHT	- PCS	B
F22-2	BODY COVER.,RIGHT	- PCS	B
F22-2	BODY COVER.,RIGHT	- PCS	B
F22-3	SCREW,HEXAGON SOCKET	- PCS	C
F22-4	BODY COVER.,LEFT	- PCS	B
F22-4	BODY COVER.,LEFT	- PCS	B
F22-4	BODY COVER.,LEFT	- PCS	B
F22-5	ELECTRICAL BOX	- PCS	C
F22-6	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F22-7	NUT,CLIP	- PCS	C
F22-8	NUT,CLIP	- PCS	C
F22-9	SCREW,HEXAGON SOCKET	- PCS	C
F22-10	TAILLIGHT SET	- PCS	B
F22-11	SHIELD COMP.,LEFT TAIL	- PCS	B
F22-12	SCREW,HEXAGON SOCKET	- PCS	C
F22-13	I-RUBBER	- PCS	C
F22-14	COLLAR	- PCS	C
F22-15	NUT,CLIP	- PCS	C
F22-16	SCREW,HEXAGON SOCKET	- PCS	C
F22-17	SCREW,HEXAGON SOCKET	- PCS	C

Assembly diagram

F23 WIREHARNESS AND ELETRIC PARTS - diagram 1

Ref	Part Name	Qty	Grade

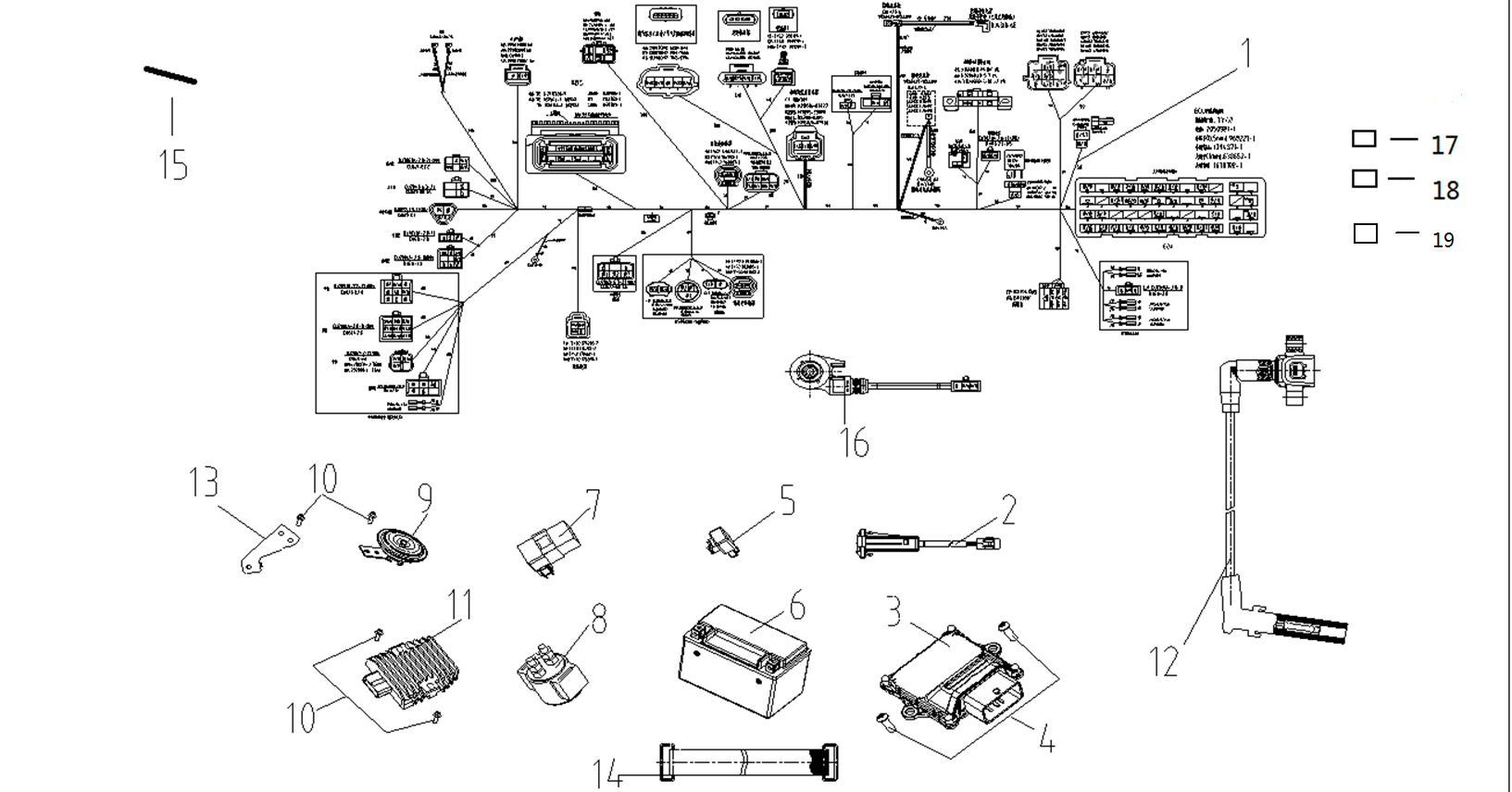

F23-1	HARNESS,WIRE	- SET	B
F23-2	POWER CHARGER	- PCS	C
F23-3	ECU	- PCS	C
F23-4	SCREW,HEXAGON SOCKET	- PCS	C
F23-5	FLASHER	- PCS	A
F23-6	BATTERY ASSY.	- PCS	A
F23-7	ELECTRICAL BOX	- PCS	C
F23-8	STARTING RELAY ASSY.	- PCS	A
F23-9	HORN	- PCS	A
F23-10	BOLT,HEXAGON FLANGE	- PCS	C
F23-11	RECTIFIER REGULATOR ASSY.	- PCS	A
F23-12	COIL ASSY.,IGNITION	- PCS	A
F23-13	BRACKET,HORN	- PCS	C
F23-14	CLAMPING BAND	- PCS	C
F23-15	CLAMPING BAND	- PCS	C
F23-16	KILL SWITCH, SIDE STAND	- PCS	B
F23-17	SECTION,SAFE	- PCS	A
F23-18	SECTION,SAFE	- PCS	A
F23-19	SECTION,SAFE	- PCS	A

Assembly diagram

Ref	Part Name	Qty	Grade

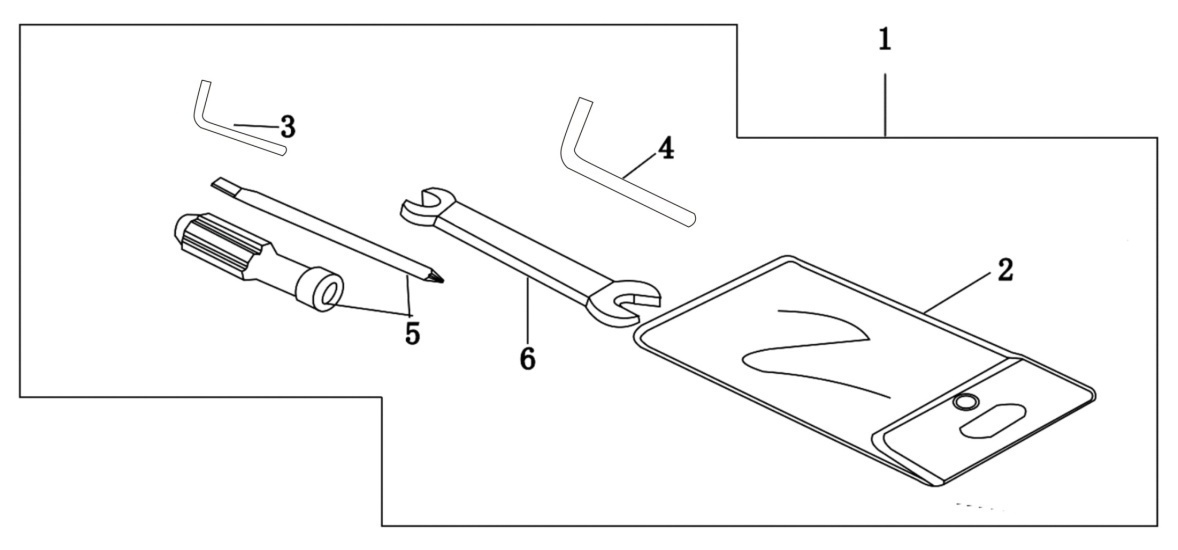

F24-1	ACCESSORIES,TOOL	- SET	D
F24-2	BAG,TOOL	- PCS	D
F24-3	SLEEVE	- PCS	D
F24-4	WRENCH	- PCS	D
F24-5	SCREWDRIVER,DUAL-PURPOSE	- PCS	D
F24-6	WRENCH	- PCS	D

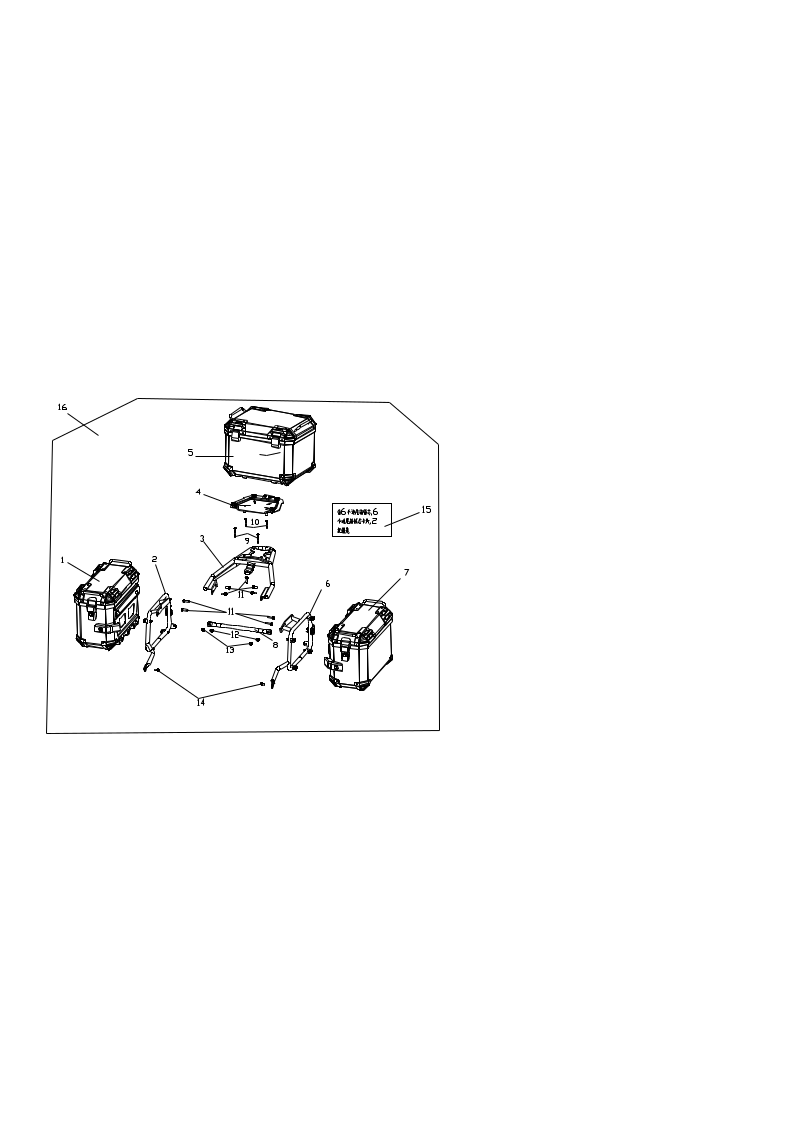

Assembly diagram

Ref	Part Name	Qty	Grade	Notes
F25-1	BOX,RIGHT SIDE	- PCS	B
F25-2	BRACKET,RIGHT SIDE BOX	- PCS	C
F25-3	LUGGAGE CARRIER COMP.,REAR	- PCS	C
F25-4	PLATE,TAIL BOX FIXING BRACKET PRESSURE	- PCS	C
F25-5	BOX,TAIL	- PCS	C
F25-6	BRACKET,LEFT SIDE BOX	- PCS	C
F25-7	BOX,LEFT SIDE	- PCS	B
F25-8	CONNECTIVE PIECE OF SIDE BOX HOLDER	- PCS	C
F25-9	BOLT,HEXAGON FLANGE	- PCS	C
F25-10	BOLT,HEXAGON FLANGE	- PCS	C
F25-11	SCREW,HEXAGON SOCKET	- PCS	C
F25-12	BOLT,HEXAGON FLANGE	- PCS	C
F25-13	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F25-14	BOLT,HEXAGON FLANGE	- PCS	C
F25-15	LOCK KIT BOX	-	-	353530004-0001 USD2.71
F25-16		-	-

Assembly diagram

Ref	Part Name	Qty	Grade
F26-1	AXIS	- PCS	C

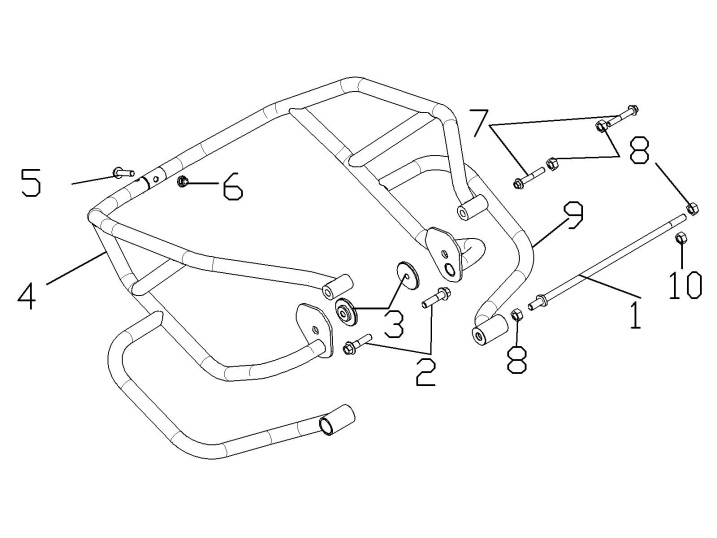

F26-2	BOLT,HEXAGON FLANGE	- PCS	C
F26-3	MOUNTING DECK,COLLISION BUMPER UPPER	- PCS	C
F26-4	BODY,COLLISION BUMPER LEFT	- PCS	C
F26-5	SCREW,HEXAGON SOCKET	- PCS	C
F26-6	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F26-7	SCREW,HEXAGON SOCKET	- PCS	C
F26-8	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F26-9	BODY,COLLISION BUMPER RIGHT	- PCS	C
F26-10	NUT,HEXAGON HEAD	- PCS	C

ENGINE

Ref	Part Name	Part Number	Qty	Grade	Notes
E1	发动机总成		1 SET	C

Assembly diagrams

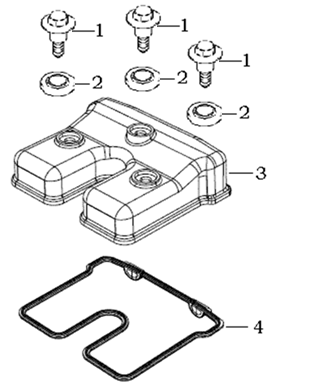

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 1

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 2

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 3

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 4

Ref	Part Name	Qty	Grade
E01-01	气缸头盖螺栓	3 PCS	C
E01-02	密封圈	3 PCS	A
E01-03	气缸头盖	1 PCS	C
E01-04	气缸头盖密封垫	1 PCS	A

Assembly diagrams

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 1

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 2

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 3

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 4

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 5

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 6

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 7

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 8

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 9

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 10

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 11

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 12

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 13

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 14

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 15

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 16

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 17

Ref	Part Name	Qty	Grade
E02-01	双头螺栓	2 PCS	C
E02-02	六角头法兰面螺栓	6 PCS	C
E02-03	六角头法兰面螺栓	2 PCS	C
E02-04	定位销	2 PCS	C
E02-05	气缸头套件	1 SET	C
E02-06	凸轮轴支架组合	1 PCS	A
E02-07	内六角螺钉	4 PCS	C
E02-08	平垫圈	4 PCS	C
E02-09	六角头法兰面螺栓	2 PCS	C
E02-10	发动机传感器	1 PCS	C
E02-11	气缸头密封垫	1 PCS	A
E02-12	定位销	2 PCS	C
E02-13	平垫圈	4 PCS	C
E02-14	油管支承	1 PCS	C
E02-15	油管	1 PCS	B
E02-16	六角头法兰面螺栓	2 PCS	C
E02-17	六角头法兰面螺栓	2 PCS	C
E02-18	管接头	1 PCS	C
E02-19	密封圈	1 PCS	A
E02-20	火花塞	1 PCS	A
E02-21	气门导管挡圈	4 PCS	C
E02-22	气门导管	4 PCS	B
E02-23	密封圈	1 PCS	A
E02-24	气缸头侧面螺栓	1 PCS	C
E02-25	内六角螺钉	1 PCS	C
E02-26	密封圈	1 PCS	A

Assembly diagrams

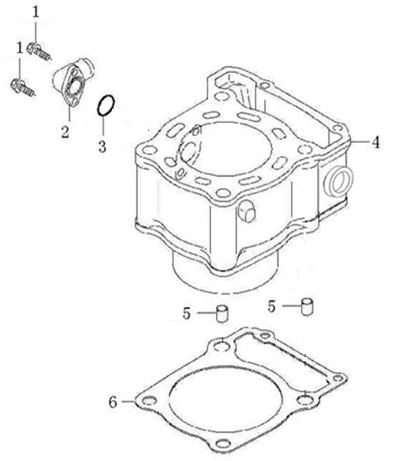

E-3 E-3 气缸体 (Cylinder Parts) - diagram 1

E-3 E-3 气缸体 (Cylinder Parts) - diagram 2

E-3 E-3 气缸体 (Cylinder Parts) - diagram 3

E-3 E-3 气缸体 (Cylinder Parts) - diagram 4

E-3 E-3 气缸体 (Cylinder Parts) - diagram 5

E-3 E-3 气缸体 (Cylinder Parts) - diagram 6

Ref	Part Name	Qty	Grade
E03-01	六角头法兰面螺栓	2 PCS	C
E03-02	管接头	1 PCS	C
E03-03	密封圈	1 PCS	A
E03-04	气缸体	1 PCS	B
E03-05	定位销	2 PCS	C
E03-06	气缸体密封垫	1 PCS	A

Assembly diagrams

Ref	Part Name	Qty	Grade
E04-01	挺柱	4 PCS	B
E04-02	气门调整垫片	4 PCS	A
E04-02A	气门调整垫片套件	1	-

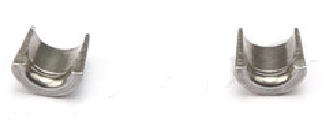

E04-03	气门锁夹	8 PCS	C
E04-04	气门弹簧座	4 PCS	C
E04-05	气门内弹簧	4 PCS	C
E04-06	气门外弹簧	4 PCS	C
E04-07	挡油罩	4 PCS	A
E04-08	气门内弹簧座圈	4 PCS	C
E04-09	排气门	2 PCS	A
E04-10	进气门	2 PCS	A
E04-11	正时链条压板	1 PCS	C
E04-12	六角头螺栓	4 PCS	C
E04-13	正时从动链轮	2 PCS	B
E04-14	凸轮轴组合	1 SET	B
E04-15	凸轮轴	1 PCS	B
E04-16	正时链条	1 PCS	A
E04-17	链条导向板	1 PCS	B
E04-18	链条导向板压板	1 PCS	A
E04-19	六角头法兰面螺栓	1 PCS	C
E04-20	链条调节板	1 PCS	B
E04-21	链条调节板销轴	1 PCS	C
E04-22	密封圈	1 PCS	A
E04-23	张紧器组合	1 PCS	B
E04-24	六角头法兰面螺栓	2 PCS	C
E04-25	压簧	1 PCS	B
E04-26	平垫圈	1 PCS	C
E04-27	密封圈	1 PCS	A
E04-28	张紧器螺栓	1 PCS	A
E04-29	气门弹簧组合	1 PCS	C
E04-30	密封圈	1 PCS	A
E04-31	张紧器螺栓	1 PCS	A
E04-32	压簧	1 PCS	B

Assembly diagrams

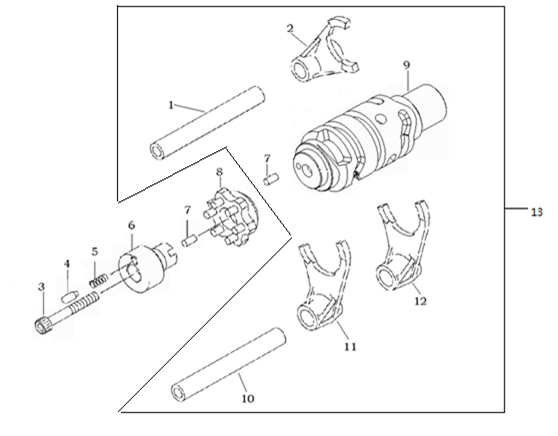

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 1

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 2

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 3

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 4

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 5

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 6

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 7

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 8

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 9

Ref	Part Name	Qty	Grade
E05-01	拨叉轴	1 PCS	C
E05-02	拨叉	1 PCS	C
E05-03	内六角螺钉	1 PCS	C
E05-04	档显开关动触头	1 PCS	C
E05-05	压簧	1 PCS	B
E05-06	档位触板	1 PCS	C
E05-07	定位销	2 PCS	C
E05-08	五星拨板	1 PCS	C
E05-09	变速鼓	1 PCS	C
E05-10	拨叉轴	1 PCS	C
E05-11	拨叉	1 PCS	C
E05-12	拨叉	1 PCS	C
E05-13	变速鼓部件	1 SET	C

Assembly diagrams

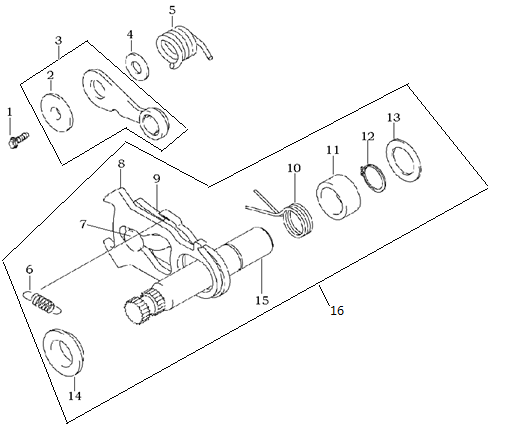

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 1

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 2

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 3

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 4

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 5

Ref	Part Name	Qty	Grade
E06-01	六角头法兰面螺栓	1 PCS	C
E06-02	衬套	1 PCS	C
E06-03	止动板组合	1 PCS	C
E06-04	平垫圈	1 PCS	C
E06-05	扭簧	1 PCS	B
E06-06	拉簧	1 PCS	B
E06-07	换档限位销	1 PCS	C
E06-08	换档拨板	1 PCS	C
E06-09	换档限位板	1 PCS	C
E06-10	扭簧	1 PCS	B
E06-11	衬套	1 PCS	C
E06-12	弹性挡圈	1 PCS	B
E06-13	平垫圈	1 PCS	C
E06-14	衬套	1 PCS	C
E06-15	换档轴	1 PCS	C
E06-16	换档臂部件	1 SET	B

Assembly diagrams

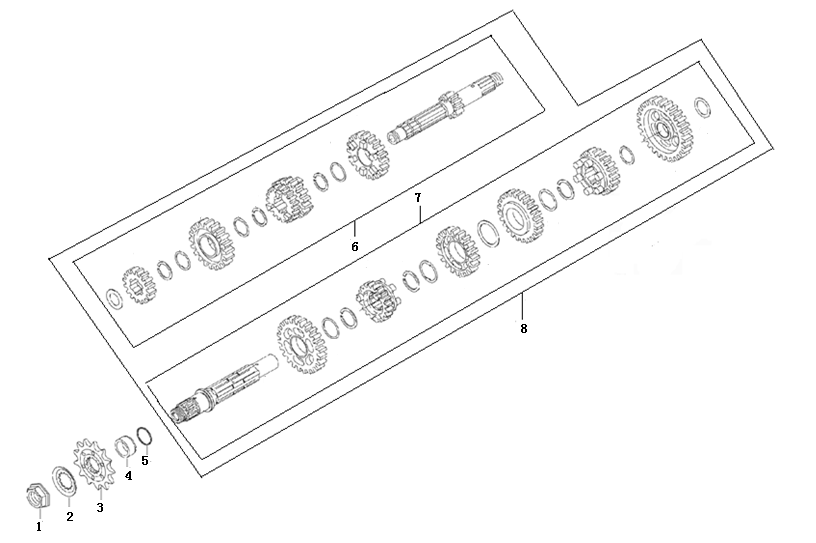

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 1

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 2

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 3

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 4

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 5

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 6

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 7

Ref	Part Name	Qty	Grade
E07-01	副轴主动轮锁紧螺母	1 PCS	A
E07-02	链轮锁紧垫圈	1 PCS	A
E07-03	副轴主动链轮	1 PCS	A
E07-04	衬套	1 PCS	C
E07-05	密封圈	1 PCS	A
E07-06	主轴部件	1 SET	B
E07-07	副轴部件	1 SET	B
E07-08	主副轴套件	1 SET	B

Assembly diagrams

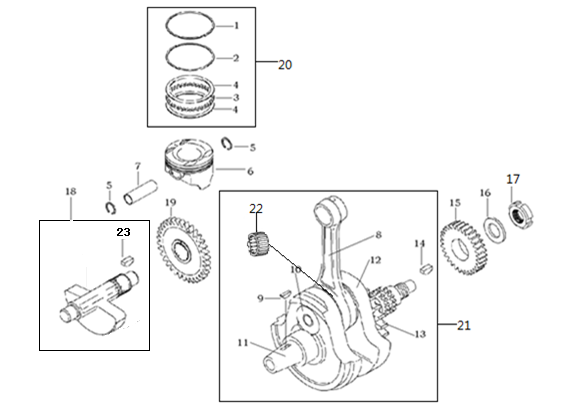

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 1

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 2

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 3

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 4

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 5

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 6

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 7

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 8

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 9

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 10

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 11

Ref	Part Name	Qty	Grade
E08-01	一环	1 PCS	C
E08-02	二环	1 PCS	C
E08-03	衬环	1 PCS	C
E08-04	刮片环	2 PCS	C
E08-05	钢丝挡圈	2 PCS	C
E08-06	活塞	1 PCS	A
E08-07	活塞销	1 PCS	B
E08-08	连杆	1 PCS	C
E08-09	键	1 PCS	C
E08-10	曲柄销	1 PCS	C
E08-11	左曲柄	1 PCS	C
E08-12	右曲柄	1 PCS	C
E08-13	平衡轴主动齿轮	1 PCS	C
E08-14	键	1 PCS	C
E08-15	初级主动齿轮	1 PCS	B
E08-16	碟形垫圈	1 PCS	C
E08-17	圆螺母	1 PCS	C
E08-18	平衡轴	1 PCS	C
E08-19	平衡轴从动齿轮组合	1 PCS	C
E08-20	活塞环组合	1 SET	A
E08-21	曲柄连杆部件	1 SET	C
E08-22	轴承	1 PCS	A
E08-23	键	1 PCS	C

Assembly diagrams

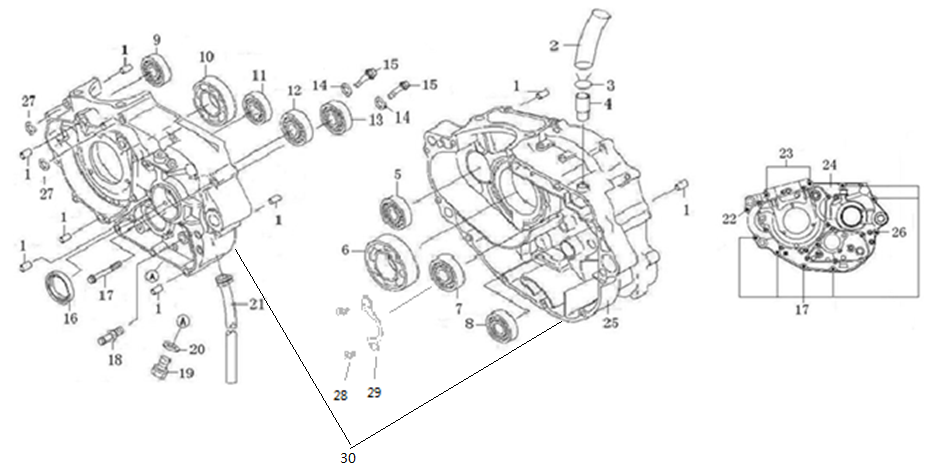

E-9 E-9 箱体组件（Crankcase Comp） - diagram 1

E-9 E-9 箱体组件（Crankcase Comp） - diagram 2

E-9 E-9 箱体组件（Crankcase Comp） - diagram 3

E-9 E-9 箱体组件（Crankcase Comp） - diagram 4

E-9 E-9 箱体组件（Crankcase Comp） - diagram 5

E-9 E-9 箱体组件（Crankcase Comp） - diagram 6

E-9 E-9 箱体组件（Crankcase Comp） - diagram 7

E-9 E-9 箱体组件（Crankcase Comp） - diagram 8

E-9 E-9 箱体组件（Crankcase Comp） - diagram 9

E-9 E-9 箱体组件（Crankcase Comp） - diagram 10

E-9 E-9 箱体组件（Crankcase Comp） - diagram 11

E-9 E-9 箱体组件（Crankcase Comp） - diagram 12

E-9 E-9 箱体组件（Crankcase Comp） - diagram 13

E-9 E-9 箱体组件（Crankcase Comp） - diagram 14

E-9 E-9 箱体组件（Crankcase Comp） - diagram 15

E-9 E-9 箱体组件（Crankcase Comp） - diagram 16

E-9 E-9 箱体组件（Crankcase Comp） - diagram 17

E-9 E-9 箱体组件（Crankcase Comp） - diagram 18

Ref	Part Name	Qty	Grade
E09-01	定位销	8 PCS	C
E09-02	通气管	1 PCS	B
E09-03	管夹	1 PCS	C
E09-04	管接头	1 PCS	C
E09-05	轴承	1 PCS	A
E09-06	轴承	1 PCS	A
E09-07	轴承	1 PCS	A
E09-08	轴承	1 PCS	A
E09-09	轴承	1 PCS	A
E09-10	轴承	1 PCS	A
E09-11	轴承	1 PCS	A
E09-12	轴承	1 PCS	A
E09-13	轴承	1 PCS	A
E09-14	平垫圈	2 PCS	A
E09-15	六角头法兰面螺栓	2 PCS	C
E09-16	油封	1 PCS	A
E09-17	六角头法兰面螺栓	6 PCS	C
E09-18	换档臂定位螺栓	1 PCS	C
E09-19	密封螺塞	1 PCS	C
E09-20	平垫圈	1 PCS	C
E09-21	回油管	1 PCS	B
E09-22	六角头法兰面螺栓	1 PCS	C
E09-23	六角头法兰面螺栓	2 PCS	C
E09-24	左曲轴箱体	1 PCS	C
E09-25	右曲轴箱体	1 PCS	C
E09-26	六角头法兰面螺栓	1 PCS	C
E09-27	平垫圈	2 PCS	C
E09-28	十字槽沉头螺钉	2 PCS	C
E09-29	主轴承挡板	1 PCS	C
E09-30	曲轴箱体套件	1 SET	B

Assembly diagrams

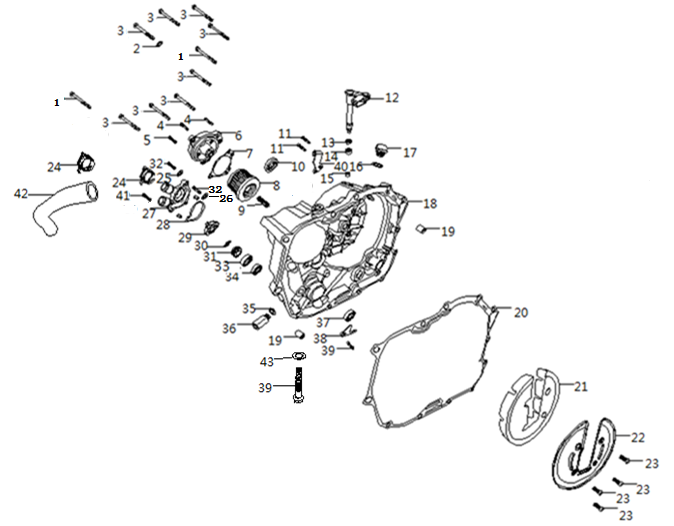

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 1

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 2

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 3

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 4

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 5

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 6

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 7

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 8

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 9

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 10

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 11

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 12

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 13

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 14

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 15

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 16

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 17

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 18

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 19

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 20

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 21

Ref	Part Name	Qty	Grade
E10-01	六角头法兰面螺栓	2 PCS	C
E10-02	平垫圈	1 PCS	C
E10-03	六角头法兰面螺栓	8 PCS	C
E10-04	六角头法兰面螺栓	2 PCS	C
E10-05	六角头法兰面螺栓	1 PCS	C
E10-06	机油精滤器盖	1 PCS	C
E10-07	机油滤清器盖密封垫	1 PCS	A
E10-08	机油精滤器组合	1 SET	C
E10-09	压簧	1 PCS	B
E10-10	机油观察窗	1 PCS	C
E10-11	六角头法兰面螺栓	2 PCS	C
E10-12	离合器操纵杆组合	1 PCS	B
E10-13	油封	1 PCS	A
E10-14	轴承	1 PCS	A
E10-15	轴承	1 PCS	A
E10-16	密封圈	1 PCS	A
E10-17	机油尺	1 PCS	B
E10-18	右曲轴箱盖	1 PCS	C
E10-19	定位销	2 PCS	C
E10-20	右曲轴箱盖密封垫	1 PCS	A
E10-21	减震垫	1 PCS	C
E10-22	减震垫盖板	1 PCS	C
E10-23	十字槽盘头螺钉	4 PCS	C
E10-24	管夹	2 PCS	C
E10-25	平垫圈	1 PCS	C
E10-26	平垫圈	1 PCS	C
E10-27	冷却泵盖	1 PCS	C
E10-28	冷却泵密封垫	1 PCS	A
E10-29	冷却泵叶轮	1 PCS	B
E10-30	冷却泵水封动环	1 PCS	A
E10-31	冷却泵水封静环组合	1 PCS	A
E10-32	六角头法兰面螺栓	2 PCS	C
E10-33	油封	1 PCS	A
E10-34	轴承	1 PCS	A
E10-35	平垫圈	1 PCS	C
E10-36	机油控制阀部件	1 SET	C
E10-37	油封	1 PCS	A
E10-38	曲轴右油封挡板	1 PCS	C
E10-39	六角头法兰面螺栓	2 PCS	C
E10-40	离合器拉筋定位板	1 PCS	C
E10-41	六角头法兰面螺栓	1 PCS	C
E10-42	水管	1 PCS	B
E10-43	平垫圈	1 PCS	C

Assembly diagrams

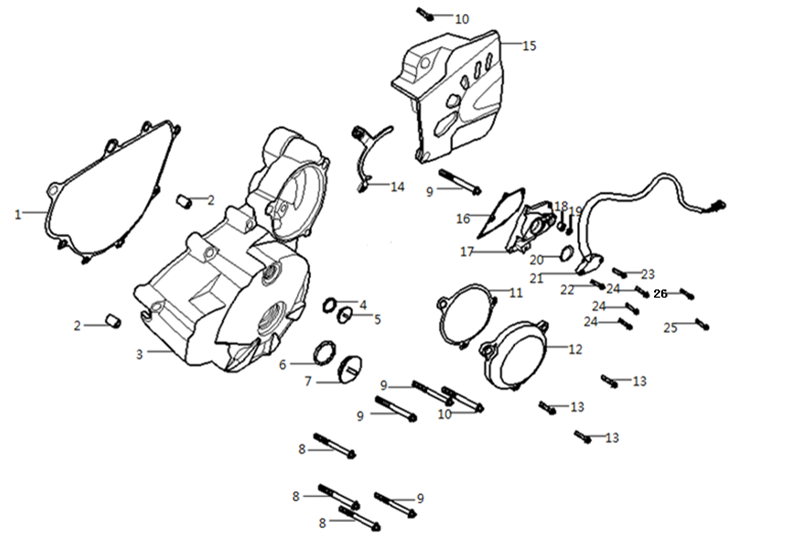

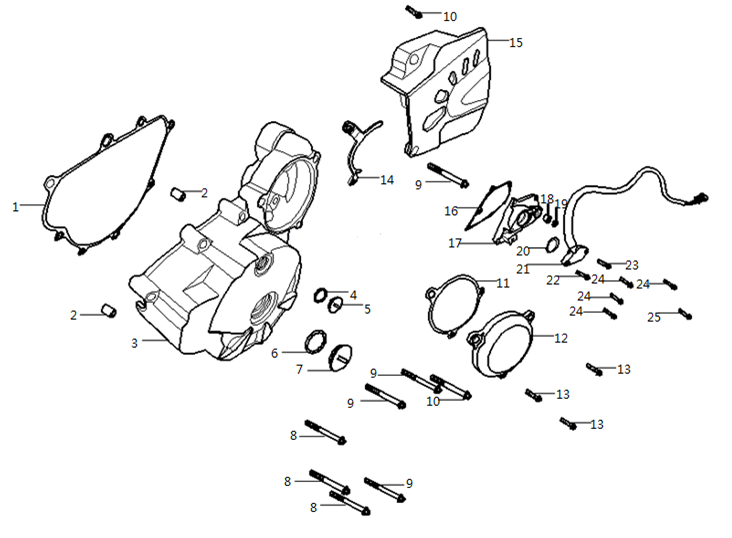

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 1

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 2

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 3

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 4

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 5

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 6

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 7

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 8

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 9

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 10

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 11

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 12

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 13

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 14

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 15

Ref	Part Name	Qty	Grade
E11-01	左前盖密封垫	1 PCS	A
E11-02	定位销	2 PCS	C
E11-03	左前盖	1 PCS	C
E11-04	密封圈	1 PCS	A
E11-05	视孔盖	1 PCS	B
E11-06	密封圈	1 PCS	A
E11-07	左装饰盖	1 PCS	C
E11-08	六角头法兰面螺栓	5 PCS	C
E11-09	六角头法兰面螺栓	2 PCS	C
E11-10	六角头法兰面螺栓	1 PCS	C
E11-11	齿轮室盖密封垫	1 PCS	A
E11-12	齿轮室盖	1 PCS	C
E11-13	六角头法兰面螺栓	3 PCS	C
E11-14	链条挡板	1 PCS	B
E11-15	左后盖	1 PCS	C
E11-16	变速器盖密封垫	1 PCS	A
E11-17	变速器盖	1 PCS	C
E11-18	轴承	1 PCS	A
E11-19	油封	1 PCS	A
E11-20	密封圈	1 PCS	A
E11-21	档显开关部件	1 SET	B
E11-22	六角头法兰面螺栓	1 PCS	C
E11-23	六角头法兰面螺栓	3 PCS	C
E11-24	六角头法兰面螺栓	2 PCS	C
E11-25	六角头法兰面螺栓	1 PCS	C

Assembly diagrams

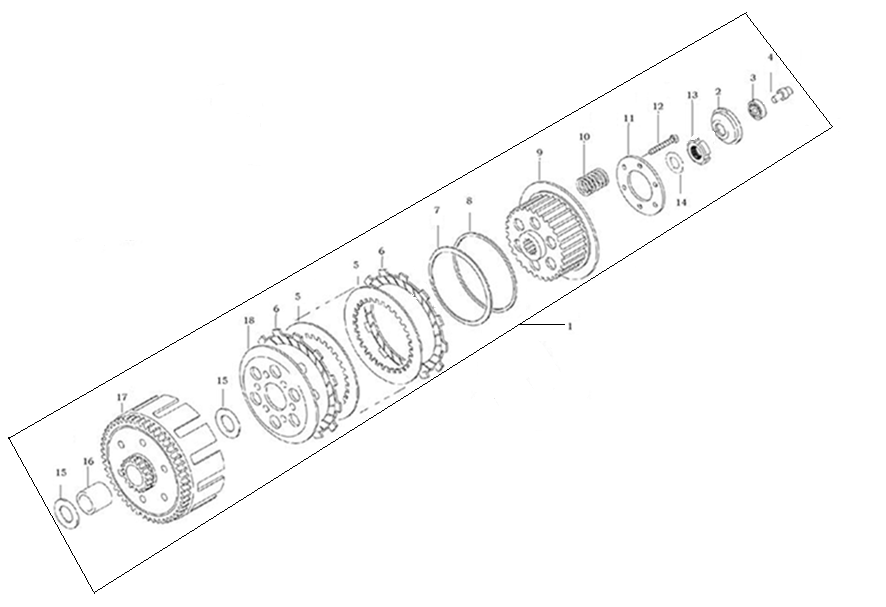

E-12 E-12 离合器组件（Clutch Comp） - diagram 1

E-12 E-12 离合器组件（Clutch Comp） - diagram 2

E-12 E-12 离合器组件（Clutch Comp） - diagram 3

E-12 E-12 离合器组件（Clutch Comp） - diagram 4

E-12 E-12 离合器组件（Clutch Comp） - diagram 5

E-12 E-12 离合器组件（Clutch Comp） - diagram 6

E-12 E-12 离合器组件（Clutch Comp） - diagram 7

E-12 E-12 离合器组件（Clutch Comp） - diagram 8

Ref	Part Name	Qty	Grade
E12-01	离合器套件	1 SET	B
E12-02	推盘	1 PCS	C
E12-03	轴承	1 PCS	A
E12-04	推杆	1 PCS	C
E12-05	从动摩擦片	6 PCS	A
E12-06	主动摩擦片	7 PCS	A
E12-07	蝶形垫圈	1 PCS	C
E12-08	平垫圈	1 PCS	C
E12-09	离合器中心套组合	1 PCS	C
E12-10	离合器主弹簧	6 PCS	B
E12-11	升板	1 PCS	B
E12-12	六角头螺栓	6 PCS	C
E12-13	圆螺母	1 PCS	C
E12-14	碟形垫圈	1 PCS	C
E12-15	平垫圈	2 PCS	C
E12-16	衬套	1 PCS	C
E12-17	离合器外罩组合	1 PCS	B
E12-18	压板	1 PCS	B

Assembly diagrams

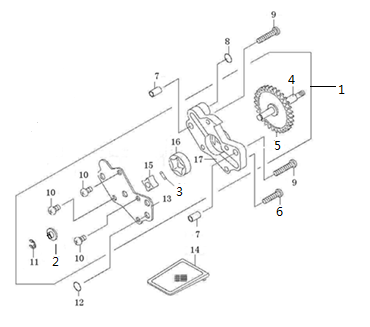

E-13 E-13 润滑机构（lubrication ） - diagram 1

E-13 E-13 润滑机构（lubrication ） - diagram 2

E-13 E-13 润滑机构（lubrication ） - diagram 3

Ref	Part Name	Qty	Grade
E13-1	机油泵部件	1 SET	C
E13-2	平垫圈	1 PCS	C
E13-3	定位销	1 PCS	C
E13-4	油泵传动轴	1 PCS	C
E13-5	油泵主动轮	1 PCS	C
E13-6	十字槽盘头螺钉	1 PCS	C
E13-7	定位销	2 PCS	C
E13-8	密封圈	1 PCS	A
E13-9	十字槽盘头螺钉	2 PCS	C
E13-10	十字槽盘头螺钉	3 PCS	C
E13-11	开口挡圈	1 PCS	C
E13-12	密封圈	1 PCS	A
E13-13	油泵盖	1 PCS	C
E13-14	机油滤网	1 PCS	A
E13-15	内转子	1 PCS	C
E13-16	外转子	1 PCS	C
E13-17	油泵座体	1 PCS	C

Assembly diagram

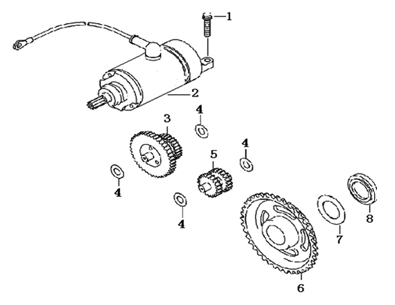

E-14 E-14 电起动部件（Starting Motor） - diagram 1

Ref	Part Name	Qty	Grade
E14-01	六角头法兰面螺栓	2 PCS	C
E14-02	起动电机组件	1 SET	B
E14-03	电起动双联齿轮	1 PCS	C
E14-04	平垫圈	4 PCS	C
E14-05	电起动过桥齿轮	1 PCS	C
E14-06	盘形齿轮	1 PCS	C
E14-07	平垫圈	1 PCS	C
E14-08	衬套	1 PCS	C

Assembly diagrams

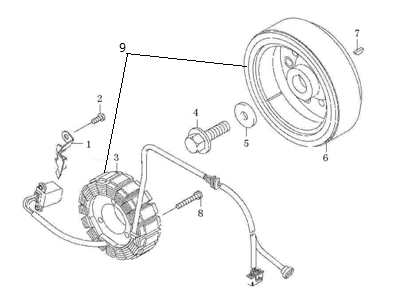

E-15 E-15 磁电机组件（Magneto Assy） - diagram 1

E-15 E-15 磁电机组件（Magneto Assy） - diagram 2

Ref	Part Name	Qty	Grade
E15-01	压线板	1 PCS	C
E15-02	六角头法兰面螺栓	2 PCS	C
E15-03	磁电机锭子部件	1 SET	B
E15-04	六角头法兰面螺栓	1 PCS	C
E15-05	平垫圈	1 PCS	C
E15-06	磁电机转子部件	1 SET	C
E15-07	键	1 PCS	C
E15-08	六角头法兰面螺栓	3 PCS	C
E15-09	磁电机组件	1 SET	B

YF300

Ref	Part Name	Part Number	Qty	Grade	Notes
E1	ENGINE		1 SET	C

Assembly diagrams

E-1 E-1 ( Cylinder Head Cover Parts） - diagram 1

E-1 E-1 ( Cylinder Head Cover Parts） - diagram 2

E-1 E-1 ( Cylinder Head Cover Parts） - diagram 3

E-1 E-1 ( Cylinder Head Cover Parts） - diagram 4

Ref	Part Name	Qty	Grade
E01-01	BOLT,CYLINDER HEAD COVER	3 PCS	C
E01-02	RING,SEAL	3 PCS	A
E01-03	COVER COMP.,CYLINDER HEAD	1 PCS	C
E01-04	GASKET,CYLINDER HEAD COVER	1 PCS	A

Assembly diagrams

E-2 E-2 （ Cylinder Head Parts） - diagram 1

E-2 E-2 （ Cylinder Head Parts） - diagram 2

E-2 E-2 （ Cylinder Head Parts） - diagram 3

E-2 E-2 （ Cylinder Head Parts） - diagram 4

E-2 E-2 （ Cylinder Head Parts） - diagram 5

E-2 E-2 （ Cylinder Head Parts） - diagram 6

E-2 E-2 （ Cylinder Head Parts） - diagram 7

E-2 E-2 （ Cylinder Head Parts） - diagram 8

E-2 E-2 （ Cylinder Head Parts） - diagram 9

E-2 E-2 （ Cylinder Head Parts） - diagram 10

E-2 E-2 （ Cylinder Head Parts） - diagram 11

E-2 E-2 （ Cylinder Head Parts） - diagram 12

E-2 E-2 （ Cylinder Head Parts） - diagram 13

E-2 E-2 （ Cylinder Head Parts） - diagram 14

E-2 E-2 （ Cylinder Head Parts） - diagram 15

E-2 E-2 （ Cylinder Head Parts） - diagram 16

E-2 E-2 （ Cylinder Head Parts） - diagram 17

Ref	Part Name	Qty	Grade
E02-01	double-Bolt	2 PCS	C
E02-02	Bolt	6 PCS	C
E02-03	Bolt	2 PCS	C
E02-04	Dowel Pin	2 PCS	C
E02-05	CYLINDER HEAD KIT	1 SET	C
E02-06	Supporting Bracket	1 PCS	A

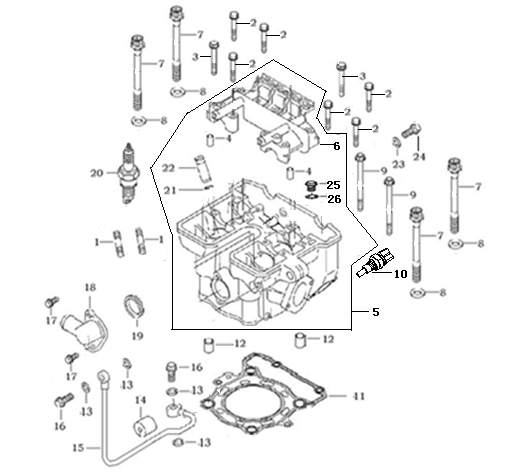

E02-07	Torx Bolt	4 PCS	C
E02-08	Washer	4 PCS	C
E02-09	Bolt	2 PCS	C
E02-10	Engine sensors	1 PCS	C
E02-11	Cylinder Head Gasket	1 PCS	A
E02-12	Dowel Pin	2 PCS	C
E02-13	Washer	4 PCS	C
E02-14	Tube Bearing	1 PCS	C
E02-15	Oil Tube	1 PCS	B
E02-16	Bolt	2 PCS	C
E02-17	Bolt	2 PCS	C
E02-18	Tube tie-in	1 PCS	C
E02-19	O-Ring	1 PCS	A
E02-20	Spark plug	1 PCS	A
E02-21	Guide Ring	4 PCS	C
E02-22	Guide,Intake Valve	4 PCS	B
E02-23	O-Ring	1 PCS	A
E02-24	Bolt	1 PCS	C
E02-25	SCREW,HEXAGON SOCKET	1 PCS	C
E02-26	RING,SEAL	1 PCS	A

Assembly diagrams

Ref	Part Name	Qty	Grade
E03-01	Bolt	2 PCS	C
E03-02	Tube tie-in	1 PCS	C
E03-03	O-ring	1 PCS	A
E03-04	Cylinder	1 PCS	B
E03-05	Dowel Pin	2 PCS	C
E03-06	Cylinder Gasket	1 PCS	A

Assembly diagrams

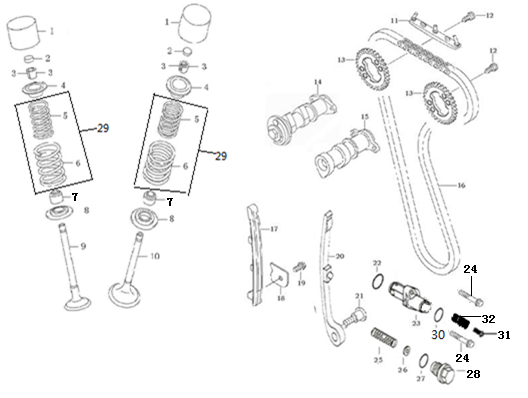

Ref	Part Name	Qty	Grade
E04-01	Lifter	4 PCS	B
E04-02	Valve Adjust Spacer	4 PCS	A
E04-02A	ADJUSTING SHIM,VALVE KIT	1	-
E04-03	Valve Collet	8 PCS	C
E04-04	Valve Spring Plate	4 PCS	C
E04-05	Inner Spring	4 PCS	C
E04-06	Outer Spring	4 PCS	C
E04-07	Valve Oil Ring	4 PCS	A
E04-08	Valve Spring Seat	4 PCS	C
E04-09	Exhaust Valve	2 PCS	A
E04-10	Intake Valve	2 PCS	A
E04-11	platen,Timing Chain	1 PCS	C
E04-12	Bolt	4 PCS	C
E04-13	Timing Camshaft Sproket	2 PCS	B
E04-14	Camshaft	1 SET	B
E04-15	Camshaft	1 PCS	B
E04-16	Timing Chain	1 PCS	A
E04-17	Guide Rall	1 PCS	B
E04-18	platen,Guide Rall	1 PCS	A
E04-19	Bolt	1 PCS	C
E04-20	Bow	1 PCS	B
E04-21	forelock,Bow	1 PCS	C
E04-22	O-ring	1 PCS	A
E04-23	Tensioner Assembly	1 PCS	B
E04-24	Bolt	2 PCS	C
E04-25	Spring	1 PCS	B
E04-26	Washer	1 PCS	C
E04-27	O-ring	1 PCS	A
E04-28	Tensioner Bolt	1 PCS	A
E04-29	SPRING SET,VALVE	1 PCS	C
E04-30	O-ring	1 PCS	A
E04-31	BOLT,TENSIONER	1 PCS	A
E04-32	SPRING,COMPRESSION	1 PCS	B

Assembly diagrams

Ref	Part Name	Qty	Grade
E05-01	Fork ShaftⅠ	1 PCS	C
E05-02	Fork Ⅱ	1 PCS	C
E05-03	Bolt	1 PCS	C
E05-04	Pin	1 PCS	C
E05-05	SPRING,COMPRE	1 PCS	B
E05-06	Touch Board	1 PCS	C
E05-07	Pin	2 PCS	C
E05-08	Holder,Change Drum	1 PCS	C
E05-09	Shaft Drum	1 PCS	C
E05-10	Fork ShaftⅡ	1 PCS	C
E05-11	Fork Ⅲ	1 PCS	C
E05-12	Fork Ⅰ	1 PCS	C
E05-13	DRUM COMP.,GEAR SHIFT	1 SET	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E06-01	Bolt	1 PCS	C
E06-02	Sleeve	1 PCS	C
E06-03	Stopper	1 PCS	C
E06-04	Washer	1 PCS	C
E06-05	Spring	1 PCS	B
E06-06	Spring	1 PCS	B
E06-07	Gear Change Limit Pin	1 PCS	C
E06-08	Gear Change Plate	1 PCS	C
E06-09	Gear Change Limit Plate	1 PCS	C
E06-10	Spring	1 PCS	B
E06-11	Sleeve	1 PCS	C
E06-12	Circlip	1 PCS	B
E06-13	Washer	1 PCS	C
E06-14	Sleeve	1 PCS	C
E06-15	Gear Shift	1 PCS	C
E06-16	ARM COMP.,GEAR CHANGE	1 SET	B

Assembly diagrams

E-7 E-7 (Transmission Shaft Comp) - diagram 1

E-7 E-7 (Transmission Shaft Comp) - diagram 2

E-7 E-7 (Transmission Shaft Comp) - diagram 3

E-7 E-7 (Transmission Shaft Comp) - diagram 4

E-7 E-7 (Transmission Shaft Comp) - diagram 5

E-7 E-7 (Transmission Shaft Comp) - diagram 6

E-7 E-7 (Transmission Shaft Comp) - diagram 7

Ref	Part Name	Qty	Grade
E07-01	Nut	1 PCS	A
E07-02	Washer	1 PCS	A
E07-03	Driving Sprocket	1 PCS	A
E07-04	Bush	1 PCS	C
E07-05	O-Ring	1 PCS	A
E07-06	MAINSHAFT COMP.	1 SET	B
E07-07	COUNTERSHAFT COMP.	1 SET	B
E07-08	MAINSHAFT&COUNTERSHAFT KIT	1 SET	B

Assembly diagrams

Ref	Part Name	Qty	Grade
E08-01	Piston Ring 1	1 PCS	C
E08-02	Piston Ring 2	1 PCS	C
E08-03	Line Ring	1 PCS	C
E08-04	shaving Ring	2 PCS	C
E08-05	Circlip Piston Pin	2 PCS	C
E08-06	Piston	1 PCS	A
E08-07	Piston Pin	1 PCS	B
E08-08	Rod Connecting	1 PCS	C
E08-09	Key	1 PCS	C
E08-10	Pin Crank	1 PCS	C
E08-11	L Crankshaft	1 PCS	C
E08-12	R Crangshaft	1 PCS	C
E08-13	Driven Gear Balancer Shaft	1 PCS	C
E08-14	Key	1 PCS	C
E08-15	Gear Primary Clvive	1 PCS	B
E08-16	Washer	1 PCS	C
E08-17	Nut	1 PCS	C
E08-18	Shaft Balancer	1 PCS	C
E08-19	Gear Balancer Shaft	1 PCS	C
E08-20	RING SET,PISTON	1 SET	A
E08-21	CRANKSHAFT COMP.	1 SET	C
E08-22	BEARING	1 PCS	A
E08-23	KEY	1 PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E09-01	Pin	8 PCS	C
E09-02	Pipe,aerate	1 PCS	B
E09-03	Pipe Nip	1 PCS	C
E09-04	Terminal Breather Hose	1 PCS	C
E09-05	BEARING	1 PCS	A
E09-06	BEARING	1 PCS	A
E09-07	BEARING	1 PCS	A
E09-08	BEARING	1 PCS	A
E09-09	BEARING	1 PCS	A
E09-10	BEARING	1 PCS	A
E09-11	BEARING	1 PCS	A
E09-12	BEARING	1 PCS	A
E09-13	BEARING	1 PCS	A
E09-14	Washer	2 PCS	A
E09-15	Bolt	2 PCS	C
E09-16	Oil Seal	1 PCS	A
E09-17	Bolt	6 PCS	C
E09-18	Bolt	1 PCS	C
E09-19	Plug Oil Drain	1 PCS	C
E09-20	Washer	1 PCS	C
E09-21	Oil Pipe	1 PCS	B
E09-22	Bolt	1 PCS	C
E09-23	Bolt	2 PCS	C
E09-24	BODY SET,LEFT CRANKCASE	1 PCS	C
E09-25	BODY SET,RIGHT CRANKCASE	1 PCS	C
E09-26	Bolt	1 PCS	C
E09-27	Washer	2 PCS	C
E09-28	SCREW,CROSS RECESSED COUNTERSUNK HEAD	2 PCS	C
E09-29	Baffle	1 PCS	C
E09-30	CRANKCASE KIT	1 SET	B

Assembly diagrams

E-10 E-10 （R-Crankcase Cover） - diagram 1

E-10 E-10 （R-Crankcase Cover） - diagram 2

E-10 E-10 （R-Crankcase Cover） - diagram 3

E-10 E-10 （R-Crankcase Cover） - diagram 4

E-10 E-10 （R-Crankcase Cover） - diagram 5

E-10 E-10 （R-Crankcase Cover） - diagram 6

E-10 E-10 （R-Crankcase Cover） - diagram 7

E-10 E-10 （R-Crankcase Cover） - diagram 8

E-10 E-10 （R-Crankcase Cover） - diagram 9

E-10 E-10 （R-Crankcase Cover） - diagram 10

E-10 E-10 （R-Crankcase Cover） - diagram 11

E-10 E-10 （R-Crankcase Cover） - diagram 12

E-10 E-10 （R-Crankcase Cover） - diagram 13

E-10 E-10 （R-Crankcase Cover） - diagram 14

E-10 E-10 （R-Crankcase Cover） - diagram 15

E-10 E-10 （R-Crankcase Cover） - diagram 16

E-10 E-10 （R-Crankcase Cover） - diagram 17

E-10 E-10 （R-Crankcase Cover） - diagram 18

E-10 E-10 （R-Crankcase Cover） - diagram 19

E-10 E-10 （R-Crankcase Cover） - diagram 20

E-10 E-10 （R-Crankcase Cover） - diagram 21

Ref	Part Name	Qty	Grade
E10-01	BOLT,HEXAGON FLANGE	2 PCS	C
E10-02	WASHER,PLAIN	1 PCS	C
E10-03	BOLT,HEXAGON FLANGE	8 PCS	C
E10-04	BOLT,HEXAGON FLANGE	2 PCS	C
E10-05	BOLT,HEXAGON FLANGE	1 PCS	C
E10-06	CAP,SECONDARY OIL FILTER	1 PCS	C
E10-07	GASKET,OIL FILTER CAP	1 PCS	A
E10-08	OIL FILTER ASSY.,SECONDARY	1 SET	C
E10-09	SPRING,COMPRESSION	1 PCS	B
E10-10	SIGHT GLASS,OIL	1 PCS	C
E10-11	BOLT,HEXAGON FLANGE	2 PCS	C
E10-12	JOYSTICK ASSY.,CLUTCH	1 PCS	B
E10-13	OIL SEAL	1 PCS	A
E10-14	BEARING	1 PCS	A
E10-15	BEARING	1 PCS	A
E10-16	RING,SEAL	1 PCS	A
E10-17	GAUGE COMP.,OIL LEVEL	1 PCS	B
E10-18	COVER COMP.,RIGHT CRANKCASE	1 PCS	C
E10-19	PIN,DOWEL	2 PCS	C
E10-20	GASKET,RIGHT CRANKCASE COVER	1 PCS	A
E10-21	PAD,CUSHION	1 PCS	C
E10-22	COVER,CUSHION PAD	1 PCS	C
E10-23	SCREW,CROSS RECESSED PAN	4 PCS	C
E10-24	CLAMP,TUBE	2 PCS	C
E10-25	WASHER,PLAIN	1 PCS	C
E10-26	WASHER,PLAIN	1 PCS	C
E10-27	CAP,COOLING PUMP	1 PCS	C
E10-28	GASKET,COOLING PUMP	1 PCS	A
E10-29	IMPELLER,COOLING PUMP	1 PCS	B
E10-30	HYDROSEAL MOVING RING,COOLING PUMP	1 PCS	A
E10-31	HYDROSEAL STATIONARY ELEMENT COMP.,COOLING PUMP	1 PCS	A
E10-32	BOLT,HEXAGON FLANGE	2 PCS	C
E10-33	OIL SEAL	1 PCS	A
E10-34	BEARING	1 PCS	A
E10-35	Washer	1 PCS	C
E10-36	VALVE COMP.,OIL CONTROL	1 SET	C
E10-37	OIL SEAL	1 PCS	A
E10-38	PANEL,CRANKSHAFT RIGHT OIL SEAL	1 PCS	C
E10-39	BOLT,HEXAGON FLANGE	2 PCS	C
E10-40	PLATE,CLUTCH CABLE LOCATING	1 PCS	C
E10-41	BOLT,HEXAGON FLANGE	1 PCS	C
E10-42	TUBE,WATER	1 PCS	B
E10-43	WASHER,PLAIN	1 PCS	C

Assembly diagrams

E-11 E-11 （L-Crankcase Cover） - diagram 1

E-11 E-11 （L-Crankcase Cover） - diagram 2

E-11 E-11 （L-Crankcase Cover） - diagram 3

E-11 E-11 （L-Crankcase Cover） - diagram 4

E-11 E-11 （L-Crankcase Cover） - diagram 5

E-11 E-11 （L-Crankcase Cover） - diagram 6

E-11 E-11 （L-Crankcase Cover） - diagram 7

E-11 E-11 （L-Crankcase Cover） - diagram 8

E-11 E-11 （L-Crankcase Cover） - diagram 9

E-11 E-11 （L-Crankcase Cover） - diagram 10

E-11 E-11 （L-Crankcase Cover） - diagram 11

E-11 E-11 （L-Crankcase Cover） - diagram 12

E-11 E-11 （L-Crankcase Cover） - diagram 13

E-11 E-11 （L-Crankcase Cover） - diagram 14

E-11 E-11 （L-Crankcase Cover） - diagram 15

Ref	Part Name	Qty	Grade
E11-01	GASKET,LEFT FRONT COVER	1 PCS	A
E11-02	PIN,DOWEL	2 PCS	C
E11-03	COVER COMP.,LEFT FRONT	1 PCS	C
E11-04	RING,SEAL	1 PCS	A
E11-05	COVER,INSPECTION	1 PCS	B
E11-06	RING,SEAL	1 PCS	A
E11-07	COVER,LEFT DECORATING	1 PCS	C
E11-08	BOLT,HEXAGON FLANGE	5 PCS	C
E11-09	BOLT,HEXAGON FLANGE	2 PCS	C
E11-10	BOLT,HEXAGON FLANGE	1 PCS	C
E11-11	GASKET,GEAR CHAMBER	1 PCS	A
E11-12	COVER,GEAR CHAMBER	1 PCS	C
E11-13	BOLT,HEXAGON FLANGE	3 PCS	C
E11-14	CHECK PLATE,CHAIN	1 PCS	B
E11-15	COVER COMP.,LEFT REAR	1 PCS	C
E11-16	GASKET,GEARBOX COVER	1 PCS	A
E11-17	COVER,GEARBOX	1 PCS	C
E11-18	BEARING	1 PCS	A
E11-19	OIL SEAL	1 PCS	A
E11-20	RING,SEAL	1 PCS	A
E11-21	SWITCH COMP.,GEAR INDICATOR	1 SET	B
E11-22	BOLT,HEXAGON FLANGE	1 PCS	C
E11-23	BOLT,HEXAGON FLANGE	3 PCS	C
E11-24	BOLT,HEXAGON FLANGE	3 PCS	C
E11-25	BOLT,HEXAGON FLANGE	1 PCS	C
E11-26	SCREW,CROSS RECESSED PAN	1 PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E12-01	CLUTCH KIT	1 SET	B
E12-02	push tray	1 PCS	C
E12-03	Ball Bearing	1 PCS	A
E12-04	Asle Sleeve Separating	1 PCS	C
E12-05	Friction Plate, Driven	6 PCS	A
E12-06	Friction Plate, Drive	7 PCS	A
E12-07	Washer	1 PCS	C
E12-08	Washer	1 PCS	C
E12-09	Center Piece	1 PCS	C
E12-10	Spring	6 PCS	B
E12-11	Clamp Plate	1 PCS	B
E12-12	Bolt	6 PCS	C
E12-13	Nut	1 PCS	C
E12-14	Washer	1 PCS	C
E12-15	Washer	2 PCS	C
E12-16	Bush	1 PCS	C
E12-17	Cover Assy Clutch	1 PCS	B
E12-18	Clamp Plate	1 PCS	B

Assembly diagrams

Ref	Part Name	Qty	Grade
E13-1	PUMP ASSY.,OIL	1 SET	C
E13-2	Washer	1 PCS	C
E13-3	Pin	1 PCS	C
E13-4	Shaft Oil Pump	1 PCS	C
E13-5	Gear，Oil Pump	1 PCS	C
E13-6	Bolt	1 PCS	C
E13-7	Pin	2 PCS	C
E13-8	O-Ring	1 PCS	A
E13-9	Bolt	2 PCS	C
E13-10	Bolt	3 PCS	C
E13-11	Circlip	1 PCS	C
E13-12	O-Ring	1 PCS	A
E13-13	Cover,Oil Pump	1 PCS	C
E13-14	Filter	1 PCS	A
E13-15	Rotor, inner, oil pump	1 PCS	C
E13-16	Rotor, outer, oil pump	1 PCS	C
E13-17	Oil Pump，Body	1 PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade
E14-01	BOLT,HEXAGON FLANGE	2 PCS	C
E14-02	MOTOR ASSY.,STARTING	1 SET	B
E14-03	DUPLEX GEAR,ELECTRIC STARTING	1 PCS	C
E14-04	WASHER,PLAIN	4 PCS	C
E14-05	GEAR IDLE,ELECTRIC STARTING	1 PCS	C
E14-06	DISK GEAR	1 PCS	C
E14-07	WASHER,PLAIN	1 PCS	C
E14-08	COLLAR	1 PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E15-01	Clamp	1 PCS	C
E15-02	Bolt	2 PCS	C
E15-03	Stator set, magneto	1 SET	B
E15-04	Bolt	1 PCS	C
E15-05	Washer	1 PCS	C
E15-06	Rotor set, magneto	1 SET	C
E15-07	Key	1 PCS	C
E15-08	Bolt	3 PCS	C
E15-09	GENERATOR ASSY.	1 SET	B

Wear-grade legend

AA - High wear
BB - Medium wear
CC - Low wear
DD - Not user-serviceable

Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.

F01 RADIATOR SYSTEM

F02 FUEL TANK ASSY

F03 AIR CLEANER ASSY

F04 MUFFLER COMP.,EXHAUST

F05 FRAME ASSY

F06 FRONT FORK ASSY

F07 STEERING SYSTEM

F08 FRONT FENDER SECTION

F09 REAR HANGER SYSTEM

F10 CASE,DRIVE CHAIN

F11 FRONT WHEEL SECTION

F12 REAR WHEEL SECTION

F13 BAR ASSY.,SIDE STAND

F14 FOOTREST SYSTEM

F15 DISC BRAKE

F16 HEAD ASSY

F17 COVER,FUEL TANK DECORATIVE

F18 SEAT ASSY

F19 AIR GUIDE SLEEVE,LEFT LOWER

F20 REAR FENDER SECTION

F21 SIDE COVER

F22 FRAME

F23 WIREHARNESS AND ELETRIC PARTS

F24 TOOLS

F25 Side box & tail box

F26 COLLISION BUMPER COMP

_uncategorized Uncategorized

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts）

E-2 E-2 气缸头（ Cylinder Head Parts）

E-3 E-3 气缸体 (Cylinder Parts)

E-4 E-4 配气机构(Valve Train)

E-5 E-5 变速鼓部件(Varibale Unit )

E-6 E-6 换挡臂部件(Gear Shifting)

E-7 E-7 传动机构(Transmission Shaft Comp)

E-8 E-8 曲柄连杆组件（Crankshaft Comp）

E-9 E-9 箱体组件（Crankcase Comp）

E-10 E-10 右箱盖部件（R-Crankcase Cover）

E-11 E-11 左箱盖部件（L-Crankcase Cover）

E-12 E-12 离合器组件（Clutch Comp）

E-13 E-13 润滑机构（lubrication ）

E-14 E-14 电起动部件（Starting Motor）

E-15 E-15 磁电机组件（Magneto Assy）

_uncategorized Uncategorized

E-1 E-1 ( Cylinder Head Cover Parts）

E-2 E-2 （ Cylinder Head Parts）

E-3 E-3 (Cylinder Parts)

E-4 E-4 (Valve Train)

E-5 E-5 (Varibale Unit )

E-6 E-6 (Gear Shifting)

E-7 E-7 (Transmission Shaft Comp)

E-8 E-8 （Crankshaft Comp）

E-9 E-9 （Crankcase Comp）

E-10 E-10 （R-Crankcase Cover）

E-11 E-11 （L-Crankcase Cover）

E-12 E-12 （Clutch Comp）

E-13 E-13 （lubrication ）

E-14 E-14 （Starting Motor）

E-15 E-15 （Magneto Assy）
