Dual Sport / Adventure

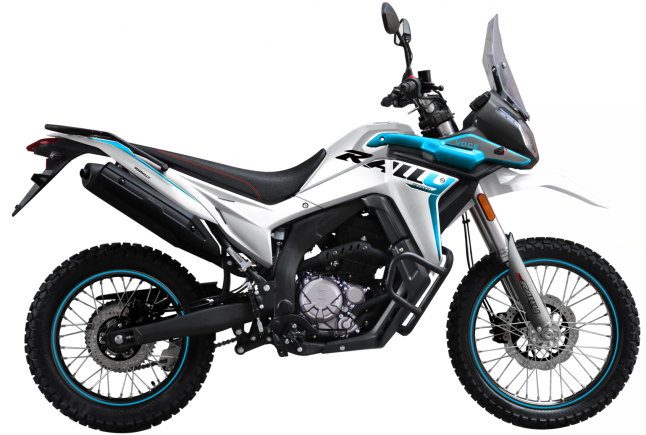

300-RALLY Parts Catalog

794 part numbers across 2 sheets, 380 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.

Search all bikes Download Excel

Showing all 794 parts

LX300GY-GI

Assembly diagrams

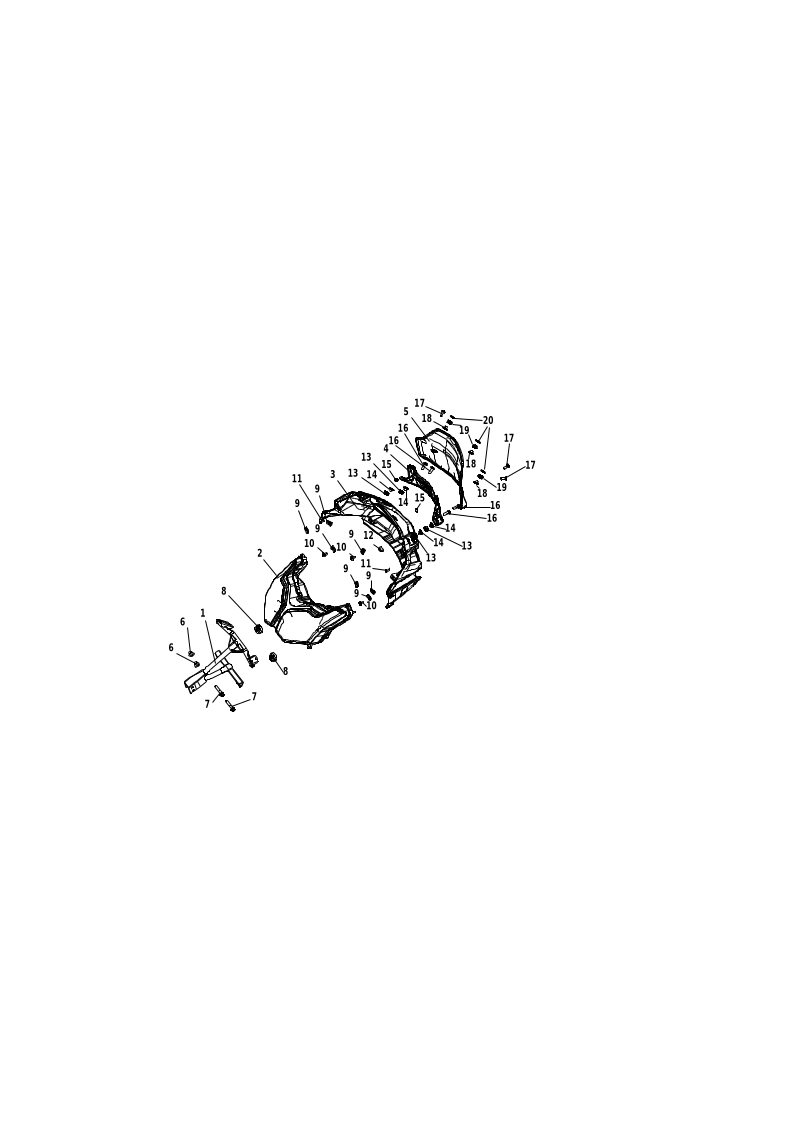

Ref	Part Name	Qty	Grade	Notes
F01-1	BRACKET,HEAD LIGHT	- PCS	C

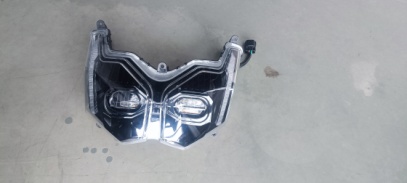

F01-2	HEADLIGHT ASSY.	- PCS	B
F01-3	FAIRING COVER	- PCS	B	Blue model
F01-3	FAIRING COVER	- PCS	B	Black model
F01-4	PLATE,WINDSHIELD CONNECTING	- PCS	B
F01-5	GLASS, WIND SHIELD	- PCS	B
F01-6	CAP-SHAPED NUT	- PCS	C

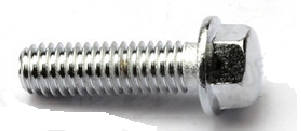

F01-7	BOLT,HEXAGON FLANGE	- PCS	C
F01-8	CUSHION,HEAD LIGHT BRACKET	- PCS	C
F01-9	NUT,CLIP	- PCS	C
F01-10		- PCS	C
F01-11	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F01-12	RUBBER JACKET, DAMPING	- PCS	C
F01-13	I-RUBBER	- PCS	C

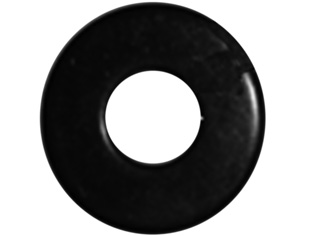

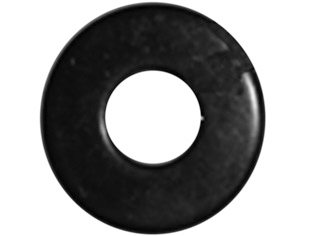

F01-14	WASHER,FLANGE	- PCS	C
F01-15	NUT,HEXAGON FLANGE	- PCS	C
F01-16	SCREW,HEXAGON SOCKET	- PCS	C
F01-17	SCREW,HEXAGON SOCKET	- PCS	C
F01-18	COLLAR	- PCS	C
F01-19	I-RUBBER	- PCS	C
F01-20	WASHER,PLAIN	- PCS	C

Assembly diagram

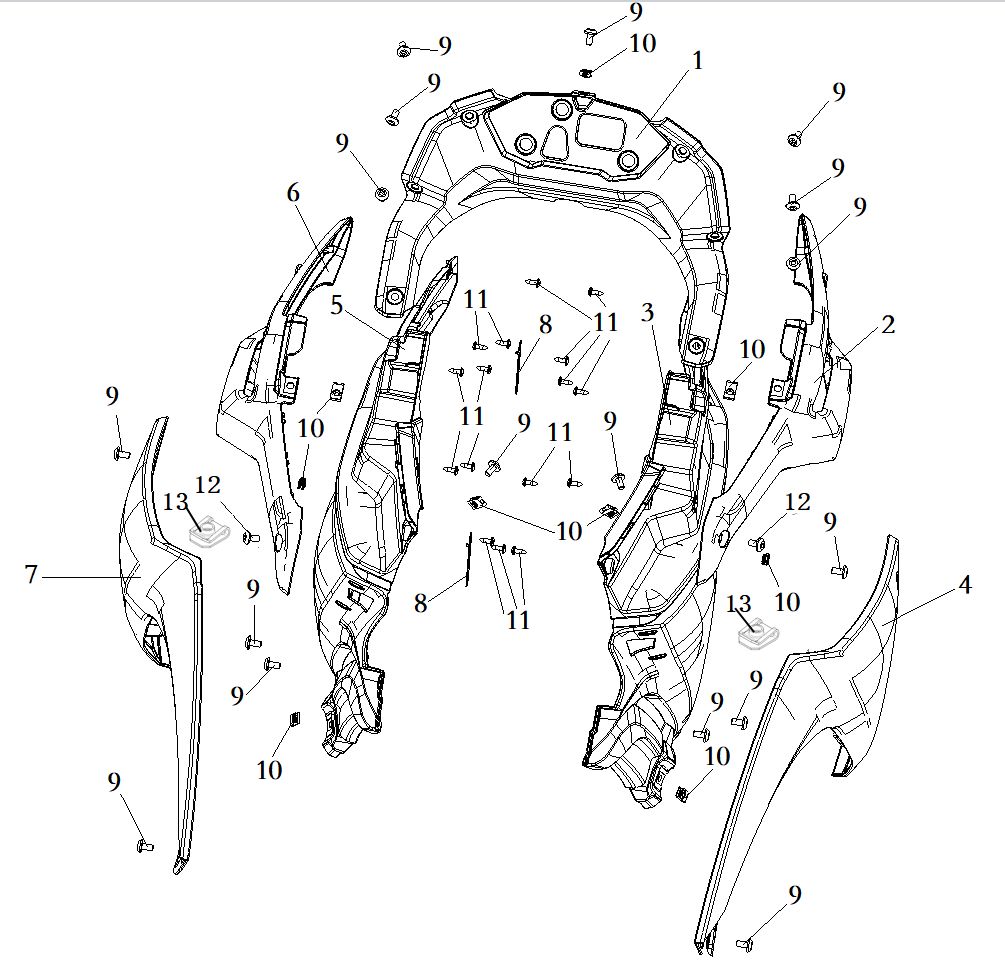

F02 F02 WIND BOARD
HEAD COVERING PARTS - diagram 1

Ref	Part Name	Qty	Grade	Notes
F02-1	CASE COMP.,METER	- PCS	B
F02-2	COVER,RIGHT WIND BOARD DECORATIVE	- PCS	B	Blue model
F02-2	COVER,RIGHT WIND BOARD DECORATIVE	- PCS	B	Black model
F02-3	WIND SHIELD,RIGHT INNER	- PCS	B
F02-4	WIND SHIELD,RIGHT	- PCS	B	Blue model
F02-4	WIND SHIELD,RIGHT	- PCS	B	Black model
F02-5	WIND SHIELD,LEFT INNER	- PCS	B
F02-6	COVER,LEFT WIND BOARD DECORATIVE	- PCS	B	Blue model
F02-6	COVER,LEFT WIND BOARD DECORATIVE	- PCS	B	Black model
F02-7	WIND SHIELD,LEFT	- PCS	B	Blue model
F02-7	WIND SHIELD,LEFT	- PCS	B	Black model
F02-8	CLIP,LOCATING WIRE	- PCS	C
F02-9	SCREW,HEXAGON SOCKET	- PCS	C
F02-10	NUT,CLIP	- PCS	C
F02-11	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F02-12	SCREW,HEXAGON SOCKET	- PCS	C
F02-13	NUT,CLIP	- PCS	C

Assembly diagrams

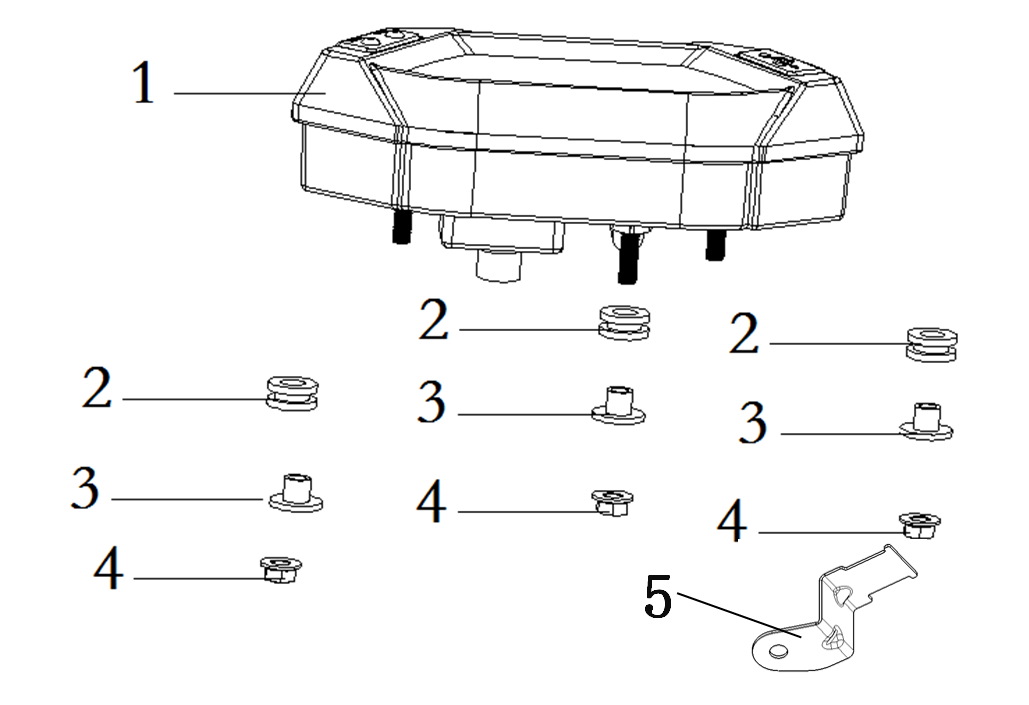

Ref	Part Name	Qty	Grade

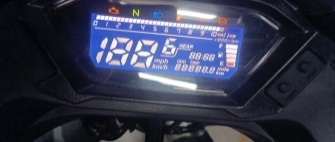

F03-1	INSTRUMENT SET	- PCS	B
F03-2	I-RUBBER	- PCS	C
F03-3	COLLAR	- PCS	C
F03-4	NUT,HEXAGON FLANGE	- PCS	C
F03-5	BRACKET,FLASHER	- PCS	C

Assembly diagrams

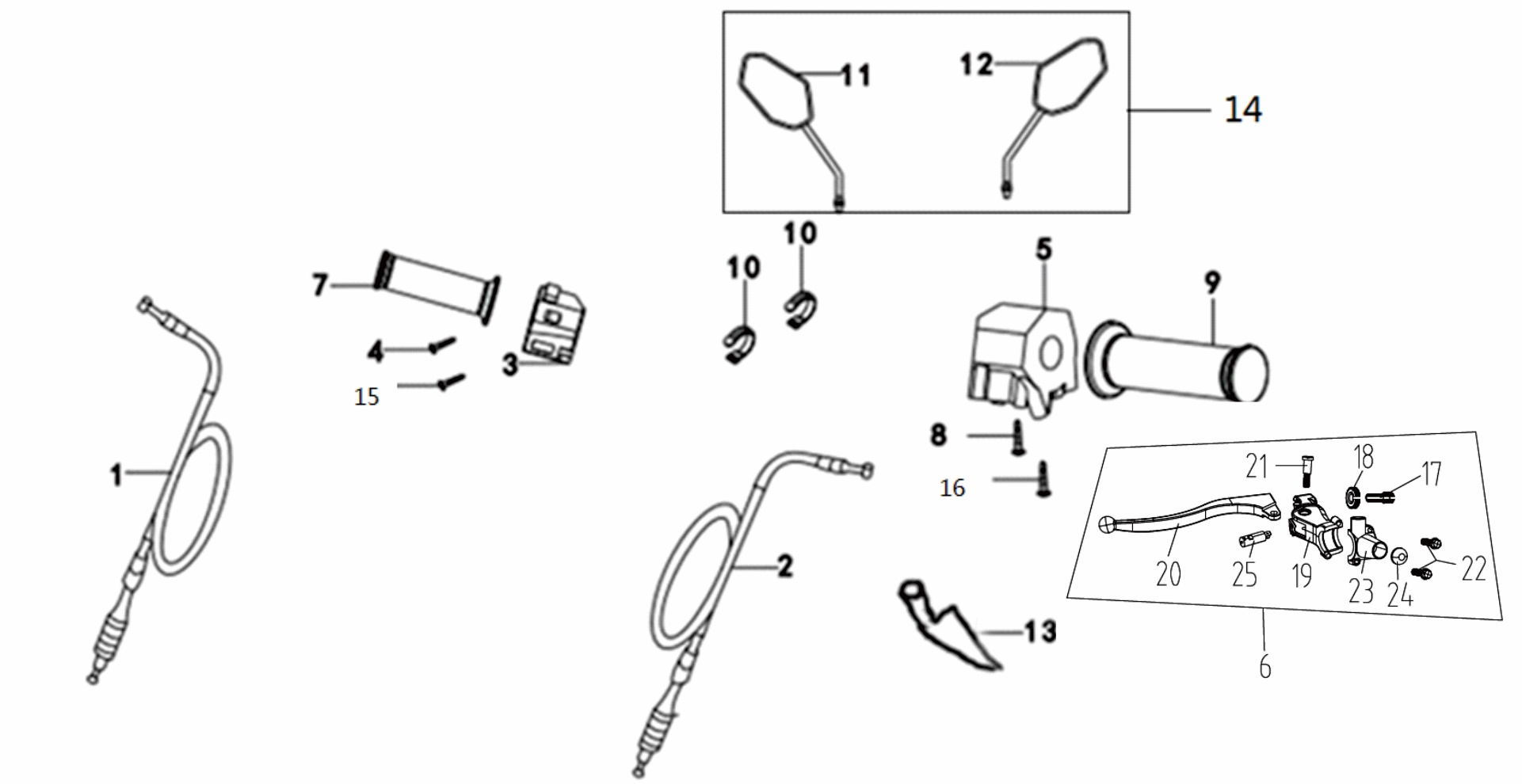

Ref	Part Name	Qty	Grade
F04-1	CABLE COMP.,THROTTLE	- PCS	A
F04-2	CABLE COMP.,CLUTCH	- PCS	A
F04-3	SWITCH ASSY.,LEFT	- SET	B
F04-4	SCREW,CROSS RECESSED PAN	- PCS	C
F04-5	SWITCH ASSY.,RIGHT	- SET	B
F04-6	LEVER COMP., LEFT	- SET	B
F04-7	GREASER COMP.	- PCS	A
F04-8	SCREW,CROSS RECESSED PAN	- PCS	C
F04-9	GRIP SET,HANDLE	- PCS	A
F04-10	CLAMPING BAND	- PCS	C
F04-11	MIRROR,LEFT BACK-VIEW	- PCS	A
F04-12	MIRROR,RIGHT BACK-VIEW	- PCS	A
F04-13	SHEATH,CLUTCH CABLE	- PCS	C
F04-14	MIRROR,REAR VIEW	- SET	A
F04-15	SCREW,CROSS RECESSED PAN	- PCS	C
F04-16	SCREW,CROSS RECESSED PAN	- PCS	C
F04-17	SCREW,LEFT LEVER ADJUST	- EA	C
F04-18	NUT,LEFT LEVER ADJUST	- EA	C
F04-19	HOLDER,LEFT LEVER	- EA	C
F04-20	LEVER COMP.,LEFT STEERING HANDLE	- EA	C
F04-21	SCREW,CROSS RECESSED PAN SHOULDER	- EA	C
F04-22	SCREW,HEXAGON SOCKET	- EA	C
F04-23	CLIP,LEFT LEVER	- EA	C
F04-24	SWITCH,ABS CONTROL	- EA	C
F04-25	SWITCH ASSY.,CLUTCH	- EA	C

Assembly diagrams

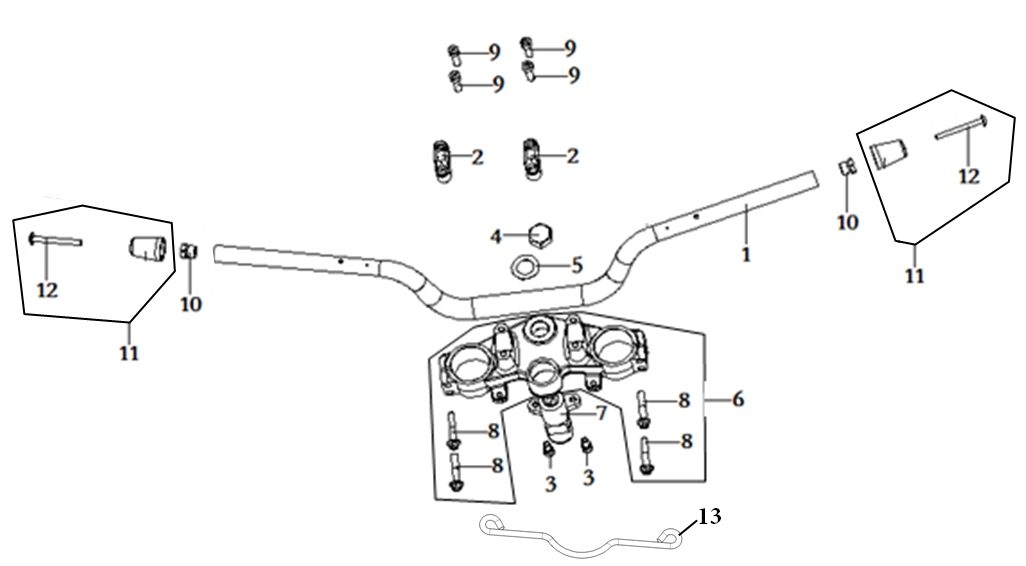

Ref	Part Name	Qty	Grade
F05-1	HANDLE BAR ASSY.	- PCS	C
F05-2	HOLDER,STEERING HANDLE PIPE	- PCS	B
F05-3	SCREW,HEXAGON SOCKET	- PCS	C
F05-4	CAP-SHAPED NUT, STEERING STEM	- PCS	C
F05-5	WASHER,STEERING STEM	- PCS	C
F05-6	BRIDGE,FORK TOP	- PCS	B
F05-7		- PCS	C
F05-8	BOLT,HEXAGON FLANGE	- PCS	C
F05-9	SCREW,HEXAGON SOCKET	- PCS	C
F05-10	COUNTERWEIGHT,STEERING HANDLE PIPE	- PCS	B
F05-11	DECORATIVE WEIGHT, LEFT	- PCS	B
F05-12	SCREW,HEXAGON SOCKET	- PCS	C
F05-13		- PCS	C

Assembly diagrams

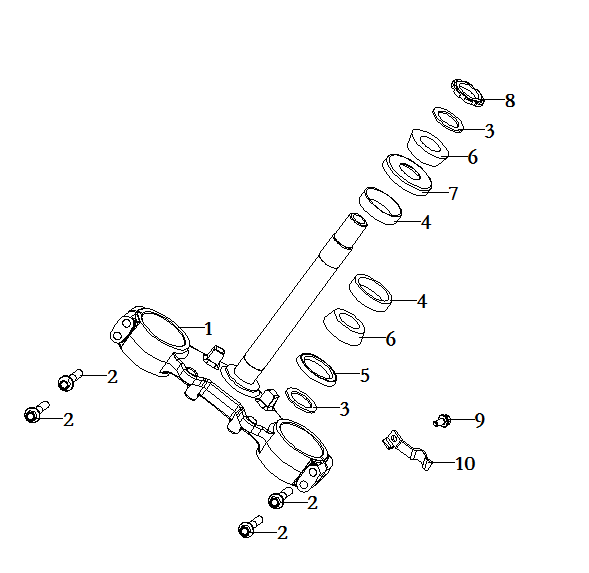

Ref	Part Name	Qty	Grade
F06-1	BODY SET,STEERING STEM	- PCS	B
F06-2	BOLT,HEXAGON FLANGE	- PCS	C
F06-3	WASHER,STEERING STEM	- PCS	C
F06-4	RING, STEERING BASE	- PCS	B
F06-5		-	-
F06-6	CIRCLIP, STEERING BEARING	- PCS	B
F06-7	DUST CAP,STEERING STEM	- PCS	C
F06-8	ADJUST NUT,STEERING STEM	- PCS	C
F06-9	BOLT,HEXAGON FLANGE	- PCS	C
F06-10	CLAMP,WIRE	- PCS	C

Assembly diagrams

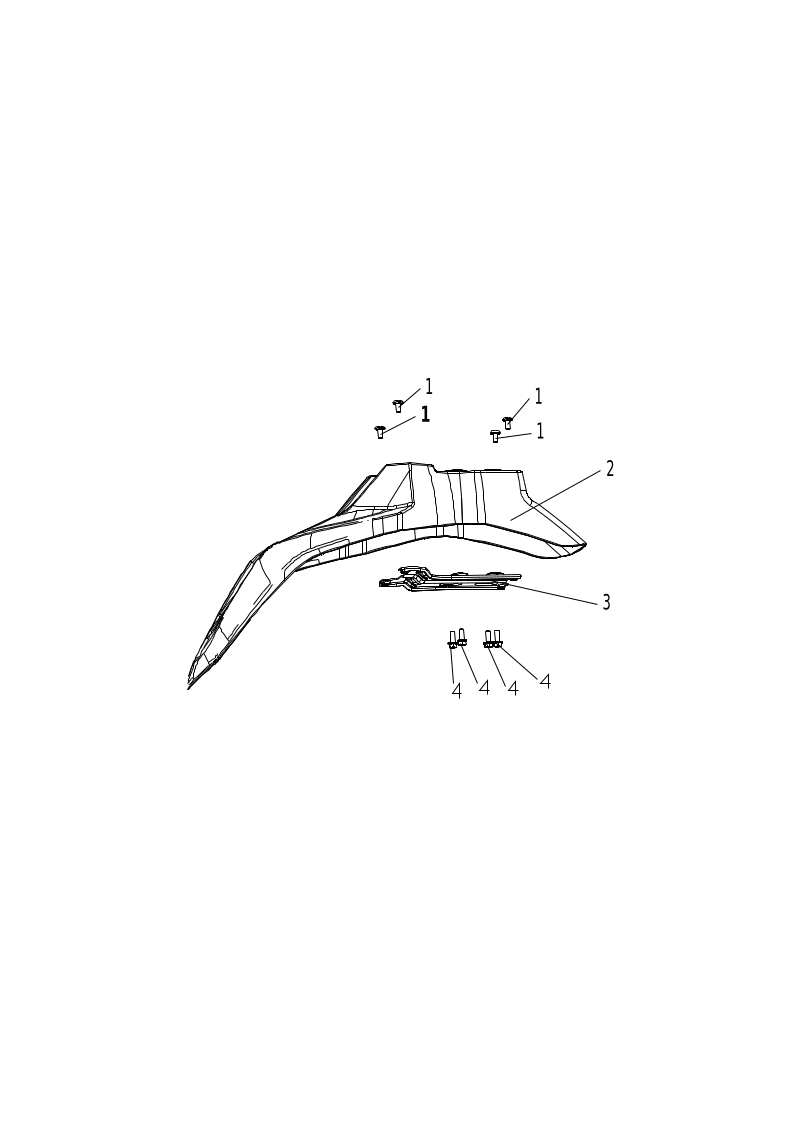

Ref	Part Name	Qty	Grade	Notes
F07-1	SCREW,HEXAGON SOCKET	- PCS	C
F07-2	FENDER COMP.,FRONT	- PCS	B	Blue model
F07-2	FENDER COMP.,FRONT	- PCS	B	Black model
F07-3	PLATE,FRONT FENDER CONNECTING	- PCS	C
F07-4	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagrams

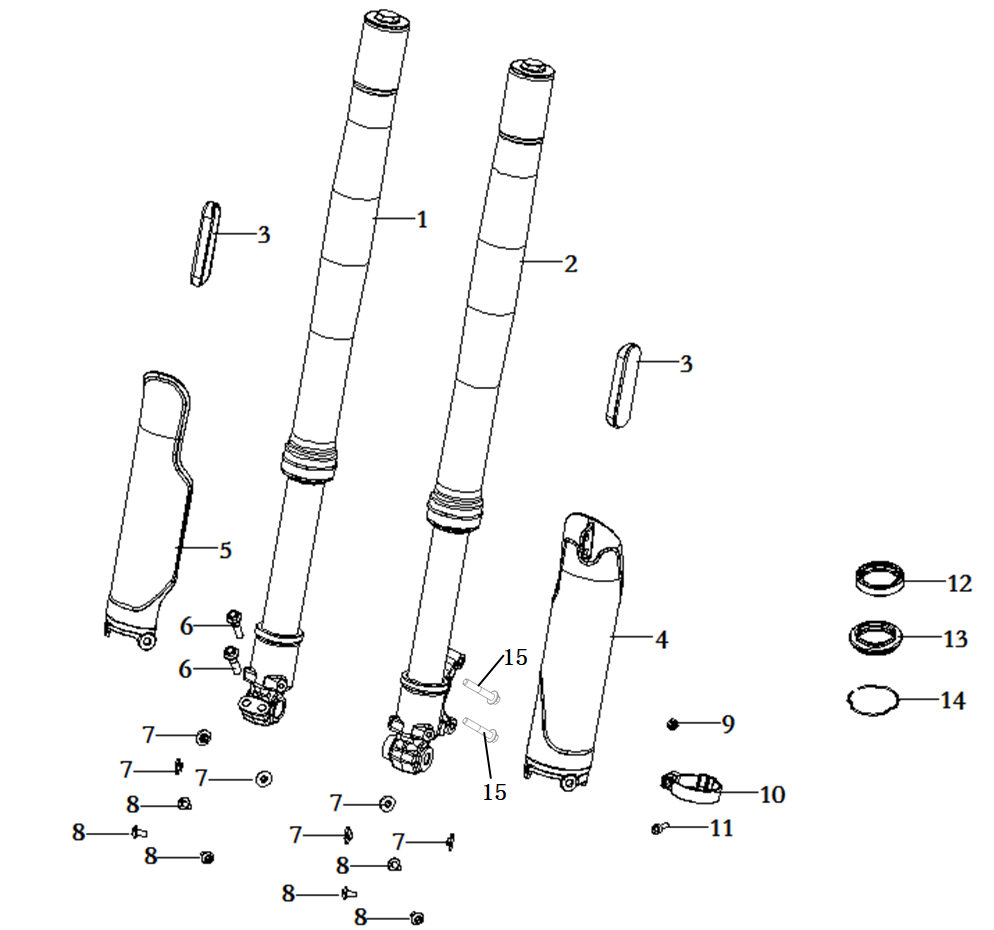

Ref	Part Name	Qty	Grade
F08-1	SHOCK ABSORBER, RIGHT FRONT	- PCS	B
F08-2	SHOCK ABSORBER, LEFT FRONT	- PCS	B

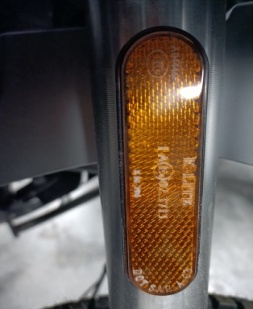

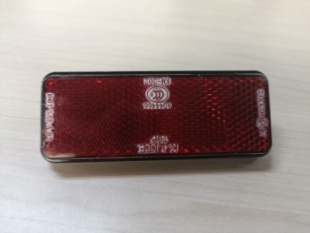

F08-3	REFLECTOR,LEFT SIDE	- PCS	B
F08-4	TUBE,LEFT FRONT FORK LOWER DECORATIVE	- PCS	B
F08-5	TUBE,RIGHT FRONT FORK LOWER DECORATIVE	- PCS	B
F08-6	BOLT,HEXAGON FLANGE	- PCS	C
F08-7	WASHER,FLANGE	- PCS	C
F08-8	SCREW,HEXAGON SOCKET	- PCS	C
F08-9	NUT,HEXAGON HEAD	- PCS	C
F08-10	CLAMP,TUBE	- PCS	C
F08-11	SCREW,HEXAGON SOCKET	- PCS	C
F08-12	OIL SEAL	- PCS	B
F08-13	SLEEVE GASKET,FRONT FORK DUST SEAL	- PCS	B
F08-14	SNAP RING,FRONT FORK	- PCS	C
F08-15	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagrams

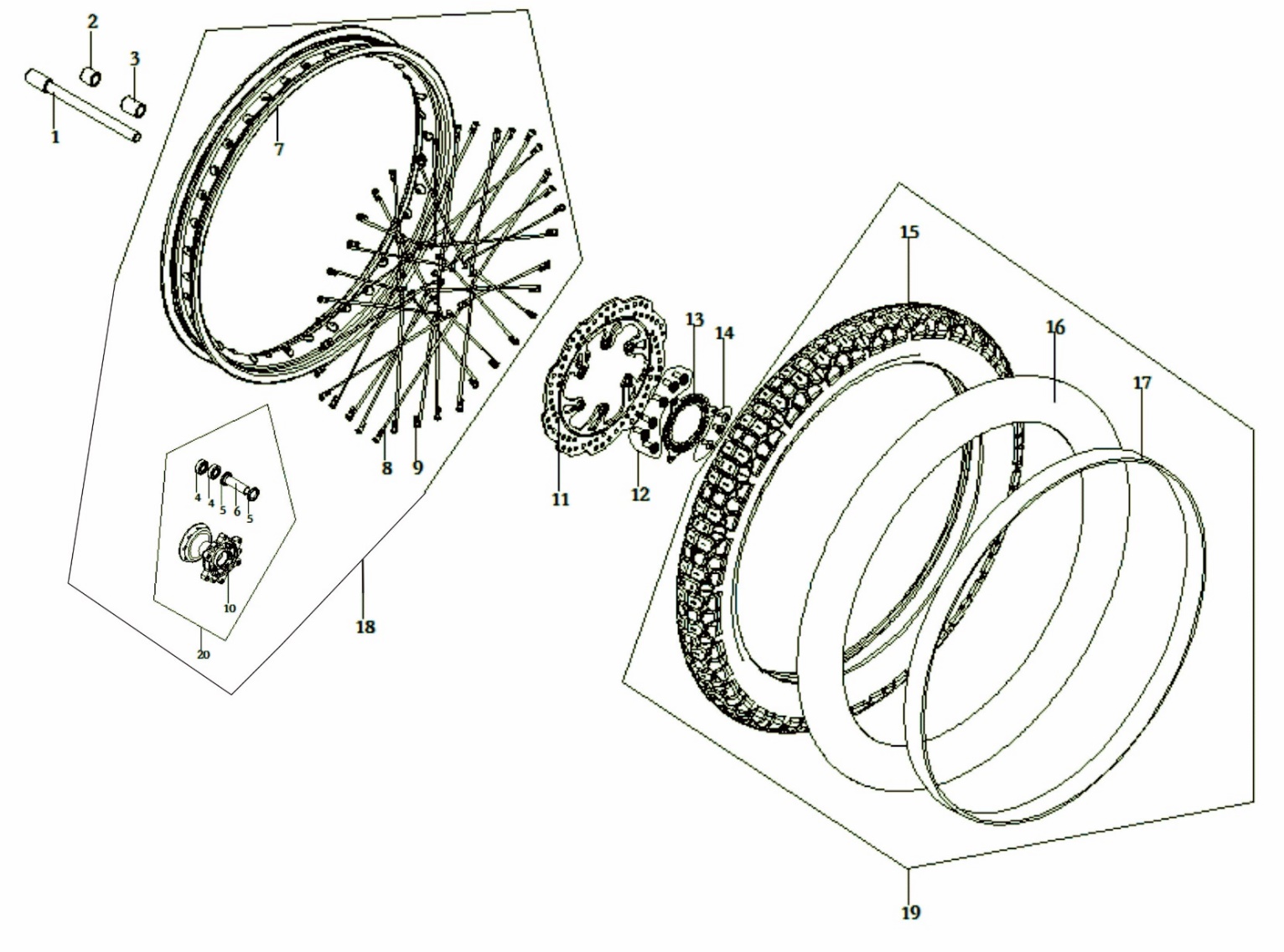

Ref	Part Name	Qty	Grade	Notes
F09-1	AXIS	- PCS	C
F09-2	COLLAR	- PCS	C
F09-3	COLLAR	- PCS	C
F09-4	BEARING	- PCS	B
F09-5	OIL SEAL	- PCS	B
F09-6	LINING COMP.,HUB	- PCS	C
F09-7	RIM,FRONT WHEEL	- PCS	B	Blue model
F09-7	RIM,FRONT WHEEL	- PCS	B	Black model
F09-8	SPOKE,FRONT WHEEL OUTSIDE	- PCS	A
F09-9	NUT,FRONT WHEEL SPOKE	- PCS	A
F09-10	BODY SET,FRONT WHEEL HUB	- PCS	C
F09-11	DISK COMP.,LEFT FRONT BRAKE	- PCS	C
F09-12	BOLT,HEXAGON SOCKET RAISED FACE CHEESE HEAD WITH SHOULDER	- PCS	C
F09-13	GEAR RING, ABS	- PCS	C
F09-14	SCREW,HEXAGON SOCKET	- PCS	C
F09-15	TIRE	- PCS	A
F09-16	TUBE	- PCS	A
F09-17	FLAP	- PCS	C
F09-18	WHEEL,FRONT	- PCS	B	Blue model
F09-18	WHEEL,FRONT	- PCS	B	Black model
F09-19	TYRE ASSY.	- PCS	A
F09-20	HUB,FRONT WHEEL	- PCS	C	NOT FOR SERVICE

Assembly diagram

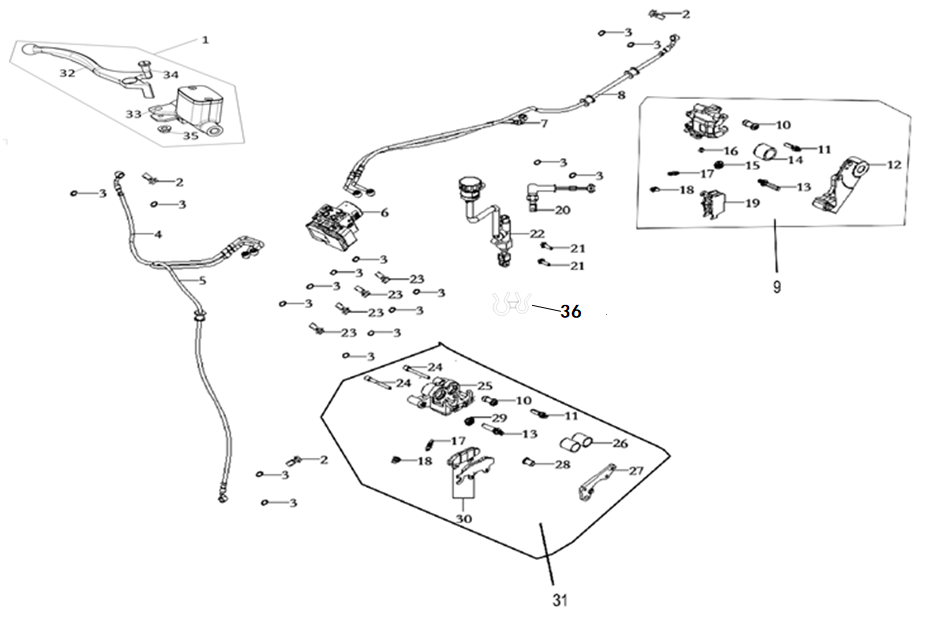

F10 F10 DISC BRAKE SYSTEM
DISC BRAKE、ABS - diagram 1

Ref	Part Name	Qty	Grade	Notes
F10-1	CYLINDER ASSY.,MASTER	- PCS	B
F10-2	BOLT,DISC-BRAKE HOSE	- PCS	C	NOT FOR SERVICE
F10-3	WASHER,PLAIN	- PCS	C	NOT FOR SERVICE
F10-4	ABS CONNECTIVE OIL TUBE	- PCS	C
F10-5	ABS CONNECTIVE OIL TUBE	- PCS	C
F10-6	ABS.ANTI-LOCKING UP SYSTEM	- PCS	C
F10-7	ABS CONNECTIVE OIL TUBE	- PCS	C
F10-8	ABS CONNECTIVE OIL TUBE	- PCS	C
F10-9	PUMP, REAR DISC-BRAKE LOWER	- PCS	C
F10-10	DUST CAP	- PCS	C	NOT FOR SERVICE
F10-11	BOLT,CALIPER CONNECTING	- PCS	C	NOT FOR SERVICE
F10-12	BRACKET,REAR DISC-BRAKE	- PCS	C	NOT FOR SERVICE
F10-13	MASTER LINK,CALIPER	- PCS	C	NOT FOR SERVICE
F10-14	PISTON COMP.,BRAKE	- PCS	C	NOT FOR SERVICE
F10-15	PACKING CUP,CALIPER MASTER LINK	- PCS	C	NOT FOR SERVICE
F10-16	BOLT,PLUG	- PCS	C	NOT FOR SERVICE
F10-17	BLEEDER SCREW	- PCS	C	NOT FOR SERVICE
F10-18	PROTECTING CAP,BLEEDER SCREW	- PCS	C	NOT FOR SERVICE
F10-19	PAD COMP.,REAR DISC-BRAKE LEFT	- PCS	A
F10-20	SWITCH ASSY.,REAR BRAKE	- PCS	B
F10-21	BOLT,HEXAGON FLANGE	- PCS	C
F10-22	PUMP, REAR DISC-BRAKE UPPER	- PCS	C
F10-23	BOLT,DISC-BRAKE HOSE	- PCS	C
F10-24	GUIDE ROD,DISC-BRAKE PAD	- PCS	C	NOT FOR SERVICE
F10-25	BODY SET,CALIPER	- PCS	C	NOT FOR SERVICE
F10-26	PISTON COMP.,BRAKE	- PCS	C	NOT FOR SERVICE
F10-27	BASE,CALIPER MOUNTING	- PCS	C	NOT FOR SERVICE
F10-28	THREADED SLEEVE,CALIPER SUB LINK	- PCS	C	NOT FOR SERVICE
F10-29	PACKING CUP,CALIPER MASTER LINK	- PCS	C	NOT FOR SERVICE
F10-30	PAD COMP.,FRONT DISC-BRAKE	- PCS	A
F10-31	CALIPER ASSY.,LEFT	- PCS	C
F10-32	LEVER COMP.,RIGHT STEERING HANDLE	- PCS	B
F10-33	BODY SET,FRONT DISC-BRAKE MATER CYLINDER	- PCS	C
F10-34	BOLT,HANDLE LEVER PIVOT	- PCS	C
F10-35	NUT,HEXAGON FLANGE	- PCS	C
F10-36	CLAMP,TUBE	- PCS	C

Assembly diagrams

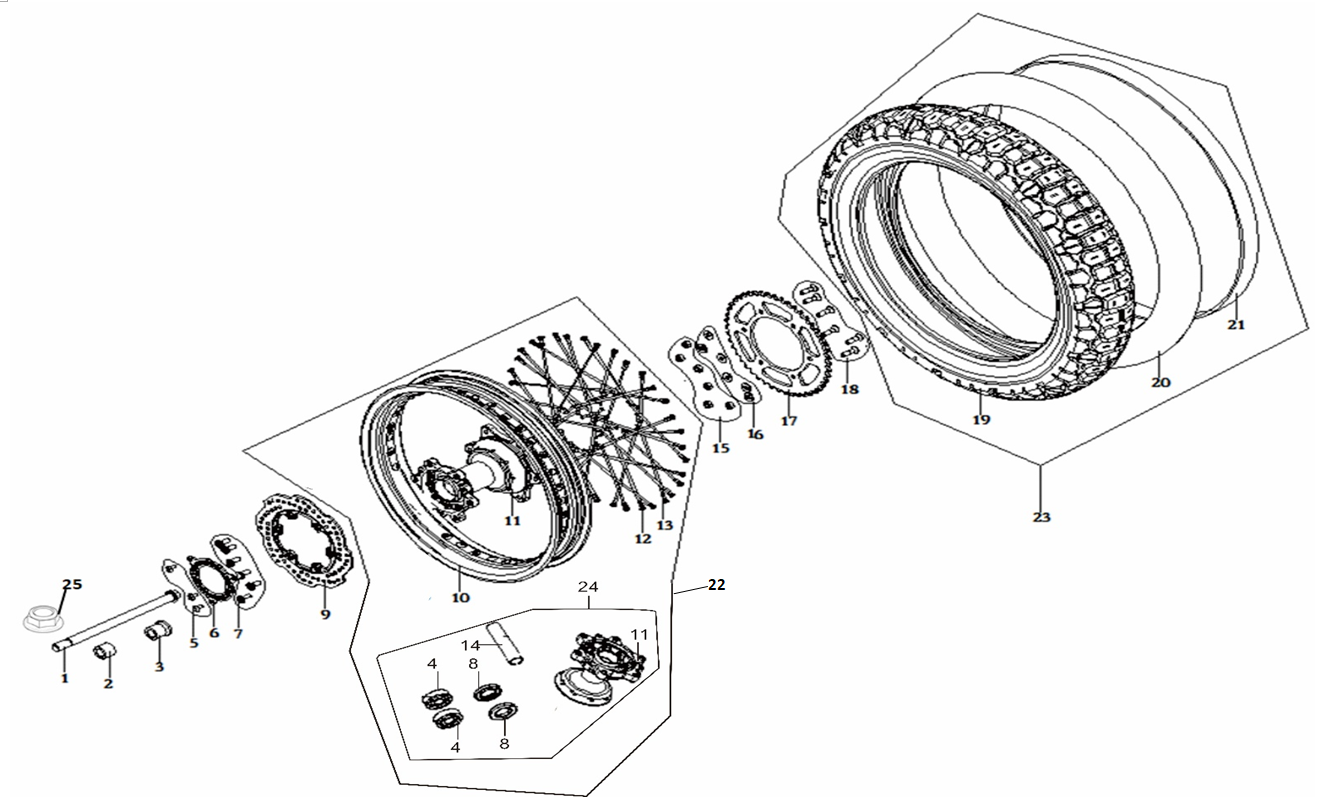

Ref	Part Name	Qty	Grade	Notes
F11-1	AXIS	- PCS	-
F11-2	COLLAR	- PCS	C
F11-3	COLLAR	- PCS	C
F11-4	BEARING	- PCS	B
F11-5	SCREW,HEXAGON SOCKET	- PCS	C
F11-6	GEAR RING, ABS	- PCS	C
F11-7	BOLT,HEXAGON SOCKET RAISED FACE CHEESE HEAD WITH SHOULDER	- PCS	C
F11-8	OIL SEAL	- PCS	B
F11-9	DISK COMP.,LEFT REAR BRAKE	- PCS	C
F11-10	RIM,REAR WHEEL	- PCS	B	Blue model
F11-10	RIM,REAR WHEEL	- PCS	B	Black model
F11-11	BODY SET,REAR WHEEL HUB	- PCS	C
F11-12	NUT,REAR WHEEL SPOKE	- PCS	A
F11-13	SPOKE,REAR WHEEL OUTSIDE	- PCS	A
F11-14	LINING COMP.,HUB	- PCS	C
F11-15	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON	- PCS	C
F11-16	WASHER,PLAIN	- PCS	C
F11-17	SPROCKET COMP.,FINAL DRIVEN	- PCS	C

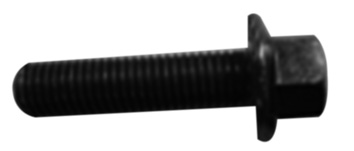

F11-18	BOLT,SPROCKET WHEEL	- PCS	B
F11-19	TIRE	- PCS	A
F11-20	TUBE	- PCS	A
F11-21	FLAP	- PCS	C
F11-22	WHEEL,REAR	- PCS	B	Blue model
F11-22	WHEEL,REAR	- PCS	B	Black model
F11-23	TYRE ASSY.	- PCS	A
F11-24	HUB,REAR WHEEL	- PCS	C	NOT FOR SERVICE
F11-25	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C

Assembly diagrams

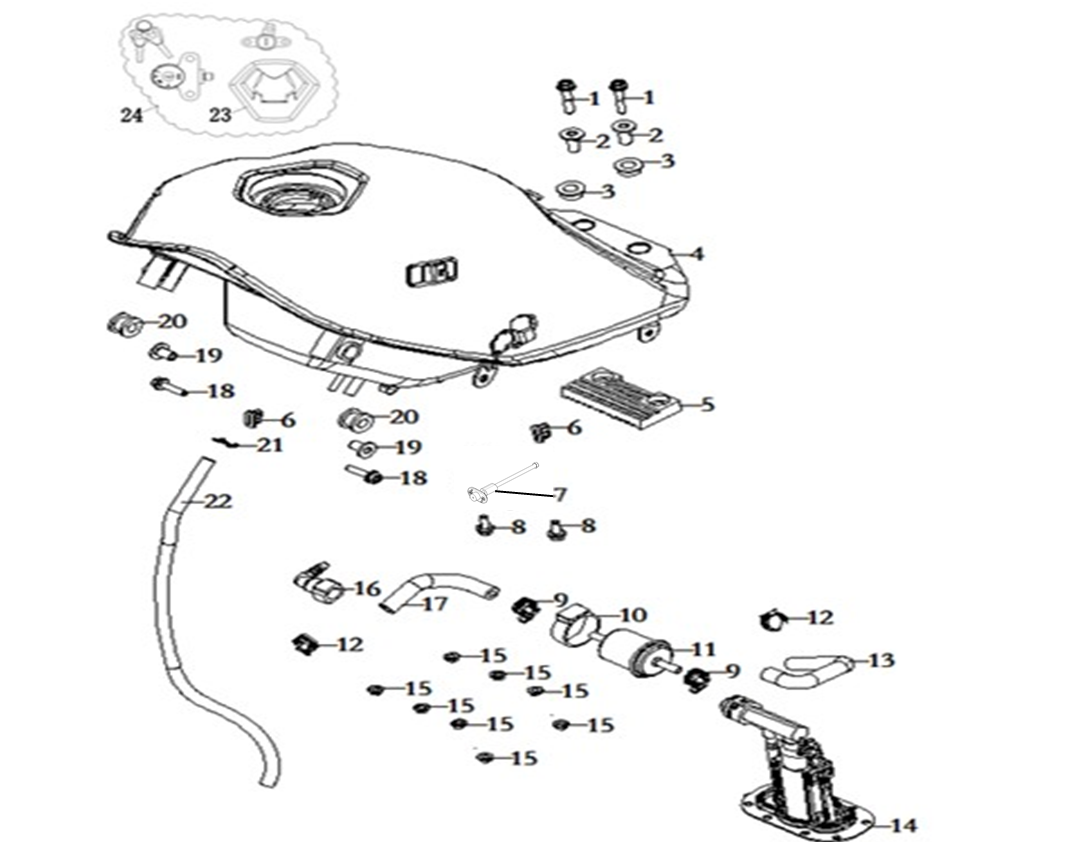

Ref	Part Name	Qty	Grade	Notes
F12-1	BOLT,HEXAGON FLANGE	- PCS	C
F12-2	WASHER,FLANGE	- PCS	C
F12-3	T-RUBBER	- PCS	C
F12-4	FUEL TANK COMP.	- PCS	C	Blue model
F12-4	FUEL TANK COMP.	- PCS	C	Black model
F12-5	PAD, FUEL TANK DAMPING	- PCS	C
F12-6	RUBBER JACKET, DAMPING	- PCS	C
F12-7	SENSOR,FUEL LEVEL	- PCS	B
F12-8	BOLT,HEXAGON FLANGE	- PCS	C
F12-9	CLAMP,TUBE	- PCS	C
F12-10	RUBBER JACKET,FUEL FILTER	- PCS	C
F12-11	FILTER,FUEL	- PCS	B
F12-12	CLAMP ASSY.	- PCS	C

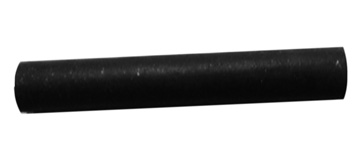

F12-13	TUBE,FUEL	- PCS	B
F12-14	BRACKET ASSY.,ELECTRIC FUEL PUMP	- PCS	C	300kpa
F12-15	NUT,HEXAGON FLANGE	- PCS	C
F12-16	JOINT, SWIFT CHANGE	- PCS	C
F12-17	TUBE,FUEL	- PCS	B
F12-18	BOLT,HEXAGON FLANGE	- PCS	C
F12-19	WASHER,FLANGE	- PCS	C
F12-20	I-RUBBER	- PCS	C
F12-21	CLAMP,TUBE	- PCS	C
F12-22	TUBE,FUEL	- PCS	B
F12-23	LOCK,FUEL TANK	- PCS	B	NOT FOR SERVICE
F12-24	LOCK KIT	- SET	B

Assembly diagrams

Ref	Part Name	Qty	Grade	Notes

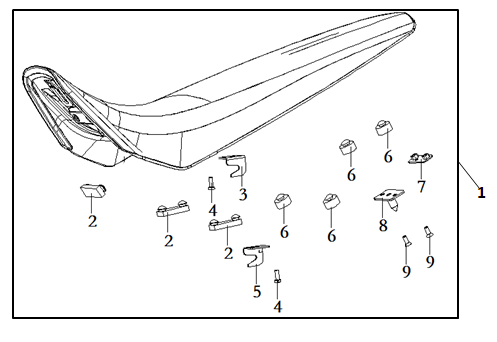

F13-1	SEAT COMP.	- PCS	B
F13-2	RUBBER SHEET,SEAT BRACE	- PCS	C	NOT FOR SERVCE
F13-3	HOOK,SEAT	- PCS	C	NOT FOR SERVCE
F13-4	BOLT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVCE
F13-5	HOOK,SEAT	- PCS	C	NOT FOR SERVCE
F13-6	RUBBER SHEET,SEAT BRACE	- PCS	C	NOT FOR SERVCE
F13-7		-	-	NOT FOR SERVCE
F13-8	LATCH HOOK,SEAT	- PCS	C	NOT FOR SERVCE
F13-9	SCREW,CROSS RECESSED COUNTERSUNK HEAD	- PCS	C	NOT FOR SERVCE

Assembly diagrams

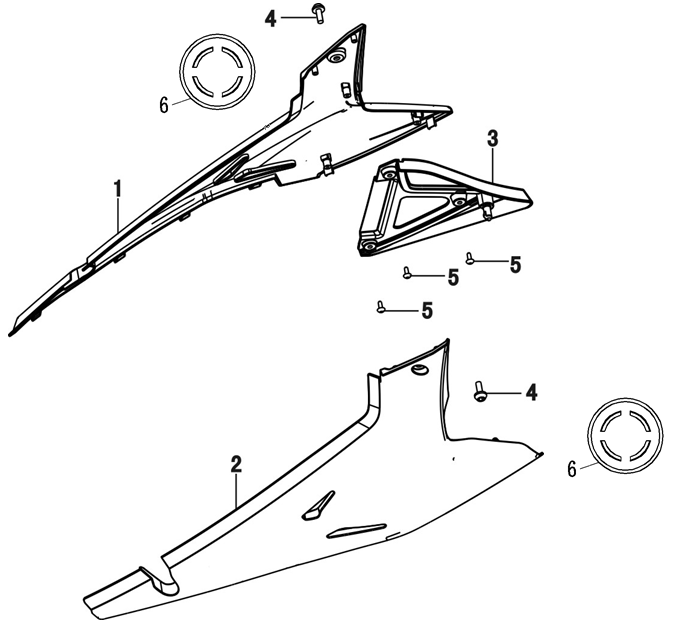

Ref	Part Name	Qty	Grade	Notes
F14-1	COVER,LEFT SIDE	- PCS	B	Blue model
F14-1	COVER,LEFT SIDE	- PCS	B	Black model
F14-2	COVER,RIGHT SIDE	- PCS	B	Blue model
F14-2	COVER,RIGHT SIDE	- PCS	B	Black model
F14-3	COVER,LEFT SIDE COVER DECORATIVE	- PCS	B
F14-4	SCREW,HEXAGON SOCKET	- PCS	C
F14-5	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C

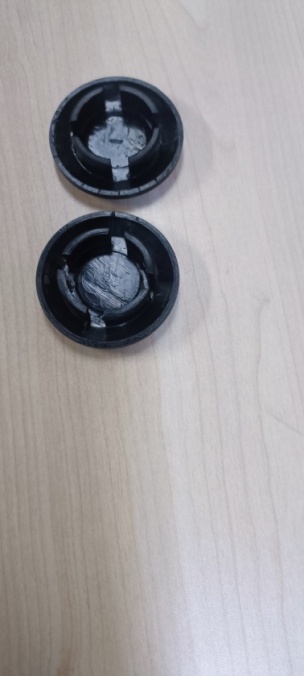

F14-6	DUST CAP,FRAME	- PCS	C

Assembly diagrams

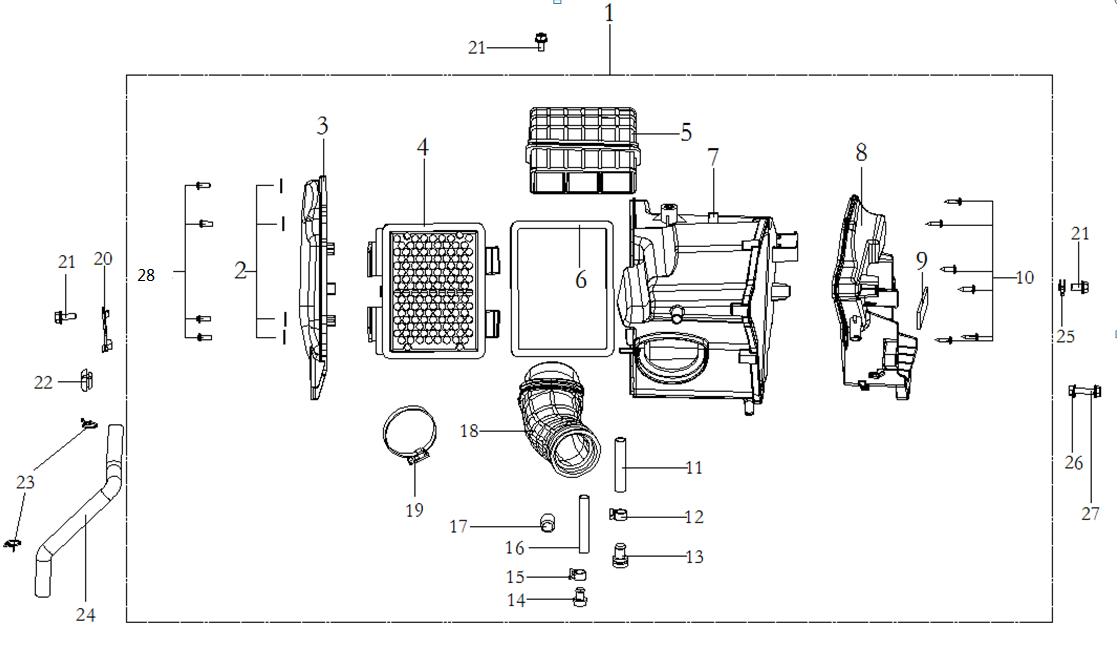

Ref	Part Name	Qty	Grade	Notes
F15-1	AIR CLEANER COMP.	- PCS	C
F15-2	WASHER,PLAIN	- PCS	C	NOT FOR SERVCE
F15-3	CAP,AIR CLEANER CASE	- PCS	C	NOT FOR SERVCE
F15-4	ELEMENT ASSY.,AIR CLEANER	- PCS	A
F15-5	INTAKE TUBE,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F15-6	GLAND STRIP,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F15-7	MIDDLE BODY OF AIR FILTER	- PCS	C	NOT FOR SERVCE
F15-8	CASE,AIR CLEANER	- PCS	C	NOT FOR SERVCE
F15-9	FOAM BEARER	- PCS	D	NOT FOR SERVCE
F15-10	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C	NOT FOR SERVCE
F15-11	HOSE,OVERFLOW	- PCS	C	NOT FOR SERVCE
F15-12	CLAMP,TUBE	- PCS	C	NOT FOR SERVCE
F15-13	STOPPER	- PCS	C	NOT FOR SERVCE
F15-14	STOPPER	- PCS	C	NOT FOR SERVCE
F15-15	CLAMP,TUBE	- PCS	C	NOT FOR SERVCE
F15-16	HOSE,OVERFLOW	- PCS	C	NOT FOR SERVCE
F15-17	STOPPER	- PCS	C	NOT FOR SERVCE
F15-18	TUBE,AIR CLEANER CONNECTING	- PCS	C	NOT FOR SERVCE
F15-19	CLAMP ASSY.	- PCS	C	NOT FOR SERVCE
F15-20	BRACKET,DISC-BRAKE OIL CUP	- PCS	B
F15-21	BOLT,HEXAGON FLANGE	- PCS	C
F15-22	I-RUBBER	- PCS	C
F15-23	CLAMP,TUBE	- PCS	C
F15-24	TUBE,BREATHER	- PCS	B
F15-25	NUT,CLIP	- PCS	C
F15-26	NUT,HEXAGON FLANGE	- PCS	C
F15-27	BOLT,HEXAGON FLANGE	- PCS	C
F15-28	SCREW,CROSS RECESSED PAN	- PCS	C	NOT FOR SERVCE

Assembly diagrams

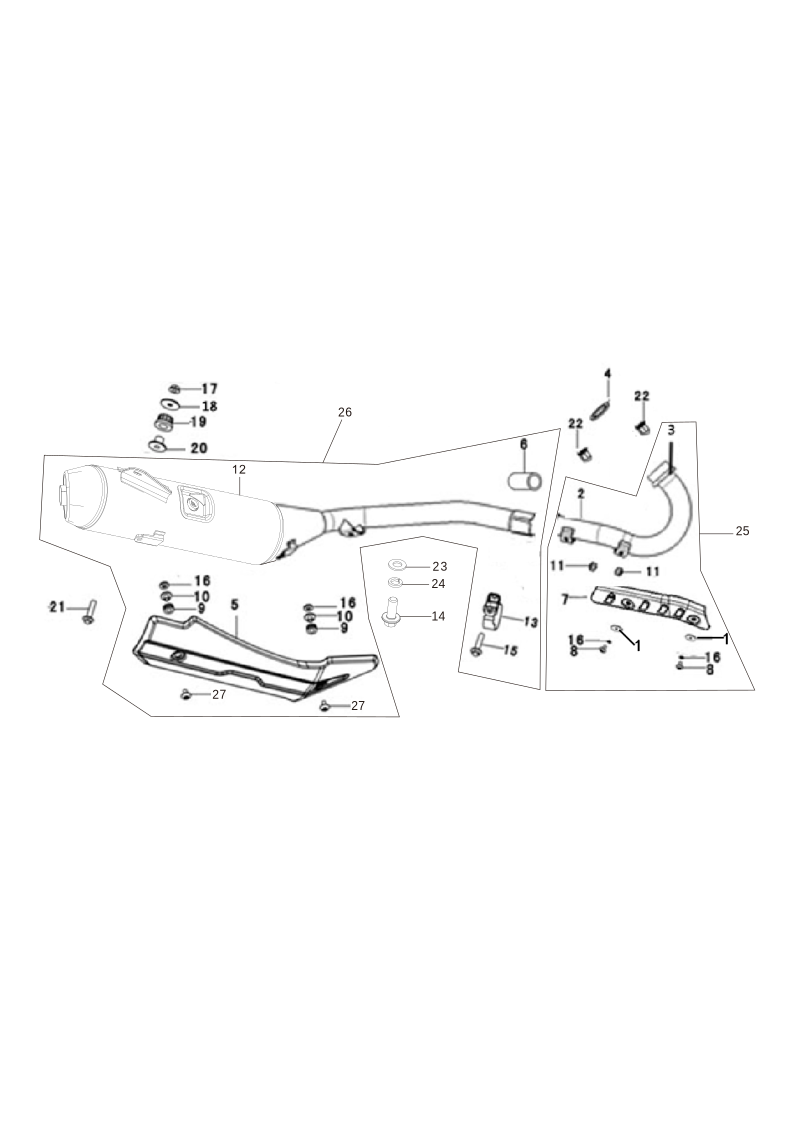

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 1

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 2

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 3

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 4

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 5

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 6

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 7

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 8

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 9

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 10

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 11

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 12

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 13

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 14

F-16 F-16 MUFFLER EXHAUST ASSY - diagram 15

Ref	Part Name	Qty	Grade	Notes
F16-1	WASHER,PLAIN	- PCS	C	NOT FOR SERVCE
F16-2	WELDING ASSY.,EXHAUST PIPE	- PCS	C
F16-3	LAND	- PCS	C	NOT FOR SERVCE
F16-4	GASKET,AIR EXHAUST PORT	- PCS	A
F16-5	SHIELD,MUFFLER	- PCS	B
F16-6	INSULATION BLANKET	- PCS	C
F16-7	SHIELD,WARM PROOF	- PCS	B
F16-8	SCREW,HEXAGON SOCKET	- PCS	C	NOT FOR SERVCE
F16-9	I-RUBBER	- PCS	C	NOT FOR SERVCE
F16-10	WASHER,FLANGE	- PCS	C	NOT FOR SERVCE
F16-11	WASHER,ELASTIC	- PCS	C	NOT FOR SERVCE
F16-12	BODY,MUFFLER	- PCS	C
F16-13	TUBE,MUFFLER CONNECTING	- PCS	C
F16-14	BOLT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVCE
F16-15	BOLT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVCE
F16-16	WASHER,PLAIN	- PCS	C	NOT FOR SERVCE
F16-17	NUT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVCE
F16-18	WASHER,PLAIN	- PCS	C	NOT FOR SERVCE
F16-19	T-RUBBER	- PCS	C	NOT FOR SERVCE
F16-20	COLLAR	- PCS	C	NOT FOR SERVCE
F16-21	BOLT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVCE
F16-22	CAP-SHAPED NUT	- PCS	C
F16-23	WASHER,PLAIN	- PCS	C
F16-24	WASHER,ELASTIC	- PCS	C
F16-25	FRONT PART,MUFFLER	- PCS	C
F16-26	REAR PART,MUFFLER EXHAUST	- PCS	C
F16-27	SCREW,HEXAGON SOCKET	- PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade	Notes

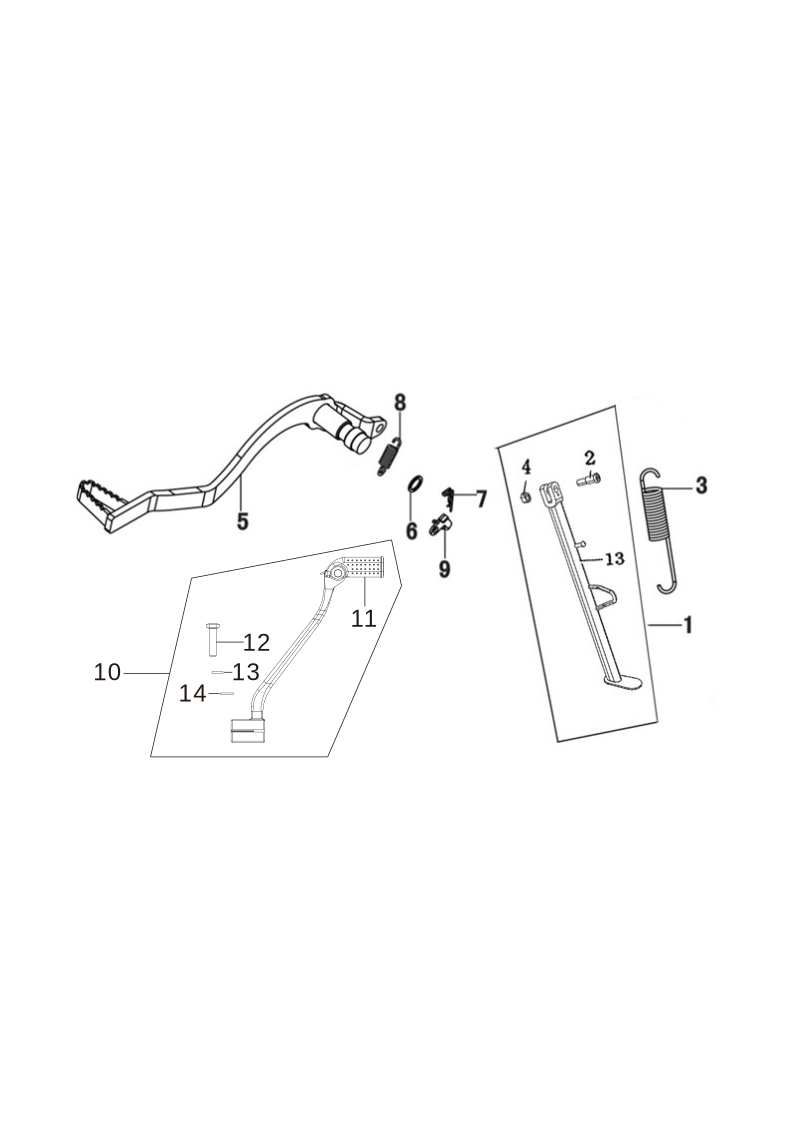

F17-1	SIDE STAND COMP.	- SET	B
F17-2	BOLT,HEXAGON HEAD SHOULDER	- PCS	C
F17-3	SPRING, DRAWING	- PCS	B
F17-4	NUT,HEXAGON HEAD	- PCS	C
F17-5	PEDAL,REAR BRAKE	- PCS	B
F17-6	WASHER,PLAIN	- PCS	C
F17-7	ARRESTING PIN,BRAKE	- PCS	C
F17-8	RETURN SPRING,REAR BRAKE PEDAL	- PCS	B
F17-9	LUG,SPRING	- PCS	C

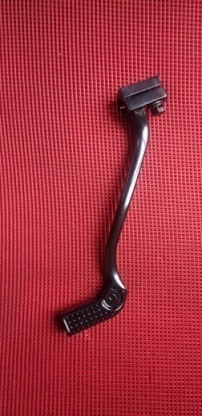

F17-10	PEDAL,GEAR CHANGE	- PCS	B	NOT FOR SERVCE
F17-11		- PCS	C
F17-12	BOLT,HEXAGON	- PCS	C
F17-13	WASHER,ELASTIC	- PCS	C
F17-14	WASHER,PLAIN	- PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade

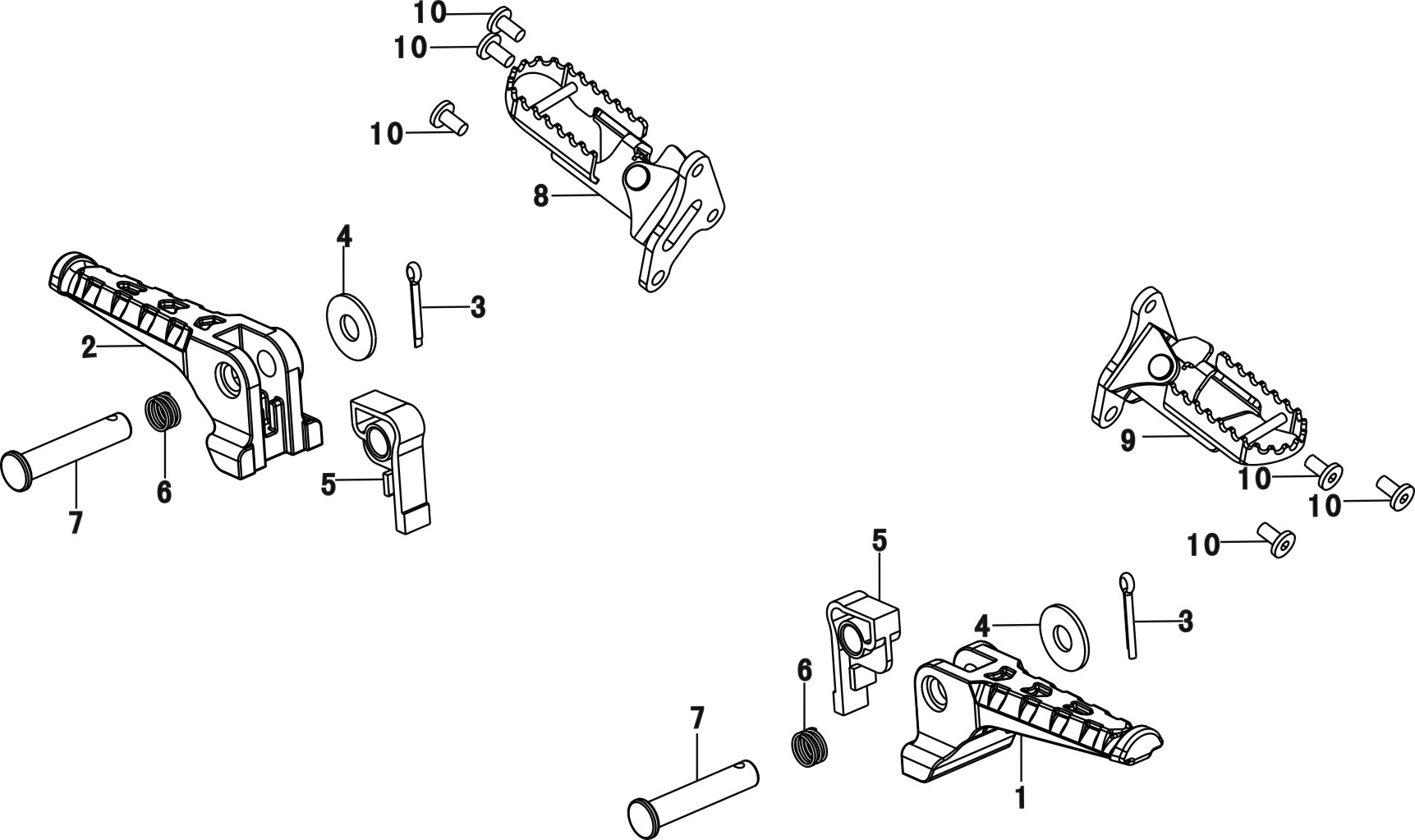

F18-1	BODY SET,LEFT PILLION STEP	- PCS	B
F18-2	BODY SET,RIGHT PILLION STEP	- PCS	B
F18-3	PIN,COTTER	- PCS	C
F18-4	WASHER,PLAIN	- PCS	C
F18-5	SHEET,STEP LIMIT	- PCS	C
F18-6	SPRING,COMPRESSION	- PCS	B
F18-7	PIN,CLEVIS	- PCS	C
F18-8	FOOTREST ASSY., RIGHT	- SET	B
F18-9	FOOTREST ASSY., LEFT	- SET	B
F18-10	SCREW,HEXAGON SOCKET	- PCS	C

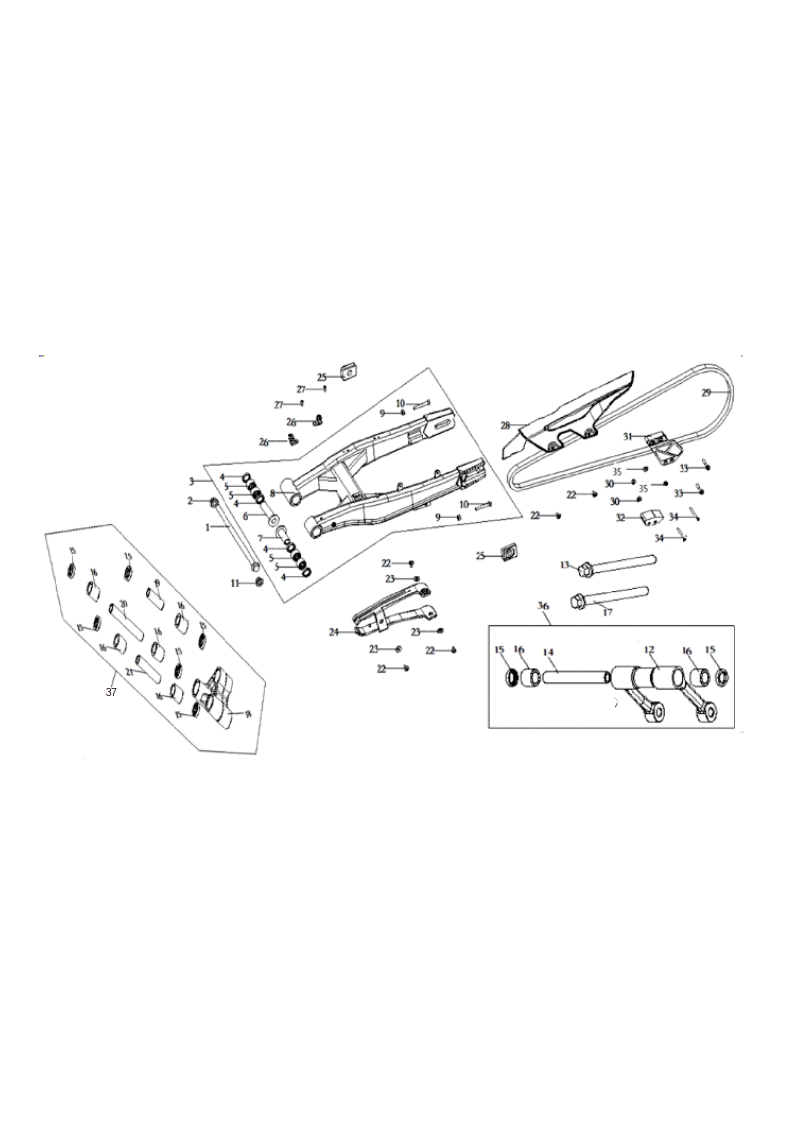

Assembly diagrams

Ref	Part Name	Qty	Grade	Notes
F19-1	AXIS	- PCS	C
F19-2	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F19-3	FORK ASSY.,REAR	- SET	C
F19-4	OIL SEAL	- PCS	B	NOT FOR SERVICE
F19-5	BEARING	- PCS	B	NOT FOR SERVICE
F19-6	COLLAR	- PCS	C	NOT FOR SERVICE
F19-7	COLLAR	- PCS	C	NOT FOR SERVICE
F19-8	WELDING COMP.,REAR FORK	- PCS	C	NOT FOR SERVICE
F19-9	NUT,HEXAGON HEAD	- PCS	C
F19-10	BOLT,HEXAGON	- PCS	C	NOT FOR SERVICE
F19-11	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F19-12	BODY SET,CRADLE	- PCS	C
F19-13	AXIS	- PCS	C
F19-14	COLLAR	- PCS	C
F19-15	OIL SEAL	- PCS	B
F19-16	BEARING	- PCS	B
F19-17	AXIS	- PCS	C
F19-18	BODY SET,CRADLE	- PCS	C
F19-19	COLLAR	- PCS	C
F19-20	COLLAR	- PCS	C
F19-21	COLLAR	- PCS	C
F19-22	SCREW,HEXAGON SOCKET	- PCS	C
F19-23	WASHER,FLANGE	- PCS	C
F19-24	SLIDER,DRIVE CHAIN	- PCS	B
F19-25	ADJUSTOR,DRIVE CHAIN LEFT	- PCS	B
F19-26	CLAMP,TUBE	- PCS	C
F19-27	SCREW,CROSS RECESSED PAN	- PCS	C
F19-28	CASE, CHAIN	- PCS	B

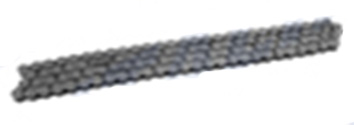

F19-29	CHAIN	- PCS	A
F19-30	NUT,HEXAGON FLANGE	- PCS	C
F19-31	CASE,DRIVE CHAIN LOWER	- PCS	B
F19-32	COLLISION RUBBER,CHAIN	- PCS	C
F19-33	BOLT,HEXAGON FLANGE	- PCS	C
F19-34	SCREW,CROSS RECESSED COUNTERSUNK HEAD	- PCS	C
F19-35	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F19-36	SUB CRADLE,SET	- PCS	C
F19-37	BIG ROCKER RACK ASSY.	- SET	C

Assembly diagrams

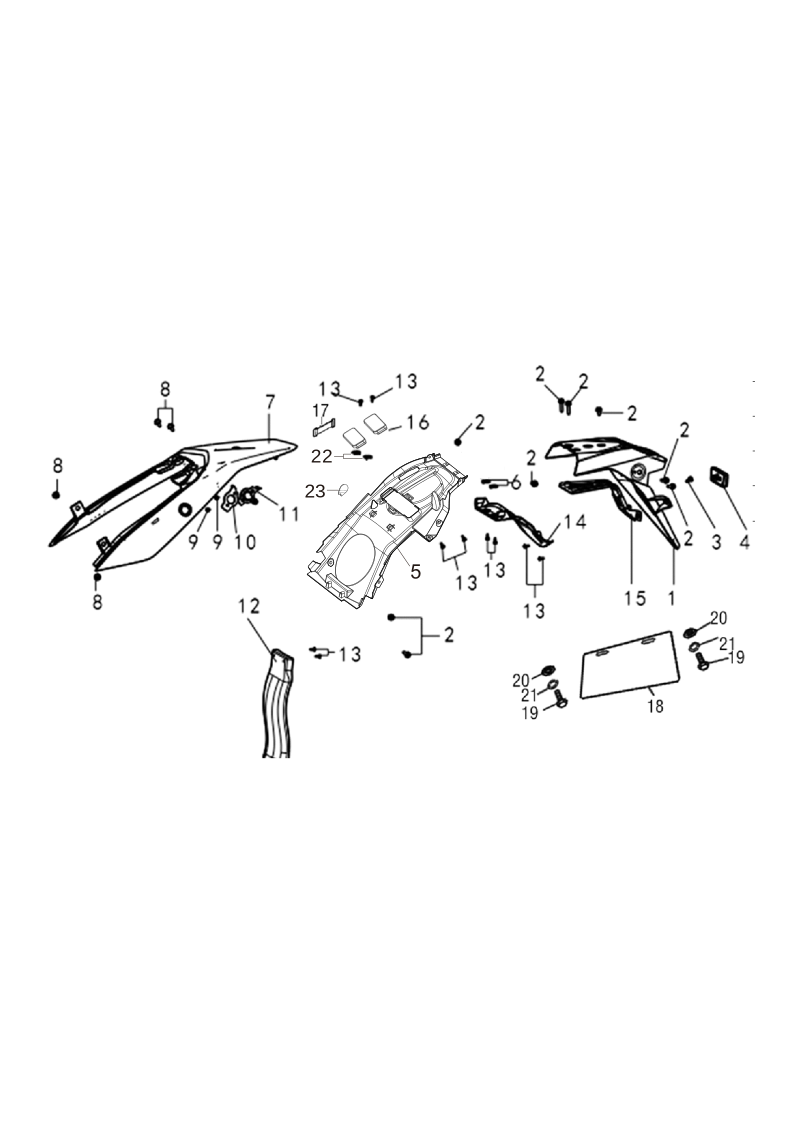

Ref	Part Name	Part Number	Qty	Grade	Notes
F20-1	FENDER COMP.,REAR		- PCS	B
F20-2	BOLT,HEXAGON FLANGE		- PCS	C
F20-3	GLUE NAIL,BUFFER		- PCS	C
F20-4	REFLECTOR,REAR		- PCS	B
F20-5	INNER PART,REAR FENDER		- PCS	B
F20-6	NUT,CLIP		- PCS	C
F20-7	SHIELD COMP.,LEFT TAIL		- PCS	B	Blue model
F20-7	SHIELD COMP.,LEFT TAIL		- PCS	B	Black model
F20-8	SCREW,HEXAGON SOCKET		- PCS	C
F20-9	SCREW,CROSS RECESSED PAN SELF-TAPPING		- PCS	C
F20-10	BRACKET,SEAT LOCK		- PCS	C
F20-11	LOCK,SEAT		- PCS	B	NOT FOR SERVICE
F20-12	EAVES BOARD,REAR FENDER		- PCS	B
F20-13	SCREW,CROSS RECESSED PAN SELF-TAPPING		- PCS	C
F20-14	REAR PART,REAR FENDER		- PCS	B
F20-15	BRACKET,REAR FENDER		- PCS	C
F20-16	STOPPER		- PCS	C
F20-17	CLAMPING BAND		- PCS	C
F20-18		-	- PCS	C
F20-19	BOLT,HEXAGON FLANGE		- PCS	C
F20-20	NUT,HEXAGON FLANGE		- PCS	C
F20-21	WASHER,PLAIN		- PCS	C
F20-22	NUT,CLIP		- PCS	C
F20-23	EAVES BOARD,REAR FENDER		- PCS	B

Assembly diagrams

Ref	Part Name	Part Number	Qty	Grade	Notes

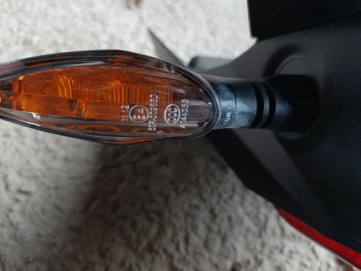

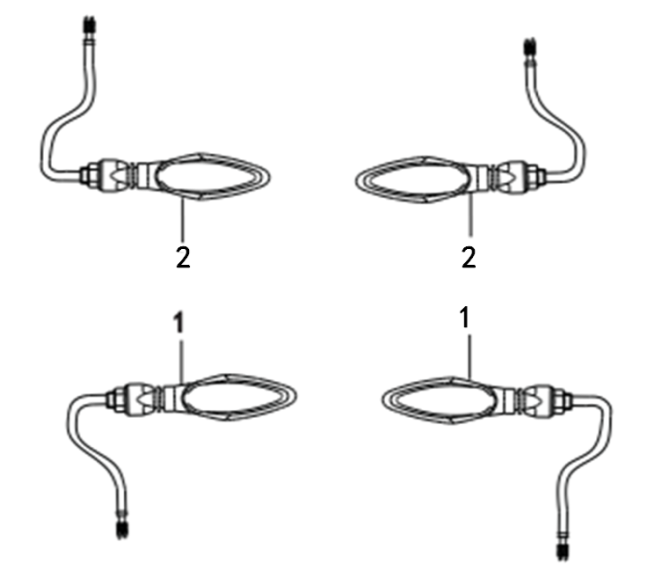

F21-1	TURNING SIGNAL LIGHT, LEFT FRONT		- PCS	B
F21-2	TURNING SIGNAL LIGHT, RIGHT FRONT		- PCS	B

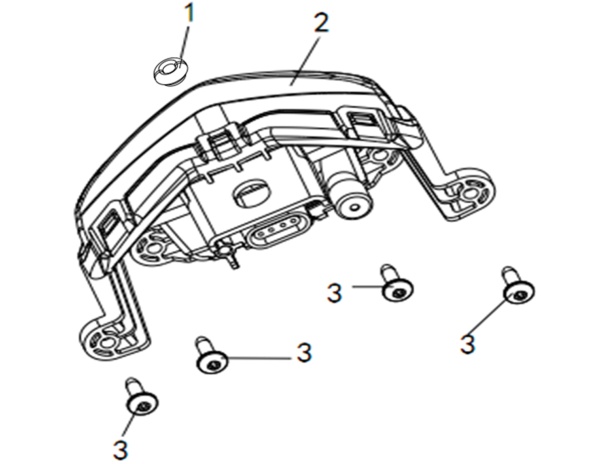

Assembly diagrams

Ref	Part Name	Qty	Grade
F22-1	I-RUBBER	- PCS	C
F22-2	TAILLIGHT SET	- PCS	B
F22-3	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C

Assembly diagrams

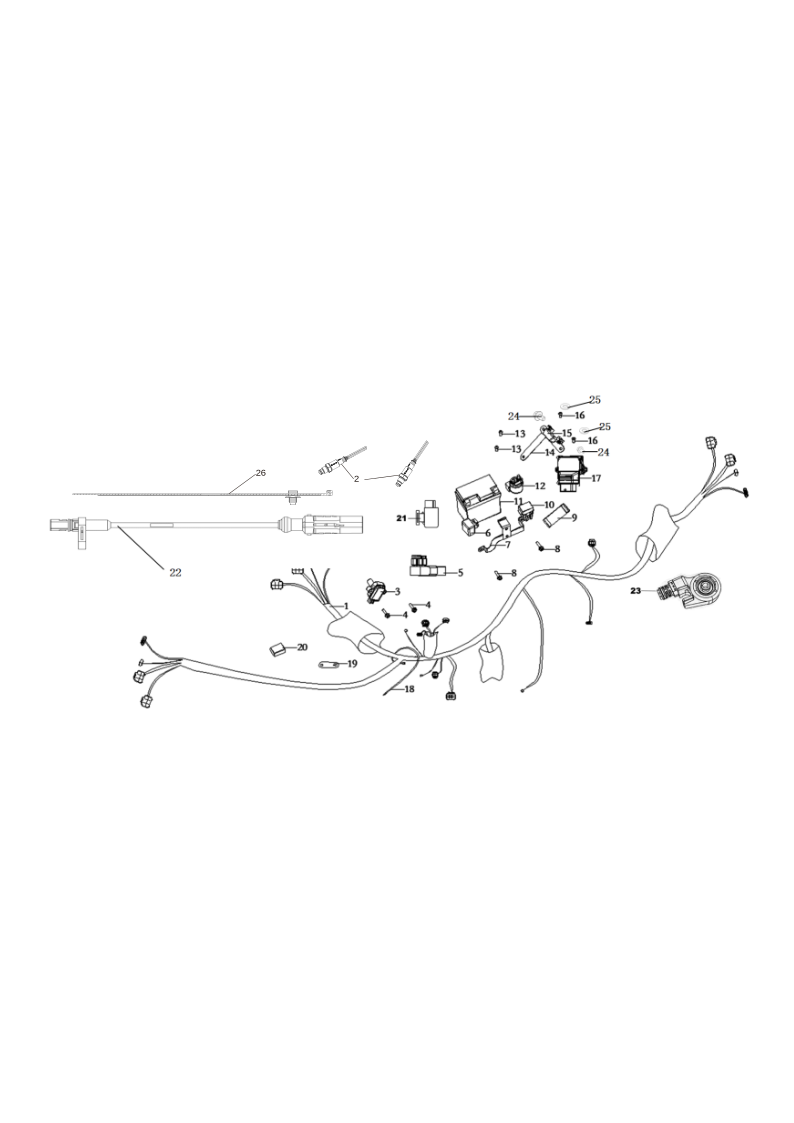

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 1

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 2

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 3

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 4

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 5

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 6

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 7

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 8

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 9

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS - diagram 10

Ref	Part Name	Qty	Grade
F23-1	HARNESS,WIRE	- SET	B

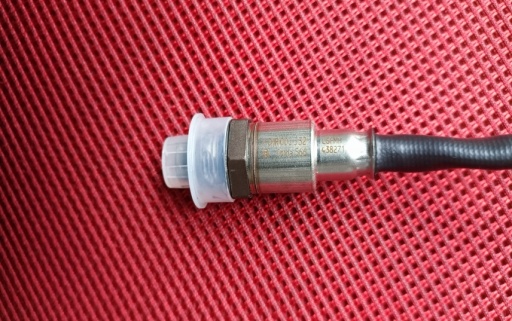

F23-2	OXYGEN SENSOR	- PCS	C

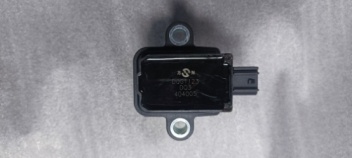

F23-3	COIL ASSY.,IGNITION	- PCS	A
F23-4	BOLT,HEXAGON FLANGE	- PCS	C
F23-5	ELECTRICAL BOX	- PCS	C

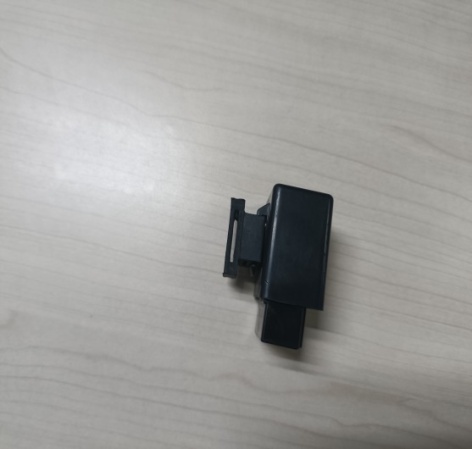

F23-6	FLASHER	- PCS	A
F23-7	BRACKET,BATTERY	- PCS	C
F23-8	BOLT,HEXAGON FLANGE	- PCS	C
F23-9	RECTIFIER REGULATOR ASSY.	- PCS	A
F23-10	BOX ASSY.,FUSE	- PCS	B
F23-11	BATTERY ASSY.	- PCS	A
F23-12	STARTING RELAY ASSY.	- PCS	A
F23-13	SCREW,CROSS RECESSED PAN	- PCS	C
F23-14	BRACE,ELECTRICAL PARTS	- PCS	C
F23-16	SCREW,CROSS RECESSED PAN	- PCS	C

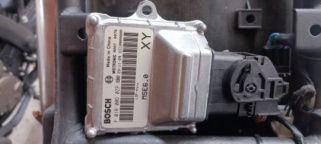

F23-17	ECU	- PCS	C
F23-18	CLAMPING BAND	- PCS	C
F23-19	CLAMPING BAND	- PCS	C
F23-20	SHEATH,ELECTRICAL PARTS	- PCS	C
F23-21	CONTROLLER,HEAD LIGHT	- PCS	B
F23-22	SPEED SENSOR	- PCS	C
F23-23	KILL SWITCH, SIDE STAND	- PCS	B
F23-24	BOLT,HEXAGON FLANGE	- PCS	C
F23-25	WASHER,PLAIN	- PCS	C
F23-26	CLAMPING BAND	- PCS	C

Assembly diagrams

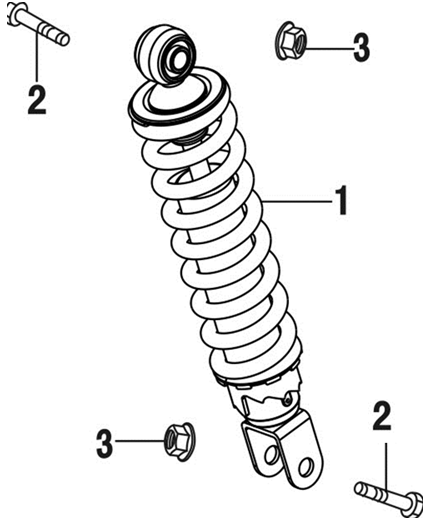

F-24 F-24 REAR SHOCK ABSORBER - diagram 1

F-24 F-24 REAR SHOCK ABSORBER - diagram 2

F-24 F-24 REAR SHOCK ABSORBER - diagram 3

Ref	Part Name	Qty	Grade
F24-1	SHOCK ABSORBER, LEFT REAR	- PCS	B
F24-2	AXIS	- PCS	C
F24-3	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade

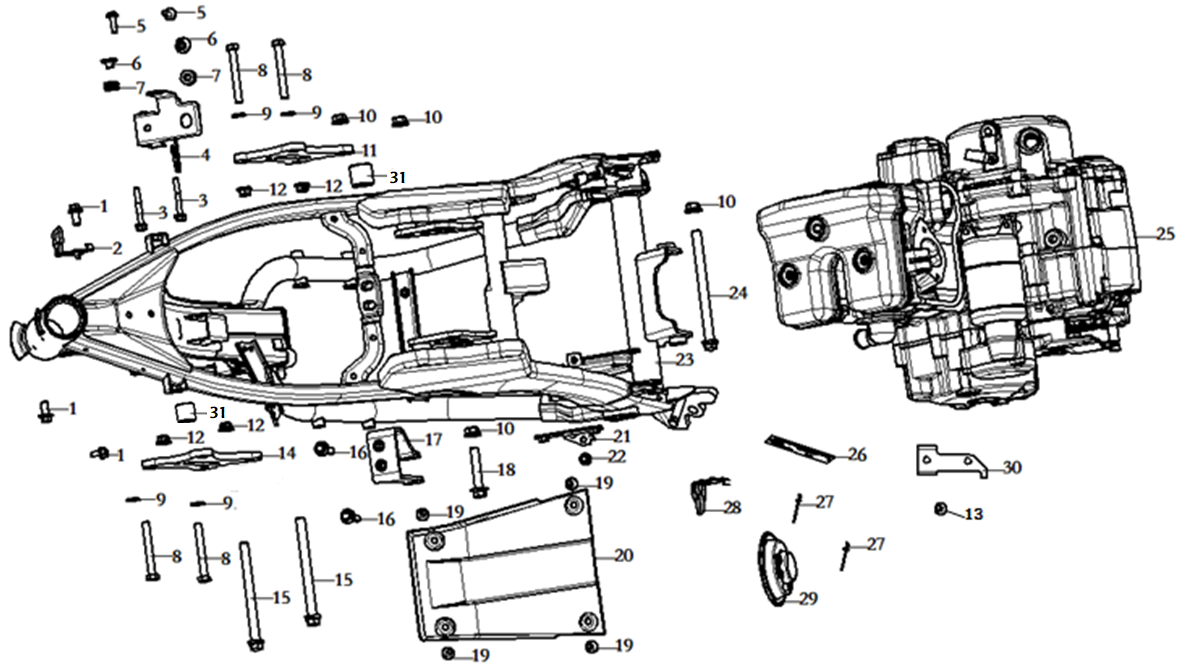

F25-1	BOLT,HEXAGON FLANGE	- PCS	C
F25-2	CLAMP,WIRE	- PCS	C
F25-3	BOLT,HEXAGON FLANGE	- PCS	C
F25-4	INSTALLATION BRACKET, ABS	- PCS	C
F25-5	SCREW,HEXAGON SOCKET	- PCS	C
F25-6	COLLAR	- PCS	C
F25-7	I-RUBBER	- PCS	C
F25-8	BOLT,ENGINE HANGER	- PCS	C
F25-9	WASHER,PLAIN	- PCS	C
F25-10	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F25-11	STRUT MEMBER,ENGINE HANGER	- PCS	C
F25-12	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F25-13	BOLT,HEXAGON FLANGE	- PCS	C
F25-14	STRUT MEMBER,ENGINE HANGER	- PCS	C
F25-15	AXIS	- PCS	C
F25-16	BOLT,HEXAGON FLANGE	- PCS	C
F25-17	PLATE,LEFT UPPER ENGINE HANGER	- PCS	C
F25-18	AXIS	- PCS	C
F25-19	SCREW,HEXAGON SOCKET	- PCS	C
F25-20	SHIELD,ENGINE	- PCS	B
F25-21	BRACKET,RECTIFIER REGULATE	- PCS	C
F25-22	SCREW,HEXAGON SOCKET	- PCS	C
F25-23	BODY COMP.,FRAME	- PCS	D
F25-24	AXIS	- PCS	C
F25-25		-	-

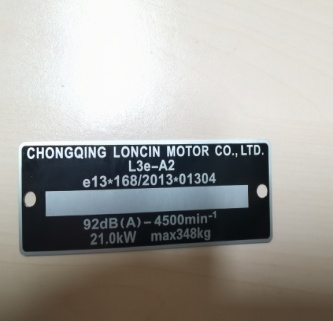

F25-26	NAMEPLATE,FRAME	- PCS	C
F25-27	RIVET	- PCS	C
F25-28	CLAMP,WIRE	- PCS	C
F25-29	HORN	- PCS	A
F25-30	STRUT MEMBER,CDI.UNIT	- PCS	C
F25-31	COLLAR	- PCS	C

Assembly diagrams

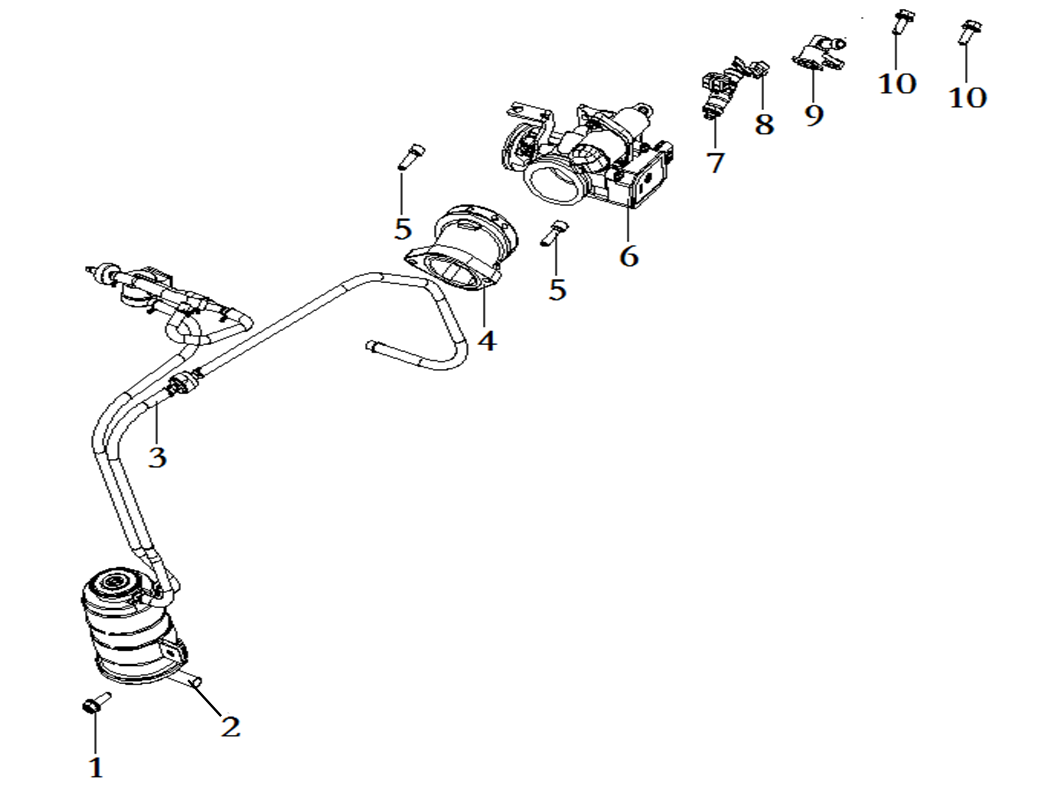

F-26 F-26 THROTTLE BODY ASSEMBLY - diagram 1

F-26 F-26 THROTTLE BODY ASSEMBLY - diagram 2

F-26 F-26 THROTTLE BODY ASSEMBLY - diagram 3

Ref	Part Name	Qty	Grade
F26-1	BOLT,HEXAGON FLANGE	- PCS	C
F26-2	BRACKET CANISTER	- PCS	C
F26-3	CONTROLLER ASSY.,FUEL EVAPORATION	- SET	C

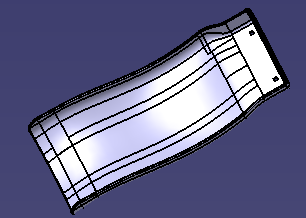

F26-4	TUBE,AIR INTAKE	- PCS	B
F26-5	SCREW,HEXAGON SOCKET	- PCS	C

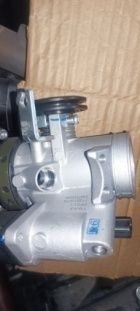

F26-6	VALVE BODY ASSY., THROTTLE	- PCS	C

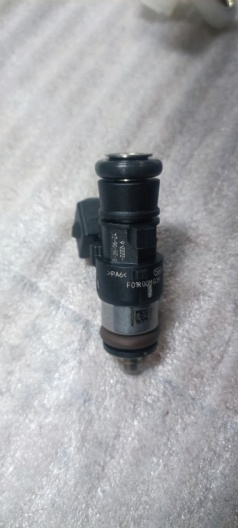

F26-7	FUEL JET	- PCS	C
F26-8	CLAMP, FUEL JET	- PCS	C
F26-9	CAP, FUEL JET	- PCS	C
F26-10	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagrams

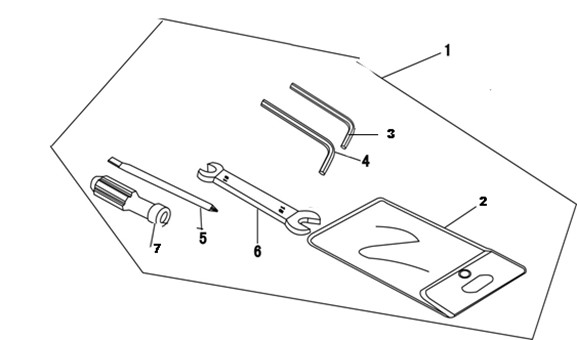

Ref	Part Name	Part Number	Qty	Grade	Notes
F27-1	ACCESSORIES,TOOL		- SET	D

Assembly diagrams

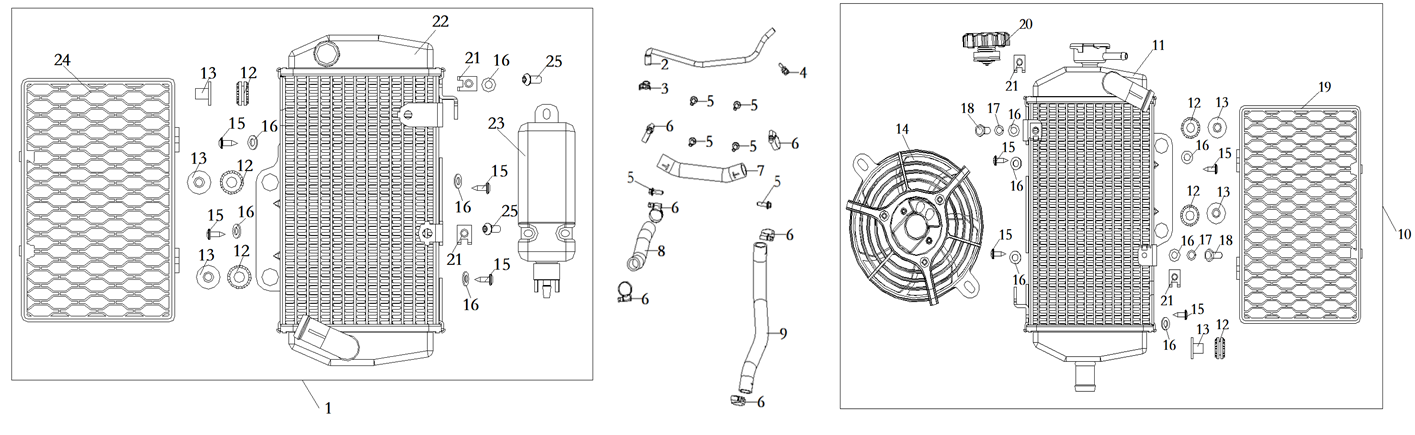

Ref	Part Name	Qty	Grade
F28-1	HEAT RADIATOR COMP.	- SET	B
F28-2	TUBE,WATER	- PCS	B
F28-3	CLAMP,TUBE	- PCS	C
F28-4	CLAMP,TUBE	- PCS	C
F28-5	BOLT,HEXAGON FLANGE	- PCS	C
F28-6	CLAMP ASSY.	- PCS	C
F28-7	TUBE,WATER	- PCS	B
F28-8	TUBE,WATER	- PCS	B
F28-9	TUBE,WATER	- PCS	B
F28-10	HEAT RADIATOR COMP.	- SET	B
F28-11	BODY SET,RADIATOR	- PCS	C
F28-12	I-RUBBER	- PCS	C
F28-13	WASHER,FLANGE	- PCS	C
F28-14	FAN ASSY.	- SET	B
F28-15	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F28-16	WASHER,PLAIN	- PCS	C
F28-17	WASHER,ELASTIC	- PCS	C
F28-18	BOLT,HEXAGON	- PCS	C

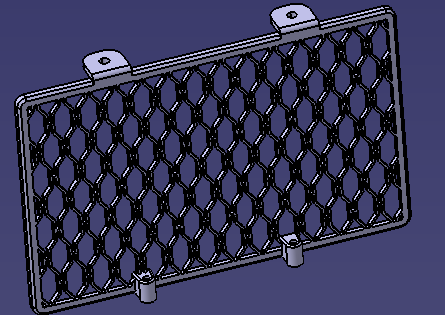

F28-19	HALFTONE,RADIATOR	- PCS	C
F28-20	CAP,FILLER	- PCS	C
F28-21	NUT,CLIP	- PCS	C
F28-22	BODY SET,RADIATOR	- PCS	C
F28-23	WATER TANK,COOLING	- PCS	B
F28-24	HALFTONE,RADIATOR	- PCS	C
F28-25	SCREW,CROSS RECESSED PAN	- PCS	C

Assembly diagrams

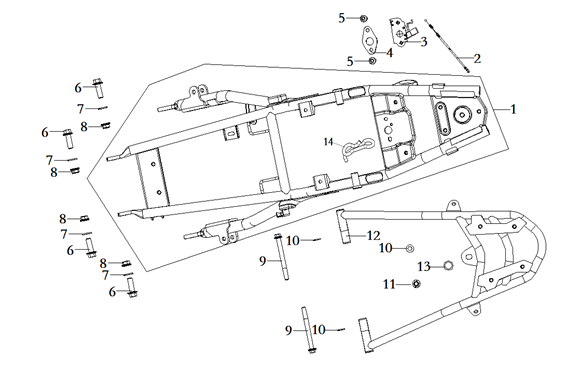

Ref	Part Name	Qty	Grade	Notes
F29-1	REAR PART,FRAME	- PCS	C
F29-2	CABLE,SEAT	- PCS	A
F29-3	DEVICE,SEAT LOCKING	- SET	B	NOT FOR SERVCE
F29-4	WASHER,SEAT LOCK	- PCS	C
F29-5	SCREW,HEXAGON SOCKET	- PCS	C
F29-6	BOLT,HEXAGON FLANGE	- PCS	C
F29-7	WASHER,PLAIN	- PCS	C
F29-8	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F29-9	BOLT,HEXAGON FLANGE	- PCS	C
F29-10	WASHER,PLAIN	- PCS	C
F29-11	BOLT,HEXAGON FLANGE	- PCS	C
F29-12	LUGGAGE CARRIER COMP.,REAR	- PCS	C
F29-13	COLLAR	- PCS	C
F29-14	HOOK,HELMET	- PCS	B

Assembly diagram

Ref	Part Name	Qty	Grade
F30-1	SCREW,HEXAGON SOCKET	- PCS	C

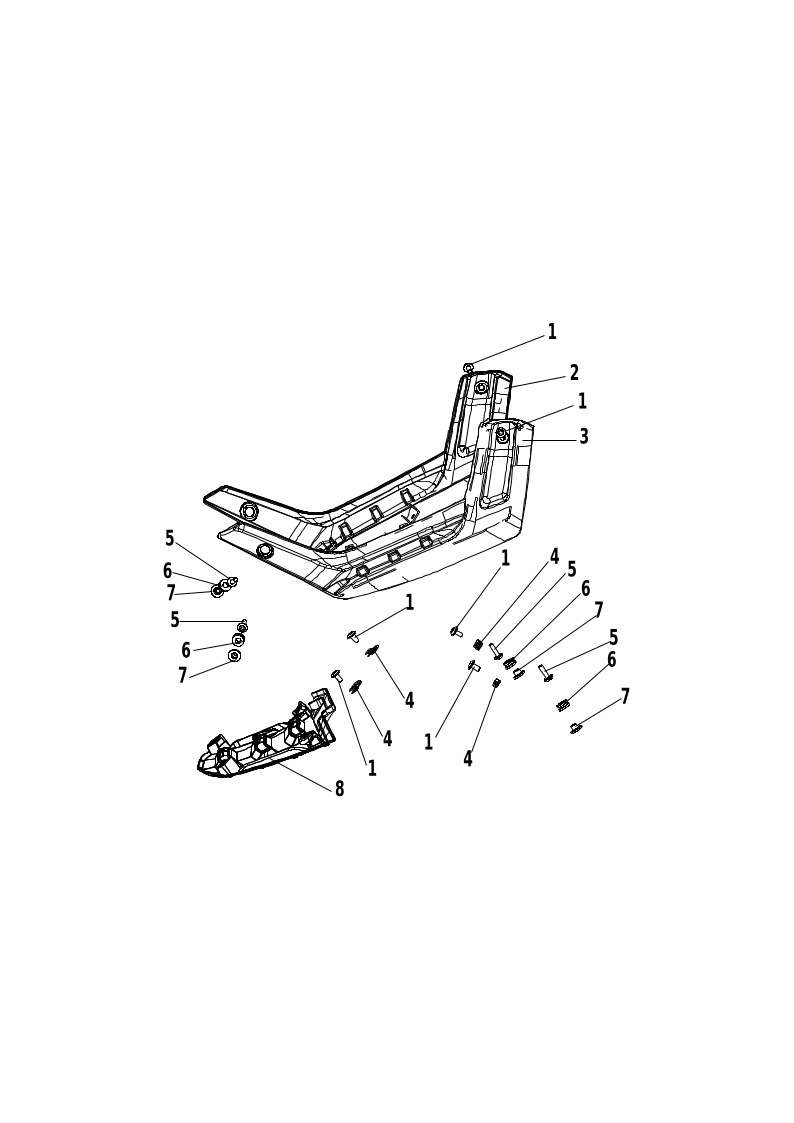

F30-2	FAIRING COVER,LEFT LOWER	- PCS	B
F30-3	FAIRING COVER,RIGHT LOWER	- PCS	B
F30-4	NUT,CLIP	- PCS	C
F30-5	SCREW,HEXAGON SOCKET	- PCS	C
F30-6	I-RUBBER	- PCS	C
F30-7	WASHER,FLANGE	- PCS	C
F30-8	PLATE,LOWER FAIRING COVER CONNECTING	- PCS	B

Assembly diagrams

Ref	Part Name	Qty	Grade

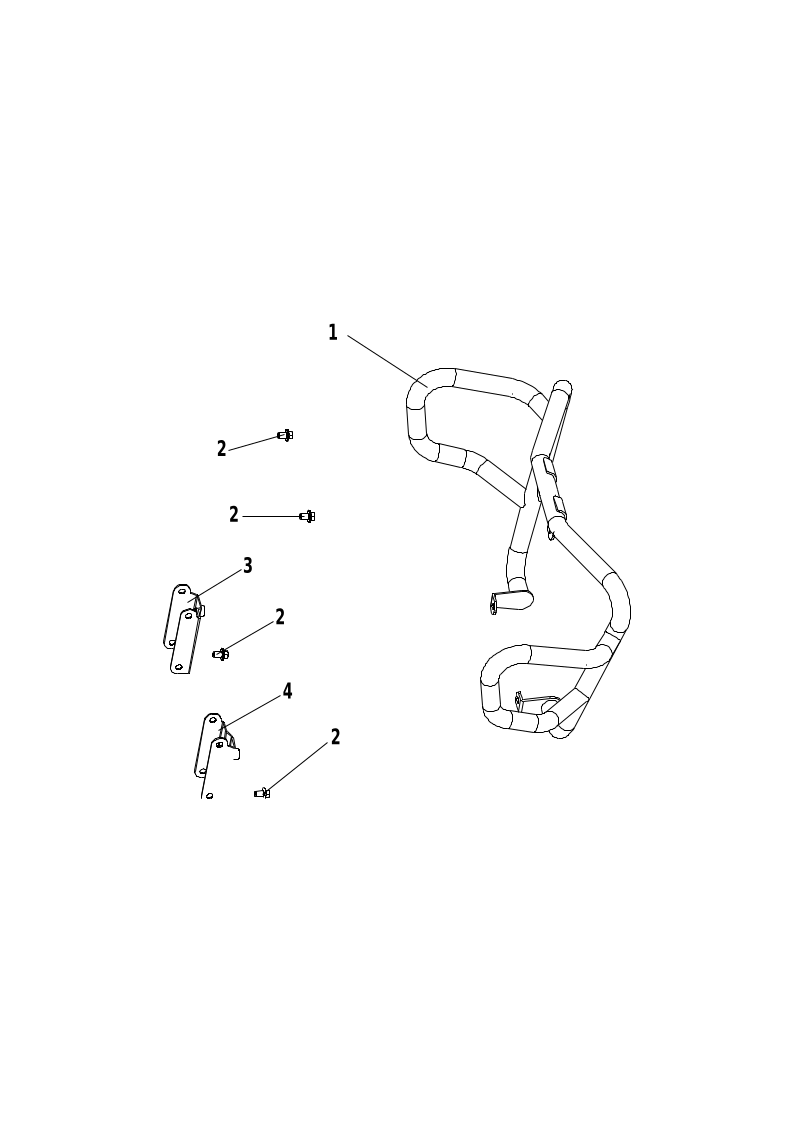

F31-1	COLLISION BUMPER COMP.	- PCS	C
F31-2	BOLT,HEXAGON FLANGE	- PCS	C
F31-3	BRACKET,LOWER FAIRING COVER	- PCS	C
F31-4	BRACKET,LOWER FAIRING COVER	- PCS	C

Assembly diagrams

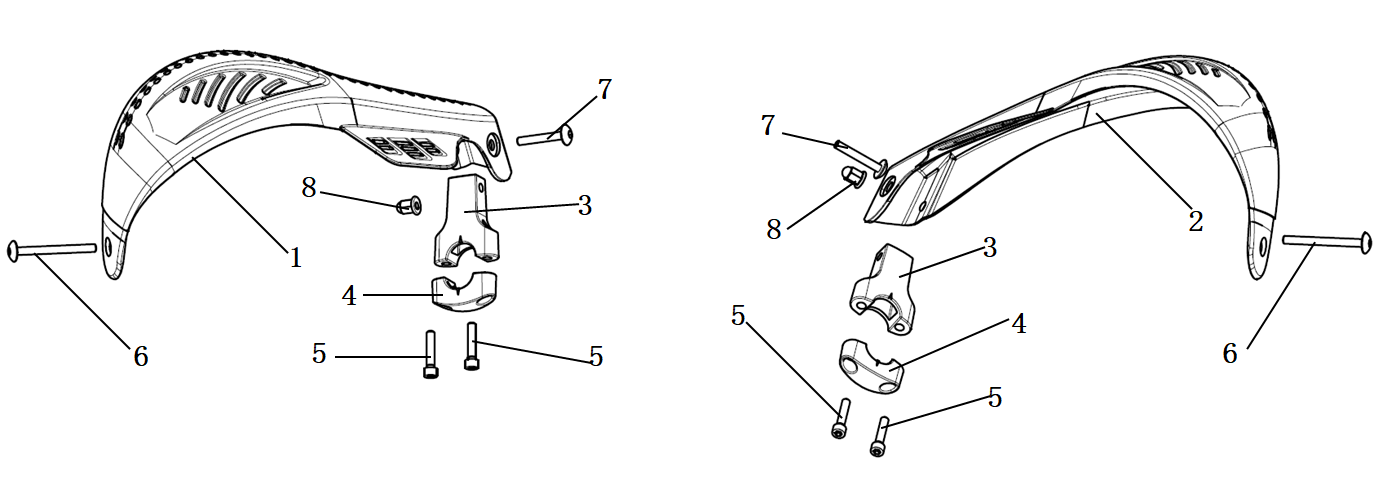

Ref	Part Name	Qty	Grade
F32-1	SHIELD,LEFT HANDLE	- PCS	B
F32-2	SHIELD,RIGHT HANDLE	- PCS	B
F32-3	HOLDER,HANDLE SHIELD	- PCS	C
F32-4	CLIP,HANDLE SHIELD	- PCS	C
F32-5	SCREW,HEXAGON SOCKET	- PCS	C
F32-6	SCREW,HEXAGON SOCKET	- PCS	C
F32-7	SCREW,HEXAGON SOCKET	- PCS	C
F32-8	CAP-SHAPED NUT	- PCS	C

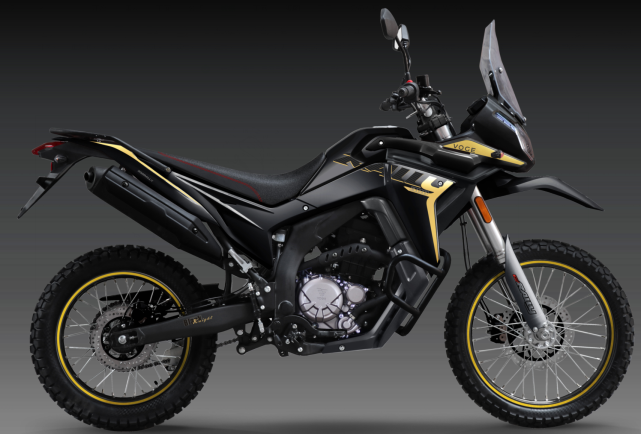

YF300

Ref	Part Name	Part Number	Qty	Grade	Notes
E1	ENGINE		-	-

Assembly diagrams

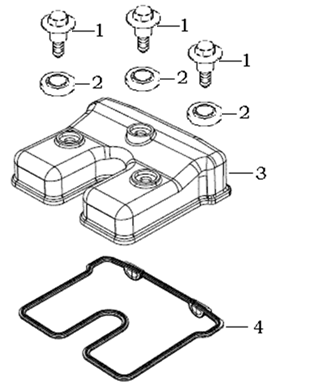

E-1 E-1 （ Cylinder Head Cover Parts） - diagram 1

E-1 E-1 （ Cylinder Head Cover Parts） - diagram 2

E-1 E-1 （ Cylinder Head Cover Parts） - diagram 3

E-1 E-1 （ Cylinder Head Cover Parts） - diagram 4

Ref	Part Name	Qty	Grade
E01-01	BOLT,CYLINDER HEAD COVER	-	-
E01-02	RING,SEAL	-	-
E01-03	COVER COMP.,CYLINDER HEAD	-	-
E01-04	GASKET,CYLINDER HEAD COVER	-	-

Assembly diagrams

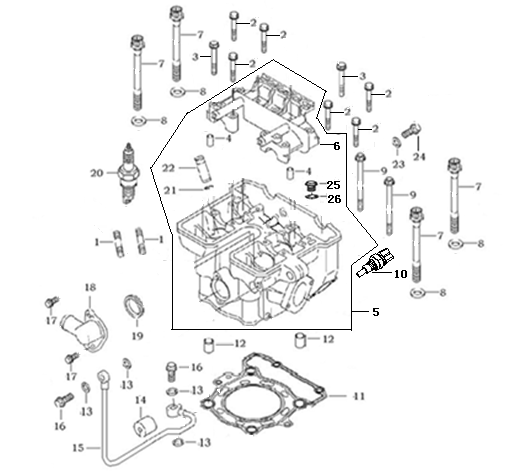

E-2 E-2 （ Cylinder Head Parts） - diagram 1

E-2 E-2 （ Cylinder Head Parts） - diagram 2

E-2 E-2 （ Cylinder Head Parts） - diagram 3

E-2 E-2 （ Cylinder Head Parts） - diagram 4

E-2 E-2 （ Cylinder Head Parts） - diagram 5

E-2 E-2 （ Cylinder Head Parts） - diagram 6

E-2 E-2 （ Cylinder Head Parts） - diagram 7

E-2 E-2 （ Cylinder Head Parts） - diagram 8

E-2 E-2 （ Cylinder Head Parts） - diagram 9

E-2 E-2 （ Cylinder Head Parts） - diagram 10

E-2 E-2 （ Cylinder Head Parts） - diagram 11

E-2 E-2 （ Cylinder Head Parts） - diagram 12

E-2 E-2 （ Cylinder Head Parts） - diagram 13

E-2 E-2 （ Cylinder Head Parts） - diagram 14

E-2 E-2 （ Cylinder Head Parts） - diagram 15

E-2 E-2 （ Cylinder Head Parts） - diagram 16

E-2 E-2 （ Cylinder Head Parts） - diagram 17

Ref	Part Name	Qty	Grade	Notes
E02-01	double-Bolt	-	-
E02-02	Bolt	-	-
E02-03	Bolt	-	-
E02-04	Dowel Pin	-	-	NOT FOR SERVICE
E02-05	CYLINDER HEAD KIT	-	-
E02-06	Supporting Bracket	-	-	NOT FOR SERVICE
E02-07	Torx Bolt	-	-
E02-08	Washer	-	-
E02-09	Bolt	-	-
E02-10	Engine sensors	-	-
E02-11	Cylinder Head Gasket	-	-
E02-12	Dowel Pin	-	-
E02-13	Washer	-	-
E02-14	Tube Bearing	-	-
E02-15	Oil Tube	-	-
E02-16	Bolt	-	-
E02-17	Bolt	-	-
E02-18	Tube tie-in	-	-
E02-19	O-Ring	-	-
E02-20	Spark plug	-	-
E02-21	Guide Ring	-	-	NOT FOR SERVICE
E02-22	Guide,Intake Valve	-	-	NOT FOR SERVICE
E02-23	O-Ring	-	-
E02-24	Bolt	-	-
E02-25	SCREW,HEXAGON SOCKET	-	-	NOT FOR SERVICE
E02-26	RING,SEAL	-	-	NOT FOR SERVICE

Assembly diagrams

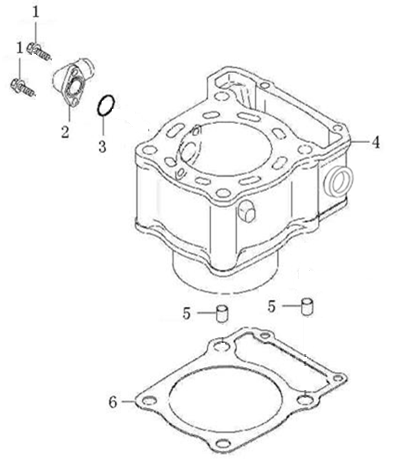

Ref	Part Name	Qty	Grade
E03-01	Bolt	-	-
E03-02	Tube tie-in	-	-
E03-03	O-ring	-	-
E03-04	Cylinder	-	-
E03-05	Dowel Pin	-	-
E03-06	Cylinder Gasket	-	-

Assembly diagrams

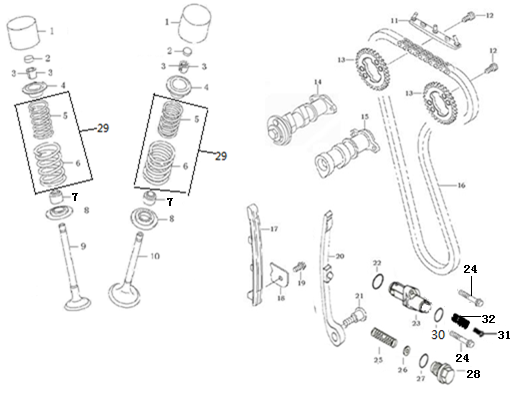

Ref	Part Name	Qty	Grade
E04-01	Lifter	-	-
E04-02	Valve Adjust Spacer	-	-
E04-02A	ADJUSTING SHIM,VALVE KIT	-	-

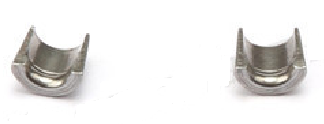

E04-03	Valve Collet	-	-
E04-04	Valve Spring Plate	-	-
E04-05	Inner Spring	-	-
E04-06	Outer Spring	-	-
E04-07	Valve Oil Ring	-	-
E04-08	Valve Spring Seat	-	-
E04-09	Exhaust Valve	-	-
E04-10	Intake Valve	-	-
E04-11	platen,Timing Chain	-	-
E04-12	Bolt	-	-
E04-13	Timing Camshaft Sproket	-	-
E04-14	Camshaft	-	-
E04-15	Camshaft	-	-
E04-16	Timing Chain	-	-
E04-17	Guide Rall	-	-
E04-18	platen,Guide Rall	-	-
E04-19	Bolt	-	-
E04-20	Bow	-	-
E04-21	forelock,Bow	-	-
E04-22	O-ring	-	-
E04-23	Tensioner Assembly	-	-
E04-24	Bolt	-	-
E04-25	Spring	-	-
E04-26	Washer	-	-
E04-27	O-ring	-	-
E04-28	Tensioner Bolt	-	-
E04-29	SPRING SET,VALVE	-	-
E04-30	O-ring	-	-
E04-31	BOLT,TENSIONER	-	-
E04-32	SPRING,COMPRESSION	-	-

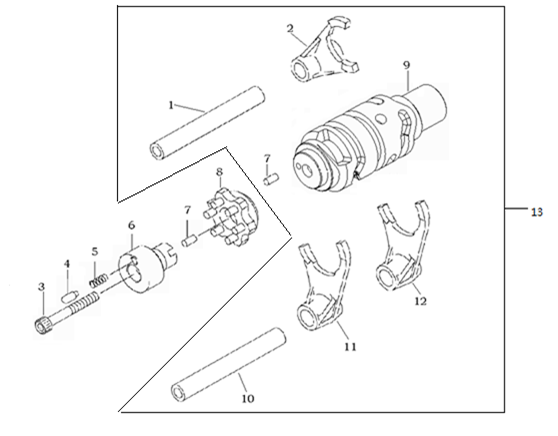

Assembly diagrams

Ref	Part Name	Qty	Grade
E05-01	Fork ShaftⅠ	-	-
E05-02	Fork Ⅱ	-	-
E05-03	Bolt	-	-
E05-04	Pin	-	-
E05-05	SPRING,COMPRE	-	-
E05-06	Touch Board	-	-
E05-07	Pin	-	-
E05-08	Holder,Change Drum	-	-
E05-09	Shaft Drum	-	-
E05-10	Fork ShaftⅡ	-	-
E05-11	Fork Ⅲ	-	-
E05-12	Fork Ⅰ	-	-
E05-13	DRUM COMP.,GEAR SHIFT	-	-

Assembly diagrams

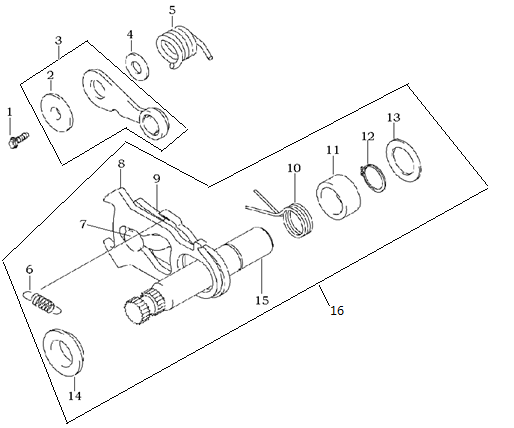

Ref	Part Name	Qty	Grade	Notes
E06-01	Bolt	-	-
E06-02	Sleeve	-	-
E06-03	Stopper	-	-
E06-04	Washer	-	-
E06-05	Spring	-	-
E06-06	Spring	-	-	NOT FOR SERVICE
E06-07	Gear Change Limit Pin	-	-	NOT FOR SERVICE
E06-08	Gear Change Plate	-	-	NOT FOR SERVICE
E06-09	Gear Change Limit Plate	-	-	NOT FOR SERVICE
E06-10	Spring	-	-	NOT FOR SERVICE
E06-11	Sleeve	-	-	NOT FOR SERVICE
E06-12	Circlip	-	-	NOT FOR SERVICE
E06-13	Washer	-	-	NOT FOR SERVICE
E06-14	Sleeve	-	-	NOT FOR SERVICE
E06-15	Gear Shift	-	-	NOT FOR SERVICE

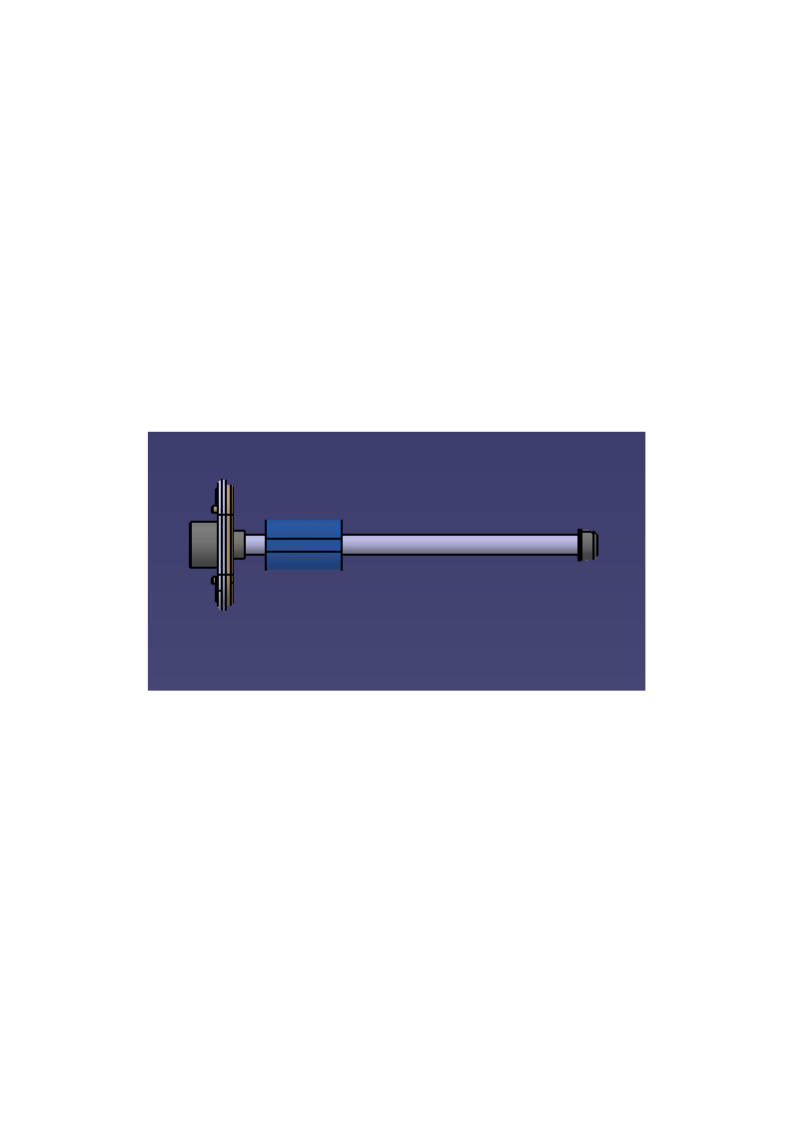

E06-16	ARM COMP.,GEAR CHANGE	-	-

Assembly diagrams

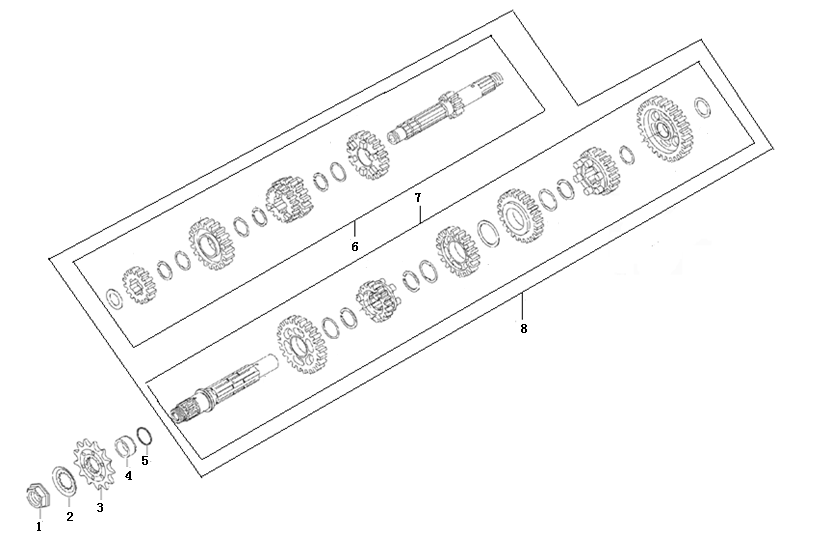

E-7 E-7 (Transmission Shaft Comp) - diagram 1

E-7 E-7 (Transmission Shaft Comp) - diagram 2

E-7 E-7 (Transmission Shaft Comp) - diagram 3

E-7 E-7 (Transmission Shaft Comp) - diagram 4

E-7 E-7 (Transmission Shaft Comp) - diagram 5

E-7 E-7 (Transmission Shaft Comp) - diagram 6

E-7 E-7 (Transmission Shaft Comp) - diagram 7

Ref	Part Name	Qty	Grade
E07-01	Nut	-	-
E07-02	Washer	-	-
E07-03	Driving Sprocket	-	-
E07-04	Bush	-	-
E07-05	O-Ring	-	-
E07-06	MAINSHAFT COMP.	-	-
E07-07	COUNTERSHAFT COMP.	-	-
E07-08	MAINSHAFT&COUNTERSHAFT KIT	-	-

Assembly diagrams

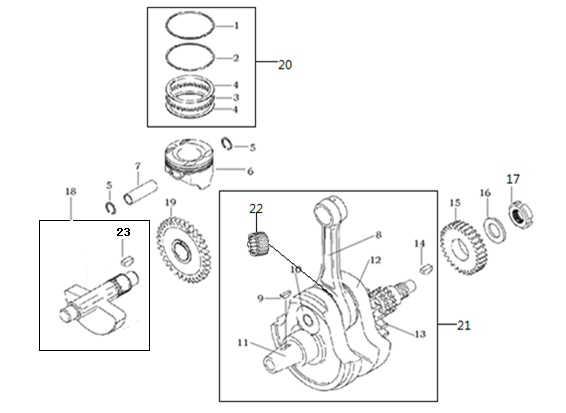

Ref	Part Name	Qty	Grade	Notes
E08-01	Piston Ring 1	-	-	NOT FOR SERVICE
E08-02	Piston Ring 2	-	-	NOT FOR SERVICE
E08-03	Line Ring	-	-	NOT FOR SERVICE
E08-04	shaving Ring	-	-	NOT FOR SERVICE
E08-05	Circlip Piston Pin	-	-
E08-06	Piston	-	-
E08-07	Piston Pin	-	-
E08-08	Rod Connecting	-	-	NOT FOR SERVICE
E08-09	Key	-	-	NOT FOR SERVICE
E08-10	Pin Crank	-	-	NOT FOR SERVICE
E08-11	L Crankshaft	-	-	NOT FOR SERVICE
E08-12	R Crangshaft	-	-	NOT FOR SERVICE
E08-13	Driven Gear Balancer Shaft	-	-	NOT FOR SERVICE
E08-14	Key	-	-	NOT FOR SERVICE
E08-15	Gear Primary Clvive	-	-
E08-16	Washer	-	-
E08-17	Nut	-	-
E08-18	Shaft Balancer	-	-
E08-19	Gear Balancer Shaft	-	-
E08-20	RING SET,PISTON	-	-
E08-21	CRANKSHAFT COMP.	-	-
E08-22	BEARING	-	-	NOT FOR SERVICE
E08-23	KEY	-	-	NOT FOR SERVICE

Assembly diagrams

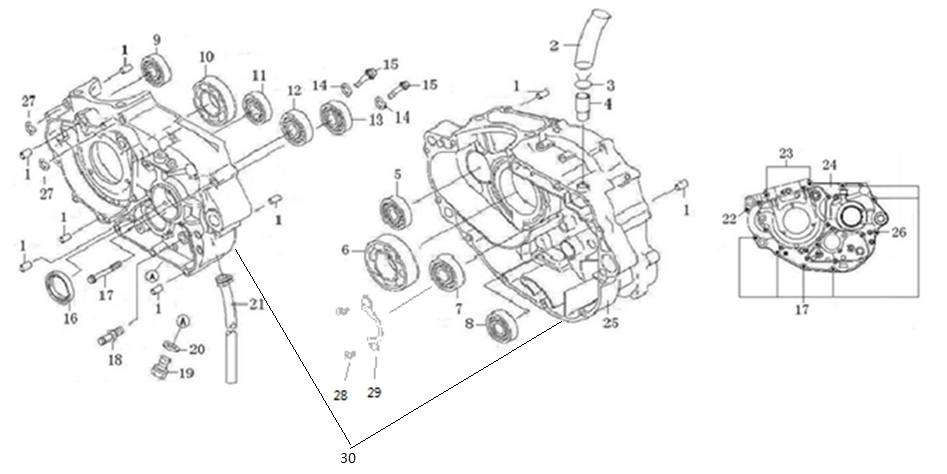

Ref	Part Name	Qty	Grade	Notes
E09-01	Pin	-	-
E09-02	Pipe,aerate	-	-	该机型无
E09-03	Pipe Nip	-	-	该机型无
E09-04	Terminal Breather Hose	-	-	NOT FOR SERVICE
E09-05	BEARING	-	-
E09-06	BEARING	-	-
E09-07	BEARING	-	-
E09-08	BEARING	-	-
E09-09	BEARING	-	-
E09-10	BEARING	-	-	NOT FOR SERVICE
E09-11	BEARING	-	-
E09-12	BEARING	-	-
E09-13	BEARING	-	-
E09-14	Washer	-	-
E09-15	Bolt	-	-
E09-16	Oil Seal	-	-
E09-17	Bolt	-	-
E09-18	Bolt	-	-
E09-19	Plug Oil Drain	-	-
E09-20	Washer	-	-
E09-21	Oil Pipe	-	-
E09-22	Bolt	-	-
E09-23	Bolt	-	-
E09-24	BODY SET,LEFT CRANKCASE	-	-
E09-25	BODY SET,RIGHT CRANKCASE	-	-
E09-26	Bolt	-	-
E09-27	Washer	-	-
E09-28	SCREW,CROSS RECESSED COUNTERSUNK HEAD	-	-
E09-29	Baffle	-	-
E09-30	CRANKCASE KIT	-	-

Assembly diagrams

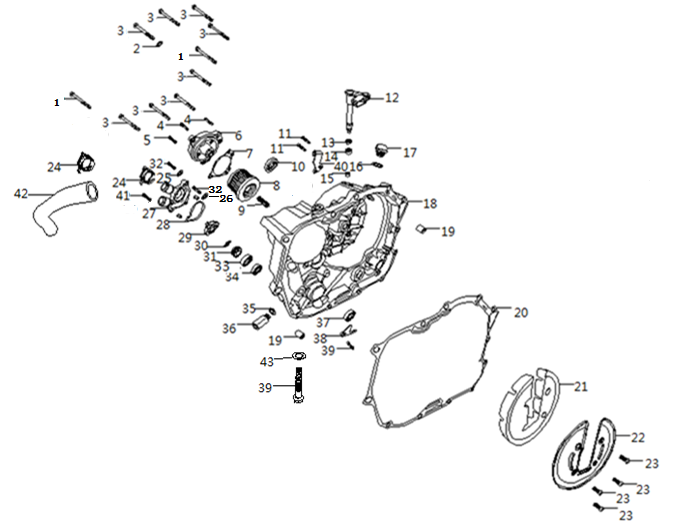

E-10 E-10 （R-Crankcase Cover） - diagram 1

E-10 E-10 （R-Crankcase Cover） - diagram 2

E-10 E-10 （R-Crankcase Cover） - diagram 3

E-10 E-10 （R-Crankcase Cover） - diagram 4

E-10 E-10 （R-Crankcase Cover） - diagram 5

E-10 E-10 （R-Crankcase Cover） - diagram 6

E-10 E-10 （R-Crankcase Cover） - diagram 7

E-10 E-10 （R-Crankcase Cover） - diagram 8

E-10 E-10 （R-Crankcase Cover） - diagram 9

E-10 E-10 （R-Crankcase Cover） - diagram 10

E-10 E-10 （R-Crankcase Cover） - diagram 11

E-10 E-10 （R-Crankcase Cover） - diagram 12

E-10 E-10 （R-Crankcase Cover） - diagram 13

E-10 E-10 （R-Crankcase Cover） - diagram 14

E-10 E-10 （R-Crankcase Cover） - diagram 15

E-10 E-10 （R-Crankcase Cover） - diagram 16

E-10 E-10 （R-Crankcase Cover） - diagram 17

E-10 E-10 （R-Crankcase Cover） - diagram 18

E-10 E-10 （R-Crankcase Cover） - diagram 19

E-10 E-10 （R-Crankcase Cover） - diagram 20

E-10 E-10 （R-Crankcase Cover） - diagram 21

E-10 E-10 （R-Crankcase Cover） - diagram 22

Ref	Part Name	Qty	Grade
E10-01	BOLT,HEXAGON FLANGE	-	-
E10-02	WASHER,PLAIN	-	-
E10-03	BOLT,HEXAGON FLANGE	-	-
E10-04	BOLT,HEXAGON FLANGE	-	-
E10-05	BOLT,HEXAGON FLANGE	-	-
E10-06	CAP,SECONDARY OIL FILTER	-	-
E10-07	GASKET,OIL FILTER CAP	-	-
E10-08	OIL FILTER ASSY.,SECONDARY	-	-
E10-09	SPRING,COMPRESSION	-	-
E10-10	SIGHT GLASS,OIL	-	-
E10-11	BOLT,HEXAGON FLANGE	-	-
E10-12	JOYSTICK ASSY.,CLUTCH	-	-
E10-13	OIL SEAL	-	-
E10-14	BEARING	-	-
E10-15	BEARING	-	-
E10-16	RING,SEAL	-	-
E10-17	GAUGE COMP.,OIL LEVEL	-	-
E10-18	COVER COMP.,RIGHT CRANKCASE	-	-
E10-19	PIN,DOWEL	-	-
E10-20	GASKET,RIGHT CRANKCASE COVER	-	-
E10-21	PAD,CUSHION	-	-
E10-22	COVER,CUSHION PAD	-	-
E10-23	SCREW,CROSS RECESSED PAN	-	-
E10-24	CLAMP,TUBE	-	-
E10-25	WASHER,PLAIN	-	-
E10-26	WASHER,PLAIN	-	-
E10-27	CAP,COOLING PUMP	-	-
E10-28	GASKET,COOLING PUMP	-	-
E10-29	IMPELLER,COOLING PUMP	-	-
E10-30	HYDROSEAL MOVING RING,COOLING PUMP	-	-
E10-31	HYDROSEAL STATIONARY ELEMENT COMP.,COOLING PUMP	-	-
E10-32	BOLT,HEXAGON FLANGE	-	-
E10-33	OIL SEAL	-	-
E10-34	BEARING	-	-
E10-35	Washer	-	-
E10-36	VALVE COMP.,OIL CONTROL	-	-
E10-37	OIL SEAL	-	-
E10-38	PANEL,CRANKSHAFT RIGHT OIL SEAL	-	-
E10-39	BOLT,HEXAGON FLANGE	-	-
E10-40	PLATE,CLUTCH CABLE LOCATING	-	-
E10-41	BOLT,HEXAGON FLANGE	-	-
E10-42	TUBE,WATER	-	-
E10-43	WASHER,PLAIN	-	-

Assembly diagrams

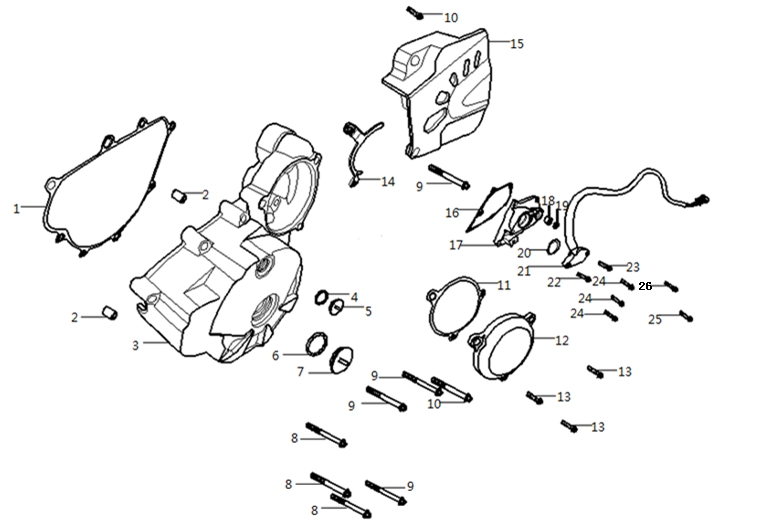

E-11 E-11 （L-Crankcase Cover） - diagram 1

E-11 E-11 （L-Crankcase Cover） - diagram 2

E-11 E-11 （L-Crankcase Cover） - diagram 3

E-11 E-11 （L-Crankcase Cover） - diagram 4

E-11 E-11 （L-Crankcase Cover） - diagram 5

E-11 E-11 （L-Crankcase Cover） - diagram 6

E-11 E-11 （L-Crankcase Cover） - diagram 7

E-11 E-11 （L-Crankcase Cover） - diagram 8

E-11 E-11 （L-Crankcase Cover） - diagram 9

E-11 E-11 （L-Crankcase Cover） - diagram 10

E-11 E-11 （L-Crankcase Cover） - diagram 11

E-11 E-11 （L-Crankcase Cover） - diagram 12

E-11 E-11 （L-Crankcase Cover） - diagram 13

E-11 E-11 （L-Crankcase Cover） - diagram 14

E-11 E-11 （L-Crankcase Cover） - diagram 15

E-11 E-11 （L-Crankcase Cover） - diagram 16

E-11 E-11 （L-Crankcase Cover） - diagram 17

E-11 E-11 （L-Crankcase Cover） - diagram 18

E-11 E-11 （L-Crankcase Cover） - diagram 19

Ref	Part Name	Qty	Grade
E11-01	GASKET,LEFT FRONT COVER	-	-
E11-02	PIN,DOWEL	-	-
E11-03	COVER COMP.,LEFT FRONT	-	-
E11-04	RING,SEAL	-	-
E11-05	COVER,INSPECTION	-	-
E11-06	RING,SEAL	-	-
E11-07	COVER,LEFT DECORATING	-	-
E11-08	BOLT,HEXAGON FLANGE	-	-
E11-09	BOLT,HEXAGON FLANGE	-	-
E11-10	BOLT,HEXAGON FLANGE	-	-
E11-11	GASKET,GEAR CHAMBER	-	-
E11-12	COVER,GEAR CHAMBER	-	-
E11-13	BOLT,HEXAGON FLANGE	-	-
E11-14	CHECK PLATE,CHAIN	-	-
E11-15	COVER COMP.,LEFT REAR	-	-
E11-16	GASKET,GEARBOX COVER	-	-
E11-17	COVER,GEARBOX	-	-
E11-18	BEARING	-	-
E11-19	OIL SEAL	-	-
E11-20	RING,SEAL	-	-
E11-21	SWITCH COMP.,GEAR INDICATOR	-	-
E11-22	BOLT,HEXAGON FLANGE	-	-
E11-23	BOLT,HEXAGON FLANGE	-	-
E11-24	BOLT,HEXAGON FLANGE	-	-
E11-25	BOLT,HEXAGON FLANGE	-	-
E11-26	SCREW,CROSS RECESSED PAN	-	-

Assembly diagrams

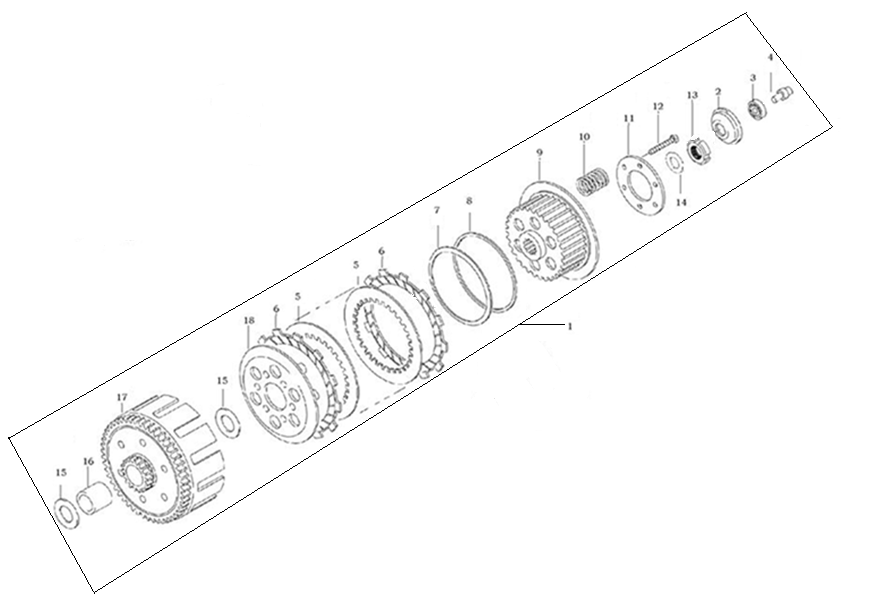

Ref	Part Name	Qty	Grade
E12-01	CLUTCH KIT	-	-
E12-02	push tray	-	-
E12-03	Ball Bearing	-	-
E12-04	Asle Sleeve Separating	-	-
E12-05	Friction Plate, Driven	-	-
E12-06	Friction Plate, Drive	-	-
E12-07	Washer	-	-
E12-08	Washer	-	-
E12-09	Center Piece	-	-
E12-10	Spring	-	-
E12-11	Clamp Plate	-	-
E12-12	Bolt	-	-
E12-13	Nut	-	-
E12-14	Washer	-	-
E12-15	Washer	-	-
E12-16	Bush	-	-
E12-17	Cover Assy Clutch	-	-
E12-18	Clamp Plate	-	-

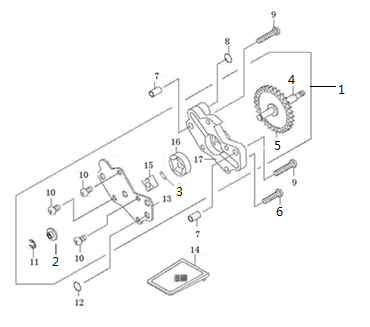

Assembly diagrams

Ref	Part Name	Qty	Grade	Notes
E13-1	PUMP ASSY.,OIL	-	-
E13-2	Washer	-	-	NOT FOR SERVICE
E13-3	Pin	-	-	NOT FOR SERVICE
E13-4	Shaft Oil Pump	-	-	NOT FOR SERVICE
E13-5	Gear，Oil Pump	-	-	NOT FOR SERVICE
E13-6	Bolt	-	-
E13-7	Pin	-	-
E13-8	O-Ring	-	-
E13-9	Bolt	-	-
E13-10	Bolt	-	-	NOT FOR SERVICE
E13-11	Circlip	-	-	NOT FOR SERVICE
E13-12	O-Ring	-	-
E13-13	Cover,Oil Pump	-	-	NOT FOR SERVICE
E13-14	Filter	-	-
E13-15	Rotor, inner, oil pump	-	-	NOT FOR SERVICE
E13-16	Rotor, outer, oil pump	-	-	NOT FOR SERVICE
E13-17	Oil Pump，Body	-	-	NOT FOR SERVICE

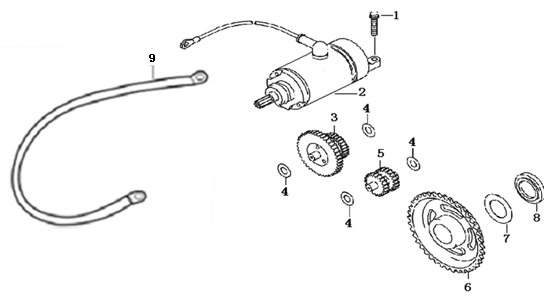

Assembly diagram

Ref	Part Name	Qty	Grade
E14-01	BOLT,HEXAGON FLANGE	-	-
E14-02	MOTOR ASSY.,STARTING	-	-
E14-03	DUPLEX GEAR,ELECTRIC STARTING	-	-
E14-04	WASHER,PLAIN	-	-
E14-05	GEAR IDLE,ELECTRIC STARTING	-	-
E14-06	DISK GEAR	-	-
E14-07	WASHER,PLAIN	-	-
E14-08	COLLAR	-	-
E14-09	CATHODE WIRE,STARTING MOTOR	-	-

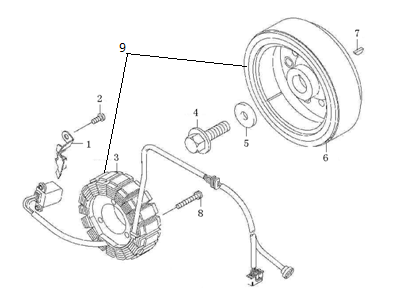

Assembly diagrams

Ref	Part Name	Qty	Grade
E15-01	Clamp	-	-
E15-02	Bolt	-	-
E15-03	Stator set, magneto	-	-
E15-04	Bolt	-	-
E15-05	Washer	-	-
E15-06	Rotor set, magneto	-	-
E15-07	Key	-	-
E15-08	Bolt	-	-
E15-09	GENERATOR ASSY.	-	-

Wear-grade legend

AA - High wear
BB - Medium wear
CC - Low wear
DD - Not user-serviceable

Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.

F01 HEADLIGHT ASSY

F02 F02 WIND BOARD HEAD COVERING PARTS

F03 METER ASSY

F04 HANDLE SWITCH

F05 HANDLE COMP.,STEERING

F06 STEERING STEM ASSY

F07 FRONT FENDER

F08 FRONT SHOCK ABSORBER

F09 FRONT WHEEL

F10 F10 DISC BRAKE SYSTEM DISC BRAKE、ABS

F11 REAR WHEEL ASSY

F12 FUEL TANK ASSY

F13 SEAT ASSY

F-14 F-14 SIDE COVER

F-15 F-15 AIR CLEANER ASSY

F-16 F-16 MUFFLER EXHAUST ASSY

F-17 F-17 GEAR CHANGE

F-18 F-18 FOOTREST SYSTEM

F-19 F-19 REAR FORK

F-20 F-20 REAR FENDER

F-21 F-21 TURN SIGNAL

F-22 F-22 TAIL LIGHT ASSY

F-23 F-23 HARNESS,WIRE AND ELETRIC PARTS

F-24 F-24 REAR SHOCK ABSORBER

F-25 F-25 FRAME ASSY

F-26 F-26 THROTTLE BODY ASSEMBLY

F-27 F-27 TOOL SET

F28 HEAT RADIATOR ASSY

F29 REAR PART,FRAME

F30 LOWER AIR GUIDE SLEEVE

F31 FRONT BUMPER

F32 SHIELD SET OF GRIP

_uncategorized Uncategorized

E-1 E-1 （ Cylinder Head Cover Parts）

E-2 E-2 （ Cylinder Head Parts）

E-3 E-3 (Cylinder Parts)

E-4 E-4 (Valve Train)

E-5 E-5 (Varibale Unit )

E-6 E-6 (Gear Shifting)

E-7 E-7 (Transmission Shaft Comp)

E-8 E-8 (Crankshaft Comp）

E-9 E-9 （Crankcase Comp）

E-10 E-10 （R-Crankcase Cover）

E-11 E-11 （L-Crankcase Cover）

E-12 E-12 （Clutch Comp）

E-13 E-13 （lubrication ）

E-14 E-14 （Starting Motor）

E-15 E-15 （Magneto Assy）
