Voge

300AC Parts Catalog

1,045 part numbers across 3 sheets, 338 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.

Search all bikes Download Excel

Showing all 1,045 parts

LX300-6K

Assembly diagram

Ref	Part Name	Qty	Grade	Notes

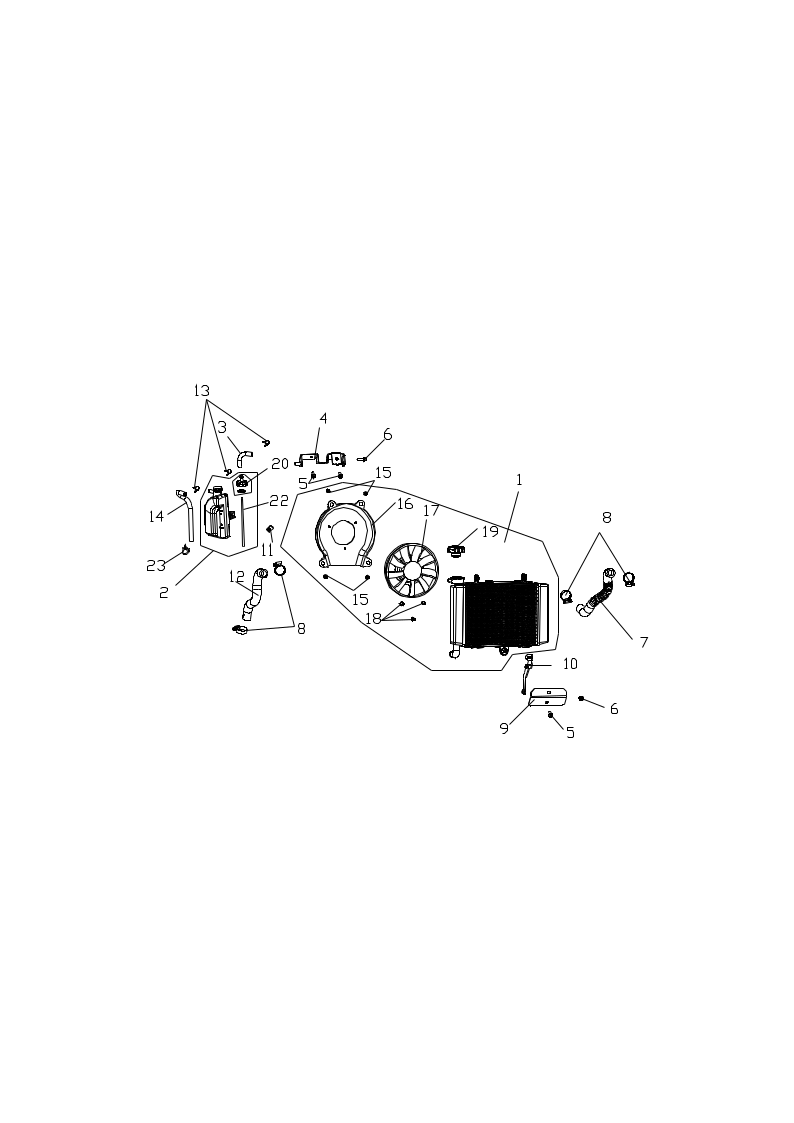

F01-1	HEAT RADIATOR COMP.	- SET	B
F01-2	WATER TANK,COOLING	- PCS	B
F01-3	TUBE,WATER	- PCS	B
F01-4	BRACKET, HEAT RADIATOR	- PCS	C

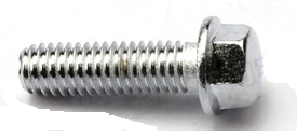

F01-5	BOLT,HEXAGON FLANGE	- PCS	C
F01-6	BOLT,HEXAGON FLANGE	- PCS	C
F01-7	TUBE,WATER	- PCS	B
F01-8	CLAMP ASSY.	- PCS	C
F01-9	BRACKET, HEAT RADIATOR	- PCS	C
F01-10	BRACKET, HEAT RADIATOR	- PCS	C
F01-11	NUT,CLIP	- PCS	C
F01-12	TUBE,WATER	- PCS	B
F01-13	CLAMP,TUBE	- PCS	C
F01-14	TUBE,WATER	- PCS	B
F01-15	BOLT,HEXAGON	- PCS	C
F01-16	SHIELD,FAN	- PCS	B
F01-17	FAN ASSY.	- SET	B
F01-18	SCREW,CROSS RECESSED PAN	- PCS	C
F01-19	CAP,FILLER	- PCS	C
F01-20	CAP,WATER TANK	- PCS	B
F01-22	TUBE,WATER	- PCS	B	NOT FOR SERVICE
F01-23	CLIP,LOCATING WIRE	- PCS	C

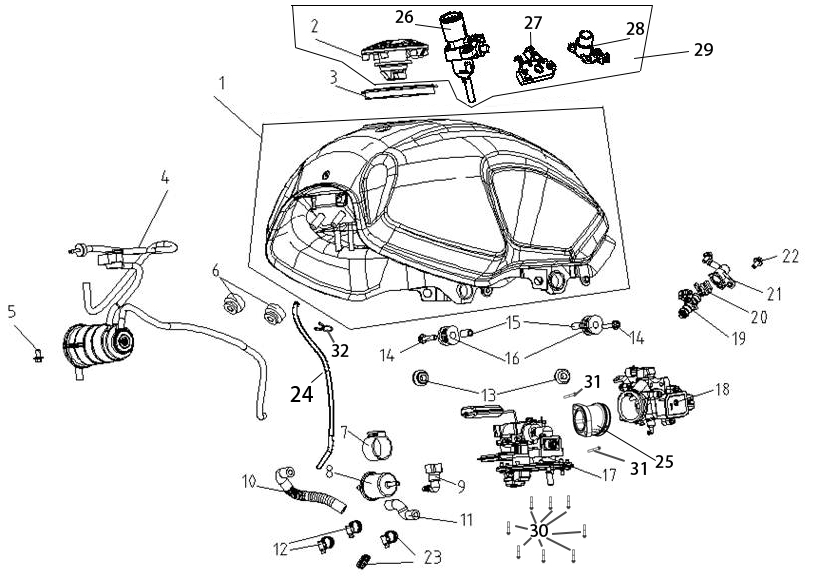

Assembly diagrams

Ref	Part Name	Part Number	Qty	Grade	Notes
F02-1	FUEL TANK COMP.		- PCS	C	FOR BLACK MODEL
F02-1	FUEL TANK COMP.		- PCS	C	FOR RED MODEL
F02-1	FUEL TANK COMP.		- PCS	C	FOR GREEN MODEL
F02-2	LOCK,FUEL TANK		- PCS	B	NOT FOR SERVICE
F02-3	RING,SEAL		- PCS	B
F02-4	CONTROLLER ASSY.,FUEL EVAPORATION		- SET	C
F02-5	BOLT,HEXAGON FLANGE		- PCS	C
F02-6	PAD, FUEL TANK DAMPING		- PCS	C
F02-7	RUBBER JACKET,FUEL FILTER		- PCS	C
F02-8	FILTER,FUEL		- PCS	B
F02-9	JOINT, SWIFT CHANGE		- PCS	C
F02-10	TUBE,FUEL		- PCS	B
F02-11	TUBE,FUEL		- PCS	B
F02-12	CLAMP ASSY.		- PCS	C
F02-13	I-RUBBER		- PCS	C
F02-14	BOLT,HEXAGON FLANGE		- PCS	C
F02-15	COLLAR		- PCS	C
F02-16	PAD, FUEL TANK DAMPING		- PCS	C
F02-17	BRACKET ASSY.,ELECTRIC FUEL PUMP		- PCS	C
F02-18	VALVE BODY ASSY., THROTTLE		- PCS	C
F02-19	FUEL JET		- PCS	C
F02-20	CLAMP, FUEL JET		- PCS	C
F02-21	CAP, FUEL JET		- PCS	C
F02-22	BOLT,HEXAGON FLANGE		- PCS	C
F02-23	CLAMP,TUBE		- PCS	C
F02-24	TUBE,FUEL		- PCS	B
F02-25	TUBE,AIR INTAKE		- PCS	B
F02-26	SWITCH ASSY.,IGNITION		- PCS	B
F02-27	DEVICE,SEAT LOCKING		- SET	B
F02-28	LOCK,SEAT		- PCS	B
F02-29	LOCK KIT		- SET	B
F02-30	BOLT,HEXAGON FLANGE		- PCS	C
F02-31	SCREW,HEXAGON SOCKET		- PCS	C
F02-32	CLAMP,TUBE		- PCS	C

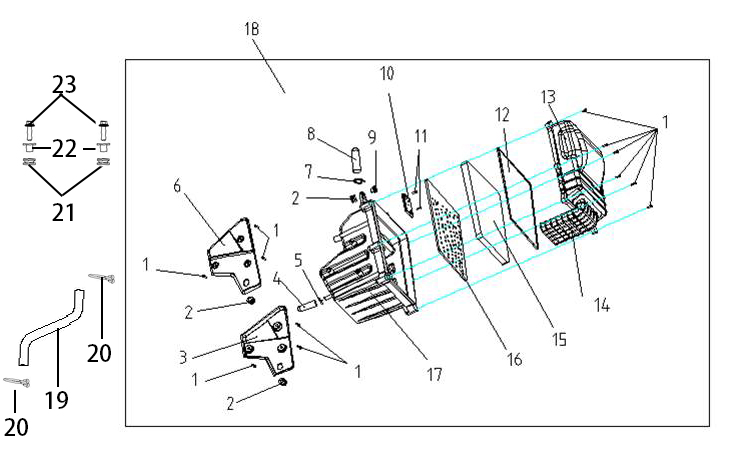

F3AIR CLEANER ASSY.		-	-	-
F03-1	SCREW,CROSS RECESSED PAN SELF-TAPPING		- PCS	C	NOT FOR SERVICE
F03-2	I-RUBBER		- PCS	C	NOT FOR SERVICE
F03-3	CASE,RIGHT AIR CLEANER		- PCS	C	NOT FOR SERVICE
F03-4	HOSE,OVERFLOW		- PCS	C	NOT FOR SERVICE
F03-5	CLAMP,TUBE		- PCS	C	NOT FOR SERVICE
F03-6	CASE,AIR CLEANER		- PCS	C	NOT FOR SERVICE
F03-7	CLAMP,TUBE		- PCS	C	NOT FOR SERVICE
F03-8	PLASTIC CAP		- PCS	C	NOT FOR SERVICE
F03-9	WASHER,FLANGE		- PCS	C	NOT FOR SERVICE
F03-10	COVER OF WASTE GAS CIRCULATION CHAMBER		- PCS	C	NOT FOR SERVICE
F03-11	SCREW,CROSS RECESSED PAN SELF-TAPPING		- PCS	C	NOT FOR SERVICE
F03-12	GLAND STRIP,AIR CLEANER		- PCS	C	NOT FOR SERVICE
F03-13	CAP,AIR CLEANER CASE		- PCS	C	NOT FOR SERVICE
F03-14	INTAKE TUBE,AIR CLEANER		- PCS	C	NOT FOR SERVICE
F03-15	ELEMENT,AIR CLEANER		- PCS	A
F03-16	FRAMEWORK,AIR CLEANER		- PCS	C	NOT FOR SERVICE
F03-17	LOWER PART OF AIR FILTER		- PCS	C	NOT FOR SERVICE
F03-18	AIR CLEANER COMP.		- PCS	C
F03-19	TUBE,BREATHER		- PCS	B
F03-20	CLAMP,TUBE		- PCS	C
F03-21	I-RUBBER		- PCS	C
F03-22	COLLAR		- PCS	C
F03-23	BOLT,HEXAGON FLANGE		- PCS	C

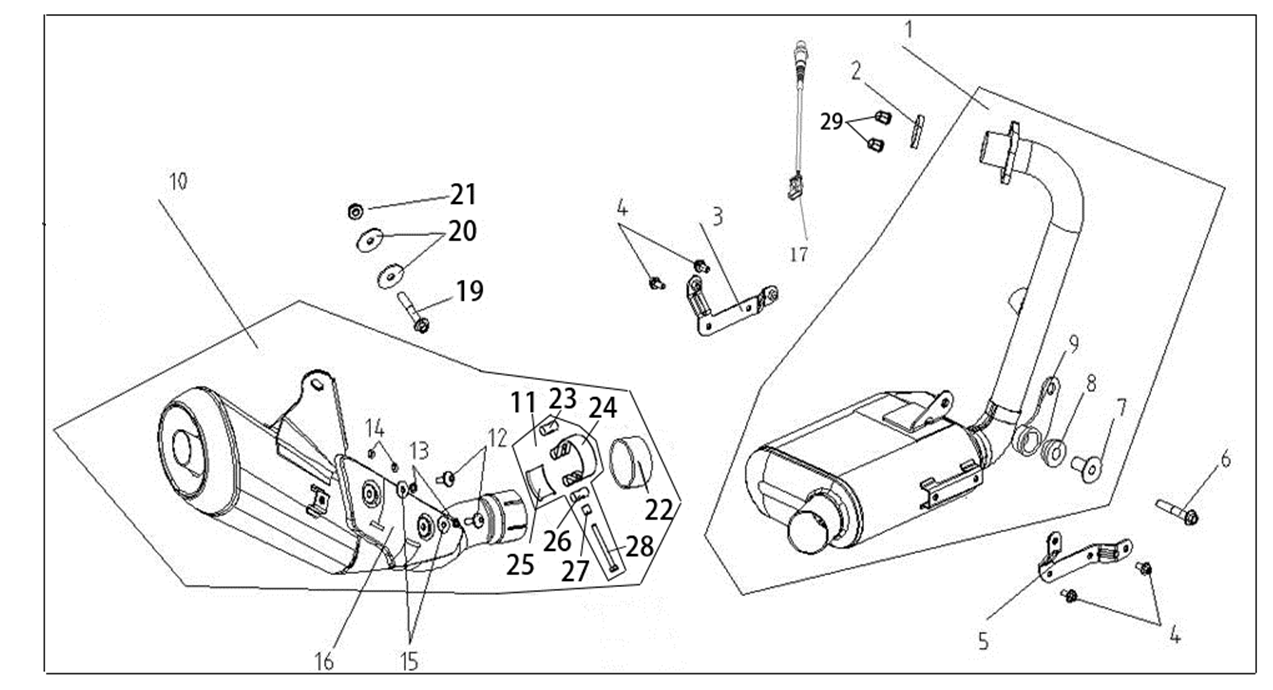

Assembly diagram

Ref	Part Name	Qty	Grade	Notes
F04-1	FRONT PART,MUFFLER EXHAUST	- PCS	C
F04-2	GASKET,AIR EXHAUST PORT	- PCS	A
F04-3	BRACKET,LOWER FAIRING COVER	- PCS	C
F04-4	BOLT,HEXAGON FLANGE	- PCS	C
F04-5	BRACKET,LOWER FAIRING COVER	- PCS	C
F04-6	BOLT,HEXAGON FLANGE	- PCS	C
F04-7	WASHER,FLANGE	- PCS	C	NOT FOR SERVICE
F04-8	T-RUBBER	- PCS	C	NOT FOR SERVICE
F04-9	PLATE,MUFFLER HANGER	- PCS	C	NOT FOR SERVICE
F04-10	REAR PART,MUFFLER	- PCS	C
F04-11	TUBE,MUFFLER CONNECTING	- PCS	C
F04-12	SCREW,HEXAGON SOCKET	- PCS	C	NOT FOR SERVICE
F04-13	WASHER,ELASTIC	- PCS	C
F04-14	WASHER,PLAIN	- PCS	C
F04-15	WASHER,PLAIN	- PCS	C
F04-16	SHIELD,MUFFLER	- PCS	B
F04-17	OXYGEN SENSOR	- PCS	C
F04-19	BOLT,HEXAGON FLANGE	- PCS	C
F04-20	WASHER,PLAIN	- PCS	C
F04-21	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F04-22	GRAPHITE ANNULUS	- PCS	B
F04-23	NUT,ROUND	- PCS	C	NOT FOR SERVICE
F04-24	HOOP	- PCS	C	NOT FOR SERVICE
F04-25	LINING,MUFFLER	- PCS	C	NOT FOR SERVICE
F04-26	CYLINDER OF CONNECTIVE SLEEVE	- PCS	C	NOT FOR SERVICE
F04-27	COLLAR	- PCS	C	NOT FOR SERVICE
F04-28	BOLT,HEXAGON	- PCS	C
F04-29	CAP-SHAPED NUT	- PCS	C

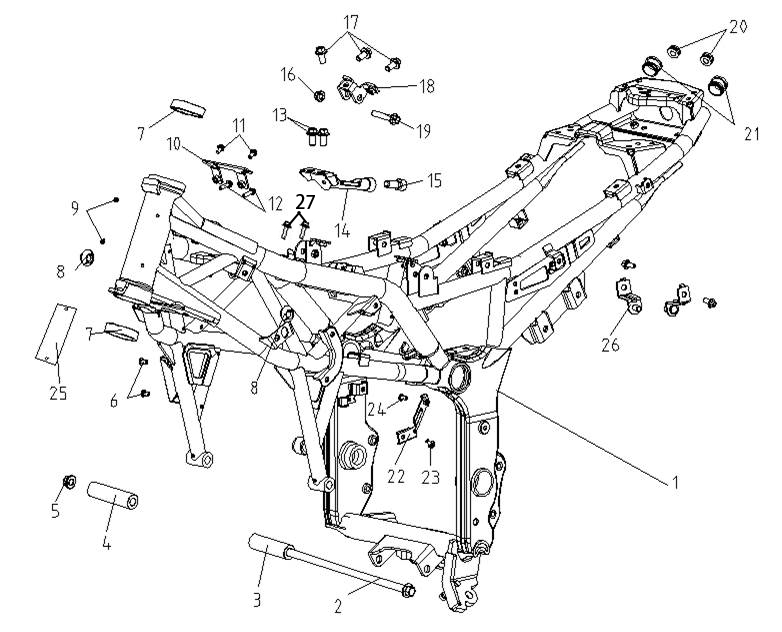

Assembly diagram

Ref	Part Name	Qty	Grade
F05-1	BODY COMP.,FRAME	- PCS	D
F05-2	AXIS	- PCS	C
F05-3	COLLAR	- PCS	C
F05-4	COLLAR	- PCS	C
F05-5	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F05-6	SCREW,HEXAGON SOCKET	- PCS	C
F05-7	RING, STEERING BASE	- PCS	B
F05-8	I-RUBBER	- PCS	C
F05-9	RIVET	- PCS	C
F05-10	BRACKET,IGNITION COIL	- PCS	C
F05-11	BOLT,HEXAGON FLANGE	- PCS	C
F05-12	BOLT,HEXAGON FLANGE	- PCS	C
F05-13	BOLT,HEXAGON FLANGE	- PCS	C
F05-14	PLATE,FRAME CONNECTING	- PCS	C
F05-15	SCREW,HEXAGON SOCKET	- PCS	C
F05-16	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F05-17	BOLT,HEXAGON FLANGE	- PCS	C
F05-18	PLATE,LEFT UPPER ENGINE HANGER	- PCS	C
F05-19	AXIS	- PCS	C
F05-20	I-RUBBER	- PCS	C
F05-21	STOPPER	- PCS	C
F05-22	BRACKET,DISC-BRAKE OIL CUP	- PCS	B
F05-23	BOLT,HEXAGON FLANGE	- PCS	C
F05-24	SCREW,HEXAGON SOCKET	- PCS	C
F05-25	NAMEPLATE,FRAME	- PCS	C
F05-26	SEAT,AIR CLEANER REAR MOUNTING	- PCS	C
F05-27	BOLT,HEXAGON FLANGE	- PCS	C

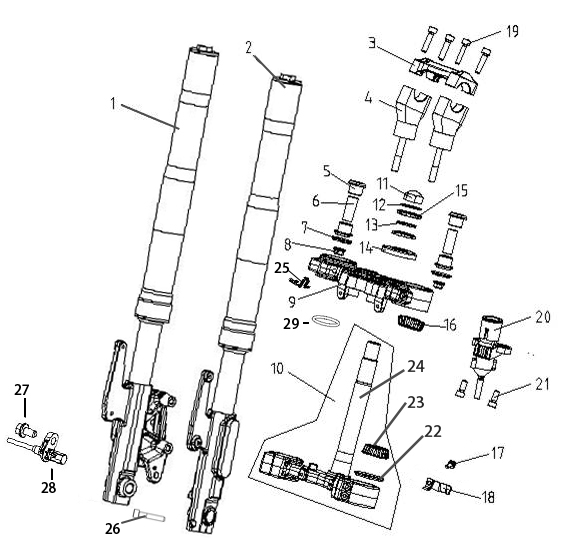

Assembly diagram

Ref	Part Name	Qty	Grade	Notes
F06-1	SHOCK ABSORBER, LEFT FRONT	- PCS	B
F06-2	SHOCK ABSORBER, RIGHT FRONT	- PCS	B
F06-3	HOLDER,STEERING HANDLE PIPE	- PCS	B
F06-4	SUPPORT,STEERING HANDLE PIPE	- PCS	B
F06-5	T-RUBBER	- PCS	C
F06-6	COLLAR	- PCS	C
F06-7	WASHER,FLANGE	- PCS	C
F06-8	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F06-9	UPPER CONNECTIVE PLATE ASSY.	- SET	C
F06-10	STEERING STEM BODY/CIRCLIP ASSY.	- SET	C
F06-11	CAP-SHAPED NUT, STEERING STEM	- PCS	C
F06-12	WASHER,STEERING STEM	- PCS	C
F06-13	WASHER,LOCKING	- PCS	C
F06-14	DUST CAP,STEERING STEM	- PCS	C
F06-15	ADJUST NUT,STEERING STEM	- PCS	C
F06-16	CIRCLIP, STEERING BEARING	- PCS	B
F06-17	BOLT,HEXAGON FLANGE	- PCS	C
F06-18	CLAMP,WIRE	- PCS	C
F06-19	BOLT,STEERING HANDLE PIPE HOLDER	- PCS	C	NOT FOR SERVICE
F06-20	SWITCH ASSY.,IGNITION	- PCS	B	NOT FOR SERVICE
F06-21	SCREW,HEXAGON SOCKET	- PCS	C
F06-22	RUBBER RING, STEERING DUST-PROOF	- PCS	C
F06-23	RACE,STEERING BOTTOM CONE	- PCS	B
F06-24	BODY SET,STEERING STEM	- PCS	B
F06-25	CLAMP,WIRE	- PCS	C
F06-26	SCREW,HEXAGON SOCKET	- PCS	C
F06-27	BOLT,HEXAGON FLANGE	- PCS	C
F06-28	SPEED SENSOR	- PCS	C
F06-29	RING,SEAL	- PCS	B

Assembly diagram

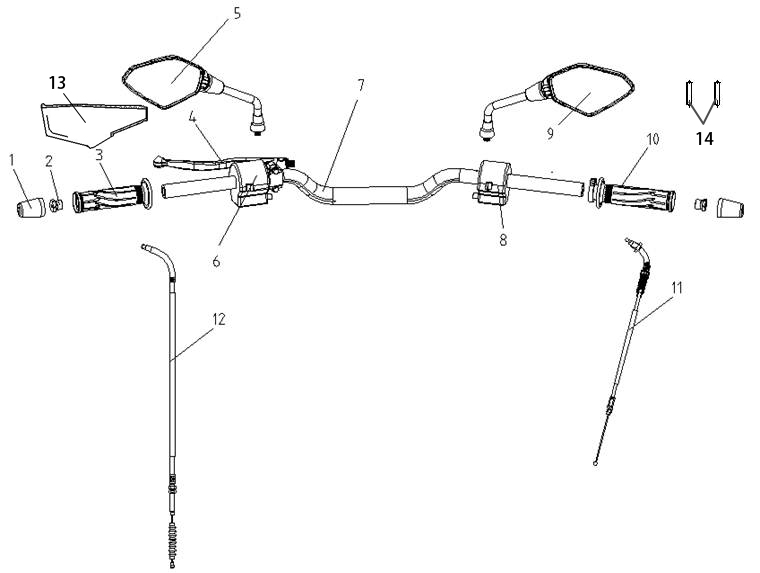

Ref	Part Name	Qty	Grade
F07-1	DECORATIVE WEIGHT, LEFT	- PCS	B
F07-2	COUNTERWEIGHT,STEERING HANDLE PIPE	- PCS	B
F07-3	GRIP SET,HANDLE	- PCS	A
F07-4	LEVER COMP., LEFT	- SET	B
F07-5	MIRROR,LEFT BACK-VIEW	- PCS	A
F07-6	SWITCH ASSY.,LEFT	- SET	B
F07-7	HANDLE BAR ASSY.	- PCS	C
F07-8	SWITCH ASSY.,RIGHT	- SET	B
F07-9	MIRROR,RIGHT BACK-VIEW	- PCS	A
F07-10	GREASER COMP.	- PCS	A
F07-11	CABLE COMP.,THROTTLE	- PCS	A
F07-12	CABLE COMP.,CLUTCH	- PCS	A
F07-13	SHEATH,FRONT BRAKE CABLE	- PCS	C
F07-14	CLAMPING BAND	- PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade

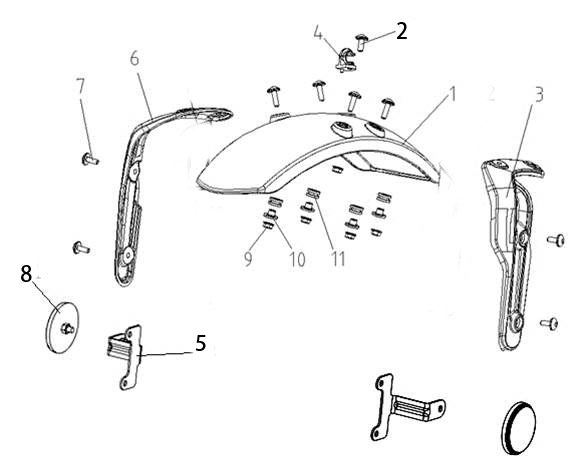

F08-1	FENDER COMP.,FRONT	- PCS	B
F08-2	SCREW,HEXAGON SOCKET	- PCS	C
F08-3	BRACKET,FRONT FENDER	- PCS	C
F08-4	CLAMP,TUBE	- PCS	C
F08-5	BRACKET,LEFT FRONT REFLECTOR CONNECTING	- PCS	C
F08-6	BRACKET,FRONT FENDER	- PCS	C
F08-7	SCREW,HEXAGON SOCKET	- PCS	C
F08-8	REFLECTOR,LEFT SIDE	- PCS	B
F08-9	NUT,HEXAGON FLANGE	- PCS	C
F08-10	WASHER,FLANGE	- PCS	C
F08-11	I-RUBBER	- PCS	C

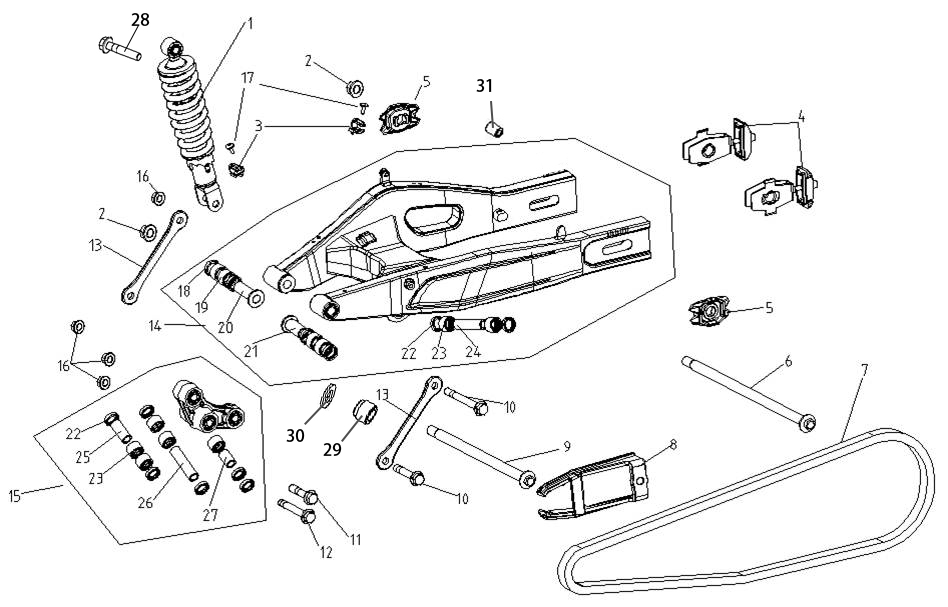

Assembly diagram

Ref	Part Name	Qty	Grade
F09-1	SHOCK ABSORBER, LEFT REAR	- PCS	B
F09-2	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F09-3	CLAMP,TUBE	- PCS	C
F09-4	ADJUSTOR,DRIVE CHAIN LEFT	- PCS	B
F09-5	PLATE,ADJUSTER HANGER	- PCS	C
F09-6	AXIS	- PCS	C
F09-7	CHAIN	- PCS	A
F09-8	SLIDER,DRIVE CHAIN	- PCS	B
F09-9	AXIS	- PCS	C
F09-10	AXIS	- PCS	C
F09-11	AXIS	- PCS	C
F09-12	AXIS	- PCS	C
F09-13	CRADLE COMP.,SUB	- PCS	C
F09-14	FORK COM.,REAR	- PCS	C
F09-15	BIG ROCKER RACK ASSY.	- SET	C
F09-16	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F09-17	BOLT,HEXAGON FLANGE	- PCS	C
F09-18	OIL SEAL	- PCS	B
F09-19	BEARING	- PCS	B
F09-20	COLLAR	- PCS	C
F09-21	COLLAR	- PCS	C
F09-22	OIL SEAL	- PCS	B
F09-23	BEARING	- PCS	B
F09-24	COLLAR	- PCS	C
F09-25	COLLAR	- PCS	C
F09-26	COLLAR	- PCS	C
F09-27	COLLAR	- PCS	C
F09-28	AXIS	- PCS	C
F09-29	SLEEVE,THREAD	- PCS	C
F09-30	WASHER,PLAIN	- PCS	C
F09-31	COLLAR	- PCS	C

Assembly diagram

Ref	Part Name	Part Number	Qty	Grade	Notes

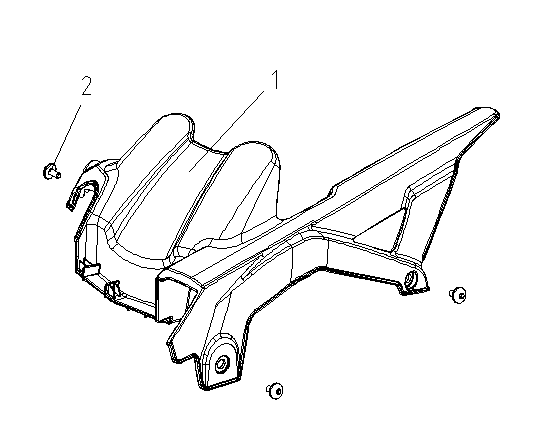

F10-1	CASE, CHAIN		- PCS	B
F10-2	SCREW,HEXAGON SOCKET		- PCS	C

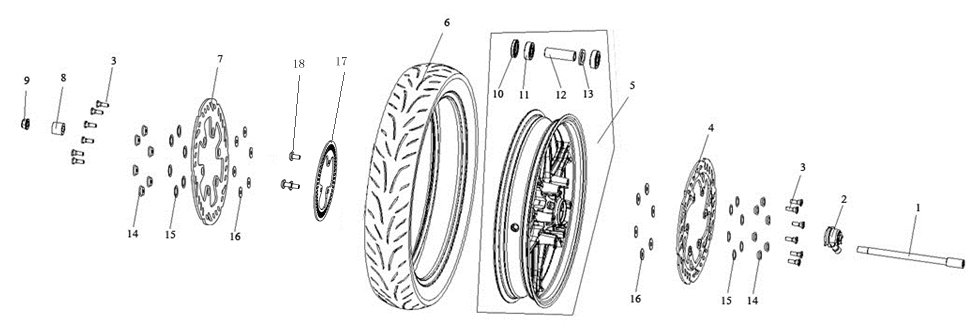

Assembly diagram

Ref	Part Name	Qty	Grade
F11-1	AXIS	- PCS	C
F11-2	SPEED COUNTER	- PCS	B
F11-3	FASTENING BOLT,BRAKE DISK	- PCS	C
F11-4	DISK COMP.,RIGHT FRONT BRAKE	- PCS	C
F11-5	WHEEL,FRONT	- PCS	B
F11-6	TYRE ASSY.	- PCS	A
F11-7	DISK COMP.,LEFT FRONT BRAKE	- PCS	C
F11-8	COLLAR	- PCS	C
F11-9	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F11-10	OIL SEAL	- PCS	B
F11-11	BEARING	- PCS	B
F11-12	COLLAR	- PCS	C
F11-13	PLAIN WASHER,RUBBER	- PCS	C
F11-14	COLLAR	- PCS	C
F11-15	WASHER,ELASTIC	- PCS	C
F11-16	WASHER,PLAIN	- PCS	C
F11-17	GEAR RING, ABS	- PCS	C
F11-18	SCREW,HEXAGON SOCKET	- PCS	C

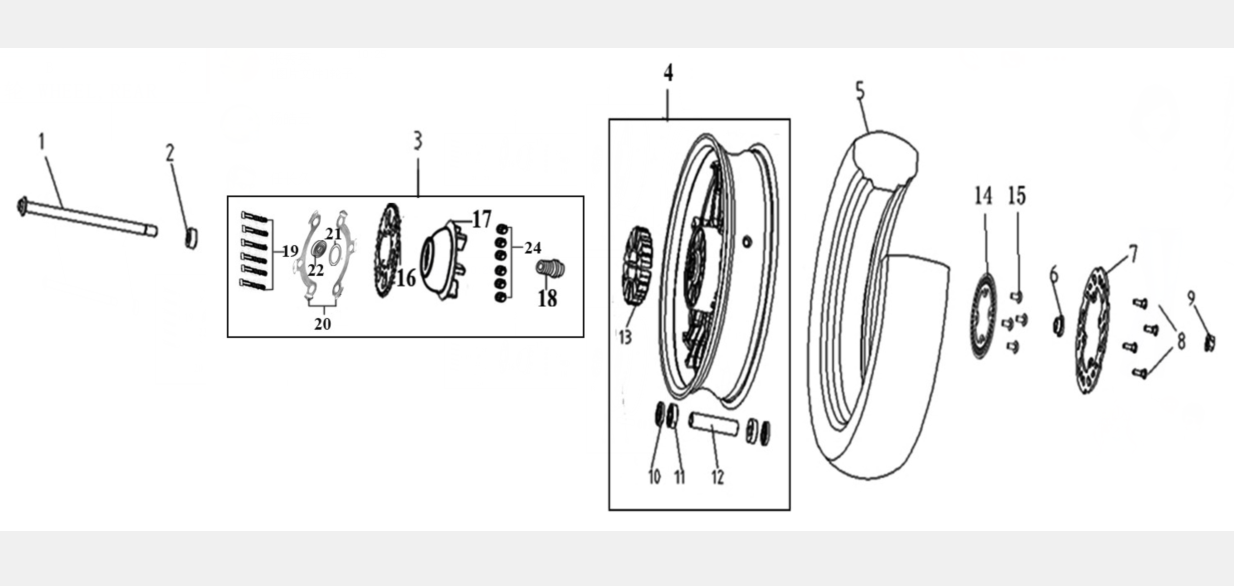

Assembly diagrams

Ref	Part Name	Qty	Grade	Notes
F12-1	AXIS	- PCS	C
F12-2	COLLAR	- PCS	C
F12-3	DAMPER COMP.	- SET	B
F12-4	WHEEL,REAR	- PCS	B
F12-5	TYRE ASSY.	- PCS	A
F12-6	COLLAR	- PCS	C
F12-7	DISK COMP.,LEFT REAR BRAKE	- PCS	C
F12-8	FASTENING BOLT,BRAKE DISK	- PCS	C
F12-9	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F12-10	OIL SEAL	- PCS	B
F12-11	BEARING	- PCS	B
F12-12	COLLAR	- PCS	C
F12-13	DAMPING PIECE,REAR WHEEL	- PCS	A
F12-14	GEAR RING, ABS	- PCS	C
F12-15	SCREW,HEXAGON SOCKET	- PCS	C
F12-16	SPROCKET WHEEL	- PCS	A
F12-17	SEAT,SPROCKET WHEEL	- PCS	B	NOT FOR SERVICE
F12-18	COLLAR	- PCS	C
F12-19	BOLT,HEXAGON	- PCS	C
F12-20	LOCK WASHER	- PCS	A
F12-21	OIL SEAL	- PCS	B
F12-22	BEARING	- PCS	B
F12-24	NUT,HEXAGON HEAD	- PCS	C

Assembly diagram

Ref	Part Name	Qty	Grade

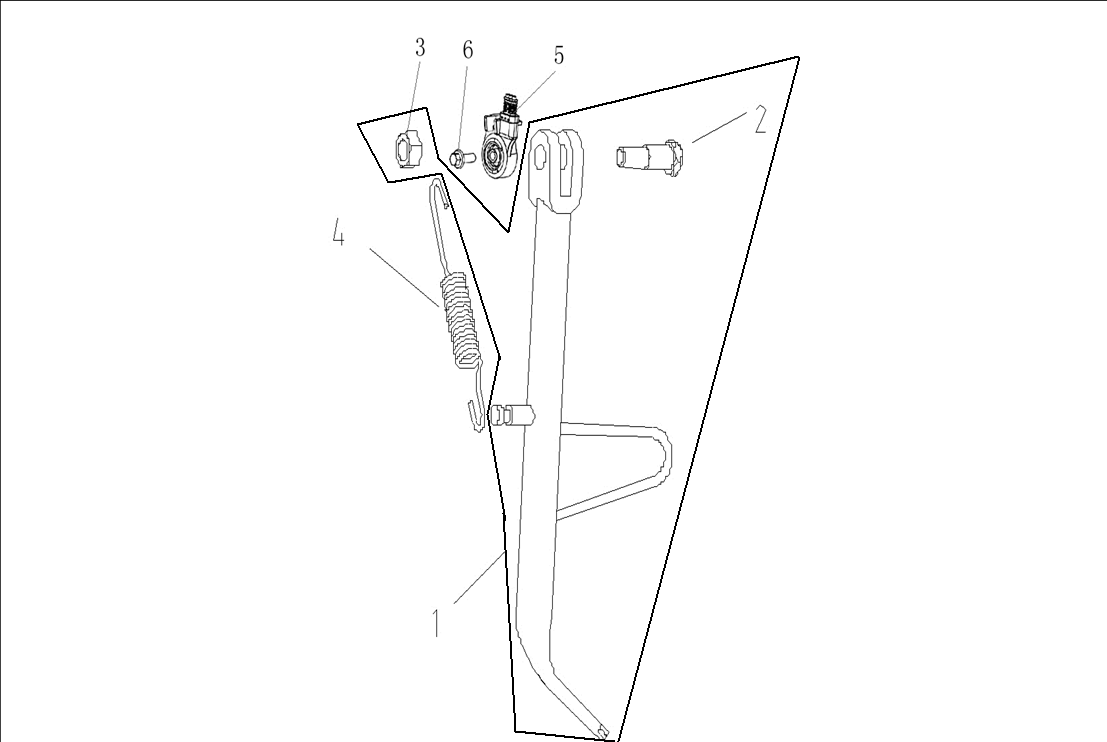

F13-1	SIDE STAND COMP.	- SET	B
F13-2	BOLT,HEXAGON HEAD SHOULDER	- PCS	C
F13-3	NUT,HEXAGON HEAD	- PCS	C
F13-4	SPRING, DRAWING	- PCS	B
F13-5	KILL SWITCH, SIDE STAND	- PCS	B
F13-6	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagram

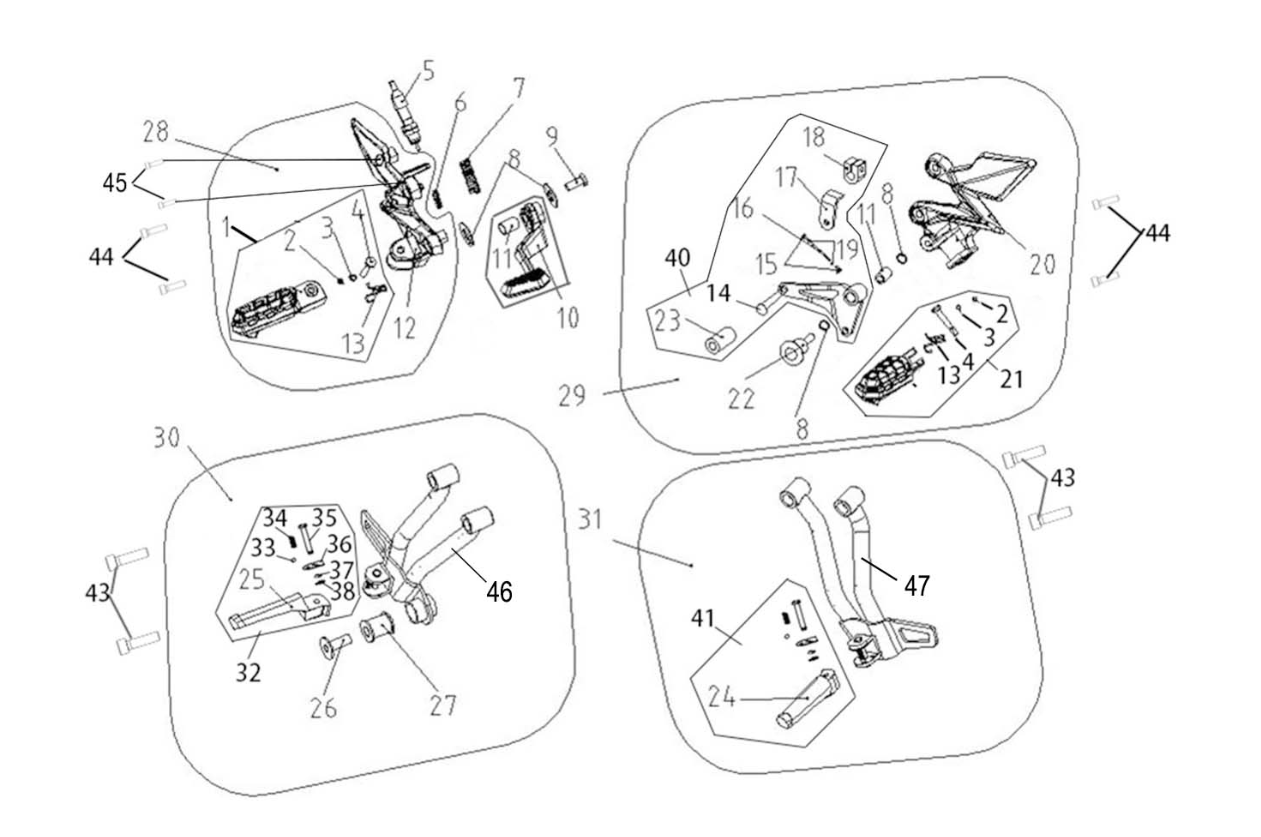

$F14 STEP ASSY.\PILLION STEP - diagram 1$

Ref	Part Name	Qty	Grade	Notes
F14-1	BODY,RIGHT FOOTREST	- PCS	B
F14-2	SPLIT WASHER	- PCS	C	NOT FOR SERVICE
F14-3	RING,SEAL	- PCS	B	NOT FOR SERVICE
F14-4	PIN,CLEVIS	- PCS	C	NOT FOR SERVICE
F14-5	SWITCH ASSY.,REAR BRAKE	- PCS	B
F14-6	EXTENSION SPRING,REAR BRAKE SWITCH	- PCS	B
F14-7	RETURN SPRING,REAR BRAKE PEDAL	- PCS	B
F14-8	WASHER,PLAIN	- PCS	C	NOT FOR SERVICE
F14-9	BOLT,HEXAGON FLANGE	- PCS	C	NOT FOR SERVICE
F14-10	PEDAL,REAR BRAKE	- PCS	B
F14-11	COLLAR	- PCS	C
F14-12	BRACKET, RIGHT FOOTREST	- PCS	C
F14-13	SPRING, TURNING	- PCS	B	NOT FOR SERVICE
F14-14	WELDING SET,GEAR CHANGE PEDAL	- PCS	C	NOT FOR SERVICE
F14-15	JOINT BALL, CONNECTING ROD	- PCS	C	NOT FOR SERVICE
F14-16	CONNECTING ROD,GEAR SHIFT	- PCS	C	NOT FOR SERVICE
F14-17	PLATE, SPLINE BASE CONNECTIVE	- PCS	C	NOT FOR SERVICE
F14-18	BASE,SPLINE FITTING	- PCS	C	NOT FOR SERVICE
F14-19	NUT,HEXAGON HEAD	- PCS	C	NOT FOR SERVICE
F14-20	BRACKET, LEFT FOOTREST	- PCS	C	NOT FOR SERVICE
F14-21	BODY,LEFT FOOTREST	- PCS	B
F14-22	SCREW,HEXAGON SOCKET	- PCS	C	NOT FOR SERVICE
F14-23	RUBBER JACKET,GEAR CHANGE PEDAL	- PCS	C	NOT FOR SERVICE
F14-24	STEP ASSY.,LEFT PILLION	- PCS	B	NOT FOR SERVICE
F14-25	STEP ASSY.,RIGHT PILLION	- PCS	B	NOT FOR SERVICE
F14-26	COLLAR	- PCS	C	NOT FOR SERVICE
F14-27	COLLAR,MUFFLER CUSHION	- PCS	C	NOT FOR SERVICE
F14-28	FOOTREST ASSY., RIGHT	- SET	B
F14-29	FOOTREST ASSY., LEFT	- SET	B
F14-30	STEP ASSY.,RIGHT PILLION	- SET	B
F14-31	STEP ASSY.,LEFT PILLION	- SET	B
F14-32	BODY SET,RIGHT PILLION STEP	- PCS	B
F14-33	BALL,STEEL	- PCS	B	NOT FOR SERVICE
F14-34	SPRING,COMPRESSION	- PCS	B	NOT FOR SERVICE
F14-35	PIN,CLEVIS	- PCS	C	NOT FOR SERVICE
F14-36	PLATE,MOUNTING BASE LIMIT	- PCS	C	NOT FOR SERVICE
F14-37	RING,SEAL	- PCS	B	NOT FOR SERVICE
F14-38	SPLIT WASHER	- PCS	C	NOT FOR SERVICE
F14-40	PEDAL,GEAR CHANGE	- PCS	B
F14-41	BODY SET,LEFT PILLION STEP	- PCS	B
F14-43	SCREW,HEXAGON SOCKET	- PCS	C
F14-44	FASTENING BOLT,BRAKE DISK	- PCS	C
F14-45	SCREW,HEXAGON SOCKET	- PCS	C
F14-46	HOLD COMP.,RIGHT PILLION STEP	- PCS	C
F14-47	HOLD COMP.,LEFT PILLION STEP	- PCS	C

Assembly diagram

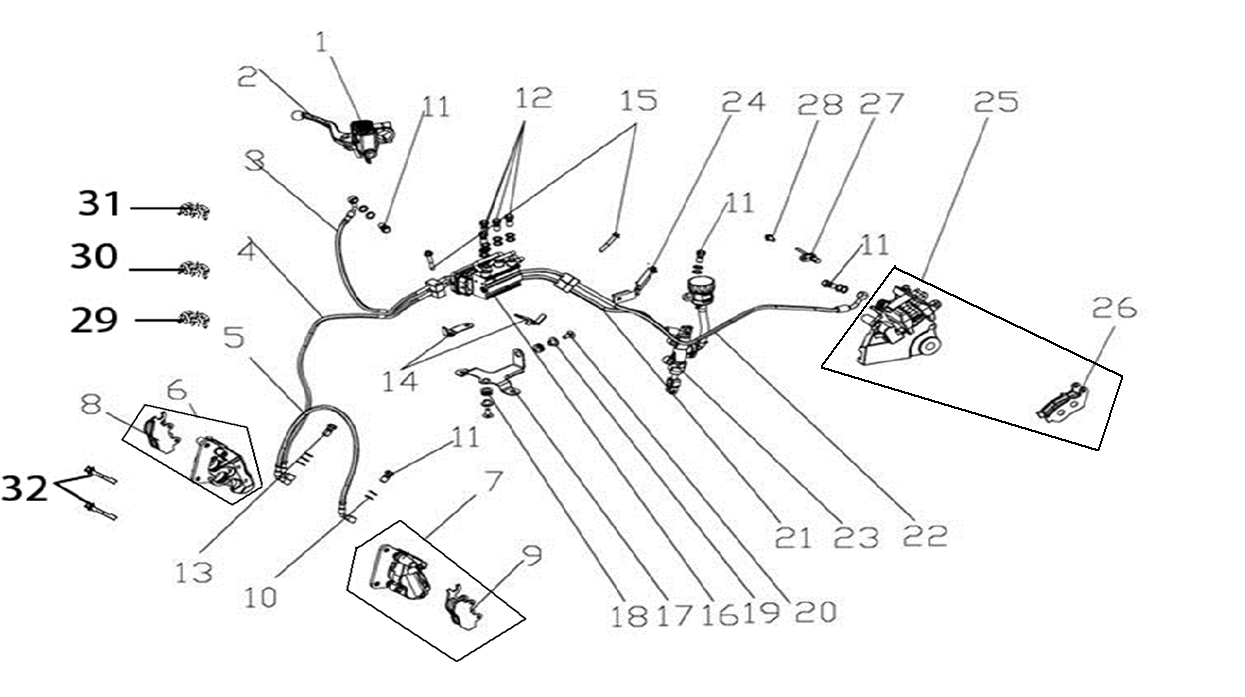

$F15 ABS DISC-BRAKE ASSY.,FRONT\DISC-BRAKE ASSY.,REAR - diagram 1$

Ref	Part Name	Qty	Grade
F15-1	CYLINDER ASSY.,MASTER	- PCS	B
F15-2	LEVER COMP.,RIGHT STEERING HANDLE	- PCS	B
F15-3	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-4	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-5	HOSE COMP.,FRONT DISC-BRAKE	- SET	B
F15-6	CALIPER ASSY.,LEFT	- PCS	C
F15-7	CALIPER ASSY.,RIGHT	- PCS	C
F15-8	PAD COMP.,FRONT DISC-BRAKE	- PCS	A
F15-9	PAD COMP.,FRONT DISC-BRAKE	- PCS	A
F15-10	WASHER,PLAIN	- PCS	C
F15-11	BOLT,DISC-BRAKE HOSE	- PCS	C
F15-12	BOLT,DISC-BRAKE HOSE	- PCS	C
F15-13	BOLT,DISC-BRAKE HOSE	- PCS	C
F15-14	BRACKET,DISC-BRAKE HOSE FIXING	- PCS	C
F15-15	BOLT,HEXAGON FLANGE	- PCS	C
F15-16	ABS.ANTI-LOCKING UP SYSTEM	- PCS	C
F15-17	INSTALLATION BRACKET, ABS	- PCS	C
F15-18	I-RUBBER	- PCS	C
F15-19	WASHER,FLANGE	- PCS	C
F15-20	SCREW,HEXAGON SOCKET	- PCS	C
F15-21	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-22	ABS CONNECTIVE OIL TUBE	- PCS	C
F15-23	PUMP, REAR DISC-BRAKE UPPER	- PCS	C
F15-24	BRACKET,DISC-BRAKE OIL CUP	- PCS	B
F15-25	PUMP, REAR DISC-BRAKE LOWER	- PCS	C
F15-26	PAD COMP.,REAR DISC-BRAKE LEFT	- PCS	A
F15-27	SPEED SENSOR	- PCS	C
F15-28	BOLT,HEXAGON FLANGE	- PCS	C
F15-29	CLAMP,WIRE	- PCS	C
F15-30	CLAMP,TUBE	- PCS	C
F15-31	CLAMP,TUBE	- PCS	C
F15-32	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagram

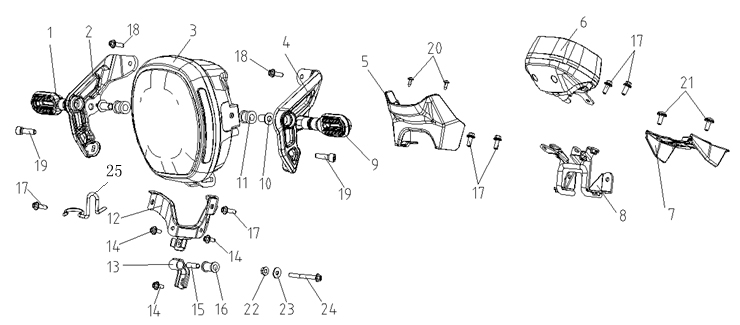

$F16 LIGHT ASSY.,HEAD LEFT\METER ASSY. - diagram 1$

Ref	Part Name	Qty	Grade
F16-1	TURNING SIGNAL LIGHT, RIGHT FRONT	- PCS	B
F16-2	BRACKET,HEAD LIGHT RIGHT	- PCS	C
F16-3	HEADLIGHT ASSY.	- PCS	B
F16-04	BRACKET,HEAD LIGHT LEFT	- PCS	C
F16-05	CAP,METER DECORATIVE	- PCS	C
F16-06	INSTRUMENT SET	- SET	B
F16-07	COVER,IGNITION SWITCH	- PCS	B
F16-08	BRACKET,METER	- PCS	C
F16-09	TURNING SIGNAL LIGHT, LEFT FRONT	- PCS	B
F16-10	WASHER,FLANGE	- PCS	C
F16-11	I-RUBBER	- PCS	C
F16-12	ROD,HEAD LIGHT BRACKET CONNECTING	- PCS	C
F16-13	BRACKET,HEAD LIGHT BEAM ADJUSTABLE	- PCS	C
F16-14	BOLT,HEXAGON FLANGE	- PCS	C
F16-15	COLLAR	- PCS	C
F16-16	I-RUBBER	- PCS	C
F16-17	BOLT,HEXAGON FLANGE	- PCS	C
F16-18	BOLT,HEXAGON FLANGE	- PCS	C
F16-19	SCREW,HEXAGON SOCKET	- PCS	C
F16-20	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F16-21	SCREW,HEXAGON SOCKET	- PCS	C
F16-22	NUT,HEXAGON FLANGE	- PCS	C
F16-23	WASHER,PLAIN	- PCS	C
F16-24	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagram

F17 COVER,RADIATOR LEFT DECORATIVE - diagram 1

Ref	Part Name	Qty	Grade
F17-1	COOLANT TANK DECORATIVE COVER	- PCS	C
F17-2	HEAT RADIATOR DECORATIVE COVER	- PCS	C
F17-3	SHIELD,RADIATOR	- PCS	B
F17-4	SHIELD,RADIATOR	- PCS	B
F17-5	HEAT RADIATOR DECORATIVE COVER	- PCS	C
F17-6	SCREW,HEXAGON SOCKET	- PCS	C
F17-7	BOLT,HEXAGON FLANGE	- PCS	C

Assembly diagram

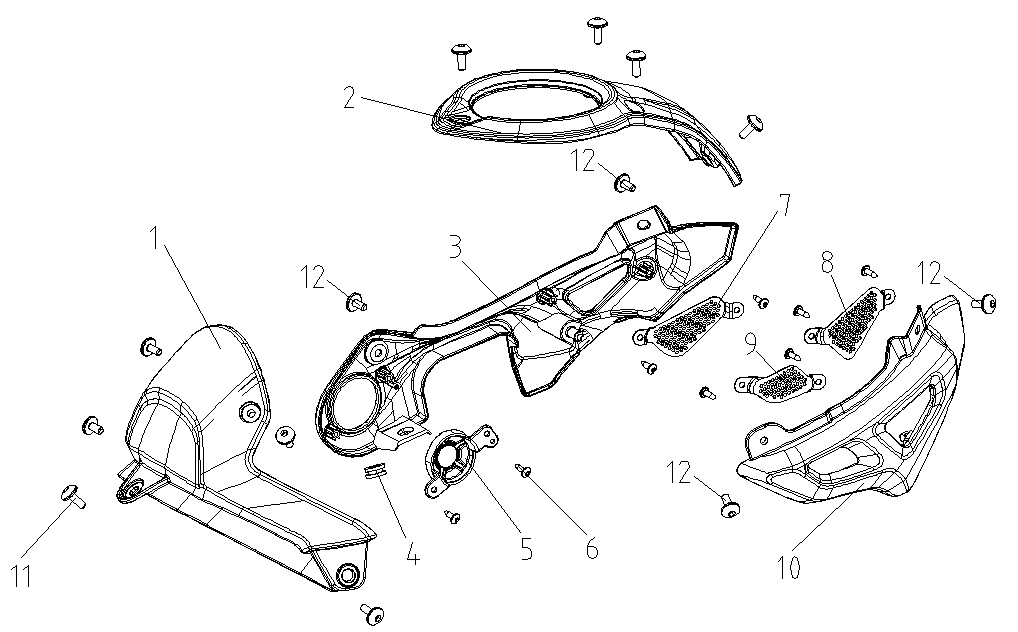

F18 COVER,FUEL TANK DECORATIVE - diagram 1

Ref	Part Name	Qty	Grade
F18-1	PROTECTIVE PLATE, FUEL TANK LEFT	- PCS	B
F18-2	COVER,FUEL TANK DECORATIVE	- PCS	B
F18-3	COVER,FUEL TANK LEFT DECORATIVE	- PCS	B
F18-4	I-RUBBER	- PCS	C
F18-5	LEFT INNER PLATE DECORATIVE COVER	- PCS	C
F18-6	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F18-7	COVER,LEFT GUARD PLATE DECORATIVE	- PCS	B
F18-8	COVER,RIGHT GUARD PLATE DECORATIVE	- PCS	B
F18-9	COVER,RIGHT GUARD PLATE DECORATIVE	- PCS	B
F18-10	COVER,FUEL TANK RIGHT DECORATIVE	- PCS	B
F18-11	SCREW,HEXAGON SOCKET	- PCS	C
F18-12	SCREW,HEXAGON SOCKET	- PCS	C

Assembly diagram

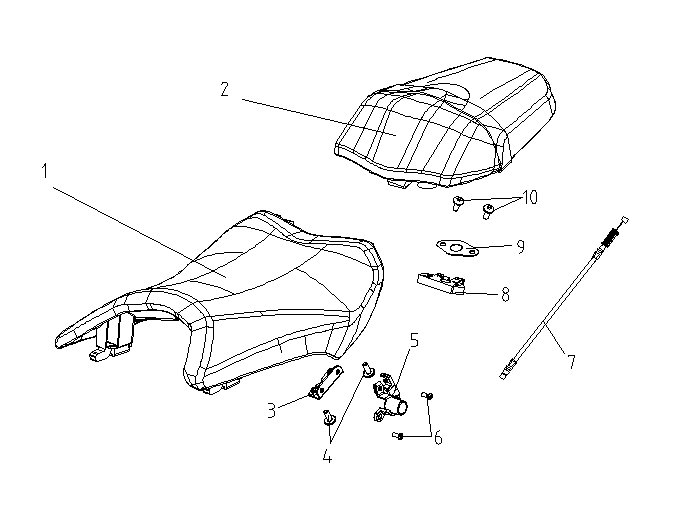

$F19 SEAT,DRIVER\SEAT,PASSENGER - diagram 1$

Ref	Part Name	Qty	Grade
F19-1	SEAT,DRIVER	- PCS	B
F19-2	SEAT,PASSENGER	- PCS	B
F19-3	BRACKET,SEAT LOCK	- PCS	C
F19-4	SCREW,HEXAGON SOCKET	- PCS	C
F19-5	LOCK,SEAT	- PCS	B
F19-6	SCREW,CROSS RECESSED PAN	- PCS	C
F19-7	CABLE,SEAT	- PCS	A
F19-8	DEVICE,SEAT LOCKING	- SET	B
F19-9	WASHER,SEAT LOCK	- PCS	C
F19-10	SCREW,HEXAGON SOCKET	- PCS	C

Assembly diagram

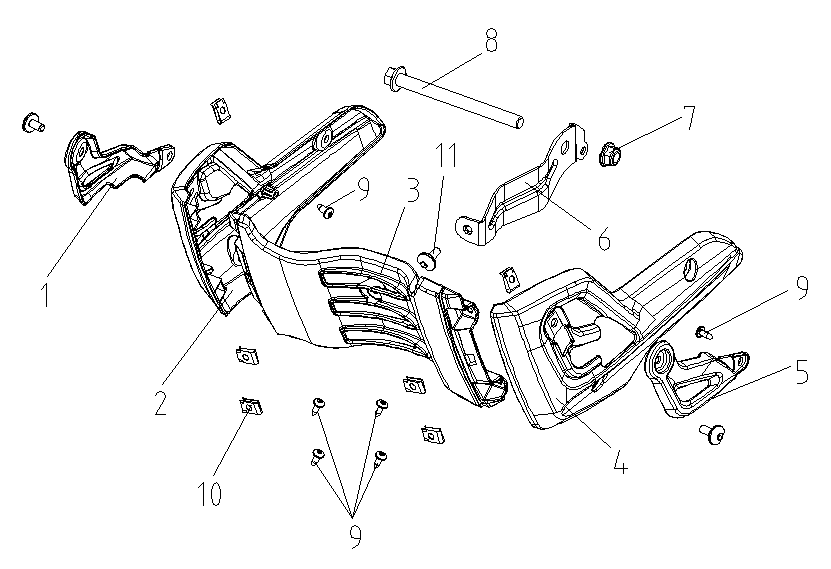

F20 AIR GUIDE SLEEVE,LEFT LOWER - diagram 1

Ref	Part Name	Qty	Grade
F20-1	LOWER FAIRING COVER DECORATIVE PIECE	- PCS	C
F20-2	FAIRING COVER,RIGHT LOWER	- PCS	B
F20-3	PLATE,LOWER FAIRING COVER CONNECTING	- PCS	B
F20-4	FAIRING COVER,LEFT LOWER	- PCS	B
F20-5	LOWER FAIRING COVER DECORATIVE PIECE	- PCS	C
F20-6	BRACKET,LOWER FAIRING COVER	- PCS	C
F20-7	NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE	- PCS	C
F20-08	AXIS	- PCS	C
F20-09	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F20-10	NUT,CLIP	- PCS	C
F20-11	SCREW,HEXAGON SOCKET	- PCS	C

Assembly diagram

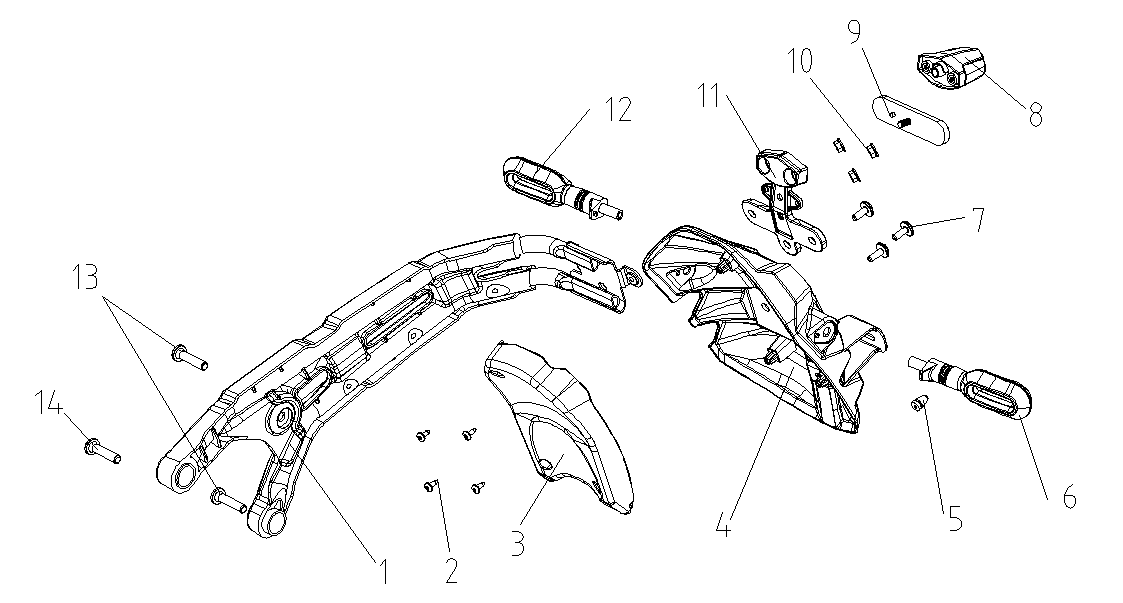

$F21 FENDER COMP.,REAR\LAMP,REAR REGISTRATION PLATE - diagram 1$

Ref	Part Name	Qty	Grade
F21-1	BRACKET,REAR FENDER	- PCS	C
F21-2	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F21-3	INNER PART,REAR FENDER	- PCS	B
F21-4	FENDER COMP.,REAR LOWER	- PCS	B
F21-5	GLUE NAIL,BUFFER	- PCS	C
F21-6	TURNING SIGNAL LIGHT, LEFT REAR	- PCS	B
F21-7	SCREW,HEXAGON SOCKET	- PCS	C
F21-8	LAMP,REAR REGISTRATION PLATE	- PCS	B
F21-9	REFLECTOR,REAR	- PCS	B
F21-10	NUT,HEXAGON FLANGE	- PCS	C
F21-11	REAR COVER OF REGISTRATION PLATE LIGHT	- PCS	C
F21-12	TURNING SIGNAL LIGHT, RIGHT REAR	- PCS	B
F21-13	SCREW,HEXAGON SOCKET	- PCS	C
F21-14	SCREW,HEXAGON SOCKET	- PCS	C

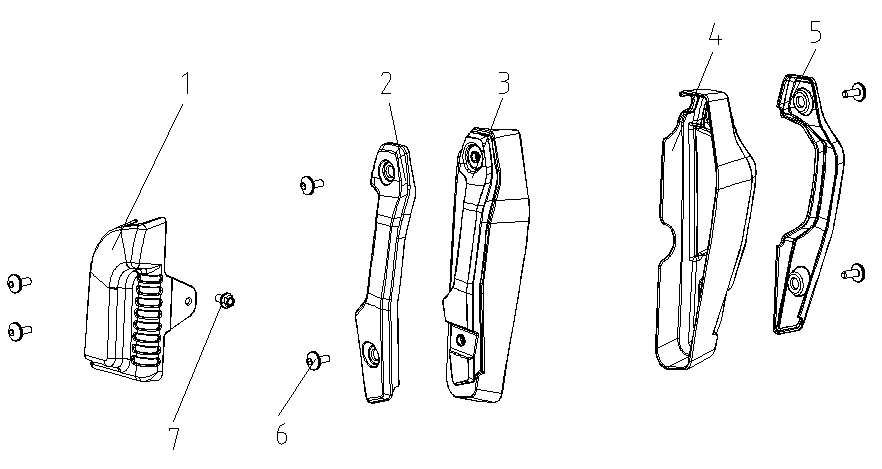

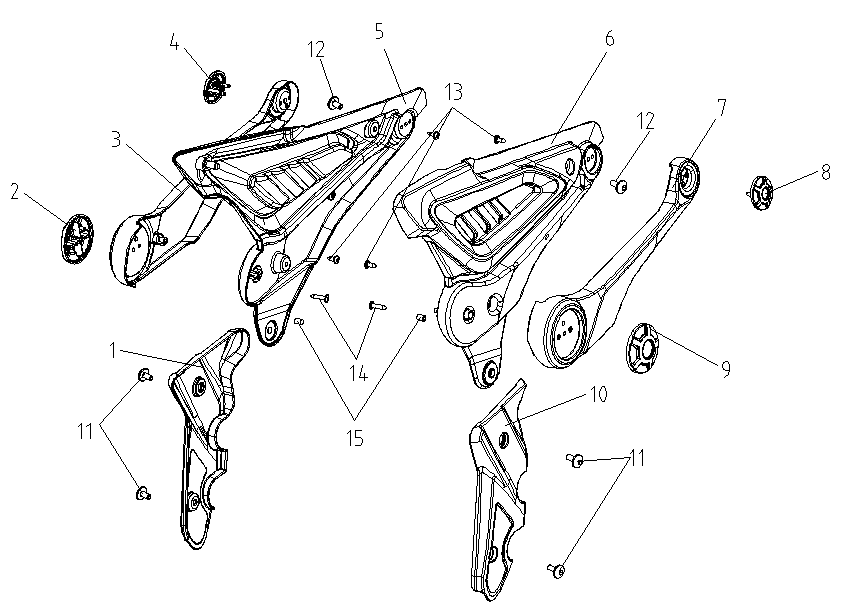

Assembly diagram

Ref	Part Name	Qty	Grade
F22-1	COVER,FRAME RIGHT DECORATIVE	- PCS	B
F22-2	BLOCK,RIGHT SIDE COVER DECORATIVE	- PCS	B
F22-3	COVER,RIGHT SIDE COVER DECORATIVE	- PCS	B
F22-4	BLOCK,RIGHT SIDE COVER DECORATIVE	- PCS	B
F22-5	COVER,RIGHT SIDE	- PCS	B
F22-6	COVER,LEFT SIDE	- PCS	B
F22-7	COVER,LEFT SIDE COVER DECORATIVE	- PCS	B
F22-8	BLOCK,LEFT SIDE COVER DECORATIVE	- PCS	B
F22-9	BLOCK,LEFT SIDE COVER DECORATIVE	- PCS	B
F22-10	COVER,FRAME LEFT DECORATIVE	- PCS	B
F22-11	SCREW,HEXAGON SOCKET	- PCS	C
F22-12	SCREW,HEXAGON SOCKET	- PCS	C
F22-13	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F22-14	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F22-15	GLUE NAIL,BUFFER	- PCS	C

Assembly diagram

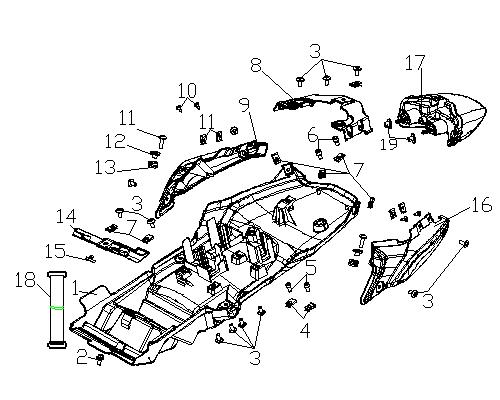

$F23 FRAME ASSY.\FENDER COMP.,REAR\CASE,BATTERY\LIGHT UNIT,TAIL - diagram 1$

Ref	Part Name	Qty	Grade
F23-1	FENDER COMP.,REAR	- PCS	B
F23-2	BOLT,HEXAGON FLANGE	- PCS	C
F23-3	SCREW,HEXAGON SOCKET	- PCS	C
F23-4	NUT,CLIP	- PCS	C
F23-5	SCREW,HEXAGON SOCKET	- PCS	C
F23-6	SCREW,HEXAGON SOCKET	- PCS	C
F23-7	NUT,CLIP	- PCS	C
F23-8	COVER COMP.,TAIL	- PCS	B
F23-9	BODY COVER.,RIGHT	- PCS	B
F23-10	SCREW,CROSS RECESSED PAN SELF-TAPPING	- PCS	C
F23-11	SCREW,HEXAGON SOCKET	- PCS	C
F23-12	WASHER,FLANGE	- PCS	C
F23-13	I-RUBBER	- PCS	C
F23-14	ELECTRICAL BOX	- PCS	C
F23-15	GLUE NAIL,BUFFER	- PCS	C
F23-16	BODY COVER.,LEFT	- PCS	B
F23-17	TAILLIGHT SET	- PCS	B
F23-18	CLAMPING BAND	- PCS	C
F23-19	COLLAR	- PCS	C

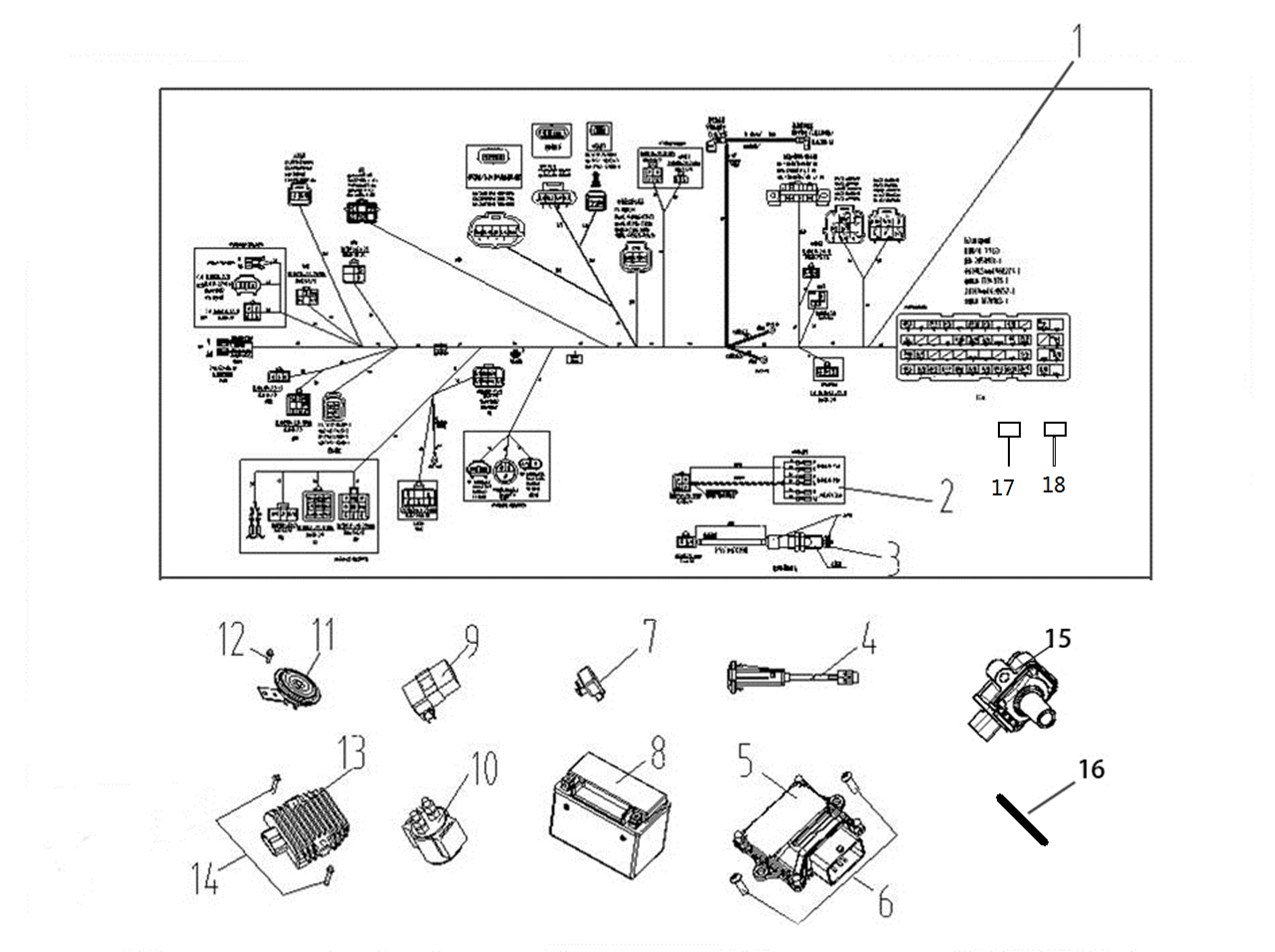

Assembly diagram

Ref	Part Name	Qty	Grade
F24-1	HARNESS,WIRE	- SET	B
F24-2	HARNESS,SUB	- PCS	C
F24-3	SWITCH ASSY.,REAR BRAKE	- PCS	B
F24-4	USB/AUX	- PCS	C
F24-5	ECU	- PCS	C
F24-6	SCREW,HEXAGON SOCKET	- PCS	C
F24-7	FLASHER	- PCS	A
F24-8	BATTERY ASSY.	- PCS	A
F24-9	ELECTRICAL BOX	- PCS	C
F24-10	STARTING RELAY ASSY.	- PCS	A
F24-11	HORN	- PCS	A
F24-12	BOLT,HEXAGON FLANGE	- PCS	C
F24-13	RECTIFIER REGULATOR ASSY.	- PCS	A
F24-14	BOLT,HEXAGON FLANGE	- PCS	C
F24-15	COIL ASSY.,IGNITION	- PCS	A
F24-16	CLAMPING BAND	- PCS	C
F24-17	SECTION,SAFE	- PCS	A
F24-18	SECTION,SAFE	- PCS	A

Assembly diagram

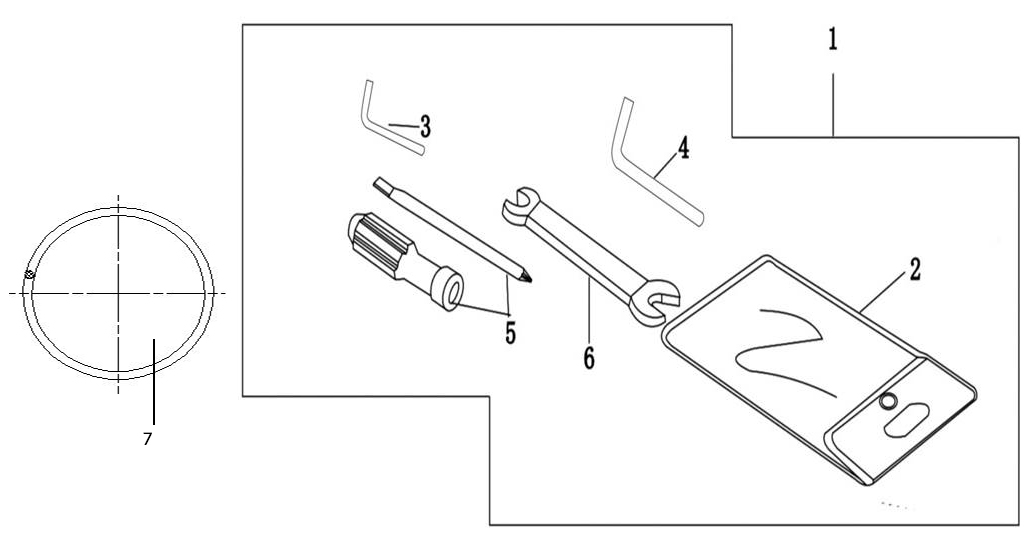

Ref	Part Name	Qty	Grade
F25-1	ACCESSORIES,TOOL	- SET	D
F25-2	BAG,TOOL	- PCS	D
F25-3	SLEEVE	- PCS	D
F25-4	WRENCH	- PCS	D
F25-5	SCREWDRIVER,DUAL-PURPOSE	- PCS	D
F25-6	WRENCH	- PCS	D
F25-7	RING,SEAL	- PCS	B

ENGINE

Ref	Part Name	Part Number	Qty	Grade	Notes
E1	发动机总成		1 SET	C

Assembly diagrams

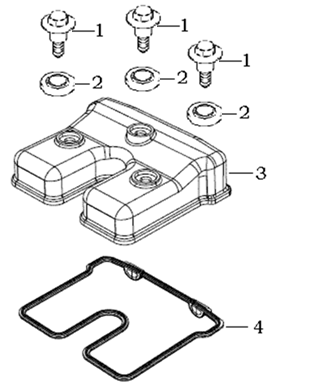

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 1

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 2

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 3

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts） - diagram 4

Ref	Part Name	Qty	Grade
E01-01	气缸头盖螺栓	3 PCS	C
E01-02	密封圈	3 PCS	A
E01-03	气缸头盖	1 PCS	C
E01-04	气缸头盖密封垫	1 PCS	A

Assembly diagrams

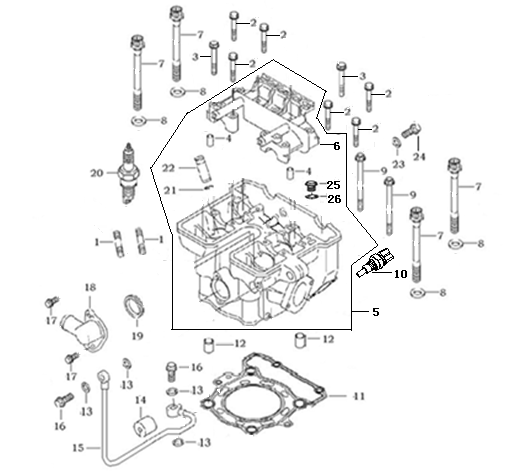

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 1

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 2

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 3

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 4

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 5

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 6

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 7

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 8

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 9

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 10

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 11

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 12

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 13

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 14

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 15

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 16

E-2 E-2 气缸头（ Cylinder Head Parts） - diagram 17

Ref	Part Name	Qty	Grade
E02-01	双头螺栓	2 PCS	C
E02-02	六角头法兰面螺栓	6 PCS	C
E02-03	六角头法兰面螺栓	2 PCS	C
E02-04	定位销	2 PCS	C
E02-05	气缸头套件	1 SET	C
E02-06	凸轮轴支架组合	1 PCS	A
E02-07	内六角螺钉	4 PCS	C
E02-08	平垫圈	4 PCS	C
E02-09	六角头法兰面螺栓	2 PCS	C
E02-10	发动机传感器	1 PCS	C
E02-11	气缸头密封垫	1 PCS	A
E02-12	定位销	2 PCS	C
E02-13	平垫圈	4 PCS	C
E02-14	油管支承	1 PCS	C
E02-15	油管	1 PCS	B
E02-16	六角头法兰面螺栓	2 PCS	C
E02-17	六角头法兰面螺栓	2 PCS	C
E02-18	管接头	1 PCS	C
E02-19	密封圈	1 PCS	A
E02-20	火花塞	1 PCS	A
E02-21	气门导管挡圈	4 PCS	C
E02-22	气门导管	4 PCS	B
E02-23	密封圈	1 PCS	A
E02-24	气缸头侧面螺栓	1 PCS	C
E02-25	内六角螺钉	1 PCS	C
E02-26	密封圈	1 PCS	A

Assembly diagrams

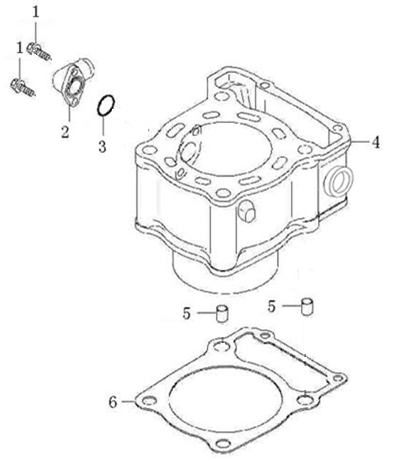

E-3 E-3 气缸体 (Cylinder Parts) - diagram 1

E-3 E-3 气缸体 (Cylinder Parts) - diagram 2

E-3 E-3 气缸体 (Cylinder Parts) - diagram 3

E-3 E-3 气缸体 (Cylinder Parts) - diagram 4

E-3 E-3 气缸体 (Cylinder Parts) - diagram 5

E-3 E-3 气缸体 (Cylinder Parts) - diagram 6

Ref	Part Name	Qty	Grade
E03-01	六角头法兰面螺栓	2 PCS	C
E03-02	管接头	1 PCS	C
E03-03	密封圈	1 PCS	A
E03-04	气缸体	1 PCS	B
E03-05	定位销	2 PCS	C
E03-06	气缸体密封垫	1 PCS	A

Assembly diagrams

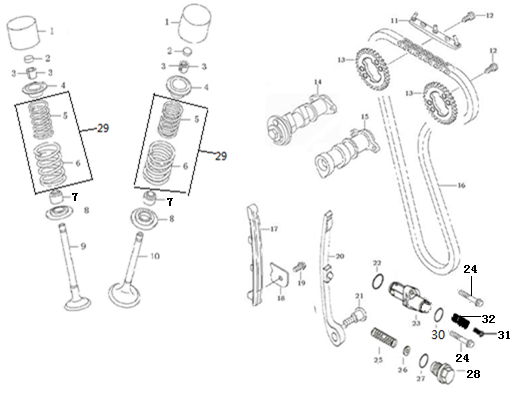

Ref	Part Name	Qty	Grade
E04-01	挺柱	4 PCS	B
E04-02	气门调整垫片	4 PCS	A
E04-02A	气门调整垫片套件	1	-

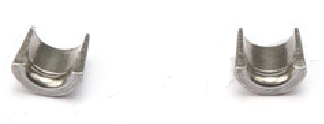

E04-03	气门锁夹	8 PCS	C
E04-04	气门弹簧座	4 PCS	C
E04-05	气门内弹簧	4 PCS	C
E04-06	气门外弹簧	4 PCS	C
E04-07	挡油罩	4 PCS	A
E04-08	气门内弹簧座圈	4 PCS	C
E04-09	排气门	2 PCS	A
E04-10	进气门	2 PCS	A
E04-11	正时链条压板	1 PCS	C
E04-12	六角头螺栓	4 PCS	C
E04-13	正时从动链轮	2 PCS	B
E04-14	凸轮轴组合	1 SET	B
E04-15	凸轮轴	1 PCS	B
E04-16	正时链条	1 PCS	A
E04-17	链条导向板	1 PCS	B
E04-18	链条导向板压板	1 PCS	A
E04-19	六角头法兰面螺栓	1 PCS	C
E04-20	链条调节板	1 PCS	B
E04-21	链条调节板销轴	1 PCS	C
E04-22	密封圈	1 PCS	A
E04-23	张紧器组合	1 PCS	B
E04-24	六角头法兰面螺栓	2 PCS	C
E04-25	压簧	1 PCS	B
E04-26	平垫圈	1 PCS	C
E04-27	密封圈	1 PCS	A
E04-28	张紧器螺栓	1 PCS	A
E04-29	气门弹簧组合	1 PCS	C
E04-30	密封圈	1 PCS	A
E04-31	张紧器螺栓	1 PCS	A
E04-32	压簧	1 PCS	B

Assembly diagrams

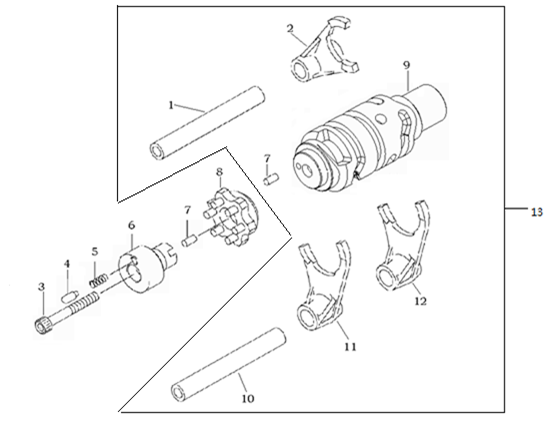

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 1

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 2

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 3

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 4

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 5

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 6

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 7

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 8

E-5 E-5 变速鼓部件(Varibale Unit ) - diagram 9

Ref	Part Name	Qty	Grade
E05-01	拨叉轴	1 PCS	C
E05-02	拨叉	1 PCS	C
E05-03	内六角螺钉	1 PCS	C
E05-04	档显开关动触头	1 PCS	C
E05-05	压簧	1 PCS	B
E05-06	档位触板	1 PCS	C
E05-07	定位销	2 PCS	C
E05-08	五星拨板	1 PCS	C
E05-09	变速鼓	1 PCS	C
E05-10	拨叉轴	1 PCS	C
E05-11	拨叉	1 PCS	C
E05-12	拨叉	1 PCS	C
E05-13	变速鼓部件	1 SET	C

Assembly diagrams

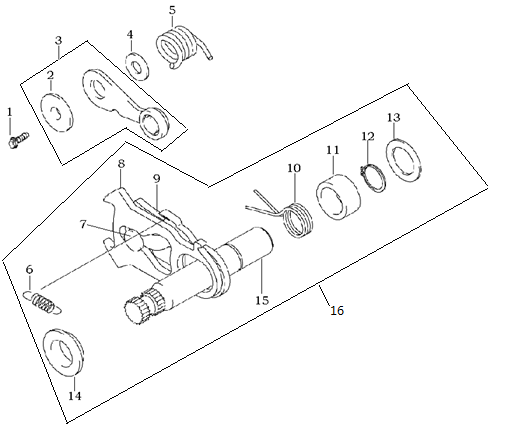

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 1

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 2

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 3

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 4

E-6 E-6 换挡臂部件(Gear Shifting) - diagram 5

Ref	Part Name	Qty	Grade
E06-01	六角头法兰面螺栓	1 PCS	C
E06-02	衬套	1 PCS	C
E06-03	止动板组合	1 PCS	C
E06-04	平垫圈	1 PCS	C
E06-05	扭簧	1 PCS	B
E06-06	拉簧	1 PCS	B
E06-07	换档限位销	1 PCS	C
E06-08	换档拨板	1 PCS	C
E06-09	换档限位板	1 PCS	C
E06-10	扭簧	1 PCS	B
E06-11	衬套	1 PCS	C
E06-12	弹性挡圈	1 PCS	B
E06-13	平垫圈	1 PCS	C
E06-14	衬套	1 PCS	C
E06-15	换档轴	1 PCS	C
E06-16	换档臂部件	1 SET	B

Assembly diagrams

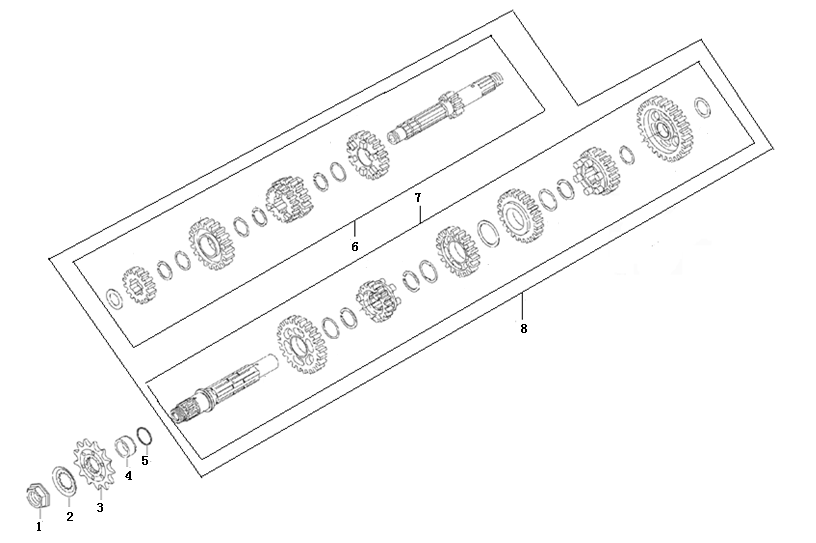

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 1

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 2

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 3

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 4

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 5

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 6

E-7 E-7 传动机构(Transmission Shaft Comp) - diagram 7

Ref	Part Name	Qty	Grade
E07-01	副轴主动轮锁紧螺母	1 PCS	A
E07-02	链轮锁紧垫圈	1 PCS	A
E07-03	副轴主动链轮	1 PCS	A
E07-04	衬套	1 PCS	C
E07-05	密封圈	1 PCS	A
E07-06	主轴部件	1 SET	B
E07-07	副轴部件	1 SET	B
E07-08	主副轴套件	1 SET	B

Assembly diagrams

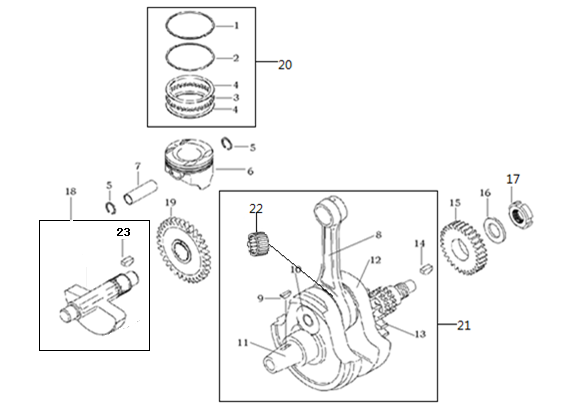

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 1

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 2

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 3

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 4

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 5

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 6

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 7

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 8

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 9

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 10

E-8 E-8 曲柄连杆组件（Crankshaft Comp） - diagram 11

Ref	Part Name	Qty	Grade
E08-01	一环	1 PCS	C
E08-02	二环	1 PCS	C
E08-03	衬环	1 PCS	C
E08-04	刮片环	2 PCS	C
E08-05	钢丝挡圈	2 PCS	C
E08-06	活塞	1 PCS	A
E08-07	活塞销	1 PCS	B
E08-08	连杆	1 PCS	C
E08-09	键	1 PCS	C
E08-10	曲柄销	1 PCS	C
E08-11	左曲柄	1 PCS	C
E08-12	右曲柄	1 PCS	C
E08-13	平衡轴主动齿轮	1 PCS	C
E08-14	键	1 PCS	C
E08-15	初级主动齿轮	1 PCS	B
E08-16	碟形垫圈	1 PCS	C
E08-17	圆螺母	1 PCS	C
E08-18	平衡轴	1 PCS	C
E08-19	平衡轴从动齿轮组合	1 PCS	C
E08-20	活塞环组合	1 SET	A
E08-21	曲柄连杆部件	1 SET	C
E08-22	轴承	1 PCS	A
E08-23	键	1 PCS	C

Assembly diagrams

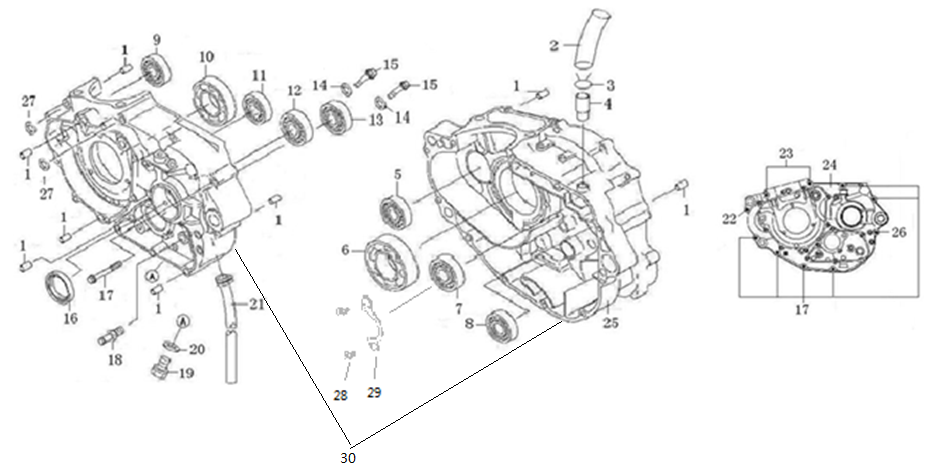

E-9 E-9 箱体组件（Crankcase Comp） - diagram 1

E-9 E-9 箱体组件（Crankcase Comp） - diagram 2

E-9 E-9 箱体组件（Crankcase Comp） - diagram 3

E-9 E-9 箱体组件（Crankcase Comp） - diagram 4

E-9 E-9 箱体组件（Crankcase Comp） - diagram 5

E-9 E-9 箱体组件（Crankcase Comp） - diagram 6

E-9 E-9 箱体组件（Crankcase Comp） - diagram 7

E-9 E-9 箱体组件（Crankcase Comp） - diagram 8

E-9 E-9 箱体组件（Crankcase Comp） - diagram 9

E-9 E-9 箱体组件（Crankcase Comp） - diagram 10

E-9 E-9 箱体组件（Crankcase Comp） - diagram 11

E-9 E-9 箱体组件（Crankcase Comp） - diagram 12

E-9 E-9 箱体组件（Crankcase Comp） - diagram 13

E-9 E-9 箱体组件（Crankcase Comp） - diagram 14

E-9 E-9 箱体组件（Crankcase Comp） - diagram 15

E-9 E-9 箱体组件（Crankcase Comp） - diagram 16

E-9 E-9 箱体组件（Crankcase Comp） - diagram 17

E-9 E-9 箱体组件（Crankcase Comp） - diagram 18

Ref	Part Name	Qty	Grade
E09-01	定位销	8 PCS	C
E09-02	通气管	1 PCS	B
E09-03	管夹	1 PCS	C
E09-04	管接头	1 PCS	C
E09-05	轴承	1 PCS	A
E09-06	轴承	1 PCS	A
E09-07	轴承	1 PCS	A
E09-08	轴承	1 PCS	A
E09-09	轴承	1 PCS	A
E09-10	轴承	1 PCS	A
E09-11	轴承	1 PCS	A
E09-12	轴承	1 PCS	A
E09-13	轴承	1 PCS	A
E09-14	平垫圈	2 PCS	A
E09-15	六角头法兰面螺栓	2 PCS	C
E09-16	油封	1 PCS	A
E09-17	六角头法兰面螺栓	6 PCS	C
E09-18	换档臂定位螺栓	1 PCS	C
E09-19	密封螺塞	1 PCS	C
E09-20	平垫圈	1 PCS	C
E09-21	回油管	1 PCS	B
E09-22	六角头法兰面螺栓	1 PCS	C
E09-23	六角头法兰面螺栓	2 PCS	C
E09-24	左曲轴箱体	1 PCS	C
E09-25	右曲轴箱体	1 PCS	C
E09-26	六角头法兰面螺栓	1 PCS	C
E09-27	平垫圈	2 PCS	C
E09-28	十字槽沉头螺钉	2 PCS	C
E09-29	主轴承挡板	1 PCS	C
E09-30	曲轴箱体套件	1 SET	B

Assembly diagrams

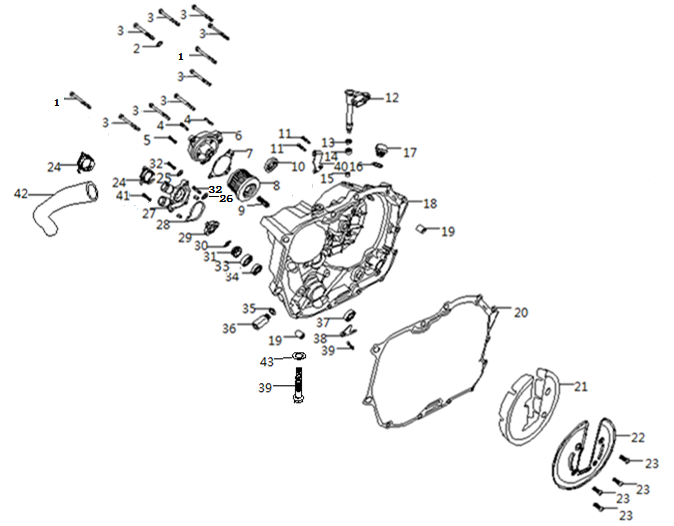

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 1

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 2

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 3

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 4

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 5

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 6

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 7

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 8

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 9

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 10

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 11

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 12

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 13

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 14

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 15

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 16

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 17

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 18

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 19

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 20

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 21

E-10 E-10 右箱盖部件（R-Crankcase Cover） - diagram 22

Ref	Part Name	Qty	Grade
E10-01	六角头法兰面螺栓	2 PCS	C
E10-02	平垫圈	1 PCS	C
E10-03	六角头法兰面螺栓	8 PCS	C
E10-04	六角头法兰面螺栓	2 PCS	C
E10-05	六角头法兰面螺栓	1 PCS	C
E10-06	机油精滤器盖	1 PCS	C
E10-07	机油滤清器盖密封垫	1 PCS	A
E10-08	机油精滤器组合	1 SET	C
E10-09	压簧	1 PCS	B
E10-10	机油观察窗	1 PCS	C
E10-11	六角头法兰面螺栓	2 PCS	C
E10-12	离合器操纵杆组合	1 PCS	B
E10-13	油封	1 PCS	A
E10-14	轴承	1 PCS	A
E10-15	轴承	1 PCS	A
E10-16	密封圈	1 PCS	A
E10-17	机油尺	1 PCS	B
E10-18	右曲轴箱盖	1 PCS	C
E10-19	定位销	2 PCS	C
E10-20	右曲轴箱盖密封垫	1 PCS	A
E10-21	减震垫	1 PCS	C
E10-22	减震垫盖板	1 PCS	C
E10-23	十字槽盘头螺钉	4 PCS	C
E10-24	管夹	2 PCS	C
E10-25	平垫圈	1 PCS	C
E10-26	平垫圈	1 PCS	C
E10-27	冷却泵盖	1 PCS	C
E10-28	冷却泵密封垫	1 PCS	A
E10-29	冷却泵叶轮	1 PCS	B
E10-30	冷却泵水封动环	1 PCS	A
E10-31	冷却泵水封静环组合	1 PCS	A
E10-32	六角头法兰面螺栓	2 PCS	C
E10-33	油封	1 PCS	A
E10-34	轴承	1 PCS	A
E10-35	平垫圈	1 PCS	C
E10-36	机油控制阀部件	1 SET	C
E10-37	油封	1 PCS	A
E10-38	曲轴右油封挡板	1 PCS	C
E10-39	六角头法兰面螺栓	2 PCS	C
E10-40	离合器拉筋定位板	1 PCS	C
E10-41	六角头法兰面螺栓	1 PCS	C
E10-42	水管	1 PCS	B
E10-43	平垫圈	1 PCS	C

Assembly diagrams

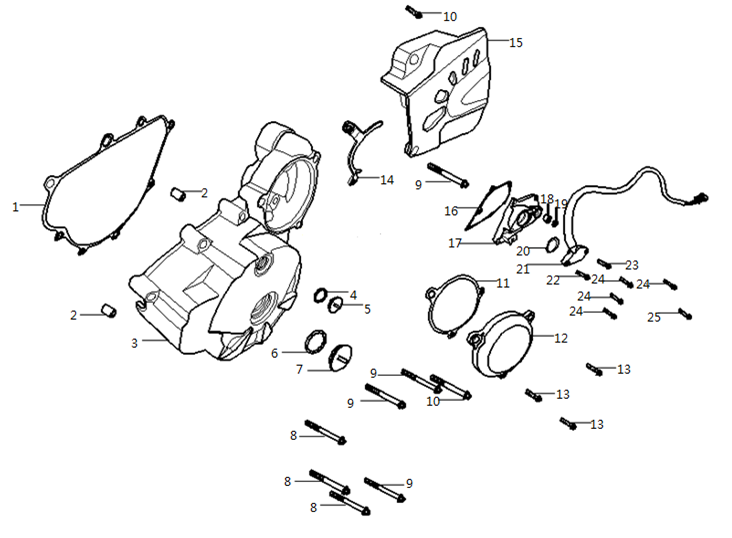

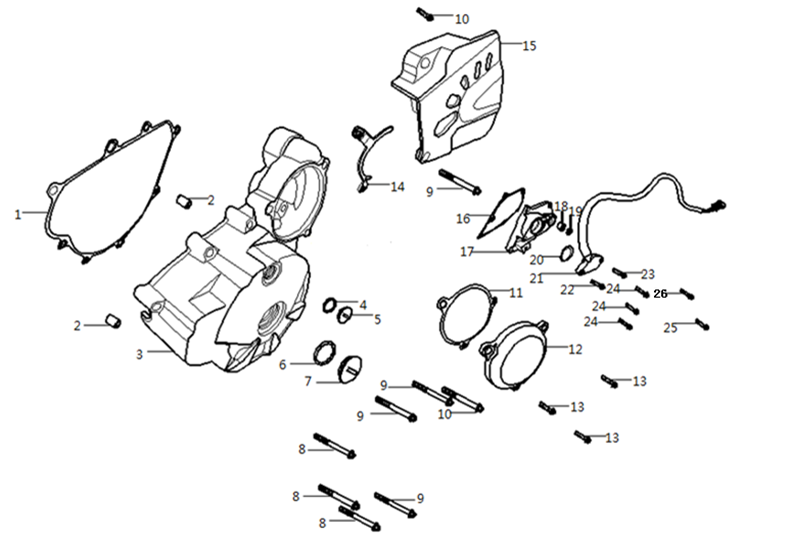

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 1

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 2

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 3

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 4

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 5

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 6

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 7

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 8

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 9

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 10

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 11

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 12

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 13

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 14

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 15

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 16

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 17

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 18

E-11 E-11 左箱盖部件（L-Crankcase Cover） - diagram 19

Ref	Part Name	Qty	Grade
E11-01	左前盖密封垫	1 PCS	A
E11-02	定位销	2 PCS	C
E11-03	左前盖	1 PCS	C
E11-04	密封圈	1 PCS	A
E11-05	视孔盖	1 PCS	B
E11-06	密封圈	1 PCS	A
E11-07	左装饰盖	1 PCS	C
E11-08	六角头法兰面螺栓	5 PCS	C
E11-09	六角头法兰面螺栓	2 PCS	C
E11-10	六角头法兰面螺栓	1 PCS	C
E11-11	齿轮室盖密封垫	1 PCS	A
E11-12	齿轮室盖	1 PCS	C
E11-13	六角头法兰面螺栓	3 PCS	C
E11-14	链条挡板	1 PCS	B
E11-15	左后盖	1 PCS	C
E11-16	变速器盖密封垫	1 PCS	A
E11-17	变速器盖	1 PCS	C
E11-18	轴承	1 PCS	A
E11-19	油封	1 PCS	A
E11-20	密封圈	1 PCS	A
E11-21	档显开关部件	1 SET	B
E11-22	六角头法兰面螺栓	1 PCS	C
E11-23	六角头法兰面螺栓	3 PCS	C
E11-24	六角头法兰面螺栓	2 PCS	C
E11-25	六角头法兰面螺栓	1 PCS	C

Assembly diagrams

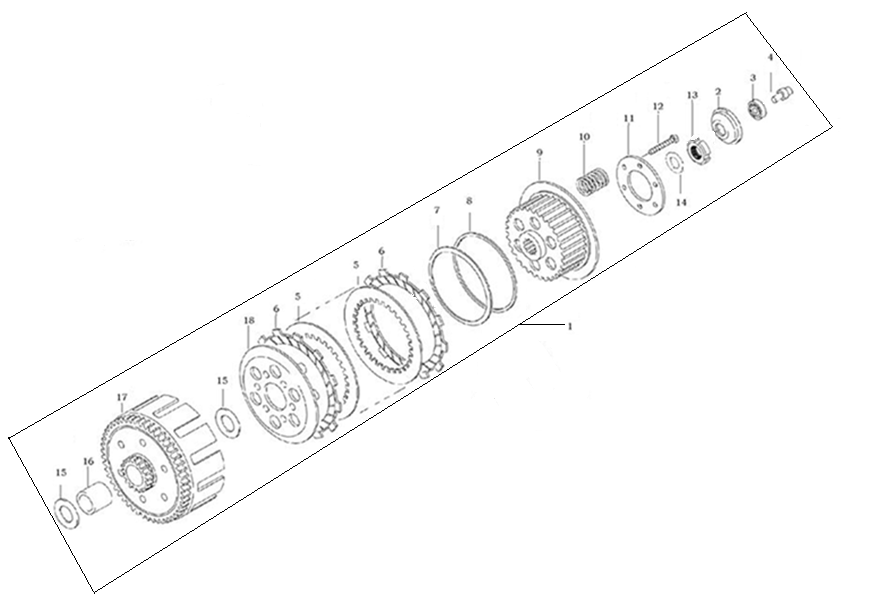

E-12 E-12 离合器组件（Clutch Comp） - diagram 1

E-12 E-12 离合器组件（Clutch Comp） - diagram 2

E-12 E-12 离合器组件（Clutch Comp） - diagram 3

E-12 E-12 离合器组件（Clutch Comp） - diagram 4

E-12 E-12 离合器组件（Clutch Comp） - diagram 5

E-12 E-12 离合器组件（Clutch Comp） - diagram 6

E-12 E-12 离合器组件（Clutch Comp） - diagram 7

E-12 E-12 离合器组件（Clutch Comp） - diagram 8

Ref	Part Name	Qty	Grade
E12-01	离合器套件	1 SET	B
E12-02	推盘	1 PCS	C
E12-03	轴承	1 PCS	A
E12-04	推杆	1 PCS	C
E12-05	从动摩擦片	6 PCS	A
E12-06	主动摩擦片	7 PCS	A
E12-07	蝶形垫圈	1 PCS	C
E12-08	平垫圈	1 PCS	C
E12-09	离合器中心套组合	1 PCS	C
E12-10	离合器主弹簧	6 PCS	B
E12-11	升板	1 PCS	B
E12-12	六角头螺栓	6 PCS	C
E12-13	圆螺母	1 PCS	C
E12-14	碟形垫圈	1 PCS	C
E12-15	平垫圈	2 PCS	C
E12-16	衬套	1 PCS	C
E12-17	离合器外罩组合	1 PCS	B
E12-18	压板	1 PCS	B

Assembly diagrams

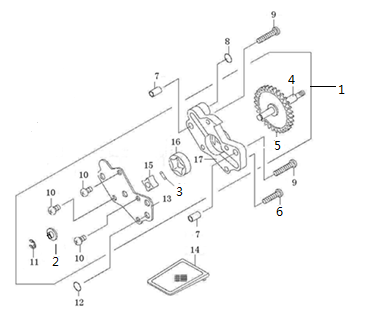

E-13 E-13 润滑机构（lubrication ） - diagram 1

E-13 E-13 润滑机构（lubrication ） - diagram 2

E-13 E-13 润滑机构（lubrication ） - diagram 3

Ref	Part Name	Qty	Grade
E13-1	机油泵部件	1 SET	C
E13-2	平垫圈	1 PCS	C
E13-3	定位销	1 PCS	C
E13-4	油泵传动轴	1 PCS	C
E13-5	油泵主动轮	1 PCS	C
E13-6	十字槽盘头螺钉	1 PCS	C
E13-7	定位销	2 PCS	C
E13-8	密封圈	1 PCS	A
E13-9	十字槽盘头螺钉	2 PCS	C
E13-10	十字槽盘头螺钉	3 PCS	C
E13-11	开口挡圈	1 PCS	C
E13-12	密封圈	1 PCS	A
E13-13	油泵盖	1 PCS	C
E13-14	机油滤网	1 PCS	A
E13-15	内转子	1 PCS	C
E13-16	外转子	1 PCS	C
E13-17	油泵座体	1 PCS	C

Assembly diagram

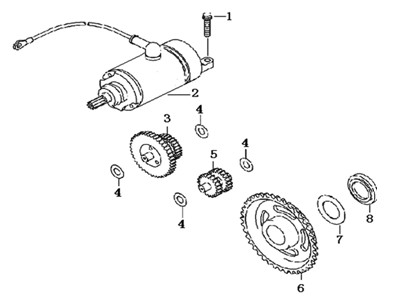

E-14 E-14 电起动部件（Starting Motor） - diagram 1

Ref	Part Name	Qty	Grade
E14-01	六角头法兰面螺栓	2 PCS	C
E14-02	起动电机组件	1 SET	B
E14-03	电起动双联齿轮	1 PCS	C
E14-04	平垫圈	4 PCS	C
E14-05	电起动过桥齿轮	1 PCS	C
E14-06	盘形齿轮	1 PCS	C
E14-07	平垫圈	1 PCS	C
E14-08	衬套	1 PCS	C

Assembly diagrams

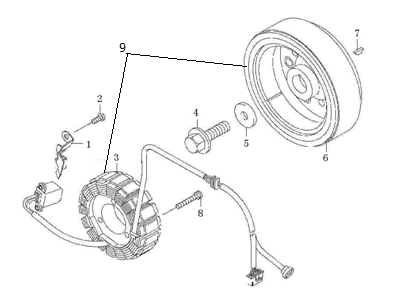

E-15 E-15 磁电机组件（Magneto Assy） - diagram 1

E-15 E-15 磁电机组件（Magneto Assy） - diagram 2

Ref	Part Name	Qty	Grade
E15-01	压线板	1 PCS	C
E15-02	六角头法兰面螺栓	2 PCS	C
E15-03	磁电机锭子部件	1 SET	B
E15-04	六角头法兰面螺栓	1 PCS	C
E15-05	平垫圈	1 PCS	C
E15-06	磁电机转子部件	1 SET	C
E15-07	键	1 PCS	C
E15-08	六角头法兰面螺栓	3 PCS	C
E15-09	磁电机组件	1 SET	B

YF300 ENGINE

Ref	Part Name	Part Number	Qty	Grade	Notes
E1	ENGINE		1 SET	C

Assembly diagrams

E-1 E-1 Cylinder Head Cover Parts） - diagram 1

E-1 E-1 Cylinder Head Cover Parts） - diagram 2

E-1 E-1 Cylinder Head Cover Parts） - diagram 3

E-1 E-1 Cylinder Head Cover Parts） - diagram 4

Ref	Part Name	Qty	Grade
E01-01	BOLT,CYLINDER HEAD COVER	3 PCS	C
E01-02	RING,SEAL	3 PCS	A
E01-03	COVER COMP.,CYLINDER HEAD	1 PCS	C
E01-04	GASKET,CYLINDER HEAD COVER	1 PCS	A

Assembly diagrams

E-2 E-2 （ Cylinder Head Parts） - diagram 1

E-2 E-2 （ Cylinder Head Parts） - diagram 2

E-2 E-2 （ Cylinder Head Parts） - diagram 3

E-2 E-2 （ Cylinder Head Parts） - diagram 4

E-2 E-2 （ Cylinder Head Parts） - diagram 5

E-2 E-2 （ Cylinder Head Parts） - diagram 6

E-2 E-2 （ Cylinder Head Parts） - diagram 7

E-2 E-2 （ Cylinder Head Parts） - diagram 8

E-2 E-2 （ Cylinder Head Parts） - diagram 9

E-2 E-2 （ Cylinder Head Parts） - diagram 10

E-2 E-2 （ Cylinder Head Parts） - diagram 11

E-2 E-2 （ Cylinder Head Parts） - diagram 12

E-2 E-2 （ Cylinder Head Parts） - diagram 13

E-2 E-2 （ Cylinder Head Parts） - diagram 14

E-2 E-2 （ Cylinder Head Parts） - diagram 15

E-2 E-2 （ Cylinder Head Parts） - diagram 16

E-2 E-2 （ Cylinder Head Parts） - diagram 17

Ref	Part Name	Qty	Grade
E02-01	double-Bolt	2 PCS	C
E02-02	Bolt	6 PCS	C
E02-03	Bolt	2 PCS	C
E02-04	Dowel Pin	2 PCS	C
E02-05	CYLINDER HEAD KIT	1 SET	C
E02-06	Supporting Bracket	1 PCS	A
E02-07	Torx Bolt	4 PCS	C
E02-08	Washer	4 PCS	C
E02-09	Bolt	2 PCS	C
E02-10	Engine sensors	1 PCS	C
E02-11	Cylinder Head Gasket	1 PCS	A
E02-12	Dowel Pin	2 PCS	C
E02-13	Washer	4 PCS	C
E02-14	Tube Bearing	1 PCS	C
E02-15	Oil Tube	1 PCS	B
E02-16	Bolt	2 PCS	C
E02-17	Bolt	2 PCS	C
E02-18	Tube tie-in	1 PCS	C
E02-19	O-Ring	1 PCS	A
E02-20	Spark plug	1 PCS	A
E02-21	Guide Ring	4 PCS	C
E02-22	Guide,Intake Valve	4 PCS	B
E02-23	O-Ring	1 PCS	A
E02-24	Bolt	1 PCS	C
E02-25	SCREW,HEXAGON SOCKET	1 PCS	C
E02-26	RING,SEAL	1 PCS	A

Assembly diagrams

Ref	Part Name	Qty	Grade
E03-01	Bolt	2 PCS	C
E03-02	Tube tie-in	1 PCS	C
E03-03	O-ring	1 PCS	A
E03-04	Cylinder	1 PCS	B
E03-05	Dowel Pin	2 PCS	C
E03-06	Cylinder Gasket	1 PCS	A

Assembly diagrams

Ref	Part Name	Qty	Grade
E04-01	Lifter	4 PCS	B
E04-02	Valve Adjust Spacer	4 PCS	A
E04-02A	ADJUSTING SHIM,VALVE KIT	1	-
E04-03	Valve Collet	8 PCS	C
E04-04	Valve Spring Plate	4 PCS	C
E04-05	Inner Spring	4 PCS	C
E04-06	Outer Spring	4 PCS	C
E04-07	Valve Oil Ring	4 PCS	A
E04-08	Valve Spring Seat	4 PCS	C
E04-09	Exhaust Valve	2 PCS	A
E04-10	Intake Valve	2 PCS	A
E04-11	platen,Timing Chain	1 PCS	C
E04-12	Bolt	4 PCS	C
E04-13	Timing Camshaft Sproket	2 PCS	B
E04-14	Camshaft	1 SET	B
E04-15	Camshaft	1 PCS	B
E04-16	Timing Chain	1 PCS	A
E04-17	Guide Rall	1 PCS	B
E04-18	platen,Guide Rall	1 PCS	A
E04-19	Bolt	1 PCS	C
E04-20	Bow	1 PCS	B
E04-21	forelock,Bow	1 PCS	C
E04-22	O-ring	1 PCS	A
E04-23	Tensioner Assembly	1 PCS	B
E04-24	Bolt	2 PCS	C
E04-25	Spring	1 PCS	B
E04-26	Washer	1 PCS	C
E04-27	O-ring	1 PCS	A
E04-28	Tensioner Bolt	1 PCS	A
E04-29	SPRING SET,VALVE	1 PCS	C
E04-30	O-ring	1 PCS	A
E04-31	BOLT,TENSIONER	1 PCS	A
E04-32	SPRING,COMPRESSION	1 PCS	B

Assembly diagrams

Ref	Part Name	Qty	Grade
E05-01	Fork ShaftⅠ	1 PCS	C
E05-02	Fork Ⅱ	1 PCS	C
E05-03	Bolt	1 PCS	C
E05-04	Pin	1 PCS	C
E05-05	SPRING,COMPRE	1 PCS	B
E05-06	Touch Board	1 PCS	C
E05-07	Pin	2 PCS	C
E05-08	Holder,Change Drum	1 PCS	C
E05-09	Shaft Drum	1 PCS	C
E05-10	Fork ShaftⅡ	1 PCS	C
E05-11	Fork Ⅲ	1 PCS	C
E05-12	Fork Ⅰ	1 PCS	C
E05-13	DRUM COMP.,GEAR SHIFT	1 SET	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E06-01	Bolt	1 PCS	C
E06-02	Sleeve	1 PCS	C
E06-03	Stopper	1 PCS	C
E06-04	Washer	1 PCS	C
E06-05	Spring	1 PCS	B
E06-06	Spring	1 PCS	B
E06-07	Gear Change Limit Pin	1 PCS	C
E06-08	Gear Change Plate	1 PCS	C
E06-09	Gear Change Limit Plate	1 PCS	C
E06-10	Spring	1 PCS	B
E06-11	Sleeve	1 PCS	C
E06-12	Circlip	1 PCS	B
E06-13	Washer	1 PCS	C
E06-14	Sleeve	1 PCS	C
E06-15	Gear Shift	1 PCS	C
E06-16	ARM COMP.,GEAR CHANGE	1 SET	B

Assembly diagrams

E-7 E-7 (Transmission Shaft Comp) - diagram 1

E-7 E-7 (Transmission Shaft Comp) - diagram 2

E-7 E-7 (Transmission Shaft Comp) - diagram 3

E-7 E-7 (Transmission Shaft Comp) - diagram 4

E-7 E-7 (Transmission Shaft Comp) - diagram 5

E-7 E-7 (Transmission Shaft Comp) - diagram 6

E-7 E-7 (Transmission Shaft Comp) - diagram 7

Ref	Part Name	Qty	Grade
E07-01	Nut	1 PCS	A
E07-02	Washer	1 PCS	A
E07-03	Driving Sprocket	1 PCS	A
E07-04	Bush	1 PCS	C
E07-05	O-Ring	1 PCS	A
E07-06	MAINSHAFT COMP.	1 SET	B
E07-07	COUNTERSHAFT COMP.	1 SET	B
E07-08	MAINSHAFT&COUNTERSHAFT KIT	1 SET	B

Assembly diagrams

Ref	Part Name	Qty	Grade
E08-01	Piston Ring 1	1 PCS	C
E08-02	Piston Ring 2	1 PCS	C
E08-03	Line Ring	1 PCS	C
E08-04	shaving Ring	2 PCS	C
E08-05	Circlip Piston Pin	2 PCS	C
E08-06	Piston	1 PCS	A
E08-07	Piston Pin	1 PCS	B
E08-08	Rod Connecting	1 PCS	C
E08-09	Key	1 PCS	C
E08-10	Pin Crank	1 PCS	C
E08-11	L Crankshaft	1 PCS	C
E08-12	R Crangshaft	1 PCS	C
E08-13	Driven Gear Balancer Shaft	1 PCS	C
E08-14	Key	1 PCS	C
E08-15	Gear Primary Clvive	1 PCS	B
E08-16	Washer	1 PCS	C
E08-17	Nut	1 PCS	C
E08-18	Shaft Balancer	1 PCS	C
E08-19	Gear Balancer Shaft	1 PCS	C
E08-20	RING SET,PISTON	1 SET	A
E08-21	CRANKSHAFT COMP.	1 SET	C
E08-22	BEARING	1 PCS	A
E08-23	KEY	1 PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E09-01	Pin	8 PCS	C
E09-02	Pipe,aerate	1 PCS	B
E09-03	Pipe Nip	1 PCS	C
E09-04	Terminal Breather Hose	1 PCS	C
E09-05	BEARING	1 PCS	A
E09-06	BEARING	1 PCS	A
E09-07	BEARING	1 PCS	A
E09-08	BEARING	1 PCS	A
E09-09	BEARING	1 PCS	A
E09-10	BEARING	1 PCS	A
E09-11	BEARING	1 PCS	A
E09-12	BEARING	1 PCS	A
E09-13	BEARING	1 PCS	A
E09-14	Washer	2 PCS	A
E09-15	Bolt	2 PCS	C
E09-16	Oil Seal	1 PCS	A
E09-17	Bolt	6 PCS	C
E09-18	Bolt	1 PCS	C
E09-19	Plug Oil Drain	1 PCS	C
E09-20	Washer	1 PCS	C
E09-21	Oil Pipe	1 PCS	B
E09-22	Bolt	1 PCS	C
E09-23	Bolt	2 PCS	C
E09-24	BODY SET,LEFT CRANKCASE	1 PCS	C
E09-25	BODY SET,RIGHT CRANKCASE	1 PCS	C
E09-26	Bolt	1 PCS	C
E09-27	Washer	2 PCS	C
E09-28	SCREW,CROSS RECESSED COUNTERSUNK HEAD	2 PCS	C
E09-29	Baffle	1 PCS	C
E09-30	CRANKCASE KIT	1 SET	B

Assembly diagrams

E-10 E-10 （R-Crankcase Cover） - diagram 1

E-10 E-10 （R-Crankcase Cover） - diagram 2

E-10 E-10 （R-Crankcase Cover） - diagram 3

E-10 E-10 （R-Crankcase Cover） - diagram 4

E-10 E-10 （R-Crankcase Cover） - diagram 5

E-10 E-10 （R-Crankcase Cover） - diagram 6

E-10 E-10 （R-Crankcase Cover） - diagram 7

E-10 E-10 （R-Crankcase Cover） - diagram 8

E-10 E-10 （R-Crankcase Cover） - diagram 9

E-10 E-10 （R-Crankcase Cover） - diagram 10

E-10 E-10 （R-Crankcase Cover） - diagram 11

E-10 E-10 （R-Crankcase Cover） - diagram 12

E-10 E-10 （R-Crankcase Cover） - diagram 13

E-10 E-10 （R-Crankcase Cover） - diagram 14

E-10 E-10 （R-Crankcase Cover） - diagram 15

E-10 E-10 （R-Crankcase Cover） - diagram 16

E-10 E-10 （R-Crankcase Cover） - diagram 17

E-10 E-10 （R-Crankcase Cover） - diagram 18

E-10 E-10 （R-Crankcase Cover） - diagram 19

E-10 E-10 （R-Crankcase Cover） - diagram 20

E-10 E-10 （R-Crankcase Cover） - diagram 21

E-10 E-10 （R-Crankcase Cover） - diagram 22

Ref	Part Name	Qty	Grade
E10-01	BOLT,HEXAGON FLANGE	2 PCS	C
E10-02	WASHER,PLAIN	1 PCS	C
E10-03	BOLT,HEXAGON FLANGE	8 PCS	C
E10-04	BOLT,HEXAGON FLANGE	2 PCS	C
E10-05	BOLT,HEXAGON FLANGE	1 PCS	C
E10-06	CAP,SECONDARY OIL FILTER	1 PCS	C
E10-07	GASKET,OIL FILTER CAP	1 PCS	A
E10-08	OIL FILTER ASSY.,SECONDARY	1 SET	C
E10-09	SPRING,COMPRESSION	1 PCS	B
E10-10	SIGHT GLASS,OIL	1 PCS	C
E10-11	BOLT,HEXAGON FLANGE	2 PCS	C
E10-12	JOYSTICK ASSY.,CLUTCH	1 PCS	B
E10-13	OIL SEAL	1 PCS	A
E10-14	BEARING	1 PCS	A
E10-15	BEARING	1 PCS	A
E10-16	RING,SEAL	1 PCS	A
E10-17	GAUGE COMP.,OIL LEVEL	1 PCS	B
E10-18	COVER COMP.,RIGHT CRANKCASE	1 PCS	C
E10-19	PIN,DOWEL	2 PCS	C
E10-20	GASKET,RIGHT CRANKCASE COVER	1 PCS	A
E10-21	PAD,CUSHION	1 PCS	C
E10-22	COVER,CUSHION PAD	1 PCS	C
E10-23	SCREW,CROSS RECESSED PAN	4 PCS	C
E10-24	CLAMP,TUBE	2 PCS	C
E10-25	WASHER,PLAIN	1 PCS	C
E10-26	WASHER,PLAIN	1 PCS	C
E10-27	CAP,COOLING PUMP	1 PCS	C
E10-28	GASKET,COOLING PUMP	1 PCS	A
E10-29	IMPELLER,COOLING PUMP	1 PCS	B
E10-30	HYDROSEAL MOVING RING,COOLING PUMP	1 PCS	A
E10-31	HYDROSEAL STATIONARY ELEMENT COMP.,COOLING PUMP	1 PCS	A
E10-32	BOLT,HEXAGON FLANGE	2 PCS	C
E10-33	OIL SEAL	1 PCS	A
E10-34	BEARING	1 PCS	A
E10-35	Washer	1 PCS	C
E10-36	VALVE COMP.,OIL CONTROL	1 SET	C
E10-37	OIL SEAL	1 PCS	A
E10-38	PANEL,CRANKSHAFT RIGHT OIL SEAL	1 PCS	C
E10-39	BOLT,HEXAGON FLANGE	2 PCS	C
E10-40	PLATE,CLUTCH CABLE LOCATING	1 PCS	C
E10-41	BOLT,HEXAGON FLANGE	1 PCS	C
E10-42	TUBE,WATER	1 PCS	B
E10-43	WASHER,PLAIN	1 PCS	C

Assembly diagrams

E-11 E-11 (L-Crankcase Cover） - diagram 1

E-11 E-11 (L-Crankcase Cover） - diagram 2

E-11 E-11 (L-Crankcase Cover） - diagram 3

E-11 E-11 (L-Crankcase Cover） - diagram 4

E-11 E-11 (L-Crankcase Cover） - diagram 5

E-11 E-11 (L-Crankcase Cover） - diagram 6

E-11 E-11 (L-Crankcase Cover） - diagram 7

E-11 E-11 (L-Crankcase Cover） - diagram 8

E-11 E-11 (L-Crankcase Cover） - diagram 9

E-11 E-11 (L-Crankcase Cover） - diagram 10

E-11 E-11 (L-Crankcase Cover） - diagram 11

E-11 E-11 (L-Crankcase Cover） - diagram 12

E-11 E-11 (L-Crankcase Cover） - diagram 13

E-11 E-11 (L-Crankcase Cover） - diagram 14

E-11 E-11 (L-Crankcase Cover） - diagram 15

E-11 E-11 (L-Crankcase Cover） - diagram 16

E-11 E-11 (L-Crankcase Cover） - diagram 17

E-11 E-11 (L-Crankcase Cover） - diagram 18

E-11 E-11 (L-Crankcase Cover） - diagram 19

Ref	Part Name	Qty	Grade
E11-01	GASKET,LEFT FRONT COVER	1 PCS	A
E11-02	PIN,DOWEL	2 PCS	C
E11-03	COVER COMP.,LEFT FRONT	1 PCS	C
E11-04	RING,SEAL	1 PCS	A
E11-05	COVER,INSPECTION	1 PCS	B
E11-06	RING,SEAL	1 PCS	A
E11-07	COVER,LEFT DECORATING	1 PCS	C
E11-08	BOLT,HEXAGON FLANGE	5 PCS	C
E11-09	BOLT,HEXAGON FLANGE	2 PCS	C
E11-10	BOLT,HEXAGON FLANGE	1 PCS	C
E11-11	GASKET,GEAR CHAMBER	1 PCS	A
E11-12	COVER,GEAR CHAMBER	1 PCS	C
E11-13	BOLT,HEXAGON FLANGE	3 PCS	C
E11-14	CHECK PLATE,CHAIN	1 PCS	B
E11-15	COVER COMP.,LEFT REAR	1 PCS	C
E11-16	GASKET,GEARBOX COVER	1 PCS	A
E11-17	COVER,GEARBOX	1 PCS	C
E11-18	BEARING	1 PCS	A
E11-19	OIL SEAL	1 PCS	A
E11-20	RING,SEAL	1 PCS	A
E11-21	SWITCH COMP.,GEAR INDICATOR	1 SET	B
E11-22	BOLT,HEXAGON FLANGE	1 PCS	C
E11-23	BOLT,HEXAGON FLANGE	3 PCS	C
E11-24	BOLT,HEXAGON FLANGE	3 PCS	C
E11-25	BOLT,HEXAGON FLANGE	1 PCS	C
E11-26	SCREW,CROSS RECESSED PAN	1 PCS	C

Assembly diagrams

Ref	Part Name	Qty	Grade
E12-01	CLUTCH KIT	1 SET	B
E12-02	push tray	1 PCS	C
E12-03	Ball Bearing	1 PCS	A
E12-04	Asle Sleeve Separating	1 PCS	C
E12-05	Friction Plate, Driven	6 PCS	A
E12-06	Friction Plate, Drive	7 PCS	A
E12-07	Washer	1 PCS	C
E12-08	Washer	1 PCS	C
E12-09	Center Piece	1 PCS	C
E12-10	Spring	6 PCS	B
E12-11	Clamp Plate	1 PCS	B
E12-12	Bolt	6 PCS	C
E12-13	Nut	1 PCS	C
E12-14	Washer	1 PCS	C
E12-15	Washer	2 PCS	C
E12-16	Bush	1 PCS	C
E12-17	Cover Assy Clutch	1 PCS	B
E12-18	Clamp Plate	1 PCS	B

Assembly diagrams

Ref	Part Name	Qty	Grade
E13-1	PUMP ASSY.,OIL	1 SET	C
E13-2	Washer	1 PCS	C
E13-3	Pin	1 PCS	C
E13-4	Shaft Oil Pump	1 PCS	C
E13-5	Gear，Oil Pump	1 PCS	C
E13-6	Bolt	1 PCS	C
E13-7	Pin	2 PCS	C
E13-8	O-Ring	1 PCS	A
E13-9	Bolt	2 PCS	C
E13-10	Bolt	3 PCS	C
E13-11	Circlip	1 PCS	C
E13-12	O-Ring	1 PCS	A
E13-13	Cover,Oil Pump	1 PCS	C
E13-14	Filter	1 PCS	A
E13-15	Rotor, inner, oil pump	1 PCS	C
E13-16	Rotor, outer, oil pump	1 PCS	C
E13-17	Oil Pump，Body	1 PCS	C

Assembly diagrams

Ref	Part Name	Part Number	Qty	Grade
E14-01	BOLT,HEXAGON FLANGE		2 PCS	C
E14-02	MOTOR ASSY.,STARTING		1 SET	B
E14-03	DUPLEX GEAR,ELECTRIC STARTING		1 PCS	C
E14-04	WASHER,PLAIN		4 PCS	C
E14-05	GEAR IDLE,ELECTRIC STARTING		1 PCS	C
E14-06	DISK GEAR		1 PCS	C
E14-07	WASHER,PLAIN		1 PCS	C
E14-08	COLLAR		1 PCS	C
E-15（Magneto Assy）		-	-	-
E15-01	Clamp		1 PCS	C
E15-02	Bolt		2 PCS	C
E15-03	Stator set, magneto		1 SET	B
E15-04	Bolt		1 PCS	C
E15-05	Washer		1 PCS	C
E15-06	Rotor set, magneto		1 SET	C
E15-07	Key		1 PCS	C
E15-08	Bolt		3 PCS	C
E15-09	GENERATOR ASSY.		1 SET	B

Wear-grade legend

AA - High wear
BB - Medium wear
CC - Low wear
DD - Not user-serviceable

Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.

F1 RADIATOR COMP.

F2 FUEL TANK COMP.

F4 MUFFLER ASSY.,EXHAUST

F5 BODY COMP.,FRAME

F6 FORK ASSY.,FRONT

F7 STEERING SYSTEM

F8 FENDER ASSY.,FRONT

F9 REAR SUSPENSION ASSY.

F10 CASE,DRIVE CHAIN

F11 WHEEL,FRONT

F12 WHEEL,REAR

F13 BAR ASSY.,SIDE STAND

F14 STEP ASSY.\PILLION STEP

F15 ABS DISC-BRAKE ASSY.,FRONT\DISC-BRAKE ASSY.,REAR

F16 LIGHT ASSY.,HEAD LEFT\METER ASSY.

F17 COVER,RADIATOR LEFT DECORATIVE

F18 COVER,FUEL TANK DECORATIVE

F19 SEAT,DRIVER\SEAT,PASSENGER

F20 AIR GUIDE SLEEVE,LEFT LOWER

F21 FENDER COMP.,REAR\LAMP,REAR REGISTRATION PLATE

F22 SIDE COVER

F23 FRAME ASSY.\FENDER COMP.,REAR\CASE,BATTERY\LIGHT UNIT,TAIL

F24 HARNESS,WIRE

F25 ACCESSORIES,TOOL

_uncategorized Uncategorized

E-1 E-1 气缸头盖（ Cylinder Head Cover Parts）

E-2 E-2 气缸头（ Cylinder Head Parts）

E-3 E-3 气缸体 (Cylinder Parts)

E-4 E-4 配气机构(Valve Train)

E-5 E-5 变速鼓部件(Varibale Unit )

E-6 E-6 换挡臂部件(Gear Shifting)

E-7 E-7 传动机构(Transmission Shaft Comp)

E-8 E-8 曲柄连杆组件（Crankshaft Comp）

E-9 E-9 箱体组件（Crankcase Comp）

E-10 E-10 右箱盖部件（R-Crankcase Cover）

E-11 E-11 左箱盖部件（L-Crankcase Cover）

E-12 E-12 离合器组件（Clutch Comp）

E-13 E-13 润滑机构（lubrication ）

E-14 E-14 电起动部件（Starting Motor）

E-15 E-15 磁电机组件（Magneto Assy）

_uncategorized Uncategorized

E-1 E-1 Cylinder Head Cover Parts）

E-2 E-2 （ Cylinder Head Parts）

E-3 E-3 (Cylinder Parts)

E-4 E-4 (Valve Train)

E-5 E-5 (Varibale Unit )

E-6 E-6 (Gear Shifting)

E-7 E-7 (Transmission Shaft Comp)

E-8 E-8 （Crankshaft Comp）

E-9 E-9 （Crankcase Comp）

E-10 E-10 （R-Crankcase Cover）

E-11 E-11 (L-Crankcase Cover）

E-12 E-12 （Clutch Comp）

E-13 E-13 （lubrication ）

E-14 E-14 （Starting Motor）
