Voge

500AC Parts Catalog

817 part numbers across 2 sheets, 237 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.

Search all bikes Download Excel

Showing all 817 parts

LX500-N

Assembly diagram

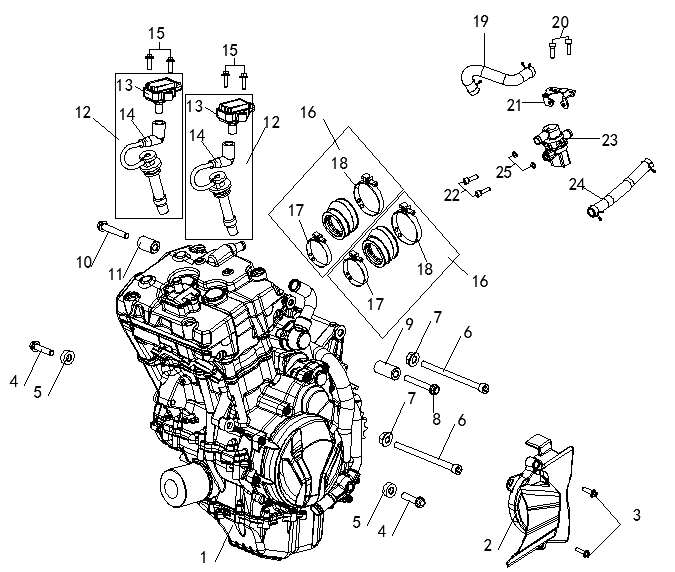

F1 ENGINE COMP. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F01-1 ENGINE - PCS C
F01-2 COVER COMP.,LEFT REAR - PCS C
F01-3 BOLT,HEXAGON FLANGE - PCS C
F01-4 AXIS - PCS C
F01-5 COLLAR - PCS C
F01-6 AXIS - PCS C
F01-7 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE - PCS C
F01-8 AXIS - PCS C
F01-9 COLLAR - PCS C
F01-10 AXIS - PCS C
F01-11 COLLAR - PCS C
F01-12 COIL ASSY.,IGNITION - PCS A
F01-13 BODY SET,IGNITION COIL - PCS C NOT FOR SERVICE
F01-14 WIRE,IGNITION COIL - PCS C NOT FOR SERVICE
F01-15 BOLT,HEXAGON FLANGE - PCS C
F01-16 TUBE,AIR INTAKE - PCS B
F01-17 CLAMP ASSY. - PCS C NOT FOR SERVICE
F01-18 CLAMP ASSY. - PCS C NOT FOR SERVICE
F01-19 TUBE,BREATHER - PCS B
F01-20 SCREW,HEXAGON SOCKET - PCS C
F01-21 BRACKET,SECONDARY AIR INTAKE VALVE - PCS C
F01-22 SCREW,HEXAGON SOCKET - PCS C
F01-23 VALVE,MAGNETIC - PCS C
F01-24 TUBE,BREATHER - PCS B
F01-25 WASHER,PLAIN - PCS C

Assembly diagram

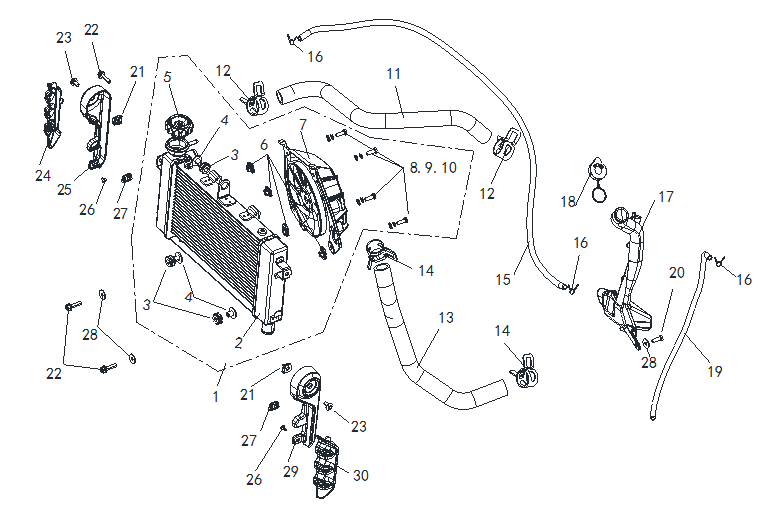

F2 COOLING SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F02-1 HEAT RADIATOR COMP. - SET B
F02-2 BODY SET,RADIATOR - PCS C
F02-3 I-RUBBER - PCS C
F02-4 WASHER,FLANGE - PCS C
F02-5 CAP,FILLER - PCS C
F02-6 NUT,CLIP - PCS C
F02-7 FAN ASSY. - SET B
F02-8 BOLT,HEXAGON - PCS C
F02-9 WASHER,PLAIN - PCS C
F02-10 WASHER,ELASTIC - PCS C
F02-11 TUBE,WATER - PCS B
F02-12 CLAMP,TUBE - PCS C
F02-13 TUBE,WATER - PCS B
F02-14 CLAMP,TUBE - PCS C
F02-15 TUBE,WATER - PCS B
F02-16 CLAMP,TUBE - PCS C
F02-17 WATER TANK,COOLING - PCS B
F02-18 CAP,WATER TANK - PCS B
F02-19 TUBE,WATER - PCS B
F02-20 BOLT,HEXAGON FLANGE - PCS C
F02-21 NUT,CLIP - PCS C
F02-22 BOLT,HEXAGON FLANGE - PCS C
F02-23 SCREW,HEXAGON SOCKET - PCS C
F02-24 SHIELD,RADIATOR - PCS B
F02-25 HEAT RADIATOR DECORATIVE COVER - PCS C
F02-26 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F02-27 RUBBER JACKET, DAMPING - PCS C
F02-28 WASHER,PLAIN - PCS C
F02-29 HEAT RADIATOR DECORATIVE COVER - PCS C
F02-30 SHIELD,RADIATOR - PCS B

Assembly diagram

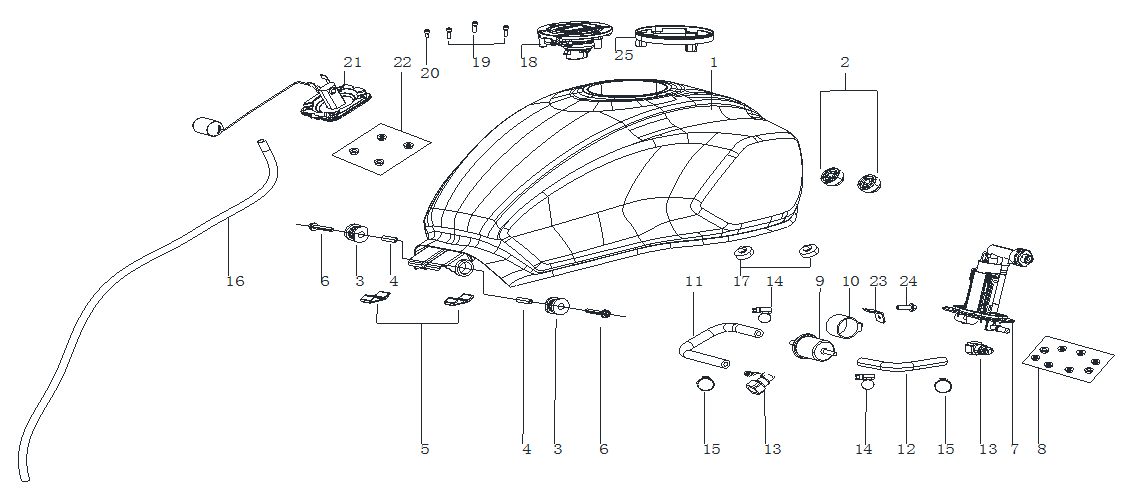

F3 FUEL SUPPLY SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F03-1 FUEL TANK COMP. - PCS C FOR SILVER GREY MODEL
F03-1 FUEL TANK COMP. - PCS C FOR BLACK MODEL
F03-1 FUEL TANK COMP. - PCS C FOR BLUE MODEL
F03-2 PAD, FUEL TANK DAMPING - PCS C
F03-3 PAD, FUEL TANK DAMPING - PCS C
F03-4 COLLAR - PCS C
F03-5 PAD, FUEL TANK DAMPING - PCS C
F03-6 BOLT,HEXAGON FLANGE - PCS C
F03-7 BRACKET ASSY.,ELECTRIC FUEL PUMP - PCS C
F03-8 NUT,HEXAGON FLANGE - PCS C
F03-9 FILTER,FUEL - PCS B
F03-10 RUBBER JACKET,FUEL FILTER - PCS C
F03-11 TUBE,FUEL - PCS B
F03-12 TUBE,FUEL - PCS B
F03-13 JOINT, SWIFT CHANGE - PCS C
F03-14 CLAMP ASSY. - PCS C
F03-15 CLAMP,TUBE - PCS C
F03-16 TUBE,BREATHER - PCS B
F03-17 PAD,MAIN STAND CUSHION - PCS B
F03-18 LOCK,FUEL TANK - PCS B NOT FOR SERVICE
F03-19 SCREW,HEXAGON SOCKET - PCS C
F03-20 SCREW,HEXAGON SOCKET - PCS C
F03-21 SENSOR,FUEL LEVEL - PCS B
F03-22 NUT,HEXAGON FLANGE - PCS C
F03-23 BRACKET,FUEL FILTER - PCS C
F03-24 BOLT,HEXAGON FLANGE - PCS C
F03-25 RUBBER JACKET,POURING ORIFICE - PCS C

Assembly diagram

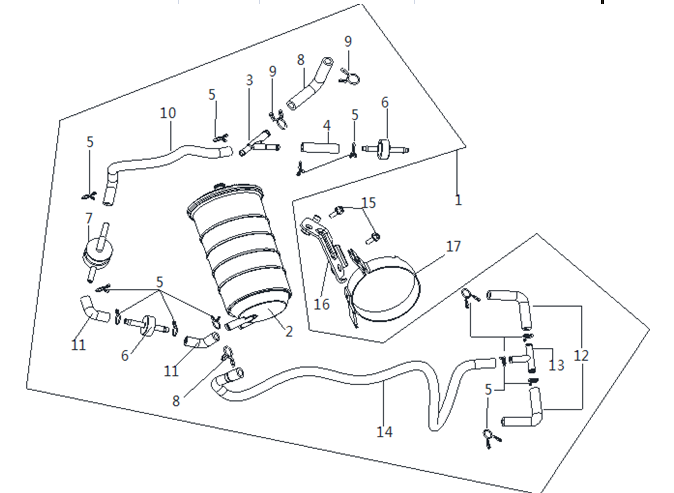

F4 FUEL EVAPORATIVE COMP. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F04-1 CONTROLLER ASSY.,FUEL EVAPORATION - SET C
F04-2 CANISTER - PCS C
F04-3 Y-JOINT - PCS C
F04-4 TUBE,BREATHER - PCS B
F04-5 CLAMP,TUBE - PCS C
F04-6 ONE-WAY VALVE - PCS B
F04-7 VALVE,TIPPING - PCS C
F04-8 TUBE,BREATHER - PCS B
F04-9 CLAMP,TUBE - PCS C 20210928修改
F04-10 TUBE,BREATHER - PCS B
F04-11 TUBE,BREATHER - PCS B
F04-12 TUBE,BREATHER - PCS B
F04-13 Y-JOINT - PCS C
F04-14 TUBE,BREATHER - PCS B
F04-15 BOLT,HEXAGON FLANGE - PCS C
F04-16 BRACKET CANISTER - PCS C
F04-17 CLAMP ASSY. - PCS C

Assembly diagram

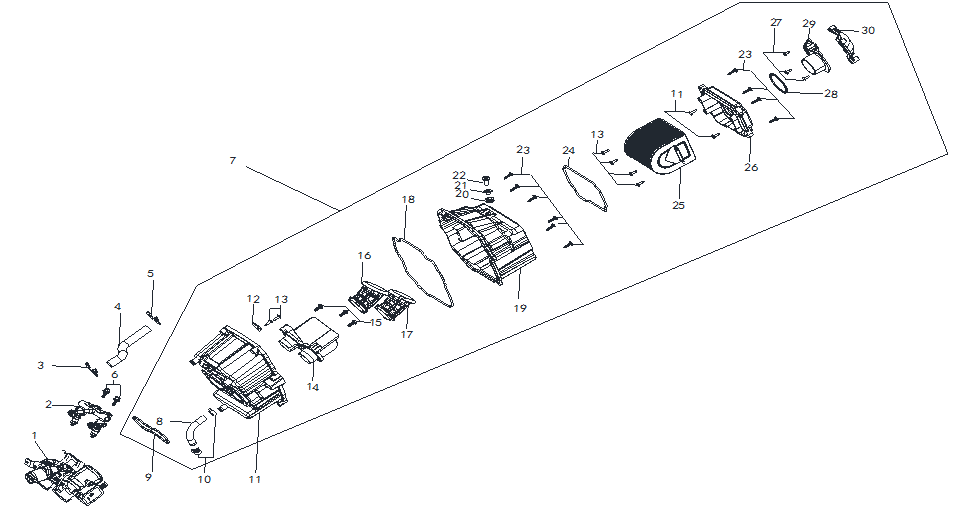

F5 AIR CLEANER ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F05-1 VALVE BODY ASSY., THROTTLE - PCS C
F05-2 FUEL RAIL ASSY. - PCS C
F05-3 CLAMP,TUBE - PCS C
F05-4 TUBE,BREATHER - PCS B
F05-5 CLAMP,TUBE - PCS C
F05-6 BOLT,HEXAGON FLANGE - PCS C
F05-7 AIR CLEANER COMP. - PCS C
F05-8 HOSE,OVERFLOW - PCS C NOT FOR SERVICE
F05-9 GLAND STRIP,AIR CLEANER - PCS C NOT FOR SERVICE
F05-10 CLAMP,TUBE - PCS C NOT FOR SERVICE
F05-11 CASE,AIR CLEANER - PCS C NOT FOR SERVICE
F05-12 COVER OF WASTE GAS CIRCULATION CHAMBER - PCS C NOT FOR SERVICE
F05-13 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F05-14 SEAT,AIR CLEANER FRONT MOUNTING - PCS C NOT FOR SERVICE
F05-15 SCREW,CROSS RECESSED FLANGE SH. - PCS C NOT FOR SERVICE
F05-16 TUBE,AIR CLEANER CONNECTING - PCS C NOT FOR SERVICE
F05-17 TUBE,AIR CLEANER CONNECTING RIGHT - PCS C NOT FOR SERVICE
F05-18 GLAND STRIP,AIR CLEANER - PCS C
F05-19 CASE,RIGHT AIR CLEANER - PCS C NOT FOR SERVICE
F05-20 I-RUBBER - PCS C NOT FOR SERVICE
F05-21 COLLAR - PCS C NOT FOR SERVICE
F05-22 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVICE
F05-23 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F05-24 GLAND STRIP,AIR CLEANER - PCS C
F05-25 ELEMENT ASSY.,AIR CLEANER - PCS A
F05-26 CAP,AIR CLEANER CASE - PCS C NOT FOR SERVICE
F05-27 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F05-28 GLAND STRIP,AIR CLEANER - PCS C
F05-29 INTAKE TUBE,AIR CLEANER - PCS C NOT FOR SERVICE
F05-30 INTAKE TUBE,AIR CLEANER - PCS C NOT FOR SERVICE

Assembly diagram

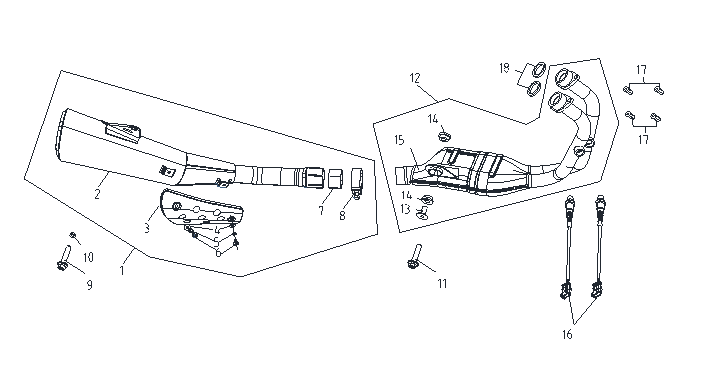

F6 MUFFLER EXHAUST ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F06-1 REAR PART,MUFFLER - PCS C
F06-2 BODY,MUFFLER - PCS C
F06-3 PLATE,DECORATIVE - PCS B
F06-4 WASHER,PLAIN - PCS C
F06-5 WASHER,ELASTIC - PCS C
F06-6 SCREW,HEXAGON SOCKET - PCS C
F06-7 GRAPHITE ANNULUS - PCS B
F06-8 TUBE,MUFFLER CONNECTING - PCS C
F06-9 BOLT,HEXAGON FLANGE - PCS C
F06-10 NUT,HEXAGON FLANGE - PCS C
F06-11 BOLT,HEXAGON FLANGE - PCS C
F06-12 FRONT PART,MUFFLER EXHAUST - PCS C
F06-13 WASHER,FLANGE - PCS C
F06-14 T-RUBBER - PCS C
F06-15 FRONT PART,MUFFLER - PCS C NOT FOR SERVICE
F06-16 OXYGEN SENSOR - PCS C
F06-17 CAP-SHAPED NUT - PCS C
F06-18 GASKET,AIR EXHAUST PORT - PCS A

Assembly diagram

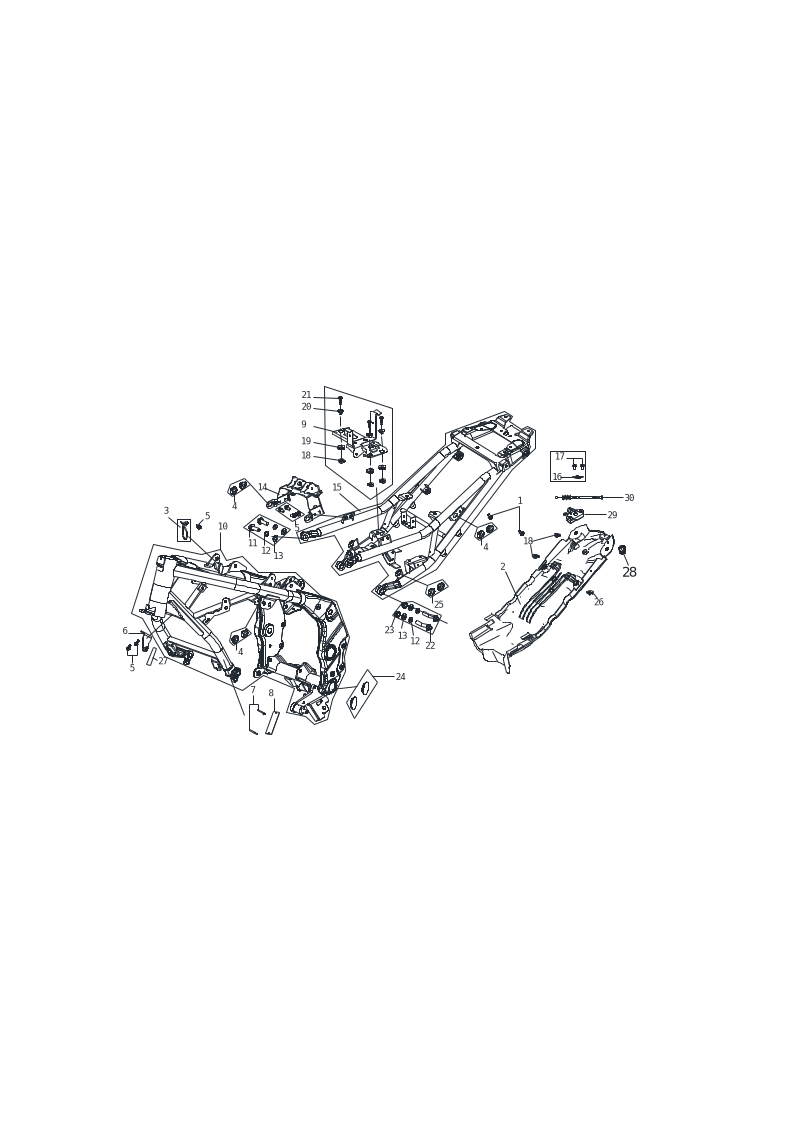

F7 FRAME ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F07-1 SCREW,HEXAGON SOCKET - PCS C
F07-2 WEB,VEHICLE BODY - PCS B
F07-3 CLAMP,WIRE - PCS C
F07-4 I-RUBBER - PCS C
F07-5 BOLT,HEXAGON FLANGE - PCS C
F07-6 LUG,RADIATOR UPPER - PCS C
F07-7 RIVET - PCS C NOT FOR SERVICE
F07-8 NAMEPLATE,FRAME - PCS C
F07-9 BRACKET,BATTERY - PCS C
F07-10 BODY COMP.,FRAME - PCS D
F07-11 AXIS - PCS C
F07-12 WASHER,PLAIN - PCS C
F07-13 WASHER,ELASTIC - PCS C
F07-14 BODY,FUEL TANK REAR BRACE - PCS C
F07-15 REAR PART,FRAME - PCS C
F07-16 WASHER,SEAT LOCK - PCS C
F07-17 SCREW,HEXAGON SOCKET - PCS C
F07-18 NUT,CLIP - PCS C
F07-19 I-RUBBER - PCS C
F07-20 COLLAR - PCS C
F07-21 SCREW,HEXAGON SOCKET - PCS C
F07-22 AXIS - PCS C
F07-23 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE - PCS C
F07-24 CAP,FRAME DECORATIVE - PCS B
F07-25 I-RUBBER - PCS C
F07-26 NUT,CLIP - PCS C
F07-27 TECHNIQUE LABEL - PCS C
F07-28 CLAMPING BAND - PCS C
F07-29 DEVICE,SEAT LOCKING - SET B NOT FOR SERVICE
F07-30 CABLE,SEAT - PCS A

Assembly diagram

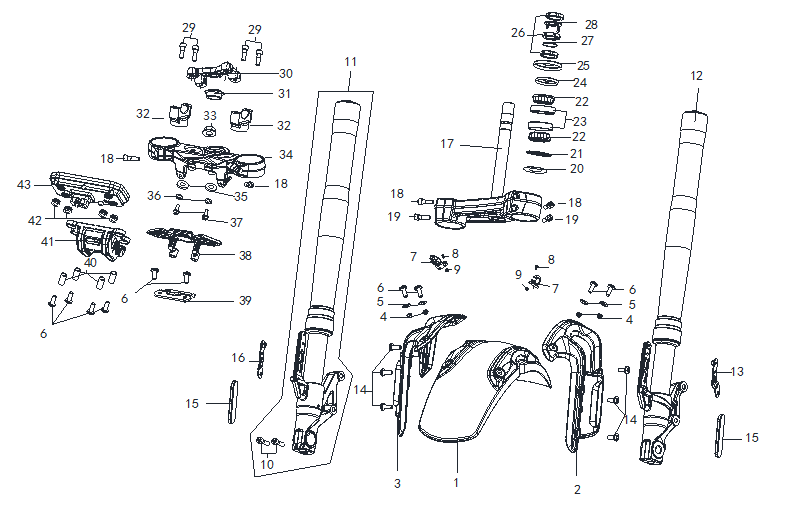

F8 FRONT FORK ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F08-1 FENDER COMP.,FRONT - PCS B
F08-2 BRACKET,FRONT FENDER - PCS C
F08-3 BRACKET,FRONT FENDER - PCS C
F08-4 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON - PCS C
F08-5 WASHER,PLAIN - PCS C
F08-6 SCREW,HEXAGON SOCKET - PCS C
F08-7 CLAMP,TUBE - PCS C
F08-8 SCREW,HEXAGON SOCKET - PCS C
F08-9 NUT,HEXAGON FLANGE - PCS C
F08-10 SCREW,HEXAGON SOCKET - PCS C
F08-11 SHOCK ABSORBER, RIGHT FRONT - PCS B
F08-12 SHOCK ABSORBER, LEFT FRONT - PCS B
F08-13 PIECE,FRONT FENDER BRACKET MOUNTING - PCS C
F08-14 SCREW,HEXAGON SOCKET - PCS C
F08-15 REFLECTOR,LEFT SIDE - PCS B
F08-16 PIECE,FRONT FENDER BRACKET MOUNTING - PCS C
F08-17 BODY SET,STEERING STEM - PCS B
F08-18 SCREW,HEXAGON SOCKET - PCS C
F08-19 SCREW,HEXAGON SOCKET - PCS C
F08-20 WASHER,PLAIN - PCS C NOT FOR SERVICE
F08-21 OIL SEAL - PCS B
F08-22 CIRCLIP, STEERING BEARING - PCS B
F08-23 RING, STEERING BASE - PCS B
F08-24 WASHER,PLAIN - PCS C
F08-25 DUST CAP,STEERING STEM - PCS C
F08-26 KEP NUT,STEERING STEM - PCS C
F08-27 RING,SEAL - PCS B
F08-28 WASHER,LOCKING - PCS C
F08-29 SCREW,HEXAGON SOCKET - PCS C
F08-30 HOLDER,STEERING HANDLE PIPE - PCS B
F08-31 COVER,FORK TOP BRIDGE DECORATIVE - PCS B
F08-32 SUPPORT,STEERING HANDLE PIPE - PCS B
F08-33 KEP NUT,STEERING STEM - PCS C
F08-34 BRIDGE,FORK TOP - PCS B
F08-35 WASHER,PLAIN - PCS C
F08-36 WASHER,ELASTIC - PCS C
F08-37 BOLT,HEXAGON FLANGE - PCS C
F08-38 BRACKET,DIRECTIONAL LOCK - PCS C
F08-39 BRACKET,IGNITION SWITCH COVER - PCS C
F08-40 COLLAR - PCS C
F08-41 BRACKET,METER - PCS C
F08-42 I-RUBBER - PCS C
F08-43 INSTRUMENT SET - SET B

Assembly diagram

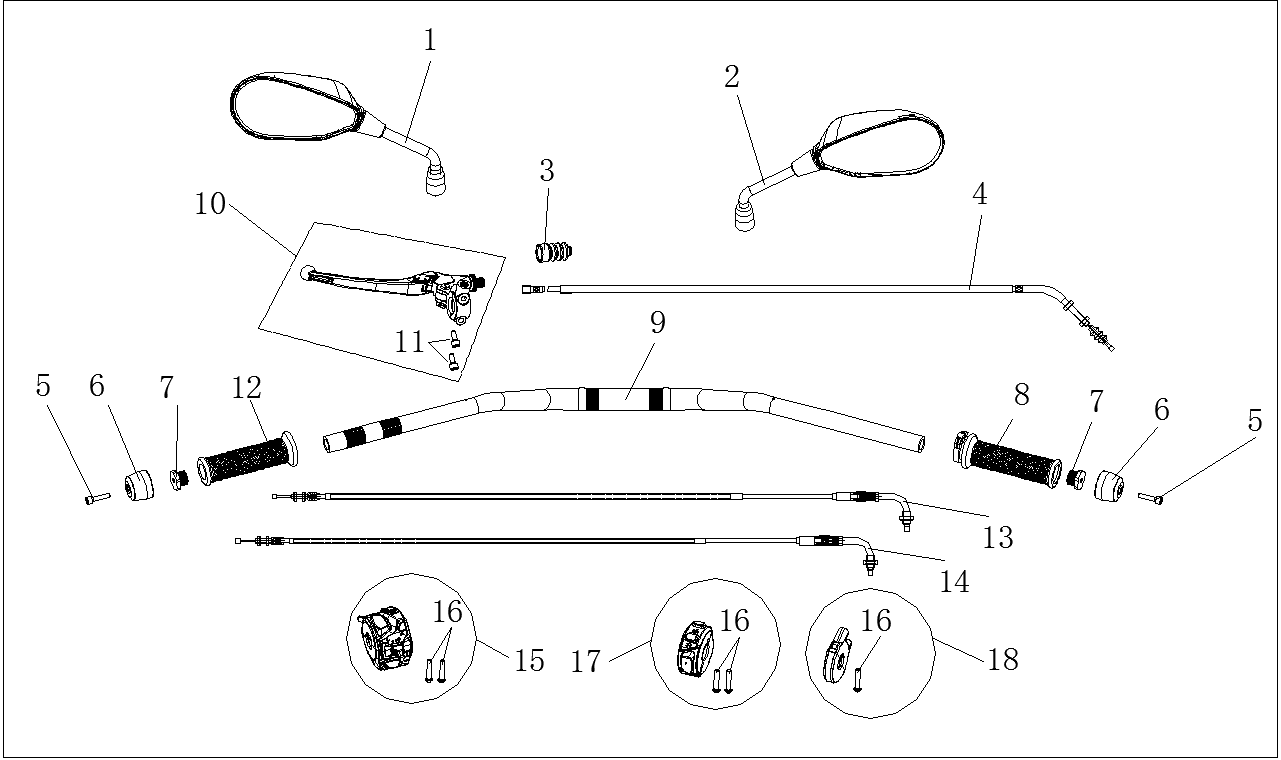

F9 STEERING OPERATION SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F09-1 MIRROR,LEFT BACK-VIEW - PCS A
F09-2 MIRROR,RIGHT BACK-VIEW - PCS A
F09-3 SHEATH,CLUTCH CABLE - PCS C
F09-4 CABLE COMP.,CLUTCH - PCS A
F09-5 SCREW,HEXAGON SOCKET - PCS C
F09-6 DECORATIVE WEIGHT, LEFT - PCS B
F09-7 COUNTERWEIGHT,STEERING HANDLE PIPE - PCS B
F09-8 GREASER COMP. - PCS A
F09-9 HANDLE BAR ASSY. - PCS C
F09-10 LEVER COMP., LEFT - SET B
F09-11 SCREW,HEXAGON SOCKET - PCS C
F09-12 GRIP SET,HANDLE - PCS A
F09-13 CABLE COMP.,THROTTLE - PCS A
F09-14 CABLE COMP.,THROTTLE - PCS A
F09-15 SWITCH ASSY.,LEFT - SET B
F09-16 SCREW,CROSS RECESSED PAN - PCS C NOT FOR SERVICE
F09-17 SWITCH ASSY.,RIGHT - SET B
F09-18 SEAT,GREASER - PCS B

Assembly diagram

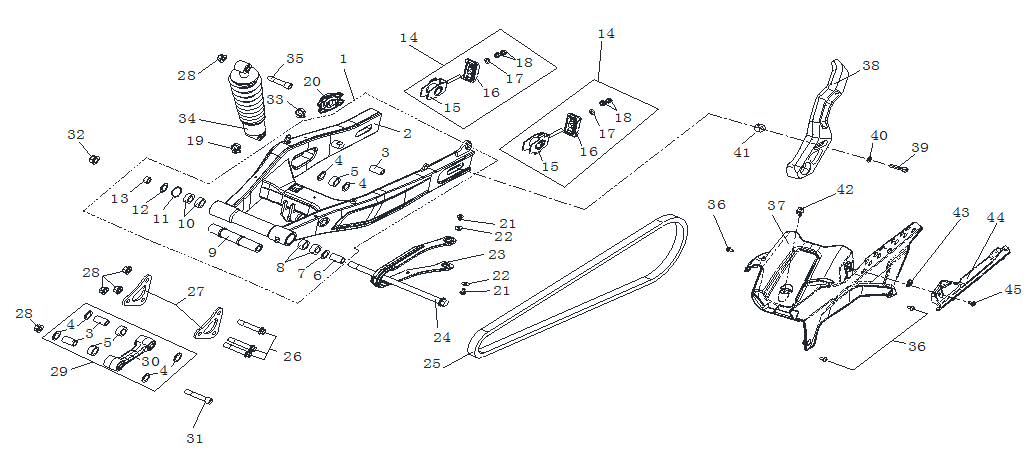

F10 REAR HANGER SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F10-1 FORK COM.,REAR - PCS C
F10-2 WELDING COMP.,REAR FORK - PCS C NOT FOR SERVICE
F10-3 COLLAR - PCS C
F10-4 OIL SEAL - PCS B
F10-5 BEARING - PCS B
F10-6 COLLAR - PCS C
F10-7 OIL SEAL - PCS B
F10-8 BEARING - PCS B
F10-9 COLLAR - PCS C
F10-10 BEARING - PCS B
F10-11 CHECK RING,ELASTIC - PCS B
F10-12 OIL SEAL - PCS B
F10-13 COLLAR - PCS C
F10-14 ADJUSTOR,DRIVE CHAIN LEFT - PCS B
F10-15 BODY,DRIVE CHAIN ADJUSTER - PCS C NOT FOR SERVICE
F10-16 SHIELD,ADJUSTER - PCS C NOT FOR SERVICE
F10-17 WASHER,PLAIN - PCS C
F10-18 NUT,HEXAGON HEAD - PCS C
F10-19 CLAMPING BAND - PCS C
F10-20 PLATE,ADJUSTER HANGER - PCS C
F10-21 SCREW,HEXAGON SOCKET - PCS C
F10-22 WASHER,PLAIN - PCS C
F10-23 SLIDER,DRIVE CHAIN - PCS B
F10-24 AXIS - PCS C
F10-25 CHAIN - PCS A
F10-26 AXIS - PCS C
F10-27 CRADLE COMP.,MASTER - PCS C
F10-28 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE - PCS C
F10-29 SUB CRADLE,SET - PCS C
F10-30 BODY SET,CRADLE - PCS C
F10-31 AXIS - PCS C
F10-32 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE - PCS C
F10-33 CLIP,LOCATING WIRE - PCS C
F10-34 SHOCK ABSORBER, LEFT REAR - PCS B
F10-35 AXIS - PCS C
F10-36 SCREW,HEXAGON SOCKET - PCS C
F10-37 CASE, CHAIN - PCS B
F10-38 BRACKET,REAR FENDER - PCS C
F10-39 COLLAR - PCS C
F10-40 WASHER,PLAIN - PCS C
F10-41 SCREW,HEXAGON SOCKET - PCS C
F10-42 CLIP,LOCATING WIRE - PCS C
F10-43 NUT,CLIP - PCS C
F10-44 CASE,DRIVE CHAIN UPPER - PCS B
F10-45 SCREW,HEXAGON SOCKET - PCS C

Assembly diagram

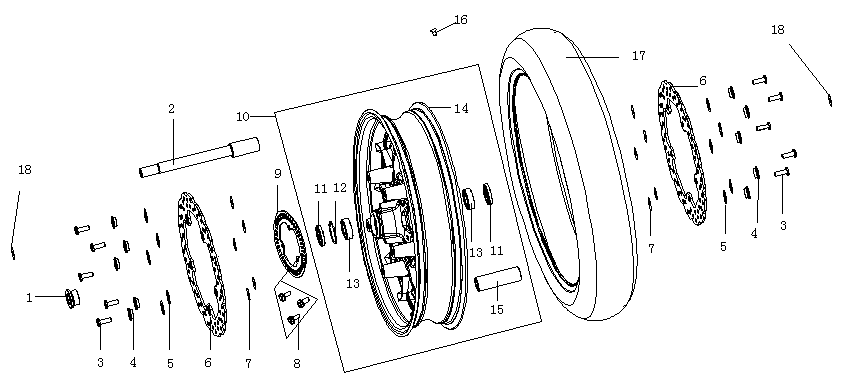

F11 FRONT WHEEL - diagram 1
Ref Part Name Part Number Qty Grade Notes
F11-1 COLLAR - PCS C
F11-2 AXIS - PCS C
F11-3 FASTENING BOLT,BRAKE DISK - PCS C
F11-4 COLLAR - PCS C
F11-5 WASHER,ELASTIC - PCS C
F11-6 DISK COMP.,LEFT FRONT BRAKE - PCS C
F11-7 WASHER,PLAIN - PCS C
F11-8 SCREW,HEXAGON SOCKET - PCS C
F11-9 GEAR RING, ABS - PCS C
F11-10 WHEEL,FRONT - PCS B
F11-11 OIL SEAL - PCS B
F11-12 CHECK RING,ELASTIC - PCS B
F11-13 BEARING - PCS B
F11-14 BODY SET,FRONT WHEEL - PCS C NOT FOR SERVICE
F11-15 LINING COMP.,HUB - PCS C
F11-16 CORE,VALVE - PCS B
F11-17 TYRE ASSY. - PCS A
F11-18 WASHER,PLAIN - PCS C

Assembly diagram

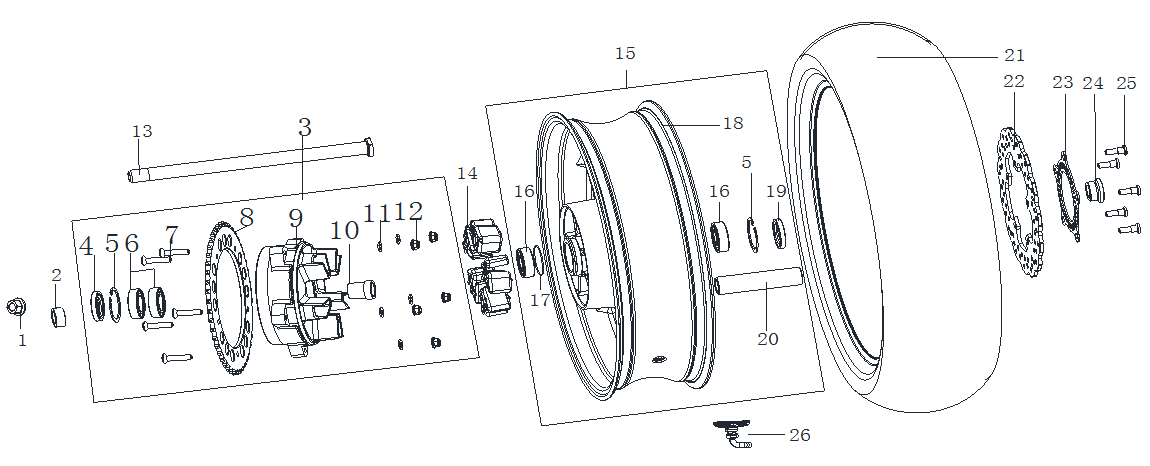

F12 REAR WHEEL ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F12-1 FLANGE NUT,PREVAILING TORQUE TYPE HEXAGON WITH NONMETALLIC INSERT - PCS C
F12-2 COLLAR - PCS C
F12-3 DAMPER COMP. - SET B
F12-4 OIL SEAL - PCS B NOT FOR SERVICE
F12-5 CHECK RING,ELASTIC - PCS B
F12-6 BEARING - PCS B
F12-7 BOLT,SPROCKET WHEEL - PCS B NOT FOR SERVICE
F12-8 SPROCKET WHEEL - PCS A NOT FOR SERVICE
F12-9 SEAT,SPROCKET WHEEL - PCS B NOT FOR SERVICE
F12-10 COLLAR - PCS C
F12-11 WASHER,PLAIN - PCS C NOT FOR SERVICE
F12-12 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE - PCS C
F12-13 AXIS - PCS C
F12-14 DAMPING PIECE,REAR WHEEL - PCS A
F12-15 WHEEL,REAR - PCS B
F12-16 BEARING - PCS B
F12-17 RING,SEAL - PCS B
F12-18 BODY SET,REAR WHEEL - PCS C NOT FOR SERVICE
F12-19 OIL SEAL - PCS B NOT FOR SERVICE
F12-20 LINING COMP.,HUB - PCS C
F12-21 TYRE ASSY. - PCS A
F12-22 DISK COMP.,LEFT REAR BRAKE - PCS C
F12-23 GEAR RING, ABS - PCS C
F12-24 FASTENING BOLT,BRAKE DISK - PCS C
F12-25 COLLAR - PCS C
F12-26A SENSOR，TIRE PRESSURE - PCS C

Assembly diagram

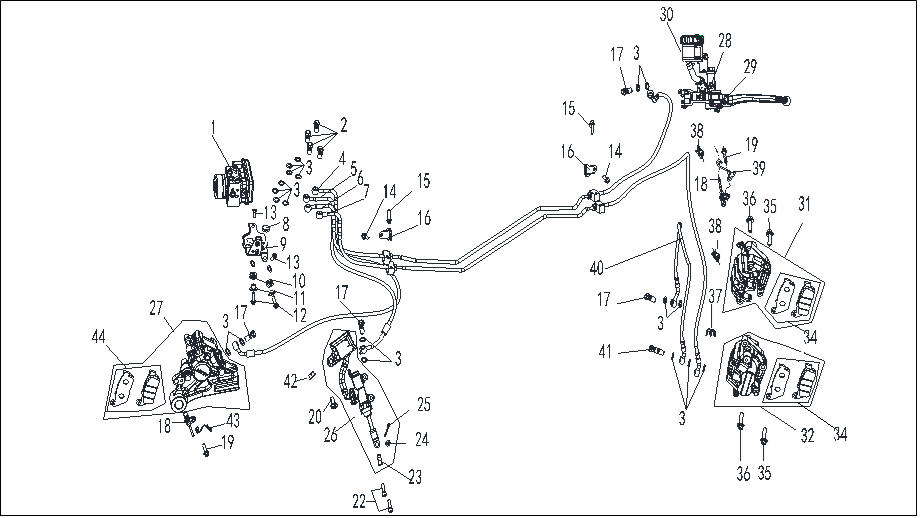

F13 BRAKE SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F13-1 ABS.ANTI-LOCKING UP SYSTEM - PCS C
F13-2 BOLT,DISC-BRAKE HOSE - PCS C
F13-3 WASHER,PLAIN - PCS C
F13-4 ABS CONNECTIVE OIL TUBE - PCS C
F13-5 ABS CONNECTIVE OIL TUBE - PCS C
F13-6 ABS CONNECTIVE OIL TUBE - PCS C
F13-7 ABS CONNECTIVE OIL TUBE - PCS C
F13-8 GLUE NAIL,BUFFER - PCS C 20210928修改
F13-9 INSTALLATION BRACKET, ABS - PCS C 20210928修改
F13-10 I-RUBBER - PCS C
F13-11 WASHER,FLANGE - PCS C
F13-12 BOLT,HEXAGON FLANGE - PCS C
F13-13 SCREW,HEXAGON SOCKET - PCS C
F13-14 BOLT,HEXAGON FLANGE - PCS C
F13-15 BOLT,HEXAGON FLANGE - PCS C
F13-16 BRACKET,DISC-BRAKE HOSE FIXING - PCS C
F13-17 BOLT,DISC-BRAKE HOSE - PCS C
F13-18 SPEED SENSOR - PCS C
F13-19 BOLT,HEXAGON FLANGE - PCS C
F13-20 SCREW,HEXAGON SOCKET - PCS C
F13-21 BRACKET,DISC-BRAKE OIL CUP - PCS B 20210928修改
F13-22 SCREW,HEXAGON SOCKET - PCS C
F13-23 PIN,CLEVIS - PCS C
F13-24 WASHER,PLAIN - PCS C
F13-25 PIN,COTTER - PCS C
F13-26 PUMP, REAR DISC-BRAKE UPPER - PCS C
F13-27 PUMP, REAR DISC-BRAKE LOWER - PCS C
F13-28 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVIVE
F13-29 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVIVE
F13-30 CYLINDER ASSY.,MASTER - PCS B
F13-31 CALIPER ASSY.,LEFT - PCS C
F13-32 CALIPER ASSY.,RIGHT - PCS C
F13-34 PAD COMP.,FRONT DISC-BRAKE - SET A 20210928修改
F13-35 BOLT,HEXAGON FLANGE - PCS C
F13-36 BOLT,HEXAGON FLANGE - PCS C
F13-37 CLAMP,TUBE - PCS C
F13-38 CLAMP,TUBE - PCS C
F13-39 CLAMP,WIRE - PCS C
F13-40 HOSE COMP.,FRONT DISC-BRAKE - SET B
F13-41 BOLT,DISC-BRAKE HOSE - PCS C
F13-42 NUT,HEXAGON FLANGE - PCS C
F13-43 CLAMP,WIRE - PCS C 20210928修改
F13-44 PAD COMP.,REAR DISC-BRAKE LEFT - PCS C 20210928修改

Assembly diagrams

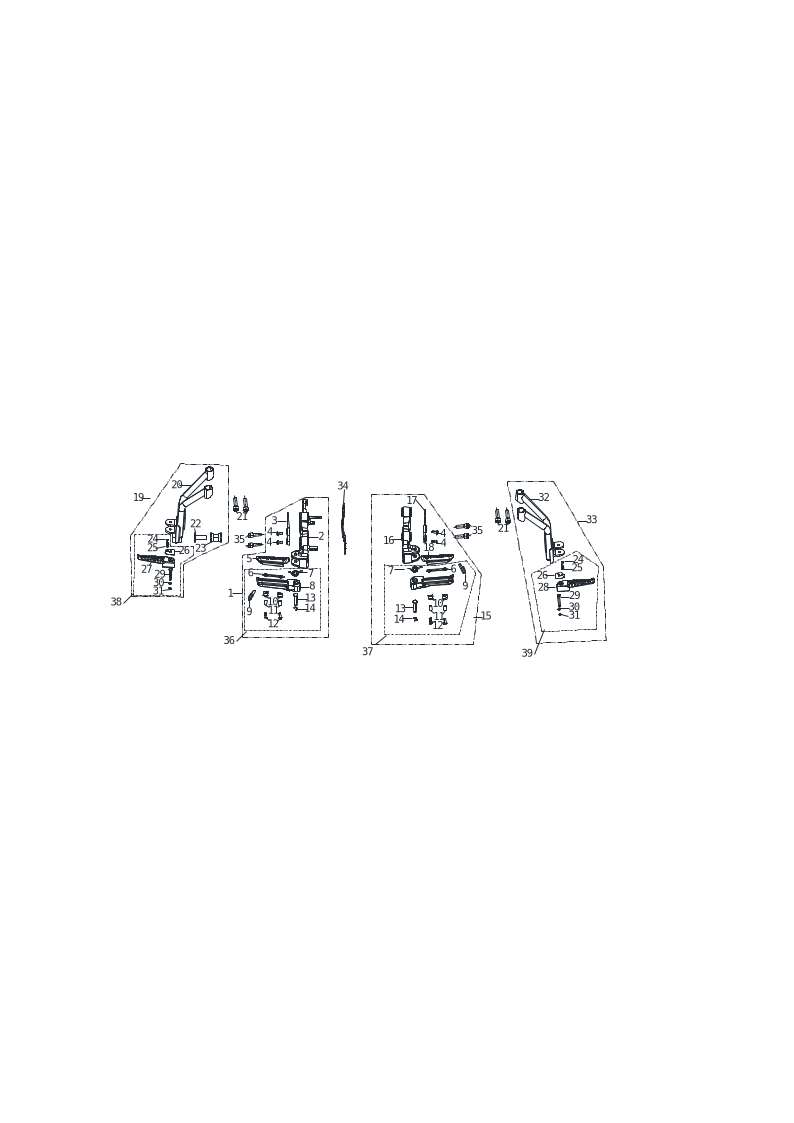

F14 FOOTREST SYSTEM - diagram 1 F14 FOOTREST SYSTEM - diagram 2
Ref Part Name Part Number Qty Grade Notes
F14-1 FOOTREST ASSY., RIGHT - SET B
F14-2 BRACKET, RIGHT FOOTREST - PCS C NOT FOR SERVIVE
F14-3 PLATE,STEP DECORATIVE - PCS C
F14-4 SCREW,HEXAGON SOCKET - PCS C
F14-5 RUBBER,STEP - PCS A NOT FOR SERVIVE
F14-6 LIMITING STOPPER,STEP RUBBER - PCS C NOT FOR SERVIVE
F14-7 SPRING, TURNING - PCS B NOT FOR SERVIVE
F14-8 BODY,STEP - PCS B NOT FOR SERVIVE
F14-9 SCREW,PROBING - PCS C NOT FOR SERVIVE
F14-10 I-RUBBER - PCS C NOT FOR SERVIVE
F14-11 COLLAR - PCS C NOT FOR SERVIVE
F14-12 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVIVE
F14-13 PIN,CLEVIS - PCS C NOT FOR SERVIVE
F14-14 SPLIT WASHER - PCS C
F14-15 FOOTREST ASSY., LEFT - SET B
F14-16 BRACKET, LEFT FOOTREST - PCS C NOT FOR SERVIVE
F14-17 PLATE,STEP DECORATIVE - PCS C
F14-18 BODY SET,STEP - PCS B NOT FOR SERVIVE
F14-19 STEP ASSY.,RIGHT PILLION - SET B
F14-20 HOLD COMP.,RIGHT PILLION STEP - PCS C NOT FOR SERVIVE
F14-21 SCREW,HEXAGON SOCKET - PCS C
F14-22 WASHER,FLANGE - PCS C NOT FOR SERVIVE
F14-23 I-RUBBER - PCS C NOT FOR SERVIVE
F14-24 BALL,STEEL - PCS B NOT FOR SERVIVE
F14-25 SPRING,COMPRESSION - PCS B NOT FOR SERVIVE
F14-26 SHEET,STEP LIMIT - PCS C NOT FOR SERVIVE
F14-27 BODY SET,RIGHT PILLION STEP - PCS B NOT FOR SERVIVE
F14-28 BODY SET,LEFT PILLION STEP - PCS B NOT FOR SERVIVE
F14-29 PIN,CLEVIS - PCS C NOT FOR SERVIVE
F14-30 RING,SEAL - PCS B NOT FOR SERVIVE
F14-31 SPLIT WASHER - PCS C NOT FOR SERVIVE
F14-32 HOLD COMP.,LEFT PILLION STEP - PCS C NOT FOR SERVIVE
F14-33 STEP ASSY.,LEFT PILLION - SET B
F14-34 BRACKET,DISC-BRAKE OIL CUP - PCS B
F14-35 SCREW,HEXAGON SOCKET - PCS C
F14-36 BODY,STEP - PCS B
F14-37 BODY,STEP - PCS B
F14-38 BODY SET,RIGHT PILLION STEP - PCS B
F14-39 BODY SET,LEFT PILLION STEP - PCS B

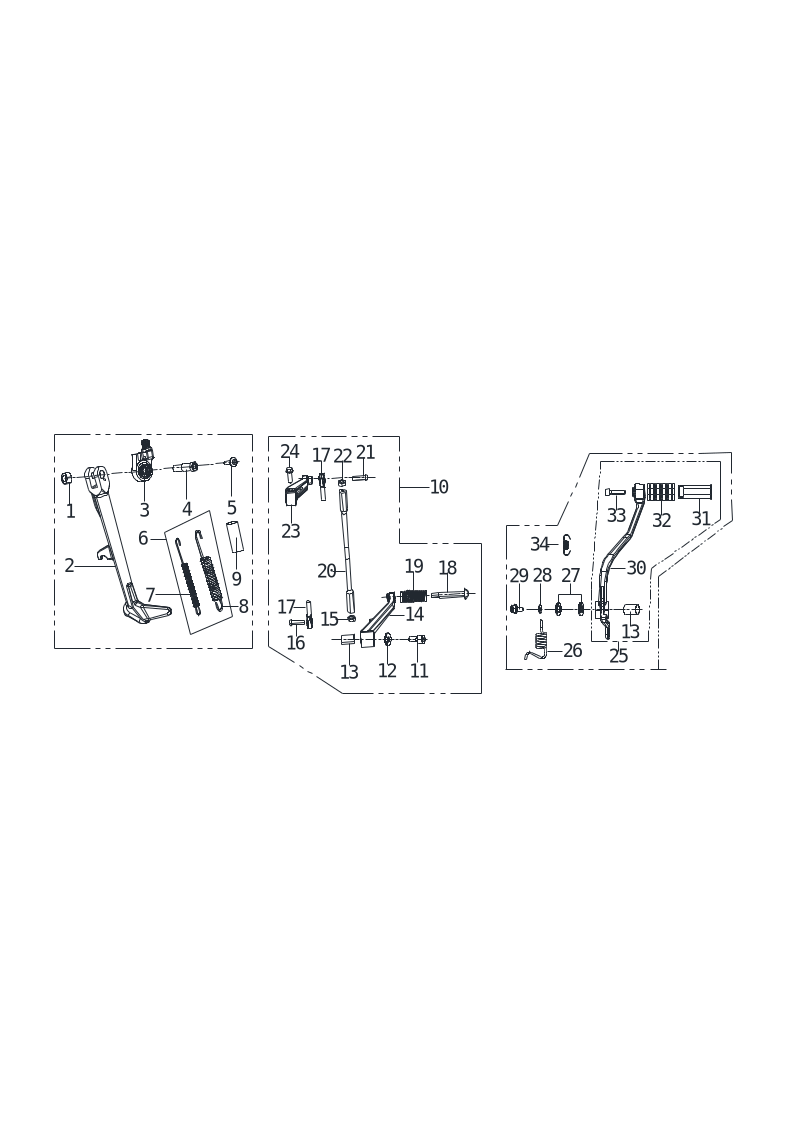

SIDE STAND - - -
F15-1 NUT,HEXAGON HEAD - PCS C
F15-2 BAR ASSY.,SIDE STAND - PCS B
F15-3 KILL SWITCH, SIDE STAND - PCS B
F15-4 BOLT,HEXAGON HEAD SHOULDER - PCS C
F15-5 SCREW,HEXAGON SOCKET - PCS C
F15-6 SPRING, DRAWING - PCS B
F15-7 SPRING, DRAWING - PCS B NOT FOR SERVIVE
F15-8 SPRING, DRAWING - PCS B NOT FOR SERVIVE
F15-9 SHEATH,RUBBER - PCS C
F15-10 PEDAL,GEAR CHANGE - PCS B
F15-11 SCREW,HEXAGON SOCKET - PCS C
F15-12 WASHER,PLAIN - PCS C
F15-13 COLLAR - PCS C NOT FOR SERVIVE
F15-14 BODY,GEAR CHANGE PEDAL - PCS C NOT FOR SERVIVE
F15-15 NUT,HEXAGON HEAD - PCS C NOT FOR SERVIVE
F15-16 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVIVE
F15-17 JOINT BALL, CONNECTING ROD - PCS C NOT FOR SERVIVE
F15-18 PEDAL LEVER,GEAR SHIFT FRONT - PCS C NOT FOR SERVIVE
F15-19 RUBBER JACKET,GEAR CHANGE PEDAL - PCS C NOT FOR SERVIVE
F15-20 CONNECTING ROD,GEAR SHIFT - PCS C NOT FOR SERVIVE
F15-21 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVIVE
F15-22 NUT,HEXAGON HEAD - PCS C NOT FOR SERVIVE
F15-23 BASE,SPLINE FITTING - PCS C NOT FOR SERVIVE
F15-24 BOLT,HEXAGON FLANGE - PCS C NOT FOR SERVIVE
F15-25 PEDAL,REAR BRAKE - PCS B
F15-26 RETURN SPRING,REAR BRAKE PEDAL - PCS B
F15-27 WASHER,PLAIN - PCS C
F15-28 WASHER,PLAIN - PCS C
F15-29 BOLT,HEXAGON FLANGE - PCS C
F15-30 BODY SET,REAR BRAKE PEDAL - PCS C NOT FOR SERVIVE
F15-31 BLOCK,REAR BRAKE - PCS C NOT FOR SERVIVE
F15-32 PAD,REAR BRAKE PEDAL CUSHION - PCS C NOT FOR SERVIVE
F15-33 SCREW,HEXAGON SOCKET - PCS C NOT FOR SERVIVE

Assembly diagram

F16 HEADLIGHT ASSY - diagram 1
Ref Part Name Part Number Qty Grade Notes
F16-1 HEADLIGHT ASSY. - PCS B
F16-2 SCREW,HEXAGON SOCKET - PCS C
F16-3 BRACKET,HEAD LIGHT - PCS C
F16-4 SCREW,HEXAGON SOCKET - PCS C
F16-5 SPLIT WASHER - PCS C
F16-6 I-RUBBER - PCS C
F16-7 PIN,CLEVIS - PCS C
F16-8 SCREW,CROSS RECESSED PAN - PCS C NOT FOR SERVIVE
F16-9 CASE,HEAD LIGHT - PCS B NOT FOR SERVIVE
F16-10 BRACKET,HEAD LIGHT LEFT - PCS C
F16-11 BODY SET,HEAD LIGHT - PCS C NOT FOR SERVIVE
F16-12 BRACKET,HEAD LIGHT RIGHT - PCS C
F16-13 TURNING SIGNAL LIGHT, LEFT FRONT - PCS B
F16-14 COLLAR - PCS C
F16-15 I-RUBBER - PCS C
F16-16 NUT,HEXAGON FLANGE - PCS C
F16-17 SCREW,HEXAGON SOCKET - PCS C
F16-18 RUBBER JACKET,DECORATIVE LIGHT - PCS C
F16-19 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F16-20 TURNING SIGNAL LIGHT, RIGHT FRONT - PCS B
F16-21 RIM,HEAD LIGHT - PCS B NOT FOR SERVIVE
F16-22 USB/AUX - PCS C
F16-23 SCREW,HEXAGON SOCKET - PCS C

Assembly diagram

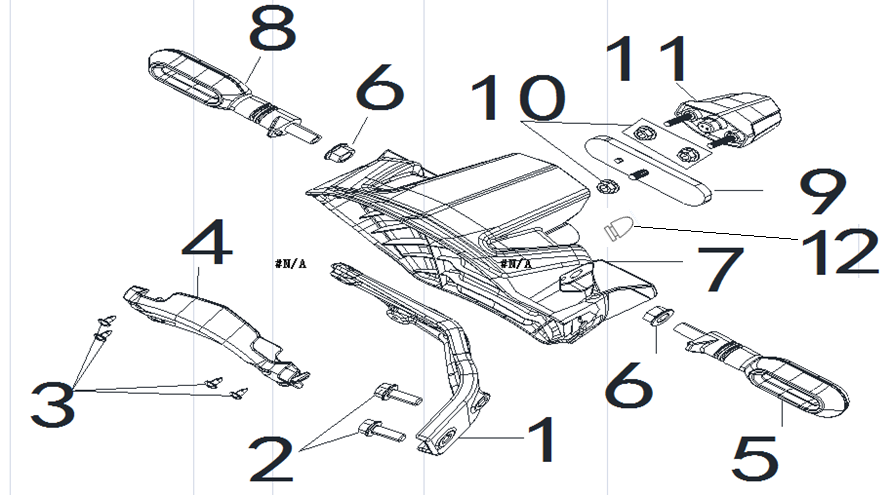

F17 REAR FENDER - diagram 1
Ref Part Name Part Number Qty Grade Notes
F17-1 LINING,REAR FENDER - PCS C
F17-2 BOLT,HEXAGON FLANGE - PCS C
F17-3 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F17-4 INNER PART,REAR FENDER - PCS B
F17-5 TURNING SIGNAL LIGHT, LEFT REAR - PCS B
F17-6 NUT,HEXAGON FLANGE - PCS C
F17-7 FENDER COMP.,REAR LOWER - PCS B
F17-8 TURNING SIGNAL LIGHT, RIGHT REAR - PCS B
F17-9 REFLECTOR,REAR - PCS B
F17-10 NUT,HEXAGON FLANGE - PCS C
F17-11 LAMP,REAR REGISTRATION PLATE - PCS B
F17-12 GLUE NAIL,BUFFER - PCS C 20210928修改

Assembly diagram

F18 SEAT ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F18-1 SEAT COMP. - PCS B

Assembly diagram

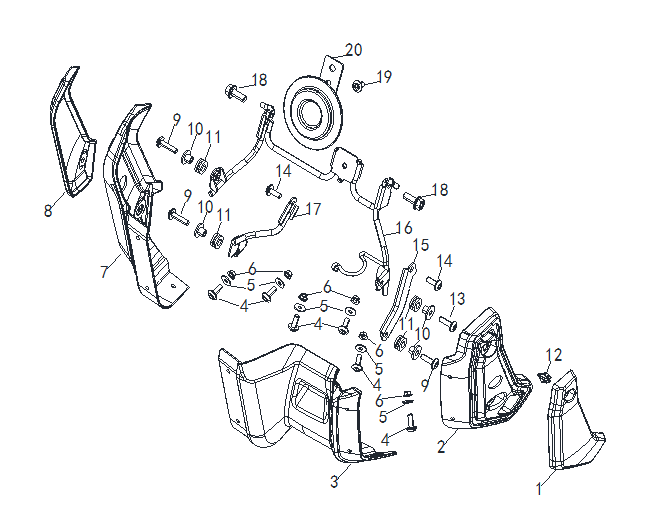

F19 LOWER AIR GUIDE SLEEVE - diagram 1
Ref Part Name Part Number Qty Grade Notes
F19-1 GUARD PLATE,AIR GUIDE SLEEVE LEFT - PCS B FOR SILVER GREY/BLACK MODEL
F19-1 GUARD PLATE,AIR GUIDE SLEEVE LEFT - PCS B FOR BLUE MODEL
F19-2 FAIRING COVER,LEFT LOWER - PCS B
F19-3 PLATE,LOWER FAIRING COVER CONNECTING - PCS B
F19-4 SCREW,HEXAGON SOCKET - PCS C
F19-5 WASHER,PLAIN - PCS C
F19-6 NUT,HEXAGON FLANGE - PCS C
F19-7 FAIRING COVER,RIGHT LOWER - PCS B
F19-8 GUARD PLATE,AIR GUIDE SLEEVE RIGHT - PCS B FOR SILVER GREY/BLACK MODEL
F19-8 GUARD PLATE,AIR GUIDE SLEEVE RIGHT - PCS B FOR BLUE MODEL
F19-9 SCREW,HEXAGON SOCKET - PCS C
F19-10 COLLAR - PCS C
F19-11 I-RUBBER - PCS C
F19-12 FIXING CLIP - PCS C
F19-13 SCREW,HEXAGON SOCKET - PCS C
F19-14 SCREW,HEXAGON SOCKET - PCS C
F19-15 BRACKET,AIR GUIDE SLEEVE - PCS C
F19-16 BRACKET,HORN - PCS C
F19-17 BRACKET,AIR GUIDE SLEEVE - PCS C
F19-18 BOLT,HEXAGON FLANGE - PCS C
F19-19 BOLT,HEXAGON FLANGE - PCS C
F19-20 HORN - PCS A

Assembly diagram

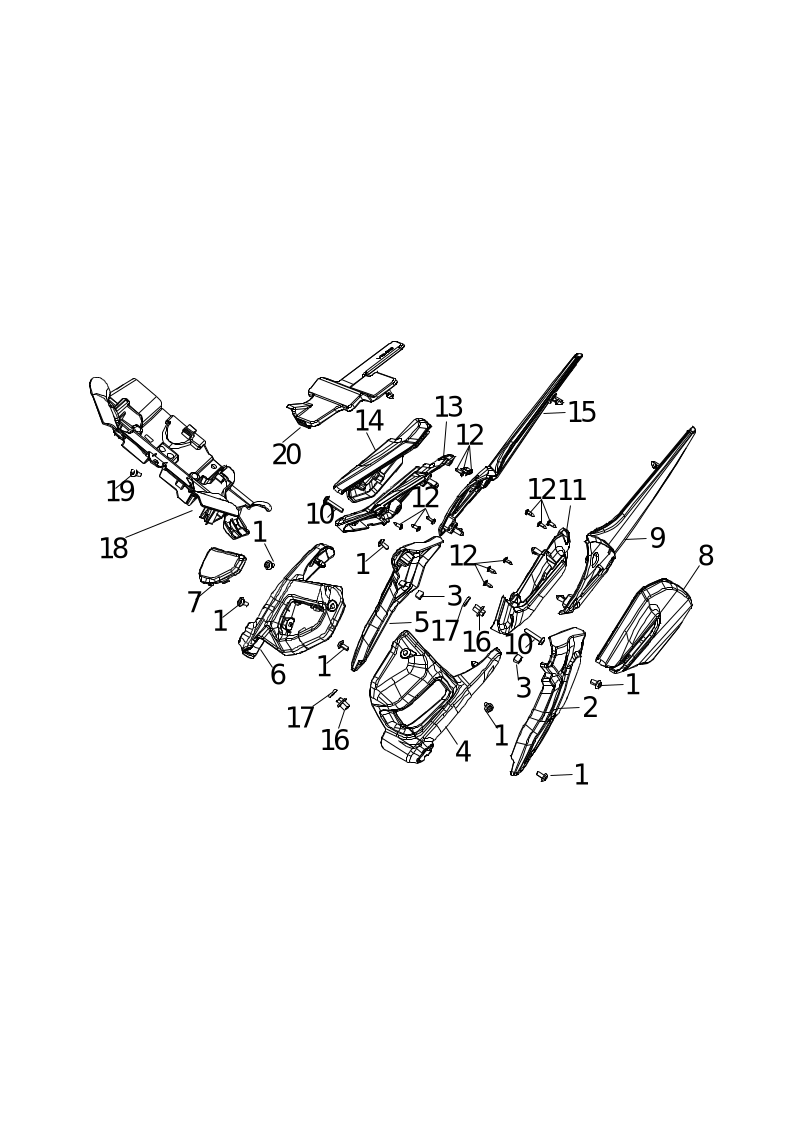

F20 SIDE COVER - diagram 1
Ref Part Name Part Number Qty Grade Notes
F20-1 SCREW,HEXAGON SOCKET - PCS C
F20-2 COVER,FRAME LEFT DECORATIVE - PCS B
F20-3 RUBBER JACKET, DAMPING - PCS C
F20-4 COVER,FUEL TANK LEFT DECORATIVE - PCS B
F20-5 COVER,FRAME RIGHT DECORATIVE - PCS B
F20-6 COVER,FUEL TANK RIGHT DECORATIVE - PCS B
F20-7 PLATE,DECORATIVE - PCS B
F20-8 BLOCK,LEFT SIDE COVER DECORATIVE - PCS B
F20-9 COVER,LEFT REAR SIDE - PCS B
F20-10 SCREW,HEXAGON SOCKET - PCS C
F20-11 COVER,LEFT FRONT SIDE - PCS B
F20-12 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F20-13 COVER,RIGHT FRONT SIDE - PCS B
F20-14 BLOCK,RIGHT SIDE COVER DECORATIVE - PCS B
F20-15 COVER,RIGHT REAR SIDE - PCS B
F20-16 COLLAR - PCS C
F20-17 PLAIN WASHER,RUBBER - PCS C
F20-18 BRACE,ELECTRICAL PARTS - PCS C
F20-19 SCREW,HEXAGON SOCKET - PCS C
F20-20 SHEATH,ELECTRICAL PARTS - PCS C

Assembly diagram

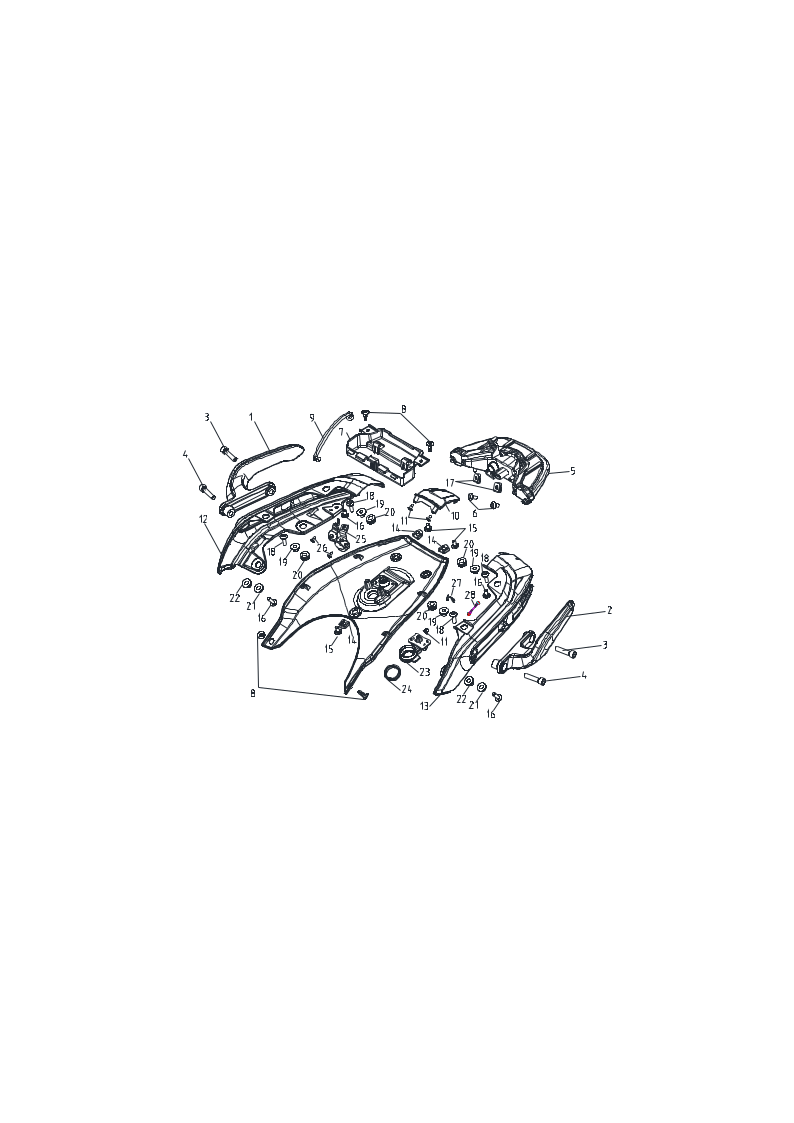

F21 FRAME ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F21-1 ARMREST ASSY.,RIGHT - PCS C
F21-2 ARMREST ASSY.,LEFT - PCS C
F21-3 SCREW,HEXAGON SOCKET - PCS C
F21-4 SCREW,HEXAGON SOCKET - PCS C
F21-5 TAILLIGHT SET - PCS B
F21-6 SCREW,HEXAGON SOCKET - PCS C
F21-7 BOX,TOOL - SET C
F21-8 CLIP - PCS C
F21-9 CLAMPING BAND - PCS C
F21-10 COVER COMP.,TAIL - PCS B
F21-11 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F21-12 BODY COVER.,RIGHT - PCS B
F21-13 BODY COVER.,LEFT - PCS B
F21-14 NUT,CLIP - PCS C
F21-15 SCREW,HEXAGON SOCKET - PCS C
F21-16 SCREW,HEXAGON SOCKET - PCS C
F21-17 NUT,CLIP - PCS C
F21-18 SCREW,HEXAGON SOCKET - PCS C
F21-19 COLLAR - PCS C
F21-20 I-RUBBER - PCS C
F21-21 WASHER,PLAIN - PCS C
F21-22 T-RUBBER - PCS C
F21-23 SHIELD,SEAT LOCKING DEVICE - PCS C
F21-24 DUST CAP - PCS C
F21-25 LOCK,SEAT - PCS B NOT FOR SERVICE
F21-26 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F21-27 HOOK,HELMET - PCS B
F21-28 HOOK,HELMET - PCS B
Ref Part Name Part Number Qty Grade Notes
F22-1 HARNESS,WIRE - SET B
F22-2 SWITCH ASSY.,REAR BRAKE - PCS B
F22-3 SHEATH,ELECTRICAL PARTS - PCS C
F22-4 RELAY,POWER GENERATE CONVERT - PCS B 20210928
F22-5 ECU - PCS C
F22-6 SCREW,HEXAGON SOCKET - PCS C
F22-7 FLASHER - PCS A
F22-8 BATTERY ASSY. - PCS A
F22-9 CLAMPING BAND - PCS C
F22-10 CONTROLLER INSTALLATION BRACKET - PCS C
F22-11 SCREW,CROSS RECESSED PAN SELF-TAPPING - PCS C
F22-12 SENSOR - PCS C
F22-13 ELECTRICAL BOX - PCS C
F22-14 STARTING RELAY ASSY. - PCS A
F22-15 T-RUBBER - PCS C
F22-16 BRACE,DECORATING COVER BRACKET - PCS C
F22-17 RECTIFIER REGULATOR ASSY. - PCS A
F22-18 SCREW,HEXAGON SOCKET - PCS C
F22-19 SWITCH ASSY.,IGNITION - PCS B
F22-20 SCREW,HEXAGON SOCKET - PCS C
F22-21 HARNESS,SUB - PCS C
F22-22 RUBBER SHEET,BATTERY PROTECTIVE - PCS C
F22-23 LOCK KIT - PCS C

Assembly diagram

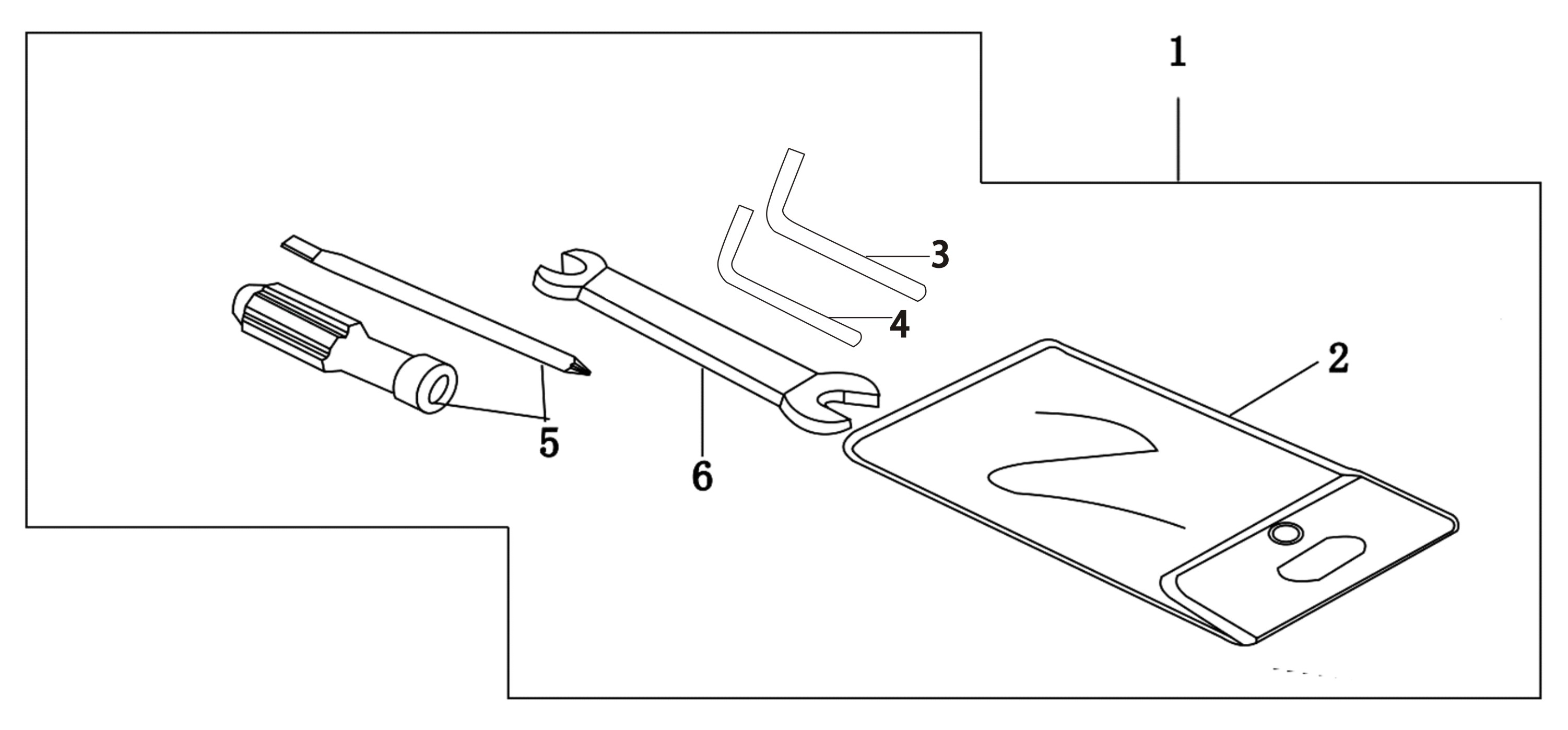

F23 TOOL SET - diagram 1
Ref Part Name Part Number Qty Grade Notes
F27-1 ACCESSORIES,TOOL - SET D
F27-2 BAG,TOOL - PCS D NOT FOR SERVICE
F27-3 WRENCH - PCS D NOT FOR SERVICE
F27-4 WRENCH - PCS D NOT FOR SERVICE
F27-5 SCREWDRIVER,DUAL-PURPOSE - PCS D NOT FOR SERVICE
F27-6 WRENCH - PCS D NOT FOR SERVICE

KE500

Ref Part Name Part Number Qty Grade Notes
ENGINE 1 SET C

Assembly diagrams

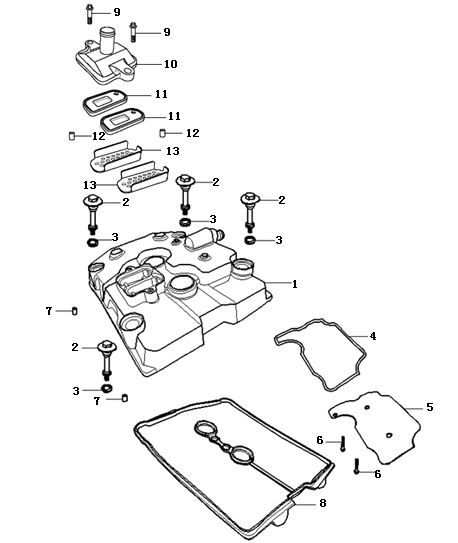

E1 CYLINDER HEAD COVER ASSY - diagram 1 E1 CYLINDER HEAD COVER ASSY - diagram 2 E1 CYLINDER HEAD COVER ASSY - diagram 3 E1 CYLINDER HEAD COVER ASSY - diagram 4 E1 CYLINDER HEAD COVER ASSY - diagram 5 E1 CYLINDER HEAD COVER ASSY - diagram 6 E1 CYLINDER HEAD COVER ASSY - diagram 7 E1 CYLINDER HEAD COVER ASSY - diagram 8 E1 CYLINDER HEAD COVER ASSY - diagram 9 E1 CYLINDER HEAD COVER ASSY - diagram 10
Ref Part Name Part Number Qty Grade Notes
E01-01 COVER COMP.,CYLINDER HEAD 1 PCS C
E01-02 BOLT,HEXAGON FLANGE 4 PCS C
E01-03 RING,SEAL 4 PCS A
E01-04 GASKET,OIL SEPARATING PLATE 1 PCS A
E01-05 PLATE,OIL SEPARATING 1 PCS C
E01-06 BOLT,HEXAGON FLANGE 2 PCS C
E01-07 PIN,DOWEL 2 PCS C
E01-08 RING,SEAL 1 PCS A
E01-09 BOLT,HEXAGON FLANGE 2 PCS C
E01-10 JOINT,CONNECTING 1 PCS C
E01-11 VALVE,REED 2 PCS C
E01-12 PIN,DOWEL 2 PCS C
E01-13 SCREEN,FLAME 2 PCS C

Assembly diagrams

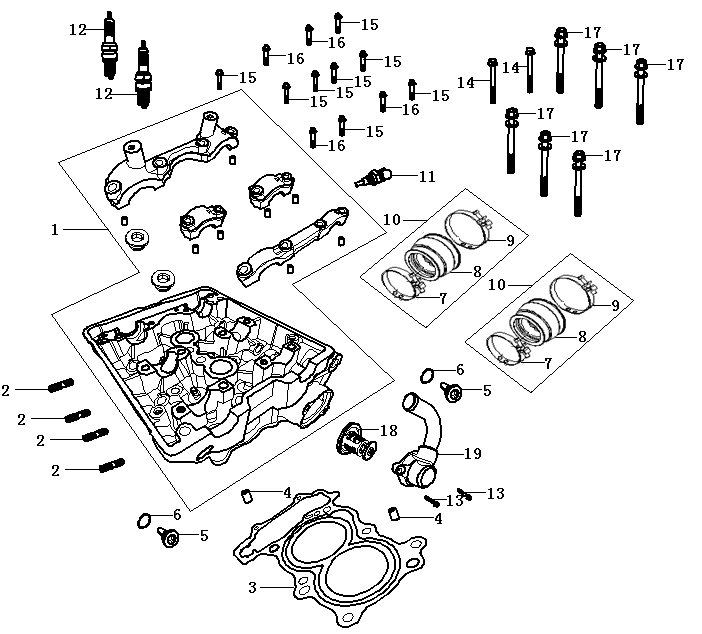

E2 CYLINDER HEAD ASSY - diagram 1 E2 CYLINDER HEAD ASSY - diagram 2 E2 CYLINDER HEAD ASSY - diagram 3 E2 CYLINDER HEAD ASSY - diagram 4 E2 CYLINDER HEAD ASSY - diagram 5 E2 CYLINDER HEAD ASSY - diagram 6 E2 CYLINDER HEAD ASSY - diagram 7 E2 CYLINDER HEAD ASSY - diagram 8 E2 CYLINDER HEAD ASSY - diagram 9 E2 CYLINDER HEAD ASSY - diagram 10 E2 CYLINDER HEAD ASSY - diagram 11 E2 CYLINDER HEAD ASSY - diagram 12 E2 CYLINDER HEAD ASSY - diagram 13 E2 CYLINDER HEAD ASSY - diagram 14 E2 CYLINDER HEAD ASSY - diagram 15 E2 CYLINDER HEAD ASSY - diagram 16 E2 CYLINDER HEAD ASSY - diagram 17 E2 CYLINDER HEAD ASSY - diagram 18 E2 CYLINDER HEAD ASSY - diagram 19
Ref Part Name Part Number Qty Grade Notes
E02-01 CYLINDER HEAD KIT 1 SET C
E02-02 STUD 4 PCS C
E02-03 GASKET,CYLINDER HEAD 1 PCS A
E02-04 PIN,DOWEL 2 PCS C
E02-05 SCREW,HEXAGON SOCKET 2 PCS C
E02-06 WASHER,PLAIN 2 PCS C
E02-07 HOOP ASSY. 2 PCS C NOT FOR SERVICE
E02-08 TUBE,AIR INTAKE 2 PCS B NOT FOR SERVICE
E02-09 HOOP ASSY. 2 PCS C NOT FOR SERVICE
E02-10 TUBE,AIR INTAKE 2 SET B
E02-11 SENSOR,ENGINE 1 PCS C
E02-12 PLUG,SPARK 2 PCS A
E02-13 BOLT,HEXAGON FLANGE 2 PCS C
E02-14 BOLT,HEXAGON FLANGE 2 PCS C
E02-15 BOLT,HEXAGON FLANGE 8 PCS C
E02-16 BOLT,HEXAGON FLANGE 4 PCS C
E02-17 BOLT/SCREW/WASHER,PALIN COMP. 6 PCS C
E02-18 VALVE,THERMOSTATIC 1 PCS A
E02-19 COVER,THERMOSTAT 1 PCS B

Assembly diagrams

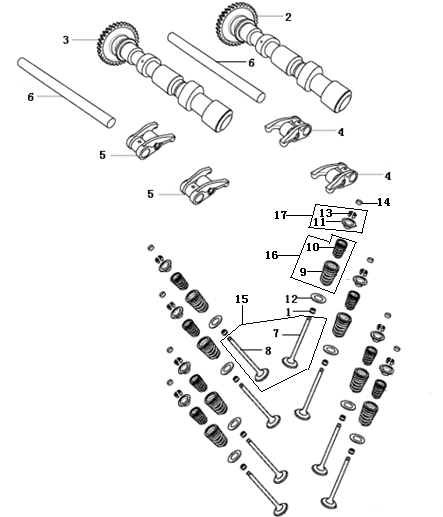

E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 1 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 2 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 3 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 4 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 5 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 6 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 7 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 8 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 9 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 10 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 11 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 12 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 13 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 14 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 15 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 16 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 17 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 18 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 19 E3 AIR INTAKE AND EXHAUST MECHANISM - diagram 20
Ref Part Name Part Number Qty Grade Notes
E03-01 SHIELD,OIL 8 PCS A
E03-02 CAMSHAFT ASSY. 1 SET B
E03-03 CAMSHAFT ASSY. 1 SET B
E03-04 ARM ASSY.,VALVE ROCKER 2 PCS B
E03-05 ARM ASSY.,VALVE ROCKER 2 PCS B
E03-06 SHAFT,VALVE ROCKER ARM 2 PCS B
E03-07 VALVE,INLET 4 PCS A
E03-08 VALVE,EXHAUST 4 PCS A
E03-09 SPRING,VALVE(OUTER) 8 PCS C NOT FOR SERVICE
E03-10 SPRING,VALVE(INNER) 8 PCS C NOT FOR SERVICE
E03-11 RETAINER,VALVE SPRING 8 PCS C
E03-12 RETAINER,VALVE SPRING 8 PCS C
E03-13 COTTER,VALVE 16 PCS C
E03-14 ADJUSTING SHIM,VALVE 8 PCS -
E03-14A ADJUSTING SHIM,VALVE KIT 1 PCS -
E03-15 VALVE KIT 4 PCS A
E03-16 SPRING SET,VALVE 8 PCS C
E03-17 CLIP & VALVE SPRING SEAT KIT 8 SET -

Assembly diagrams

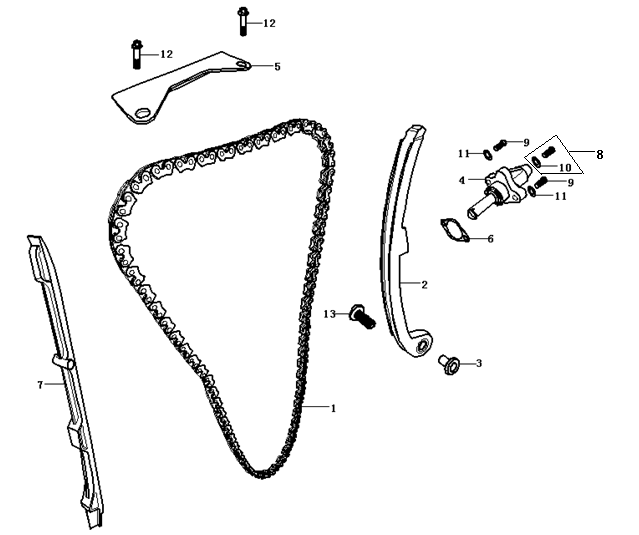

E4 CHAIN TENSIONER DEVICE - diagram 1 E4 CHAIN TENSIONER DEVICE - diagram 2 E4 CHAIN TENSIONER DEVICE - diagram 3 E4 CHAIN TENSIONER DEVICE - diagram 4 E4 CHAIN TENSIONER DEVICE - diagram 5 E4 CHAIN TENSIONER DEVICE - diagram 6 E4 CHAIN TENSIONER DEVICE - diagram 7 E4 CHAIN TENSIONER DEVICE - diagram 8 E4 CHAIN TENSIONER DEVICE - diagram 9 E4 CHAIN TENSIONER DEVICE - diagram 10 E4 CHAIN TENSIONER DEVICE - diagram 11 E4 CHAIN TENSIONER DEVICE - diagram 12 E4 CHAIN TENSIONER DEVICE - diagram 13 E4 CHAIN TENSIONER DEVICE - diagram 14
Ref Part Name Part Number Qty Grade Notes
E04-01 CHAIN,TIMING 1 PCS A
E04-02 PLATE,TENSION 1 PCS B
E04-03 COLLAR 1 PCS C
E04-04 TENSIONER ASSY.,CAM CHAIN 1 PCS B
E04-05 PLATE,TIMING CHAIN LIMIT 1 PCS B
E04-06 GASKET,CAM CHAIN TENSIONER 1 PCS A
E04-07 GUIDE PLATE,CHAIN 1 PCS B
E04-08 BOLT,HEXAGON FLANGE 1 PCS C
E04-09 BOLT,HEXAGON FLANGE 2 PCS C
E04-10 PLAIN GASKET 1 PCS C NOT FOR SERVICE
E04-11 WASHER,PLAIN 2 PCS C
E04-12 BOLT,HEXAGON FLANGE 2 PCS C
E04-13 BOLT,HEXAGON FLANGE 1 PCS C

Assembly diagrams

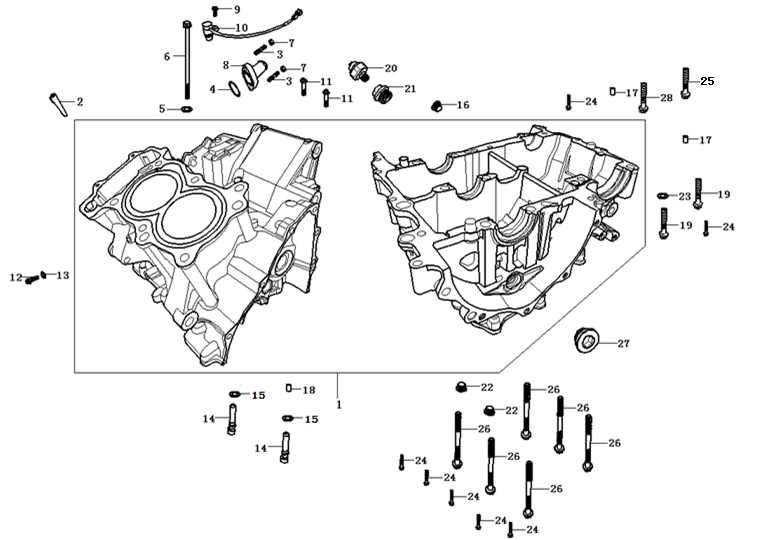

E5 CRANKCASE ASSY - diagram 1 E5 CRANKCASE ASSY - diagram 2 E5 CRANKCASE ASSY - diagram 3 E5 CRANKCASE ASSY - diagram 4 E5 CRANKCASE ASSY - diagram 5 E5 CRANKCASE ASSY - diagram 6 E5 CRANKCASE ASSY - diagram 7 E5 CRANKCASE ASSY - diagram 8 E5 CRANKCASE ASSY - diagram 9 E5 CRANKCASE ASSY - diagram 10 E5 CRANKCASE ASSY - diagram 11 E5 CRANKCASE ASSY - diagram 12 E5 CRANKCASE ASSY - diagram 13 E5 CRANKCASE ASSY - diagram 14 E5 CRANKCASE ASSY - diagram 15 E5 CRANKCASE ASSY - diagram 16 E5 CRANKCASE ASSY - diagram 17 E5 CRANKCASE ASSY - diagram 18 E5 CRANKCASE ASSY - diagram 19 E5 CRANKCASE ASSY - diagram 20 E5 CRANKCASE ASSY - diagram 21 E5 CRANKCASE ASSY - diagram 22 E5 CRANKCASE ASSY - diagram 23 E5 CRANKCASE ASSY - diagram 24 E5 CRANKCASE ASSY - diagram 25 E5 CRANKCASE ASSY - diagram 26 E5 CRANKCASE ASSY - diagram 27 E5 CRANKCASE ASSY - diagram 28
Ref Part Name Part Number Qty Grade Notes
E05-01 CRANKCASE KIT 1 N C
E05-02 RUBBER STICK OF WATER PROOF 1 N C
E05-03 STUD 2 PCS C
E05-04 RING,SEAL 1 PCS A
E05-05 WASHER,PLAIN 1 PCS C
E05-06 BOLT,HEXAGON FLANGE 1 PCS C
E05-07 NUT,HEXAGON FLANGE 2 PCS C
E05-08 JOINT,CONNECTING 1 PCS C
E05-09 BOLT,HEXAGON FLANGE 1 PCS C
E05-10 TRANSDUCER,VELOCITY 1 PCS C
E05-11 BOLT,HEXAGON FLANGE 2 PCS C
E05-12 BOLT,HEXAGON FLANGE 1 PCS C
E05-13 WASHER,PLAIN 1 PCS C
E05-14 STOPPER 2 PCS C
E05-15 RING,SEAL 2 PCS A
E05-16 SCREW,HEXAGON SOCKET 2 PCS C
E05-17 STOPPER 2 PCS C
E05-18 PIN,CLEVIS 1 PCS C
E05-19 BOLT,HEXAGON FLANGE 2 PCS C
E05-20 SENSOR,ENGINE 1 PCS C
E05-21 BOLT,HEXAGON FLANGE 1 PCS C
E05-22 SCREW,HEXAGON SOCKET 2 PCS C
E05-23 WASHER,PLAIN 1 PCS C
E05-24 BOLT,HEXAGON FLANGE 7 PCS C
E05-25 BOLT,HEXAGON FLANGE 1 PCS C
E05-26 BOLT,HEXAGON FLANGE 6 PCS C
E05-27 SCREW,HEXAGON SOCKET 1 PCS C
E05-28 BOLT,HEXAGON FLANGE 1 PCS C

Assembly diagrams

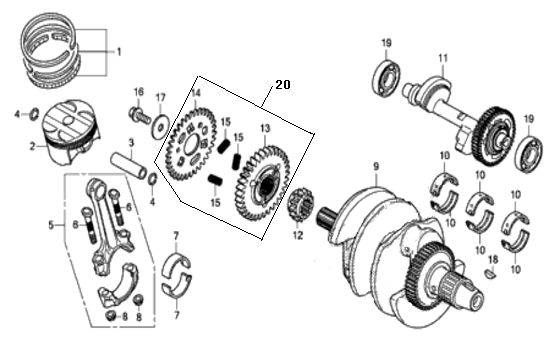

E6 CRANKSHAFT ASSY - diagram 1 E6 CRANKSHAFT ASSY - diagram 2 E6 CRANKSHAFT ASSY - diagram 3 E6 CRANKSHAFT ASSY - diagram 4 E6 CRANKSHAFT ASSY - diagram 5 E6 CRANKSHAFT ASSY - diagram 6 E6 CRANKSHAFT ASSY - diagram 7 E6 CRANKSHAFT ASSY - diagram 8 E6 CRANKSHAFT ASSY - diagram 9 E6 CRANKSHAFT ASSY - diagram 10 E6 CRANKSHAFT ASSY - diagram 11 E6 CRANKSHAFT ASSY - diagram 12 E6 CRANKSHAFT ASSY - diagram 13 E6 CRANKSHAFT ASSY - diagram 14 E6 CRANKSHAFT ASSY - diagram 15 E6 CRANKSHAFT ASSY - diagram 16
Ref Part Name Part Number Qty Grade Notes
E06-01 RING SET,PISTON 2 SET A
E06-02 PISTON COMP. 2 PCS A
E06-03 PIN,PISTON 2 PCS B
E06-04 CHECK RING,STEEL CABLE BAFFLE 4 PCS C
E06-05 ROD COMP.,CONNECTING 2 SET C
E06-06 BOLT,CONNECTING ROD 4 PCS C NOT FOR SERVICE
E06-07 BEARING,CRANKSHAFT KIT 4 PCS C
E06-08 NUT,HEXAGON FLANGE 4 PCS C
E06-09 CRANKSHAFT COMP. 1 SET C
E06-10 BEARING,CRANKSHAFT KIT 6 PCS C
E06-11 BALANCING ARBOR COMP. 1 SET C
E06-12 SPROCKET,TIMING DRIVE 1 PCS C
E06-13 GEAR,PRIMARY DRIVING 1 PCS B NOT FOR SERVICE
E06-14 GEAR,PRIMARY DRIVING(2) 1 PCS C NOT FOR SERVICE
E06-15 SPRING,COMPRESSION 3 PCS B NOT FOR SERVICE
E06-16 BOLT,HEXAGON FLANGE 1 PCS C
E06-17 WASHER,PLAIN 1 PCS C
E06-18 KEY 1 PCS C NOT FOR SERVICE
E06-19 BEARING 2 PCS A
E06-20 DRIVING GEAR ASSY.,PRIMARY 1 PCS C

Assembly diagrams

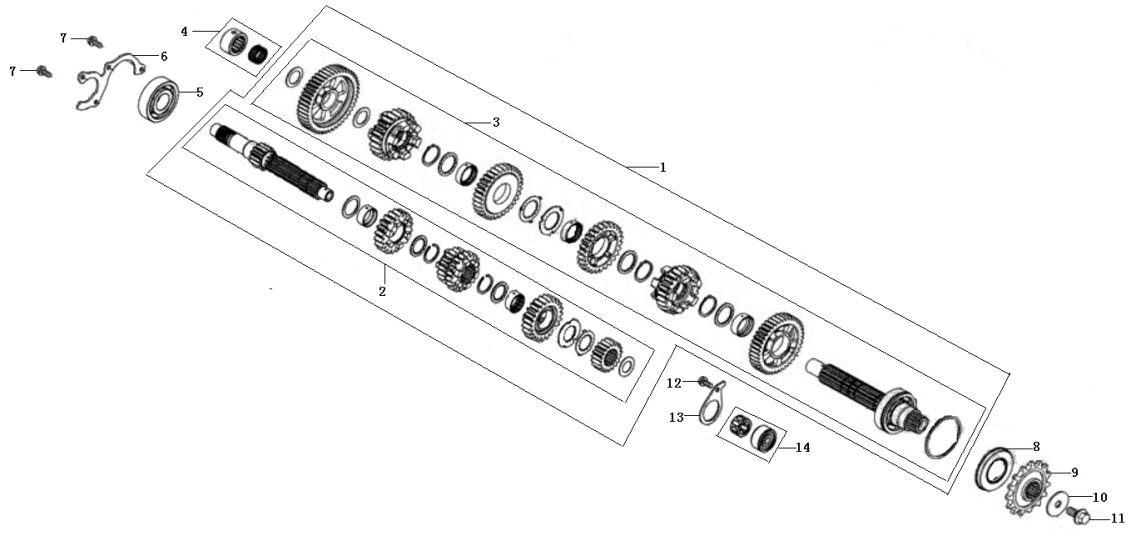

E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 1 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 2 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 3 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 4 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 5 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 6 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 7 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 8 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 9 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 10 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 11 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 12 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 13 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 14 E7 TRANSMISSION MAINSHAFT AND COUNTERSHAFT ASSY - diagram 15
Ref Part Name Part Number Qty Grade Notes
E07-01 MAINSHAFT&COUNTERSHAFT KIT 1 SET B
E07-02 MAINSHAFT COMP. 1 SET B
E07-03 COUNTERSHAFT COMP. 1 SET B
E07-04 BEARING ASSY. 1 PCS A
E07-05 BEARING 1 PCS A
E07-06 CHECK PLATE,MAINSHAFT BEARING 1 PCS C
E07-07 BOLT,HEXAGON FLANGE 2 PCS C
E07-08 OIL SEAL 1 PCS A
E07-09 COUNTER SHAFT DRIVE SPROCKET 1 PCS A
E07-10 WASHER,PLAIN 1 PCS C
E07-11 BOLT,HEXAGON FLANGE 1 PCS C
E07-12 BOLT,HEXAGON FLANGE 1 PCS C
E07-13 PRESSING PLATE OF MAINSHAFT COLLAR 1 PCS C
E07-14 BEARING ASSY. 1 PCS A

Assembly diagrams

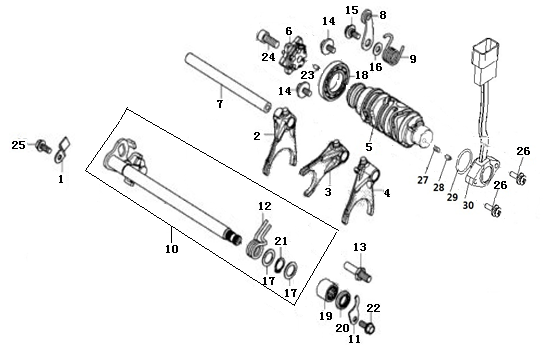

E8 SPEED CONTROL MECHANISM - diagram 1 E8 SPEED CONTROL MECHANISM - diagram 2 E8 SPEED CONTROL MECHANISM - diagram 3 E8 SPEED CONTROL MECHANISM - diagram 4 E8 SPEED CONTROL MECHANISM - diagram 5 E8 SPEED CONTROL MECHANISM - diagram 6 E8 SPEED CONTROL MECHANISM - diagram 7 E8 SPEED CONTROL MECHANISM - diagram 8 E8 SPEED CONTROL MECHANISM - diagram 9 E8 SPEED CONTROL MECHANISM - diagram 10 E8 SPEED CONTROL MECHANISM - diagram 11 E8 SPEED CONTROL MECHANISM - diagram 12 E8 SPEED CONTROL MECHANISM - diagram 13 E8 SPEED CONTROL MECHANISM - diagram 14 E8 SPEED CONTROL MECHANISM - diagram 15 E8 SPEED CONTROL MECHANISM - diagram 16 E8 SPEED CONTROL MECHANISM - diagram 17 E8 SPEED CONTROL MECHANISM - diagram 18 E8 SPEED CONTROL MECHANISM - diagram 19 E8 SPEED CONTROL MECHANISM - diagram 20 E8 SPEED CONTROL MECHANISM - diagram 21 E8 SPEED CONTROL MECHANISM - diagram 22 E8 SPEED CONTROL MECHANISM - diagram 23 E8 SPEED CONTROL MECHANISM - diagram 24 E8 SPEED CONTROL MECHANISM - diagram 25 E8 SPEED CONTROL MECHANISM - diagram 26 E8 SPEED CONTROL MECHANISM - diagram 27 E8 SPEED CONTROL MECHANISM - diagram 28
Ref Part Name Part Number Qty Grade Notes
E08-01 PLATE,GEAR SHIFT LIMIT 1 PCS C
E08-02 FORK,GEAR SHIFT 1 PCS C
E08-03 FORK,GEAR SHIFT 1 PCS C
E08-04 FORK,GEAR SHIFT 1 PCS C
E08-05 DRUM COMP.,GEAR SHIFT 1 PCS C
E08-06 GEARSHIFT DRUM PLATE ASSY. 1 PCS C
E08-07 SHAFT,SHIFT FORK GUIDE 1 PCS C
E08-08 CHECK PLATE ASSY. 1 PCS C
E08-09 SPRING,TORSIONAL 1 PCS B
E08-10 ARM COMP.,GEAR CHANGE 1 PCS C
E08-11 CHECK PLATE OF OIL SEAL ON GEARSHIFT SPINDLE 1 N C
E08-12 SPRING,TORSIONAL 1 PCS B NOT FOR SERVICE
E08-13 JACK BOLT,GEAR CHANGE ARM 1 PCS C
E08-14 BOLT/SCREW/WASHER,PALIN COMP. 2 PCS C
E08-15 BOLT,CHECK PLATE 1 PCS C
E08-16 WASHER,PLAIN 1 PCS C
E08-17 CHECK RING,SHOULDER 2 PCS C NOT FOR SERVICE
E08-18 BEARING 1 PCS A
E08-19 BEARING 1 PCS A
E08-20 OIL SEAL 1 PCS A
E08-21 CHECK RING,ELASTIC 1 PCS B NOT FOR SERVICE
E08-22 BOLT,HEXAGON FLANGE 1 PCS C
E08-23 PIN,CLEVIS 1 PCS C
E08-24 SCREW,HEXAGON SOCKET 1 PCS C
E08-25 BOLT,HEXAGON FLANGE 1 PCS C
E08-26 SCREW,CROSS RECESSED PAN HEAD/WASHER,ELASTIC/WASHER,PLAIN COMP. 2 PCS C
E08-27 SPRING,COMPRESSION 1 PCS B
E08-28 SHIFT CONTACT,GEAR INDICATOR SWITCH 1 PCS C
E08-29 RING,SEAL 1 PCS A
E08-30 SWITCH COMP.,GEAR INDICATOR 1 SET B

Assembly diagrams

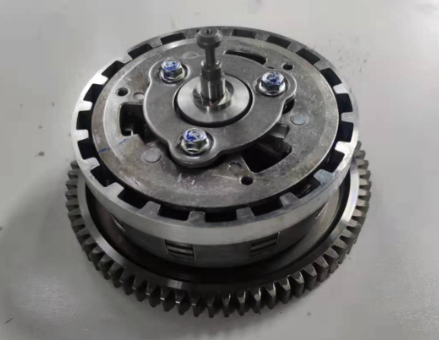

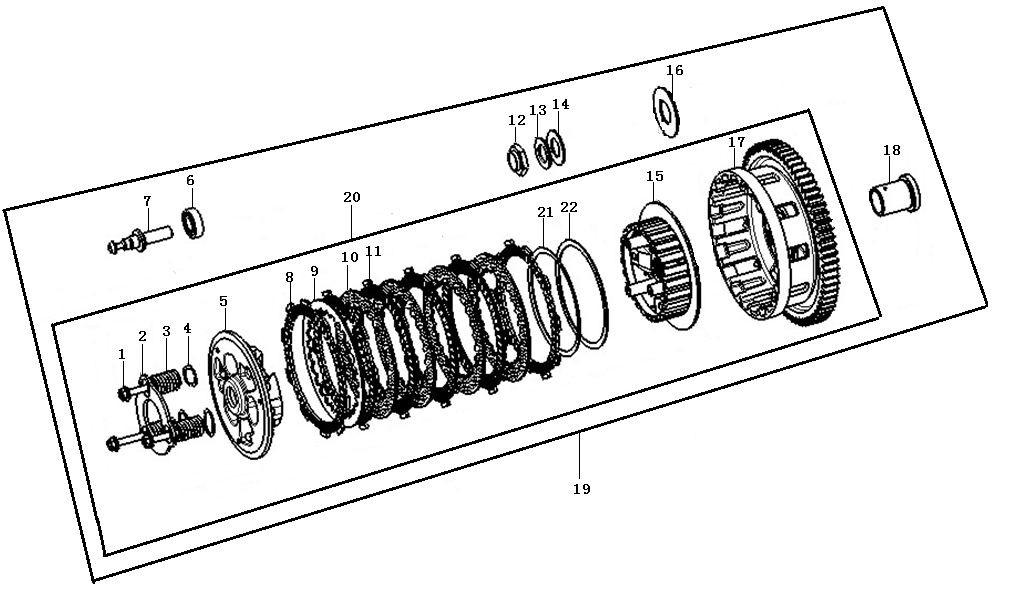

E9 CLUTCH ASSY - diagram 1 E9 CLUTCH ASSY - diagram 2 E9 CLUTCH ASSY - diagram 3 E9 CLUTCH ASSY - diagram 4 E9 CLUTCH ASSY - diagram 5 E9 CLUTCH ASSY - diagram 6 E9 CLUTCH ASSY - diagram 7
Ref Part Name Part Number Qty Grade Notes
E09-01 BOLT,HEXAGON FLANGE 3 PCS C
E09-02 PLATE,CLUTCH LIFTER 1 PCS B
E09-03 SPRING,CLUTCH 3 PCS B
E09-04 CLUTCH DAMPING SPRING SEAT 3 PCS C
E09-05 PLATE,CLUTCH PRESSURE 1 PCS B
E09-06 BEARING 1 PCS A
E09-07 PUSH ROD 1 PCS C
E09-08 DISK,CLUTCH FRICTION 3 PCS A
E09-09 PLATE,CLUTCH 1 PCS A
E09-10 PLATE,CLUTCH 4 PCS A
E09-11 DISK,CLUTCH FRICTION 3 PCS A
E09-12 NUT,ROUND 1 PCS C
E09-13 WASHER,SAUCER 1 PCS C
E09-14 WASHER,PLAIN 1 PCS C
E09-15 CENTER CASE SET OF CLUTCH 1 PCS B
E09-16 WASHER,PLAIN 1 PCS C
E09-17 OUTER COMP.,CLUTCH 1 PCS B
E09-18 COLLAR 1 PCS C
E09-19 CLUTCH KIT 1 SET B
E09-20 CENTER CASE SET OF CLUTCH 1 SET C
E09-21 DISC SPRING 1 PCS C
E09-22 WASHER,PLAIN 1 PCS C

Assembly diagrams

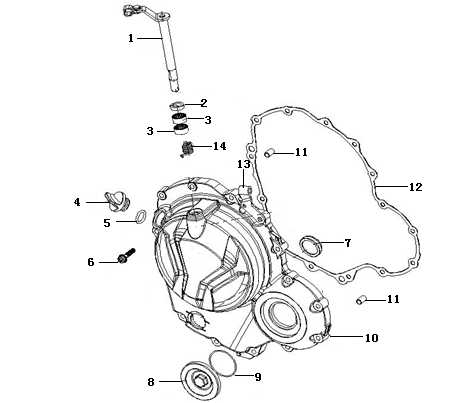

E10 RIGHT CRANKCASE COVER - diagram 1 E10 RIGHT CRANKCASE COVER - diagram 2 E10 RIGHT CRANKCASE COVER - diagram 3 E10 RIGHT CRANKCASE COVER - diagram 4 E10 RIGHT CRANKCASE COVER - diagram 5 E10 RIGHT CRANKCASE COVER - diagram 6 E10 RIGHT CRANKCASE COVER - diagram 7 E10 RIGHT CRANKCASE COVER - diagram 8 E10 RIGHT CRANKCASE COVER - diagram 9 E10 RIGHT CRANKCASE COVER - diagram 10 E10 RIGHT CRANKCASE COVER - diagram 11 E10 RIGHT CRANKCASE COVER - diagram 12
Ref Part Name Part Number Qty Grade Notes
E10-01 JOYSTICK ASSY.,CLUTCH 1 PCS B
E10-02 OIL SEAL 1 PCS A
E10-03 BEARING 2 PCS A
E10-04 GAUGE COMP.,OIL LEVEL 1 PCS B
E10-05 RING,SEAL 1 PCS A
E10-06 BOLT,HEXAGON FLANGE 14 PCS C
E10-07 SIGHT GLASS,OIL 1 PCS C
E10-08 COVER,INSPECTION 1 PCS B
E10-09 RING,SEAL 1 PCS A
E10-10 COVER COMP.,RIGHT CRANKCASE 1 PCS C
E10-11 PIN,DOWEL 2 PCS C
E10-12 GASKET,RIGHT CRANKCASE COVER 1 PCS A
E10-13 PLATE,CLUTCH CABLE LOCATING 1 PCS C
E10-14 SPRING,TORSIONAL 1 PCS B

Assembly diagrams

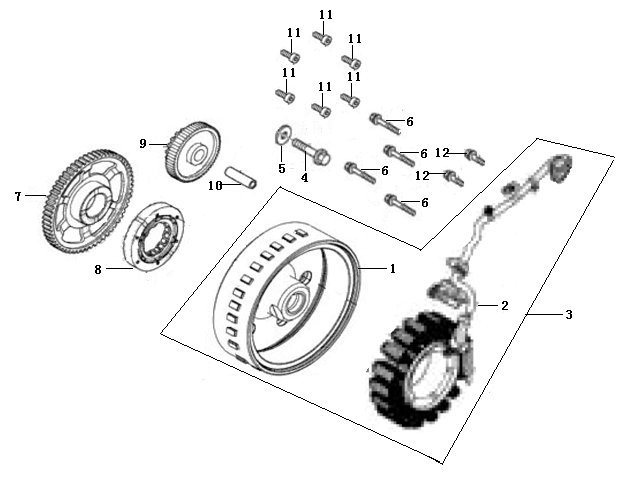

E11 GENERATOR ASSY - diagram 1 E11 GENERATOR ASSY - diagram 2 E11 GENERATOR ASSY - diagram 3 E11 GENERATOR ASSY - diagram 4 E11 GENERATOR ASSY - diagram 5 E11 GENERATOR ASSY - diagram 6 E11 GENERATOR ASSY - diagram 7 E11 GENERATOR ASSY - diagram 8 E11 GENERATOR ASSY - diagram 9 E11 GENERATOR ASSY - diagram 10 E11 GENERATOR ASSY - diagram 11 E11 GENERATOR ASSY - diagram 12
Ref Part Name Part Number Qty Grade Notes
E11-01 ROTOR COMP. 1 PCS C
E11-02 STATOR COMP. 1 SET B
E11-03 GENERATOR ASSY. 1 SET B
E11-04 BOLT,HEXAGON FLANGE 1 PCS C
E11-05 WASHER,PLAIN 1 PCS C
E11-06 BOLT,HEXAGON FLANGE 4 PCS C
E11-07 DISK GEAR 1 PCS C
E11-08 BODY ASSY.,STARTING CLUTCH 1 PCS B
E11-09 DUPLEX GEAR,ELECTRIC STARTING 1 PCS C
E11-10 SHAFT,DUPLEX GEAR 1 PCS C
E11-11 SCREW,HEXAGON SOCKET 6 PCS C
E11-12 BOLT,HEXAGON FLANGE 2 PCS C

Assembly diagrams

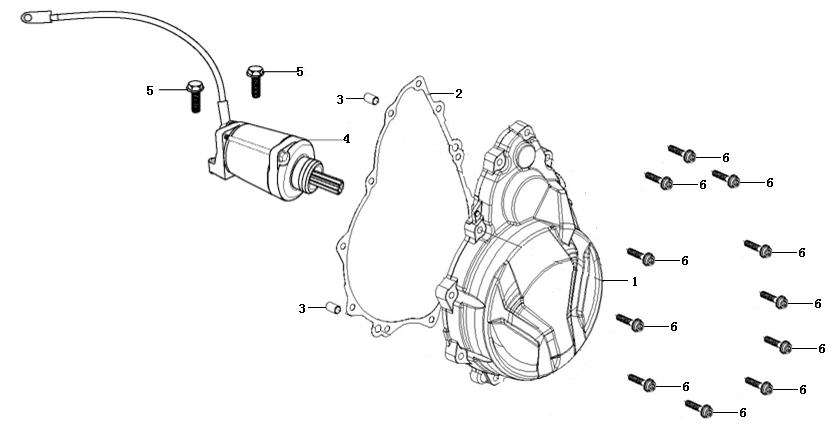

E12 CRANKCASE COVER SECTION - diagram 1 E12 CRANKCASE COVER SECTION - diagram 2 E12 CRANKCASE COVER SECTION - diagram 3 E12 CRANKCASE COVER SECTION - diagram 4 E12 CRANKCASE COVER SECTION - diagram 5
Ref Part Name Part Number Qty Grade Notes
E12-01 COVER COMP.,LEFT FRONT 1 PCS C
E12-02 GASKET,LEFT FRONT COVER 1 PCS A
E12-03 PIN,DOWEL 2 PCS C
E12-04 MOTOR ASSY.,STARTING 1 SET B
E12-05 BOLT,HEXAGON FLANGE 2 PCS C
E12-06 BOLT,HEXAGON FLANGE 11 PCS C

Assembly diagrams

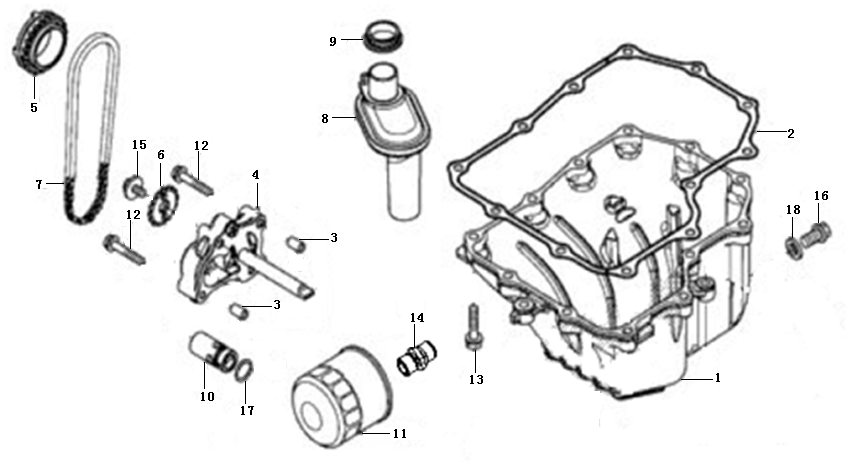

E13 LUBRICATING SYSTEM - diagram 1 E13 LUBRICATING SYSTEM - diagram 2 E13 LUBRICATING SYSTEM - diagram 3 E13 LUBRICATING SYSTEM - diagram 4 E13 LUBRICATING SYSTEM - diagram 5 E13 LUBRICATING SYSTEM - diagram 6 E13 LUBRICATING SYSTEM - diagram 7 E13 LUBRICATING SYSTEM - diagram 8 E13 LUBRICATING SYSTEM - diagram 9 E13 LUBRICATING SYSTEM - diagram 10 E13 LUBRICATING SYSTEM - diagram 11 E13 LUBRICATING SYSTEM - diagram 12 E13 LUBRICATING SYSTEM - diagram 13 E13 LUBRICATING SYSTEM - diagram 14 E13 LUBRICATING SYSTEM - diagram 15 E13 LUBRICATING SYSTEM - diagram 16 E13 LUBRICATING SYSTEM - diagram 17
Ref Part Name Part Number Qty Grade Notes
E13-01 CRANKCASE OIL TRAY 1 PCS C
E13-02 GASKET,CRANKCASE OIL TRAY 1 PCS A
E13-03 PIN,DOWEL 2 PCS C
E13-04 PUMP ASSY.,OIL 1 SET C
E13-05 SPROCKET,OIL PUMP DRIVE 1 PCS C
E13-06 SPROCKET,OIL PUMP DRIVEN 1 PCS B
E13-07 CHAIN,DRIVE 1 PCS A
E13-08 OIL SUCKING TUBE COMP. 1 N C
E13-09 RING,SEAL 1 PCS A
E13-10 VALVE COMP.,OIL CONTROL 1 SET C
E13-11 OIL FILTER ASSY.,SECONDARY 1 SET C
E13-12 BOLT,HEXAGON FLANGE 4 PCS C
E13-13 BOLT,HEXAGON FLANGE 12 PCS C
E13-14 JOINT,CONNECTING 1 PCS C
E13-15 BOLT/SCREW/WASHER,PALIN COMP. 1 PCS C
E13-16 SCREW PLUG,SEAL 1 PCS C
E13-17 RING,SEAL 1 PCS A
E13-18 WASHER,PLAIN 1 PCS C

Assembly diagrams

E14 COOLING SYSTEM - diagram 1 E14 COOLING SYSTEM - diagram 2 E14 COOLING SYSTEM - diagram 3 E14 COOLING SYSTEM - diagram 4 E14 COOLING SYSTEM - diagram 5 E14 COOLING SYSTEM - diagram 6 E14 COOLING SYSTEM - diagram 7 E14 COOLING SYSTEM - diagram 8 E14 COOLING SYSTEM - diagram 9 E14 COOLING SYSTEM - diagram 10 E14 COOLING SYSTEM - diagram 11 E14 COOLING SYSTEM - diagram 12
Ref Part Name Part Number Qty Grade Notes
E14-01 CAP,COOLING PUMP 1 PCS C
E14-02 RING,SEAL 1 PCS A
E14-03 PUMP,COOLING 1 PCS B
E14-04 RING,SEAL 1 PCS A
E14-05 BOLT,HEXAGON FLANGE 2 PCS C
E14-06 WASHER,PLAIN 1 PCS C
E14-07 BOLT,HEXAGON FLANGE 3 PCS C
E14-08 CLAMP,TUBE 2 PCS C
E14-09 CLAMP,TUBE 2 PCS C
E14-10 TUBE,WATER 1 PCS B
E14-11 TUBE,WATER 1 PCS B

Wear-grade legend

  • AA - High wear
  • BB - Medium wear
  • CC - Low wear
  • DD - Not user-serviceable

Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.

Search
