Dual Sport / Adventure
DS625X Parts Catalog
885 part numbers across 2 sheets, 47 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.
Showing all 885 parts
DS625X

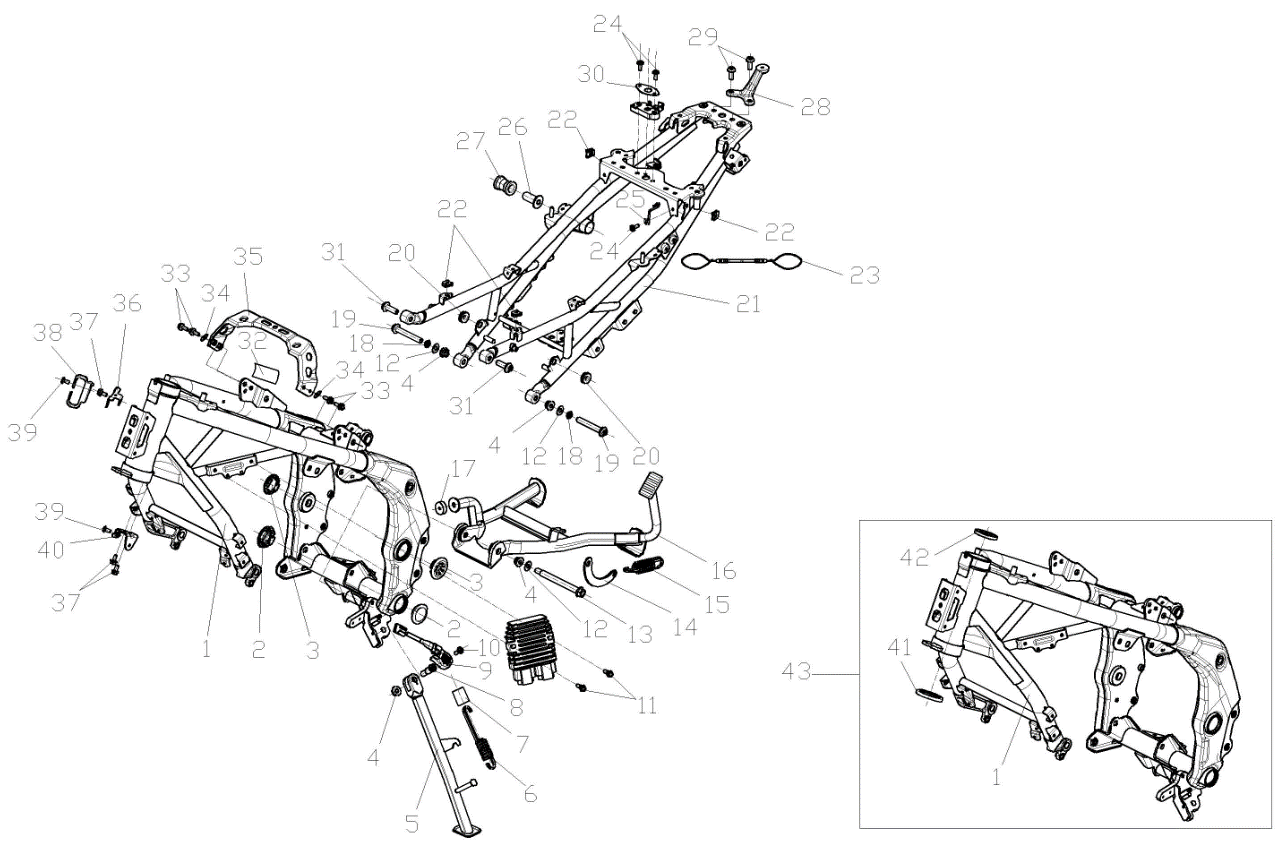

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F01-01 | BODY COMP.,FRAME | - EA | D | ||
| F01-02 | CAP,FRAME DECORATIVE | - EA | B | ||
| F01-03 | CAP,FRAME DECORATIVE | - EA | B | ||
| F01-04 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F01-05 | BAR ASSY.,SIDE STAND | - EA | B | ||
| F01-06 | SPRING,DRAG | - EA | B | ||
| F01-07 | SHEATH,RUBBER | - EA | C | ||
| F01-08 | BOLT,HEXAGON HEAD SHOULDER | - EA | C | ||
| F01-09 | STARTER KILL SWITCH,SIDE STAND | - EA | B | ||
| F01-10 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F01-11 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F01-12 | WASHER,PLAIN | - EA | C | ||
| F01-13 | AXIS | - EA | C | ||
| F01-14 | PLATE,SPRING HANGER | - EA | C | ||
| F01-15 | SPRING,DRAG | - EA | B | ||
| F01-16 | STAND COMP.,MAIN | - EA | C | ||
| F01-17 | PAD,MAIN STAND CUSHION | - EA | B | ||
| F01-18 | WASHER,ELASTIC | - EA | C | ||
| F01-19 | AXIS | - EA | C | ||
| F01-20 | I-RUBBER | - EA | C | ||
| F01-21 | REAR PART,FRAME | - EA | C | ||
| F01-22 | NUT,CLIP | - EA | C | ||
| F01-23 | HOOK,HELMET | - EA | B | ||
| F01-24 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F01-25 | HOOK,HELMET | - EA | B | ||
| F01-26 | COLLAR | - EA | C | ||
| F01-27 | I-RUBBER | - EA | C | ||
| F01-28 | BASE,REAR PROP MOUNTING | - EA | C | ||
| F01-29 | FLANGE BOLT | - EA | C | ||
| F01-30 | WASHER,SEAT LOCK | - EA | C | ||
| F01-31 | AXIS | - EA | C | ||
| F01-32 | NAMEPLATE,FRA | - EA | C | ||
| F01-33 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F01-34 | WASHER,PLAIN | - EA | C | ||
| F01-35 | BRACE,FUEL TANK REAR | - EA | C | ||
| F01-36 | BRACE,ELECTRICAL PARTS | - EA | C | ||
| F01-37 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F01-38 | CLIP,LOCATING LINE | - EA | C | ||
| F01-39 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F01-40 | LUG,RADIATOR UPPER | - EA | C | ||
| F01-41 | RACE,STEERING TOP BALL | - EA | B | ||
| F01-42 | RACE,STEERING TOP BALL | - EA | B | ||
| F01-43 | BODY ASSY.,FRAME | - SET | C |

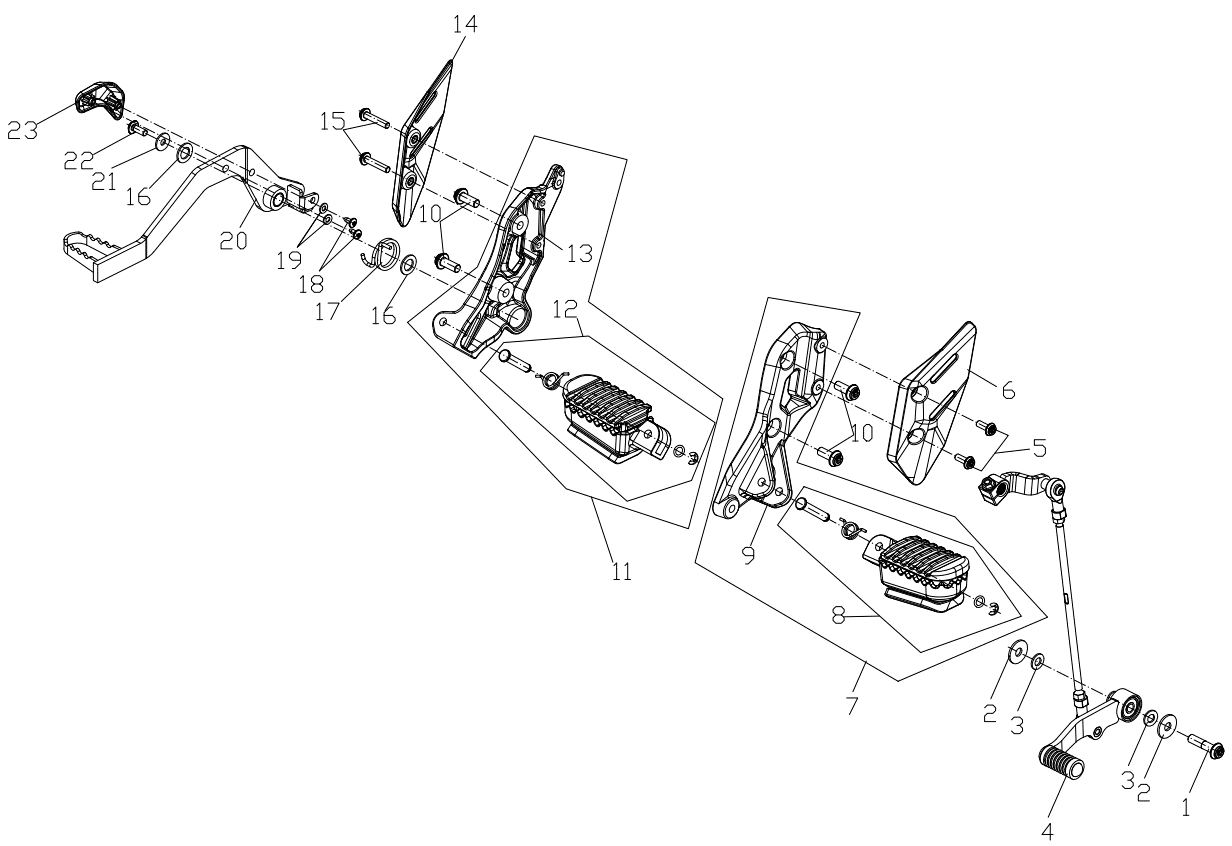

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F02-01 | FLANGE BOLT | - EA | C | ||
| F02-02 | WASHER,PLAIN | - EA | C | ||
| F02-03 | WASHER,PLAIN | - EA | C | ||
| F02-04 | PEDAL,GEAR CHANGE | - EA | B | ||
| F02-05 | FLANGE BOLT | - EA | C | ||
| F02-06 | PLATE,STEP DECORATIVE | - EA | C | ||
| F02-07 | STEP ASSY.,LEFT | - EA | B | ||
| F02-08 | BODY,LEFT STEP | - EA | B | ||
| F02-09 | HOLD COMP.,LEFT STEP | - EA | C | ||
| F02-10 | FLANGE BOLT | - EA | C | ||
| F02-11 | STEP ASSY.,RIGHT | - EA | B | ||
| F02-12 | BODY,RIGHT STEP | - EA | B | ||
| F02-13 | HOLD COMP.,RIGHT STEP | - EA | C | ||
| F02-14 | PLATE,STEP DECORATIVE | - EA | C | ||
| F02-15 | FLANGE BOLT | - EA | C | ||
| F02-16 | WASHER,PLAIN | - EA | C | ||
| F02-17 | SPRING,TORSIONAL | - EA | B | ||
| F02-18 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F02-19 | WASHER,PLAIN | - EA | C | ||
| F02-20 | PEDAL,REAR BRAKE | - EA | B | ||
| F02-21 | WASHER,PLAIN | - EA | C | ||
| F02-22 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F02-23 | LIMITING STOPPER,BRAKE PEDAL | - EA | C |

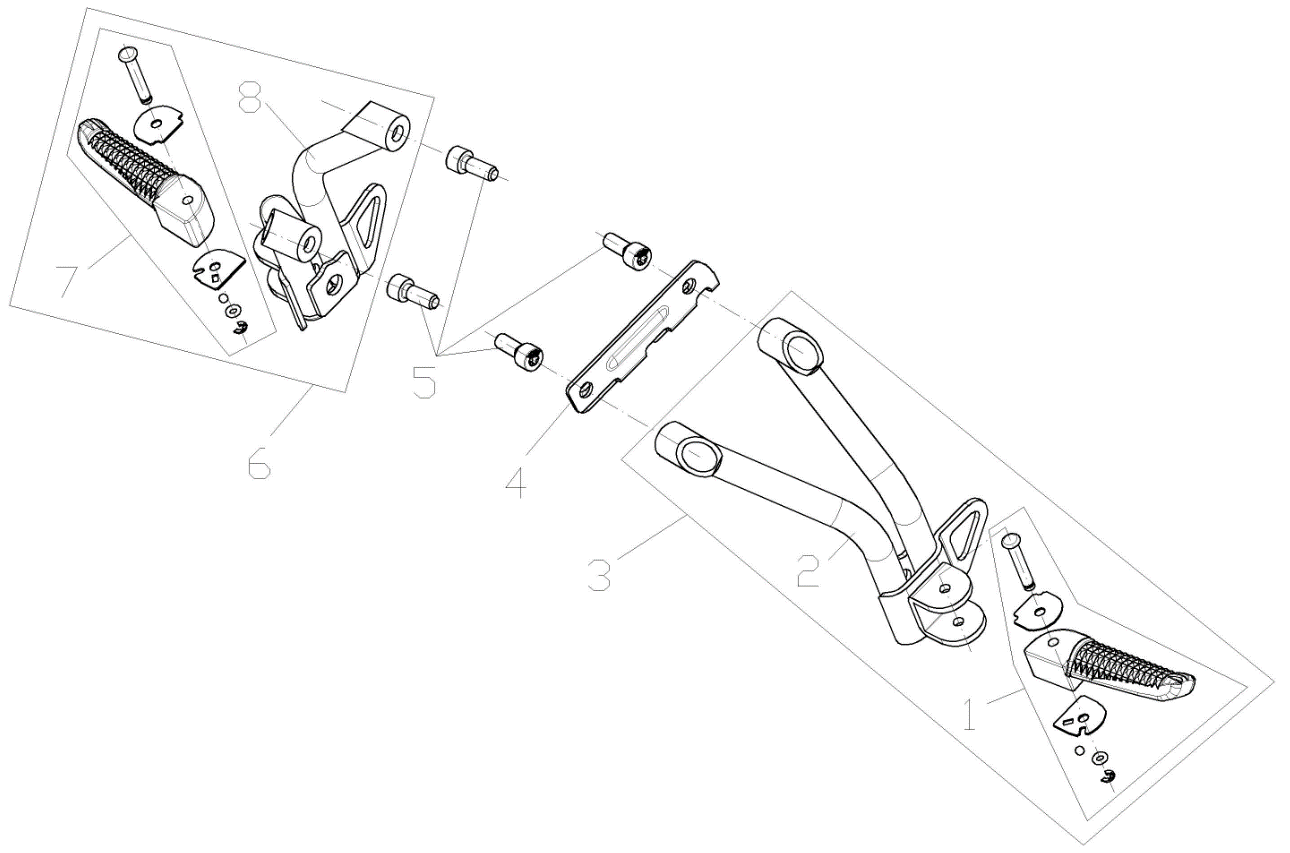

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F03-01 | BODY SET,LEFT PILLION STEP | - EA | B | ||
| F03-02 | HOLD COMP.,LEFT PILLION STEP | - EA | C | ||
| F03-03 | STEP ASSY.,LEFT PILLION | - EA | B | ||
| F03-04 | BRACKET,AIRBAG | - EA | C | ||
| F03-05 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F03-06 | STEP ASSY.,RIGHT PILLION | - EA | B | ||
| F03-07 | BODY SET,RIGHT PILLION STEP | - EA | B | ||
| F03-08 | HOLD COMP.,RIGHT PILLION STEP | - EA | C |

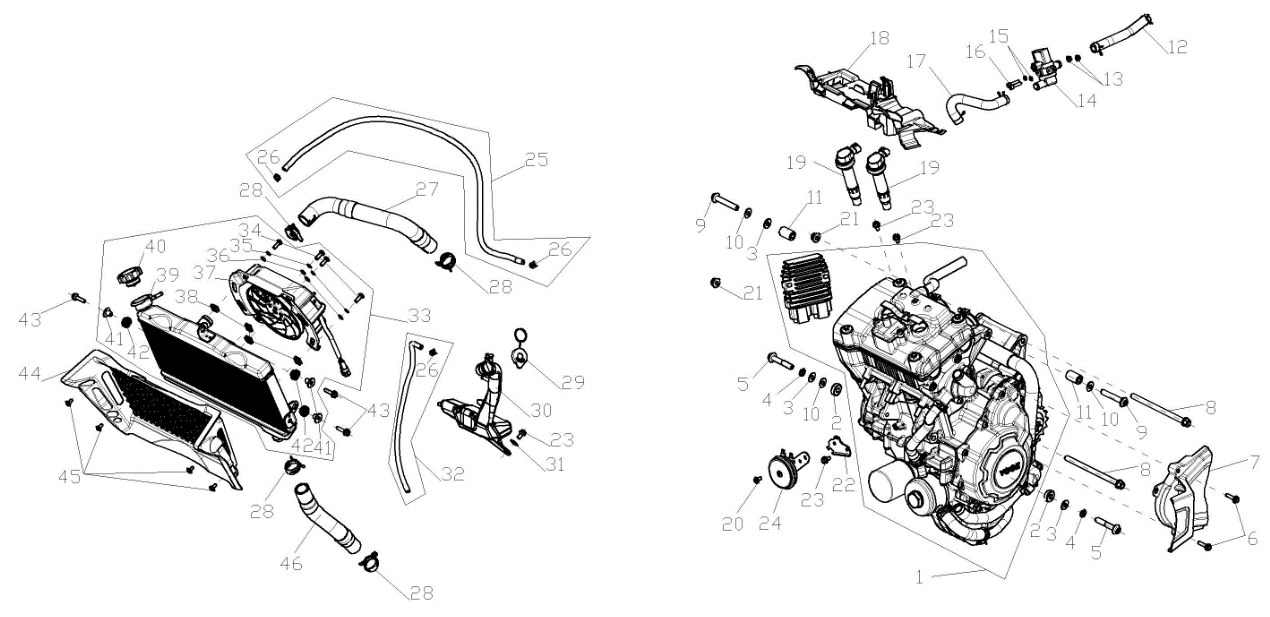

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F04-01 | ENGINE COMP. | - TAI | D | ||
| F04-02 | COLLAR | - EA | C | ||
| F04-03 | WASHER,PLAIN | - EA | C | ||
| F04-04 | WASHER,ELASTIC | - EA | C | ||
| F04-05 | FLANGE BOLT | - EA | C | ||
| F04-06 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F04-07 | COVER COMP.,LEFT REAR | - EA | C | ||
| F04-08 | AXIS | - EA | C | ||
| F04-09 | AXIS | - EA | C | ||
| F04-10 | WASHER,PLAIN | - EA | C | ||
| F04-11 | COLLAR | - EA | C | ||
| F04-12 | TUBE,BRPCSTHER | - EA | B | ||
| F04-13 | NUT,HEXAGON FLANGE | - EA | C | ||
| F04-14 | VALVE,MAGNETIC | - EA | C | ||
| F04-15 | WASHER,PLAIN | - EA | C | ||
| F04-16 | SCREW,HEXAGON SOCKET | - EA | C | ||
| F04-17 | TUBE,BRPCSTHER | - EA | B | ||
| F04-18 | BRACE,ELECTRICAL PARTS | - EA | C | ||
| F04-19 | COIL ASSY.,IGNITION | - EA | A | ||
| F04-20 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F04-21 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F04-22 | BRACKET,HORN | - EA | C | ||
| F04-23 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F04-24 | HORN | - EA | A | ||
| F04-25 | TUBE,WATER | - EA | B | ||
| F04-26 | CLAMP,TUBE | - EA | C | ||
| F04-27 | TUBE,WATER | - EA | B | ||
| F04-28 | CLAMP,TUBE | - EA | C | ||
| F04-29 | CAP,WATER TANK | - EA | B | ||
| F04-30 | WATER TANK,COOLING | - EA | B | ||
| F04-31 | WASHER,PLAIN | - EA | C | ||
| F04-32 | TUBE,WATER | - EA | B | ||
| F04-33 | HEAT RADIATOR COMP. | - EA | B | ||
| F04-34 | BOLT,HEXAGON | - EA | C | ||
| F04-35 | WASHER,ELASTIC | - EA | C | ||
| F04-36 | WASHER,PLAIN | - EA | C | ||
| F04-37 | FAN ASSY. | - EA | B | ||
| F04-38 | NUT,CLIP | - EA | C | ||
| F04-39 | BODY SET,RADIATOR | - EA | C | ||
| F04-40 | CAP,FILLER | - EA | C | ||
| F04-41 | WASHER,FLANGE | - EA | C | ||
| F04-42 | I-RUBBER | - EA | C | ||
| F04-43 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F04-44 | COVER,WATER-COOLER DECORATIVE(L/R | - EA | C | ||
| F04-45 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F04-46 | TUBE,WATER | - EA | B |

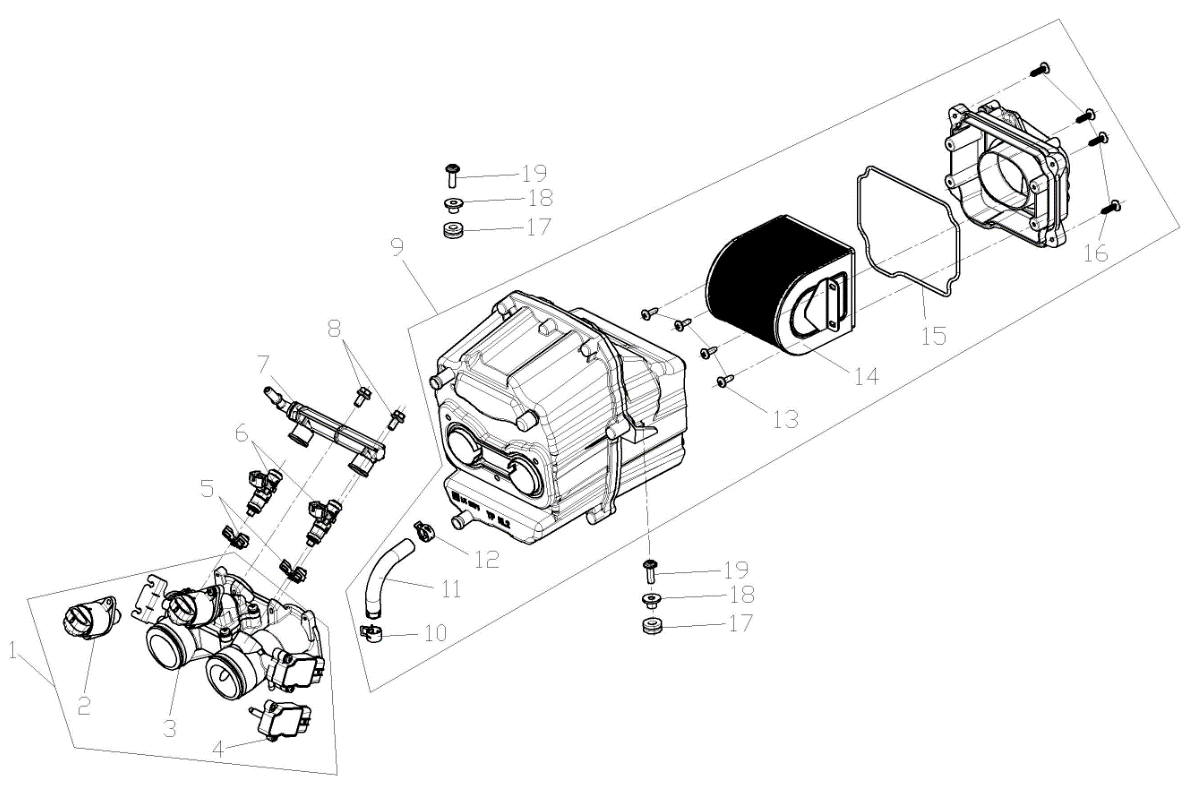

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F05-01 | VALVE BODY ASSY., THROTTLE | - SET | C | ||
| F05-02 | VALVE COMP.,IDLE CONTROL | - EA | B | ||
| F05-03 | THROTTLE GATE COMP. | - EA | C | ||
| F05-04 | SENSOR | - EA | C | ||
| F05-05 | CLAMP, FUEL JET | - EA | C | ||
| F05-06 | FUEL JET | - EA | C | ||
| F05-07 | FUEL RAIL | - EA | C | ||
| F05-08 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F05-09 | AIR CLEANER COMP. | - EA | C | ||
| F05-10 | CLAMP,TUBE | - EA | C | ||
| F05-11 | HOSE,OVERFLOW | - EA | C | ||
| F05-12 | CLAMP,TUBE | - EA | C | ||
| F05-13 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F05-14 | ELEMENT ASSY.,AIR CLEANER | - EA | A | ||
| F05-15 | GLAND STRIP,AIR CLEANER | - EA | C | ||
| F05-16 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F05-17 | I-RUBBER | - EA | C | ||
| F05-18 | COLLAR | - EA | C | ||
| F05-19 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C |

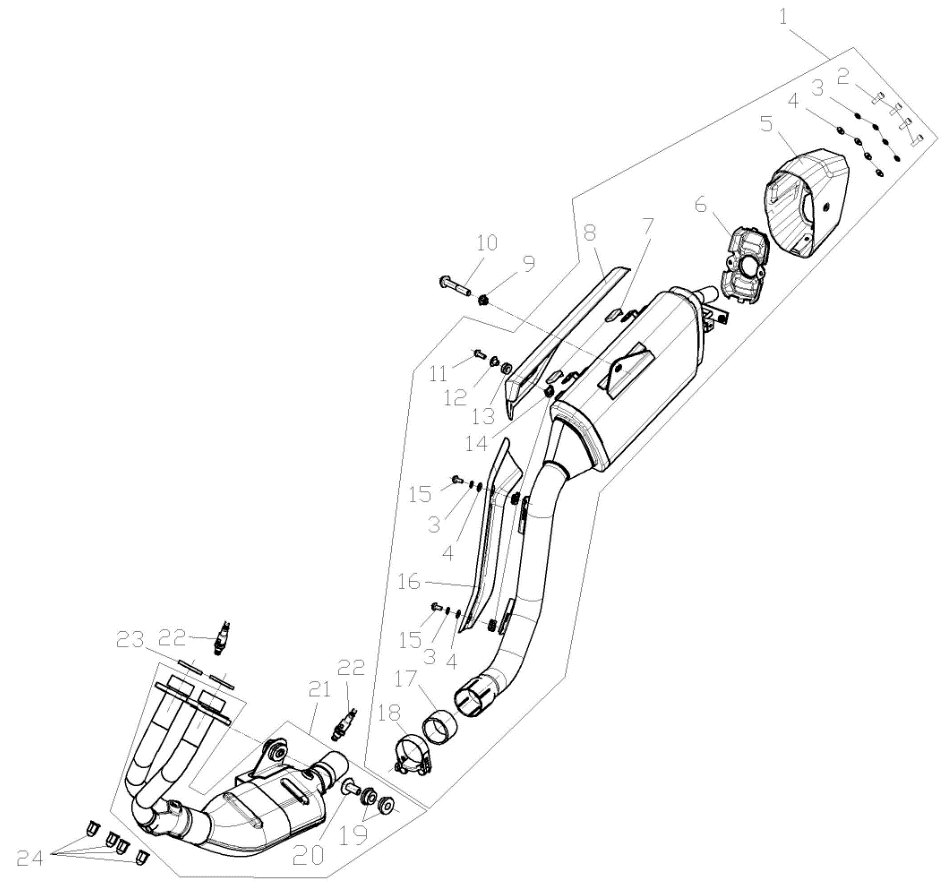

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F06-01 | REAR PART,MUFFLER | - EA | C | ||
| F06-02 | SCREW,HEXAGON SOCKET | - EA | C | ||
| F06-03 | WASHER,ELASTIC | - EA | C | ||
| F06-04 | WASHER,PLAIN | - EA | C | ||
| F06-05 | END CAP,MUFFLER REAR | - EA | C | ||
| F06-06 | PLATE,DECORATIVE RIGHT | - EA | B | ||
| F06-07 | INSULATION BLANKET | - EA | C | ||
| F06-08 | SHIELD,MUFFLER | - EA | B | ||
| F06-09 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F06-10 | FLANGE BOLT | - EA | C | ||
| F06-11 | FLANGE BOLT | - EA | C | ||
| F06-12 | WASHER,FLANGE | - EA | C | ||
| F06-13 | I-RUBBER | - EA | C | ||
| F06-14 | NUT,CLIP | - EA | C | ||
| F06-15 | FLANGE BOLT | - EA | C | ||
| F06-16 | SHIELD,EXHAUST PIPE | - EA | C | ||
| F06-17 | GRAPHITE ANNULUS | - EA | B | ||
| F06-18 | TUBE,MUFFLER CONNECTING | - EA | C | ||
| F06-19 | T-RUBBER | - EA | C | ||
| F06-20 | WASHER,FLANGE | - EA | C | ||
| F06-21 | FRONT PART,MUFFLER EXHAUST | - EA | C | ||
| F06-22 | OXYGEN SENSOR | - EA | C | ||
| F06-23 | GASKET,AIR EXHAUST PORT | - EA | A | ||
| F06-24 | CAP-SHAPED NUT | - EA | C |

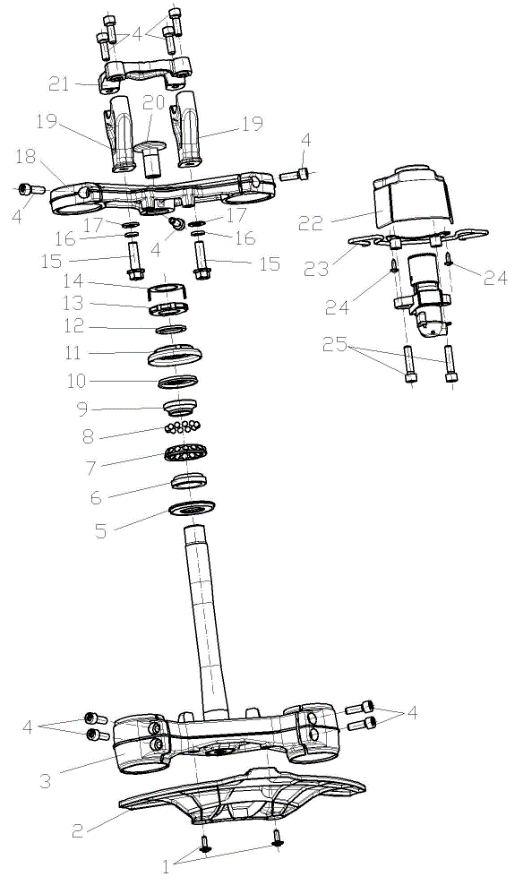

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F07-01 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F07-02 | FENDER COMP.,FRONT UPPER | - EA | C | ||
| F07-03 | BODY SET,STEERING STEM | - EA | B | ||
| F07-04 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F07-05 | OIL SEAL | - EA | B | ||
| F07-06 | CIRCLIP, STEERING BEARING | - EA | B | ||
| F07-07 | RETAINER,STEERING BEARING TOP | - EA | B | ||
| F07-08 | RETAINER,STEERING BEARING TOP | - EA | B | ||
| F07-09 | CIRCLIP, STEERING BEARING | - EA | B | ||
| F07-10 | OIL SEAL | - EA | B | ||
| F07-11 | KEP NUT,STEERING STEM | - EA | C | ||
| F07-12 | PLAIN WASHER,RUBBER | - EA | C | ||
| F07-13 | KEP NUT,STEERING STEM | - EA | C | ||
| F07-14 | WASHER,LOCKING | - EA | C | ||
| F07-15 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F07-16 | WASHER,ELASTIC | - EA | C | ||
| F07-17 | WASHER,PLAIN | - EA | C | ||
| F07-18 | BRIDGE,FORK TOP | - EA | B | ||
| F07-19 | SUPPORT,STEERING HANDLE PIPE | - EA | B | ||
| F07-20 | LOCK BOLT,STEERING STEM | - EA | C | ||
| F07-21 | HOLDER,STEERING HANDLE PIPE | - EA | B | ||
| F07-22 | COVER,IGNITION SWITCH | - EA | B | ||
| F07-23 | BRACKET,IGNITION SWITCH COVER | - EA | C | ||
| F07-24 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F07-25 | SCREW,HEXAGON SOCKET | - EA | C |

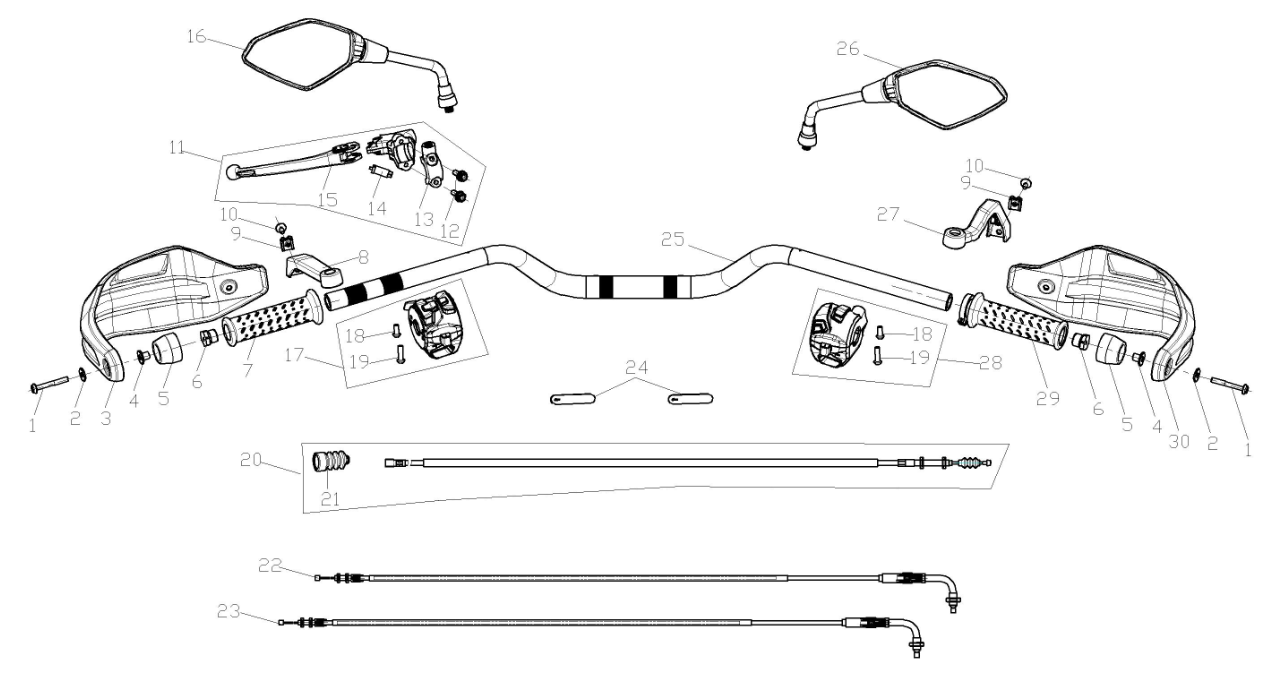

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F08-01 | FLANGE BOLT | - EA | C | ||
| F08-02 | WASHER,PLAIN | - EA | C | ||
| F08-03 | SHIELD,LEFT HANDLE | - EA | B | ||
| F08-04 | WASHER,FLANGE | - EA | C | ||
| F08-05 | WEIGHT,LEFT HANDLE | - EA | B | ||
| F08-06 | COUNTERWEIGHT,STEERING HANDLE PIPE | - EA | B | ||
| F08-07 | GRIP SET,HANDLE | - EA | A | ||
| F08-08 | BRACKET,HANDLE SHIELD | - EA | C | ||
| F08-09 | NUT,CLIP | - EA | C | ||
| F08-10 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F08-11 | LEVER COMP.,LEFT STEERING HANDLE | - EA | B | ||
| F08-12 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F08-13 | CLIP,LEFT LEVER | - EA | C | ||
| F08-14 | SWITCH ASSY.,CLUTCH | - EA | B | ||
| F08-15 | ROD OF LEFT LEVER | - EA | C | ||
| F08-16 | MIRROR,LEFT REAR VIEW | - EA | A | ||
| F08-17 | SWITCH ASSY.,LEFT | - EA | B | ||
| F08-18 | SCREW,CROSS RECESSED PAN | - EA | C | ||
| F08-19 | SCREW,CROSS RECESSED PAN | - EA | C | ||
| F08-20 | CABLE COMP.,CLUTCH | - EA | A | ||
| F08-21 | SHEATH,CLUTCH CABLE | - EA | C | ||
| F08-22 | CABLE COMP.,THROTTLE | - EA | A | ||
| F08-23 | CABLE COMP.,THROTTLE | - EA | A | ||
| F08-24 | BAND | - EA | C | ||
| F08-25 | PIPE COMP.,STEERING HANDLE | - EA | C | ||
| F08-26 | MIRROR,RIGHT REAR VIEW | - EA | A | ||
| F08-27 | BRACKET,HANDLE SHIELD | - EA | C | ||
| F08-28 | SWITCH ASSY.,RIGHT | - EA | B | ||
| F08-29 | GREASER COMP. | - EA | A | ||
| F08-30 | SHIELD,RIGHT HANDLE | - EA | B |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

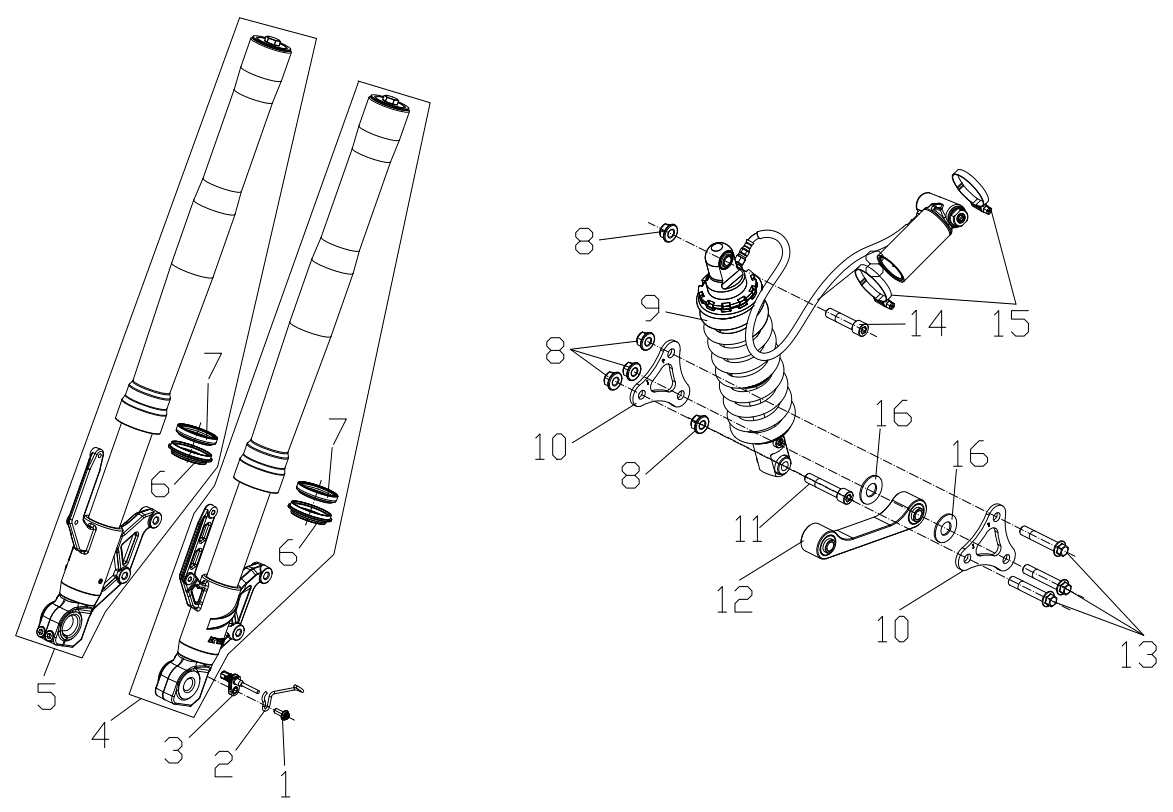

| F09-01 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F09-02 | CLAMP,WIRE | - EA | C | ||
| F09-03 | TRANSDUCER,VELOCITY | - EA | C | ||
| F09-04 | FORK ASSY.,LEFT FRONT | - EA | B | ||
| F09-05 | FORK ASSY.,RIGHT FRONT | - EA | B | ||
| F09-06 | SLEEVE GASKET,FRONT FORK DUST SEAL | - EA | B | ||
| F09-07 | OIL SEAL | - EA | B | ||
| F09-08 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F09-09 | ABSORBER ASSY.,LEFT REAR SHOCK | - EA | B | ||
| F09-10 | CRADLE COMP.,MASTER | - EA | C | ||
| F09-11 | AXIS | - EA | C | ||
| F09-12 | SUB CRADLE,SET | - EA | C | ||
| F09-13 | AXIS | - EA | C | ||
| F09-14 | AXIS | - EA | C | ||
| F09-15 | HOOP ASSY. | - EA | C | ||
| F09-16 | WASHER,PLAIN | - EA | C |
Assembly diagram

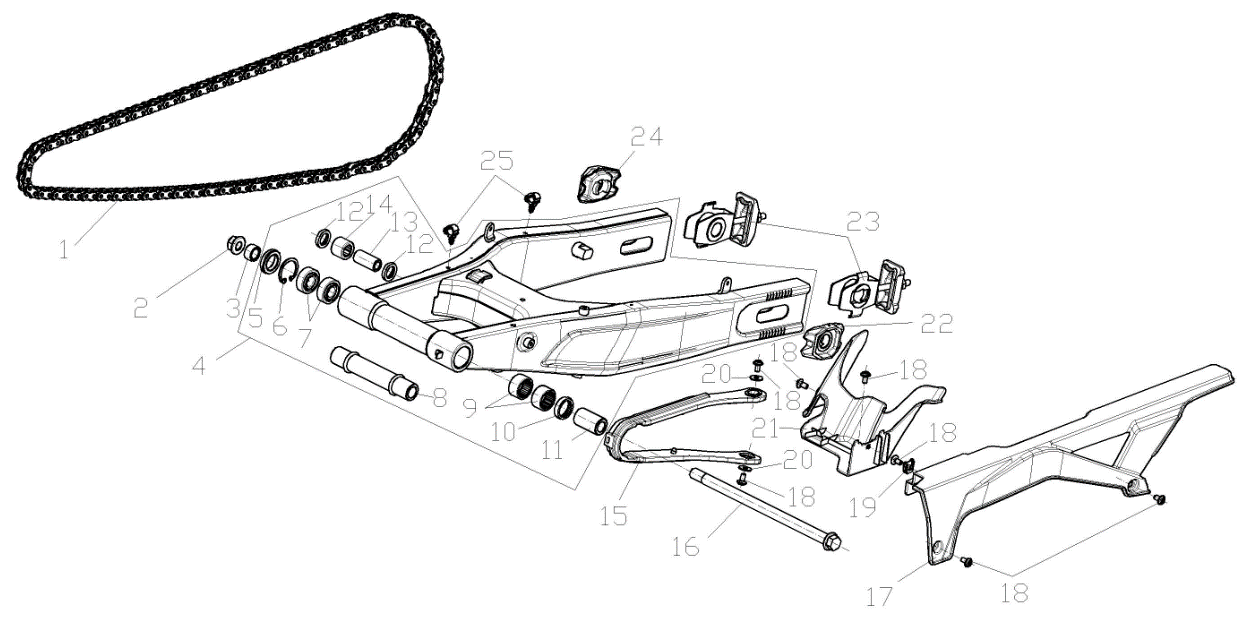

| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F10-01 | CHAIN | - EA | A | ||
| F10-02 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F10-03 | COLLAR | - EA | C | ||
| F10-04 | FORK COM.,REAR | - EA | C | ||
| F10-05 | OIL SEAL | - EA | B | ||
| F10-06 | CHECK RING,ELASTIC | - EA | B | ||
| F10-07 | BEARING | - EA | B | ||
| F10-08 | COLLAR | - EA | C | ||
| F10-09 | BEARING | - EA | B | ||
| F10-10 | OIL SEAL | - EA | B | ||
| F10-11 | COLLAR | - EA | C | ||
| F10-12 | OIL SEAL | - EA | B | ||
| F10-13 | COLLAR | - EA | C | ||
| F10-14 | BEARING | - EA | B | ||
| F10-15 | SLIDER,DRIVE CHAIN | - EA | B | ||
| F10-16 | AXIS | - EA | C | ||
| F10-17 | CASE, CHAIN | - EA | B | ||
| F10-18 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F10-19 | NUT,CLIP | - EA | C | ||
| F10-20 | WASHER,PLAIN | - EA | C | ||
| F10-21 | FENDER COMP.,REAR | - EA | B | ||
| F10-22 | PLATE,ADJUSTER HANGER | - EA | C | ||
| F10-23 | ADJUSTOR,DRIVE CHAIN LEFT | - EA | B | ||
| F10-24 | PLATE,ADJUSTER HANGER | - EA | C | ||
| F10-25 | CLIP,LOCATING WIRE | - EA | C |

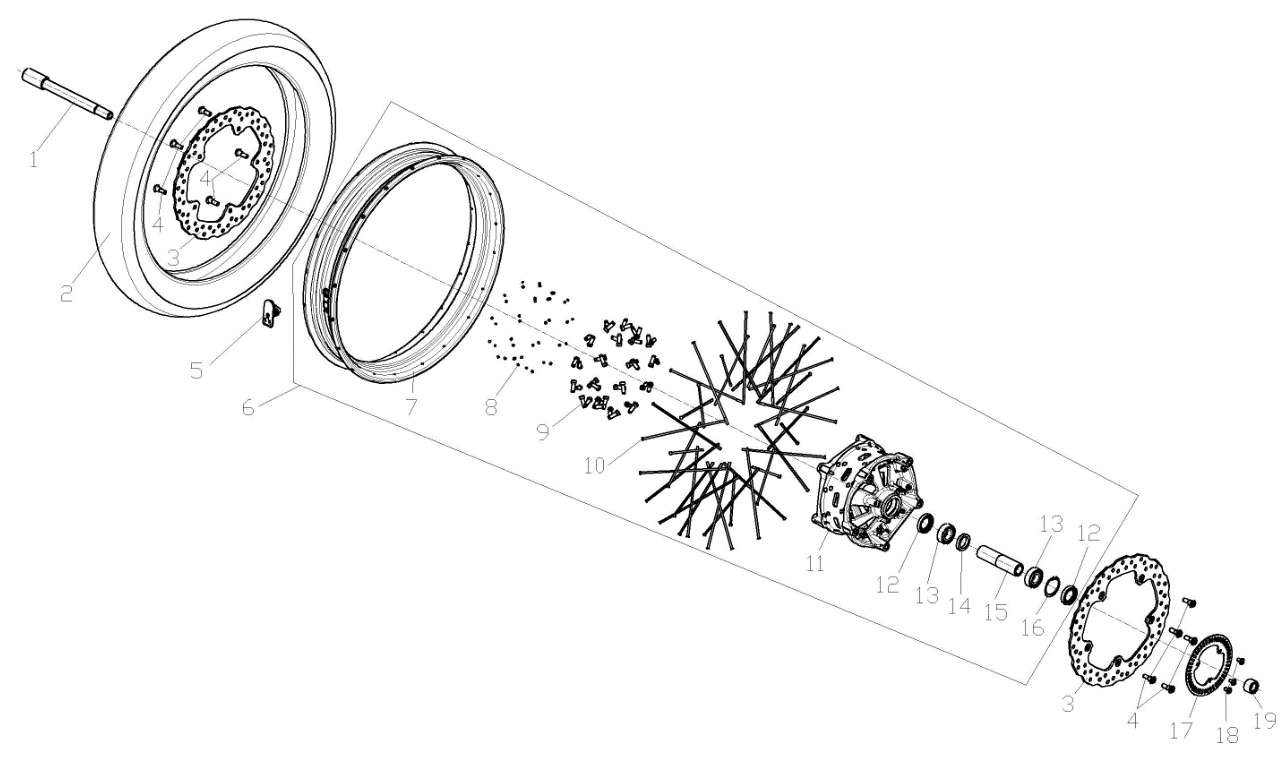

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F11-01 | AXIS | - EA | C | ||
| F11-02 | TYRE ASSY. | - EA | A | ||
| F11-03 | DISK COMP.,LEFT FRONT BRAKE | - EA | C | ||
| F11-04 | FASTENING BOLT,BRAKE DISK | - EA | C | ||
| F11-05 | SENSOR，TIRE PRESSURE | - EA | C | ||
| F11-06 | WHEEL,FRONT | - EA | B | Matt black | |
| F11-06 | WHEEL,FRONT | - EA | B | Desert Yellow | |
| F11-07 | RIM,FRONT WHEEL | - EA | B | Matt black | |
| F11-07 | RIM,FRONT WHEEL | - EA | B | Desert Yellow | |
| F11-08 | BOLT,PLUG | - EA | C | ||
| F11-09 | NUT,FRONT WHEEL SPOKE | - EA | A | ||
| F11-10 | SPOKE,FRONT WHEEL OUTSIDE | - EA | A | ||
| F11-11 | BODY SET,FRONT WHEEL HUB | - EA | C | ||
| F11-12 | OIL SEAL | - EA | B | ||
| F11-13 | BEARING | - EA | B | ||
| F11-14 | WASHER,PLAIN | - EA | C | ||
| F11-15 | COLLAR | - EA | C | ||
| F11-16 | CHECK RING,ELASTIC | - EA | B | ||
| F11-17 | GEAR RING, ABS | - EA | C | ||
| F11-18 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F11-19 | COLLAR | - EA | C |

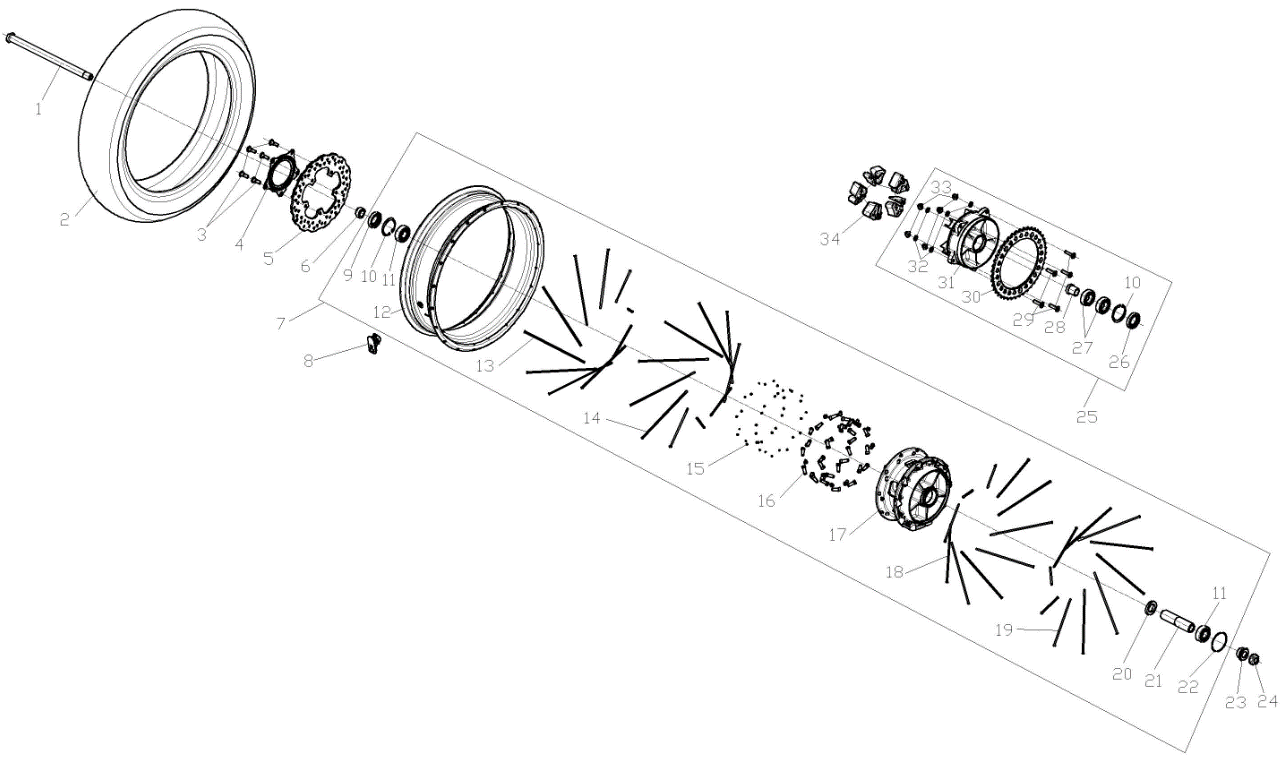

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F12-01 | AXIS | - EA | C | ||
| F12-02 | TYRE ASSY. | - EA | A | ||
| F12-03 | FASTENING BOLT,BRAKE DISK | - EA | C | ||
| F12-04 | GEAR RING, ABS | - EA | C | ||
| F12-05 | DISK COMP.,LEFT REAR BRAKE | - EA | C | ||
| F12-06 | COLLAR | - EA | C | ||
| F12-07 | WHEEL,REAR | - EA | B | Matt black | |
| F12-07 | WHEEL,REAR | - EA | B | Desert Yellow | |
| F12-08 | Tire Pressure Sensor | - EA | C | ||
| F12-09 | OIL SEAL | - EA | B | ||
| F12-10 | CHECK RING,ELASTIC | - EA | B | ||
| F12-11 | BEARING | - EA | B | ||
| F12-12 | RIM,REAR WHEEL | - EA | B | Matt black | |
| F12-12 | RIM,REAR WHEEL | - EA | B | Desert Yellow | |
| F12-13 | SPOKE,REAR WHEEL OUTSIDE | - EA | A | ||
| F12-14 | SPOKE,REAR WHEEL INSIDE | - EA | A | ||
| F12-15 | BOLT,PLUG | - EA | C | ||
| F12-16 | NUT,REAR WHEEL SPOKE | - EA | A | ||
| F12-17 | BODY SET,REAR WHEEL HUB | - EA | C | ||
| F12-18 | SPOKE,REAR WHEEL INSIDE | - EA | A | ||
| F12-19 | SPOKE,REAR WHEEL OUTSIDE | - EA | A | ||
| F12-20 | WASHER,PLAIN | - EA | C | ||
| F12-21 | COLLAR | - EA | C | ||
| F12-22 | RING,SEAL | - EA | B | ||
| F12-23 | COLLAR | - EA | C | ||
| F12-24 | FLANGE NUT,PREVAILING TORQUE TYPE HEXAGON WITH NONMETALLIC INSERT | - EA | C | ||
| F12-25 | DAMPER COMP. | - EA | B | ||
| F12-26 | OIL SEAL | - EA | B | ||
| F12-27 | BEARING | - EA | B | ||
| F12-28 | COLLAR | - EA | C | ||
| F12-29 | BOLT,SPROCKET WHEEL | - EA | B | ||
| F12-30 | SPROCKET WHEEL | - EA | A | ||
| F12-31 | SEAT,SPROCKET WHEEL | - EA | B | ||
| F12-32 | WASHER,PLAIN | - EA | C | ||
| F12-33 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F12-34 | DAMPING PIECE,REAR WHEEL | - EA | A |

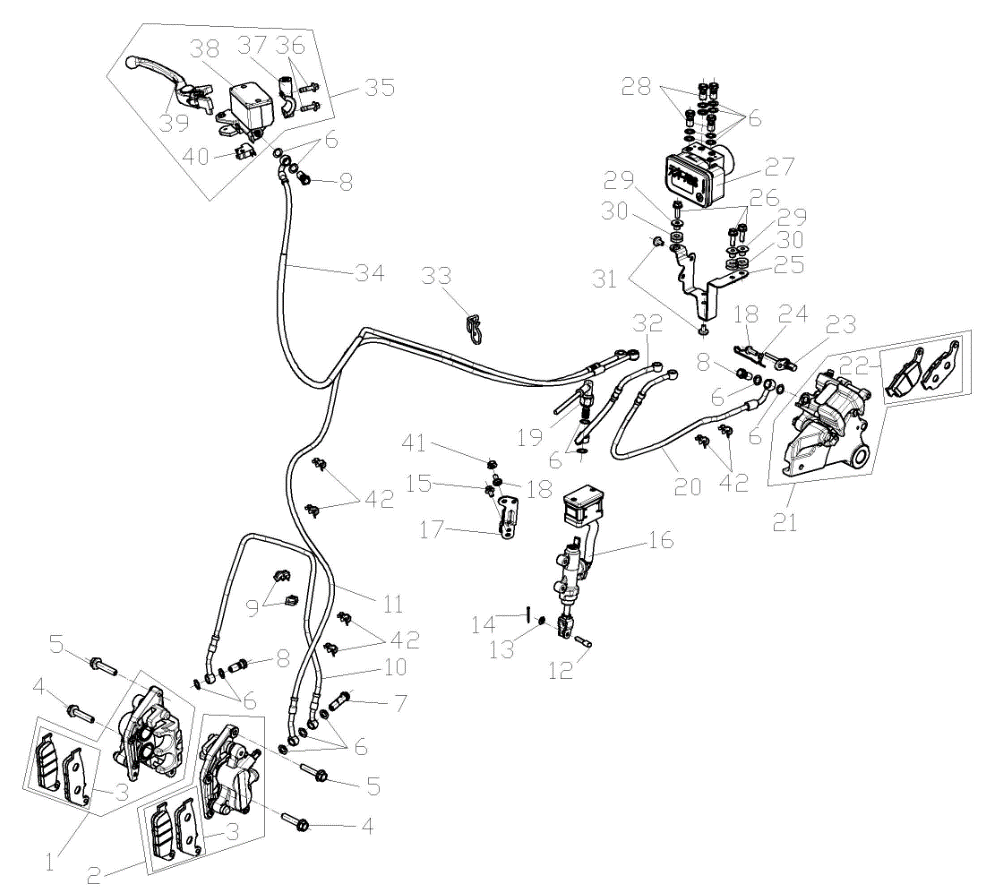

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F13-01 | CALIPER ASSY.,RIGHT | - EA | C | ||
| F13-02 | CALIPER ASSY.,LEFT | - EA | C | ||
| F13-03 | PAD COMP.,FRONT DISC-BRAKE | - SET | A | ||
| F13-04 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F13-05 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F13-06 | WASHER,PLAIN | - EA | C | ||
| F13-07 | BOLT,DISC-BRAKE HOSE | - EA | C | ||
| F13-08 | BOLT,DISC-BRAKE HOSE | - EA | C | ||
| F13-09 | CLAMP,TUBE | - EA | C | ||
| F13-10 | HOSE COMP.,FRONT DISC-BRAKE | - EA | B | ||
| F13-11 | ABS CONNECTIVE OIL TUBE | - EA | C | ||
| F13-12 | PIN,CLEVIS | - EA | C | ||
| F13-13 | WASHER,PLAIN | - EA | C | ||
| F13-14 | PIN,COTTER | - EA | C | ||
| F13-15 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F13-16 | PUMP, REAR DISC-BRAKE UPPER | - EA | C | ||
| F13-17 | BRACKET,DISC-BRAKE OIL CUP | - EA | B | ||
| F13-18 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F13-19 | SWITCH ASSY.,REAR BRAKE | - EA | B | ||
| F13-20 | ABS CONNECTIVE OIL TUBE | - EA | C | ||
| F13-21 | PUMP, REAR DISC-BRAKE LOWER | - EA | C | ||
| F13-22 | PAD COMP.,REAR DISC-BRAKE LEFT | - SET | A | ||
| F13-23 | TRANSDUCER,VELOCITY | - EA | C | ||
| F13-24 | CLAMP,WIRE | - EA | C | ||
| F13-25 | INSTALLATION BRACKET, ABS | - EA | C | ||
| F13-26 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F13-27 | ABS.ANTI-LOCKING UP SYSTEM | - EA | C | ||
| F13-28 | BOLT,DISC-BRAKE HOSE | - EA | C | ||
| F13-29 | COLLAR | - EA | C | ||
| F13-30 | I-RUBBER | - EA | C | ||
| F13-31 | SCREW,HEXAGON SOCKET | - EA | C | ||
| F13-32 | ABS CONNECTIVE OIL TUBE | - EA | C | ||
| F13-33 | CLAMP,WIRE | - EA | C | ||
| F13-34 | ABS CONNECTIVE OIL TUBE | - EA | C | ||
| F13-35 | CYLINDER ASSY.,MASTER | - EA | B | ||
| F13-36 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F13-37 | CLIP,RIGHT LEVER | - EA | C | ||
| F13-38 | OIL CUP,DISC-BRAKE | - EA | C | ||
| F13-39 | LEVER COMP.,RIGHT STEERING HANDLE | - EA | B | ||
| F13-40 | SWITCH ASSY.,FRONT DISC-BRAKE | - EA | B | ||
| F13-41 | NUT,HEXAGON FLANGE | - EA | C | ||
| F13-42 | CLAMP,TUBE | - EA | C |

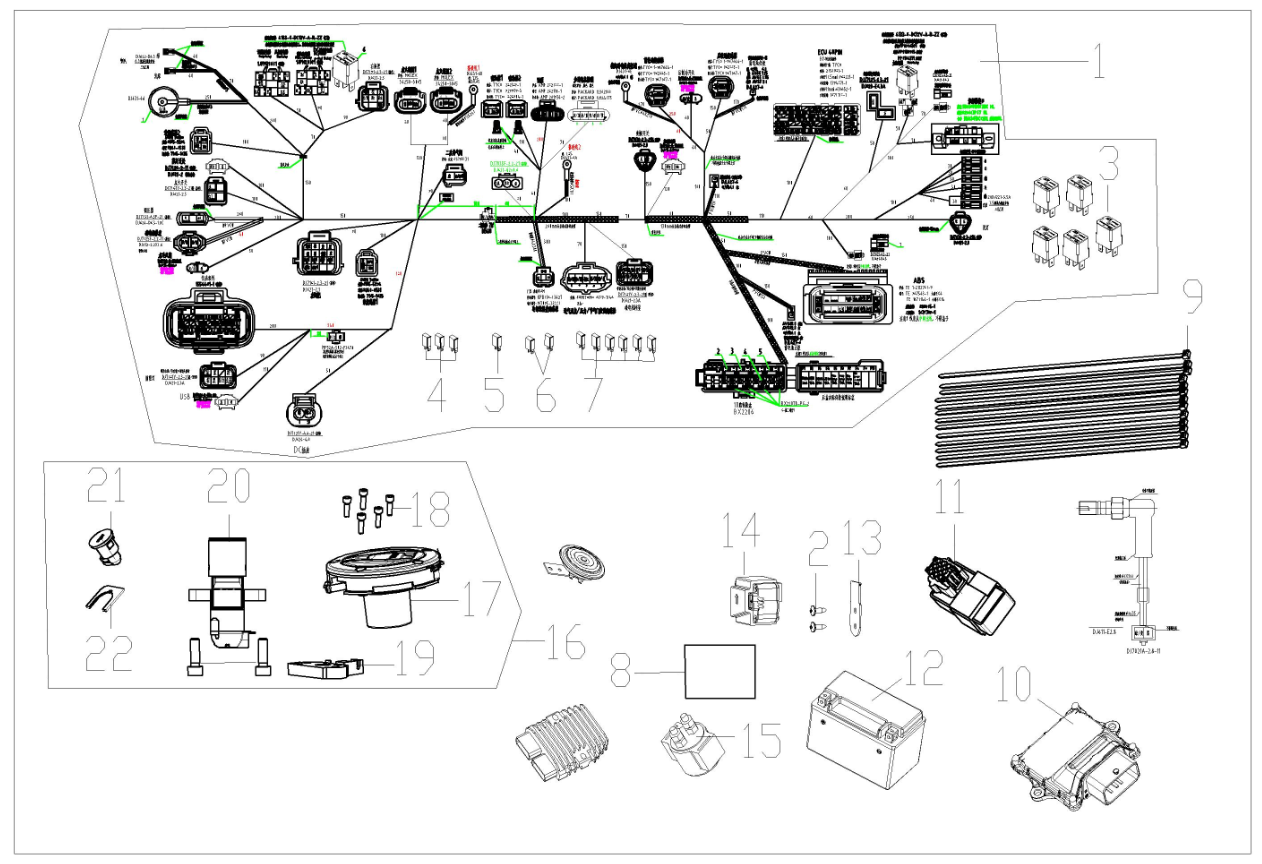

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F14-01 | HARNESS,WIRE | - EA | B | ||
| F14-02 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F14-03 | RELAY ASSY.,CONTROLING | - EA | B | ||
| F14-04 | SECTION,SAFE | - EA | A | ||
| F14-05 | SECTION,SAFE | - EA | A | ||
| F14-06 | SECTION,SAFE | - EA | A | ||
| F14-07 | SECTION,SAFE | - EA | A | ||
| F14-08 | SHEATH,ELECTRICAL PARTS | - EA | C | ||
| F14-09 | BAND | - EA | C | ||
| F14-10 | ECU | - EA | C | 47KW A3 | |
| F14-10 | ECU | - EA | C | 35KW A2 | |
| F14-11 | FLASHER | - EA | A | ||
| F14-12 | BATTERY ASSY. | - EA | A | ||
| F14-13 | CONTROLLER INSTALLATION BRACKET | - EA | C | ||
| F14-14 | SENSOR | - EA | C | ||
| F14-15 | STARTING RELAY ASSY. | - EA | A | ||
| F14-16 | LOCK KIT | - EA | B | ||
| F14-17 | LOCK,FUEL TANK | - EA | B | ||
| F14-18 | SCREW,HEXAGON SOCKET | - EA | C | ||
| F14-19 | DEVICE,SEAT LOCKING | - EA | B | ||
| F14-20 | SWITCH ASSY.,IGNITION | - EA | B | ||
| F14-21 | LOCK,SEAT | - EA | B | ||
| F14-22 | SHEET,SEAT LOCK | - EA | C |

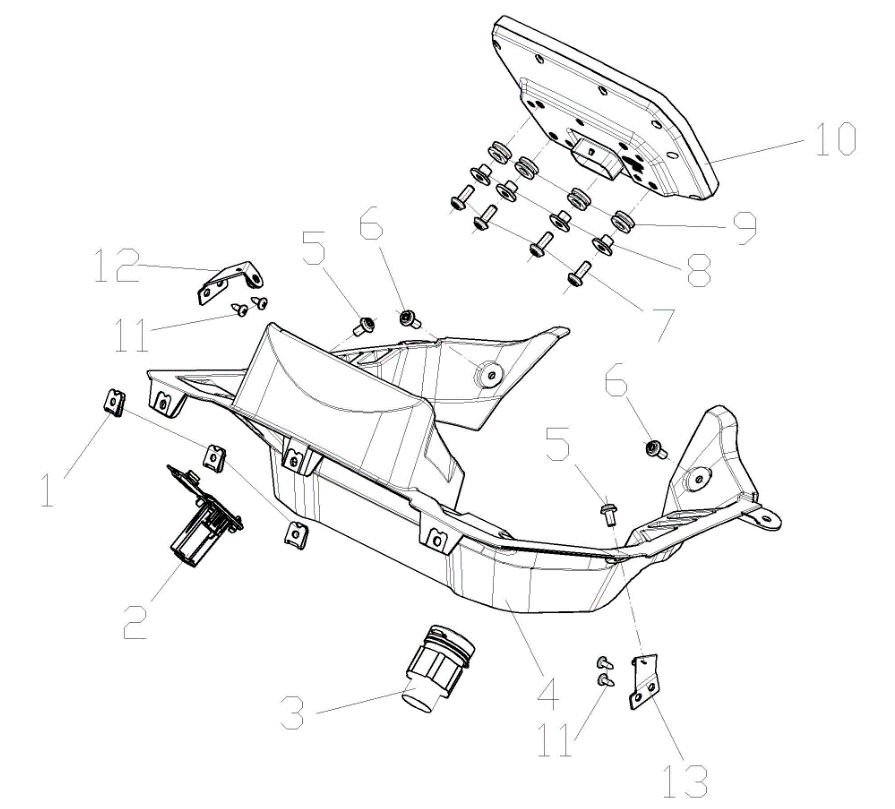

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F15-01 | NUT,CLIP | - EA | C | ||
| F15-02 | USB/AUX | - EA | C | ||
| F15-03 | SOCKET,MULTIFUNCTION | - EA | C | ||
| F15-04 | CAP,METER DECORATIVE | - EA | C | ||
| F15-05 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F15-06 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F15-07 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F15-08 | COLLAR | - EA | C | ||
| F15-09 | I-RUBBER | - EA | C | ||
| F15-10 | INSTRUMENT SET | - EA | B | ||
| F15-11 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F15-12 | LUG,METER FIXING RIGHT | - EA | C | ||
| F15-13 | LUG,METER FIXING LEFT | - EA | C |

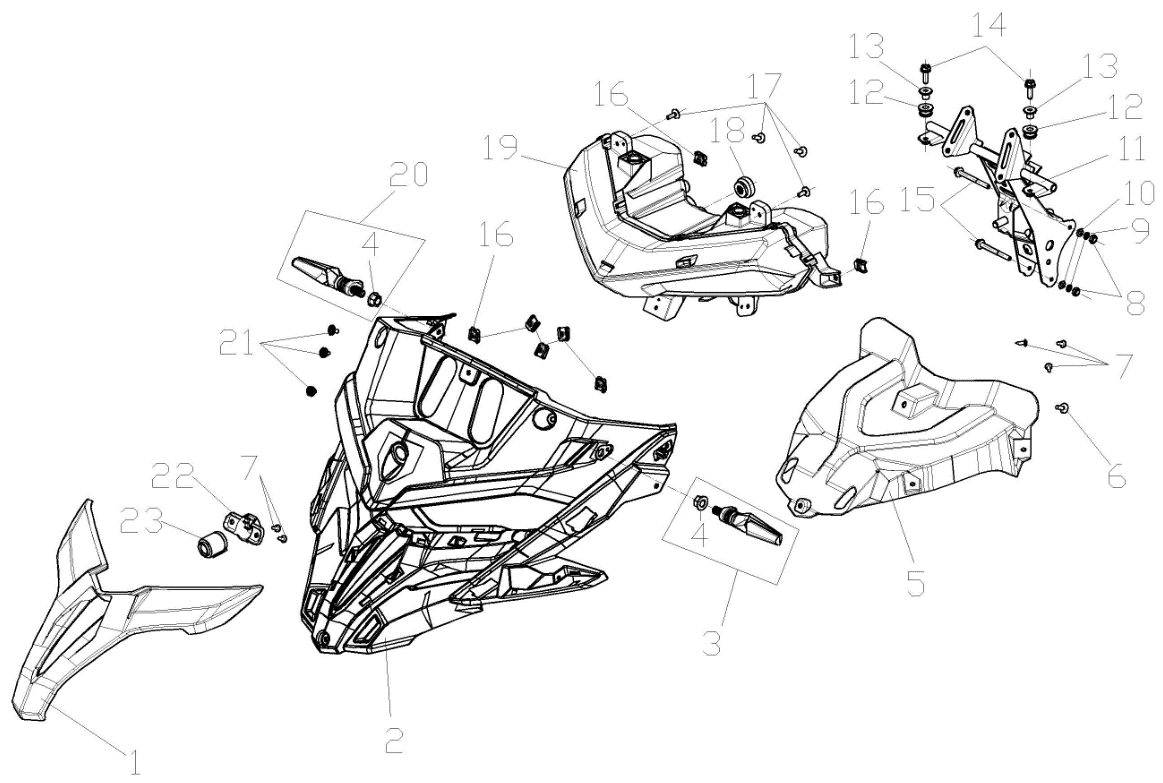

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F16-01 | PANEL,FRONT | - EA | B | Matt black | |
| F16-01 | PANEL,FRONT | - EA | B | Desert Yellow | |
| F16-02 | LENS,HEAD LIGHT LEFT DECORATING | - EA | B | ||
| F16-03 | SIGNAL ASSY.,LEFT FRONT TURN | - EA | B | ||
| F16-04 | NUT,HEXAGON FLANGE | - EA | C | ||
| F16-05 | FRONT FENDER OF FRONT FORK | - EA | C | ||
| F16-06 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F16-07 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F16-08 | NUT,PREVAILING TORQUE TYPE HEXAGON WITH NONMETALLIC | - EA | C | ||
| F16-09 | WASHER,ELASTIC | - EA | C | ||
| F16-10 | WASHER,PLAIN | - EA | C | ||
| F16-11 | BRACKET,HEAD LIGHT | - EA | C | ||
| F16-12 | T-RUBBER | - EA | C | ||
| F16-13 | WASHER,FLANGE | - EA | C | ||
| F16-14 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F16-15 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F16-16 | NUT,CLIP | - EA | C | ||
| F16-17 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F16-18 | CUSHION,HEAD LIGHT BRACKET | - EA | C | ||
| F16-19 | HEADLIGHT ASSY. | - EA | B | ||
| F16-20 | SIGNAL ASSY.,RIGHT FRONT TURN | - EA | B | ||
| F16-21 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F16-22 | INSTALLATION BRACKET OF PICK-UP HEAD | - EA | C | ||
| F16-23 | PICK-UP HEAD | - EA | B |

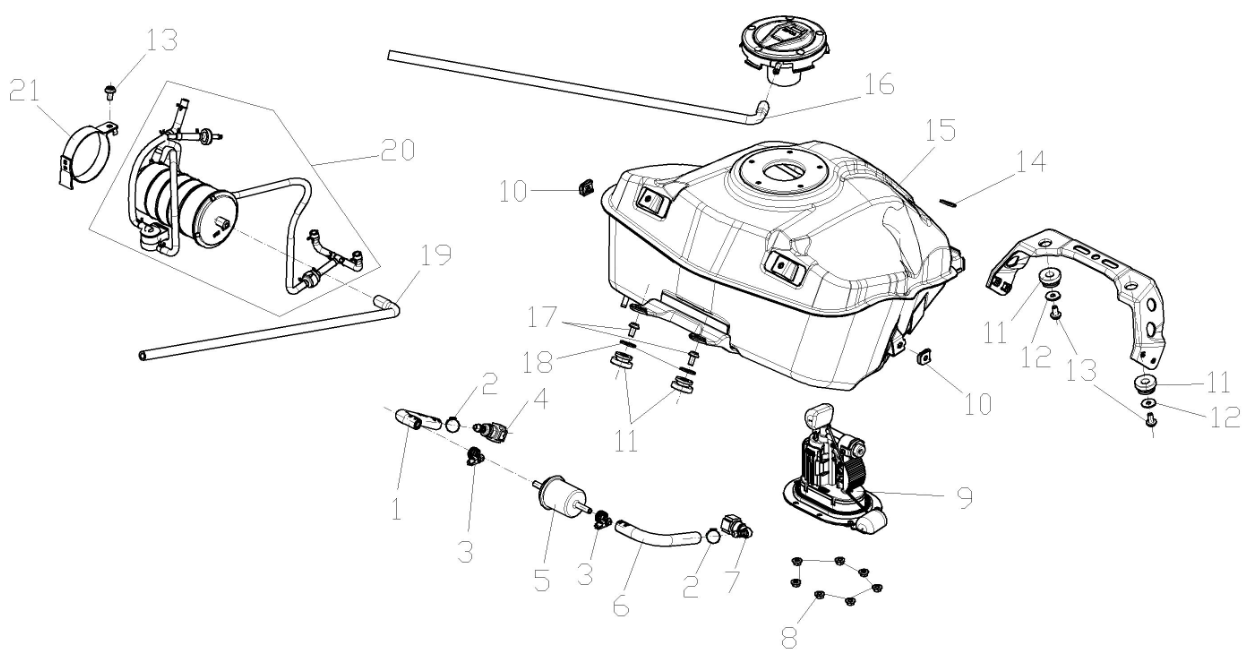

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F17-01 | TUBE,FUEL | - EA | B | ||
| F17-02 | CLAMP,TUBE | - EA | C | ||
| F17-03 | CLAMP ASSY. | - EA | C | ||
| F17-04 | JOINT, SWIFT CHANGE | - EA | C | ||
| F17-05 | FILTER,FUEL | - EA | B | ||
| F17-06 | TUBE,FUEL | - EA | B | ||
| F17-07 | JOINT, SWIFT CHANGE | - EA | C | ||
| F17-08 | NUT,HEXAGON FLANGE | - EA | C | ||
| F17-09 | FUEL PUMP,ELECTRIC | - EA | C | ||
| F17-10 | NUT,CLIP | - EA | C | ||
| F17-11 | RUBBER JACKET,FUEL TANK PROP | - EA | C | ||
| F17-12 | WASHER,PLAIN | - EA | C | ||
| F17-13 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F17-14 | PLAIN WASHER,RUBBER | - EA | C | ||
| F17-15 | FUEL TANK COMP. | - EA | C | ||
| F17-16 | HOSE,OVERFLOW | - EA | C | ||
| F17-17 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F17-18 | WASHER,PLAIN | - EA | C | ||
| F17-19 | HOSE,OVERFLOW | - EA | C | ||
| F17-20 | CONTROLLER ASSY.,FUEL EVAPORATION | - EA | C | ||
| F17-21 | CLAMP ASSY. | - EA | C |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F18-01 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F18-02 | COLLAR | - EA | C | ||
| F18-03 | I-RUBBER | - EA | C | ||
| F18-04 | BODY COVER.,RIGHT WITHOUT HOLE FOR BRACKET OF BOX KIT | - EA | C | Matt black | |
| F18-04 | BODY COVER.,RIGHT WITHOUT HOLE FOR BRACKET OF BOX KIT | - EA | C | Desert Yellow | |

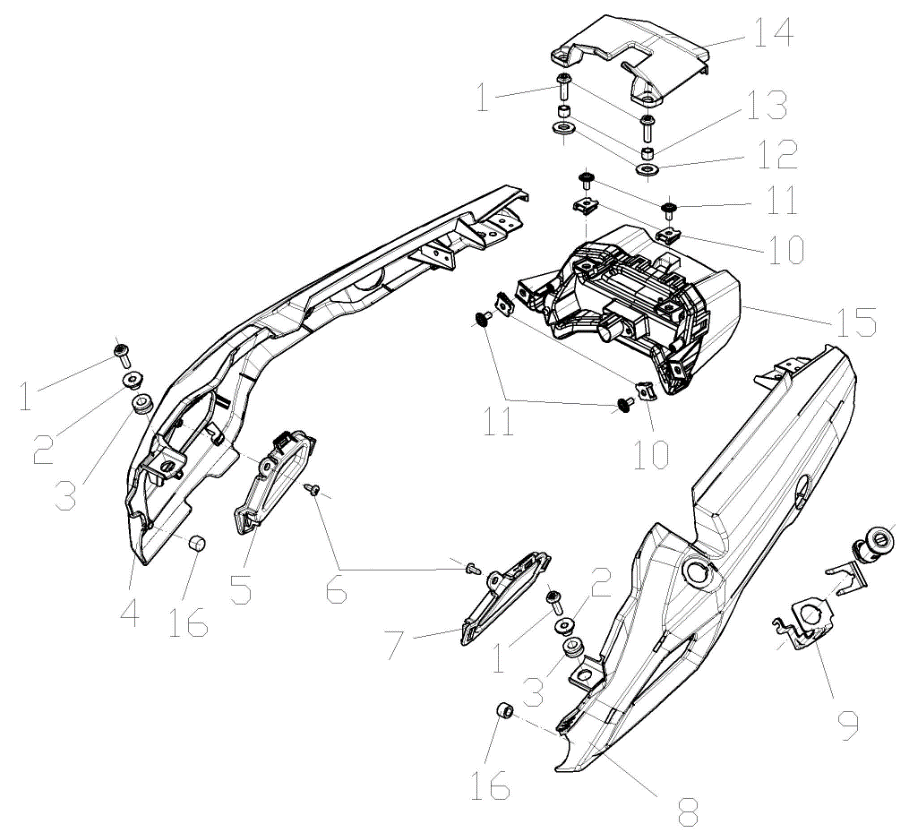

| F18-04 | BODY COVER.,RIGHT WITH HOLE FOR BRACKET OF BOX KIT | - EA | B | Matt black | |
| F18-04 | BODY COVER.,RIGHT WITH HOLE FOR BRACKET OF BOX KIT | - EA | B | Desert Yellow | |
| F18-05 | PLATE,RIGHT BODY COVER DECORATIVE | - EA | B | ||
| F18-06 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F18-07 | PLATE,LEFT BODY COVER DECORATIVE | - EA | B | ||
| F18-08 | BODY COVER.,RIGHT WITHOUT HOLE FOR BRACKET OF BOX KIT | - EA | B | Matt black | |
| F18-08 | BODY COVER.,RIGHT WITHOUT HOLE FOR BRACKET OF BOX KIT | - EA | B | Desert Yellow | |
| F18-08 | BODY COVER.,LEFT WITH HOLE FOR BRACKET OF BOX KIT | - EA | B | Matt black | |
| F18-08 | BODY COVER.,LEFT WITH HOLE FOR BRACKET OF BOX KIT | - EA | B | Desert Yellow | |
| F18-09 | BRACKET,SEAT LOCK | - EA | C | ||
| F18-10 | NUT,CLIP | - EA | C | ||
| F18-11 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F18-12 | PLAIN WASHER,RUBBER | - EA | C | ||
| F18-13 | COLLAR | - EA | C | ||
| F18-14 | COVER COMP.,TAIL | - EA | B | ||
| F18-15 | LIGHT UNIT,TAIL | - EA | B | ||
| F18-16 | RUBBER JACKET, DAMPING | - EA | C |
Assembly diagrams
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

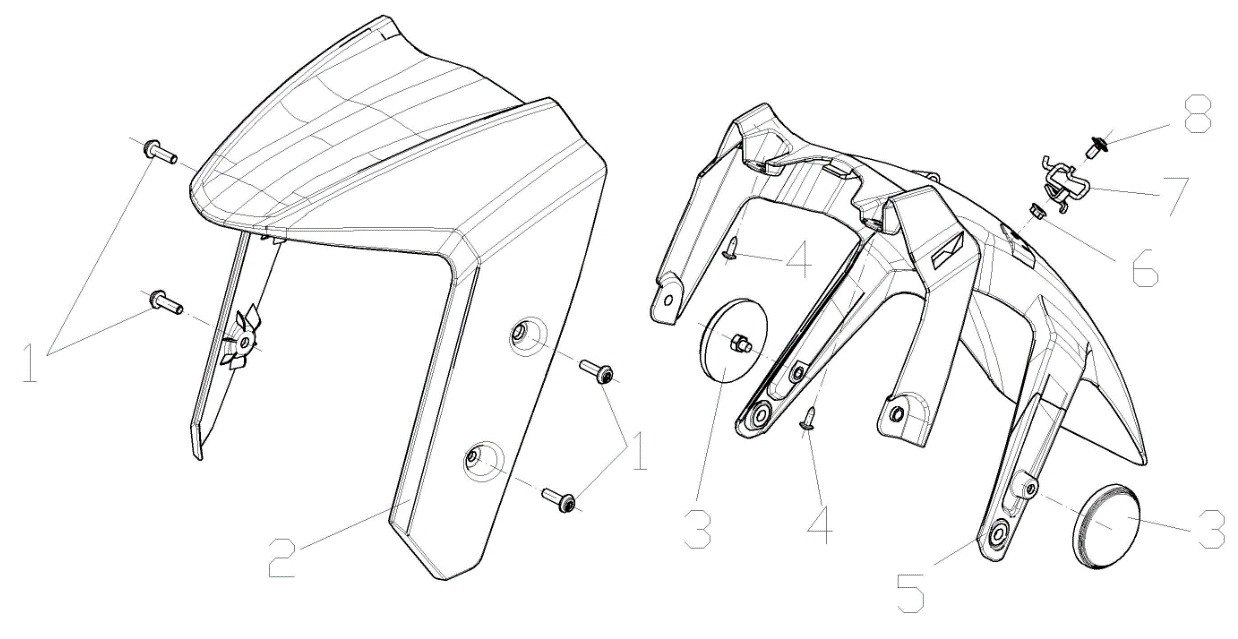

| F19-01 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F19-02 | FRONT PART,FRONT FENDER | - EA | B | Matt black | |
| F19-02 | FRONT PART,FRONT FENDER | - EA | B | Desert Yellow | |
| F19-03 | REFLECTOR,LEFT SIDE | - FU | B | ||
| F19-04 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F19-05 | REAR PART,FRONT FENDER | - EA | B | ||
| F19-06 | NUT,HEXAGON FLANGE | - EA | C | ||
| F19-07 | CLAMP,TUBE | - EA | C | ||
| F19-08 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C |

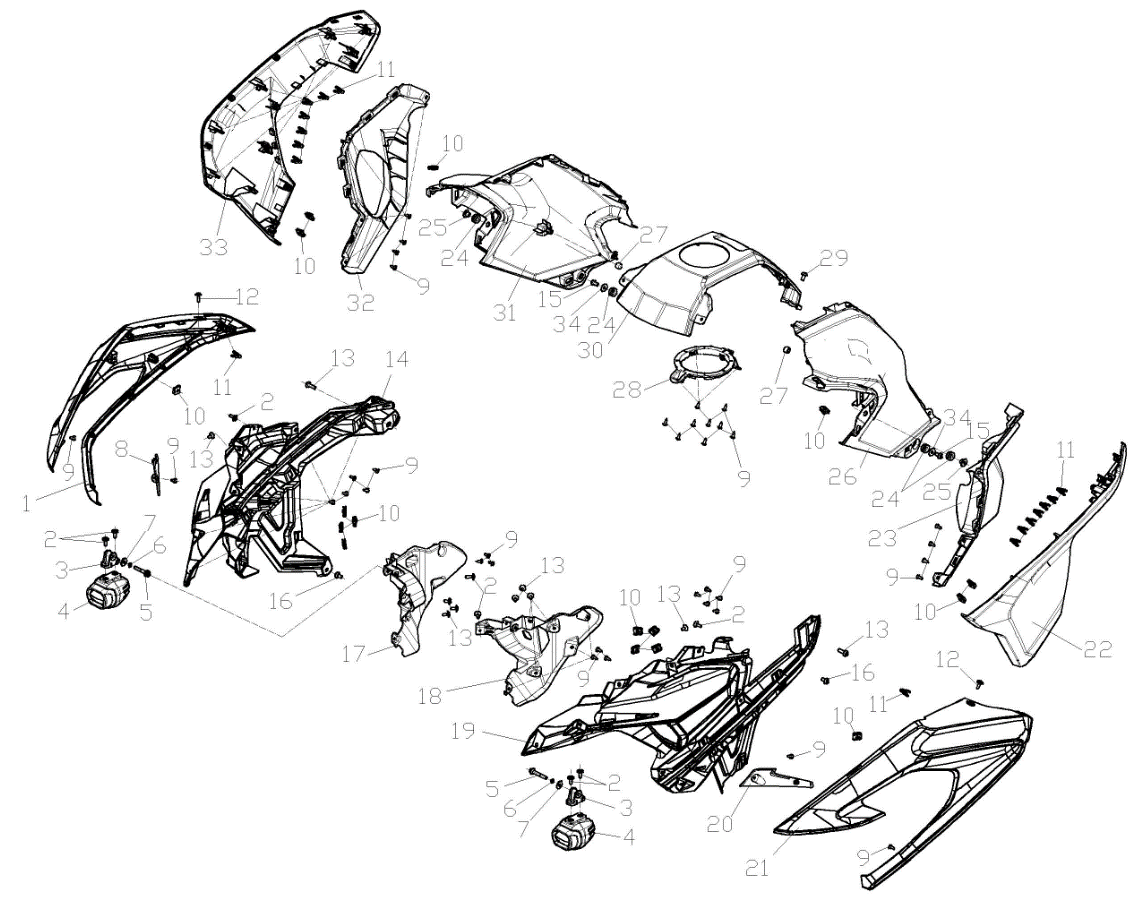

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F20-01 | GUARD PLATE,AIR GUIDE SLEEVE RIGHT | - EA | B | Matt black | |
| F20-01 | GUARD PLATE,AIR GUIDE SLEEVE RIGHT | - EA | B | Desert Yellow | |
| F20-02 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F20-03 | SOCKET,DECORATIVE LIGHT | - EA | C | ||
| F20-04 | LIGHT,FOG | - EA | B | ||
| F20-05 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F20-06 | WASHER,ELASTIC | - EA | C | ||
| F20-07 | WASHER,PLAIN | - EA | C | ||
| F20-08 | BLOCK,AIR GUIDE SLEEVE DECORATIVE | - EA | B | ||
| F20-09 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F20-10 | NUT,CLIP | - EA | C | ||
| F20-11 | FIXING CLIP | - EA | C | ||
| F20-12 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F20-13 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F20-14 | AIR GUIDE SLEEVE,RIGHT | - EA | B | ||
| F20-15 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F20-16 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F20-17 | BACKBOARD,FAIRING COVER | - EA | B | ||
| F20-18 | BACKBOARD,FAIRING COVER | - EA | B | ||
| F20-19 | AIR GUIDE SLEEVE,LEFT | - EA | B | ||
| F20-20 | BLOCK,AIR GUIDE SLEEVE DECORATIVE | - EA | B | ||
| F20-21 | GUARD PLATE,AIR GUIDE SLEEVE LEFT | - EA | B | Matt black | |
| F20-21 | GUARD PLATE,AIR GUIDE SLEEVE LEFT | - EA | B | Desert Yellow | |
| F20-22 | COVER,LEFT GUARD PLATE DECORATIVE | - EA | B | Matt black | |
| F20-22 | COVER,LEFT GUARD PLATE DECORATIVE | - EA | B | Desert Yellow | |
| F20-23 | GUARD PLATE,LEFT | - EA | B | ||
| F20-24 | I-RUBBER | - EA | C | ||
| F20-25 | COLLAR | - EA | C | ||
| F20-26 | PROTECTIVE PLATE, FUEL TANK LEFT | - EA | B | Matt black | |
| F20-26 | PROTECTIVE PLATE, FUEL TANK LEFT | - EA | B | Desert Yellow | |
| F20-27 | RUBBER JACKET, DAMPING | - EA | C | ||
| F20-28 | BRACKET,FUEL TANK GUARD PLATE | - EA | C | ||
| F20-29 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F20-30 | COVER,FUEL TANK DECORATIVE | - EA | B | ||
| F20-31 | PROTECTIVE PLATE, FUEL TANK RIGHT | - EA | B | Matt black | |
| F20-31 | PROTECTIVE PLATE, FUEL TANK RIGHT | - EA | B | Desert Yellow | |
| F20-32 | GUARD PLATE,RIGHT | - EA | B | ||
| F20-33 | COVER,RIGHT GUARD PLATE DECORATIVE | - EA | B | Matt black | |
| F20-33 | COVER,RIGHT GUARD PLATE DECORATIVE | - EA | B | Desert Yellow | |
| F20-34 | WASHER,PLAIN | - EA | C |

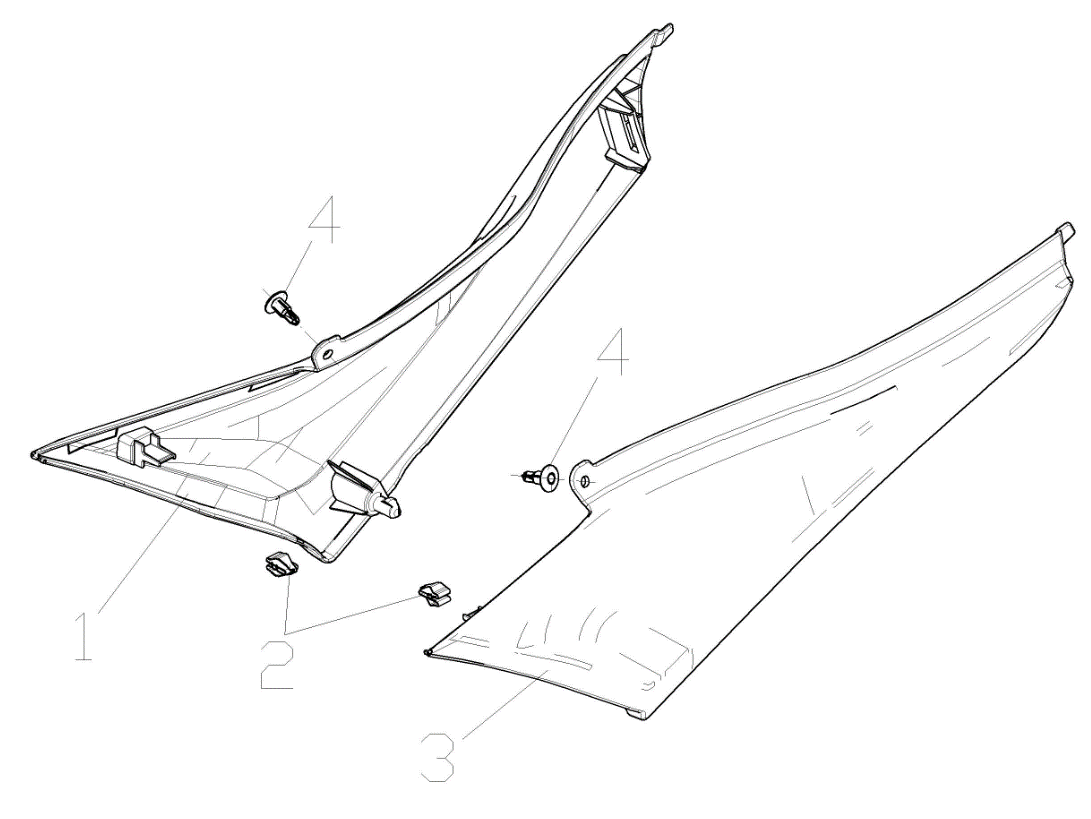

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F21-01 | COVER,RIGHT SIDE | - EA | B | ||
| F21-02 | FIXING CLIP | - EA | C | ||
| F21-03 | COVER,LEFT SIDE | - EA | B | ||
| F21-04 | CLIP | - EA | C |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

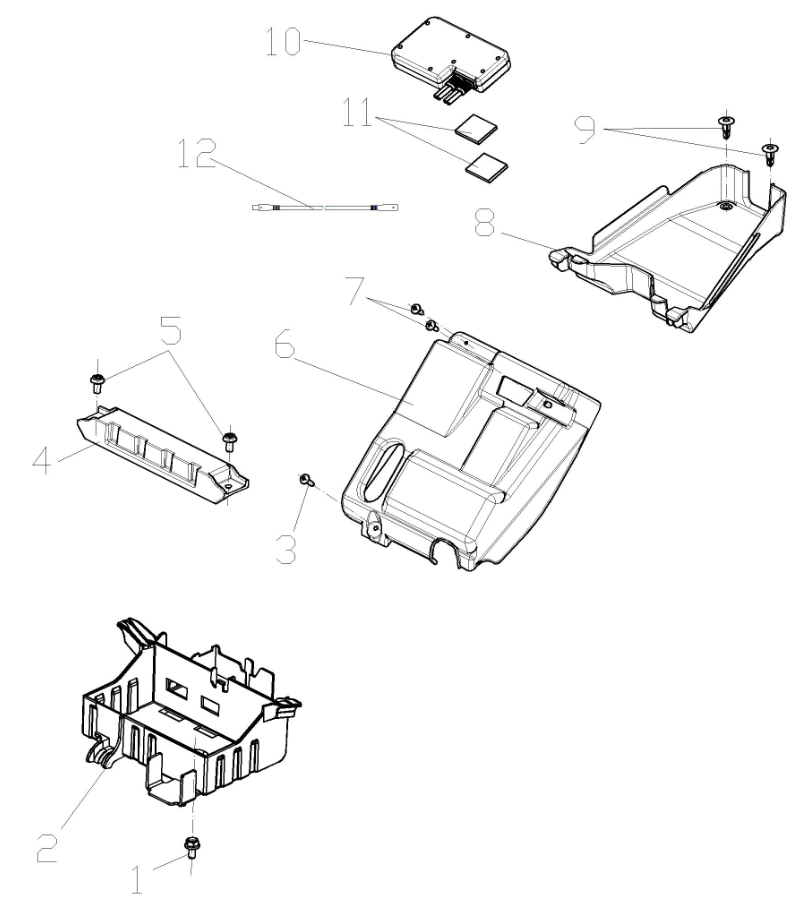

| F22-01 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F22-02 | CASE,BATTERY | - EA | B | ||
| F22-03 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F22-04 | BRACKET,BATTERY PRESSURE | - EA | C | ||
| F22-05 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F22-06 | BRACKET,ELECTRICAL PARTS MOUNTING | - EA | C | ||
| F22-07 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F22-08 | BOX,TOOL | - EA | C | ||
| F22-09 | CLIP | - EA | C | ||
| F22-10 | Driving Recorder | - EA | B | ||
| F22-11 | TAPE,STICKY | - EA | D | ||
| F22-12 | WIRE,CONNECTI | - EA | C |

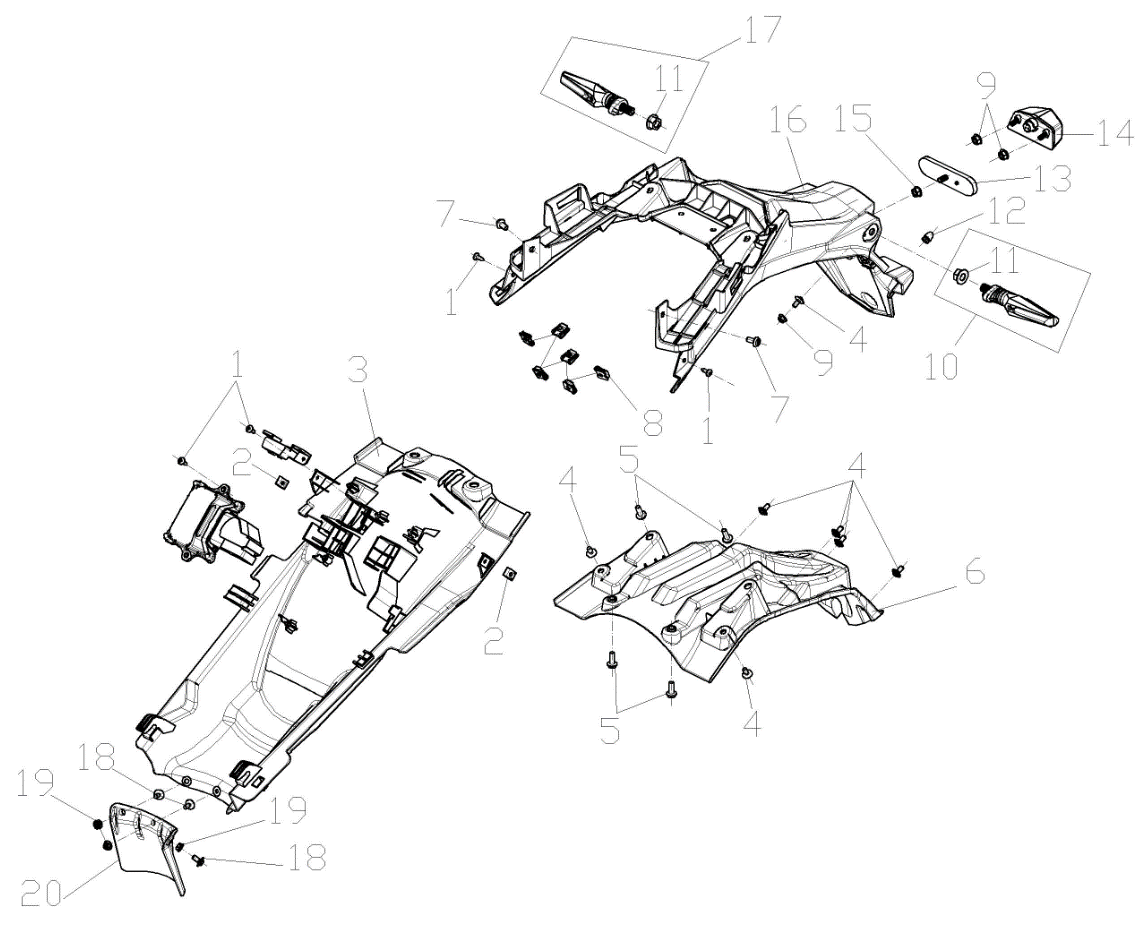

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F23-01 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F23-02 | NUT,CLIP | - EA | C | ||
| F23-03 | WEB,VEHICLE BODY | - EA | B | ||
| F23-04 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F23-05 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F23-06 | INNER PART,REAR FENDER | - EA | B | ||
| F23-07 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F23-08 | NUT,CLIP | - EA | C | ||
| F23-09 | NUT,HEXAGON FLANGE | - EA | C | ||
| F23-10 | SIGNAL ASSY.,LEFT REAR TURN | - EA | B | ||
| F23-11 | NUT,HEXAGON FLANGE | - EA | C | ||
| F23-12 | GLUE NAIL,BUFFER | - EA | C | ||
| F23-13 | REFLECTOR,REAR | - EA | B | ||
| F23-14 | LAMP,REAR REGISTRATION PLATE | - EA | B | ||
| F23-15 | NUT,HEXAGON FLANGE | - EA | C | ||
| F23-16 | REAR PART,REAR FENDER | - EA | B | ||
| F23-17 | SIGNAL ASSY.,RIGHT REAR TURN | - EA | B | ||
| F23-18 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F23-19 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F23-20 | BAFFLE CUSHION,REAR | - EA | B |

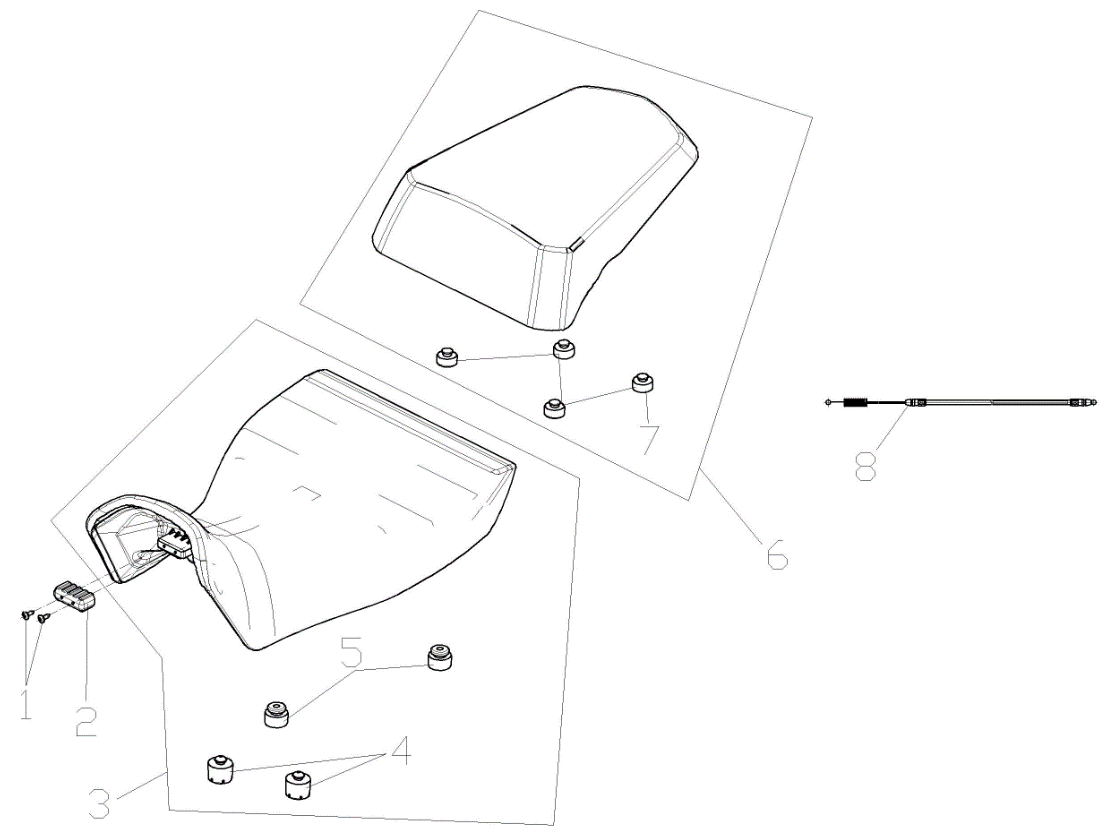

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F24-01 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - EA | C | ||
| F24-02 | RUBBER JACKET, DAMPING | - EA | C | ||
| F24-03 | SEAT,DRIVER | - EA | B | ||
| F24-04 | RUBBER SHEET,SEAT BRACE | - EA | C | ||
| F24-05 | RUBBER SHEET,SEAT BRACE | - EA | C | ||
| F24-06 | SEAT,PASSENGER | - EA | B | ||
| F24-07 | RUBBER SHEET,SEAT BRACE | - EA | C | ||
| F24-08 | CABLE,SEAT | - EA | A |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

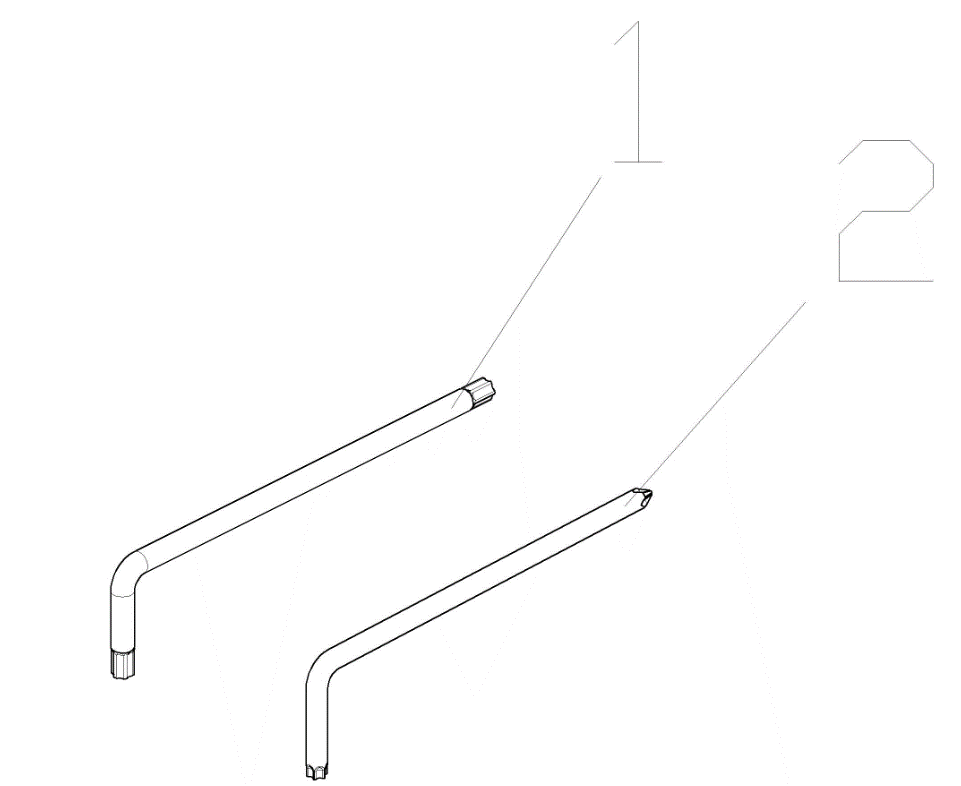

| F25-01 | WRENCH | - EA | D | ||
| F25-02 | WRENCH | - EA | D |
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F26-01 | CERTIFICATION,QUALIFIED | - EA | D | ||
| F26-02 | COOLANT | - L | D | ||
| F26-03 | LABEL,WARNING | - EA | C | ||
| F26-03 | LABEL,WARNING | - EA | C | ||
| F26-04 | LABEL,REMINDS | - EA | C | ||
| F26-05 | LABEL,REMINDS | - EA | C | ||
| F26-06 | LABEL,REMINDS | - EA | C | ||
| F26-07 | LABEL,REMINDS | - EA | C | ||
| F26-08 | LABEL,REMINDS | - EA | C | ||
| F26-09 | LABEL,REMINDS | - EA | C | ||
| F26-10 | LABEL,REMINDS | - EA | C | ||
| F26-11 | LABEL,REMINDS | - EA | C | ||
| F26-12 | Specification QR Code | - EA | D | ||
| F26-13 | BRAKE FLUID | - KG | D |
Assembly diagram

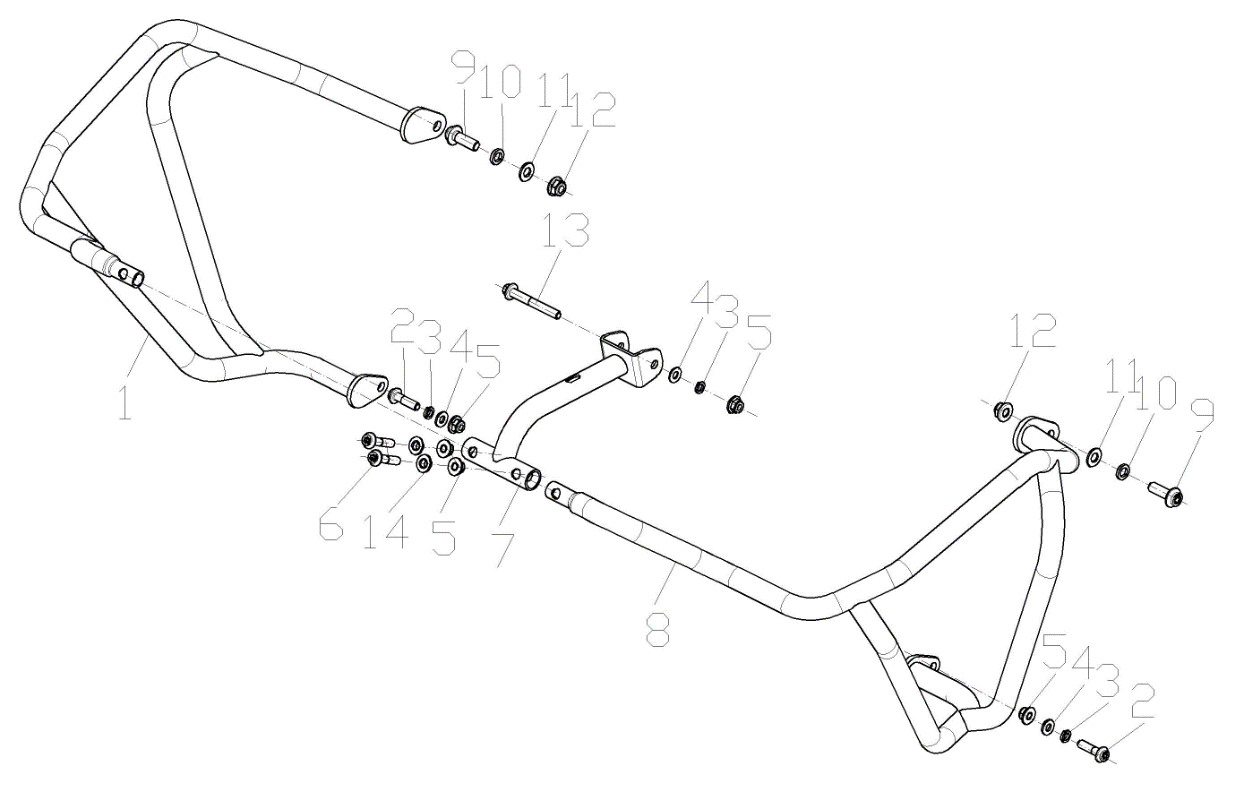

| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F27-01 | BODY,COLLISION BUMPER RIGHT | - EA | C | ||
| F27-02 | FLANGE BOLT | - EA | C | ||
| F27-03 | WASHER,ELASTIC | - EA | C | ||
| F27-04 | WASHER,PLAIN | - EA | C | ||
| F27-05 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F27-06 | FLANGE BOLT | - EA | C | ||
| F27-07 | CONNECTING YOKE,COLLISION BUMPER | - EA | C | ||
| F27-08 | BODY,COLLISION BUMPER LEFT | - EA | C | ||
| F27-09 | FLANGE BOLT | - EA | C | ||
| F27-10 | WASHER,ELASTIC | - EA | C | ||
| F27-11 | WASHER,PLAIN | - EA | C | ||
| F27-12 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | ||
| F27-13 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F27-14 | COLLAR | - EA | C |

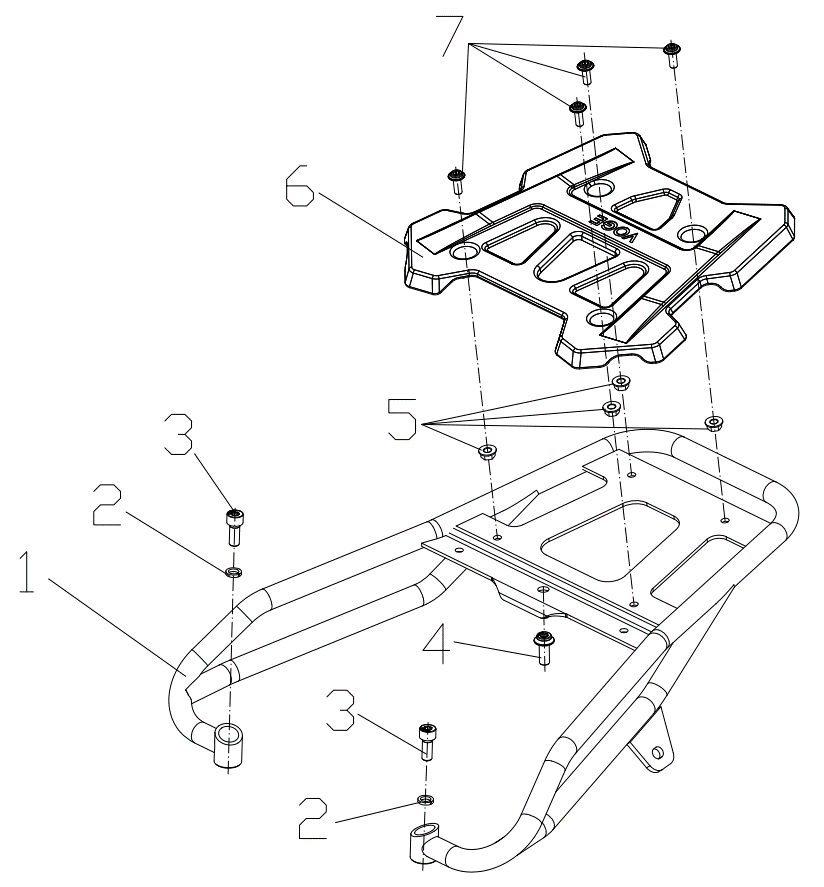

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F28-01 | LUGGAGE CARRIER COMP.,REAR | - EA | - | ||
| F28-02 | WASHER,ELASTIC | - EA | - | ||
| F28-03 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | - | ||
| F28-04 | FLANGE BOLT | - EA | - | ||
| F28-05 | NUT,HEXAGON FLANGE | - EA | - | 不带三箱 | |
| F28-06 | PIECE,LUGGAGE CARRIER LEFT DECORATIVE | - EA | - | 不带三箱 | |
| F28-07 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | - | 不带三箱 |

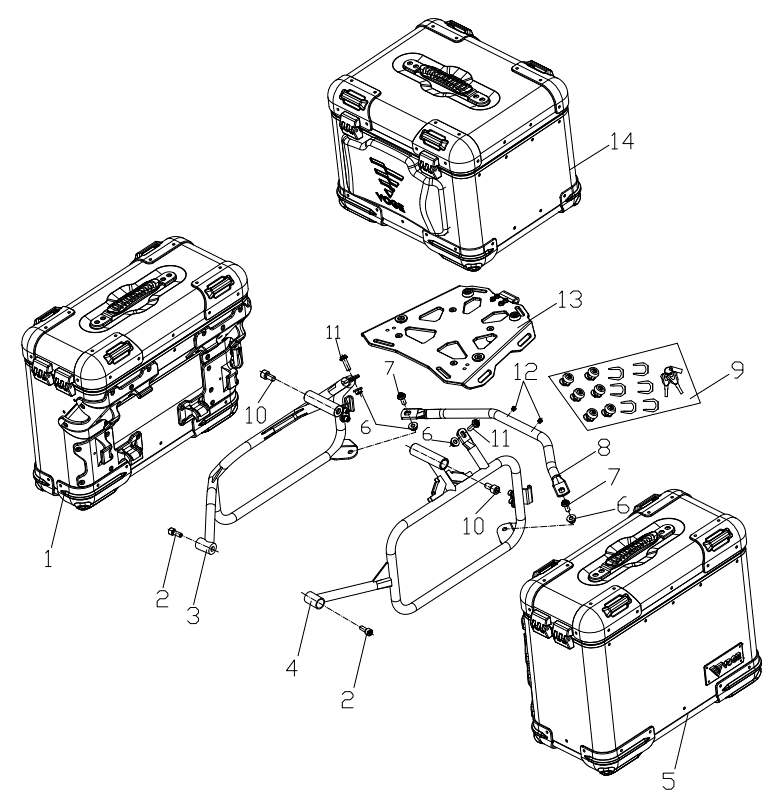

Assembly diagrams
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F29-01 | BOX,RIGHT SIDE | - EA | B | 三箱状态 | |
| F29-02 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | 三箱状态 | |
| F29-03 | BRACKET,RIGHT SIDE BOX | - EA | C | 三箱状态 | |
| F29-04 | BRACKET,LEFT SIDE BOX | - EA | C | 三箱状态 | |
| F29-05 | BOX,LEFT SIDE | - EA | B | 三箱状态 | |
| F29-06 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - EA | C | 三箱状态 | |
| F29-07 | FLANGE BOLT | - EA | C | 三箱状态 | |
| F29-08 | BODY,REAR PROP | - EA | C | 三箱状态 | |
| F29-09 | KEY SETS | - SET | C | 三箱状态 | |
| F29-10 | SCREW,HEXAGON SOCKET | - EA | C | 三箱状态 | |
| F29-11 | FLANGE BOLT | - EA | C | 三箱状态 | |
| F29-12 | GLUE NAIL,BUFFER | - EA | B | 三箱状态 | |
| F29-13 | BACKPLANE,TAIL BOX | - EA | C | 三箱状态 | |
| F29-14 | BOX,TAIL | - EA | C | 三箱状态 | |

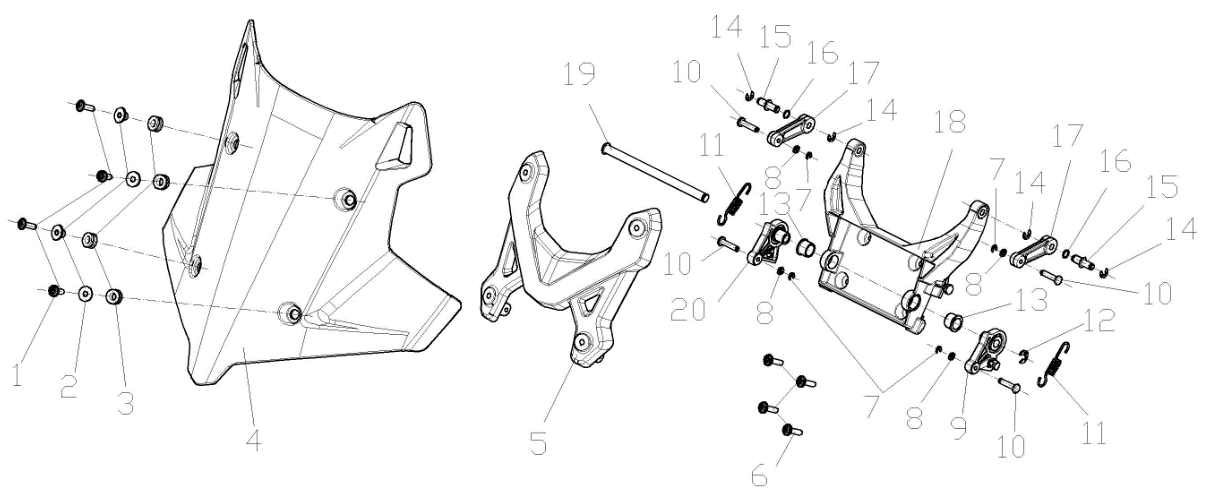

| F30WINDSHIELD GLASS | - | - | - | ||
| F30-01 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F30-02 | COLLAR | - EA | C | ||
| F30-03 | I-RUBBER | - EA | C | ||
| F30-04 | GLASS, WIND SHIELD | - EA | B | ||
| F30-05 | WINDSHIELD BRACKET | - EA | B | ||
| F30-06 | BOLT,HEXAGON FLANGE | - EA | C | ||
| F30-07 | PLAIN WASHER,RUBBER | - EA | C | ||
| F30-08 | SPLIT WASHER | - EA | C | ||
| F30-09 | ADJUSTMENT LOWER ROD,WINDSHIELD LEFT | - EA | B | ||
| F30-10 | PIN,CLEVIS | - EA | C | ||
| F30-11 | SPRING, DRAWING | - EA | B | ||
| F30-12 | SPLIT WASHER | - EA | C | ||
| F30-13 | WASHER,FLANGE | - EA | C | ||
| F30-14 | SPLIT WASHER | - EA | C | ||
| F30-15 | PIN,CLEVIS | - EA | C | ||
| F30-16 | RING,SEAL | - EA | B | ||
| F30-17 | ADJUSTMENT UP ROD,WINDSHIELD | - EA | B | ||
| F30-18 | BRACKET OF WINDSHIELD GLASS | - EA | C | ||
| F30-19 | PIN,CLEVIS | - EA | C | ||
| F30-20 | ADJUSTMENT LOWER ROD,WINDSHIELD RIGHT | - EA | B |

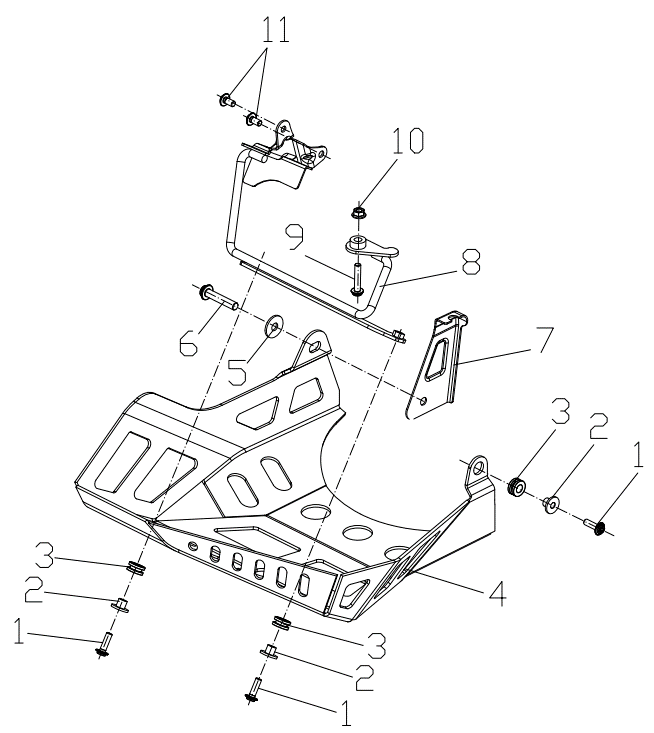

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F31-01 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C | ||
| F31-02 | COLLAR | - EA | C | ||
| F31-03 | I-RUBBER | - EA | C | ||
| F31-04 | AIR GUIDE SLEEVE,LEFT LOWER | - EA | B | ||
| F31-05 | WASHER,PLAIN | - EA | C | ||
| F31-06 | FLANGE BOLT | - EA | C | ||
| F31-07 | BRACKET,RIGHT WIND BOARD | - EA | - | ||
| F31-08 | BRACKET,LOWER AIR GUIDE SLEEVE | - EA | C | ||
| F31-09 | FLANGE BOLT | - EA | C | ||
| F31-10 | NUT,HEXAGON FLANGE | - EA | C | ||
| F31-11 | BOLT,LOBULAR SOCKET COUNTERSUNK HEAD | - EA | C |
KEL600
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E1 | ENGINE | 1 SET | C |

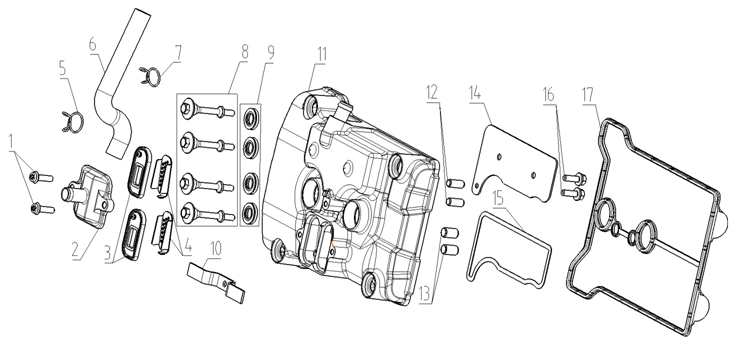

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E01-01 | FLANGE BOLT | 2 PCS | C | ||
| E01-02 | JOINT,CONNECTING | 1 PCS | C | ||
| E01-03 | VALVE,REED | 2 PCS | C | ||
| E01-04 | SCREEN,FLAME | 2 PCS | C | ||
| E01-05 | CLAMP,TUBE | 1 PCS | C | ||
| E01-06 | TUBE,BREATHER | 1 PCS | B | ||
| E01-07 | CLAMP,TUBE | 1 PCS | C | ||
| E01-08 | BOLT,HEXAGON FLANGE | 4 PCS | C | ||
| E01-09 | RING,SEAL | 4 PCS | B | ||
| E01-10 | PLATE,CLUTCH PRESSURE | 1 PCS | B | ||
| E01-11 | COVER COMP,CYLINDER HEAD | 1 PCS | C | ||
| E01-12 | PIN,DOWEL | 2 PCS | C | ||
| E01-13 | PIN,DOWEL | 2 PCS | C | ||
| E01-14 | PLATE,OIL SEPARATING | 1 PCS | C | ||
| E01-15 | GASKET,OIL SEPARATING PLATE | 1 PCS | B | ||
| E01-16 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E01-17 | RING,SEAL | 1 PCS | B |

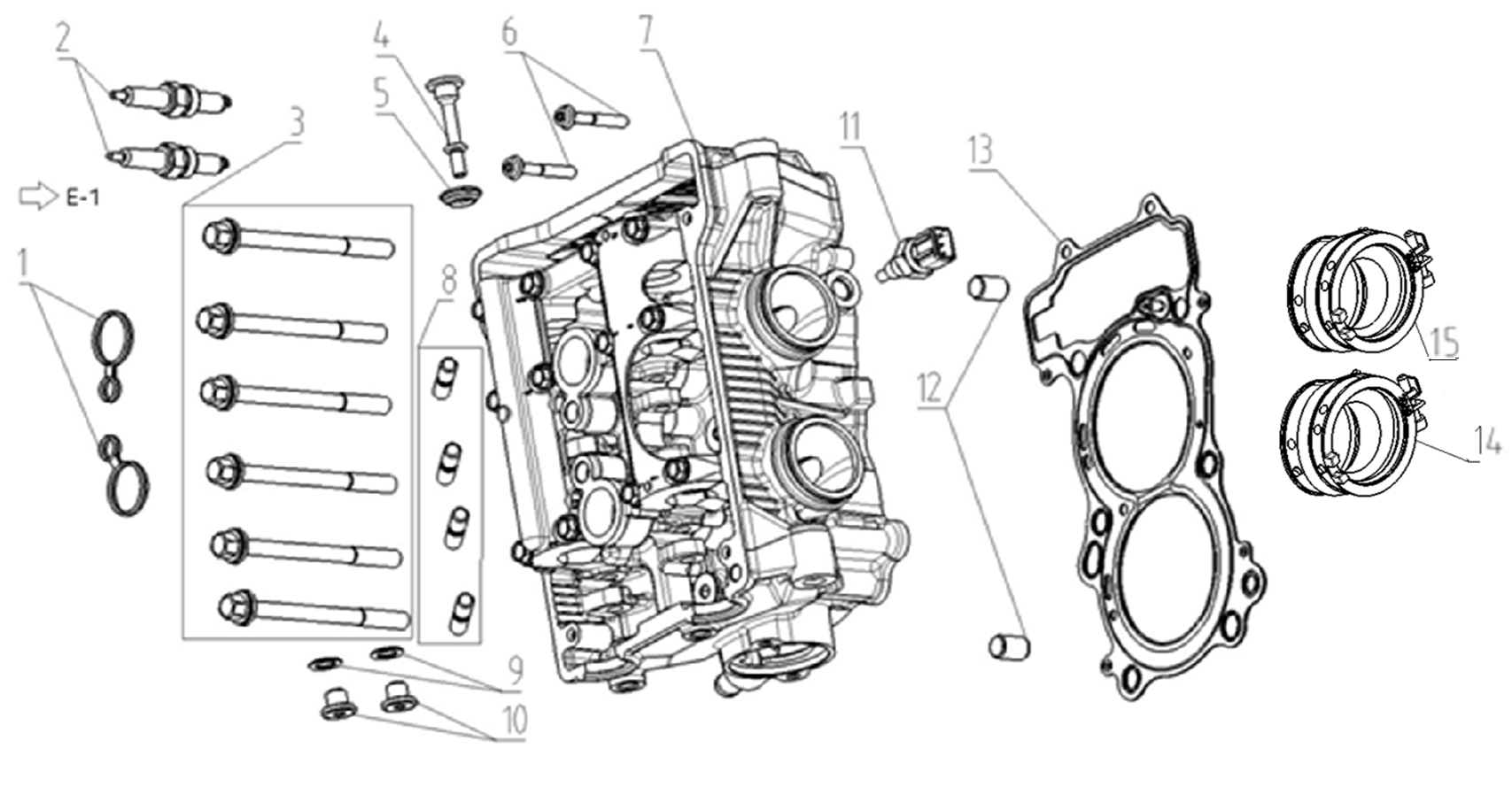

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E02-01 | RING,SEAL | 2 PCS | B | ||
| E02-02 | PLUG,SPARK | 2 PCS | A | ||
| E02-03 | BOLT/SCREW/WASHER,PALIN COMP | 6 PCS | C | ||
| E02-04 | SCREW,HEXAGON SOCKET | 1 PCS | C | ||
| E02-05 | RING,SEAL | 1 PCS | B | ||
| E02-06 | FLANGE BOLT | 2 PCS | C | ||
| E02-07 | CYLINDER HEAD KIT | 1 SET | C | ||
| E02-08 | STUD | 4 PCS | C | ||
| E02-09 | WASHER,PLAIN | 2 PCS | C | ||
| E02-10 | SCREW,HEXAGON SOCKET | 2 PCS | C | ||
| E02-11 | SENSOR,ENGINE | 1 PCS | C | ||
| E02-12 | PIN,DOWEL | 2 PCS | C | ||
| E02-13 | GASKET,CYLINDER HEAD | 1 PCS | A | ||
| E02-14 | TUBE COMP.,AIR INTAKE | 1 SET | B | ||
| E02-15 | TUBE COMP.,AIR INTAKE | 1 SET | B |

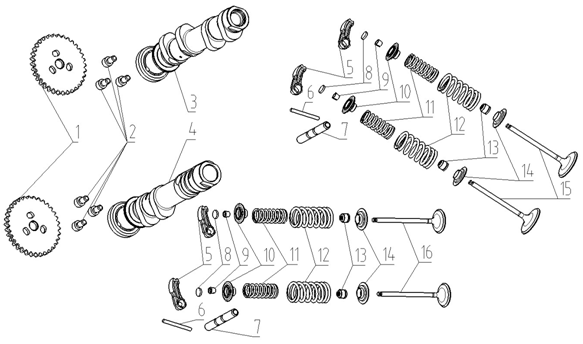

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E03-01 | SPROCKET,TIMING DRIVEN | 2 PCS | B | ||
| E03-02 | BOLT,TIMING | 6 PCS | C | ||
| E03-03 | CAMSHAFT ASSY | 1 SET | B | ||
| E03-04 | CAMSHAFT COMP | 1 PCS | B | ||
| E03-05 | ARM COMP,VALVE ROCKER | 8 PCS | B | ||
| E03-06 | PIN,DOWEL | 4 PCS | C | ||
| E03-07 | SHAFT,VALVE ROCKER ARM | 4 PCS | B | ||
| E03-08 | ADJUSTING SHIM,VALVE | 8 PCS | D | ||
| E03-09 | COTTER,VALVE | 16 PCS | C | ||
| E03-10 | RETAINER,VALVE SPRING | 8 PCS | C | ||
| E03-11 | SPRING,VALVE(INNER) | 8 PCS | C | ||
| E03-12 | SPRING,VALVE(OUTER) | 8 PCS | C | ||
| E03-13 | SHIELD,OIL | 8 PCS | A | ||
| E03-14 | RETAINER,VALVE SPRING | 8 PCS | C | ||
| E03-15 | VALVE,INLET | 4 PCS | A | ||
| E03-16 | VALVE,EXHAUST | 4 PCS | A |

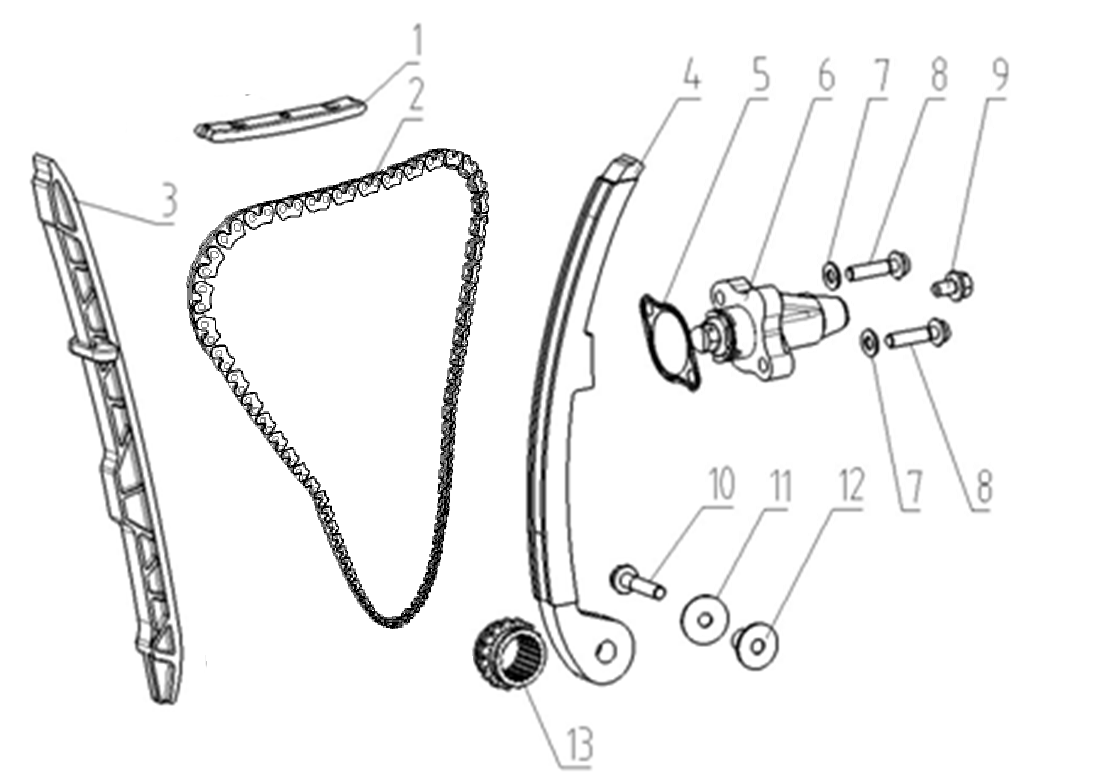

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E04-01 | PLATE,TIMING CHAIN LIMIT | 1 PCS | C | ||
| E04-02 | CHAIN,TIMING | 1 PCS | A | ||
| E04-03 | The CHAIN,DRIVE guide plate | 1 PCS | B | ||
| E04-04 | CHAIN,DRIVE tension plate | 1 PCS | B | ||
| E04-05 | GASKET,CAM CHAIN TENSIONER | 1 PCS | B | ||
| E04-06 | TENSIONER ASSY,CAM CHAIN | 1 PCS | B | ||
| E04-07 | WASHER,PLAIN | 2 PCS | C | ||
| E04-08 | FLANGE BOLT | 2 PCS | C | ||
| E04-09 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E04-10 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E04-11 | WASHER,PLAIN | 1 PCS | C | ||
| E04-12 | COLLAR | 1 PCS | C | ||
| E04-13 | SPROCKET,TIMING DRIVE | 1 PCS | C |

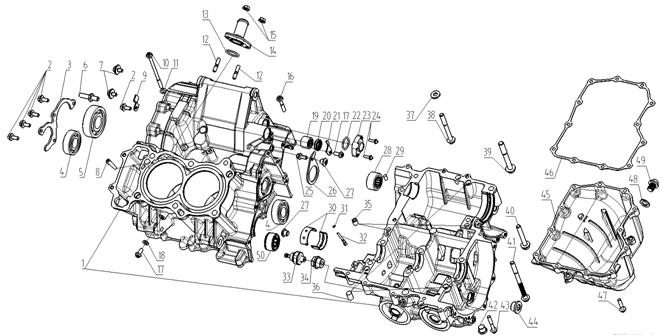

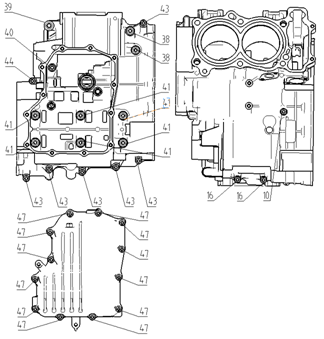

Assembly diagrams
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E05-01 | CRANKCASE KIT | 1 SET | B | ||
| E05-02 | BOLT,HEXAGON FLANGE | 5 PCS | C | ||
| E05-03 | CHECK PLATE,MAINSHAFT BEARING | 1 PCS | C | ||
| E05-04 | BEARING | 2 PCS | B | ||
| E05-05 | BEARING | 1 PCS | B | ||
| E05-06 | JACK BOLT,GEAR CHANGE ARM | 1 PCS | C | ||
| E05-07 | BOLT/SCREW/WASHER,PALIN COMP | 2 PCS | C | ||
| E05-08 | RUBBER STICK OF WATER PROOF | 1 PCS | C | ||
| E05-09 | PLATE,GEAR SHIFT LIMIT | 1 PCS | C | ||
| E05-10 | FLANGE BOLT | 1 PCS | C | ||
| E05-11 | WASHER,PLAIN | 1 PCS | C | ||
| E05-12 | STUD | 2 PCS | C | ||
| E05-13 | RING,SEAL | 1 PCS | B | ||
| E05-14 | JOINT,CONNECTING | 1 PCS | C | ||
| E05-15 | NUT,HEXAGON FLANGE | 2 PCS | C | ||
| E05-16 | FLANGE BOLT | 2 PCS | C | ||
| E05-17 | FLANGE BOLT | 2 PCS | C | ||
| E05-18 | WASHER,PLAIN | 1 PCS | C | ||
| E05-19 | BEARING | 1 PCS | B | ||
| E05-20 | OIL SEAL | 1 PCS | B | ||
| E05-21 | CHECK PLATE OF OIL SEAL ON GEARSHIFT SPINDLE | 1 PCS | C | ||
| E05-22 | RING,SEAL | 1 PCS | B | ||
| E05-23 | SWITCH COMP,GEAR INDICATOR | 1 SET | B | ||
| E05-24 | SCREW,CROSS RECESSED PAN HEAD/WASHER,ELASTIC/WASHER,PLAIN COMP | 2 PCS | C | ||
| E05-25 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E05-26 | PRESSING PLATE OF MAINSHAFT COLLAR | 1 PCS | C | ||
| E05-27 | SCREW,HEXAGON SOCKET | 2 PCS | C | ||
| E05-28 | BEARING ASSY | 1 PCS | C | ||
| E05-29 | PIN,CLEVIS | 1 PCS | C | ||
| E05-30 | BEARING,CRANKSHAFT（RED/YEELOW/GREEN/BROWN/BLACK) | 6 PCS | C | ||
| E05-31 | RING,SEAL | 2 PCS | B | ||
| E05-32 | STOPPER | 2 PCS | C | ||
| E05-33 | SENSOR,ENGINE | 1 PCS | C | ||
| E05-34 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E05-35 | STOPPER | 2 PCS | C | ||
| E05-36 | PIN,DOWEL | 3 PCS | C | ||
| E05-37 | WASHER,PLAIN | 1 PCS | C | ||
| E05-38 | FLANGE BOLT | 2 PCS | C | ||
| E05-39 | FLANGE BOLT | 1 PCS | C | ||
| E05-40 | FLANGE BOLT | 1 PCS | C | ||
| E05-41 | FLANGE BOLT | 6 PCS | C | ||
| E05-42 | SCREW,HEXAGON SOCKET | 2 PCS | C | ||
| E05-43 | FLANGE BOLT | 7 PCS | C | ||
| E05-44 | SCREW,HEXAGON SOCKET | 2 PCS | C | ||
| E05-45 | CRANKCASE OIL TRAY | 1 PCS | C | ||
| E05-46 | GASKET,CRANKCASE OIL TRAY | 1 PCS | A | ||
| E05-47 | FLANGE BOLT | 12 PCS | C | ||
| E05-48 | WASHER,PLAIN | 1 PCS | C | ||
| E05-49 | SCREW PLUG,SEAL | 1 PCS | C | ||
| E05-50 | BEARING ASSY | 1 PCS | C |

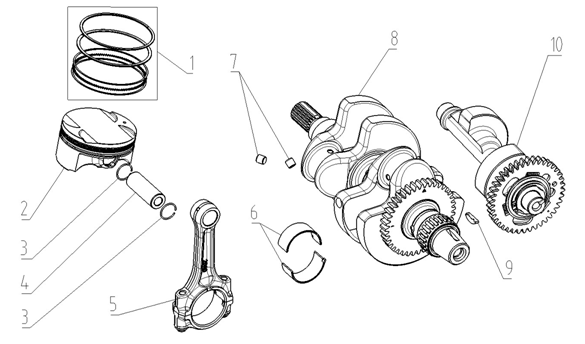

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E06-01 | RING SET,PISTON | 2 SET | A | ||
| E06-02 | PISTON COMP | 2 PCS | A | ||
| E06-03 | CHECK RING,STEEL CABLE BAFFLE | 4 PCS | C | ||
| E06-04 | PIN,PISTON | 2 PCS | B | ||
| E06-05 | ROD COMP,CONNECTING | 2 SET | C | ||
| E06-06 | BEARING,CRANKSHAFT | 4 PCS | C | ||
| E06-07 | STOPPER | 2 PCS | C | ||
| E06-08 | CRANKSHAFT COMP | 1 SET | C | ||
| E06-09 | KEY | 1 PCS | C | ||
| E06-10 | BALANCING ARBOR COMP | 1 SET | C |

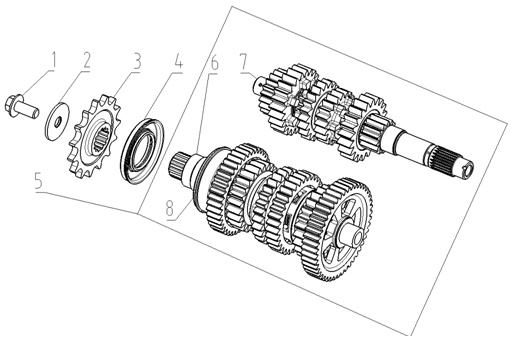

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F07-01 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| F07-02 | WASHER,PLAIN | 1 PCS | C | ||
| F07-03 | SPROCKET,COUNTERSHAFT DRIVING | 1 PCS | A | ||
| F07-04 | OIL SEAL | 1 PCS | B | ||
| F07-05 | MAINSHAFT&COUNTERSHAFT KIT | 1 SET | B | ||
| F07-06 | COUNTERSHAFT COMP | 1 SET | B | ||
| F07-07 | MAINSHAFT COMP | 1 SET | B | ||
| F07-08 | BEARING | 1 PCS | B |

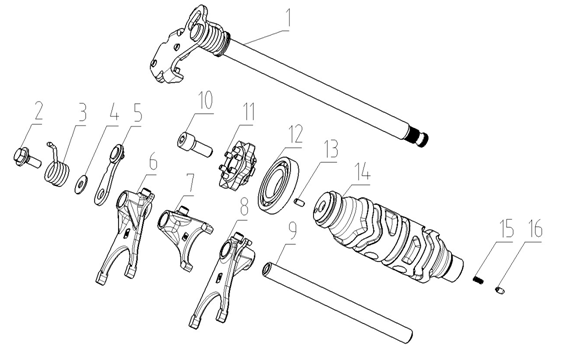

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E08-01 | ARM COMP,GEAR CHANGE | 1 SET | B | ||
| E08-02 | BOLT,CHECK PLATE | 1 PCS | C | ||
| E08-03 | SPRING,TORSIONAL | 1 PCS | B | ||
| E08-04 | WASHER,PLAIN | 1 PCS | C | ||
| E08-05 | CHECK PLATE ASSY | 1 PCS | C | ||
| E08-06 | FORK,GEAR SHIFT | 1 PCS | C | ||
| E08-07 | FORK,GEAR SHIFT | 1 PCS | C | ||
| E08-08 | FORK,GEAR SHIFT | 1 PCS | C | ||
| E08-09 | SHAFT,SHIFT FORK GUIDE | 1 PCS | C | ||
| E08-10 | SCREW,HEXAGON SOCKET | 1 PCS | C | ||
| E08-11 | GEARSHIFT DRUM PLATE ASSY | 1 PCS | C | ||
| E08-12 | BEARING | 1 PCS | B | ||
| E08-13 | PIN,CLEVIS | 1 PCS | C | ||
| E08-14 | DRUM COMP,GEAR SHIFT | 1 PCS | C | ||
| E08-15 | SPRING,COMPRESSION | 1 PCS | B | ||
| E08-16 | SHIFT CONTACT,GEAR INDICATOR SWITCH | 1 PCS | C |

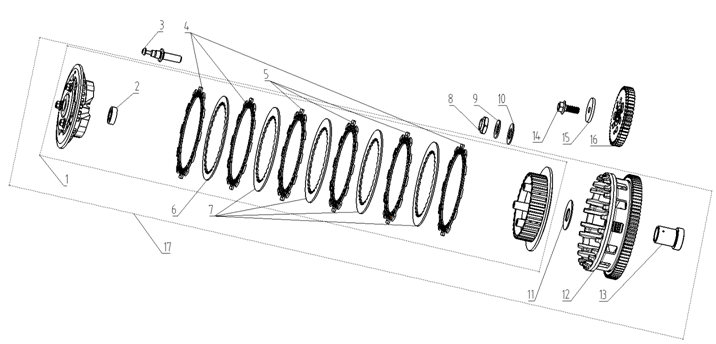

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E09-01 | CENTER COMP,CLUTCH | 1 PCS | C | ||
| E09-02 | BEARING | 1 PCS | B | ||
| E09-03 | PUSH ROD | 1 PCS | C | ||
| E09-04 | FRICTION PLATE,DRIVE | 3 PCS | A | ||
| E09-05 | FRICTION PLATE,DRIVE | 3 PCS | A | ||
| E09-06 | FRICTION PLATE,DRIVEN | 1 PCS | A | ||
| E09-07 | FRICTION PLATE,DRIVEN | 4 PCS | A | ||
| E09-08 | NUT,ROUND | 1 PCS | C | ||
| E09-09 | WASHER,SAUCER | 1 PCS | C | ||
| E09-10 | WASHER,PLAIN | 1 PCS | C | ||
| E09-11 | WASHER,PLAIN | 1 PCS | C | ||
| E09-12 | OUTER COMP,CLUTCH | 1 PCS | B | ||
| E09-13 | COLLAR | 1 PCS | C | ||
| E09-14 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E09-15 | WASHER,PLAIN | 1 PCS | C | ||
| E09-16 | DRIVING GEAR ASSY,PRIMARY | 1 PCS | C | ||
| E09-17 | CLUTCH COMP,SECONDARY | 1 SET | B |

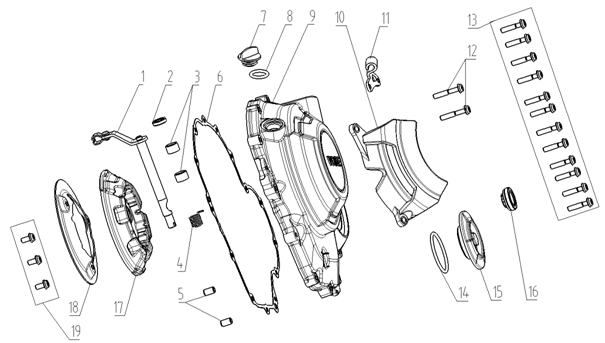

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E10-01 | JOYSTICK ASSY,CLUTCH | 1 PCS | B | ||
| E10-02 | OIL SEAL | 1 PCS | B | ||
| E10-03 | BEARING | 2 PCS | B | ||
| E10-04 | SPRING,TORSIONAL | 1 PCS | B | ||
| E10-05 | PIN,DOWEL | 2 PCS | C | ||
| E10-06 | GASKET,RIGHT CRANKCASE COVER | 1 PCS | A | ||
| E10-07 | Oil dipstick | 1 PCS | B | ||
| E10-08 | RING,SEAL | 1 PCS | B | ||
| E10-09 | COVER COMP,RIGHT CRANKCASE | 1 PCS | C | ||
| E10-10 | CAP,RIGHT DECORATIVE | 1 PCS | C | ||
| E10-11 | PLATE,CLUTCH CABLE LOCATING | 1 PCS | C | ||
| E10-12 | FLANGE BOLT | 2 PCS | C | ||
| E10-13 | FLANGE BOLT | 12 PCS | C | ||
| E10-14 | RING,SEAL | 1 PCS | B | ||
| E10-15 | COVER,INSPECTION | 1 PCS | B | ||
| E10-16 | SIGHT GLASS,OIL | 1 PCS | C | ||
| E10-17 | PAD,CUSHION | 1 PCS | C | ||
| E10-18 | COVER,CUSHION PAD | 1 PCS | C | ||
| E10-19 | FLANGE BOLT | 3 PCS | C |

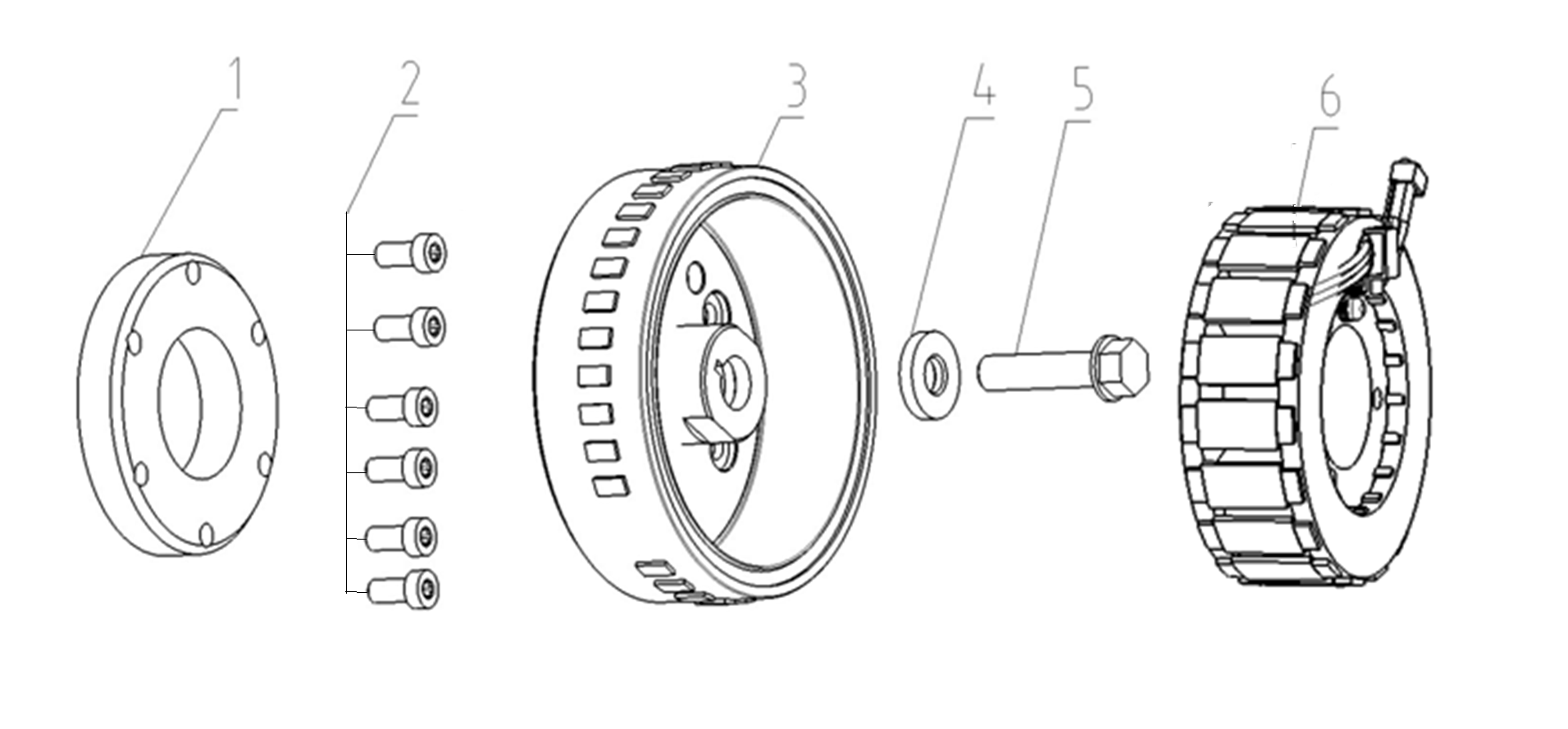

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E11-01 | BODY ASSY,STARTING CLUTCH | 1 PCS | B | ||
| E11-02 | SCREW,HEXAGON SOCKET | 6 PCS | C | ||
| E11-03 | ROTOR COMP | 1 SET | C | ||
| E11-04 | WASHER,PLAIN | 1 PCS | C | ||
| E11-05 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E11-06 | STATOR COMP | 1 SET | B |

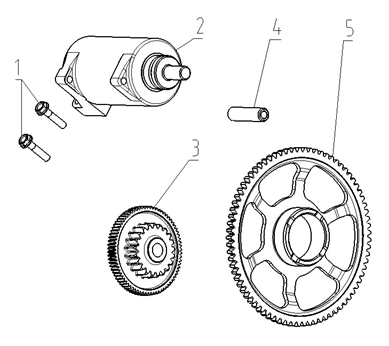

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E12-01 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E12-02 | MOTOR ASSY,STARTING | 1 SET | B | ||
| E12-03 | DUPLEX GEAR,ELECTRIC STARTING | 1 PCS | C | ||
| E12-04 | SHAFT,DUPLEX GEAR | 1 PCS | C | ||
| E12-05 | DISK GEAR | 1 PCS | C |

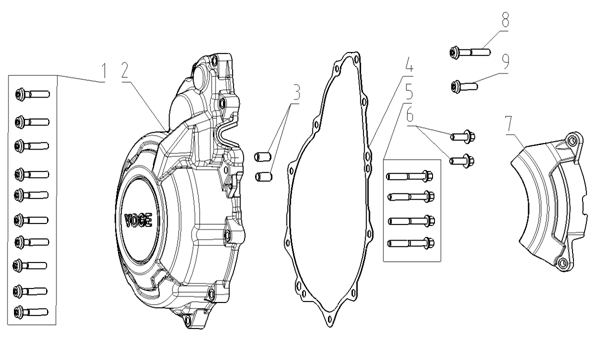

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E13-01 | FLANGE BOLT | 10 PCS | C | ||
| E13-02 | COVER COMP,LEFT FRONT | 1 PCS | C | ||
| E13-03 | PIN,DOWEL | 2 PCS | C | ||
| E13-04 | GASKET,LEFT FRONT COVER | 1 PCS | A | ||
| E13-05 | BOLT,HEXAGON FLANGE | 4 PCS | C | ||
| E13-06 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E13-07 | COVER,LEFT DECORATING | 1 PCS | C | ||
| E13-08 | FLANGE BOLT | 1 PCS | C | ||
| E13-09 | FLANGE BOLT | 1 PCS | C |

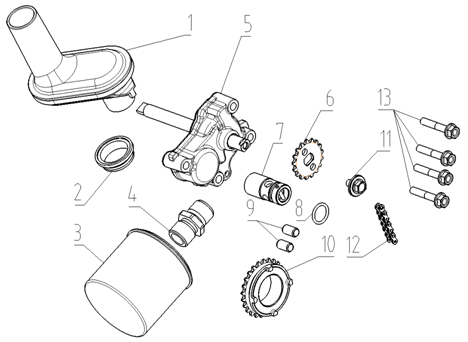

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E14-01 | OIL SUCKING TUBE COMP | 1 PCS | C | ||
| E14-02 | RING,SEAL | 1 PCS | B | ||
| E14-03 | OIL FILTER ASSY,SECONDARY | 1 SET | C | ||
| E14-04 | JOINT,CONNECTING | 1 PCS | C | ||
| E14-05 | PUMP ASSY,OIL | 1 SET | C | ||
| E14-06 | SPROCKET,OIL PUMP DRIVEN | 1 PCS | B | ||
| E14-07 | VALVE COMP,OIL CONTROL | 1 SET | C | ||
| E14-08 | RING,SEAL | 1 PCS | B | ||
| E14-09 | PIN,DOWEL | 2 PCS | C | ||
| E14-10 | SPROCKET,OIL PUMP DRIVE | 1 PCS | C | ||
| E14-11 | BOLT/SCREW/WASHER,PALIN COMP | 1 PCS | C | ||
| E14-12 | CHAIN,DRIVE | 1 PCS | A | ||
| E14-13 | BOLT,HEXAGON FLANGE | 4 PCS | C |

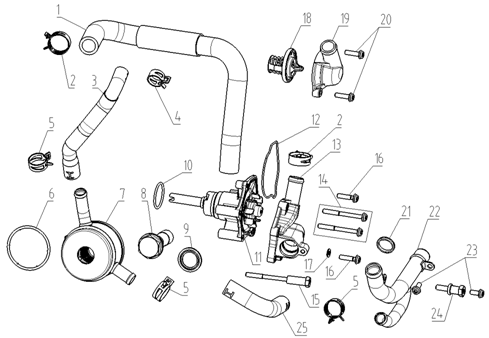

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E15-01 | TUBE,WATER | 1 PCS | B | ||
| E15-02 | CLAMP,TUBE | 2 | - | ||
| E15-03 | TUBE,WATER | 1 PCS | B | ||
| E15-04 | CLAMP,TUBE | 1 PCS | C | ||
| E15-05 | CLAMP,TUBE | 3 PCS | C | ||
| E15-06 | RING,SEAL | 1 PCS | B | ||
| E15-07 | HEAT EXCHANGER OF WATER AND OIL | 1 PCS | C | ||
| E15-08 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E15-09 | WASHER,PLAIN | 1 PCS | C | ||
| E15-10 | RING,SEAL | 1 PCS | B | ||
| E15-11 | PUMP,COOLING | 1 PCS | B | ||
| E15-12 | RING,SEAL | 1 PCS | B | ||
| E15-13 | CAP,COOLING PUMP | 1 PCS | C | ||
| E15-14 | FLANGE BOLT | 2 PCS | C | ||
| E15-15 | BOLT,LOCATING POST | 1 PCS | C | ||
| E15-16 | FLANGE BOLT | 2 PCS | C | ||
| E15-17 | WASHER,PLAIN | 1 PCS | C | ||
| E15-18 | VALVE,THERMOSTATIC | 1 PCS | A | ||
| E15-19 | COVER,THERMOSTAT | 1 PCS | B | ||
| E15-20 | FLANGE BOLT | 2 PCS | C | ||
| E15-21 | RING,SEAL | 1 PCS | B | ||
| E15-22 | JOINT,CONNECTING | 1 PCS | C | ||
| E15-23 | FLANGE BOLT | 2 PCS | C | ||
| E15-24 | BOLT,LOCATING POST | 1 PCS | C | ||
| E15-25 | TUBE,WATER | 1 PCS | B |
No parts match your filters.
Wear-grade legend
- AA - High wear
- BB - Medium wear
- CC - Low wear
- DD - Not user-serviceable
Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.
