DS900X Parts Catalog

962 part numbers across 2 sheets, 45 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.

Search all bikes Download Excel

Showing all 962 parts

LX900-AⅠ&LX900-AⅡ

Assembly diagram

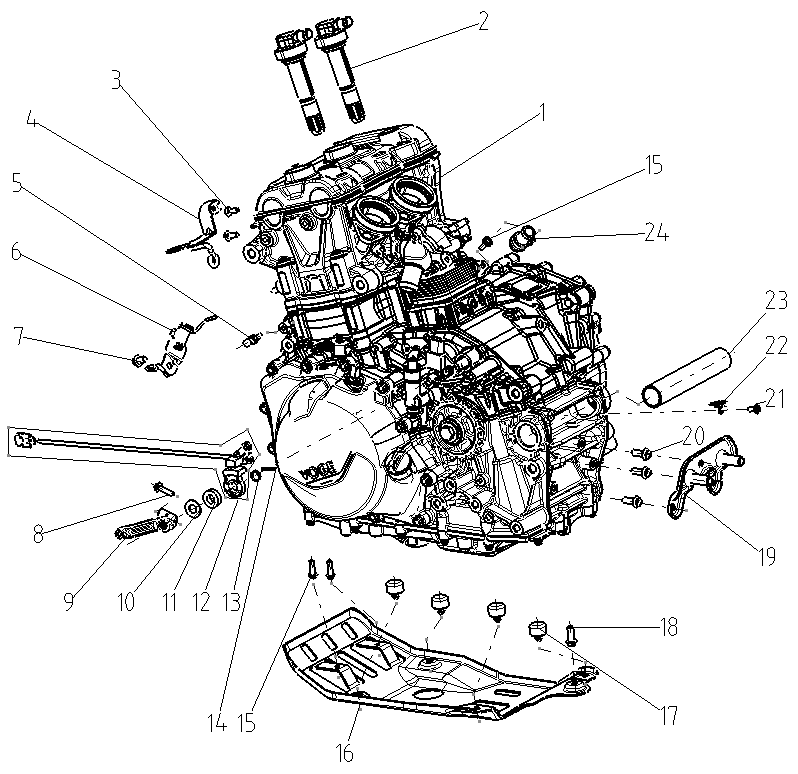

F1 ENGINE COMP. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F01-1 ENGINE COMP. 1 SET D
F01-2 COIL ASSY.,IGNITION 2 PCS B
F01-3 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F01-4 LUG,RADIATOR LOWER 1 PCS C
F01-5 PIECE,REGULA CONNECTING 1 PCS B
F01-6 BRACKET,HORN 1 PCS C
F01-7 FLANGE BOLT 1 PCS C
F01-8 BOLT,HEXAGON FLANGE 1 PCS C
F01-9 BASE,SPLINE FITTING 1 PCS C
F01-10 WASHER,PLAIN 1 PCS C
F01-11 PAD,CUSHION 1 PCS C
F01-12 QUICK SHIFT SENSOR 1 -
F01-13 COLLAR 1 PCS C
F01-14 PIN,CLEVIS 1 PCS C
F01-15 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F01-16 SHIELD,ENGINE 1 PCS B
F01-17 RUBBER JACKET, DAMPING 4 PCS C
F01-18 FLANGE BOLT 1 PCS C
F01-19 BRACE,MUFFLER MIDDLE CONNECTING 1 PCS C
F01-20 FLANGE BOLT 3 PCS C
F01-21 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F01-22 CLAMP,TUBE 1 PCS C
F01-23 COLLAR 1 PCS C
F01-24 JOINT,CONNECTING 1 PCS C

Assembly diagram

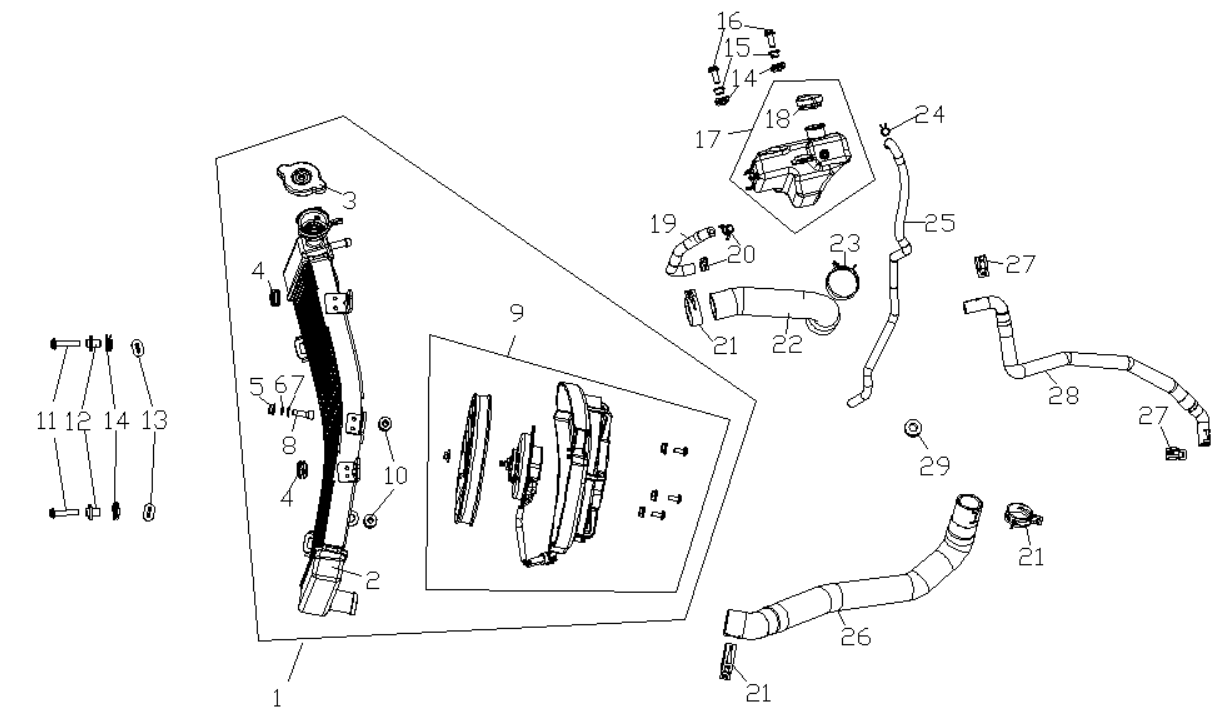

F02 COOLING SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F02-1 HEAT RADIATOR COMP. 1 SET B
F02-2 BODY SET,RADIATOR 1 PCS C
F02-3 CAP,WATER TANK 1 PCS B
F02-4 I-RUBBER 2 PCS C
F02-5 NUT,HEXAGON FLANGE 1 PCS C NOT FOR SERVICE
F02-6 WASHER,PLAIN 1 PCS C NOT FOR SERVICE
F02-7 WASHER,ELASTIC 1 PCS C NOT FOR SERVICE
F02-8 SCREW,HEXAGON SOCKET 1 PCS C NOT FOR SERVICE
F02-9 FAN ASSY. 1 SET B
F02-10 I-RUBBER 2 PCS C
F02-11 FLANGE BOLT 2 PCS C
F02-12 WASHER,FLANGE 2 PCS C
F02-13 I-RUBBER 2 PCS C
F02-14 NUT,CLIP 4 PCS C
F02-15 COLLAR 2 PCS C
F02-16 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F02-17 SUPPLEMENTARY CAN 1 PCS C
F02-18 CAP,FILLER 1 PCS C
F02-19 TUBE,WATER 1 PCS B
F02-20 CLAMP,TUBE 2 PCS C
F02-21 CLAMP,TUBE 3 PCS C
F02-22 TUBE,WATER 1 PCS B
F02-23 CLAMP,TUBE 1 PCS C
F02-24 CLAMP,TUBE 1 PCS C
F02-25 TUBE,WATER 1 PCS B
F02-26 TUBE,WATER 1 PCS B
F02-27 CLAMP,TUBE 2 PCS C
F02-28 TUBE,WATER 1 PCS B
F02-29 I-RUBBER 1 PCS C

Assembly diagram

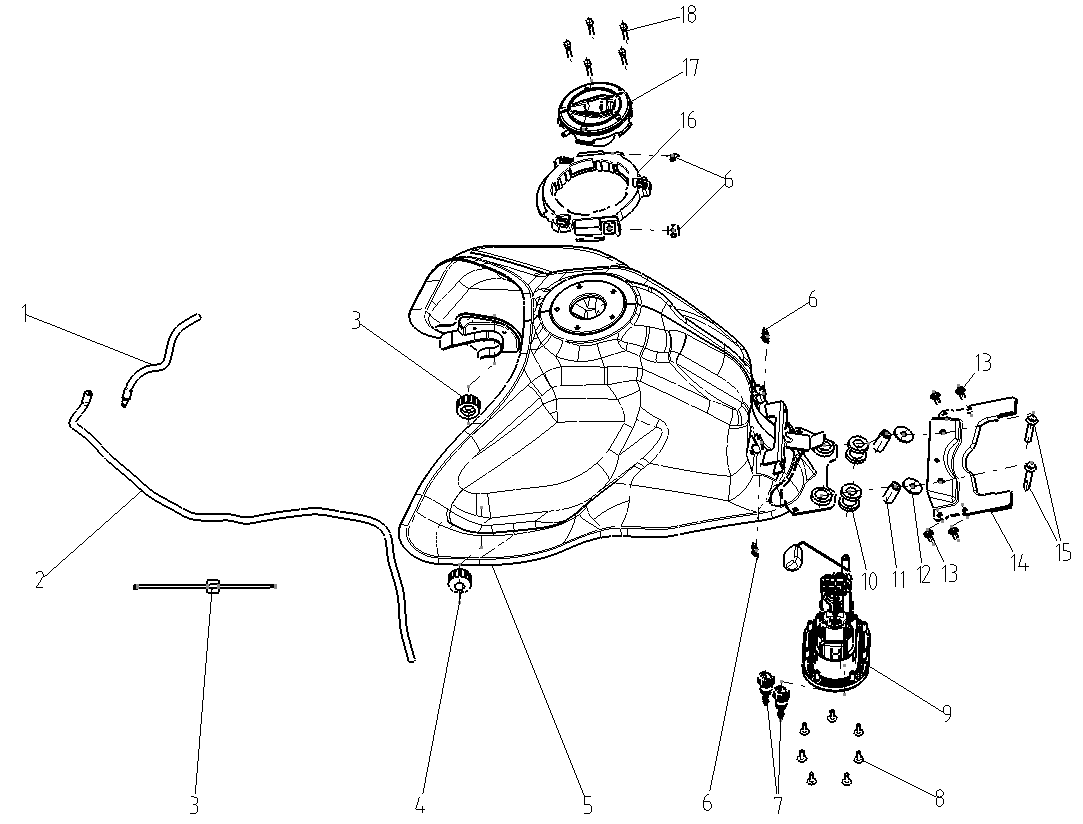

F03 FUEL TANK ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F03-1 TUBE,WATER 1 PCS B
F03-2 TUBE,WATER 1 PCS B
F03-3 BAND 1 PCS C
F03-4 RUBBER JACKET,FUEL TANK PROP 2 PCS C
F03-5 WELDING ASSY.,FUEL TANK 1 PCS C
F03-6 NUT,CLIP 4 PCS C
F03-7 JOINT, SWIFT CHANGE 2 PCS C
F03-8 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 7 PCS C
F03-9 FUEL PUMP,ELECTRIC 1 PCS C
F03-10 T-RUBBER 4 PCS C
F03-11 COLLAR 2 PCS C
F03-12 WASHER,PLAIN 2 -
F03-13 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F03-14 BRACE,FUEL TANK REAR 1 PCS C
F03-15 FLANGE BOLT 2 PCS C
F03-16 BRACKET,FUEL TANK GUARD PLATE 1 PCS C
F03-17 LOCK,FUEL TANK 1 PCS B NOT FOR SERVICE
F03-18 SCREW,HEXAGON SOCKET 5 PCS C

Assembly diagram

F04 FUEL EVAPORATIVE COMP. - diagram 1
Ref Part Name Part Number Qty Grade Notes

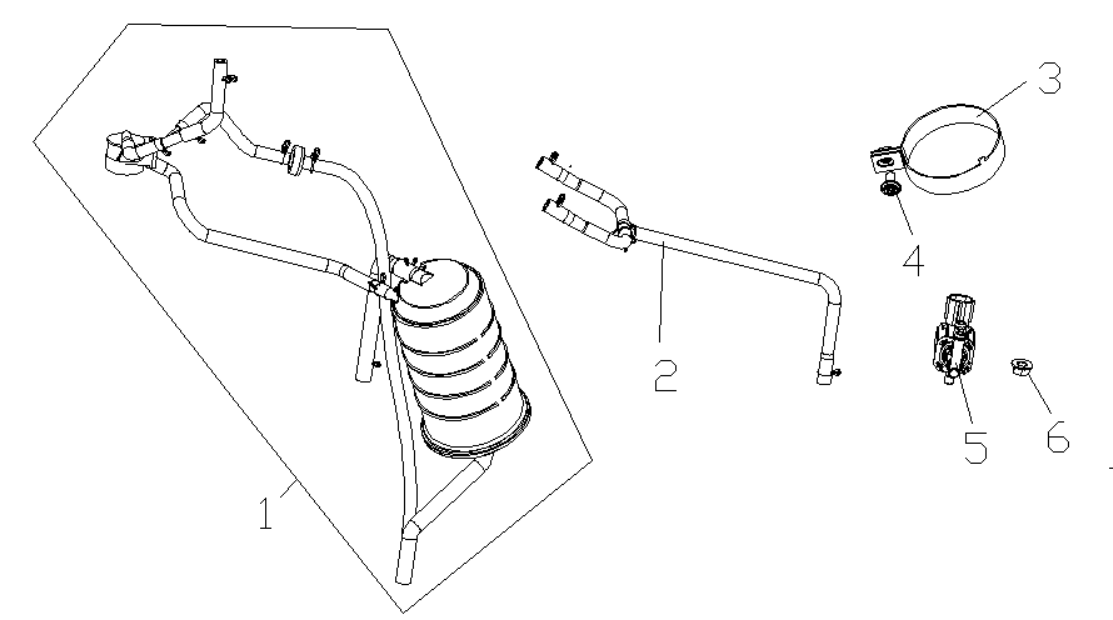

F04-1 CONTROLLER ASSY.,FUEL EVAPORATION 1 SET B
F04-2 TUBE ASSY.,BREATHER 1 SET C
F04-3 CLAMP ASSY. 1 PCS C
F04-4 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F04-5 MAGNETIC VALVE,CANISTER 1 PCS C
F04-6 NUT,HEXAGON FLANGE 1 PCS C

Assembly diagram

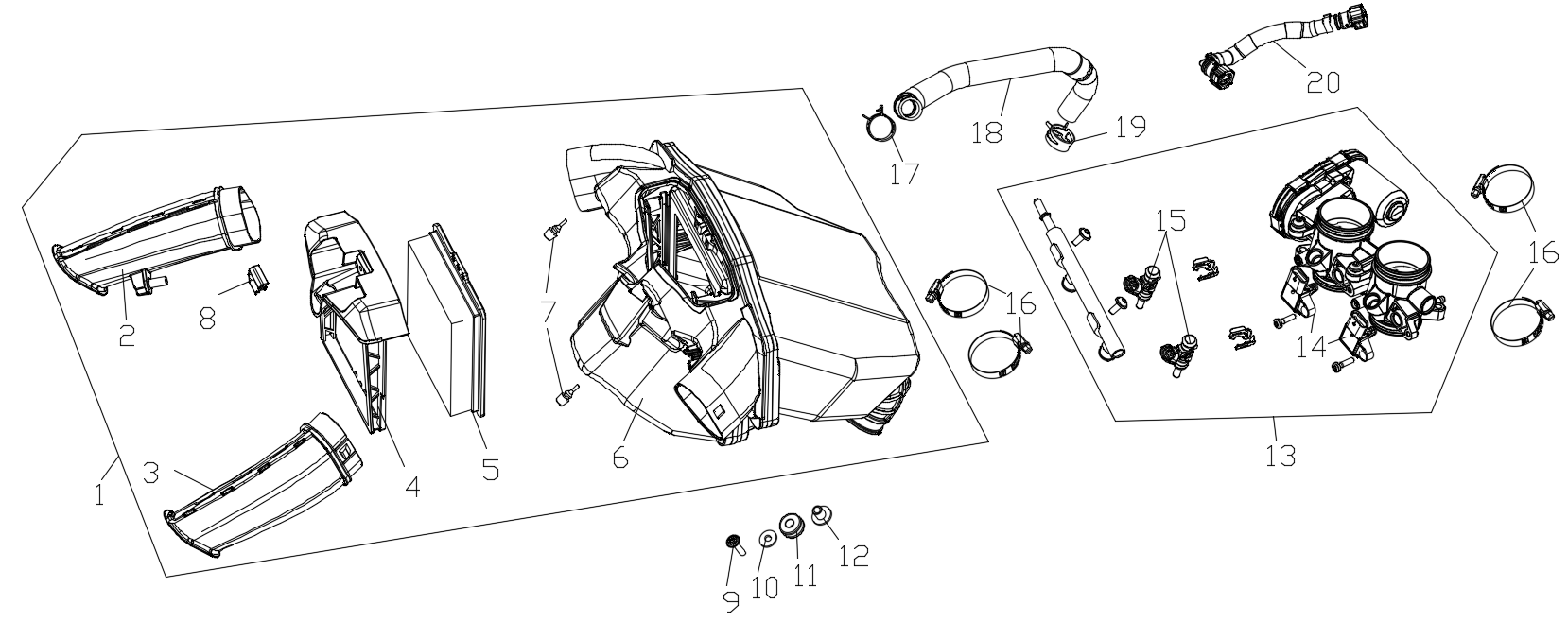

F05 AIR CLEANER ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F05-1 AIR CLEANER COMP. 1 PCS C
F05-2 INTAKE TUBE,AIR CLEANER 1 PCS C NOT FOR SERVICE
F05-3 INTAKE TUBE,AIR CLEANER 1 PCS C NOT FOR SERVICE
F05-4 FRAMEWORK,AIR CLEANER 1 PCS C NOT FOR SERVICE
F05-5 ELEMENT ASSY.,AIR CLEANER 1 PCS A
F05-6 CASE,AIR CLEANER 1 - NOT FOR SERVICE
F05-7 RUBBER JACKET, DAMPING 2 PCS C NOT FOR SERVICE
F05-8 PIECE,ELEMENT MOUNTING LOCKING 1 PCS C NOT FOR SERVICE
F05-9 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F05-10 WASHER,PLAIN 1 PCS C
F05-11 I-RUBBER 1 PCS C
F05-12 WASHER,FLANGE 1 PCS C
F05-13 VALVE BODY ASSY., THROTTLE 1 PCS B
F05-14 SENSOR,AIR TEMP&PRESSURE 2 PCS B
F05-15 FUEL OIL INJECTOR COMP. 2 PCS B
F05-16 CLAMP ASSY. 4 PCS C
F05-17 CLAMP,TUBE 1 PCS C
F05-18 TUBE,BREATHER 1 PCS B
F05-19 CLAMP,TUBE 1 PCS C
F05-20 FUEL TUBE ASSY. 1 PCS C

Assembly diagram

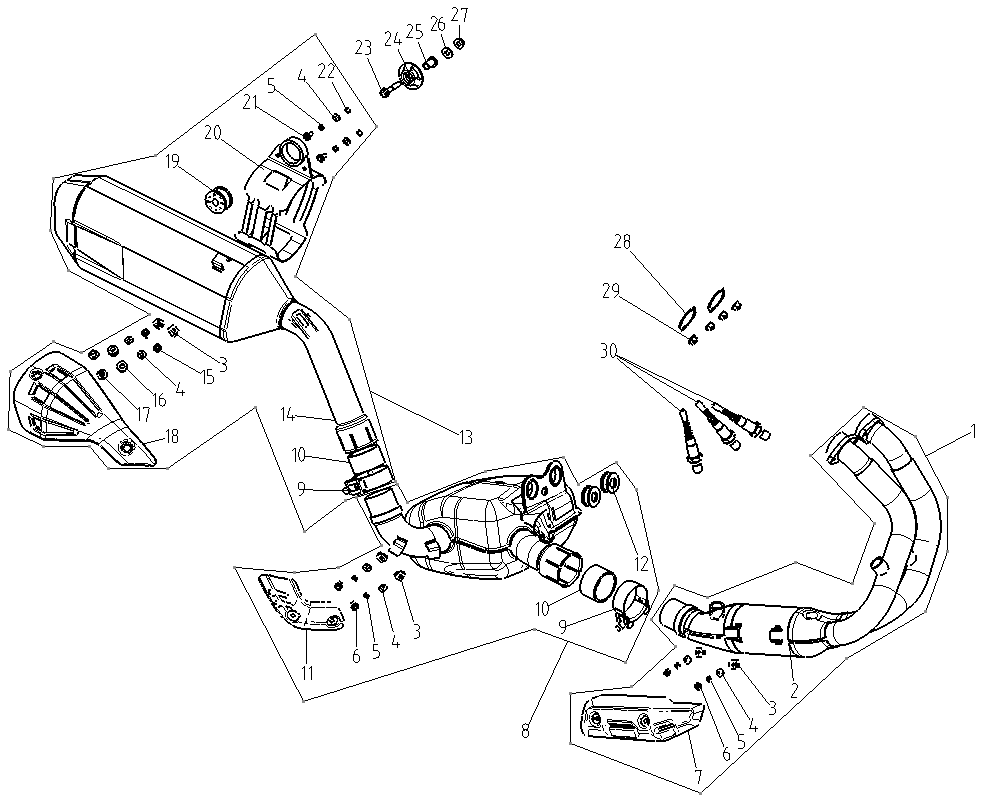

F06 MUFFLER EXHAUST ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F06-1 FRONT PART,MUFFLER EXHAUST 1 PCS C E5+
F06-2 WELDING ASSY.,EXHAUST PIPE 1 PCS C NOT FOR SERVICE
F06-3 NUT,CLIP 3 PCS C NOT FOR SERVICE
F06-4 WASHER,PLAIN 5 PCS C NOT FOR SERVICE
F06-5 WASHER,ELASTIC 4 PCS C
F06-6 FLANGE BOLT 2 PCS C NOT FOR SERVICE
F06-7 SHIELD,WARM PROOF 1 PCS B
F06-8 MIDDLE PART OF MUFLLER EXHAUST PIPE 1 PCS C
F06-9 TUBE,MUFFLER CONNECTING 2 PCS B
F06-10 GRAPHITE ANNULUS 2 PCS B
F06-11 SHIELD,WARM PROOF 1 PCS B
F06-12 I-RUBBER 2 PCS C NOT FOR SERVICE
F06-13 REAR PART,MUFFLER 1 PCS C
F06-14 BODY,MUFFLER 1 PCS C NOT FOR SERVICE
F06-15 FLANGE BOLT 2 PCS C NOT FOR SERVICE
F06-16 I-RUBBER 2 PCS C NOT FOR SERVICE
F06-17 WASHER,FLANGE 2 PCS C NOT FOR SERVICE
F06-18 SHIELD,MUFFLER 1 PCS B
F06-19 I-RUBBER 1 PCS C NOT FOR SERVICE
F06-20 PLATE,MUFFLER HANGER 1 PCS C NOT FOR SERVICE
F06-21 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C NOT FOR SERVICE
F06-22 NUT,HEXAGON HEAD 2 PCS C NOT FOR SERVICE
F06-23 FLANGE BOLT 1 PCS C
F06-24 WASHER,HANGER PLATE STIFFENING 1 PCS C
F06-25 WASHER,FLANGE 1 PCS C
F06-26 WASHER,PLAIN 1 PCS C
F06-27 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE 1 PCS C
F06-28 GASKET,AIR EXHAUST PORT 2 PCS A
F06-29 NUT,HEXAGON FLANGE 4 PCS C
F06-30 OXYGEN SENSOR 3 PCS B E5+

Assembly diagram

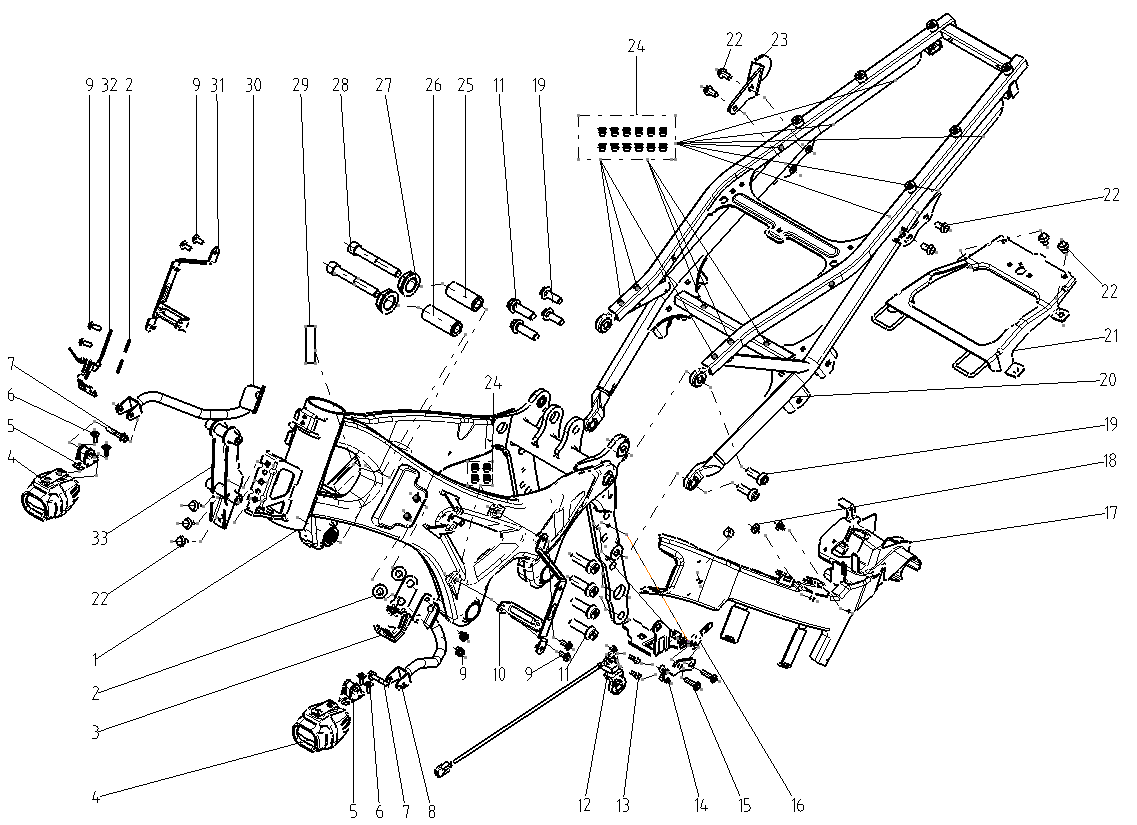

F07 FRAME ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F07-1 BODY COMP.,FRAME 1 PCS C
F07-2 PLAIN WASHER,RUBBER 4 PCS C
F07-3 BRACKET,AIR CLEANER 1 PCS C
F07-4 LIGHT,FOG 2 PCS B
F07-5 SOCKET,DECORATIVE LIGHT 2 PCS C
F07-6 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F07-7 BOLT,HEXAGON FLANGE 2 PCS C
F07-8 HOLDER,DECORATIVE LIGHT BRACKET RIGHT 1 PCS C
F07-9 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 8 PCS C
F07-10 BRACKET,SIDE COVER RIGHT 1 PCS C
F07-11 FLANGE BOLT 6 PCS C
F07-12 QUICK SHIFT SENSOR 1 -
F07-13 SCREW,HEXAGON SOCKET 2 PCS C
F07-14 BRACKET OF SENSOR 1 PCS C
F07-15 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F07-16 BRACKET CANISTER 1 PCS C
F07-17 PLATE,WIRE PRESSURE 1 PCS C
F07-18 CLIP 3 PCS C
F07-19 FLANGE BOLT 4 PCS C
F07-20 REAR PART,FRAME 1 PCS C
F07-21 BRACKET,SEAT 1 PCS C
F07-22 FLANGE BOLT 9 PCS C
F07-23 BRACKET,MUFFLER 1 PCS C
F07-24 RIVET NUT 16 PCS C
F07-25 SCREW,HEXAGON SOCKET 1 PCS C
F07-26 SCREW,HEXAGON SOCKET 1 PCS C
F07-27 NUT,HEXAGON FLANGE 2 PCS C
F07-28 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F07-29 TECHNIQUE LABEL 1 PCS C
F07-30 HOLDER,DECORATIVE LIGHT BRACKET LEFT 1 PCS C
F07-31 BRACKET,SIDE COVER LEFT 1 PCS B
F07-32 BRACKET,AIR CLEANER 1 PCS C
F07-33 BRACKET,HEAD LIGHT 1 PCS C

Assembly diagram

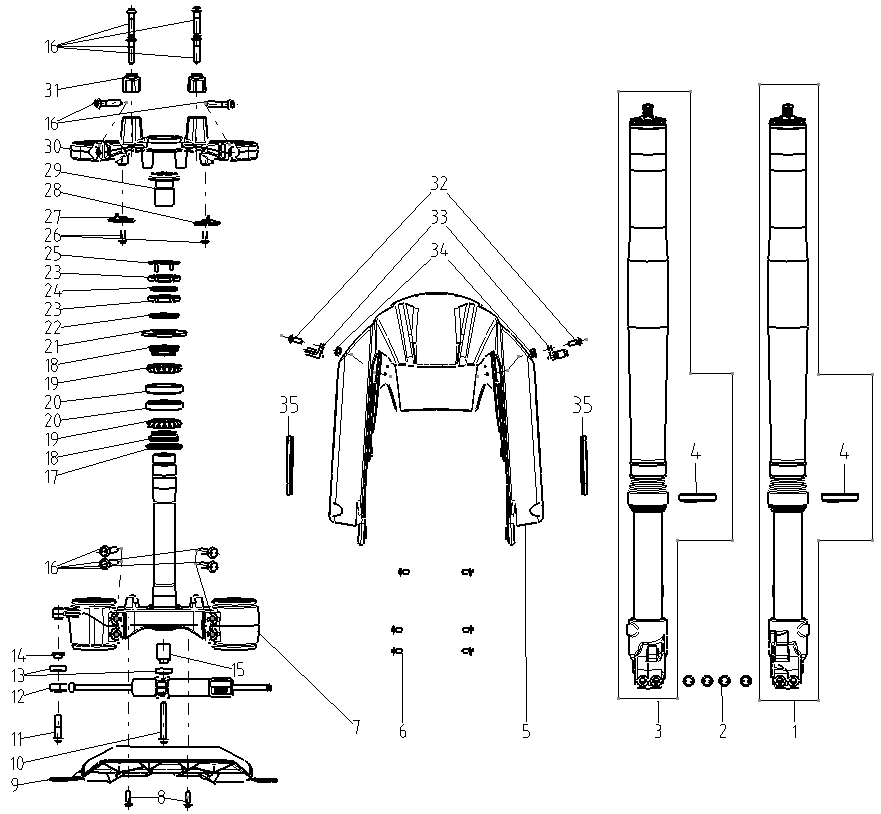

F08 FRONT FORK ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F08-1 SHOCK ABSORBER, LEFT FRONT 1 PCS B
F08-2 FLANGE BOLT 4 PCS C
F08-3 SHOCK ABSORBER, RIGHT FRONT 1 PCS B
F08-4 OIL SEAL 2 PCS B
F08-5 FENDER COMP.,FRONT 1 PCS B
F08-6 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 6 PCS C
F08-7 BODY SET,STEERING STEM 1 PCS B
F08-8 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F08-9 FENDER COMP.,FRONT UPPER 1 PCS -
F08-10 FLANGE BOLT 1 PCS C
F08-11 FLANGE BOLT 1 PCS C
F08-12 STEERING DAMPER 1 PCS -
F08-13 PAD,CUSHION 2 PCS C
F08-14 COLLAR 1 PCS C
F08-15 COLLAR 1 PCS C
F08-16 FLANGE BOLT 10 PCS C
F08-17 STEERING GASKET 1 -
F08-18 CIRCLIP, STEERING BEARING 2 PCS B
F08-19 BALL SET,STEEL TOP 2 SET B
F08-20 RING, STEERING BASE 2 PCS B
F08-21 DUST CAP,STEERING STEM 1 PCS C
F08-22 WASHER,STEERING STEM 1 PCS C
F08-23 KEP NUT,STEERING STEM 2 PCS C
F08-24 PLAIN WASHER,RUBBER 1 -
F08-25 WASHER,LOCKING 1 PCS C
F08-26 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F08-27 CLAMP,WIRE 1 PCS C
F08-28 CLAMP,WIRE 1 PCS C
F08-29 LOCK BOLT,STEERING STEM 1 PCS C
F08-30 BRIDGE,FORK TOP 1 PCS B
F08-31 HOLDER,STEERING HANDLE PIPE 2 PCS B
F08-32 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F08-33 CLAMP,TUBE 2 PCS C
F08-34 NUT,HEXAGON FLANGE 2 PCS C
F08-35 REFLECTOR,LEFT SIDE 2 PCS B

Assembly diagram

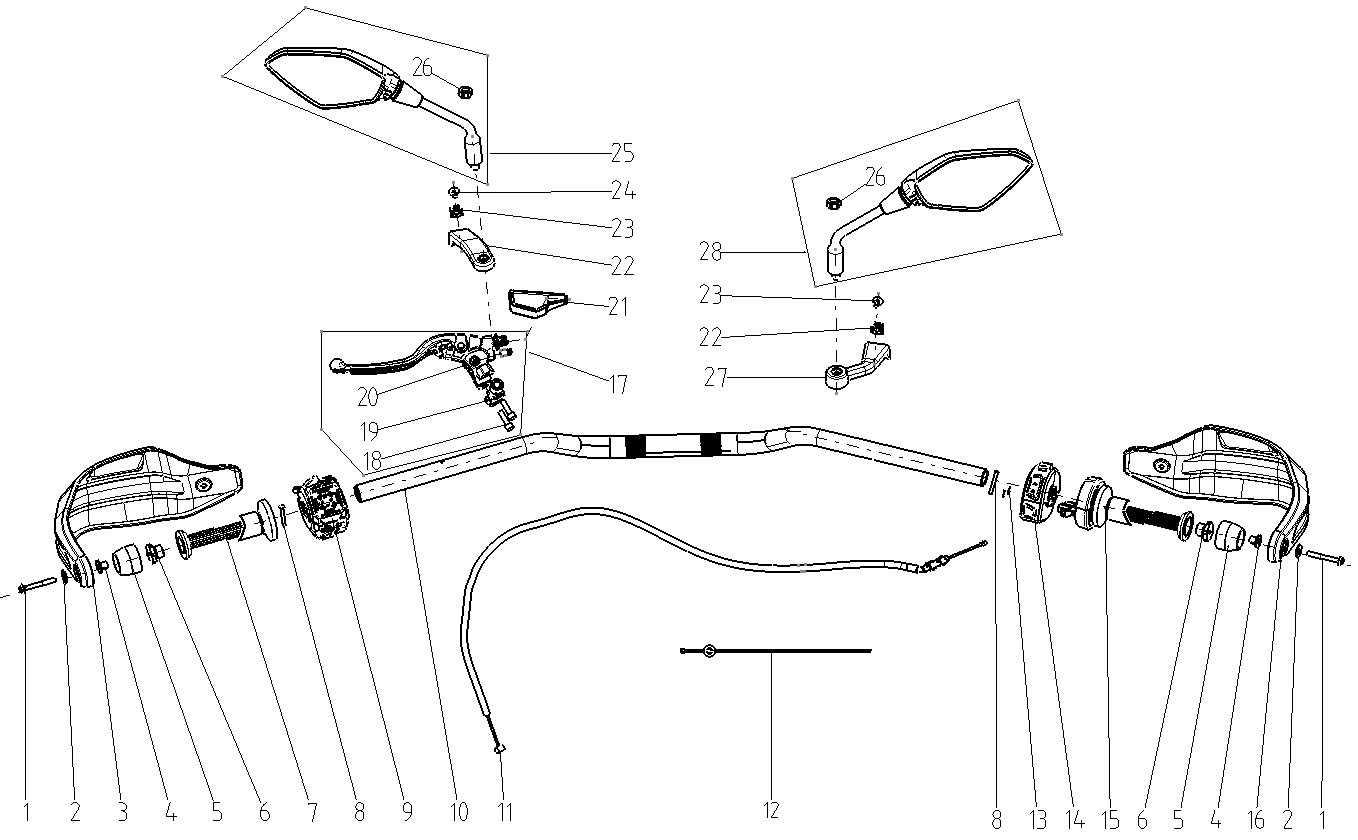

F09 STEERING OPERATION SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F09-1 FLANGE BOLT 2 PCS C
F09-2 WASHER,PLAIN 2 PCS C
F09-3 SHIELD,LEFT HANDLE 1 PCS B
F09-4 WASHER,FLANGE 2 PCS C
F09-5 DECORATIVE WEIGHT, LEFT 2 PCS B
F09-6 COUNTERWEIGHT,STEERING HANDLE PIPE 2 PCS B
F09-7 GRIP SET,HANDLE WITH HEATING FUNCTION 1 PCS A WITH HEATING FUNCTION
F09-8 SCREW,CROSS RECESSED PAN 2 PCS C
F09-9 SWITCH ASSY.,LEFT 1 SET B
F09-10 HANDLE BAR ASSY. 1 PCS C
F09-11 CABLE COMP.,CLUTCH 1 PCS A
F09-12 BAND 1 PCS C
F09-13 SCREW,CROSS RECESSED PAN SELF-TAPPING 2 PCS C
F09-14 SWITCH ASSY.,RIGHT 1 SET B
F09-15 GREASER COMP.WITH HEATING FUNCTION 1 PCS A WITH HEATING FUNCTION
F09-16 SHIELD,RIGHT HANDLE 1 PCS B
F09-17 LEVER COMP., LEFT 1 SET B
F09-18 SCREW,HEXAGON SOCKET 2 PCS C
F09-19 CLIP,LEFT LEVER 1 PCS C
F09-20 SWITCH ASSY.,CLUTCH 1 PCS C
F09-21 SHEATH,CLUTCH CABLE 1 PCS C
F09-22 BRACKET,HANDLE SHIELD 1 PCS C
F09-23 NUT,CLIP 2 PCS C
F09-24 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F09-25 MIRROR,LEFT BACK-VIEW WITH LCA 1 PCS A LCA-LANE CHANGE ASSISTANCE
F09-26 NUT,HEXAGON HEAD 2 PCS C 仅用于带变道辅助提醒的后视镜
F09-27 BRACKET,HANDLE SHIELD 1 PCS C
F09-28 MIRROR,RIGHT BACK-VIEW WITH LCA 1 PCS A LCA-LANE CHANGE ASSISTANCE

Assembly diagram

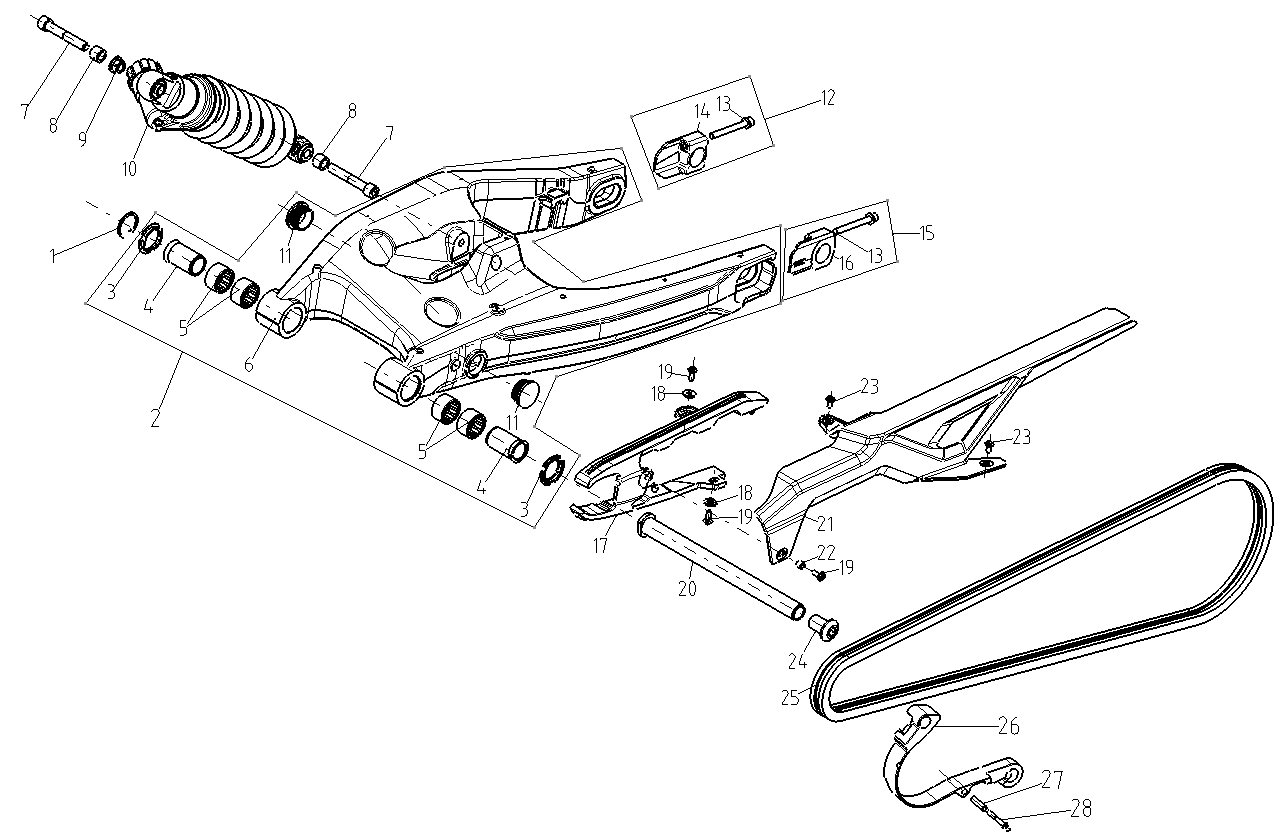

F10 REAR HANGER SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F10-1 CHECK RING,ELASTIC 1 PCS B
F10-2 FORK COM.,REAR 1 PCS C
F10-3 CAP,REAR FORK DUST SEAL 2 PCS C
F10-4 COLLAR 2 PCS C
F10-5 BEARING 4 PCS B
F10-6 REAR FORK ASSY. 1 PCS C NOT FOR SERVICE
F10-7 SCREW,HEXAGON SOCKET 2 PCS C
F10-8 COLLAR 2 PCS C
F10-9 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE 1 PCS C
F10-10 SHOCK ABSORBER, LEFT REAR 1 PCS B
F10-11 STOPPER 2 PCS C
F10-12 ADJUSTER,DRIVE CHAIN RIGHT 1 PCS B
F10-13 BOLT/SCREW/WASHER,PALIN COMP. 2 PCS C NOT FOR SERVICE
F10-14 BODY,DRIVE CHAIN ADJUSTER RIGHT 1 PCS C NOT FOR SERVICE
F10-15 ADJUSTOR,DRIVE CHAIN LEFT 1 PCS B
F10-16 ADJUSTOR BODY OF CHAIN 1 PCS C NOT FOR SERVICE
F10-17 SLIDER,DRIVE CHAIN 1 PCS B
F10-18 WASHER,FLANGE 2 PCS C
F10-19 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 3 PCS C
F10-20 AXIS 1 PCS C
F10-21 CASE, CHAIN 1 PCS B
F10-22 COLLAR 1 PCS C
F10-23 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F10-24 SCREW,HEXAGON SOCKET 1 PCS C
F10-25 CHAIN 1 PCS A
F10-26 SLIDER,DRIVE CHAIN 1 PCS B
F10-27 COLLAR 1 PCS C
F10-28 BOLT,HEXAGON FLANGE 1 PCS C

Assembly diagram

F11 FRONT WHEEL - diagram 1

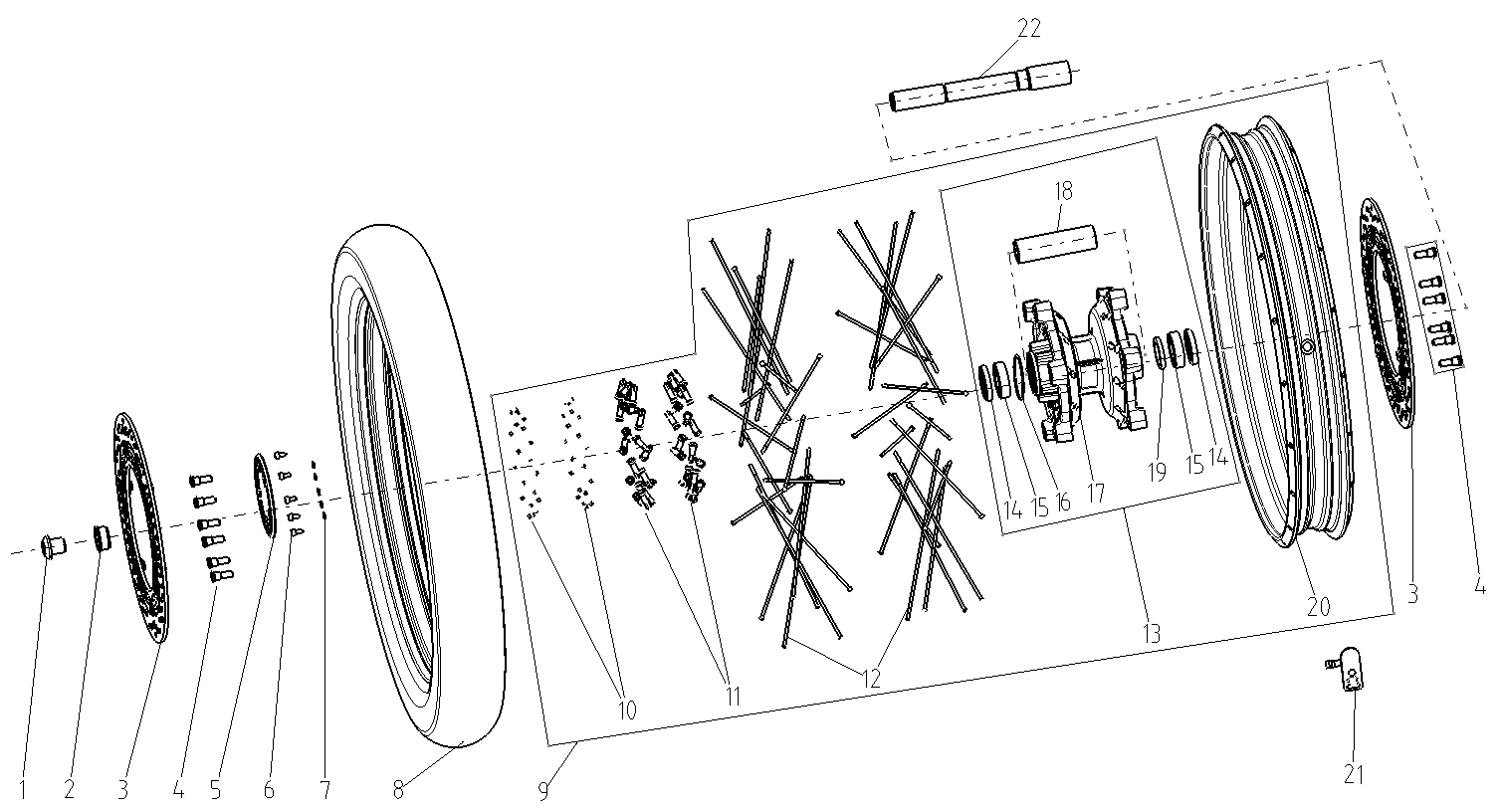

Ref Part Name Part Number Qty Grade Notes
F11-1 SCREW,HEXAGON SOCKET 1 PCS C
F11-2 COLLAR 1 PCS C
F11-3 DISK COMP.,LEFT FRONT BRAKE 2 PCS B
F11-4 FASTENING BOLT,BRAKE DISK 12 PCS B
F11-5 GEAR RING OF ABS 1 PCS C
F11-6 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 5 PCS C
F11-7 WASHER,PLAIN 5 PCS C
F11-8 TYRE ASSY. 1 PCS A
F11-9 WHEEL,FRONT 1 PCS B
F11-10 BOLT,PLUG 40 PCS C
F11-11 NUT,FRONT WHEEL SPOKE 40 PCS B
F11-12 SPOKE,FRONT WHEEL INSIDE 40 PCS B
F11-13 HUB,FRONT WHEEL 1 PCS C
F11-14 OIL SEAL 2 PCS B
F11-15 BEARING 2 PCS B
F11-16 RING,SEAL 1 PCS C
F11-17 BODY SET,FRONT WHEEL HUB 1 PCS C NOT FOR SERVICE
F11-18 COLLAR 1 PCS C
F11-19 SHEATH,RUBBER 1 PCS C
F11-20 RIM,FRONT WHEEL 1 PCS B
F11-21 SENSOR，TIRE PRESSURE 1 PCS B
F11-22 AXIS 1 PCS C

Assembly diagram

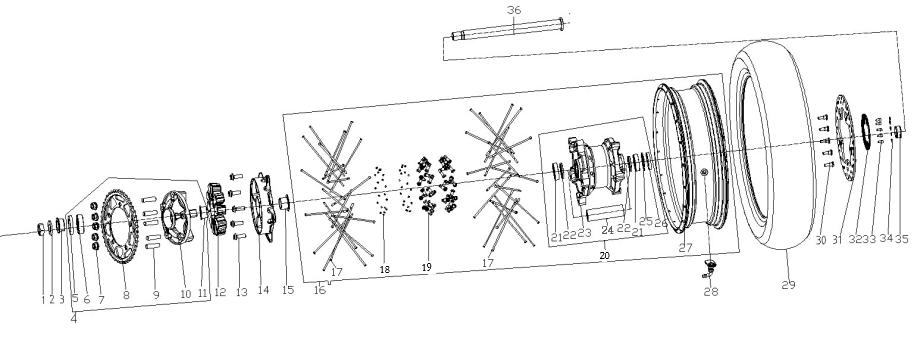

F12 REAR WHEEL ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F12-1 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON 1 PCS C
F12-2 WASHER,PLAIN 1 PCS C
F12-3 COLLAR 1 PCS C
F12-4 IMPACT DAMPER COMP 1 SET B
F12-5 OIL SEAL 1 PCS B
F12-6 BEARING 1 PCS B
F12-7 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE 5 PCS A
F12-8 SPROCKET,FINAL DRIVEN 1 PCS A
F12-9 BOLT,SPROCKET WHEEL 5 PCS A
F12-10 SEAT,SPROCKET WHEEL 1 PCS C
F12-11 COLLAR 1 PCS C
F12-12 DAMPING PIECE,REAR WHEEL 1 PCS A
F12-13 FLANGE BOLT 5 PCS C
F12-14 LAND,REAR WHEEL 1 PCS C
F12-15 COLLAR 1 PCS C
F12-16 WHEEL,REAR 1 PCS B
F12-17 SPOKE,REAR WHEEL OUTSIDE 40 PCS B
F12-18 BOLT,PLUG 40 PCS C
F12-19 NUT,REAR WHEEL SPOKE 40 PCS B
F12-20 HUB,REAR WHEEL 1 PCS C
F12-21 BEARING 2 PCS B
F12-22 SHEATH,RUBBER 2 PCS C
F12-23 BODY SET,REAR WHEEL HUB 1 PCS C NOT FOR SERVICE
F12-24 COLLAR 1 PCS C
F12-25 CHECK RING,ELASTIC 1 PCS B
F12-26 OIL SEAL 1 PCS B
F12-27 RIM,REAR WHEEL 1 PCS B
F12-28 SENSOR，TIRE PRESSURE 1 PCS B
F12-29 TYRE ASSY. 1 PCS A
F12-30 FASTENING BOLT,BRAKE DISK 5 PCS B
F12-31 DISK COMP.,LEFT REAR BRAKE 1 PCS B
F12-32 GEAR RING OF ABS 1 PCS C
F12-33 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 5 PCS C
F12-34 WASHER,PLAIN 5 PCS C
F12-35 COLLAR 1 PCS C
F12-36 AXIS 1 PCS C

Assembly diagram

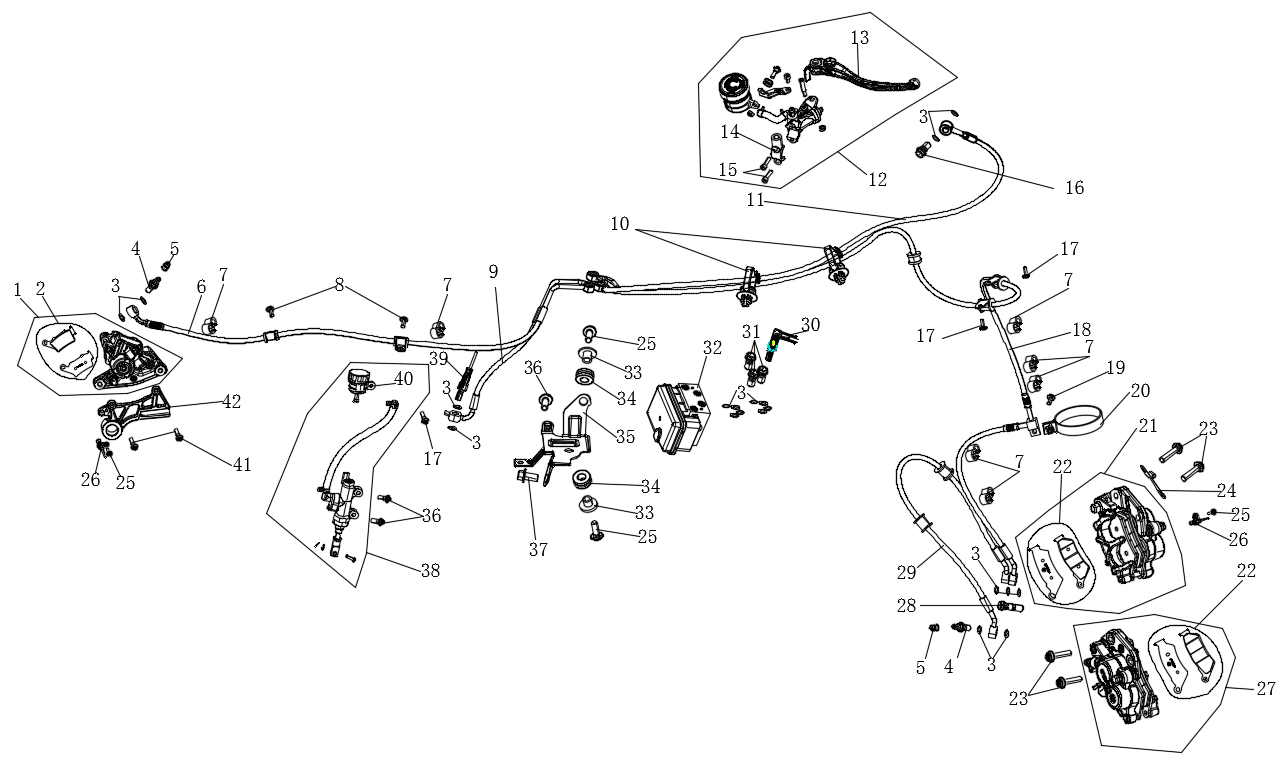

F13 BRAKE SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F13-1 PUMP, REAR DISC-BRAKE LOWER 1 PCS B
F13-2 PAD COMP.,REAR DISC-BRAKE 1 PCS A
F13-3 WASHER,PLAIN 19 PCS C
F13-4 BOLT,DISC-BRAKE HOSE 2 PCS B
F13-5 PROTECTING CAP,BLEEDER SCREW 2 PCS C
F13-6 ABS CONNECTIVE OIL TUBE 1 PCS B
F13-7 CLAMP,WIRE 9 PCS C
F13-8 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F13-9 ABS CONNECTIVE OIL TUBE 1 PCS B
F13-10 BAND 2 PCS C
F13-11 ABS CONNECTIVE OIL TUBE 1 PCS B
F13-12 CYLINDER ASSY.,MASTER 1 PCS B
F13-13 LEVER COMP.,RIGHT STEERING HANDLE 1 PCS B
F13-14 CLIP,LEFT LEVER 1 PCS B
F13-15 SCREW,HEXAGON SOCKET 2 PCS C
F13-16 BOLT,DISC-BRAKE HOSE 1 PCS B
F13-17 FLANGE BOLT 2 PCS C
F13-18 ABS CONNECTIVE OIL TUBE 1 PCS B
F13-19 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F13-20 HOOP 1 PCS C
F13-21 CALIPER ASSY.,LEFT 1 PCS B
F13-22 PAD COMP.,FRONT DISC-BRAKE 2 PCS A
F13-23 FLANGE BOLT 4 PCS C
F13-24 BRACKET OF SPEED SENSOR 1 PCS C
F13-25 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F13-26 SPEED SENSOR 2 PCS B E5+
F13-27 CALIPER ASSY.,RIGHT 1 PCS B
F13-28 BOLT,DISC-BRAKE HOSE 1 PCS B
F13-29 HOSE,FRONT DISC-BRAKE 1 PCS B
F13-30 SWITCH ASSY.,FRONT DISC-BRAKE 1 PCS B
F13-31 BOLT,DISC-BRAKE HOSE 3 PCS B
F13-32 ABS.ANTI-LOCKING UP SYSTEM 1 PCS C E5+ BOSCH
F13-33 COLLAR 2 PCS C
F13-34 I-RUBBER 2 PCS C
F13-35 INSTALLATION BRACKET, ABS 1 PCS C
F13-36 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F13-37 BOLT,HEXAGON FLANGE 1 PCS C
F13-38 PUMP, REAR DISC-BRAKE UPPER 1 PCS B
F13-39 SWITCH ASSY.,REAR BRAKE 1 PCS B
F13-40 OIL CUP,DISC-BRAKE 1 PCS B
F13-41 FLANGE BOLT 2 PCS C
F13-42 BRACKET,REAR DISC-BRAKE 1 PCS C

Assembly diagram

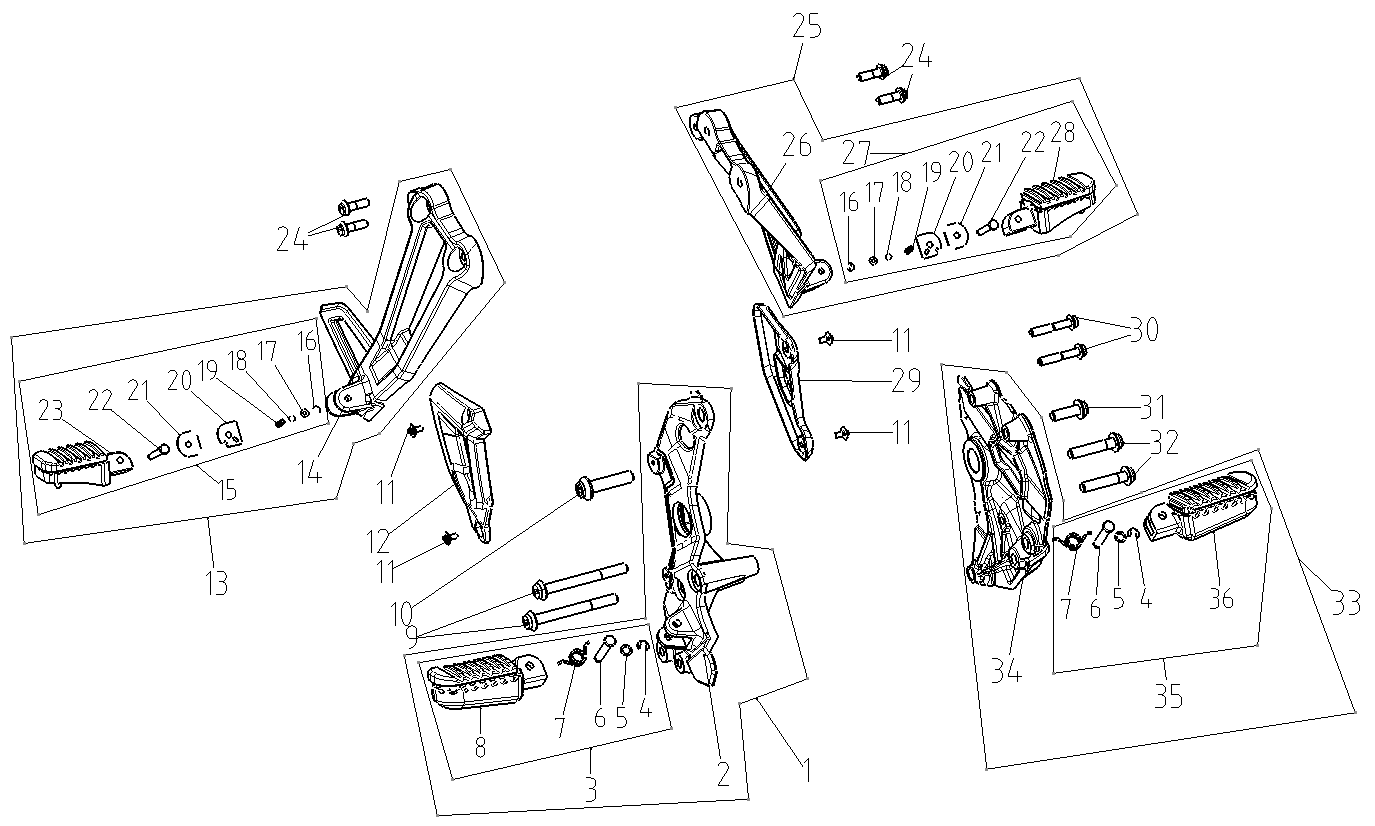

F14 FOOTREST SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
F14-1 FOOTREST ASSY., RIGHT 1 SET B
F14-2 BRACKET, RIGHT FOOTREST 1 PCS C
F14-3 BODY SET,STEP 1 PCS A
F14-4 SPLIT WASHER 2 PCS C NOT FOR SERVICE
F14-5 RING,SEAL 2 PCS B NOT FOR SERVICE
F14-6 PIN,CLEVIS 2 PCS C NOT FOR SERVICE
F14-7 SPRING, TURNING 2 PCS B NOT FOR SERVICE
F14-8 BODY SET,STEP 1 PCS A NOT FOR SERVICE
F14-9 FLANGE BOLT 2 PCS C
F14-10 FLANGE BOLT 1 PCS C
F14-11 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F14-12 CHECK BLOCK,STEP 1 PCS C
F14-13 STEP ASSY.,RIGHT PILLION 1 SET B For Titanium Sandy Golden and White Model
F14-13 STEP ASSY.,RIGHT PILLION 1 SET B For Matt Black Model
F14-14 HOLD COMP.,RIGHT PILLION STEP 1 PCS C For Titanium Sandy Golden and White Model
F14-14 HOLD COMP.,RIGHT PILLION STEP 1 PCS C For Matt Black Model
F14-15 BODY SET,RIGHT PILLION STEP 1 PCS A For Titanium Sandy Golden and White Model
F14-15 BODY SET,RIGHT PILLION STEP 1 PCS A For Matt Black Model
F14-16 SPLIT WASHER 2 PCS C NOT FOR SERVICE
F14-17 RING,SEAL 2 PCS B NOT FOR SERVICE
F14-18 BALL,STEEL 2 PCS B NOT FOR SERVICE
F14-19 SPRING,COMPRESSION 2 PCS B NOT FOR SERVICE
F14-20 SHEET,STEP LIMIT 2 PCS C NOT FOR SERVICE
F14-21 SHEET,STEP LIMIT 2 PCS C NOT FOR SERVICE
F14-22 PIN,CLEVIS 2 PCS C NOT FOR SERVICE
F14-23 STEP ASSY.,RIGHT PILLION 1 PCS B NOT FOR SERVICE
F14-24 FLANGE BOLT 4 PCS C
F14-25 STEP ASSY.,LEFT PILLION 1 SET B For Titanium Sandy Golden and White Model
F14-25 STEP ASSY.,LEFT PILLION 1 SET B For Matt Black Model
F14-26 HOLD COMP.,LEFT PILLION STEP 1 PCS C For Titanium Sandy Golden and White Model
F14-26 HOLD COMP.,LEFT PILLION STEP 1 PCS C For Matt Black Model
F14-27 BODY SET,LEFT PILLION STEP 1 PCS A For Titanium Sandy Golden and White Model
F14-27 BODY SET,LEFT PILLION STEP 1 PCS A For Matt Black Model
F14-28 STEP ASSY.,LEFT PILLION 1 PCS B NOT FOR SERVICE
F14-29 CHECK BLOCK,STEP 1 PCS C
F14-30 FLANGE BOLT 2 PCS C
F14-31 FLANGE BOLT 1 PCS C
F14-32 FLANGE BOLT 2 PCS C
F14-33 FOOTREST ASSY., LEFT 1 SET B
F14-34 BRACKET, LEFT FOOTREST 1 PCS C
F14-35 BODY SET,STEP 1 PCS A
F14-36 BODY SET,STEP 1 PCS A NOT FOR SERVICE

Assembly diagram

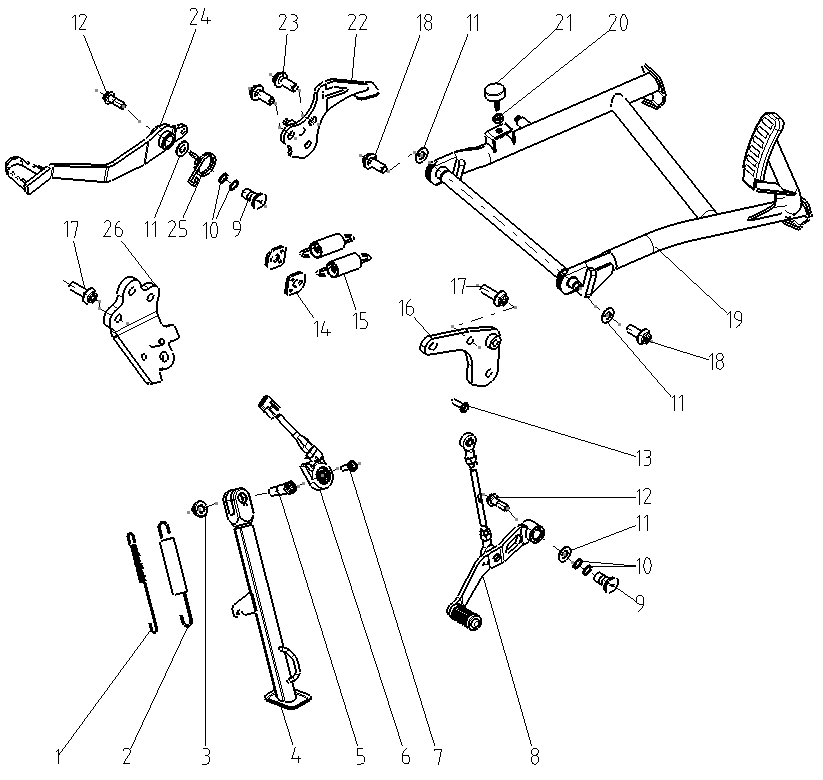

F15 MAIN STAND AND SIDE STAND - diagram 1
Ref Part Name Part Number Qty Grade Notes
F15-1 SPRING, DRAWING 1 PCS B
F15-2 SPRING, DRAWING 1 PCS B
F15-3 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE 1 PCS C
F15-4 BAR ASSY.,SIDE STAND 1 PCS B
F15-5 BOLT,HEXAGON HEAD SHOULDER 1 PCS C
F15-6 KILL SWITCH, SIDE STAND 1 PCS B
F15-7 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F15-8 PEDAL,GEAR CHANGE 1 PCS B
F15-9 AXIS 2 PCS C
F15-10 RING,SEAL 4 PCS B
F15-11 WASHER,PLAIN 4 PCS C
F15-12 FLANGE BOLT 2 PCS C
F15-13 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F15-14 PLATE,SPRING HANGER 2 PCS C
F15-15 SPRING, DRAWING 2 PCS B
F15-16 BASE,MAIN STAND MOUNTING 1 PCS C
F15-17 FLANGE BOLT 2 PCS C
F15-18 FLANGE BOLT 2 PCS -
F15-19 STAND COMP.,MAIN 1 PCS C
F15-20 NUT,HEXAGON HEAD 1 PCS -
F15-21 PAD,CUSHION 1 PCS C
F15-22 BASE,MAIN STAND MOUNTING 1 PCS C
F15-23 FLANGE BOLT 2 PCS C
F15-24 PEDAL,REAR BRAKE 1 PCS B
F15-25 SPRING, TURNING 1 PCS B
F15-26 BODY,SIDE STAND BAR MOUNTING 1 PCS C

Assembly diagram

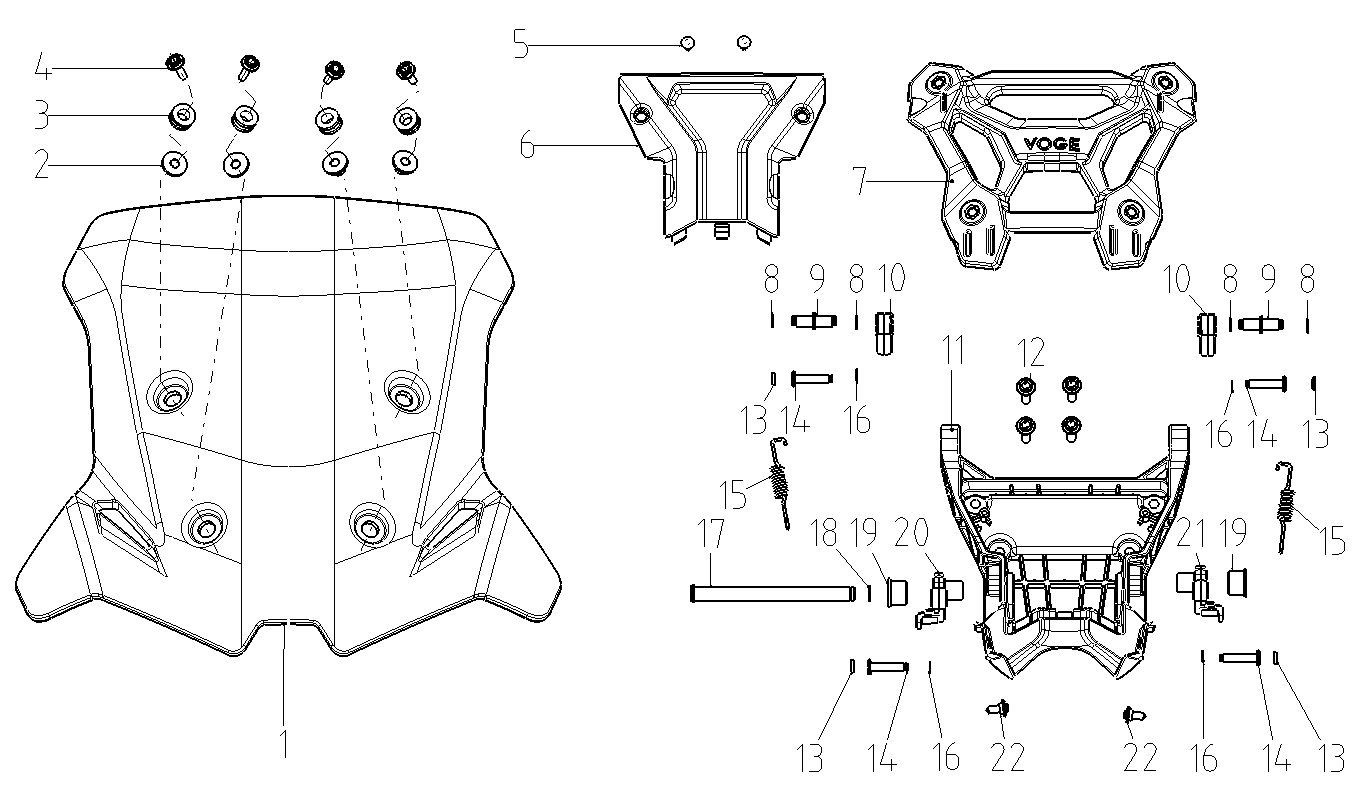

F16 WINDSHIELD GLASS - diagram 1
Ref Part Name Part Number Qty Grade Notes
F16-1 GLASS, WIND SHIELD 1 PCS B
F16-2 COLLAR 4 PCS C
F16-3 I-RUBBER 4 PCS C
F16-4 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F16-5 SCREW,CROSS RECESSED PAN SELF-TAPPING 2 PCS C
F16-6 PANEL,FRONT 1 PCS B
F16-7 WINDSHIELD MOUNTING PLATE 1 -
F16-8 SPLIT WASHER 4 PCS C
F16-9 PIN,CLEVIS 2 PCS C
F16-10 UPPER ARM,WINDSHIELD ADJUSTMENT 2 -
F16-11 BRACKET OF WINDSHIELD GLASS 1 PCS C
F16-12 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F16-13 PLAIN WASHER,RUBBER 4 PCS C
F16-14 PIN,CLEVIS 4 PCS C
F16-15 SPRING, DRAWING 2 PCS B
F16-16 SPLIT WASHER 4 PCS C
F16-17 PIN,CLEVIS 1 PCS C
F16-18 SPLIT WASHER 1 PCS C
F16-19 WASHER,FLANGE 2 PCS C
F16-20 LOWER ARM,WINDSHIELD ADJUSTMENT RIGHT 1 -
F16-21 LOWER ARM,WINDSHIELD ADJUSTMENT LEFT 1 -
F16-22 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C

Assembly diagram

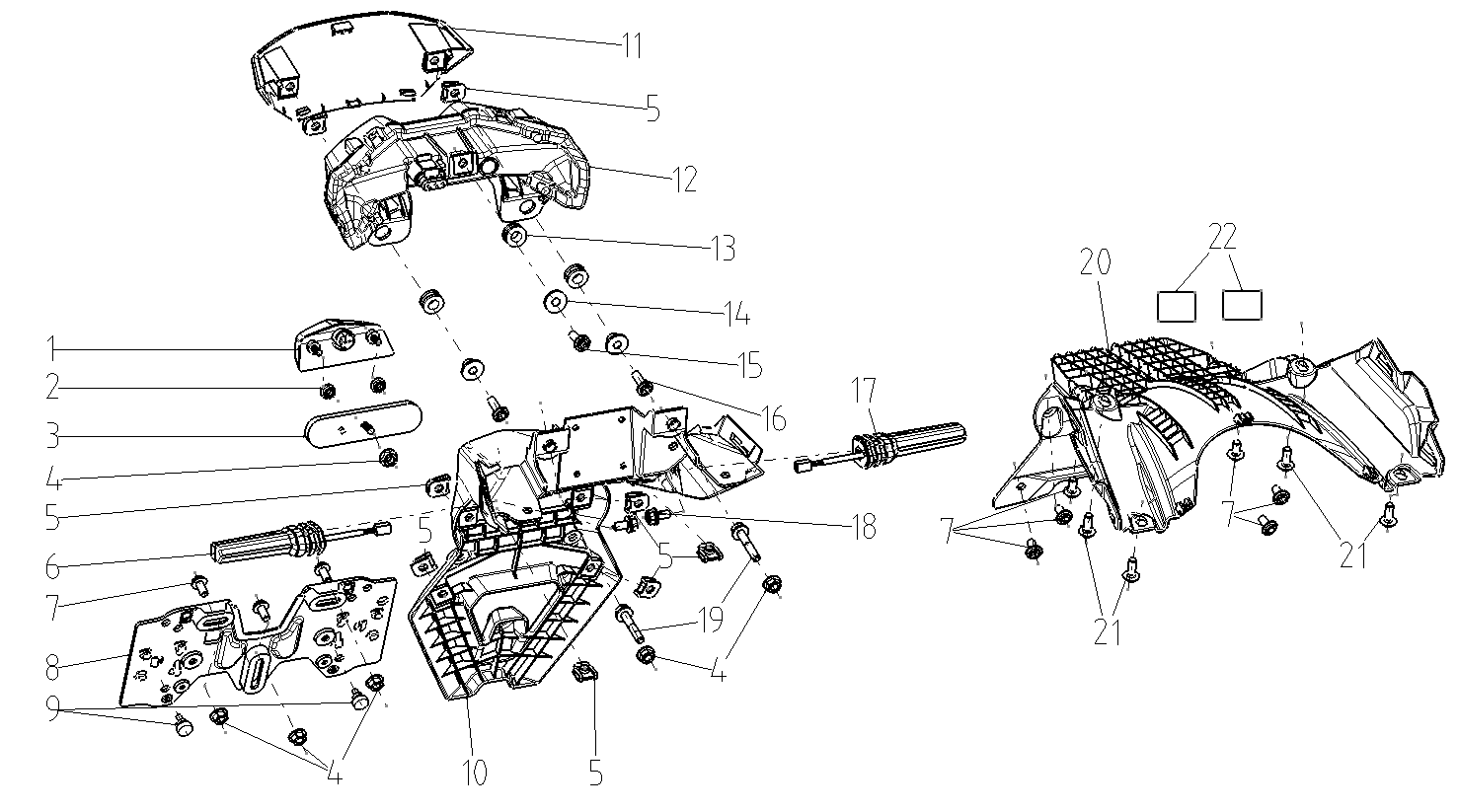

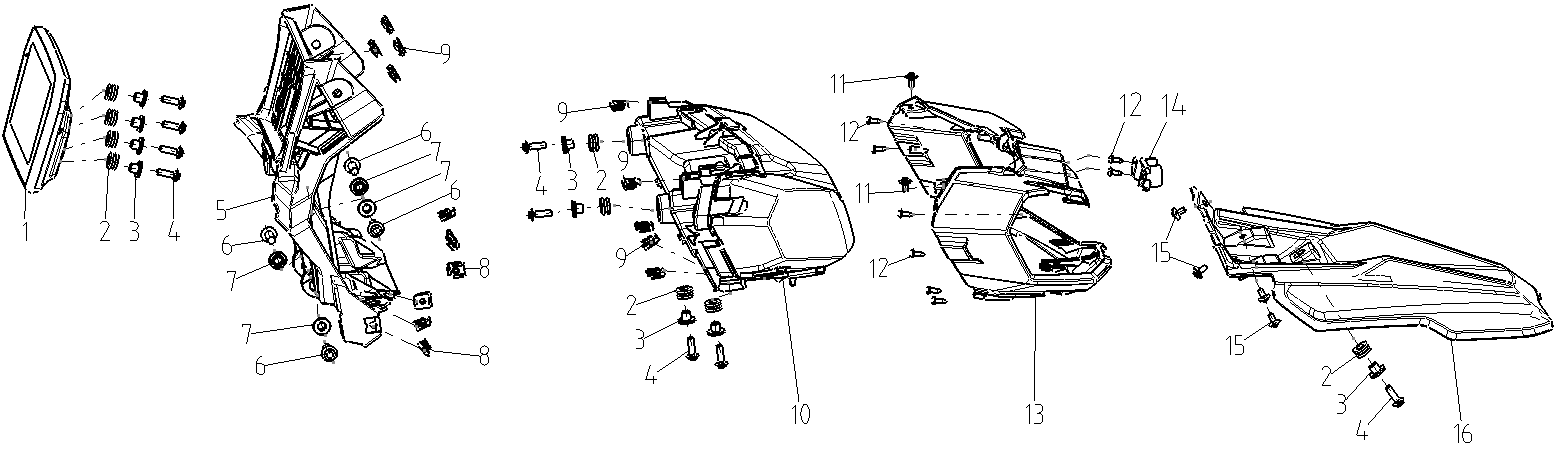

F17 F17 - diagram 1
Ref Part Name Part Number Qty Grade Notes
F17-1 INSTRUMENT SET 1 SET B
F17-1 INSTRUMENT SET 1 SET B with mirror navigation function
F17-2 I-RUBBER 9 PCS C
F17-3 COLLAR 9 PCS C
F17-4 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 9 PCS C
F17-5 BRACKET,METER 1 PCS C
F17-6 FLANGE BOLT 4 PCS C
F17-7 COLLAR 4 PCS C
F17-8 NUT,CLIP 6 PCS C
F17-9 NUT,CLIP 9 PCS C
F17-10 HEADLIGHT ASSY. 1 PCS B
F17-11 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F17-12 SCREW,CROSS RECESSED PAN SELF-TAPPING 10 PCS C
F17-13 LENS,HEAD LIGHT 1 PCS B
F17-14 INSTALLATION BRACKET OF PICK-UP HEAD 1 PCS C
F17-15 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F17-16 FAIRING COVER 1 PCS B For Titanium Sandy Golden Model
F17-16 FAIRING COVER 1 PCS B For White Model
F17-16 FAIRING COVER 1 PCS B For Matt Black Model

Assembly diagram

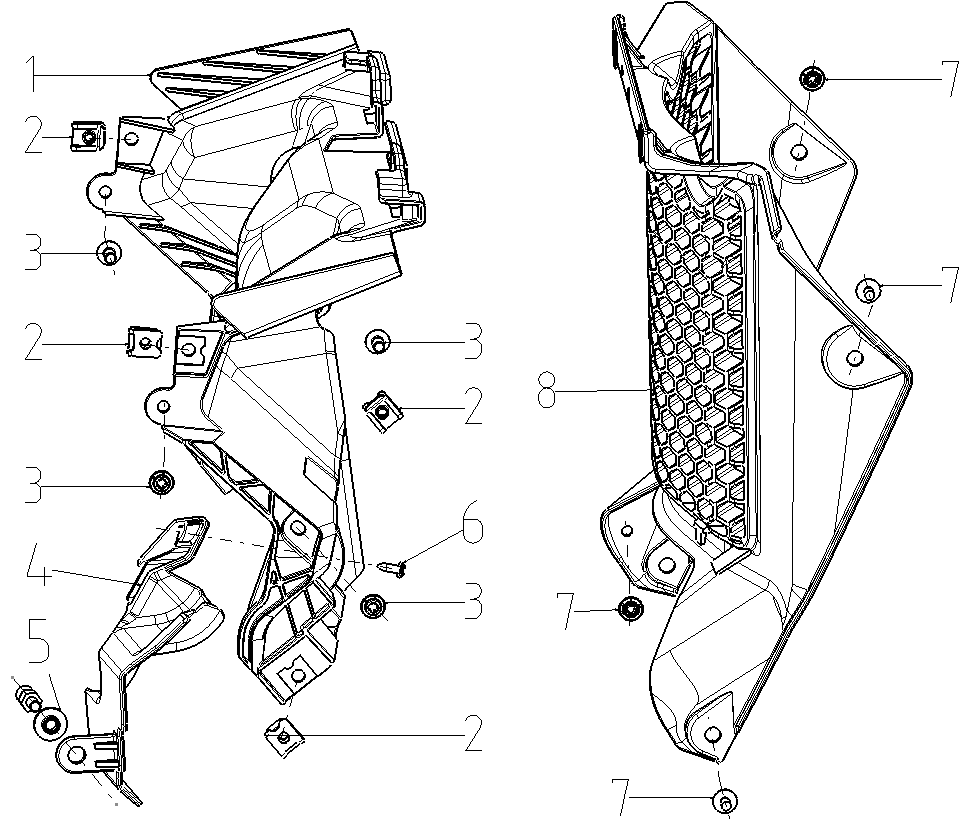

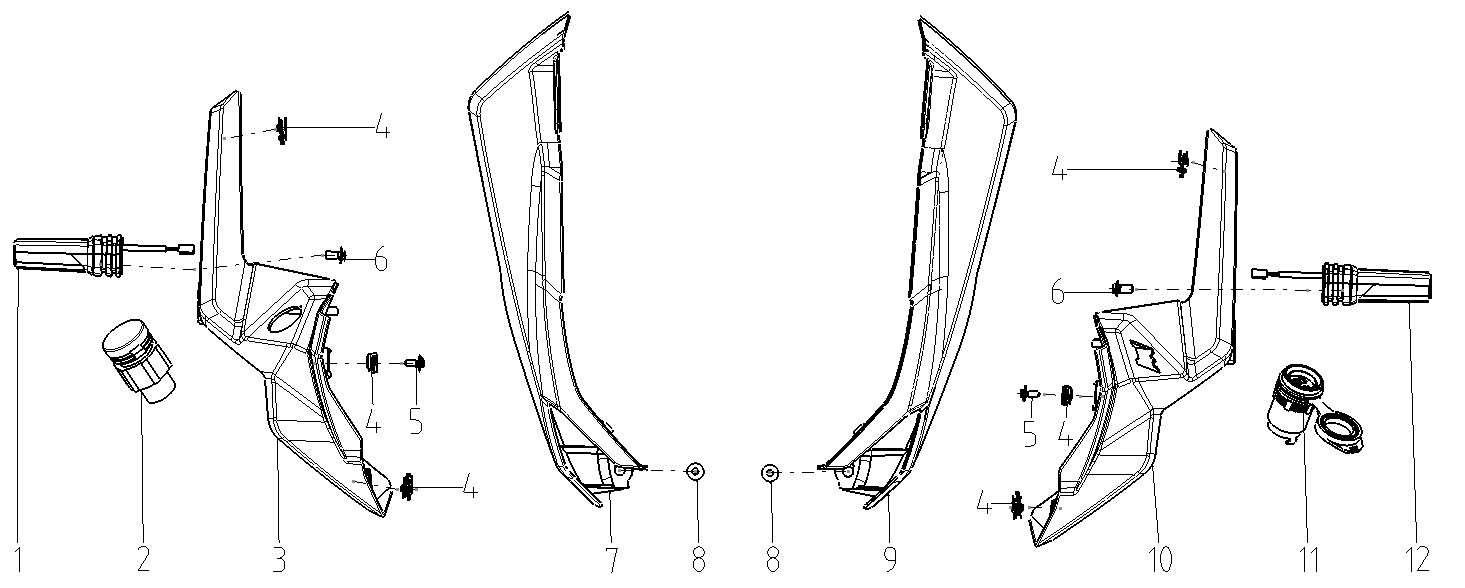

F18 AIR GUIDE SLEEVE - diagram 1
Ref Part Name Part Number Qty Grade Notes
F18-1 TURNING SIGNAL LIGHT, RIGHT FRONT 1 PCS B
F18-2 SOCKET,MULTIFUNCTION 1 PCS C
F18-3 CAP,METER DECORATIVE 1 PCS C
F18-4 NUT,CLIP 6 PCS C
F18-5 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F18-6 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F18-7 AIR GUIDE SLEEVE,RIGHT 1 PCS B For Titanium Sandy Golden Model
F18-7 AIR GUIDE SLEEVE,RIGHT 1 PCS B For White Model
F18-7 AIR GUIDE SLEEVE,RIGHT 1 PCS B For Matt Black Model
F18-8 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F18-9 AIR GUIDE SLEEVE,LEFT 1 PCS B For Titanium Sandy Golden Model
F18-9 AIR GUIDE SLEEVE,LEFT 1 PCS B For White Model
F18-9 AIR GUIDE SLEEVE,LEFT 1 PCS B For Matt Black Model
F18-10 CAP,METER DECORATIVE 1 PCS C
F18-11 USB/AUX 1 PCS C
F18-12 TURNING SIGNAL LIGHT, LEFT FRONT 1 PCS B

Assembly diagram

F19 GUARD PLATE - diagram 1
Ref Part Name Part Number Qty Grade Notes
F19-1 SHIELD,RADIATOR 1 PCS B
F19-2 NUT,CLIP 4 PCS C
F19-3 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F19-4 SHIELD,FAN 1 PCS C
F19-5 WASHER,FLANGE 1 PCS C
F19-6 SCREW,CROSS RECESSED PAN SELF-TAPPING 1 PCS C
F19-7 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F19-8 HEAT RADIATOR DECORATIVE COVER 1 PCS C

Assembly diagram

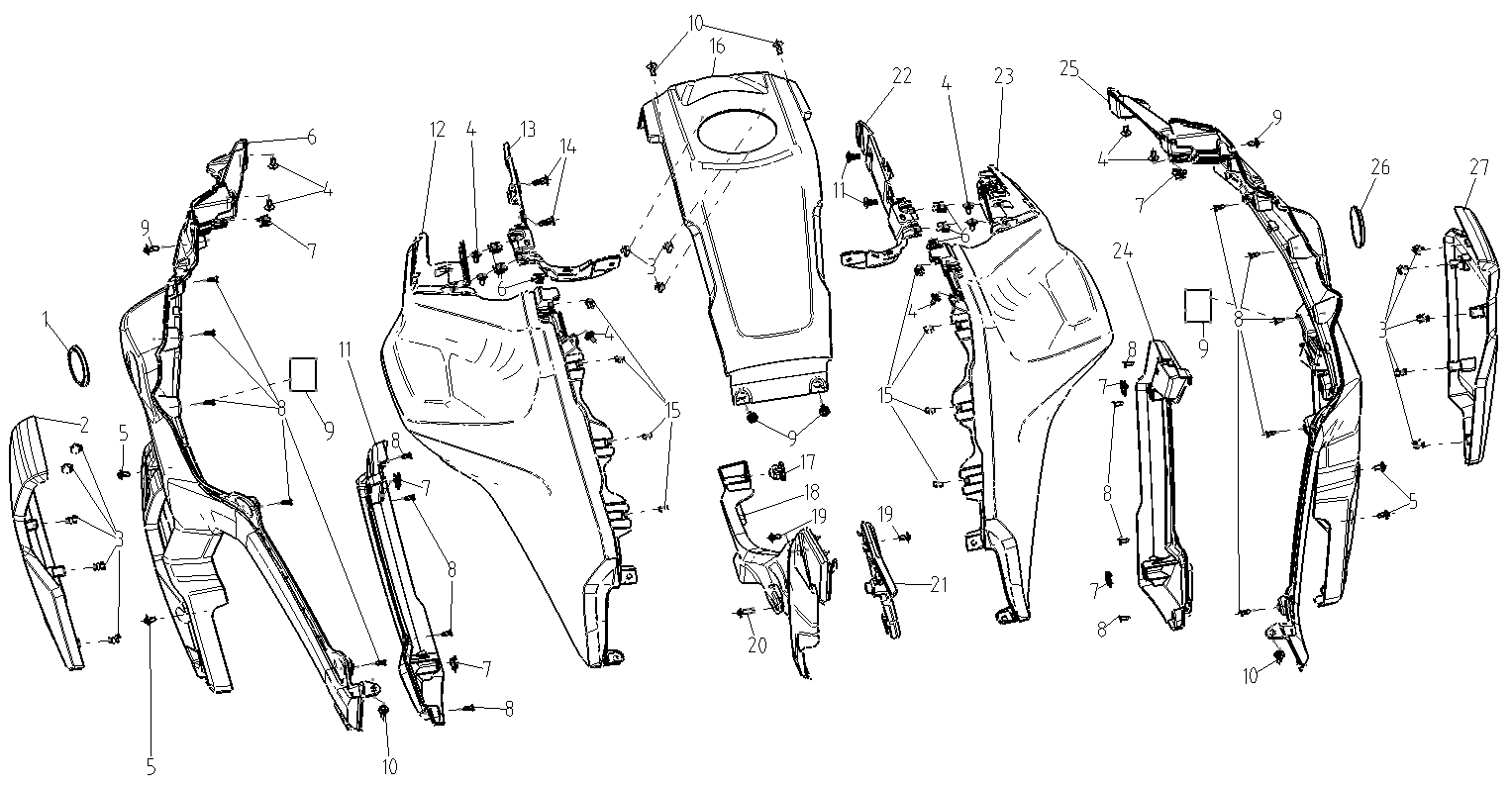

F20 SIDE COVER - diagram 1
Ref Part Name Part Number Qty Grade Notes
F20-1 SCUTCHEON,DRAWING 1 PCS C
F20-2 COVER,LEFT WIND BOARD DECORATIVE 1 PCS B For Titanium Sandy Golden and White Model
F20-2 COVER,LEFT WIND BOARD DECORATIVE 1 PCS B For Matt Black Model
F20-3 FIXING CLIP 13 PCS C
F20-4 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 10 PCS C
F20-5 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F20-6 WIND SHIELD,LEFT 1 PCS B
F20-7 NUT,CLIP 12 PCS C
F20-8 SCREW,CROSS RECESSED PAN SELF-TAPPING 18 PCS C
F20-9 FELT 2 PCS C
F20-10 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 8 PCS C
F20-11 LEFT WHIDSHIELD PLATE 1 PCS C For Titanium Sandy Golden Model
F20-11 LEFT WHIDSHIELD PLATE 1 PCS C For White Model
F20-11 LEFT WHIDSHIELD PLATE 1 PCS C For Matt Black Model
F20-12 COVER,FUEL TANK LEFT DECORATIVE 1 PCS B For Titanium Sandy Golden Model
F20-12 COVER,FUEL TANK LEFT DECORATIVE 1 PCS B For White Model
F20-12 COVER,FUEL TANK LEFT DECORATIVE 1 PCS B For Matt Black Model
F20-13 LEFT INNER PLATE 1 PCS C
F20-14 CLIP 4 PCS C
F20-15 FIXING CLIP 8 PCS C
F20-16 COVER,FUEL TANK DECORATIVE 1 PCS B
F20-17 DAMPPING RUBBER 1 PCS C
F20-18 COVER,LEFT SIDE 1 PCS B
F20-19 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F20-20 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F20-21 COVER,RIGHT SIDE 1 PCS B
F20-22 RIGHT INNER PLATE DECORATIVE COVER 1 PCS C
F20-23 COVER,FUEL TANK RIGHT DECORATIVE 1 PCS B For Titanium Sandy Golden Model
F20-23 COVER,FUEL TANK RIGHT DECORATIVE 1 PCS B For White Model
F20-23 COVER,FUEL TANK RIGHT DECORATIVE 1 PCS B For Matt Black Model
F20-24 RIGHT WINDSHIELD PLATE 1 PCS C For Titanium Sandy Golden Model
F20-24 RIGHT WINDSHIELD PLATE 1 PCS C For White Model
F20-24 RIGHT WINDSHIELD PLATE 1 PCS C For Matt Black Model
F20-25 WIND SHIELD,RIGHT 1 PCS B
F20-26 SCUTCHEON,DRAWING 1 PCS C
F20-27 COVER,RIGHT WIND BOARD DECORATIVE 1 PCS B For Titanium Sandy Golden and White Model
F20-27 COVER,RIGHT WIND BOARD DECORATIVE 1 PCS B For Matt Black Model

Assembly diagram

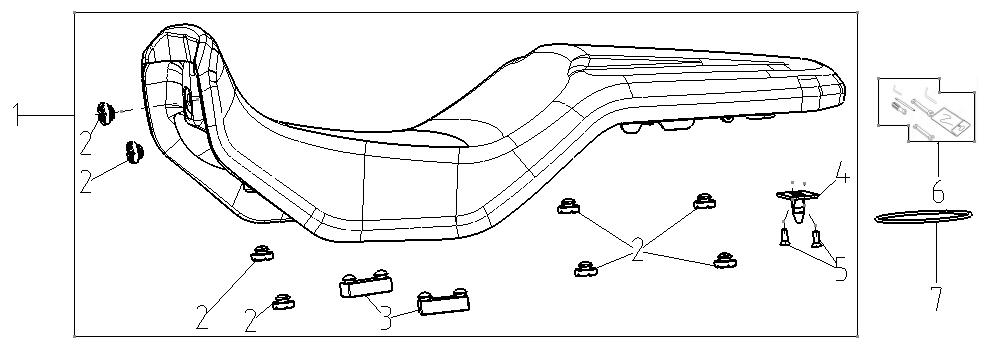

F22 SEAT ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
F21-1 SEAT COMP.WITH HEATING FUNCTION 1 PCS B
F21-1 SEAT COMP. 1 PCS B higher seat, 860mm
F21-2 RUBBER SHEET,SEAT BRACE 8 PCS C
F21-3 RUBBER SHEET,SEAT BRACE 2 PCS C
F21-4 LATCH HOOK,SEAT 1 PCS C NOT FOR SERVICE
F21-5 SCREW,CROSS RECESSED COUNTERSUNK HEAD 2 PCS C NOT FOR SERVICE
F21-6 ACCESSORIES,TOOL 1 SET D
F21-7 CLAMPING BAND 1 PCS C

Assembly diagram

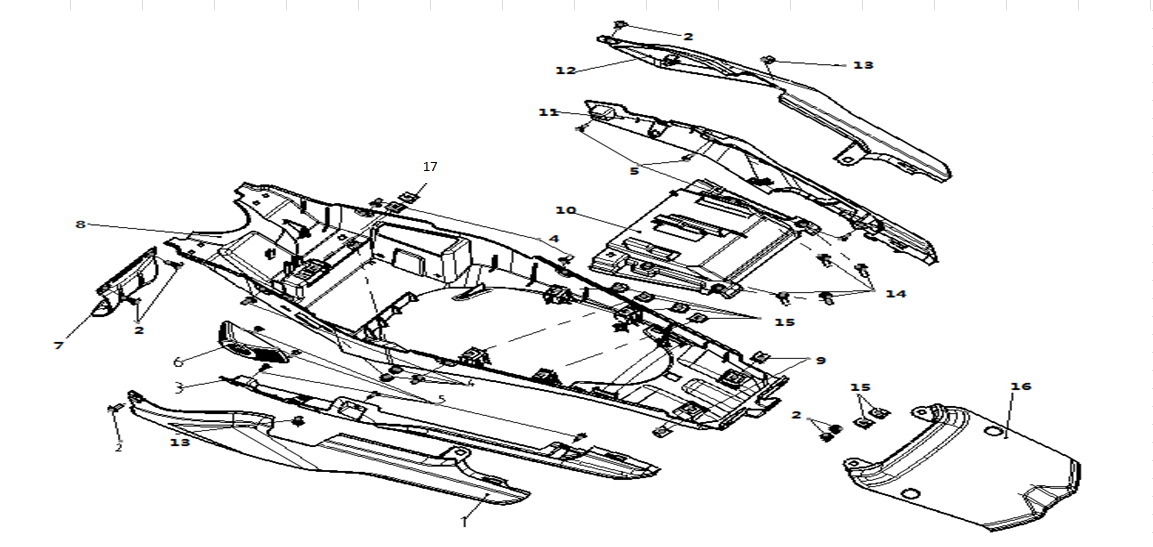

F22 F22 - diagram 1
Ref Part Name Part Number Qty Grade Notes
F22-1 SHIELD COMP.,LEFT TAIL 1 PCS B For Titanium Sandy Golden Model
F22-1 SHIELD COMP.,LEFT TAIL 1 PCS B For White Model
F22-1 SHIELD COMP.,LEFT TAIL 1 PCS B For Matt Black Model
F22-2 CLIP 4 PCS C
F22-3 BLOCK,TAIL SHIELD LEFT DECORATIVE 1 PCS B
F22-4 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F22-5 SCREW,CROSS RECESSED PAN SELF-TAPPING 10 PCS C
F22-6 CAP,SEAT LOCK 1 PCS B
F22-7 BAFFLE CUSHION,REAR 1 PCS B
F22-8 INNER PART,REAR FENDER 1 PCS B
F22-9 NUT,CLIP 2 PCS C
F22-10 ELECTRICAL BOX 1 PCS B
F22-11 BLOCK,TAIL SHIELD RIGHT DECORATIVE 1 PCS B
F22-12 SHIELD COMP.,RIGHT TAIL 1 PCS B For Titanium Sandy Golden Model
F22-12 SHIELD COMP.,RIGHT TAIL 1 PCS B For White Model
F22-12 SHIELD COMP.,RIGHT TAIL 1 PCS B For Matt Black Model
F22-13 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS B
F22-14 FLANGE BOLT 4 PCS C
F22-15 NUT,CLIP 6 PCS C
F22-16 COVER COMP.,TAIL 1 PCS B
F22-17 NUT,CLIP 2 PCS C

Assembly diagram

F23 REAR FENDER - diagram 1
Ref Part Name Part Number Qty Grade Notes
F23-1 LAMP,REAR REGISTRATION PLATE 1 PCS B
F23-2 NUT,HEXAGON FLANGE 2 PCS C
F23-3 REFLECTOR,REAR 1 PCS B
F23-4 NUT,HEXAGON FLANGE 6 PCS C
F23-5 NUT,CLIP 8 PCS C
F23-6 TURNING SIGNAL LIGHT, RIGHT FRONT 1 PCS B
F23-7 FLANGE BOLT 3 PCS C
F23-8 BRACKET,REAR REGISTRATION PLATE 1 PCS C
F23-9 GLUE NAIL,BUFFER 2 PCS C
F23-10 FENDER COMP.,REAR 1 PCS B
F23-11 PIECE,TAIL SHIELD CONNECTING LEFT 1 PCS B
F23-12 TAILLIGHT SET 1 PCS B
F23-13 I-RUBBER 3 PCS C
F23-14 COLLAR 3 PCS C
F23-15 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 1 PCS C
F23-16 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F23-17 TURNING SIGNAL LIGHT, LEFT FRONT 1 PCS B
F23-18 BOLT,HEXAGON FLANGE 2 PCS C
F23-19 FLANGE BOLT 2 PCS C
F23-20 LINING,REAR FENDER 1 PCS C
F23-21 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F23-22 FELT 2 PCS C

Assembly diagram

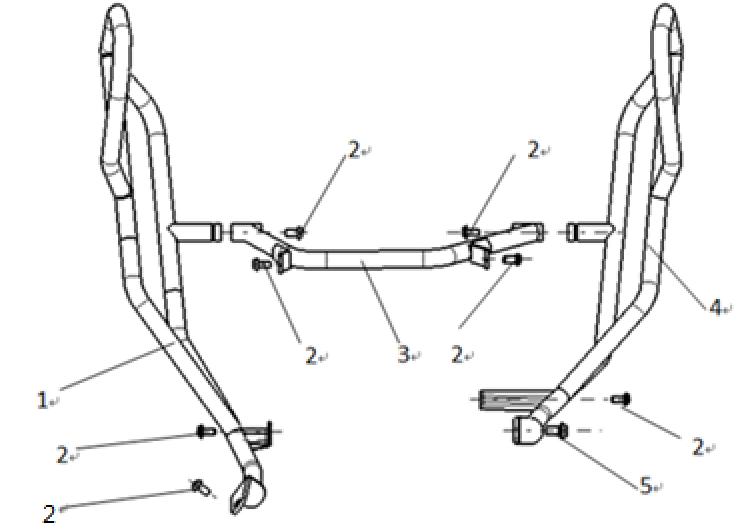

F24 FRONT BUMPER - diagram 1
Ref Part Name Part Number Qty Grade Notes
F24-1 COLLISION BUMPER COMP. 1 PCS C For Titanium Sandy Golden and White Model
F24-1 COLLISION BUMPER COMP. 1 PCS C For Matt Black Model
F24-2 FLANGE BOLT 7 PCS C
F24-3 CONNECTING YOKE,COLLISION BUMPER 1 PCS C For Titanium Sandy Golden and White Model
F24-3 CONNECTING YOKE,COLLISION BUMPER 1 PCS C For Matt Black Model
F24-4 COLLISION BUMPER COMP. 1 PCS C For Titanium Sandy Golden and White Model
F24-4 COLLISION BUMPER COMP. 1 PCS C For Matt Black Model
F24-5 FLANGE BOLT 1 PCS C

Assembly diagram

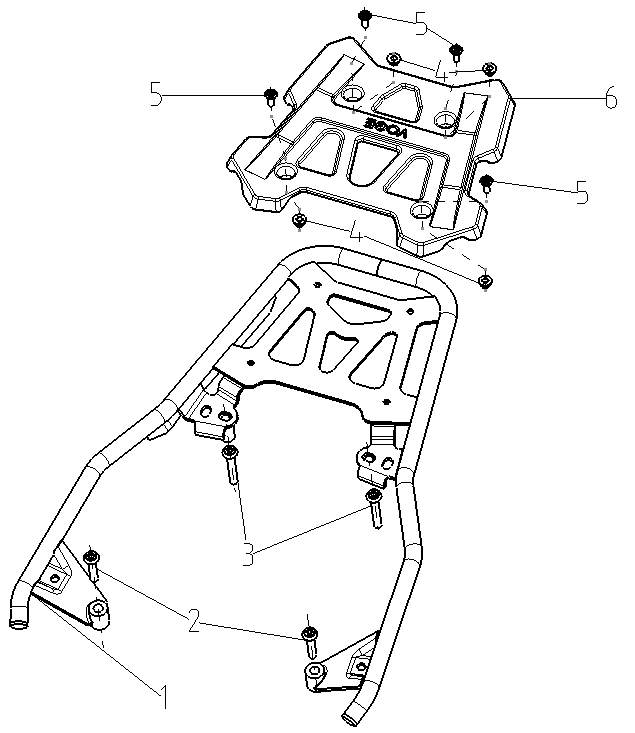

F25 REAR LUGGAGE CARRIER - diagram 1
Ref Part Name Part Number Qty Grade Notes
F25-1 BRACKET,TAILSTOCK BOX 1 PCS C For Titanium Sandy Golden and White Model
F25-1 BRACKET,TAILSTOCK BOX 1 PCS C For Matt Black Model
F25-2 FLANGE BOLT 2 PCS C
F25-3 FLANGE BOLT 2 PCS C
F25-4 NUT,HEXAGON FLANGE 4 PCS C
F25-5 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 4 PCS C
F25-6 PIECE,LUGGAGE CARRIER LEFT DECORATIVE 1 PCS C

Assembly diagram

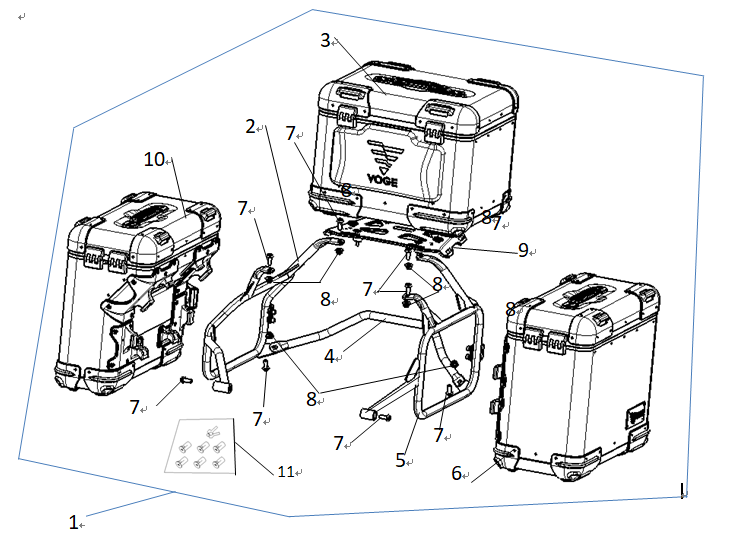

F26 TAIL BOX AND SIDE BOX - diagram 1
Ref Part Name Part Number Qty Grade Notes
F26-1 SIDE & TAIL KITS 1 SET C
F26-2 BRACKET,RIGHT SIDE BOX 1 PCS C
F26-3 BOX,TAIL 1 PCS C
F26-4 BODY,REAR PROP 1 PCS C
F26-5 BRACKET,LEFT SIDE BOX 1 PCS C
F26-6 BOX,LEFT SIDE 1 PCS B
F26-7 FLANGE BOLT 8 PCS C
F26-8 NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON 6 PCS C
F26-9 BACKPLANE,TAIL BOX 1 PCS C
F26-10 BOX,RIGHT SIDE 1 PCS B
F26-11 LOCK CORE ASSY 1 PCS C

Assembly diagram

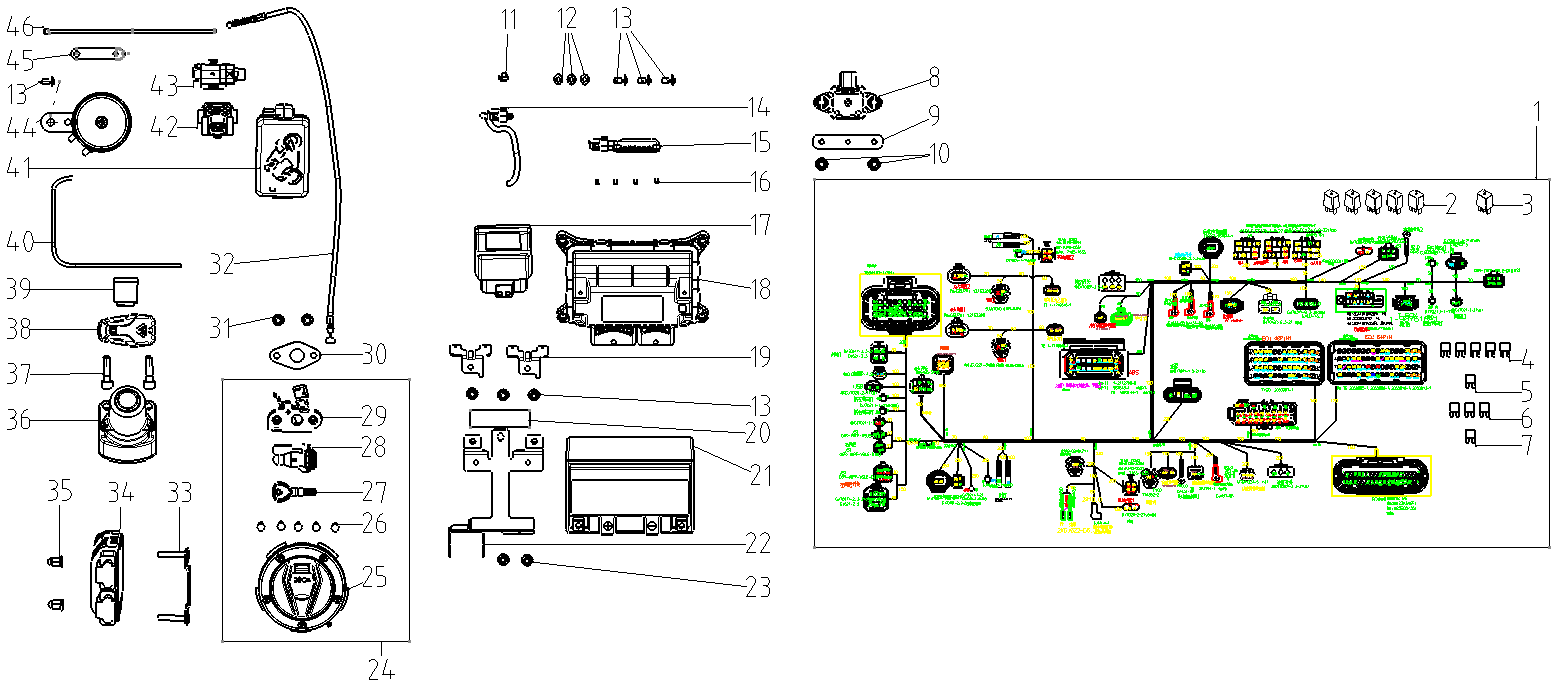

F27 HARNESS,WIRE AND ELETRIC PARTS - diagram 1
Ref Part Name Part Number Qty Grade Notes
F27-1 HARNESS,WIRE 1 SET B E5+
F27-2 RELAY ASSY.,CONTROLING 5 PCS B
F27-3 RELAY ASSY.,AUXILIARY 1 PCS B
F27-4 SECTION,SAFE 5 PCS A
F27-5 SECTION,SAFE 1 PCS A
F27-6 SECTION,SAFE 3 PCS A
F27-7 SECTION,SAFE 1 PCS A
F27-8 inertial measurement unit （IMT) 1 PCS C E5+
F27-9 BRACKET,ELECTRICAL PARTS MOUNTING 1 PCS C E5+
F27-10 NUT,HEXAGON FLANGE 2 PCS C E5+
F27-11 NUT,HEXAGON HEAD 1 PCS C
F27-12 WASHER,PLAIN 3 PCS C
F27-13 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 6 PCS C
F27-14 HARNESS,SUB 1 PCS C
F27-15 RADAR SENSOR 1 PCS C
F27-16 SCREW,CROSS RECESSED PAN 4 PCS C
F27-17 BCM CONTROLLER 1 PCS C
F27-18 ECU 1 PCS C E5+，70kw A3
F27-18 ECU 1 PCS C E5+，35kw A2
F27-19 BRACKET,ELECTRICAL PARTS MOUNTING 2 PCS C
F27-20 GLUE NAIL,BUFFER 1 PCS C E5+
F27-21 BATTERY ASSY. 1 PCS A E5+
F27-22 BRACKET,BATTERY PRESSURE 1 PCS C
F27-23 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F27-24 LOCK KIT 1 SET B
F27-25 LOCK,FUEL TANK 1 PCS B NOT FOR SERVICE
F27-26 SCREW,HEXAGON SOCKET 5 PCS C NOT FOR SERVICE
F27-27 KEY OF IGNITION SWITCH 1 PCS C
F27-28 LOCK,SEAT - PCS B NOT FOR SERVICE
F27-29 DEVICE,SEAT LOCKING 1 SET B NOT FOR SERVICE
F27-30 WASHER,SEAT LOCK 1 PCS C
F27-31 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F27-32 CABLE,SEAT 1 PCS A
F27-33 BRACKET,RECTIFIER REGULATE 1 PCS C
F27-34 RECTIFIER REGULATOR ASSY. 1 PCS B
F27-35 CAP-SHAPED NUT 2 PCS C
F27-36 SWITCH ASSY.,IGNITION 1 PCS B
F27-37 BOLT,LOBULAR SOCKET COUNTERSUNK HEAD 2 PCS C
F27-38 REMOTE CONTROLLING KEY 1 PCS C
F27-39 CAMERA 1 -
F27-40 WIRE,CONNECTING 1 PCS C
F27-41 AUTOMOBILE DATA RECORDER 1 -
F27-42 STARTING RELAY ASSY. 1 PCS B
F27-43 SENSOR 1 PCS B
F27-44 HORN 1 PCS B
F27-45 CLAMPING BAND 8 PCS C
F27-46 CLAMPING BAND 55 PCS C E5+

Assembly diagram

F28 F28 - diagram 1
Ref Part Name Part Number Qty Grade Notes
F28-1 LABEL,WARNING 1 PCS C
F28-2 LABEL,REMINDS 1 PCS C
F28-3 LABEL,REMINDS 1 PCS C
F28-4 LABEL,REMINDS 1 PCS C
F28-5 LABEL,REMINDS 1 PCS C

KEL900

Ref Part Name Part Number Qty Grade Notes
E1 ENGINE 1 SET C

Assembly diagram

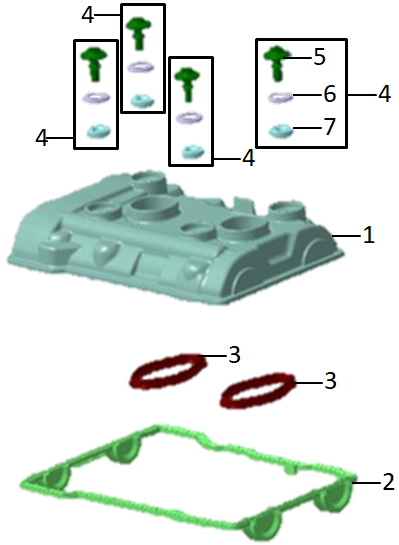

E01 CYLINDER HEAD COVER ASSY - diagram 1
Ref Part Name Part Number Qty Grade Notes
E01-01 CYLINDER HEAD COVER 1 PCS C
E01-02 CYLINDER HEAD COVER GASKET 1 PCS A
E01-03 COVER GASKET SPARK PLUG DUCT 2 PCS B
E01-04 BOLT COMP.,CYLINDER HEAD COVER 4 PCS C
E01-05 CYLINDER HEAD SCREW 4 - NOT FOR SERVICE
E01-06 FIXING WASHER 4 - NOT FOR SERVICE
E01-07 RUBBER BUSHING 4 - NOT FOR SERVICE

Assembly diagram

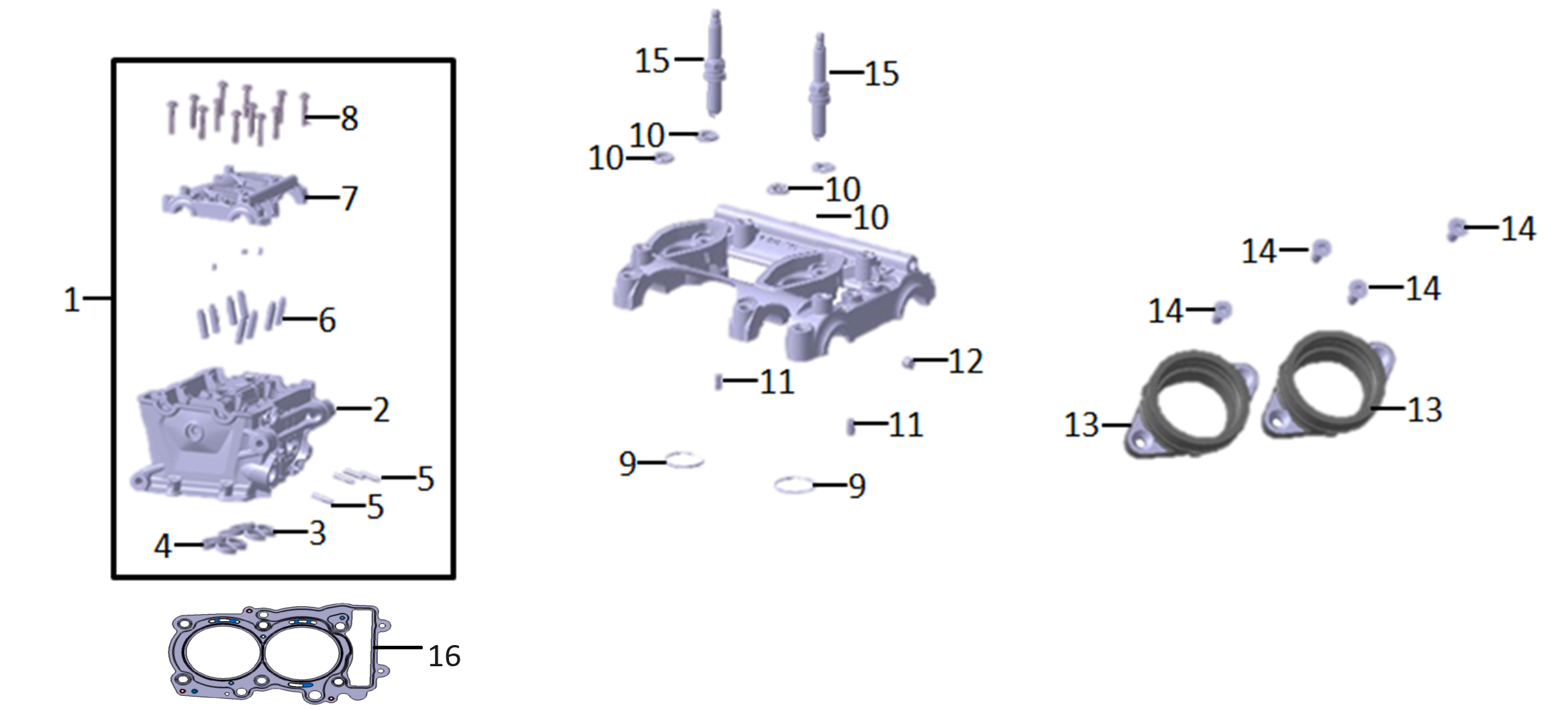

E02 CYLINDER HEAD ASSY - diagram 1
Ref Part Name Part Number Qty Grade Notes
E02-01 ASSY CYLINDER HEAD 1 SET C
E02-02 CYLINDER HEAD 1 - NOT FOR SERVICE
E02-03 VALVE SEAT INSERT EXHAUST 4 - NOT FOR SERVICE
E02-04 VALVE SEAT INSERT INTAKE 4 - NOT FOR SERVICE
E02-05 STUD 4 -
E02-06 VALVE GUIDE 8 - NOT FOR SERVICE
E02-07 CAMSHAFT BEARING BRIDGE 1 - NOT FOR SERVICE
E02-08 ISA SCREW 12 PCS C
E02-09 O-RING 2 PCS B
E02-10 WASHER 4 PCS C
E02-11 DOWEL PIN 2 PCS C
E02-12 EXPANDER 1 PCS C
E02-13 INTAKE MANIFOLD 2 PCS B
E02-14 COUNTER SUNK HEAD SCREW 4 PCS C
E02-15 SPARK PLUG 2 PCS A
E02-16 GASKET,CYLINDER HEAD 1 PCS A

Assembly diagram

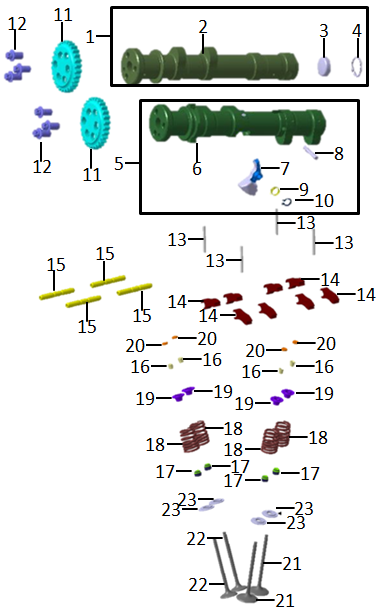

E03 AIR INTAKE AND EXHAUST MECHANISM - diagram 1
Ref Part Name Part Number Qty Grade Notes
E03-01 ASSY CAMSHAFT INTAKE 1 SET B
E03-02 CAMSHAFT INTAKE 1 PCS B
E03-03 COVER ITD 1 PCS C
E03-04 SNAP RING 1 PCS B
E03-05 ASSY CAMSHAFT EXAUST 1 SET B
E03-06 CAMSHAFT EXAUST 1 PCS B
E03-07 DECO LEVER 2 PCS C
E03-08 PIN FOR DECO SYSTEM 2 PCS C
E03-09 SPRING FOR DECO SYSTEM 2 PCS B
E03-10 SNAP RING 2 PCS B
E03-11 TIMING SPROKET 2 PCS B
E03-12 ASA SCREW 6 PCS C
E03-13 NEEDLE ROLLER 4 PCS C
E03-14 FINGER FOLLOWER FORGED 8 PCS B
E03-15 AXLE FOR CAM FOLLOWER 4 PCS B
E03-16 VALVE SPRING COTTER 16 PCS C
E03-17 VALVE STEM SEAL 8 PCS A
E03-18 VALVE SPRING WITH OTEVA 90 8 PCS C
E03-19 VALVE SPRING RETAINER 8 PCS C
E03-20 ADJUSTING SHIM,VALVE KIT 8 SET C
E03-21 VALVE INLET 4 PCS A
E03-22 VALVE EXHAUST 4 PCS A
E03-23 LOWER SPRING PLATE XINZ 8 PCS C

Assembly diagram

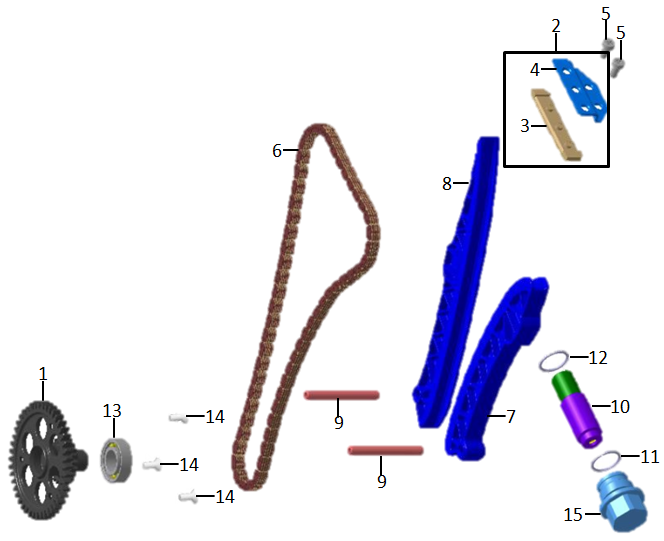

E04 CHAIN TENSIONER DEVICE - diagram 1
Ref Part Name Part Number Qty Grade Notes
E04-01 TIMING GEAR 1 PCS C
E04-02 ASSY TOP CHAIN GUIDE 1 PCS B
E04-03 SLIDING RAIL 1 - NOT FOR SERVICE
E04-04 CHAIN GUIDE PROTECTION PLATE 1 - NOT FOR SERVICE
E04-05 ISA SCREW 2 PCS C
E04-06 TIME CHAIN 1 PCS A
E04-07 TENSIONING RAIL 1 PCS B
E04-08 GUIDING RAIL 1 PCS B
E04-09 BACK SHAFT 2 PCS C
E04-10 CHAIN TENSIONER 1 PCS B
E04-11 O-RING 1 PCS B
E04-12 O-RING 1 PCS B
E04-13 BALL BEARING 1 PCS B
E04-14 INT SCREW 3 PCS C
E04-15 ADPATER CHAIN TENSIONER 1 PCS C

Assembly diagram

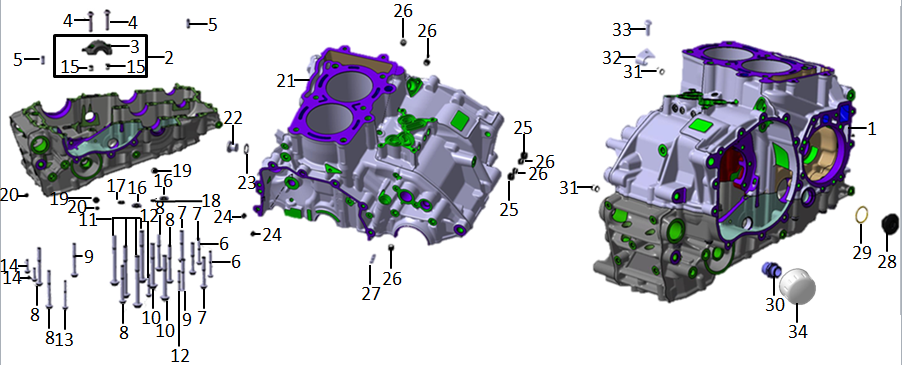

E05 CRANKCASE ASSY. - diagram 1
Ref Part Name Part Number Qty Grade Notes
E05-01 CRANKCASE ASSY. 1 SET D
E05-02 ASSY COUNTERBALANCE BEARING CAP 1 PCS C NOT FOR SERVICE
E05-03 COUNTERBALANCE BEARING CAP 1 - NOT FOR SERVICE
E05-04 ISA SCREW 2 PCS C
E05-05 CYLINDRICAL PIN 2 PCS C
E05-06 ISA SCREW 2 PCS C
E05-07 ISA SCREW 3 PCS C
E05-08 ISA SCREW 5 PCS C
E05-09 ISA SCREW 2 PCS C
E05-10 ISA SCREW 2 PCS C
E05-11 ISA SCREW 4 PCS C
E05-12 ISA SCREW 2 PCS C
E05-13 ISA SCREW 1 PCS C
E05-14 ISA SCREW 2 PCS C
E05-15 HOLLOW DOWEL 2 PCS C
E05-16 USIT-RING 2 PCS C
E05-17 USIT-RING 1 PCS C
E05-18 USIT-RING 1 PCS C
E05-19 EXPANDER 2 PCS C
E05-20 EXPANDER 2 PCS C
E05-21 UPPER CRANKCASE 1 - NOT FOR SERVICE
E05-22 LOCK SCREW 1 PCS C
E05-23 SEALING RING 1 PCS C
E05-24 EXPANDER 2 PCS C NOT FOR SERVICE
E05-25 EXPANDER 2 PCS C NOT FOR SERVICE
E05-26 EXPANDER 5 PCS C NOT FOR SERVICE
E05-27 OIL THROTTLE VALVE 1 PCS C
E05-28 LOCK SCREW 1 PCS B
E05-29 O-Ring 1 PCS B
E05-30 SCREW-IN FITTING 1 PCS C
E05-31 HOLLOW DOWEL 2 PCS C
E05-32 COUNTERHOLDER BOWDEN CABLE 1 PCS C
E05-33 ISA SCREW 1 PCS C
E05-34 OIL FILTER ASSY 1 SET C

Assembly diagram

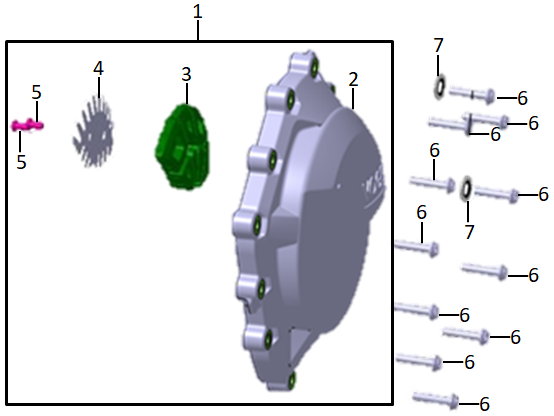

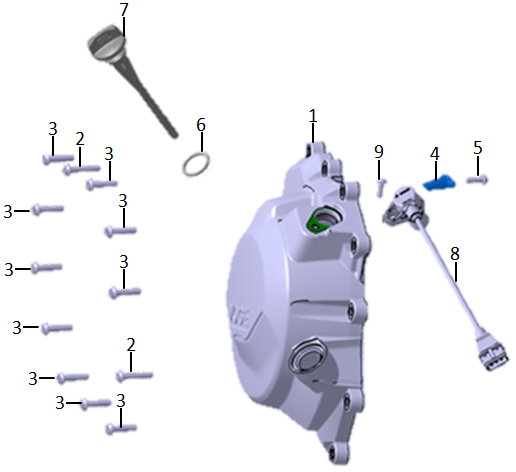

E06 LEFT CRANKCASE COVER - diagram 1
Ref Part Name Part Number Qty Grade Notes
E06-01 GENERATOR COVER 1 PCS C
E06-02 ISA SCREW 2 PCS C
E06-03 ISA SCREW 10 PCS C
E06-04 BRACKET 1 PCS C
E06-05 ISA SCREW 1 PCS C
E06-06 O-RING 1 PCS B
E06-07 OIL DIP STICK 1 PCS B
E06-08 CRANKSHAFT SENSOR 1 PCS C
E06-09 ISA SCREW 1 PCS C

Assembly diagram

E07 RIGHT CRANKCASE COVER - diagram 1
Ref Part Name Part Number Qty Grade Notes
E07-01 ASSY CLUTCH COVER - - NOT FOR SERVICE
E07-02 CLUTCH COVER 1 PCS C
E07-03 INSULATION F. CLUTCH COVER 1 PCS C
E07-04 RETAINING PLATE 1 PCS C
E07-05 ISA SCREW 2 PCS C
E07-06 ISA SCREW 11 PCS C
E07-07 UIST-RING 2 PCS C

Assembly diagram

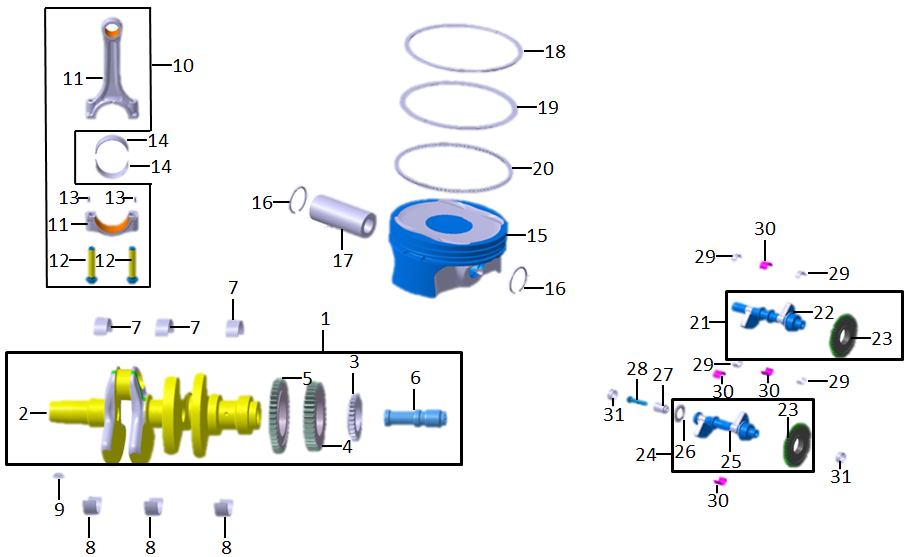

E08 CRANKSHAFT AND CONNECTING ROD SET - diagram 1
Ref Part Name Part Number Qty Grade Notes
E08-01 ASSY CRANKSHAFT 1 SET C
E08-02 CRANKSHAFT 1 PCS C NOT FOR SERVICE
E08-03 TIMING GEAR 1 PCS C NOT FOR SERVICE
E08-04 PRIMARY GEAR 1 PCS C NOT FOR SERVICE
E08-05 BALANCER GEAR 1 PCS C NOT FOR SERVICE
E08-06 OIL BUSHING 1 PCS C NOT FOR SERVICE
E08-07 BEARING,CRANKSHAFT KIT 3 -
E08-08 BEARING,CRANKSHAFT KIT 3 -
E08-09 WOODRUFF KEY 1 PCS C
E08-10 ASSY CONNECTING ROD 2 SET C
E08-11 CONNECTING ROD 2 PCS C NOT FOR SERVICE
E08-12 CONROD SCREW 4 PCS C
E08-13 CYLINDER PIN 4 PCS C NOT FOR SERVICE
E08-14 BEARING,CRANKSHAFT KIT 4 -
E08-15 PISTON 2 PCS A
E08-16 RETAINER RING 4 PCS C
E08-17 PISTON PIN 2 PCS B
E08-18 RING 1 2 PCS C
E08-19 RING 2 2 PCS C
E08-20 RING 3 2 PCS C
E08-21 ASSY BALANCER SHAFT FRONT 1 SET C
E08-22 BALANCER SHAFT FRONT 1 PCS C NOT FOR SERVICE
E08-23 BALANCER SHAFT GEAR 2 PCS C NOT FOR SERVICE
E08-24 ASSY BALANCER SHAFT REAR 1 SET C
E08-25 BALANCER SHAFT REAR 1 PCS C NOT FOR SERVICE
E08-26 OIL PUMP DRIVING SPORKET 1 PCS C NOT FOR SERVICE
E08-27 BEARING JOURNAL 1 PCS C
E08-28 CONROD SCREW 1 PCS C
E08-29 BEARING,CRANKSHAFT KIT 4 -
E08-30 BEARING,CRANKSHAFT KIT 4 -
E08-31 BEARING,CRANKSHAFT KIT 2 -

Assembly diagram

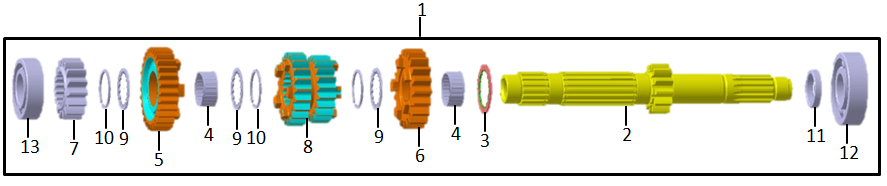

E09 MAINSHAF - diagram 1
Ref Part Name Part Number Qty Grade Notes
E09-01 ASSY DRIVING SHAFT 1 SET B
E09-02 DRIVING SHAFT 1 - NOT FOR SERVICE
E09-03 PROFILE WASHER 1 - NOT FOR SERVICE
E09-04 NEEDLE ROLLER RETAINER 2 PCS B
E09-05 DRIVE GEAR 6G 1 - NOT FOR SERVICE
E09-06 DRIVE GEAR 5G 1 - NOT FOR SERVICE
E09-07 DRIVE GEAR 2G 1 - NOT FOR SERVICE
E09-08 DRIVE GEAR 3G-4G 1 - NOT FOR SERVICE
E09-09 PROFILE WASHER 3 PCS C NOT FOR SERVICE
E09-10 SNAP RING 3 PCS B NOT FOR SERVICE
E09-11 SPACER SLEEVE 1 - NOT FOR SERVICE
E09-12 DEEP GROOVE BALL BEARING 1 PCS B NOT FOR SERVICE
E09-13 DEEP GROOVE BALL BEARING 1 PCS B NOT FOR SERVICE

Assembly diagram

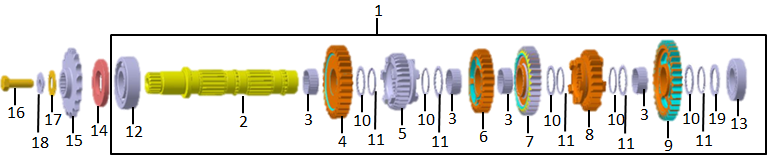

E10 COUNTERSHAFT COMP - diagram 1
Ref Part Name Part Number Qty Grade Notes
E10-01 ASSY OUTPUT SHAFT 1 SET B
E10-02 OUTPUT SHAFT 1 - NOT FOR SERVICE
E10-03 NEEDLE ROLLER RETAINER 4 PCS B
E10-04 DRIVEN GEAR 2G 1 - NOT FOR SERVICE
E10-05 DRIVEN GEAR 6G 1 - NOT FOR SERVICE
E10-06 DRIVEN GEAR 4G 1 - NOT FOR SERVICE
E10-07 DRIVEN GEAR 3G 1 - NOT FOR SERVICE
E10-08 DRIVEN GEAR 5G 1 - NOT FOR SERVICE
E10-09 DRIVEN GEAR 1G 1 - NOT FOR SERVICE
E10-10 PROFILE WASHER 5 PCS C NOT FOR SERVICE
E10-11 SNAP RING 5 PCS B NOT FOR SERVICE
E10-12 DEEP GROOVE BALL BEARING 1 PCS B NOT FOR SERVICE
E10-13 DEEP GROOVE BALL BEARING 1 PCS B NOT FOR SERVICE
E10-14 OIL SEALING 1 PCS B
E10-15 OUTPUT SPROCKET 1 PCS A
E10-16 HH SCREW 1 PCS C
E10-17 DIAPHRAGM SPRING 1 PCS C
E10-18 STEP RING 1 PCS C
E10-19 SUPPORT WASHER 1 - NOT FOR SERVICE

Assembly diagram

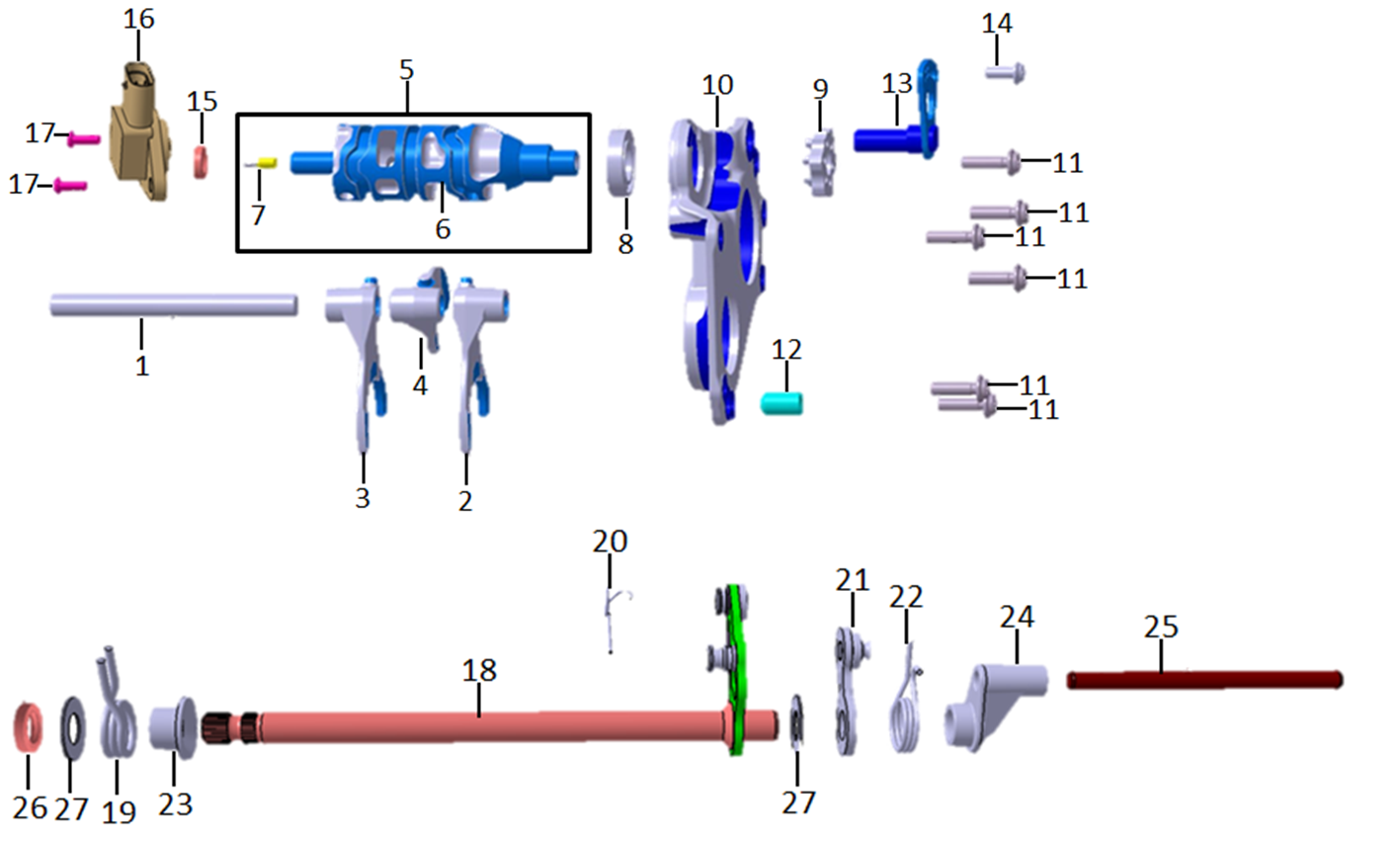

E11 SPEED CONTROL MECHANISM - diagram 1
Ref Part Name Part Number Qty Grade Notes
E11-01 SHIFT ROD 1 PCS C
E11-02 SHIFT FORK 1G-3G 1 PCS C
E11-03 SHIFT FORK 2G-4G 1 PCS C
E11-04 SHIFT FORK 5G-6G 1 PCS C
E11-05 ASSY SHIFT DRUM 1 PCS C
E11-06 SHIFT DRUM 1 - NOT FOR SERVICE
E11-07 T-PROFILED PIN 1 PCS C NOT FOR SERVICE
E11-08 DEEP GROOVE BALL BEARING 1 PCS B
E11-09 SHIFTING LOCATOR 1 PCS C
E11-10 GEARBOX COVER 1 PCS C
E11-11 ISA SCREW 6 PCS C
E11-12 DOWEL PIN 1 PCS C
E11-13 ASSY ECCENTRIC FREE-PLAY ALIGNMENT 1 PCS C
E11-14 ISA SCREW 1 PCS C
E11-15 OIL SEALING 1 PCS B
E11-16 TRANSMISSION POTI T-PROFILE 1 SET C
E11-17 FIL HD SCREW 2 PCS C
E11-18 ASSY GEARSHIFT SHAFT 1 SET B
E11-19 LEG SPRING SHIFTING RESET 1 PCS C
E11-20 LEG SPRING PAWL 1 PCS B
E11-21 ASSY LOCKING LEVER 1 PCS C
E11-22 LEG SPRING LOCKING LEVER 1 PCS B
E11-23 SPRING SLEEVE SHIFTING RESET 1 PCS C
E11-24 SPRING SLEEVE LOCKING LEVER 1 PCS C
E11-25 CYLINDRICAL PIN 1 PCS C
E11-26 OIL SEALING 1 PCS B
E11-27 SHIM RING 2 PCS C

Assembly diagram

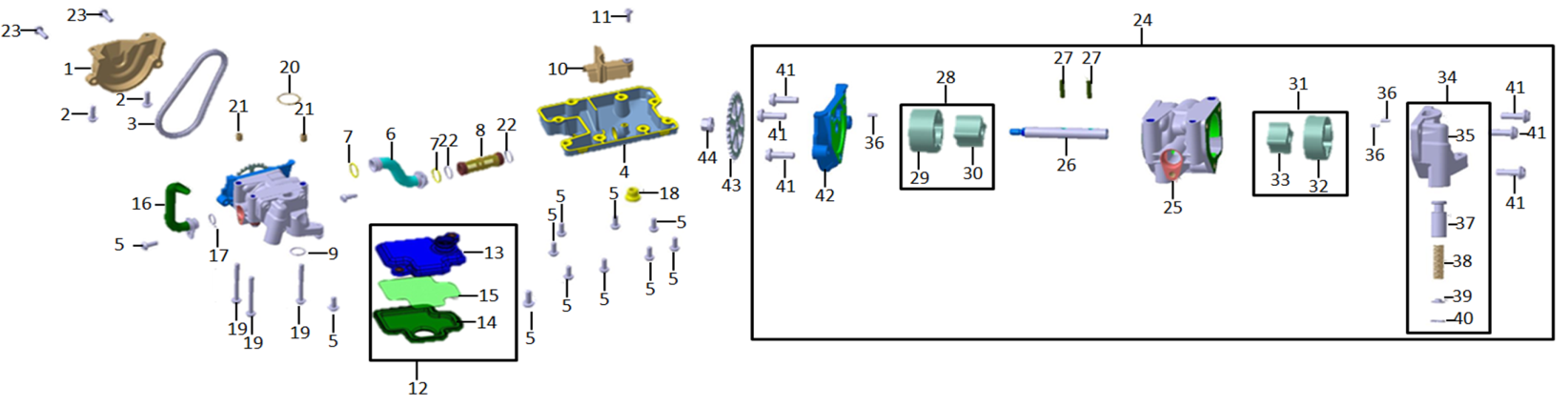

E12 LUBRICATION SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
E12-01 COVER FOR OIL PUMP PINION 1 PCS C
E12-02 ISA SCREW 2 PCS C
E12-03 ROLLER CHAIN 1 PCS B
E12-04 DRY SUMP 1 PCS C
E12-05 ISA SCREW 12 PCS C
E12-06 OIL SUCTION STAINER PIPE 1 PCS C
E12-07 O-Ring 2 PCS B
E12-08 OIL STRAINER 1 PCS A
E12-09 O-Ring 1 PCS B
E12-10 COVER FOR OIL STRAINER 1 PCS C
E12-11 ISA SCREW 1 PCS C
E12-12 ASSY OIL SUCTION SNORKEL OIL PAN 1 PCS A
E12-13 1 PCS - NOT FOR SERVICE
E12-14 1 PCS - NOT FOR SERVICE
E12-15 1 PCS - NOT FOR SERVICE
E12-16 OIL SEPARATION PIPE WITH NOZZLE 1 PCS C
E12-17 O-Ring 1 PCS B
E12-18 LOCK SCREW 1 PCS C
E12-19 ISA SCREW 3 PCS C
E12-20 O-Ring 1 PCS B
E12-21 HOLLOW DOWEL 2 PCS C
E12-22 O-Ring 2 PCS B
E12-23 ISA SCREW 2 PCS C
E12-24 ASSY OIL PUMP 1 SET C
E12-25 OIL PUMP HOUSING 1 - NOT FOR SERVICE
E12-26 OIL PUMP SHAFT 1 - NOT FOR SERVICE
E12-27 NEEDLE PIN 2 - NOT FOR SERVICE
E12-28 ASSY ROTOR SET SUCTION PUMP 1 - NOT FOR SERVICE
E12-29 OUTER ROTOR SUCTION PUMP 1 - NOT FOR SERVICE
E12-30 INNER ROTOR SUCTION PUMP 1 - NOT FOR SERVICE
E12-31 ASSY ROTOR SET PRESSURE PUMP 1 - NOT FOR SERVICE
E12-32 OUTER ROTOR PRESSURE PUMP 1 - NOT FOR SERVICE
E12-33 INNER ROTOR PRESSURE PUMP 1 - NOT FOR SERVICE
E12-34 ASSY COVER FOR PRESSURE PUMP 1 - NOT FOR SERVICE
E12-35 COVER PRESSURE PUMP 1 - NOT FOR SERVICE
E12-36 DOWEL PIN 3 - NOT FOR SERVICE
E12-37 PISTON FOR PRESSURE REGULATION VALVE 1 - NOT FOR SERVICE
E12-38 SPRING PRESSURE PUMP 1 - NOT FOR SERVICE
E12-39 SPRING PLATE FOR PRESSURE REGULATION 1 - NOT FOR SERVICE
E12-40 SNAP RING 1 PCS B NOT FOR SERVICE
E12-41 ISA SCREW 6 PCS C
E12-42 COVER FOR SUCTION PUMP 1 - NOT FOR SERVICE
E12-43 OIL PUMP SPORKET 1 PCS C
E12-44 HEXAGON NUT 1 PCS C

Assembly diagram

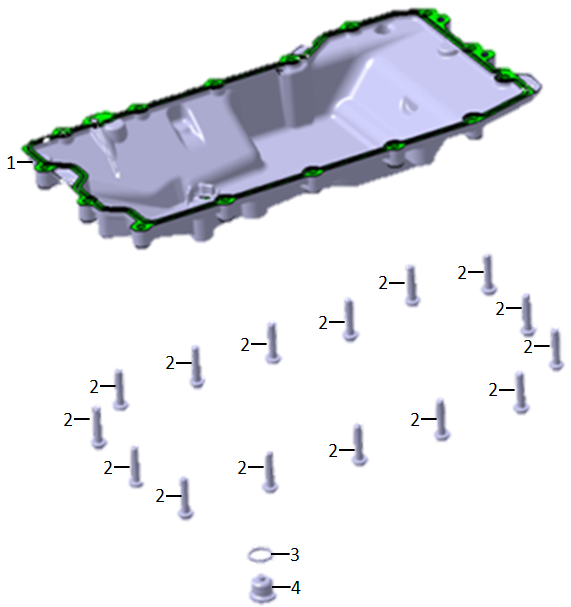

E13 CRANKCASE OIL TRAY - diagram 1
Ref Part Name Part Number Qty Grade Notes
E13-01 OIL PAN 1 PCS C
E13-02 ISA SCREW 15 PCS C
E13-03 WASHER 1 PCS C
E13-04 LOCK SCREW 1 PCS C

Assembly diagram

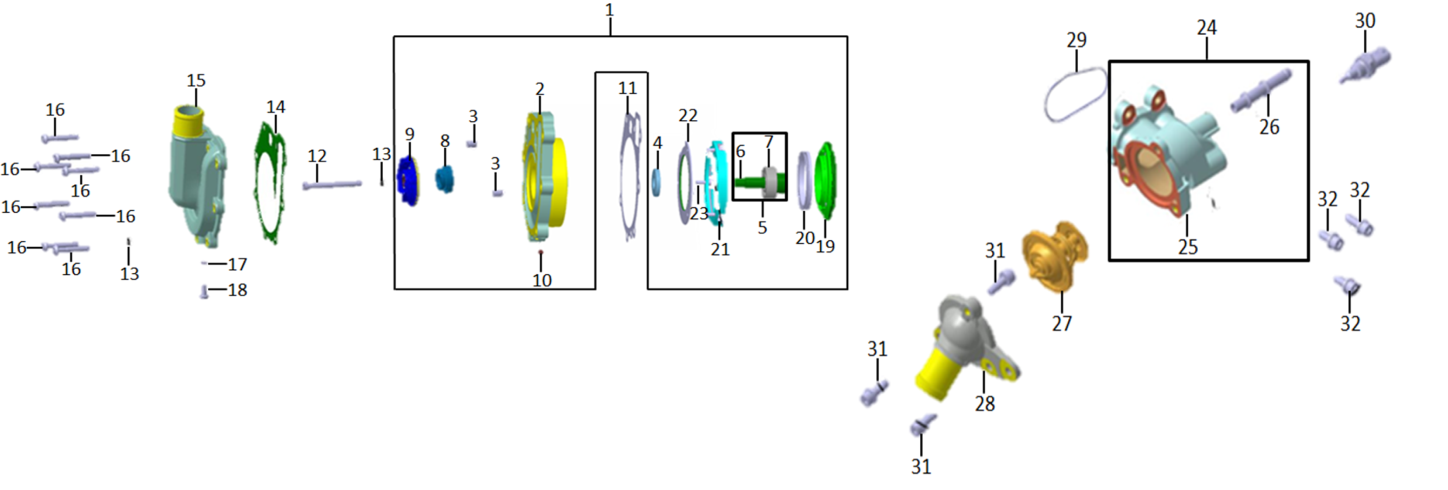

E14 冷却系统 COOLING SYSTEM - diagram 1
Ref Part Name Part Number Qty Grade Notes
E14-01 ASSY WATER PUMP 1 SET C
E14-02 WATER PUMP HOUSING 1 - NOT FOR SERVICE
E14-03 HOLLOW DOWEL 2 - NOT FOR SERVICE
E14-04 ROTARY SEAL 1 PCS B
E14-05 ASSY WATER PUMP SHAFT 1 PCS - NOT FOR SERVICE
E14-06 WATER PUMP SHAFT 1 - NOT FOR SERVICE
E14-07 BALL BEARING 1 - NOT FOR SERVICE
E14-08 MECHANICAL SEALING RING 1 - NOT FOR SERVICE
E14-09 WATER PUMP IMPELLER 1 - NOT FOR SERVICE
E14-10 STAINLESS STEEL BALL 1 - NOT FOR SERVICE
E14-11 WATER PUMP HOUSING GASKET 1 PCS B
E14-12 ISA SCREW 1 PCS C
E14-13 USIT-RING 2 PCS C
E14-14 WATER PUMP COVER GASKET 1 PCS C
E14-15 WATER PUMP COVER 1 PCS C
E14-16 ISA SCREW 8 PCS C
E14-17 WASHER 1 PCS C
E14-18 ISA SCREW 1 PCS C
E14-19 ASSY FLINGER 1 PCS C
E14-20 SEALING RING 1 PCS B
E14-21 CLAMPING COLLAR 1 - NOT FOR SERVICE
E14-22 SLIDING PLATE 1 - NOT FOR SERVICE
E14-23 ISA SCREW 3 PCS C
E14-24 ASSY THERMOSTAT HOUSING 1 PCS A
E14-25 THERMOSTAT HOUSING 1 PCS C
E14-26 VENT NECK 1 PCS C
E14-27 THERMOSTAT 1 PCS A
E14-28 THERMOSTAT HOUSING COVER 1 PCS B
E14-29 THERMOSTAT HOUSING1 GASKET 1 PCS B
E14-30 TEMPERATURE SENSOR 1 PCS A
E14-31 ISA SCREW 3 PCS C
E14-32 ISA SCREW 3 PCS C

Assembly diagram

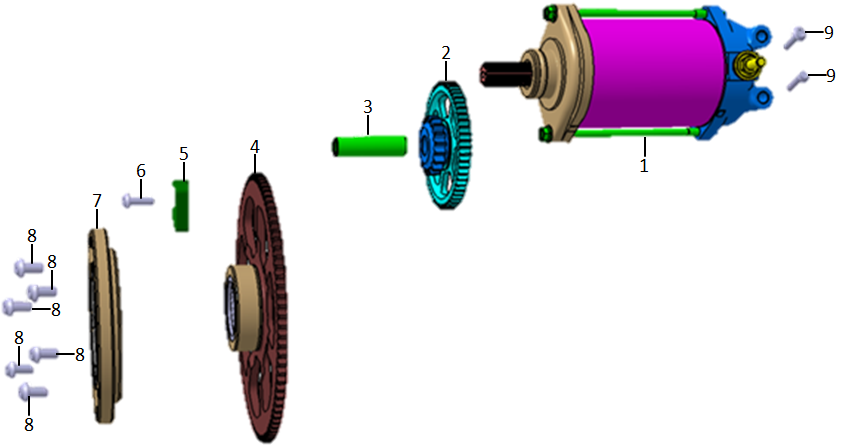

E15 STARTING MECHANISM - diagram 1
Ref Part Name Part Number Qty Grade Notes
E15-01 STARTER 1 SET B
E15-02 ASSY STARTER BUILT INTERM GEAR 1 PCS C
E15-03 STARTER TRANSMISSION SHAFT 1 PCS C
E15-04 ASSY FREEWH BUILT WITH NEEDLEBEARING 1 PCS C
E15-05 FREE WHEEL SLIDER 1 PCS C
E15-06 ISA SCREW 1 PCS C
E15-07 ASSY ONE WAY CLUTCH 1 PCS C
E15-08 ISA SCREW 6 PCS C
E15-09 ISA SCREW 2 PCS C

Assembly diagram

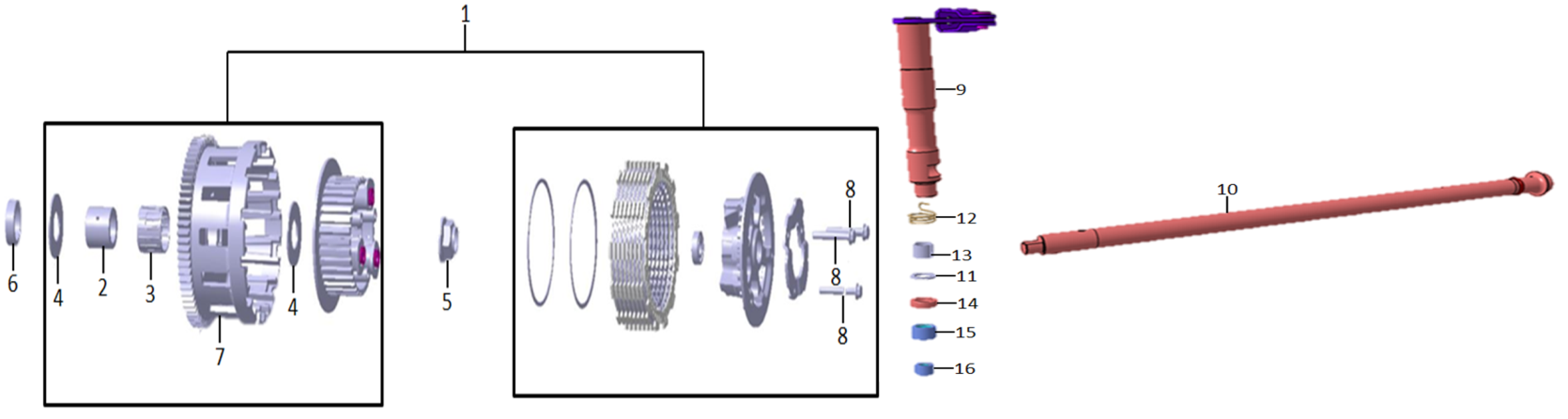

E15 CLUTCH ASSY - diagram 1
Ref Part Name Part Number Qty Grade Notes
E15-01 CLUTCH 1 SET B
E15-02 CLUTCH BUSHING 1 - NOT FOR SERVICE
E15-03 NEEDLE BEARING 1 - NOT FOR SERVICE
E15-04 CLUTCH WASHER 2 - NOT FOR SERVICE
E15-05 COLLAR NUT 1 PCS C
E15-06 SPACER SLEEVE 1 PCS C
E15-07 ASSY DRIVE CLUTCH 1 - NOT FOR SERVICE
E15-08 HEX HEAD SCREW 3 - NOT FOR SERVICE
E15-09 ASSY RELEASE AXLE 1 PCS B
E15-10 ASSY CLUTCH PUSHROD 1 PCS C
E15-11 WASHER 1 PCS C
E15-12 LEG SPRING 1 PCS B
E15-13 PLASTIC BUSH SLOTTED 1 PCS C
E15-14 OIL SEALING 1 PCS B
E15-15 NEEDLE BEARING 1 PCS B
E15-16 NEEDLE BEARING 1 PCS B

Assembly diagram

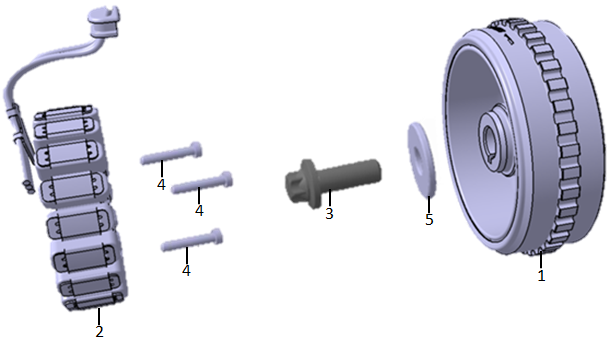

E16 GENERATOR ASSY - diagram 1
Ref Part Name Part Number Qty Grade Notes
E16-01 GENERATOR ROTOR 1 SET C
E16-02 GENERATOR STATOR 1 SET B
E16-03 ASA SCREW 1 PCS C
E16-04 ISA SCREW 3 PCS C
E16-05 WASHER 1 PCS C

Wear-grade legend

  • AA - High wear
  • BB - Medium wear
  • CC - Low wear
  • DD - Not user-serviceable

Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.

Search
