Naked
R125 Parts Catalog
724 part numbers across 2 sheets, 43 assembly diagrams. Search by part name, ref code, or part number. Click any part number to copy.
Showing all 724 parts
LX125-54Ⅰ

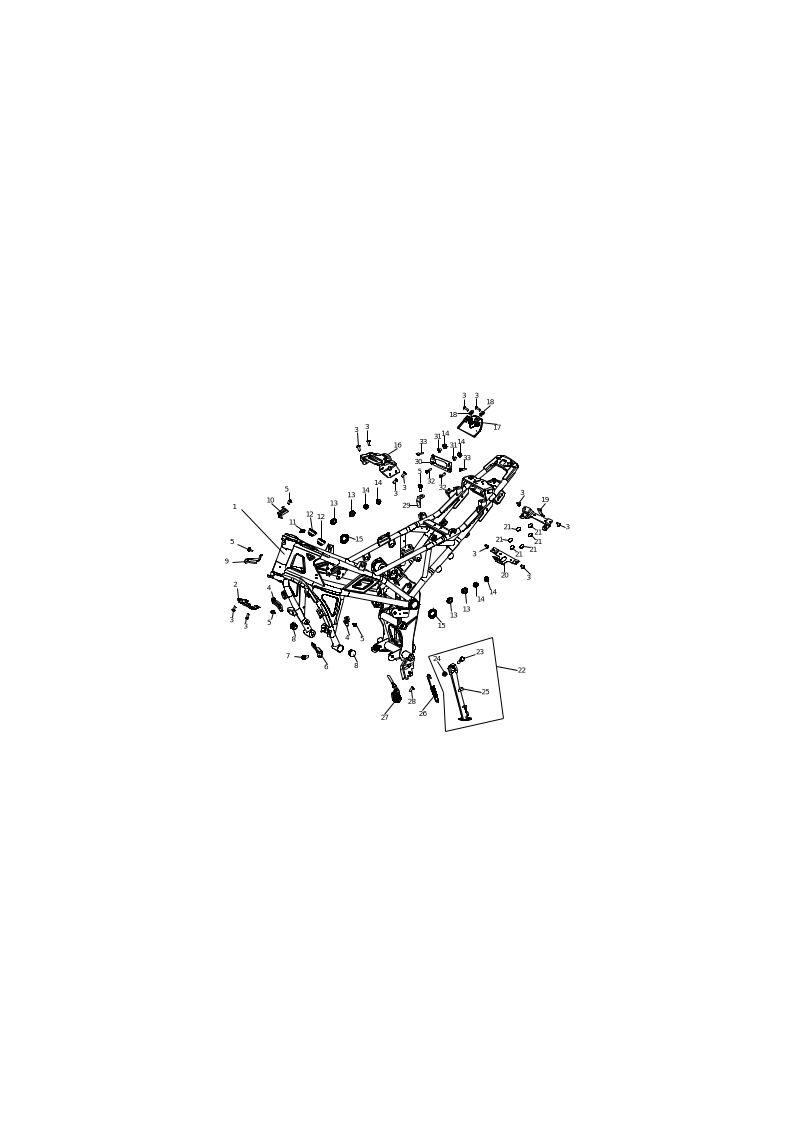

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F01-1 | BODY COMP.,FRAME | - PCS | D | ||
| F01-2 | STRUT MEMBER,IGNITION COIL | - PCS | C | ||
| F01-3 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F01-4 | BRACKET,FUEL TANK DECORATIVE COVER LEFT | - PCS | C | ||
| F01-5 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F01-6 | LUG,RADIATOR LOWER | - PCS | C | ||
| F01-7 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F01-8 | STOPPER | - PCS | C | ||
| F01-9 | LUG OF COOLING WATER TANK | - PCS | C | ||
| F01-10 | BRACKET CANISTER | - PCS | C | ||
| F01-11 | I-RUBBER | - PCS | C | ||
| F01-12 | PAD, FUEL TANK DAMPING | - PCS | C | ||
| F01-13 | I-RUBBER | - PCS | C | ||
| F01-14 | I-RUBBER | - PCS | C | ||
| F01-15 | CAP,FRAME DECORATIVE | - PCS | B | ||
| F01-16 | BRACE,FUEL TANK REAR | - PCS | C | ||
| F01-17 | ELECTRICAL BOX | - PCS | C | ||
| F01-18 | NUT,CLIP | - PCS | C | ||
| F01-19 | BRACKET,BATTERY | - PCS | C | ||
| F01-20 | BRACKET,BATTERY | - PCS | C | ||
| F01-21 | T-RUBBER | - PCS | C | ||
| F01-22 | SIDE STAND COMP. | - SET | B | ||
| F01-23 | BOLT,HEXAGON HEAD SHOULDER | - PCS | C | ||
| F01-24 | NUT,HEXAGON HEAD | - PCS | C | ||
| F01-25 | BAR ASSY.,SIDE STAND | - PCS | B | ||
| F01-26 | SPRING, DRAWING | - PCS | B | ||
| F01-27 | KILL SWITCH, SIDE STAND | - PCS | B | ||
| F01-28 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F01-29 | STRUT MEMBER,FLASHER | - PCS | C | ||
| F01-30 | BRACKET OF ELECTRICAL CONTROLLER | - PCS | C | ||
| F01-31 | COLLAR | - PCS | C | ||
| F01-32 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F01-33 | SCREW,HEXAGON SOCKET | - PCS | C |

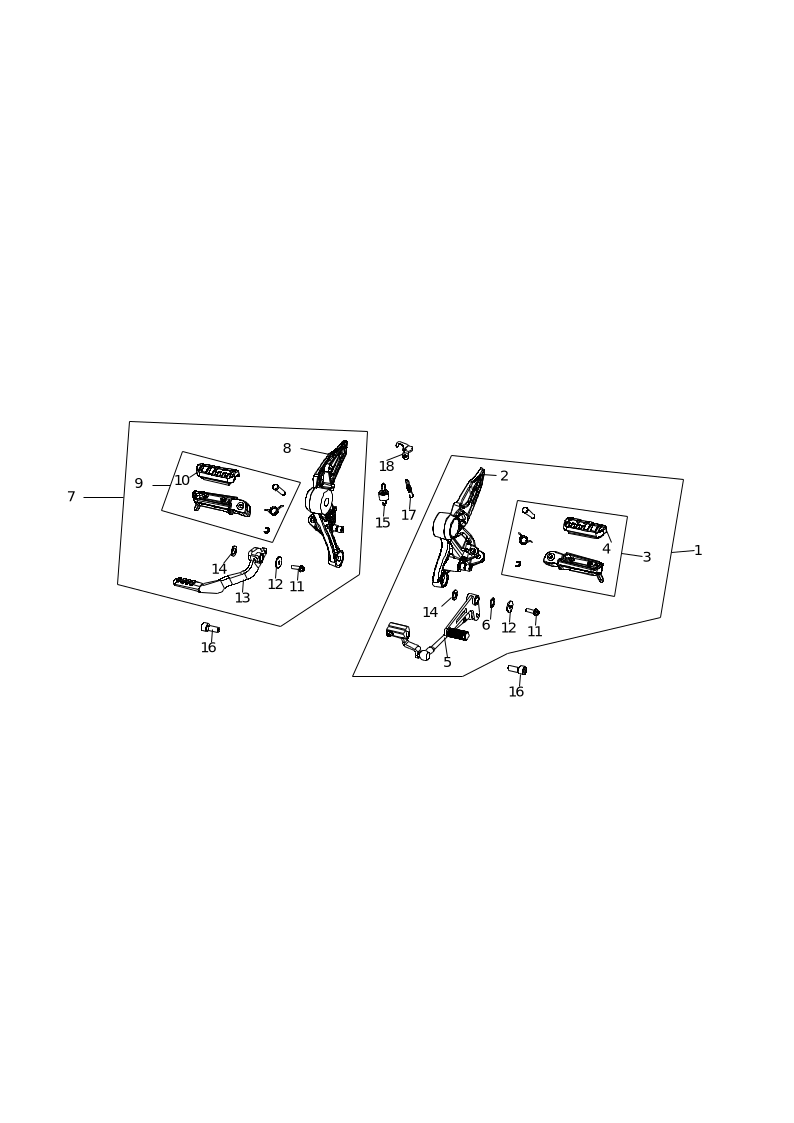

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F02-1 | FOOTREST ASSY., LEFT | - SET | B | ||
| F02-2 | BRACKET, LEFT FOOTREST | - PCS | C | NOT FOR SERVICE | |
| F02-3 | LEFT MAIN FOOTREST | - SET | C | ||
| F02-4 | RUBBER,STEP | - PCS | A | NOT FOR SERVICE | |
| F02-5 | PEDAL,GEAR CHANGE | - PCS | B | ||
| F02-6 | WASHER,WAVE | - PCS | C | ||
| F02-7 | FOOTREST ASSY., RIGHT | - SET | B | ||
| F02-8 | BRACKET, RIGHT FOOTREST | - PCS | C | NOT FOR SERVICE | |
| F02-9 | RIGHT MAIN FOOTREST | - SET | C | ||
| F02-10 | RUBBER,STEP | - PCS | A | NOT FOR SERVICE | |
| F02-11 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F02-12 | WASHER,PLAIN | - PCS | C | ||
| F02-13 | PEDAL,REAR BRAKE | - PCS | B | ||
| F02-14 | WASHER,PLAIN | - PCS | C | ||
| F02-15 | RETURN SPRING,REAR BRAKE PEDAL | - PCS | B | ||
| F02-16 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F02-17 | EXTENSION SPRING,REAR BRAKE SWITCH | - PCS | B | ||
| F02-18 | BASE,REAR BRAKE SWITCH | - PCS | C |

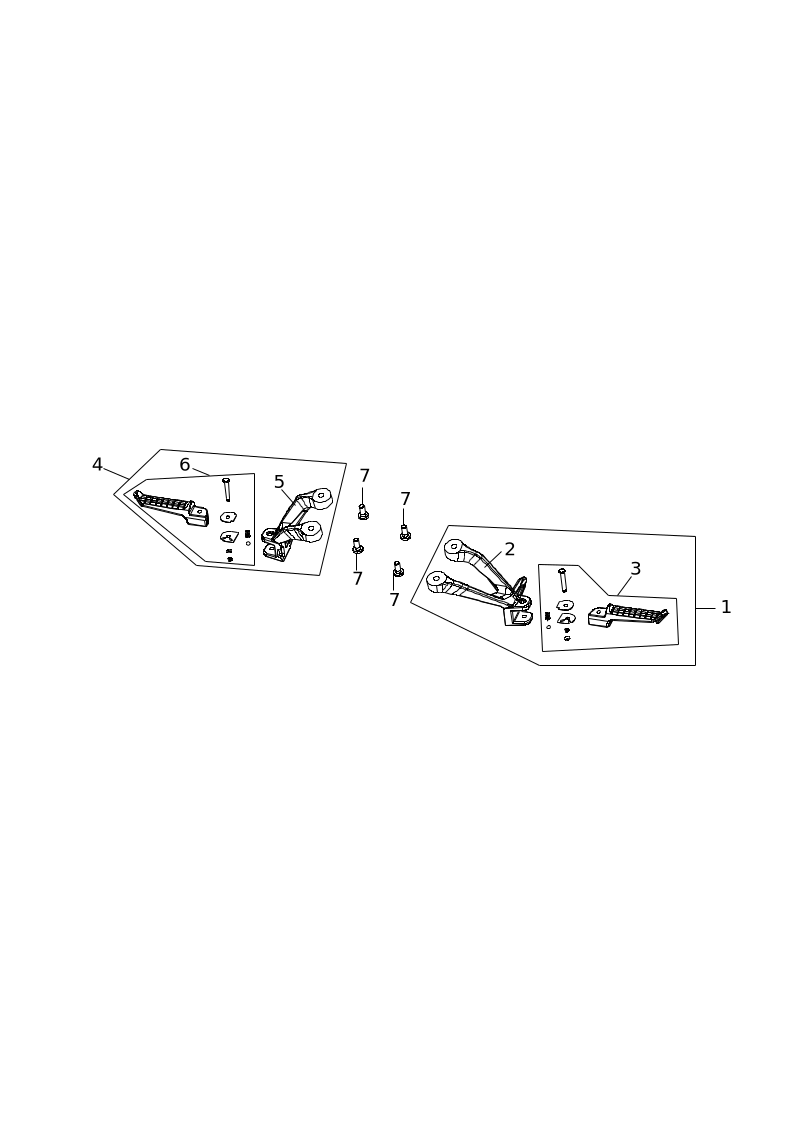

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F03-1 | STEP ASSY.,LEFT PILLION | - SET | B | ||
| F03-2 | HOLD COMP.,LEFT PILLION STEP | - PCS | C | NOT FOR SERVICE | |
| F03-3 | LEFT STEP PILLION ASSY. | - SET | C | ||
| F03-4 | STEP ASSY.,RIGHT PILLION | - SET | B | ||
| F03-5 | HOLD COMP.,RIGHT PILLION STEP | - PCS | C | NOT FOR SERVICE | |
| F03-6 | RIGHT STEP PILLION ASSY. | - SET | C | ||
| F03-7 | FASTENING BOLT,BRAKE DISK | - PCS | C |

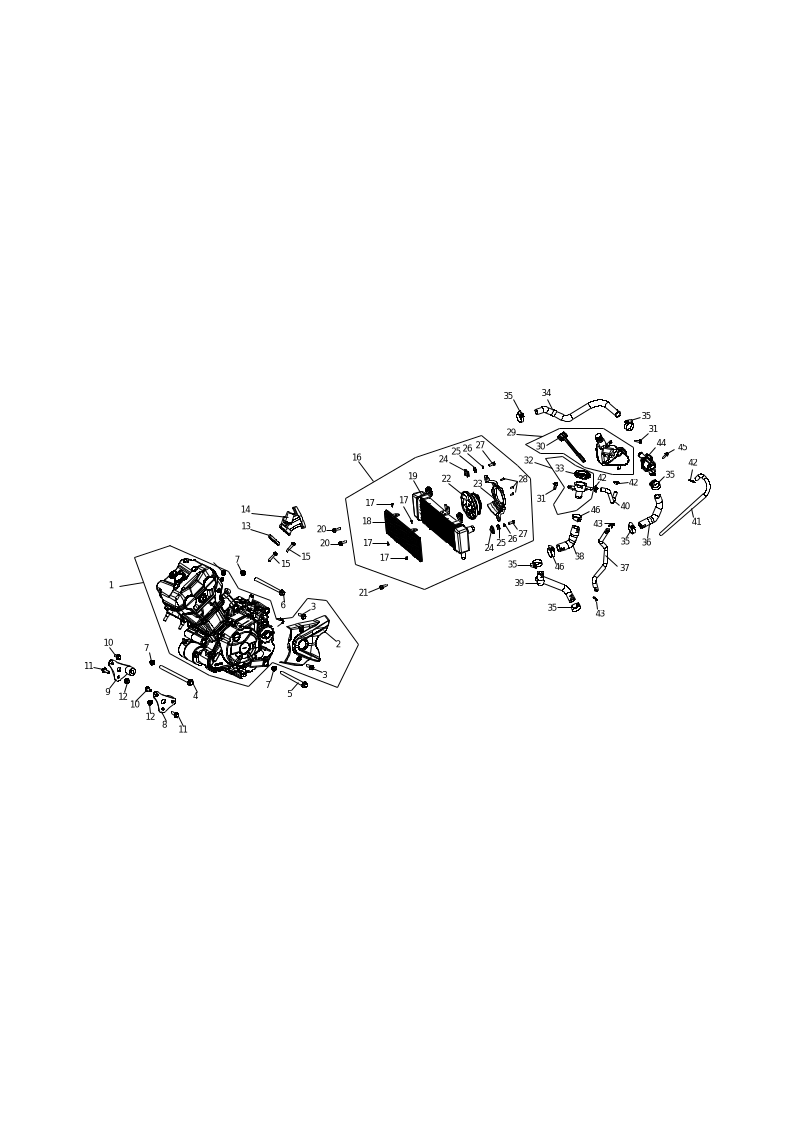

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F04-1 | ENGINE COMP. | - TAI | D | ||
| F04-2 | COVER COMP.,LEFT REAR | - PCS | C | ||
| F04-3 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F04-4 | AXIS | - PCS | C | ||
| F04-5 | AXIS | - PCS | C | ||
| F04-6 | AXIS | - PCS | C | ||
| F04-7 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - PCS | C | ||
| F04-8 | PLATE,LEFT FRONT ENGINE HANGER | - PCS | C | ||
| F04-9 | PLATE,RIGHT FRONT ENGINE HANGER | - PCS | C | ||
| F04-10 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-11 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-12 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - PCS | C | ||
| F04-13 | INSULATION BLANKET | - PCS | C | ||
| F04-14 | TUBE,AIR INTAKE | - PCS | B | ||
| F04-15 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-16 | HEAT RADIATOR COMP. | - SET | B | ||
| F04-17 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | NOT FOR SERVICE | |
| F04-18 | HALFTONE,RADIATOR | - PCS | C | ||
| F04-19 | BODY SET,RADIATOR | - PCS | C | ||
| F04-20 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-21 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-22 | FAN ASSY. | - SET | B | ||
| F04-23 | SHIELD,FAN | - PCS | B | ||
| F04-24 | NUT,CLIP | - PCS | C | NOT FOR SERVICE | |
| F04-25 | WASHER,PLAIN | - PCS | C | NOT FOR SERVICE | |
| F04-26 | WASHER,ELASTIC | - PCS | C | NOT FOR SERVICE | |
| F04-27 | BOLT,HEXAGON | - PCS | C | NOT FOR SERVICE | |
| F04-28 | SCREW,CROSS RECESSED PAN | - PCS | C | NOT FOR SERVICE | |
| F04-29 | WATER TANK,COOLING | - PCS | B | ||
| F04-30 | CAP,WATER TANK | - PCS | B | ||
| F04-31 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-32 | FILLER | - PCS | C | ||
| F04-33 | CAP,FILLER | - PCS | C | ||
| F04-34 | TUBE,WATER | - PCS | B | ||
| F04-35 | CLAMP ASSY. | - PCS | C | ||
| F04-36 | TUBE,WATER | - PCS | B | ||
| F04-37 | TUBE,WATER | - PCS | B | ||
| F04-38 | TUBE,WATER | - PCS | B | ||
| F04-39 | TUBE,WATER | - PCS | B | ||
| F04-40 | TUBE,WATER | - PCS | B | ||
| F04-41 | TUBE,WATER | - PCS | B | ||
| F04-42 | CLAMP,TUBE | - PCS | C | ||
| F04-43 | CLAMP,TUBE | - PCS | C | ||
| F04-44 | THERMOSTAT COMP. | - PCS | A | ||
| F04-45 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F04-46 | CLAMP ASSY. | - PCS | C |

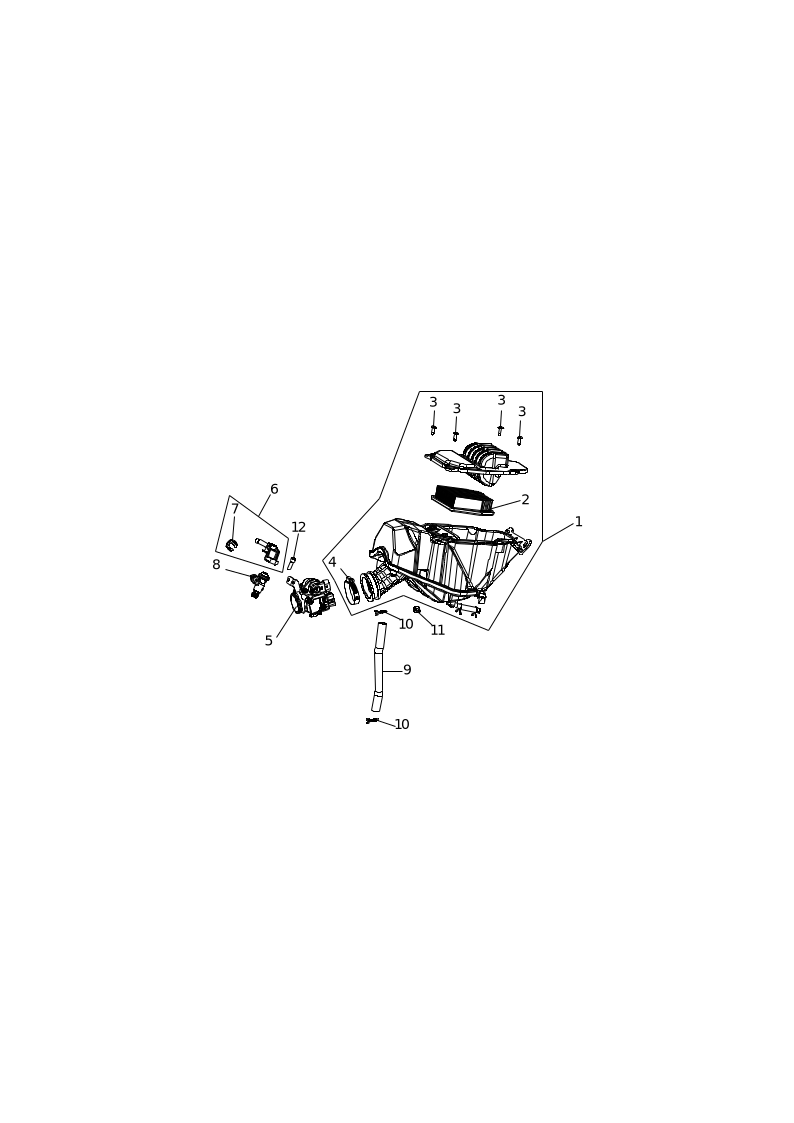

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F05-1 | AIR CLEANER COMP. | - PCS | C | ||
| F05-2 | ELEMENT ASSY.,AIR CLEANER | - PCS | A | ||
| F05-3 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | ||
| F05-4 | CLAMP ASSY. | - PCS | C | ||
| F05-5 | VALVE BODY ASSY., THROTTLE | - PCS | C | ||
| F05-6 | CAP, FUEL JET | - PCS | C | ||
| F05-7 | CLAMP, FUEL JET | - PCS | C | NOT FOR SERVICE | |
| F05-8 | FUEL JET | - PCS | C | ||
| F05-9 | TUBE,BREATHER | - PCS | C | ||
| F05-10 | CLAMP,TUBE | - PCS | C | ||
| F05-11 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F05-12 | SCREW,HEXAGON SOCKET | - PCS | C |

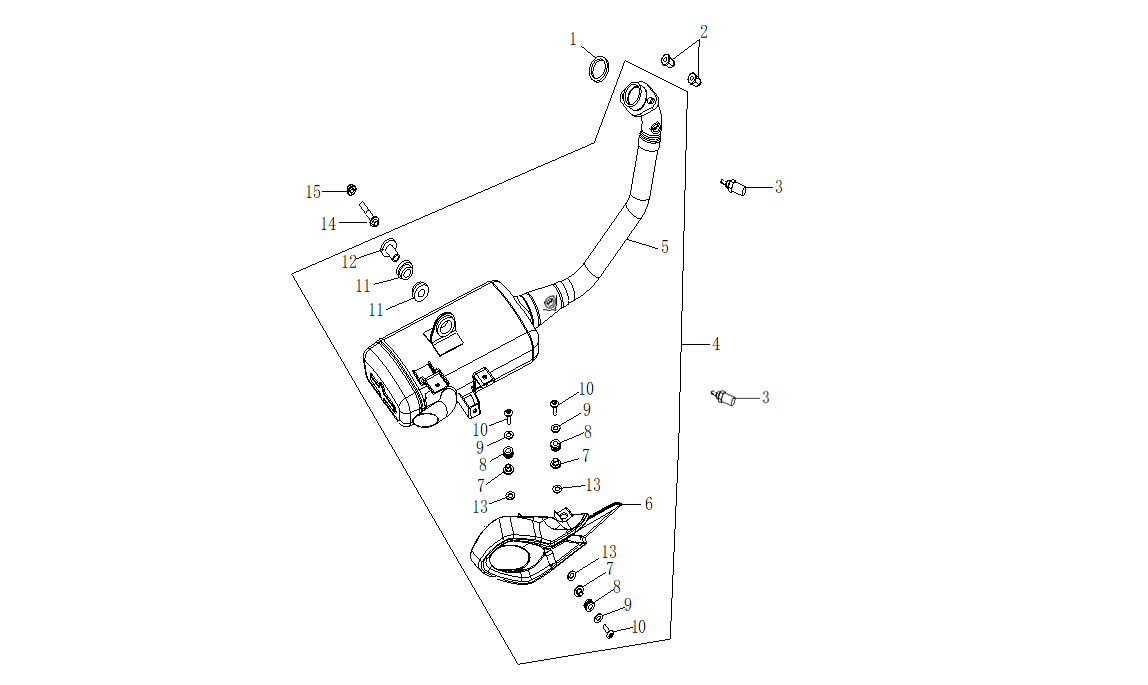

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F06-01 | GASKET,AIR EXHAUST PORT | - PCS | A | ||
| F06-02 | CAP-SHAPED NUT | - PCS | C | ||
| F06-03 | OXYGEN SENSOR | - PCS | C | ||
| F06-04 | MUFFLER ASSY.,EXHAUST | - SET | B | ||
| F06-05 | MUFFLER COMP.,EXHAUST | - PCS | B | NOT FOR SERVICE | |
| F06-06 | SHIELD,MUFFLER | - PCS | B | ||
| F06-07 | COLLAR | - PCS | C | ||
| F06-08 | I-RUBBER | - PCS | C | ||
| F06-09 | WASHER,PLAIN | - PCS | C | ||
| F06-10 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F06-11 | T-RUBBER | - PCS | C | ||
| F06-12 | WASHER,FLANGE | - PCS | C | ||
| F06-13 | INSULATION BLANKET | - PCS | C | ||
| F06-14 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F06-15 | NUT,HEXAGON FLANGE | - PCS | C |

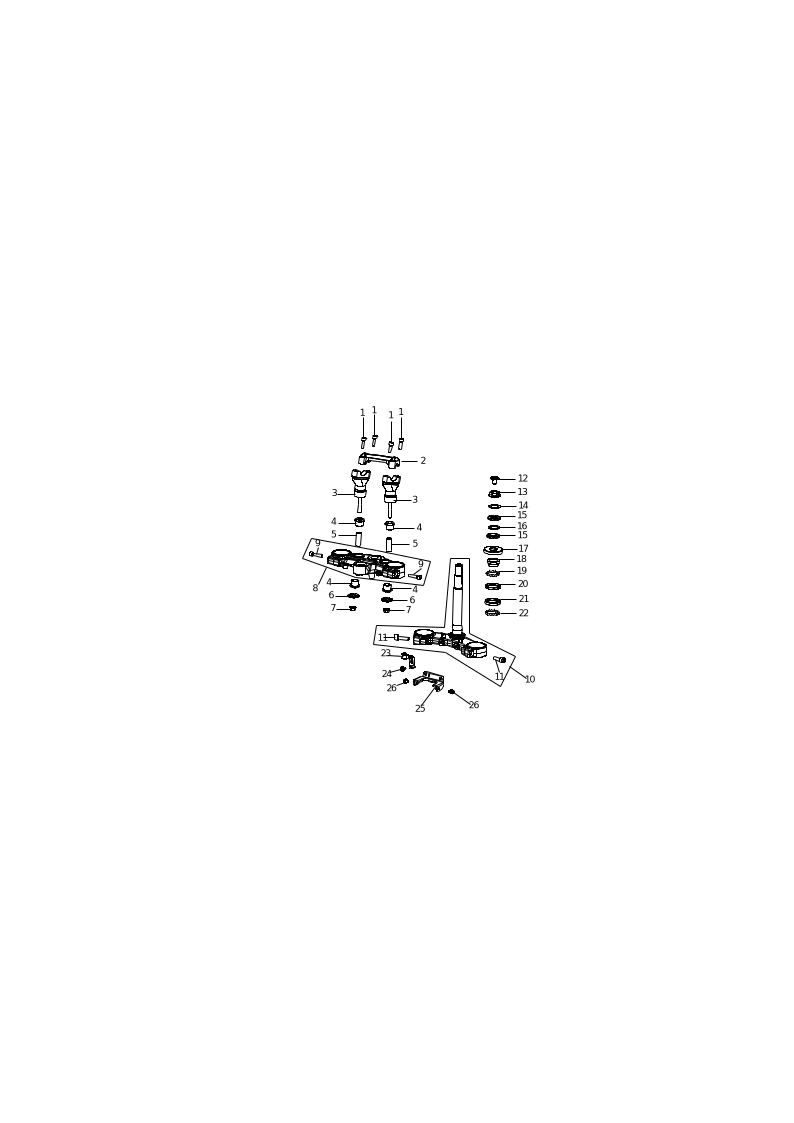

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F07-1 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F07-2 | HOLDER,STEERING HANDLE PIPE | - PCS | B | ||
| F07-3 | SUPPORT,STEERING HANDLE PIPE | - PCS | B | ||
| F07-4 | T-RUBBER | - PCS | C | ||
| F07-5 | COLLAR | - PCS | C | ||
| F07-6 | WASHER,FLANGE | - PCS | C | ||
| F07-7 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - PCS | C | ||
| F07-8 | UPPER CONNECTIVE PLATE ASSY. | - SET | C | ||
| F07-9 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F07-10 | STEERING STEM BODY/CIRCLIP ASSY. | - SET | C | ||
| F07-11 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F07-12 | DUST CAP,STEERING STEM | - PCS | C | ||
| F07-13 | KEP NUT,STEERING STEM | - PCS | C | ||
| F07-14 | WASHER,STEERING STEM | - PCS | C | ||
| F07-15 | ADJUST NUT,STEERING STEM | - PCS | C | ||
| F07-16 | WASHER,LOCKING | - PCS | C | ||
| F07-17 | DUST CAP,STEERING STEM | - PCS | C | ||
| F07-18 | CIRCLIP, STEERING BEARING | - PCS | B | ||
| F07-19 | BALL SET,STEEL TOP | - SET | B | ||
| F07-20 | RING, STEERING BASE | - PCS | B | ||
| F07-21 | RACE,STEERING BOTTOM BALL | - PCS | B | ||
| F07-22 | BALL SET,STEEL BOTTOM | - SET | B | ||
| F07-23 | HOOK,HOSE | - PCS | C | ||
| F07-24 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F07-25 | LINK BLOCK,HEAD LIGHT BRACKET | - PCS | C | ||
| F07-26 | BOLT,HEXAGON FLANGE | - PCS | C |

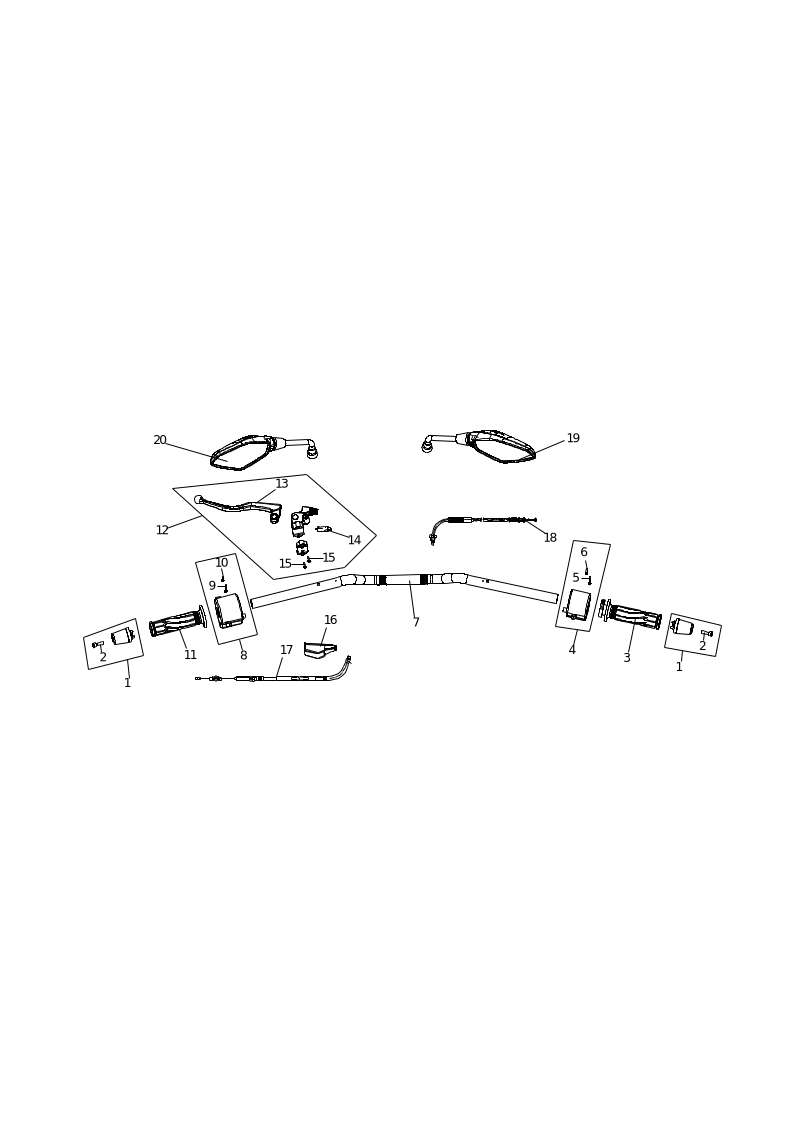

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F08-1 | DECORATIVE WEIGHT, LEFT | - PCS | B | ||
| F08-2 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F08-3 | GREASER COMP. | - PCS | A | ||
| F08-4 | SWITCH ASSY.,RIGHT | - SET | B | ||
| F08-5 | SCREW,CROSS RECESSED PAN | - PCS | C | ||
| F08-6 | SCREW,CROSS RECESSED PAN | - PCS | C | ||
| F08-7 | HANDLE BAR ASSY. | - PCS | C | ||
| F08-8 | SWITCH ASSY.,LEFT | - SET | B | ||
| F08-9 | SCREW,CROSS RECESSED PAN | - PCS | C | ||
| F08-10 | SCREW,CROSS RECESSED PAN | - PCS | C | ||
| F08-11 | GRIP SET,HANDLE | - PCS | A | ||
| F08-12 | LEVER COMP., LEFT | - SET | B | ||
| F08-13 | LEVER COMP.,LEFT STEERING HANDLE | - PCS | B | ||
| F08-14 | SWITCH ASSY.,CLUTCH | - PCS | B | ||
| F08-15 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F08-16 | SHEATH,CLUTCH CABLE | - PCS | C | ||
| F08-17 | CABLE COMP.,CLUTCH | - PCS | A | ||
| F08-18 | CABLE COMP.,THROTTLE | - PCS | A | ||
| F08-19 | MIRROR,RIGHT BACK-VIEW | - PCS | A | ||
| F08-20 | MIRROR,LEFT BACK-VIEW | - PCS | A |

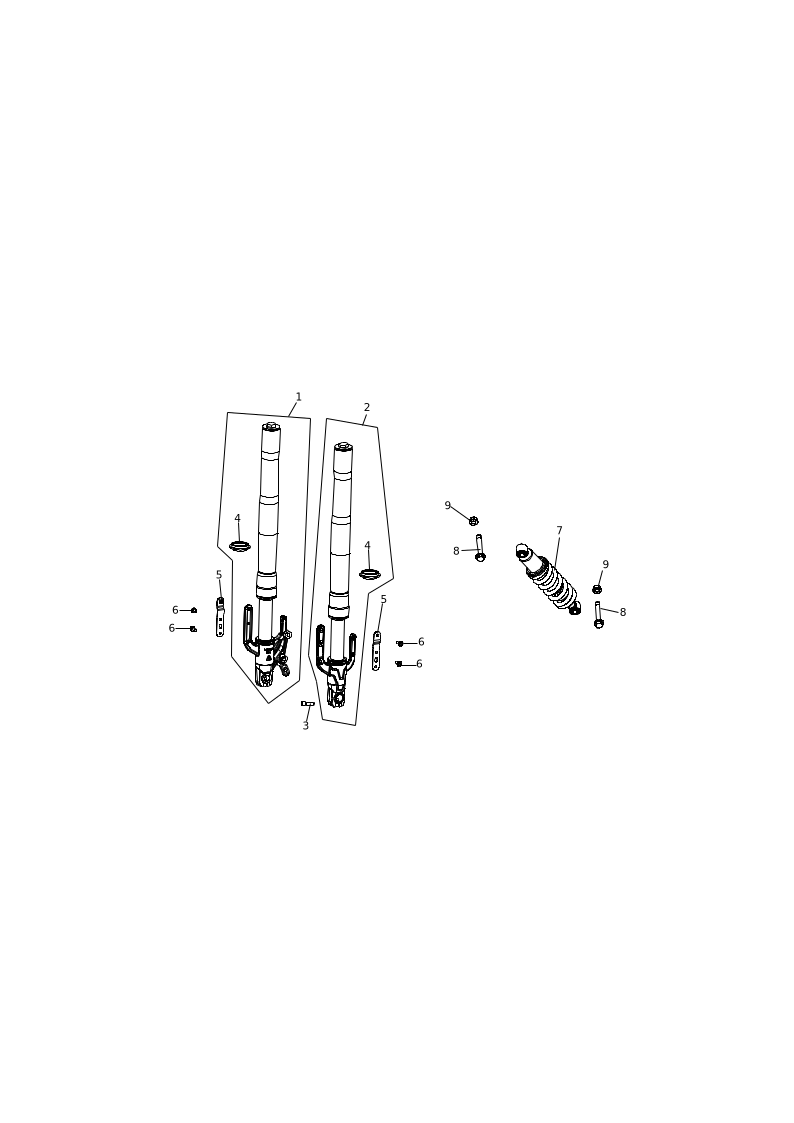

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F09-1 | SHOCK ABSORBER, LEFT FRONT | - PCS | B | ||
| F09-2 | SHOCK ABSORBER, RIGHT FRONT | - PCS | B | ||
| F09-3 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F09-4 | OIL SEAL | - PCS | B | ||
| F09-5 | BRACKET,FRONT FENDER | - PCS | C | ||
| F09-6 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F09-7 | SHOCK ABSORBER, LEFT REAR | - PCS | B | ||
| F09-8 | AXIS | - PCS | C | ||
| F09-9 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - PCS | C |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F10-1 | AXIS | - PCS | C | ||
| F10-2 | NUT,HEXAGON HEAD | - PCS | C | ||
| F10-3 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - PCS | C | ||
| F10-4 | FORK ASSY.,REAR | - SET | C | ||
| F10-5 | WELDING COMP.,REAR FORK | - PCS | C | NOT FOR SERVICE | |
| F10-6 | COLLAR | - PCS | C | ||
| F10-7 | OIL SEAL | - PCS | B | ||
| F10-8 | COLLAR | - PCS | C | ||
| F10-9 | SLIDER,DRIVE CHAIN | - PCS | B | ||
| F10-10 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F10-11 | COLLAR | - PCS | C | ||
| F10-12 | CLAMP,TUBE | - PCS | C | ||
| F10-13 | ADJUSTOR,DRIVE CHAIN LEFT | - PCS | B | ||
| F10-14 | PLATE,ADJUSTER HANGER | - PCS | C | ||
| F10-15 | CHAIN | - PCS | A | ||
| F10-16 | BEARING | - PCS | B |

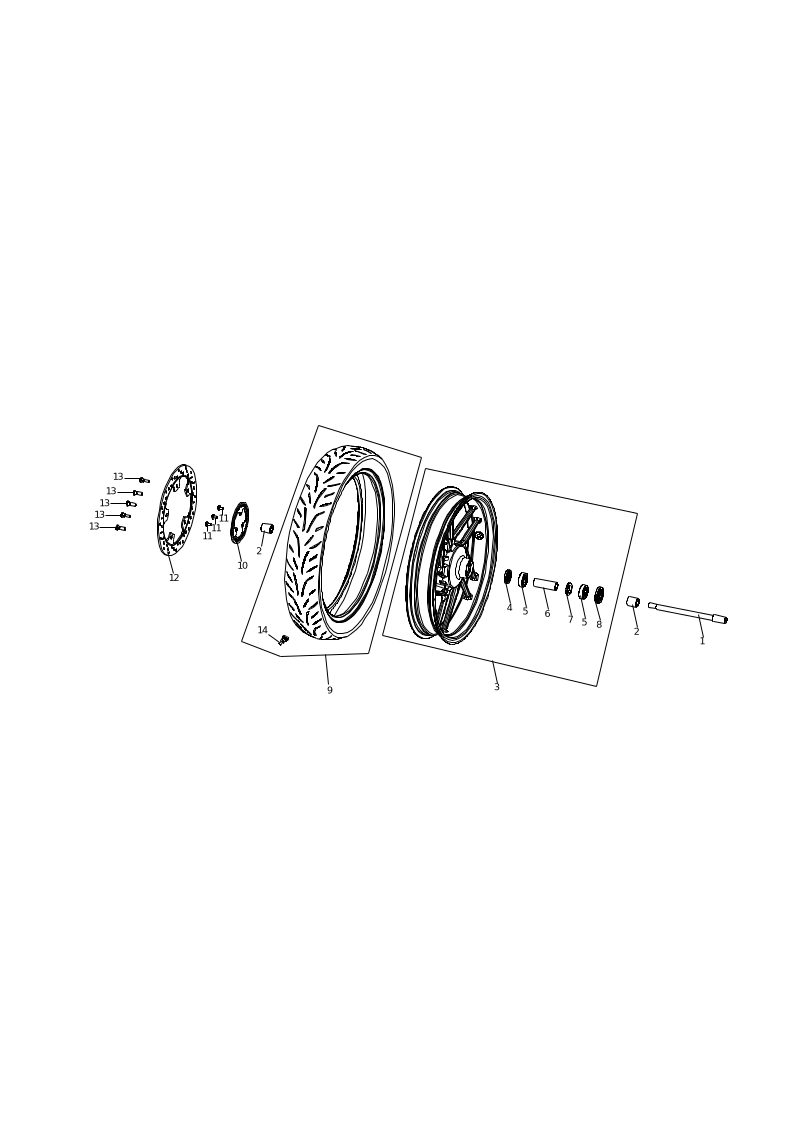

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F11-1 | AXIS | - PCS | C | ||
| F11-2 | COLLAR | - PCS | C | ||
| F11-3 | WHEEL,FRONT | - PCS | B | FOR FULL-BLACK ONLY | |
| F11-3 | WHEEL,FRONT | - PCS | B | FOR BLUE ONLY | |
| F11-4 | OIL SEAL | - PCS | B | ||
| F11-5 | BEARING | - PCS | B | ||
| F11-6 | COLLAR | - PCS | C | ||
| F11-7 | PLAIN WASHER,RUBBER | - PCS | C | ||
| F11-8 | OIL SEAL | - PCS | B | ||
| F11-9 | TYRE ASSY. | - PCS | A | ||
| F11-10 | GEAR RING, ABS | - PCS | C | ||
| F11-11 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F11-12 | DISK COMP.,LEFT FRONT BRAKE | - PCS | C | ||
| F11-13 | FASTENING BOLT,BRAKE DISK | - PCS | C | ||
| F11-14 | CORE,VALVE | - PCS | B |

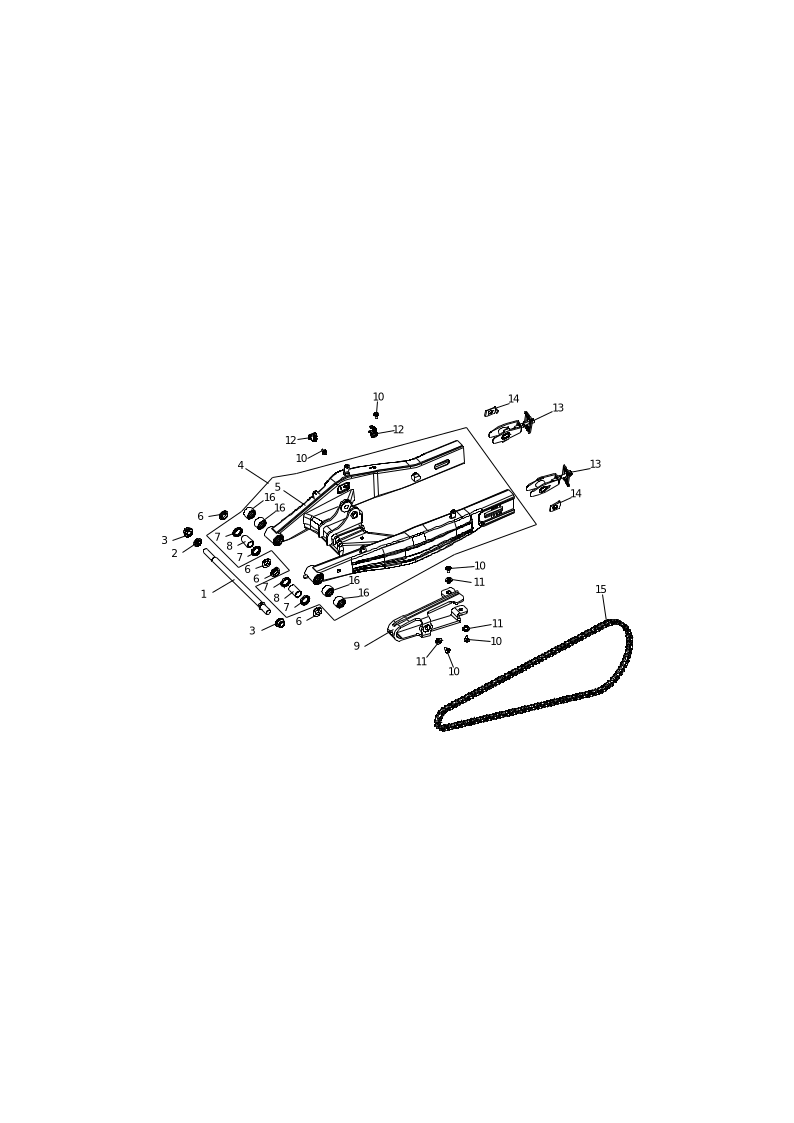

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F12-1 | AXIS | - PCS | C | ||
| F12-2 | COLLAR | - PCS | C | ||
| F12-3 | DAMPER COMP. | - SET | B | ||
| F12-4 | BOLT,HEXAGON | - PCS | C | ||
| F12-5 | SPROCKET WHEEL | - PCS | A | ||
| F12-6 | OIL SEAL | - PCS | B | ||
| F12-7 | BEARING | - PCS | B | ||
| F12-8 | COLLAR | - PCS | C | ||
| F12-9 | SEAT,SPROCKET WHEEL | - PCS | B | NOT FOR SERVICE | |
| F12-10 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON | - PCS | C | ||

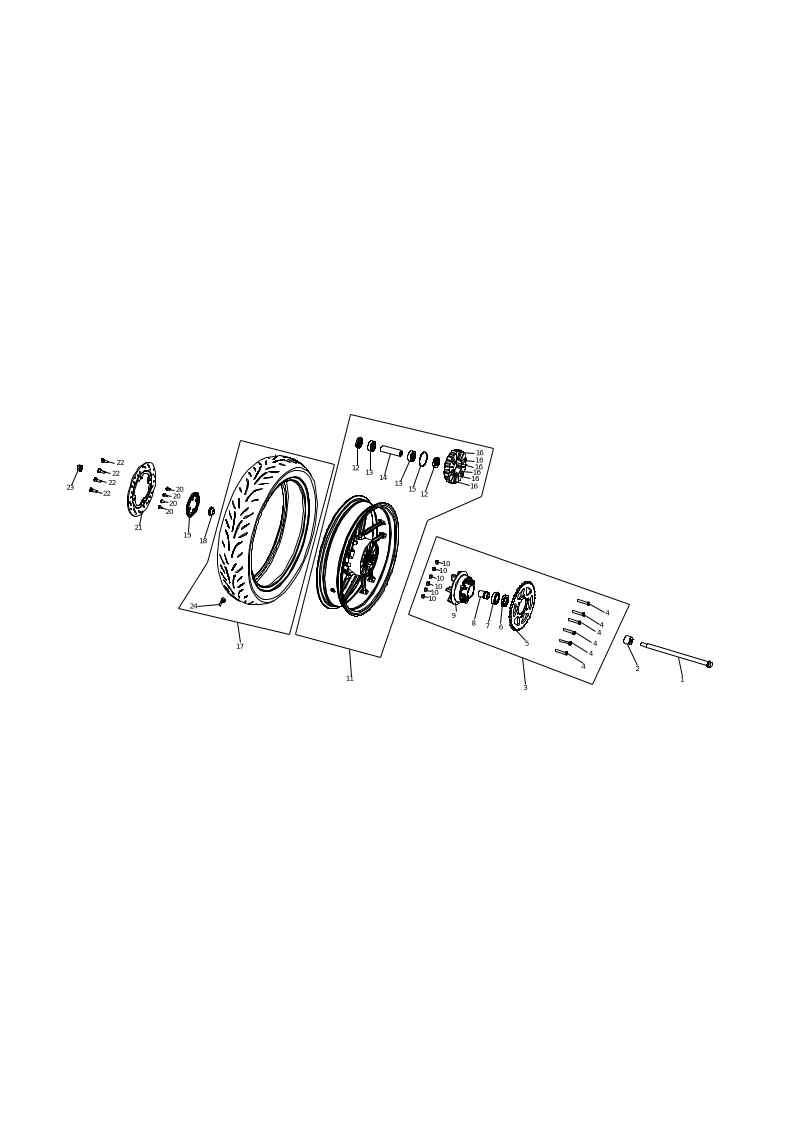

| F12-11 | WHEEL,REAR | - PCS | B | FOR FULL-BLACK ONLY | |
| F12-11 | WHEEL,REAR | - PCS | B | FOR BLUE ONLY | |
| F12-12 | OIL SEAL | - PCS | B | ||
| F12-13 | BEARING | - PCS | B | ||
| F12-14 | RING,SEAL | - PCS | B | ||
| F12-15 | COLLAR | - PCS | C | ||
| F12-16 | DAMPING PIECE,REAR WHEEL | - PCS | A | ||
| F12-17 | TYRE ASSY. | - PCS | A | ||
| F12-18 | COLLAR | - PCS | C | ||
| F12-19 | GEAR RING, ABS | - PCS | C | ||
| F12-20 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F12-21 | DISK COMP.,LEFT REAR BRAKE | - PCS | C | ||
| F12-22 | FASTENING BOLT,BRAKE DISK | - PCS | C | ||
| F12-23 | NUT,PREVAILING TORQUE TYPE ALL-METAL HEXAGON WITH FLANGE | - PCS | C | ||
| F12-24 | CORE,VALVE | - PCS | B |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

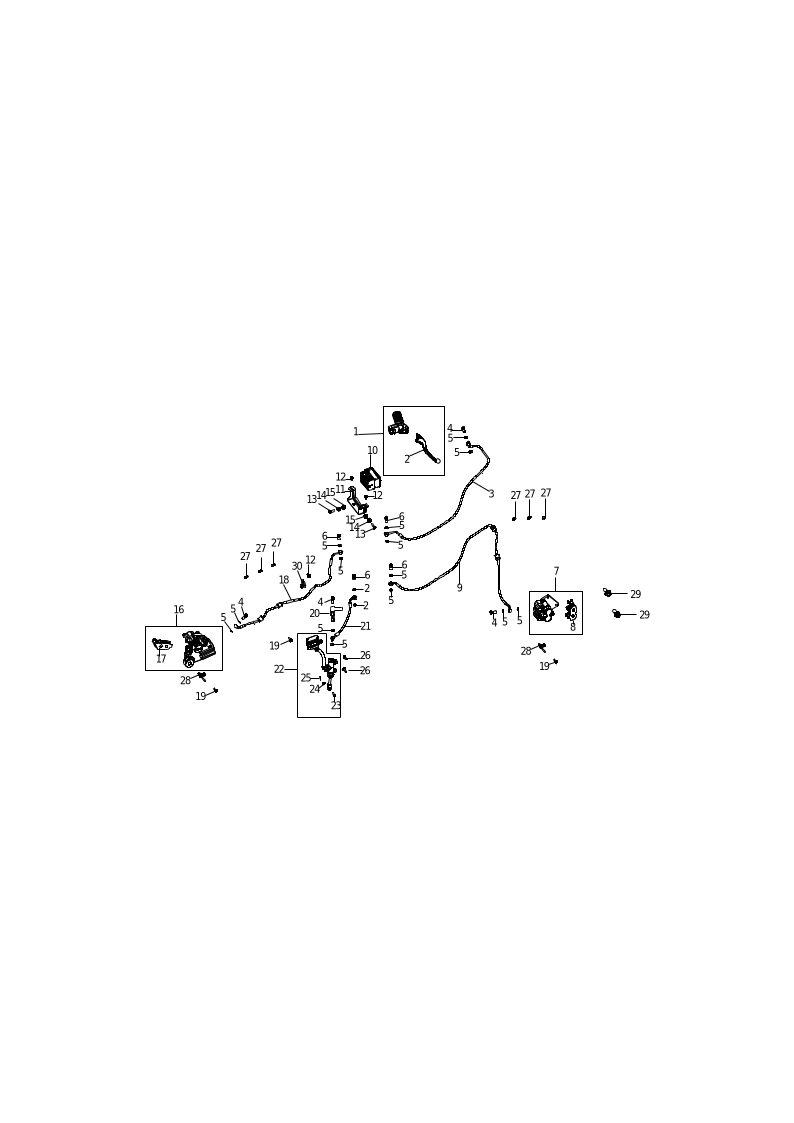

| F13-01 | CYLINDER ASSY.,MASTER | - PCS | B | ||
| F13-02 | LEVER COMP.,RIGHT STEERING HANDLE | - PCS | B | ||
| F13-03 | ABS CONNECTIVE OIL TUBE | - PCS | C | ||
| F13-04 | BOLT,DISC-BRAKE HOSE | - PCS | C | ||
| F13-05 | WASHER,PLAIN | - PCS | C | ||
| F13-06 | BOLT,DISC-BRAKE HOSE | - PCS | C | ||
| F13-07 | CALIPER ASSY.,LEFT | - PCS | C | ||
| F13-08 | PAD COMP.,REAR DISC-BRAKE LEFT | - PCS | A | ||
| F13-09 | ABS CONNECTIVE OIL TUBE | - PCS | C | ||
| F13-10 | ABS.ANTI-LOCKING UP SYSTEM | - PCS | C | ||
| F13-11 | INSTALLATION BRACKET, ABS | - PCS | C | ||
| F13-12 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F13-13 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F13-14 | COLLAR | - PCS | C | ||
| F13-15 | I-RUBBER | - PCS | C | ||
| F13-16 | PUMP, REAR DISC-BRAKE LOWER | - PCS | C | ||
| F13-17 | PAD COMP.,REAR DISC-BRAKE LEFT | - PCS | A | ||
| F13-18 | ABS CONNECTIVE OIL TUBE | - PCS | C | ||
| F13-19 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F13-20 | SWITCH ASSY.,REAR BRAKE | - PCS | B | ||
| F13-21 | ABS CONNECTIVE OIL TUBE | - PCS | C | ||
| F13-22 | PUMP, REAR DISC-BRAKE UPPER | - PCS | C | ||
| F13-23 | PIN,CLEVIS | - PCS | C | ||
| F13-24 | PIN,COTTER | - PCS | C | ||
| F13-25 | WASHER,PLAIN | - PCS | C | ||
| F13-26 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F13-27 | CLAMP,TUBE | - PCS | C | ||
| F13-28 | SPEED SENSOR | - PCS | C | ||
| F13-29 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F13-30 | - | - |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

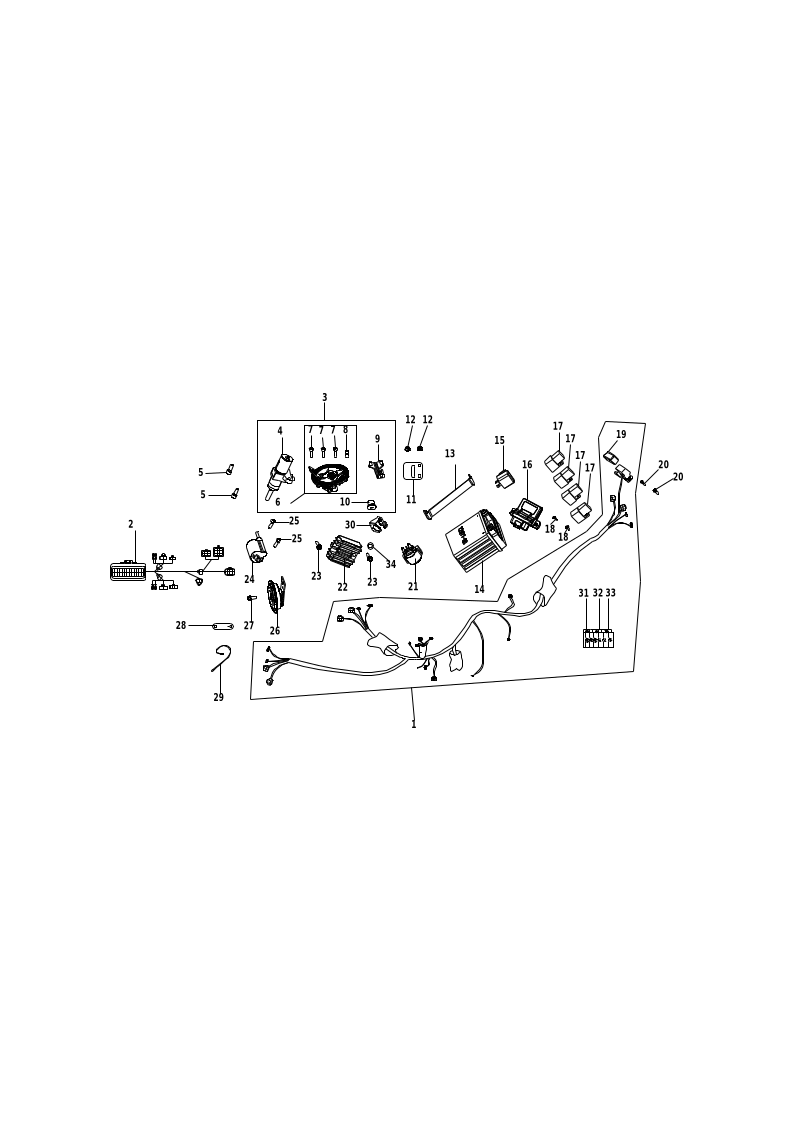

| F14-01 | HARNESS,WIRE | - SET | B | ||
| F14-02 | HARNESS,SUB | - PCS | C | ||
| F14-03 | LOCK KIT | - SET | B | ||
| F14-04 | SWITCH ASSY.,IGNITION | - PCS | B | ||
| F14-05 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F14-06 | LOCK,FUEL TANK | - PCS | B | ||
| F14-07 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F14-08 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F14-09 | DEVICE,SEAT LOCKING | - SET | B | ||
| F14-10 | LOCK,SEAT | - PCS | B | ||
| F14-11 | WASHER,SEAT LOCK | - PCS | C | ||
| F14-12 | NUT,HEXAGON FLANGE | - PCS | C | ||
| F14-13 | CLAMPING BAND | - PCS | C | ||
| F14-14 | BATTERY>A01;8V/150AH RUBBER BODY | - PCS | A | ||
| F14-15 | FLASHER | - PCS | A | ||
| F14-16 | ECU | - PCS | C | ||
| F14-17 | RELAY ASSY.,CONTROLING | - PCS | B | ||
| F14-18 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | ||
| F14-19 | SHEATH,ELECTRICAL PARTS | - PCS | C | ||
| F14-20 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F14-21 | STARTING RELAY ASSY. | - PCS | A | ||
| F14-22 | RECTIFIER REGULATOR ASSY. | - PCS | A | ||
| F14-23 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F14-24 | COIL ASSY.,IGNITION | - PCS | A | ||
| F14-25 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F14-26 | HORN | - PCS | A | ||
| F14-27 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F14-28 | CLAMPING BAND | - PCS | C | ||
| F14-29 | CLAMPING BAND | - PCS | C | ||
| F14-30 | BRACKET,SEAT LOCK | - PCS | C | ||
| F14-31 | SECTION,SAFE | - PCS | A | ||
| F14-32 | SECTION,SAFE | - PCS | A | ||
| F14-33 | SECTION,SAFE | - PCS | A | ||
| F14-34 | WASHER,PLAIN | - PCS | C |

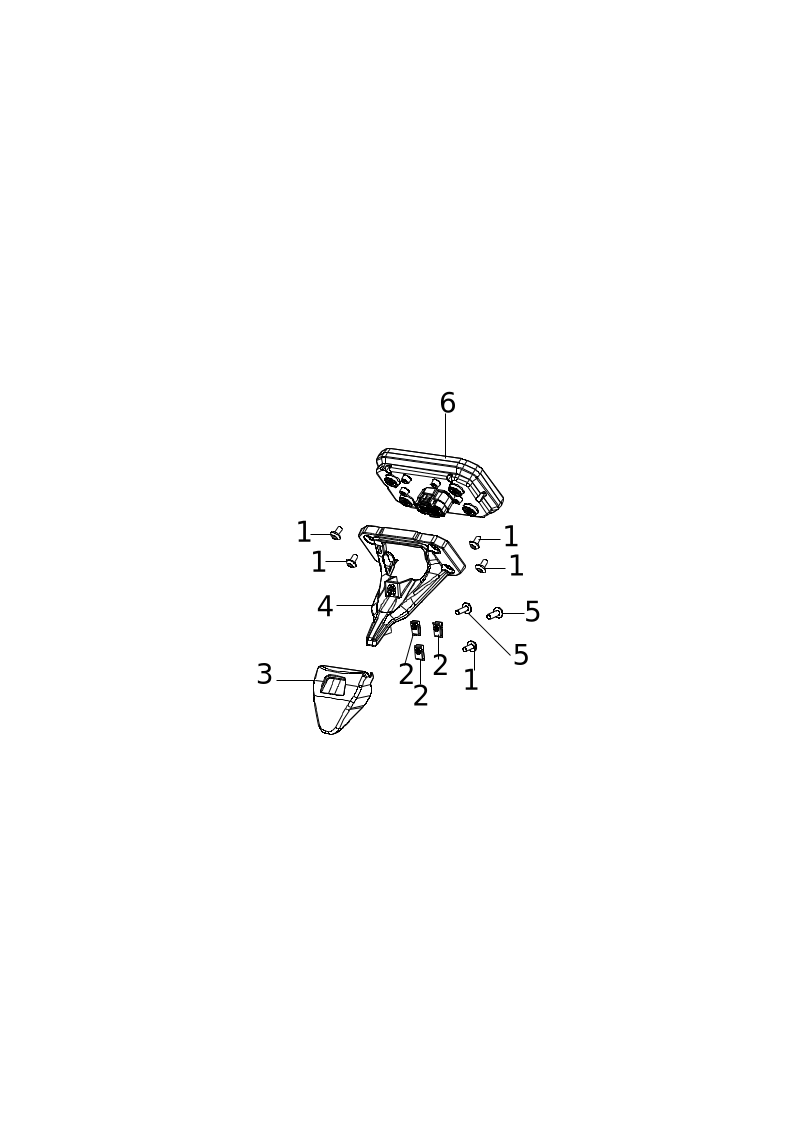

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F15-1 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F15-2 | NUT,CLIP | - PCS | C | ||
| F15-3 | CAP,METER DECORATIVE | - PCS | C | ||
| F15-4 | BRACKET,METER | - PCS | C | ||
| F15-5 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F15-6 | INSTRUMENT SET | - SET | B |

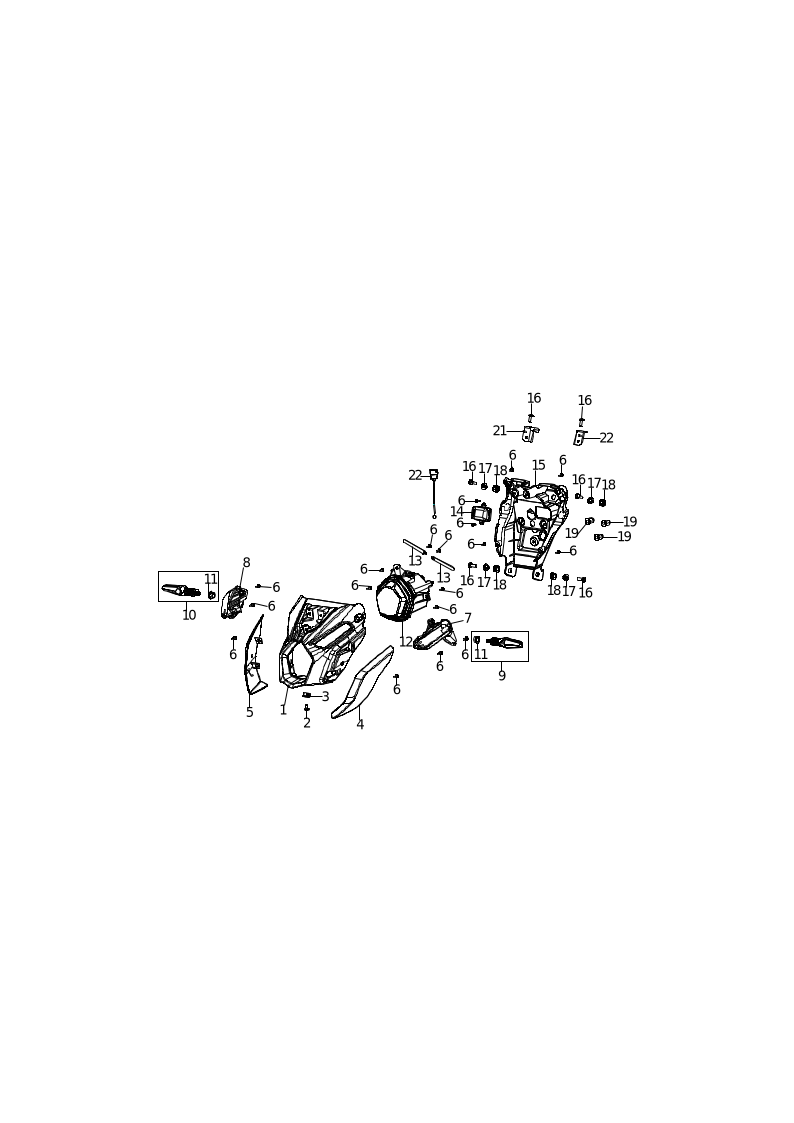

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F16-1 | FAIRING COVER | - PCS | B | ||
| F16-2 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F16-3 | NUT,CLIP | - PCS | C | ||
| F16-4 | GUARD PLATE,AIR GUIDE SLEEVE LEFT | - PCS | B | FOR FULL-BLACK ONLY | |
| F16-4 | GUARD PLATE,AIR GUIDE SLEEVE LEFT | - PCS | B | FOR BLUE ONLY | |
| F16-5 | GUARD PLATE,AIR GUIDE SLEEVE RIGHT | - PCS | B | FOR FULL-BLACK ONLY | |
| F16-5 | GUARD PLATE,AIR GUIDE SLEEVE RIGHT | - PCS | B | FOR BLUE ONLY | |
| F16-6 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | ||
| F16-7 | LIGHT ASSY.,LEFT FRONT PARKING | - PCS | B | ||
| F16-8 | LIGHT ASSY.,RIGHT FRONT PARKING | - PCS | B | ||
| F16-9 | TURNING SIGNAL LIGHT, LEFT FRONT | - PCS | B | ||
| F16-10 | TURNING SIGNAL LIGHT, RIGHT FRONT | - PCS | B | ||
| F16-11 | NUT,HEXAGON FLANGE | - PCS | C | ||
| F16-12 | HEADLIGHT ASSY. | - PCS | B | ||
| F16-13 | CLIP,LOCATING WIRE | - PCS | C | ||
| F16-14 | USB TRANSFORMER OF MOBILE PHONE | - PCS | C | ||
| F16-15 | BACKBOARD,FAIRING COVER | - PCS | B | ||
| F16-16 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F16-17 | COLLAR | - PCS | C | ||
| F16-18 | I-RUBBER | - PCS | C | ||
| F16-19 | CAP-SHAPED NUT | - PCS | C | ||
| F16-20 | LINK BLOCK,HEAD LIGHT BRACKET | - PCS | C | ||
| F16-21 | LINK BLOCK,HEAD LIGHT BRACKET | - PCS | C | ||
| F16-22 | CONNECTIVE WIRE ASSY. OF BATTERY CHARGING | - SET | C |

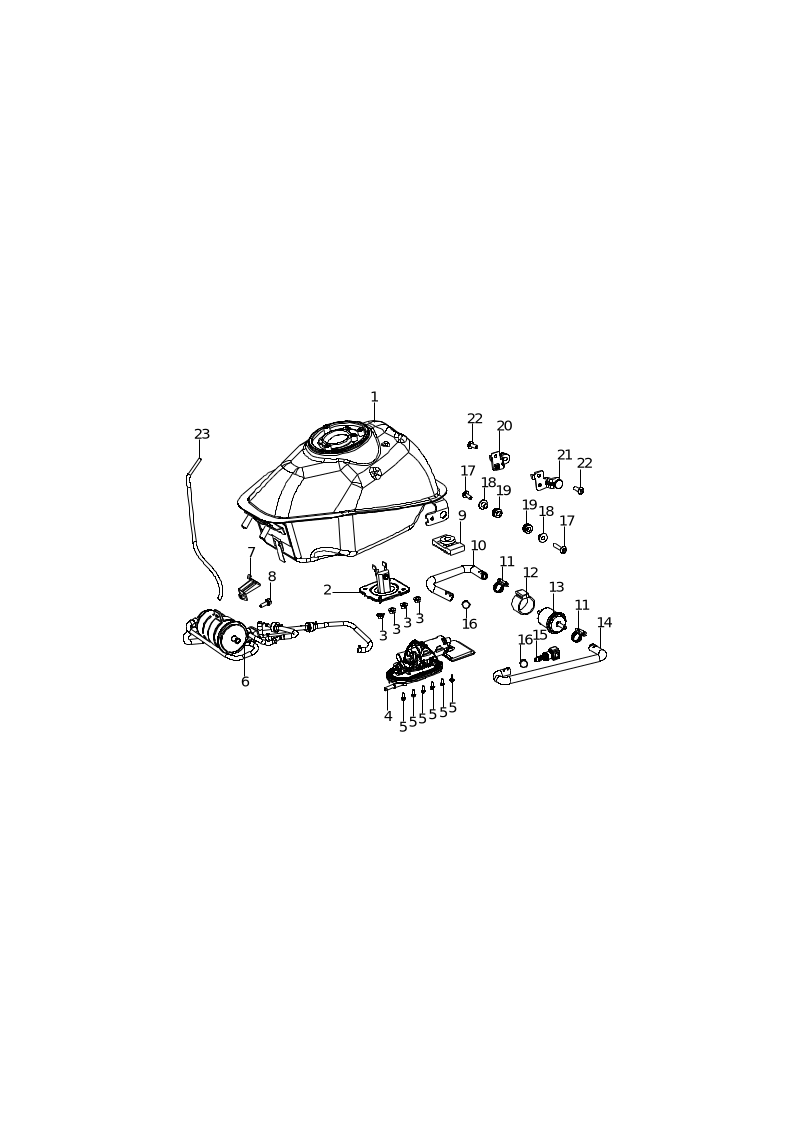

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F17-01 | FUEL TANK COMP. | - PCS | C | ||
| F17-02 | SENSOR,FUEL LEVEL | - PCS | B | ||
| F17-03 | NUT,HEXAGON FLANGE | - PCS | C | ||
| F17-04 | BRACKET ASSY.,ELECTRIC FUEL PUMP | - PCS | C | ||
| F17-05 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F17-06 | CONTROLLER ASSY.,FUEL EVAPORATION | - SET | C | ||
| F17-07 | BRACKET CANISTER | - PCS | C | ||
| F17-08 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F17-09 | PAD, FUEL TANK DAMPING | - PCS | C | ||
| F17-10 | TUBE,FUEL | - PCS | B | ||
| F17-11 | CLAMP ASSY. | - PCS | C | ||
| F17-12 | RUBBER JACKET,FUEL FILTER | - PCS | C | ||
| F17-13 | FILTER,FUEL | - PCS | B | ||
| F17-14 | TUBE,FUEL | - PCS | B | ||
| F17-15 | JOINT, SWIFT CHANGE | - PCS | C | ||
| F17-16 | CLAMP,TUBE | - PCS | C | ||
| F17-17 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F17-18 | COLLAR | - PCS | C | ||
| F17-19 | I-RUBBER | - PCS | C | ||
| F17-20 | BRACKET,FUEL TANK | - PCS | C | ||
| F17-21 | BRACKET,FUEL TANK | - PCS | C | ||
| F17-22 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F17-23 | TUBE,FUEL | - PCS | B |

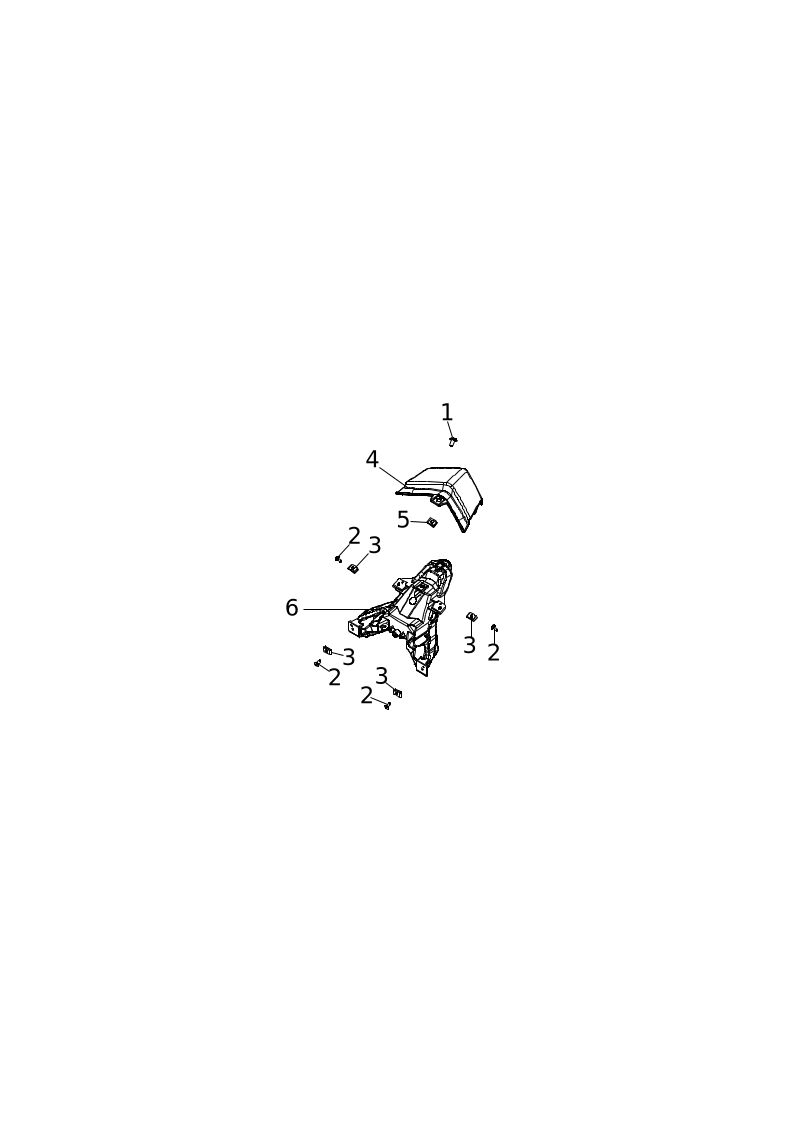

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F18-1 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F18-2 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | ||
| F18-3 | NUT,CLIP | - PCS | C | ||
| F18-4 | COVER COMP.,TAIL | - PCS | B | FOR FULL-BLACK ONLY | |
| F18-4 | COVER COMP.,TAIL | - PCS | B | FOR BLUE ONLY | |
| F18-5 | NUT,CLIP | - PCS | C | ||
| F18-6 | TAILLIGHT SET | - PCS | B |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

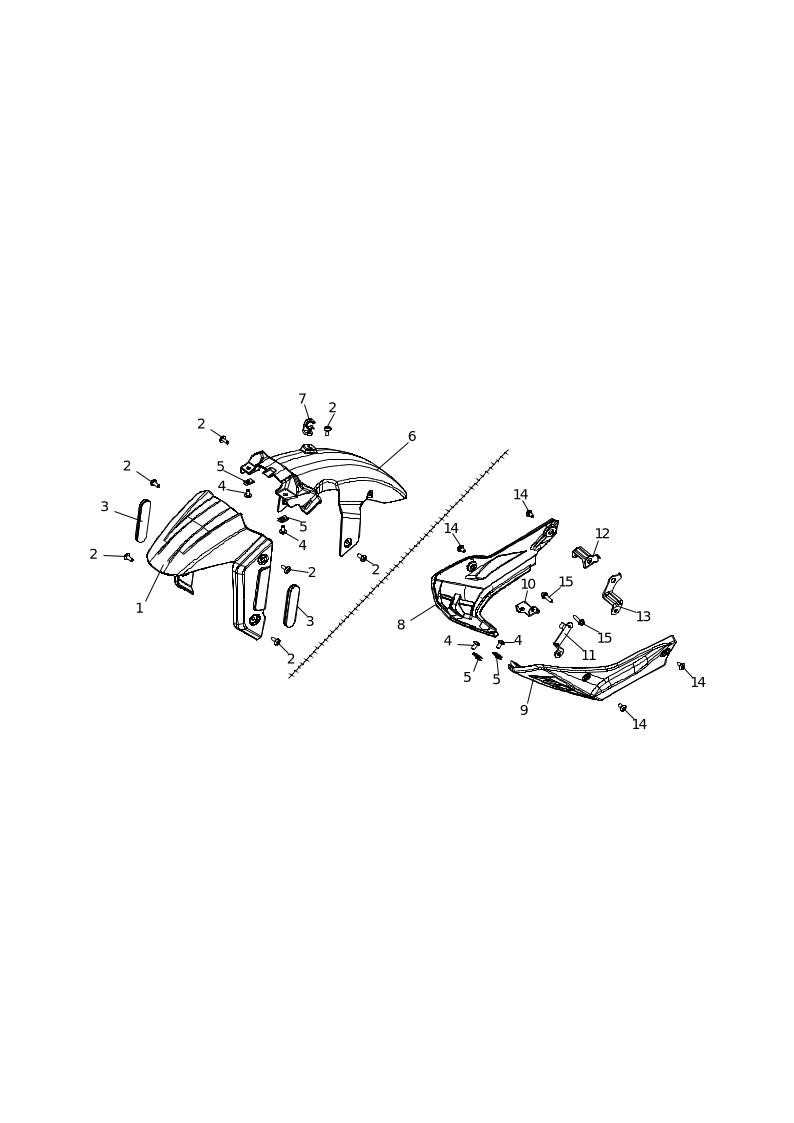

| F19-01 | FRONT PART,FRONT FENDER | - PCS | B | FOR FULL-BLACK ONLY | |
| F19-01 | FRONT PART,FRONT FENDER | - PCS | B | FOR BLUE ONLY | |
| F19-02 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F19-03 | REFLECTOR,LEFT SIDE | - PCS | B | ||
| F19-04 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F19-05 | NUT,CLIP | - PCS | C | ||
| F19-06 | REAR PART,FRONT FENDER | - PCS | B | ||
| F19-07 | CLAMP,TUBE | - PCS | C | ||
| F19-08 | FAIRING COVER,LEFT LOWER | - PCS | B | ||
| F19-09 | FAIRING COVER,RIGHT LOWER | - PCS | B | ||
| F19-10 | BRACKET,LOWER FAIRING COVER | - PCS | C | ||
| F19-11 | BRACKET,LOWER FAIRING COVER | - PCS | C | ||
| F19-12 | BRACKET,LOWER FAIRING COVER | - PCS | C | ||
| F19-13 | BRACKET,LOWER FAIRING COVER | - PCS | C | ||
| F19-14 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F19-15 | BOLT,HEXAGON FLANGE | - PCS | C |

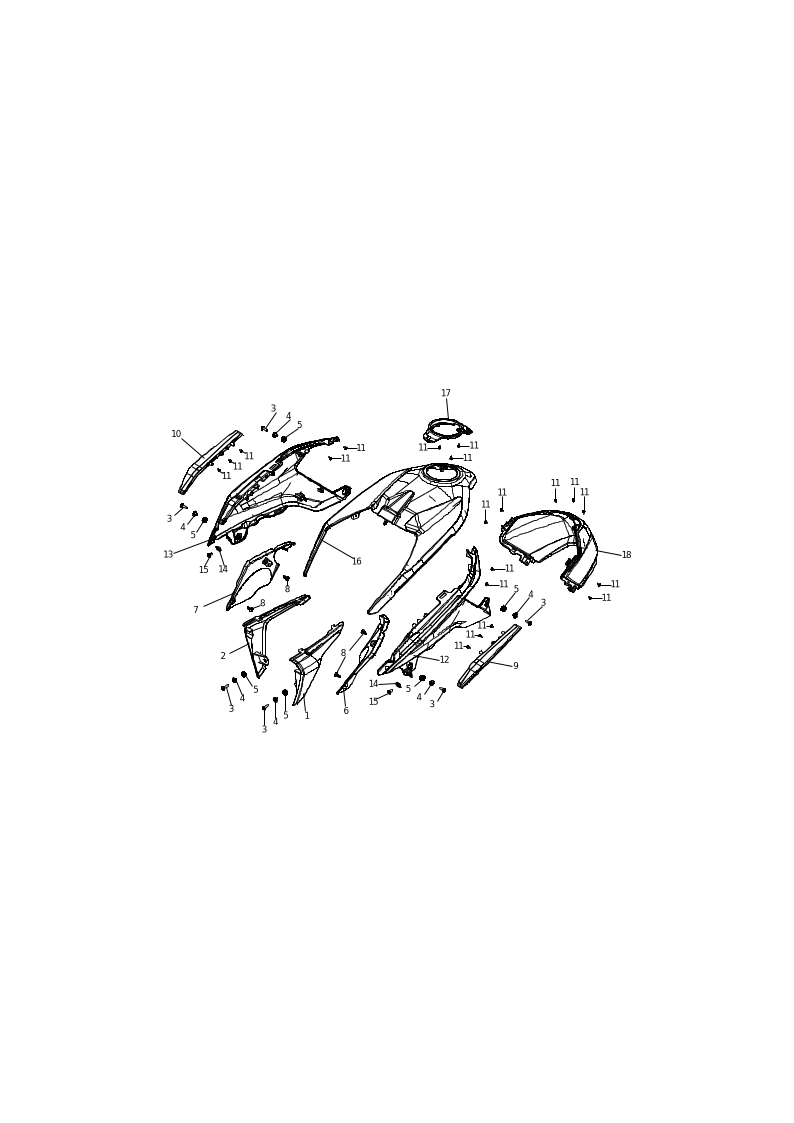

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F20-1 | COVER,FRAME LEFT DECORATIVE | - PCS | B | ||
| F20-2 | COVER,FRAME RIGHT DECORATIVE | - PCS | B | ||
| F20-3 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F20-4 | COLLAR | - PCS | C | ||
| F20-5 | I-RUBBER | - PCS | C | ||
| F20-6 | WIND BOARD,LEFT | - PCS | B | ||
| F20-7 | WIND BOARD,RIGHT | - PCS | B | ||
| F20-8 | CLIP | - PCS | C | ||
| F20-9 | LIGHT ASSY.,LEFT FRONT DECORATIVE | - PCS | B | ||
| F20-9 | LIGHT ASSY.,DECORATIVE | - PCS | B | ||
| F20-10 | LIGHT ASSY.,RIGHT FRONT DECORATIVE | - PCS | B | ||
| F20-10 | LIGHT ASSY.,DECORATIVE | - PCS | B | ||
| F20-11 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | ||
| F20-12 | COVER,FUEL TANK LEFT DECORATIVE | - PCS | B | FOR FULL-BLACK ONLY | |
| F20-12 | COVER,FUEL TANK LEFT DECORATIVE | - PCS | B | FOR BLUE ONLY | |
| F20-13 | COVER,FUEL TANK RIGHT DECORATIVE | - PCS | B | FOR FULL-BLACK ONLY | |
| F20-13 | COVER,FUEL TANK RIGHT DECORATIVE | - PCS | B | FOR BLUE ONLY | |
| F20-14 | NUT,CLIP | - PCS | C | ||
| F20-15 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F20-16 | COVER,FUEL TANK DECORATIVE | - PCS | B | FOR FULL-BLACK ONLY | |
| F20-16 | COVER,FUEL TANK DECORATIVE | - PCS | B | FOR BLUE ONLY | |
| F20-17 | SEAT,FUEL TANK DECORATIVE COVER MOUNTING | - PCS | C | ||
| F20-18 | PROTECTIVE PLATE, FUEL TANK LEFT | - PCS | B | FOR FULL-BLACK ONLY | |
| F20-18 | PROTECTIVE PLATE, FUEL TANK LEFT | - PCS | B | FOR BLUE ONLY |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

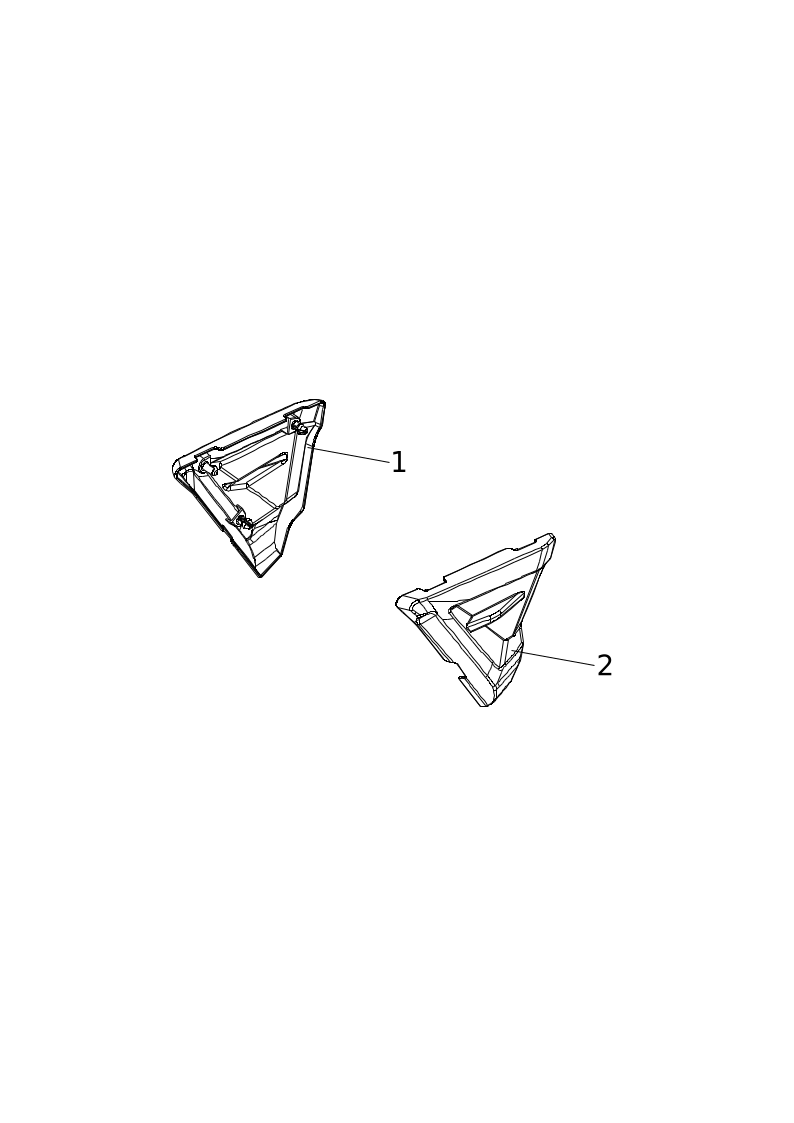

| F21-1 | COVER,RIGHT SIDE | - | B | ||
| F21-2 | COVER,LEFT SIDE | - | B |

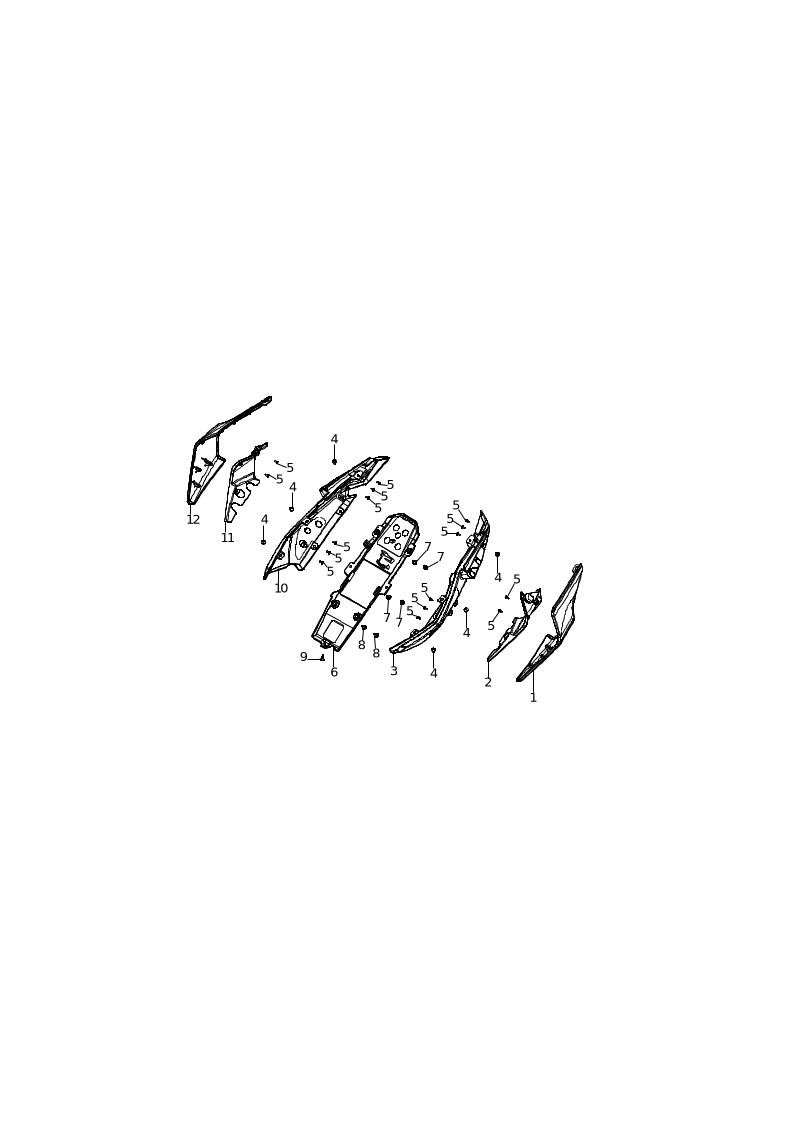

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F22-1 | PLATE,LEFT BODY COVER DECORATIVE | - PCS | B | FOR FULL-BLACK ONLY | |
| F22-1 | PLATE,LEFT BODY COVER DECORATIVE | - PCS | B | FOR BLUE ONLY | |
| F22-2 | GUARD PLATE,LEFT | - PCS | B | ||
| F22-3 | BODY COVER.,LEFT | - PCS | B | ||
| F22-4 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F22-5 | SCREW,CROSS RECESSED PAN SELF-TAPPING | - PCS | C | ||
| F22-6 | FENDER COMP.,REAR | - PCS | B | ||
| F22-7 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F22-8 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F22-9 | CLIP | - PCS | C | ||
| F22-10 | BODY COVER.,RIGHT | - PCS | B | ||
| F22-11 | GUARD PLATE,RIGHT | - PCS | B | ||
| F22-12 | PLATE,RIGHT BODY COVER DECORATIVE | - PCS | B | FOR FULL-BLACK ONLY | |
| F22-12 | PLATE,RIGHT BODY COVER DECORATIVE | - PCS | B | FOR BLUE ONLY |

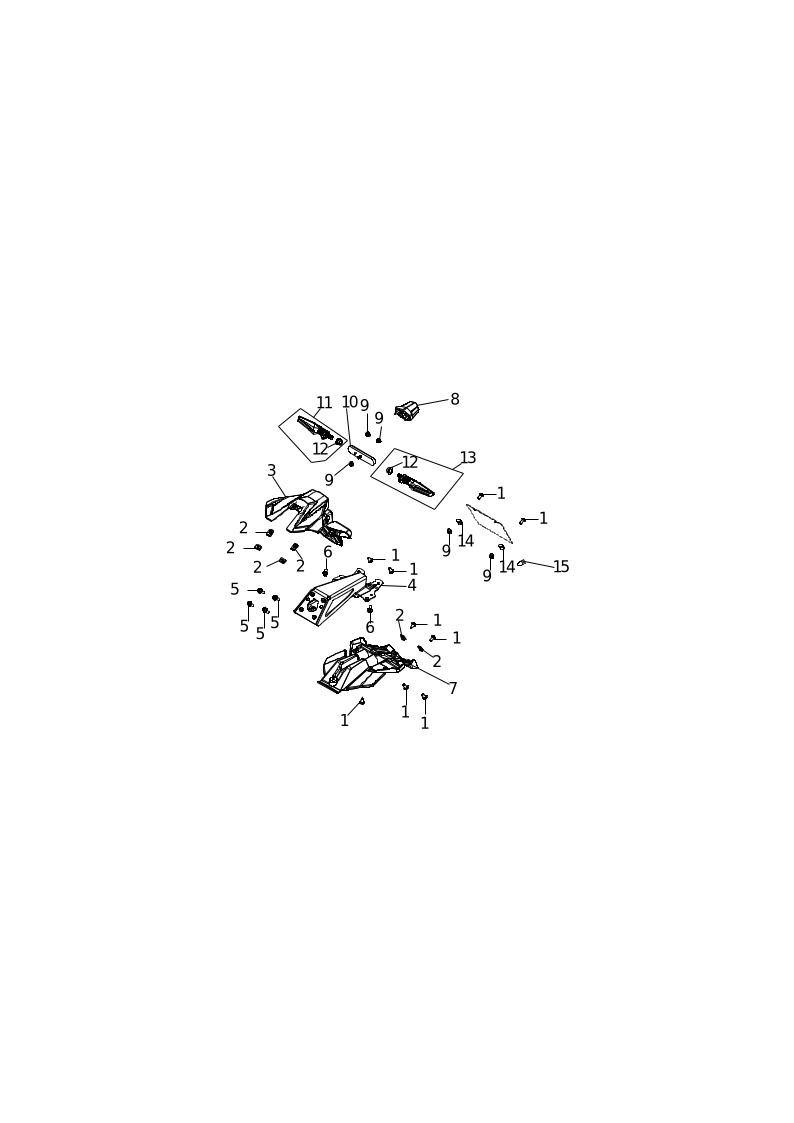

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F23-1 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F23-2 | NUT,CLIP | - PCS | C | ||
| F23-3 | REAR PART,REAR FENDER | - PCS | B | ||
| F23-4 | BRACKET,REAR FENDER | - PCS | C | ||
| F23-5 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F23-6 | BOLT,HEXAGON FLANGE | - PCS | C | ||
| F23-7 | FENDER COMP.,REAR UPPER | - PCS | B | ||
| F23-8 | LAMP,REAR REGISTRATION PLATE | - PCS | B | ||
| F23-9 | NUT,HEXAGON FLANGE | - PCS | C | ||
| F23-10 | REFLECTOR,REAR | - PCS | B | ||
| F23-11 | TURNING SIGNAL LIGHT, RIGHT REAR | - PCS | B | ||
| F23-12 | NUT,HEXAGON FLANGE | - PCS | C | ||
| F23-13 | TURNING SIGNAL LIGHT, LEFT REAR | - PCS | B | ||
| F23-14 | WASHER,PLAIN | - PCS | C | ||
| F23-15 | GLUE NAIL,BUFFER | - PCS | C |

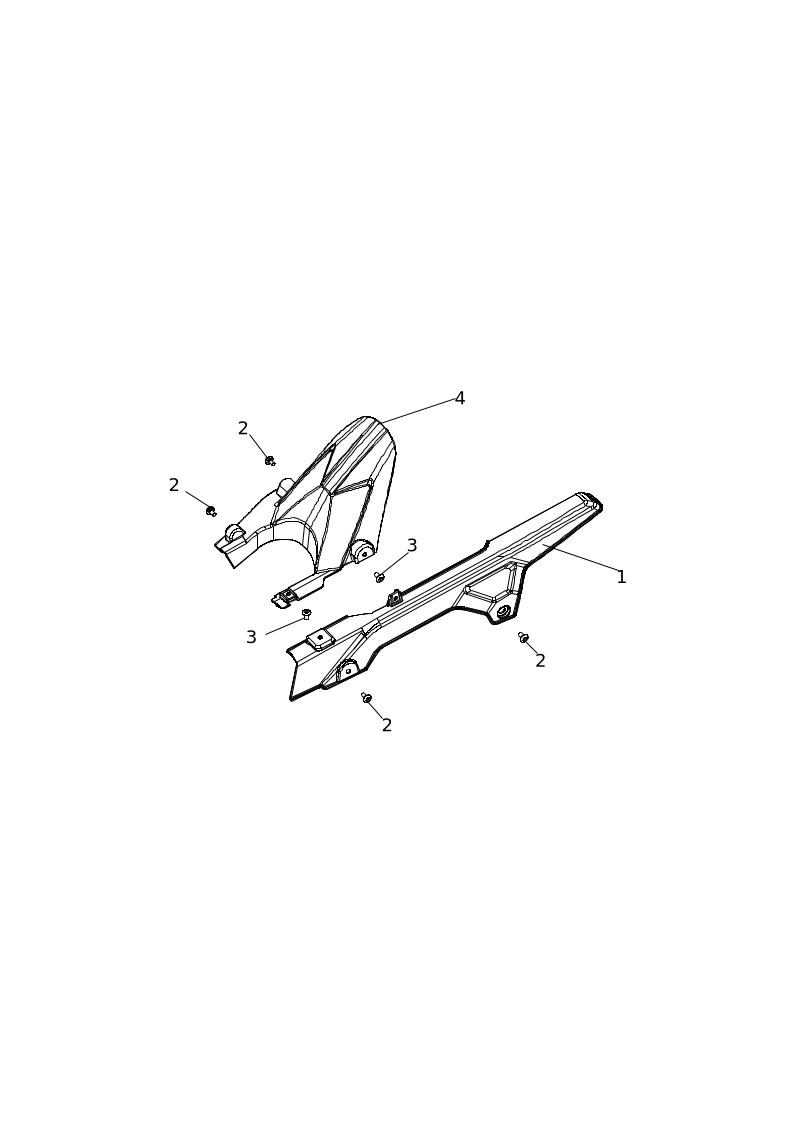

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F24-1 | CASE, CHAIN | - PCS | B | ||
| F24-2 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F24-3 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F24-4 | INNER PART,REAR FENDER | - PCS | B |

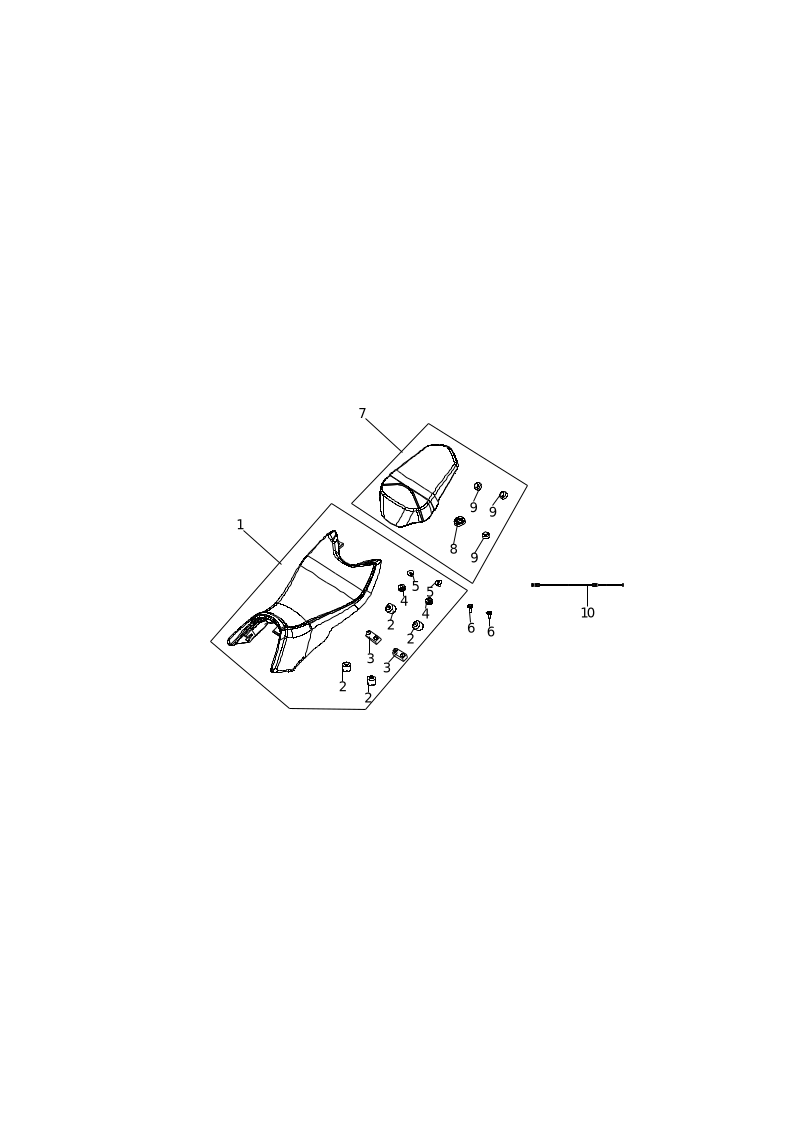

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F25-1 | SEAT,DRIVER | - PCS | B | ||
| F25-2 | RUBBER SHEET,SEAT BRACE | - PCS | C | NOT FOR SERVICE | |
| F25-3 | RUBBER SHEET,SEAT BRACE | - PCS | C | NOT FOR SERVICE | |
| F25-4 | RUBBER SHEET,SEAT BRACE | - PCS | C | NOT FOR SERVICE | |
| F25-5 | COLLAR | - PCS | C | ||
| F25-6 | SCREW,HEXAGON SOCKET | - PCS | C | ||
| F25-7 | SEAT,PASSENGER | - PCS | B | ||
| F25-8 | RUBBER SHEET,SEAT BRACE | - PCS | C | NOT FOR SERVICE | |
| F25-9 | RUBBER SHEET,SEAT BRACE | - PCS | C | NOT FOR SERVICE | |
| F25-10 | CABLE,SEAT | - PCS | A |

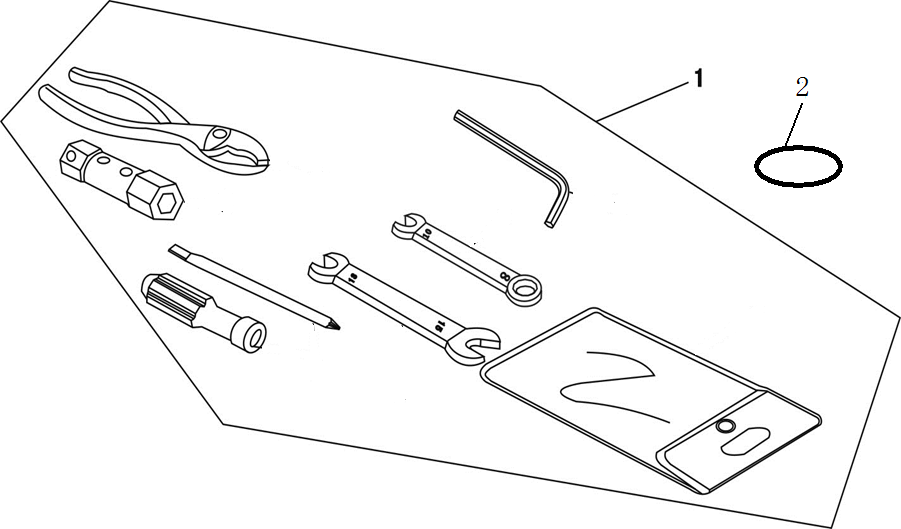

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F26-1 | ACCESSORIES,TOOL | - SET | D | ||
| F26-1 | RING,SEAL | - PCS | B |
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| F27-1 | LABEL,WARNING | - PCS | C | ||
| F27-2 | LABEL,REMINDS | - PCS | C | ||
| F27-3 | LABEL,REMINDS | - PCS | C | ||
| F27-4 | LABEL,REMINDS | - PCS | C | ||
| F27-5 | SCUTCHEON,TYPEFACE | - PCS | C | ||
| F27-6 | NAMEPLATE,FRAME | - PCS | C |
KE125
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E1 | ENGINE | 1 SET | C |

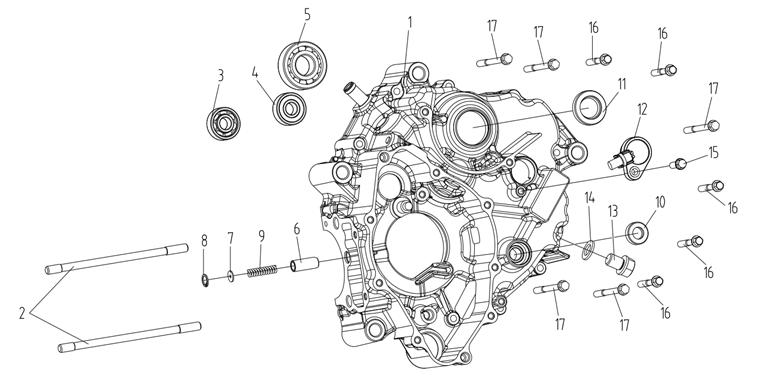

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E01-01 | BODY SET,LEFT CRANKCASE | 1 PCS | C | NOT FOR SERVICE | |
| E01-02 | BOLT,STUD A | 2 PCS | C | ||
| E01-03 | BEARING | 1 PCS | B | ||
| E01-04 | BEARING | 1 PCS | B | ||
| E01-05 | BEARING | 1 PCS | B | ||
| E01-06 | PRESSING PIN COMP. | 1 PCS | C | ||
| E01-07 | WASHER,PLAIN | 1 PCS | C | ||
| E01-08 | CHECK RING,ELASTIC | 1 PCS | B | ||
| E01-09 | SPRING,COMPRESSION | 1 PCS | B | ||
| E01-10 | OIL SEAL | 1 PCS | B | ||
| E01-11 | OIL SEAL | 1 PCS | B | ||
| E01-12 | SWITCH COMP.,GEAR INDICATOR | 1 SET | B | ||
| E01-13 | SCREW PLUG,SEAL | 1 PCS | C | ||
| E01-14 | WASHER,PLAIN | 1 PCS | C | ||
| E01-15 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E01-16 | BOLT,HEXAGON FLANGE | 5 PCS | C | ||
| E01-17 | BOLT,HEXAGON FLANGE | 5 PCS | C |

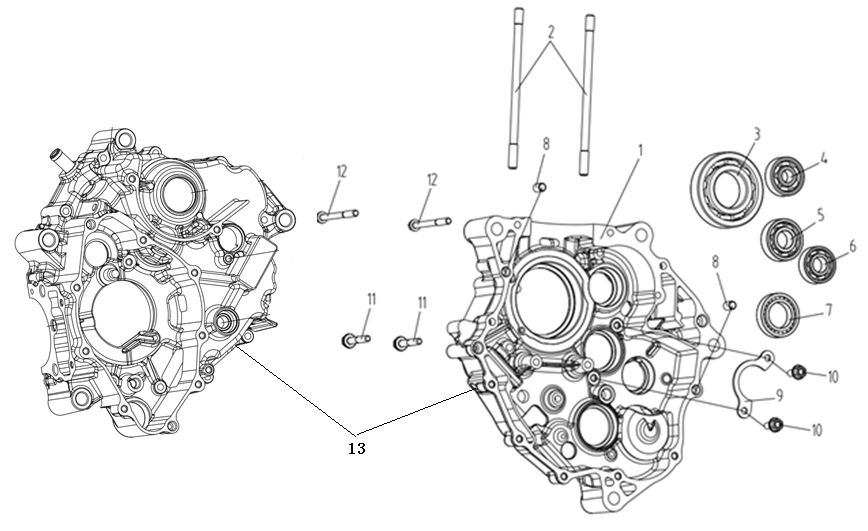

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E02-01 | BODY SET,RIGHT CRANKCASE | 1 PCS | C | NOT FOR SERVICE | |
| E02-02 | BOLT,STUD A | 2 PCS | C | ||
| E02-03 | BEARING | 1 PCS | B | ||
| E02-04 | BEARING | 1 PCS | B | ||
| E02-05 | BEARING | 1 PCS | B | ||
| E02-06 | BEARING | 1 PCS | B | ||
| E02-07 | BEARING | 1 PCS | B | ||
| E02-08 | PIN,DOWEL | 2 PCS | C | ||
| E02-09 | CHECK PLATE,MAINSHAFT BEARING | 1 PCS | C | ||
| E02-10 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E02-11 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E02-12 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E02-13 | CRANKCASE KIT | 1 SET | B |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

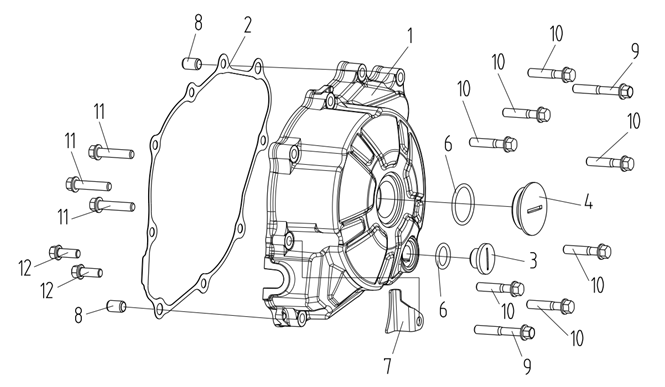

| E03-01 | COVER COMP.,LEFT FRONT | 1 PCS | C | ||
| E03-02 | GASKET,LEFT FRONT COVER | 1 PCS | A | ||
| E03-03 | COVER,INSPECTION | 1 PCS | B | ||
| E03-04 | COVER,LEFT DECORATING | 1 PCS | C | ||
| E03-05 | RING,SEAL | 1 PCS | B | ||
| E03-06 | RING,SEAL | 1 PCS | B | ||
| E03-07 | DISC,TENSION | 1 PCS | C | ||
| E03-08 | PIN,DOWEL | 2 PCS | C | ||
| E03-09 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E03-10 | BOLT,HEXAGON FLANGE | 7 PCS | C | ||
| E03-11 | BOLT,HEXAGON FLANGE | 3 PCS | C | ||
| E03-12 | BOLT,HEXAGON FLANGE | 2 PCS | C |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

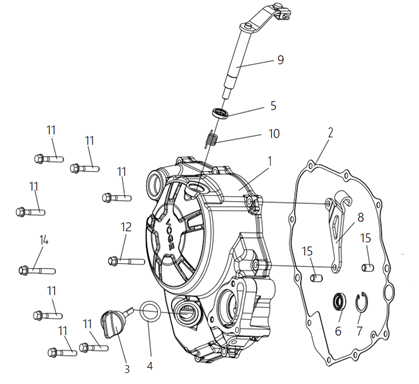

| E04-01 | COVER COMP.,RIGHT CRANKCASE | 1 PCS | C | ||
| E04-02 | GASKET,RIGHT CRANKCASE COVER | 1 PCS | A | ||
| E04-03 | GAUGE COMP.,OIL LEVEL | 1 PCS | B | ||
| E04-04 | RING,SEAL | 1 PCS | B | ||
| E04-05 | OIL SEAL | 1 PCS | B | ||
| E04-06 | OIL SEAL | 1 PCS | B | ||
| E04-07 | CHECK RING,ELASTIC | 1 PCS | B | ||
| E04-08 | PLATE,CLUTCH CABLE LOCATING | 1 PCS | C | ||
| E04-09 | JOYSTICK ASSY.,CLUTCH | 1 PCS | B | ||
| E04-10 | SPRING,TORSIONAL | 1 PCS | B | ||
| E04-11 | BOLT,HEXAGON FLANGE | 7 PCS | C | ||
| E04-12 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E04-13 | PIN,DOWEL | 2 PCS | C |

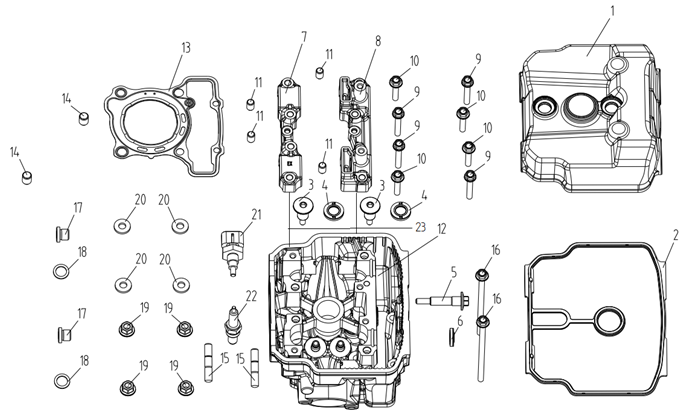

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E05-01 | COVER COMP.,CYLINDER HEAD | 1 PCS | C | ||
| E05-02 | GASKET,CYLINDER HEAD COVER | 1 PCS | A | ||
| E05-03 | BOLT,CYLINDER HEAD COVER | 2 PCS | C | ||
| E05-04 | OIL SEAL | 2 PCS | B | ||
| E05-05 | BOLT ON SIDE OF CYLINDER HEAD | 1 PCS | C | ||
| E05-06 | RING,SEAL | 1 PCS | B | ||
| E05-07 | LEFT BRACKET OF CAMSHAFT | 1 PCS | C | NOT FOR SERVICE | |
| E05-08 | RIGHT BRACKET OF CAMSHAFT | 1 PCS | C | NOT FOR SERVICE | |
| E05-09 | BOLT,HEXAGON FLANGE | 4 PCS | C | ||
| E05-10 | BOLT,HEXAGON FLANGE | 4 PCS | C | ||
| E05-11 | PIN,DOWEL | 4 PCS | C | ||
| E05-12 | HEAD COMP.,CYLINDER | 1 PCS | C | NOT FOR SERVICE | |
| E05-13 | GASKET,CYLINDER HEAD | 1 PCS | A | ||
| E05-14 | PIN,DOWEL | 2 PCS | C | ||
| E05-15 | STUD | 2 PCS | C | ||
| E05-16 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E05-17 | SCREW,HEXAGON SOCKET | 2 PCS | C | ||
| E05-18 | WASHER,PLAIN | 2 PCS | C | ||
| E05-19 | NUT,CYLINDER HEAD | 4 PCS | C | ||
| E05-20 | WASHER,PLAIN | 4 PCS | C | ||
| E05-21 | SENSOR,ENGINE | 1 PCS | C | ||
| E05-22 | PLUG,SPARK | 1 PCS | A | ||
| E05-23 | CYLINDER HEAD KIT | 1 SET | C |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

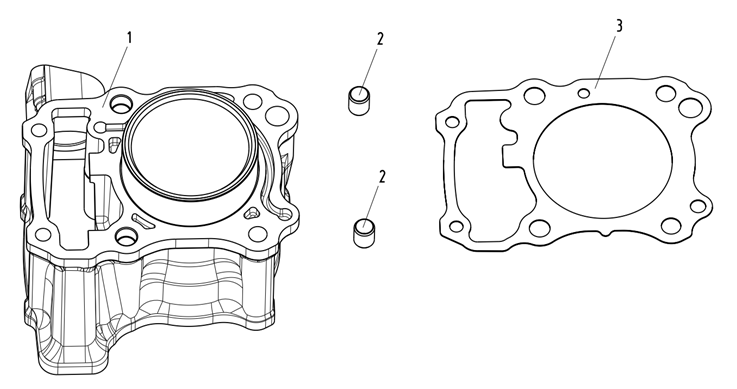

| E06-01 | BODY SET,CYLINDER | 1 PCS | B | ||
| E06-02 | GASKET,CYLINDER | 1 PCS | A | ||
| E06-03 | PIN,DOWEL | 2 PCS | C |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

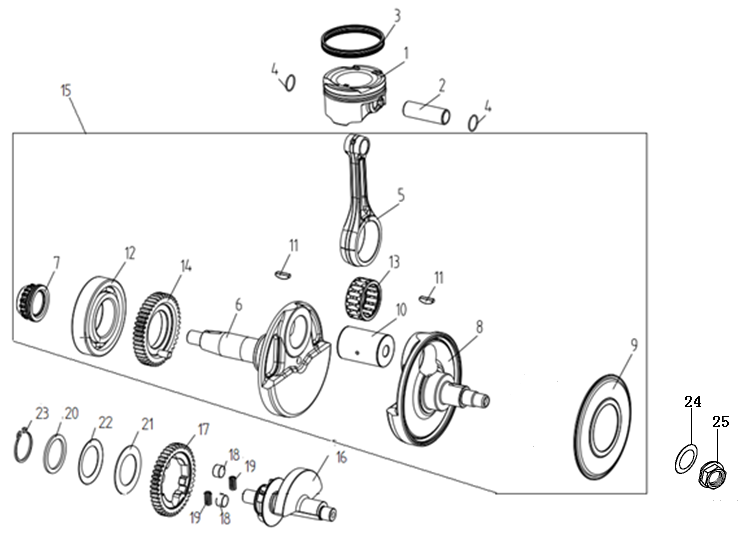

| E07-01 | PISTON COMP. | 1 PCS | A | ||
| E07-02 | PIN,PISTON | 1 PCS | B | ||
| E07-03 | RING SET,PISTON | 1 SET | A | ||
| E07-04 | CHECK RING,STEEL CABLE BAFFLE | 2 PCS | C | ||
| E07-05 | ROD COMP.,CONNECTING | 1 PCS | C | NOT FOR SERVICE | |
| E07-06 | CRANK COMP.,LEFT | 1 PCS | C | NOT FOR SERVICE | |
| E07-07 | SPROCKET,TIMING DRIVE | 1 PCS | C | NOT FOR SERVICE | |
| E07-08 | CRANK COMP.,RIGHT | 1 PCS | C | NOT FOR SERVICE | |
| E07-09 | COVERING,RIGHT CRANK SIDE | 1 PCS | C | NOT FOR SERVICE | |
| E07-10 | PIN,CRANK | 1 PCS | C | NOT FOR SERVICE | |
| E07-11 | KEY | 2 PCS | C | NOT FOR SERVICE | |
| E07-12 | BEARING | 1 PCS | B | NOT FOR SERVICE | |
| E07-13 | BEARING | 1 PCS | B | NOT FOR SERVICE | |
| E07-14 | GEAR COMP.,BALANCING ARBOR DRIVE | 1 SET | C | NOT FOR SERVICE | |
| E07-15 | CRANKSHAFT COMP. | 1 SET | B | ||
| E07-16 | BALANCING ARBOR ASSY. | 1 SET | C | ||
| E07-17 | GEAR,BALANCING ARBOR DRIVEN | 1 PCS | C | ||
| E07-18 | BUSH,BALANCING ARBOR DRIVEN GEAR CUSHION | 2 PCS | C | ||
| E07-19 | SPRING,COMPRESSION | 2 PCS | B | ||
| E07-20 | WASHER,PLAIN | 1 PCS | C | ||
| E07-21 | WASHER,PLAIN | 1 PCS | C | ||
| E07-22 | WASHER,SAUCER | 1 PCS | C | ||
| E07-23 | CHECK RING,ELASTIC | 1 PCS | B | ||
| E07-24 | WASHER,PLAIN | 1 PCS | C | ||
| E07-25 | NUT,HEXAGON FLANGE | 1 PCS | C |

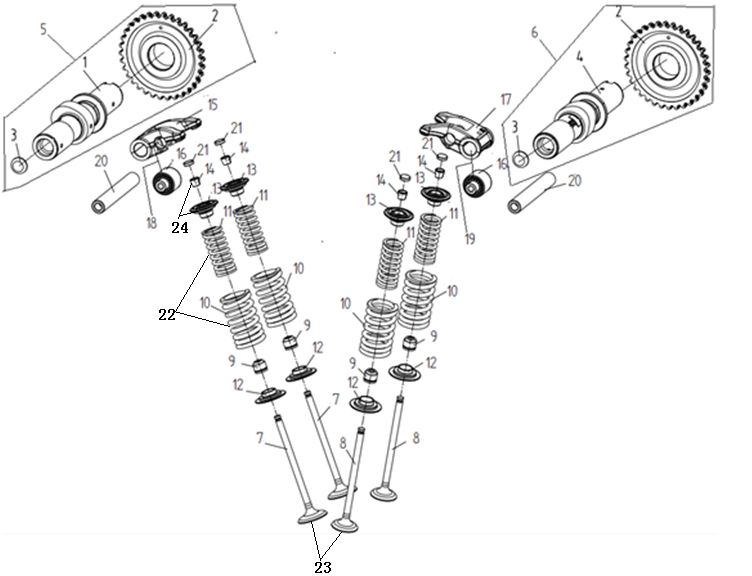

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E08-01 | CAMSHAFT COMP. | 1 PCS | B | NOT FOR SERVICE | |
| E08-02 | SPROCKET,TIMING DRIVEN | 1 PCS | B | NOT FOR SERVICE | |
| E08-03 | STOPPER | 1 PCS | C | NOT FOR SERVICE | |
| E08-04 | CAMSHAFT COMP. | 1 PCS | B | NOT FOR SERVICE | |
| E08-05 | CAMSHAFT ASSY. | 1 SET | B | ||
| E08-06 | CAMSHAFT ASSY. | 1 SET | B | ||
| E08-07 | VALVE,INLET | 2 PCS | A | NOT FOR SERVICE | |
| E08-08 | VALVE,EXHAUST | 2 PCS | A | NOT FOR SERVICE | |
| E08-09 | SHIELD,OIL | 4 PCS | A | ||
| E08-10 | SPRING,VALVE(OUTER) | 4 PCS | C | NOT FOR SERVICE | |
| E08-11 | SPRING,VALVE(INNER) | 4 PCS | C | NOT FOR SERVICE | |
| E08-12 | RETAINER,VALVE SPRING | 4 PCS | C | ||
| E08-13 | RETAINER,VALVE SPRING | 4 PCS | C | NOT FOR SERVICE | |
| E08-14 | COTTER,VALVE | 8 PCS | C | NOT FOR SERVICE | |
| E08-15 | ARM COMP.,VALVE ROCKER | 1 PCS | B | NOT FOR SERVICE | |
| E08-16 | BEARING | 2 PCS | B | NOT FOR SERVICE | |
| E08-17 | ARM COMP.,VALVE ROCKER | 1 PCS | B | NOT FOR SERVICE | |
| E08-18 | ARM ASSY.,VALVE ROCKER | 1 PCS | B | ||
| E08-19 | ARM ASSY.,VALVE ROCKER | 1 PCS | B | ||
| E08-20 | SHAFT,VALVE ROCKER ARM | 2 PCS | B | ||
| E08-21 | ADJUSTING SHIM,VALVE KIT | 4 SET | C | ||
| E08-22 | SPRING SET,VALVE | 4 PCS | C | ||
| E08-23 | VALVE KIT | 2 SET | C | ||
| E08-24 | CLIP & VALVE SPRING SEAT KIT | 2 SET | C |

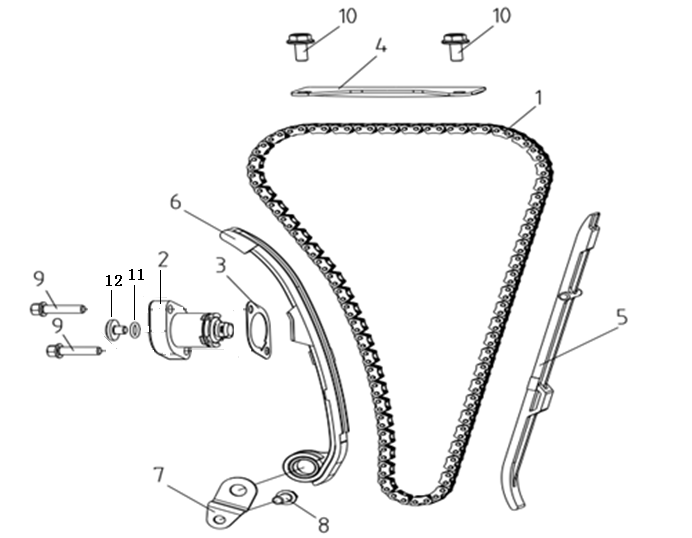

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E09-01 | CHAIN,TIMING | 1 PCS | A | ||
| E09-02 | TENSIONER ASSY.,CAM CHAIN | 1 PCS | B | ||
| E09-03 | GASKET,CAM CHAIN TENSIONER | 1 PCS | B | ||
| E09-04 | PLATE,TIMING CHAIN LIMIT | 1 PCS | C | ||
| E09-05 | GUIDE PLATE,CHAIN | 1 PCS | B | ||
| E09-06 | PLATE,TENSION | 1 PCS | B | ||
| E09-07 | PLATE,ADJUSTMENT PANEL PRESSURE | 1 PCS | C | ||
| E09-08 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E09-09 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E09-10 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E09-11 | RING,SEAL | 1 PCS | B | ||
| E09-12 | BOLT,TENSIONER | 1 PCS | C |

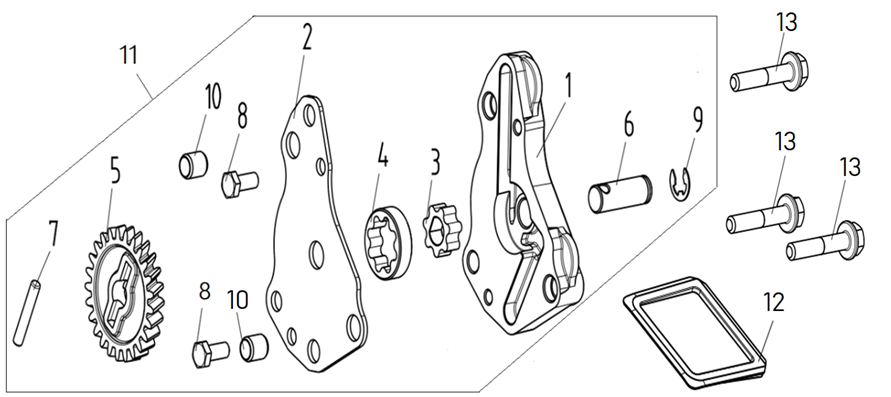

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E10-01 | BODY,OIL PUMP BASE | 1 PCS | C | ||
| E10-02 | CAP,OIL PUMP | 1 PCS | C | ||
| E10-03 | ROTOR,INNER | 1 PCS | C | NOT FOR SERVICE | |
| E10-04 | ROTOR,OUTER | 1 PCS | C | NOT FOR SERVICE | |
| E10-05 | SPROCKET,OIL PUMP DRIVEN | 1 PCS | B | NOT FOR SERVICE | |
| E10-06 | SHAFT,OIL PUMP TRANSMISSION | 1 PCS | C | NOT FOR SERVICE | |
| E10-07 | PIN,DOWEL | 1 PCS | C | ||
| E10-08 | BOLT,HEXAGON | 2 PCS | C | NOT FOR SERVICE | |
| E10-09 | SPLIT WASHER | 1 PCS | C | NOT FOR SERVICE | |
| E10-10 | PIN,DOWEL | 2 PCS | C | NOT FOR SERVICE | |
| E10-11 | PUMP ASSY.,OIL | 1 SET | C | ||
| E10-12 | SCREEN,OIL STRAINER | 1 PCS | A | ||
| E10-13 | BOLT,HEXAGON FLANGE | 3 PCS | C |

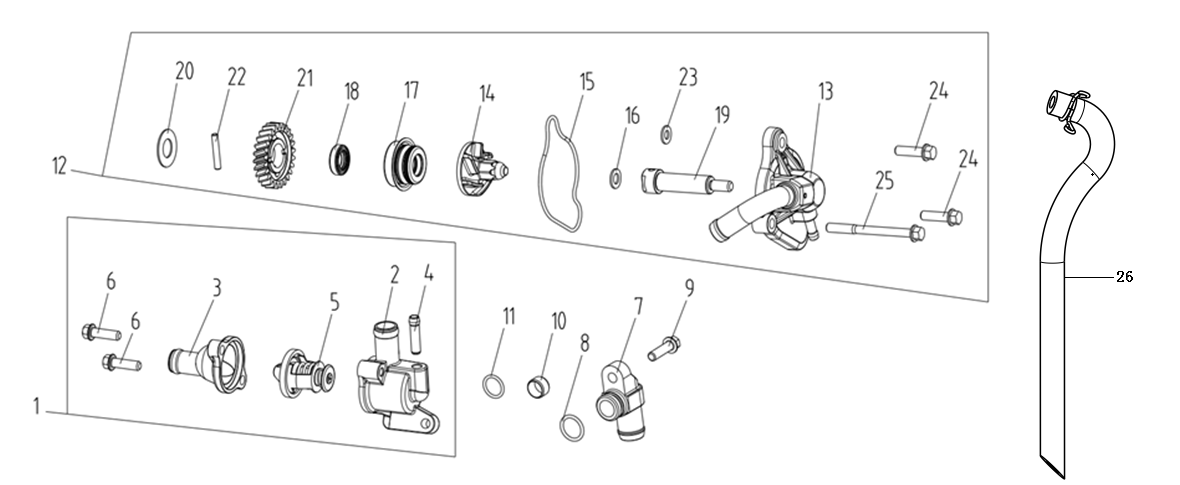

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E11-01 | THERMOSTAT COMP. | 1 PCS | A | ||
| E11-02 | CASE,THERMOSTAT | 1 PCS | C | NOT FOR SERVICE | |
| E11-03 | COVER,THERMOSTAT | 1 PCS | B | NOT FOR SERVICE | |
| E11-04 | JOINT,CONNECTING | 1 PCS | C | NOT FOR SERVICE | |
| E11-05 | VALVE,THERMOSTATIC | 1 PCS | A | NOT FOR SERVICE | |
| E11-06 | BOLT,HEXAGON FLANGE | 2 PCS | C | NOT FOR SERVICE | |
| E11-07 | COOLING CONNECTOR | 1 PCS | B | ||
| E11-08 | RING,SEAL | 1 PCS | B | ||
| E11-09 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E11-10 | COLLAR | 1 PCS | C | ||
| E11-11 | RING,SEAL | 1 PCS | B | ||
| E11-12 | 1 PCS | B | |||
| E11-13 | CAP,COOLING PUMP | 1 PCS | C | ||
| E11-14 | IMPELLER,COOLING PUMP | 1 PCS | B | ||
| E11-15 | RING,SEAL | 1 PCS | B | ||
| E11-16 | WASHER,PLAIN | 1 PCS | C | ||
| E11-17 | SEALING RINGS COMP. OF COOLING WATER PUMP | 1 PCS | C | ||
| E11-18 | OIL SEAL | 1 PCS | B | ||
| E11-19 | SHAFT,COOLING PUMP | 1 PCS | B | ||
| E11-20 | WASHER,PLAIN | 1 PCS | C | ||
| E11-21 | GEAR,COOLING PUMP DRIVEN | 1 PCS | B | ||
| E11-22 | PIN,DOWEL | 1 PCS | C | ||
| E11-23 | WASHER,PLAIN | 1 PCS | C | ||
| E11-24 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E11-25 | BOLT,HEXAGON FLANGE | 1 PCS | C | ||
| E11-26 | TUBE,WATER | 1 PCS | B |

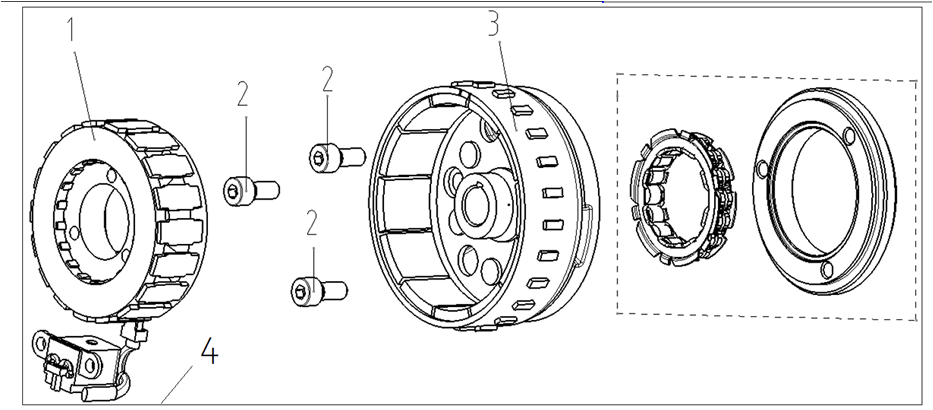

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E12-01 | STATOR COMP. | 1 SET | B | 正在申请拆分编码 | |
| E12-02 | SCREW,HEXAGON SOCKET | 3 PCS | C | ||
| E12-03 | ROTOR COMP. | 1 SET | C | ||
| E12-04 | GENERATOR ASSY. | 1 SET | B |

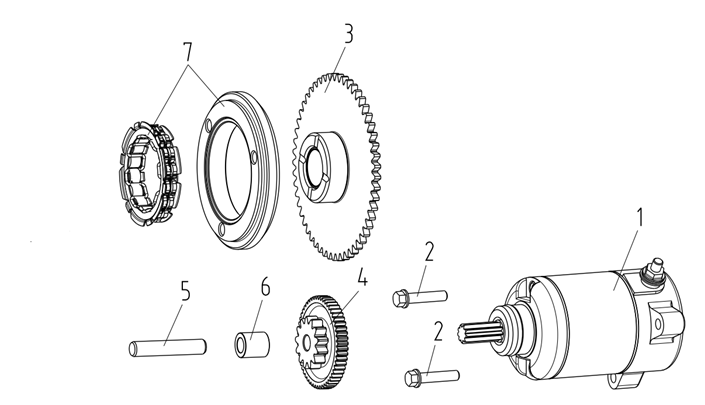

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E13-01 | MOTOR ASSY.,STARTING | 1 SET | B | ||
| E13-02 | BOLT,HEXAGON FLANGE | 2 PCS | C | ||
| E13-03 | DISK GEAR | 1 PCS | C | ||
| E13-04 | DUPLEX GEAR,ELECTRIC STARTING | 1 PCS | C | ||
| E13-05 | SHAFT,DUPLEX GEAR | 1 PCS | C | ||
| E13-06 | COLLAR | 1 PCS | C | ||
| E13-07 | BODY ASSY.,STARTING CLUTCH | 1 PCS | B | NOT FOR SERVICE |
Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|

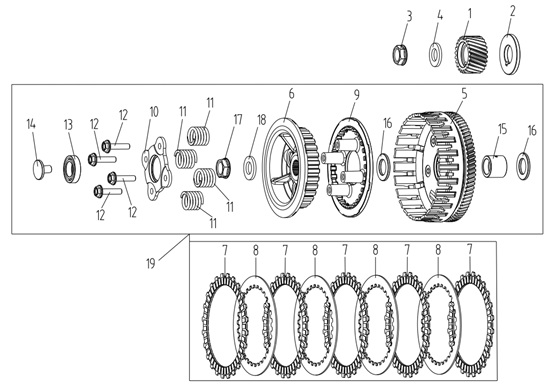

| E14-01 | GEAR,PRIMARY DRIVING | 1 PCS | B | ||
| E14-02 | WASHER,PLAIN | 1 PCS | C | ||
| E14-03 | NUT,HEXAGON FLANGE | 1 PCS | C | NOT FOR SERVICE | |
| E14-04 | WASHER,PLAIN | 1 PCS | C | NOT FOR SERVICE | |
| E14-05 | OUTER COMP.,CLUTCH | 1 PCS | B | NOT FOR SERVICE | |
| E14-06 | BODY,CLUTCH CENTER COMP | 1 PCS | C | NOT FOR SERVICE | |
| E14-07 | FRICTION PLATE，DRIVE | 5 PCS | A | ||
| E14-08 | FRICTION PLATE，DRIVEN | 4 PCS | A | ||
| E14-09 | PLATE,CLUTCH PRESSURE | 1 PCS | B | NOT FOR SERVICE | |
| E14-10 | PLATE,CLUTCH LIFTER | 1 PCS | B | NOT FOR SERVICE | |
| E14-11 | SPRING,CLUTCH | 4 PCS | B | NOT FOR SERVICE | |
| E14-12 | BOLT,HEXAGON FLANGE | 4 PCS | C | NOT FOR SERVICE | |
| E14-13 | BEARING | 1 PCS | B | NOT FOR SERVICE | |
| E14-14 | EJECT-ROD | 1 PCS | C | NOT FOR SERVICE | |
| E14-15 | COLLAR | 1 PCS | C | ||
| E14-16 | WASHER,PLAIN | 2 PCS | C | NOT FOR SERVICE | |
| E14-17 | NUT,HEXAGON FLANGE | 1 PCS | C | NOT FOR SERVICE | |
| E14-18 | WASHER,PLAIN | 1 PCS | C | NOT FOR SERVICE | |
| E14-19 | CLUTCH KIT | 1 SET | B |

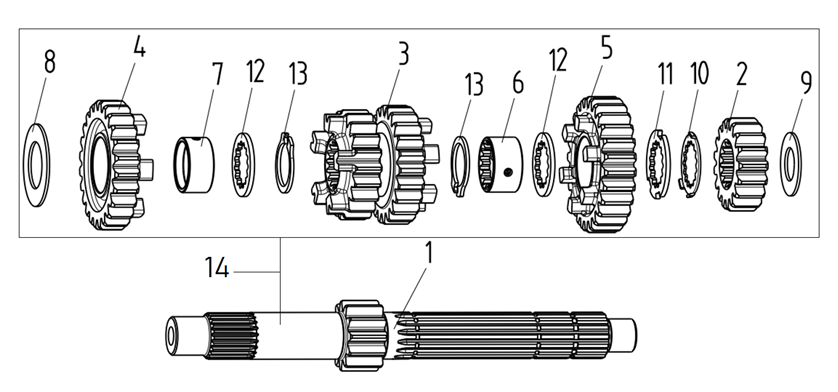

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E15-01 | MAINSHAFT | 1 PCS | C | NOT FOR SERVICE | |
| E15-02 | GEAR,MAINSHAFT SECOND | 1 PCS | C | NOT FOR SERVICE | |
| E15-03 | GEAR,MAINSHAFT THIRD | 1 PCS | C | NOT FOR SERVICE | |
| E15-04 | GEAR,MAINSHAFT FIFTH | 1 PCS | C | NOT FOR SERVICE | |
| E15-05 | GEAR,MAINSHAFT SIXTH | 1 PCS | C | NOT FOR SERVICE | |
| E15-06 | COLLAR | 1 PCS | C | NOT FOR SERVICE | |
| E15-07 | COLLAR | 1 PCS | C | NOT FOR SERVICE | |
| E15-08 | CHECK RING,SHOULDER | 1 PCS | C | NOT FOR SERVICE | |
| E15-09 | CHECK RING,SHOULDER | 1 PCS | C | NOT FOR SERVICE | |
| E15-10 | WASHER,FLANGE | 1 PCS | C | NOT FOR SERVICE | |
| E15-11 | WASHER,SPLINE | 1 PCS | C | NOT FOR SERVICE | |
| E15-12 | WASHER,SPLINE | 2 PCS | C | NOT FOR SERVICE | |
| E15-13 | CHECK RING,ELASTIC | 2 PCS | B | NOT FOR SERVICE | |
| E15-14 | MAINSHAFT COMP. | 1 SET | B |

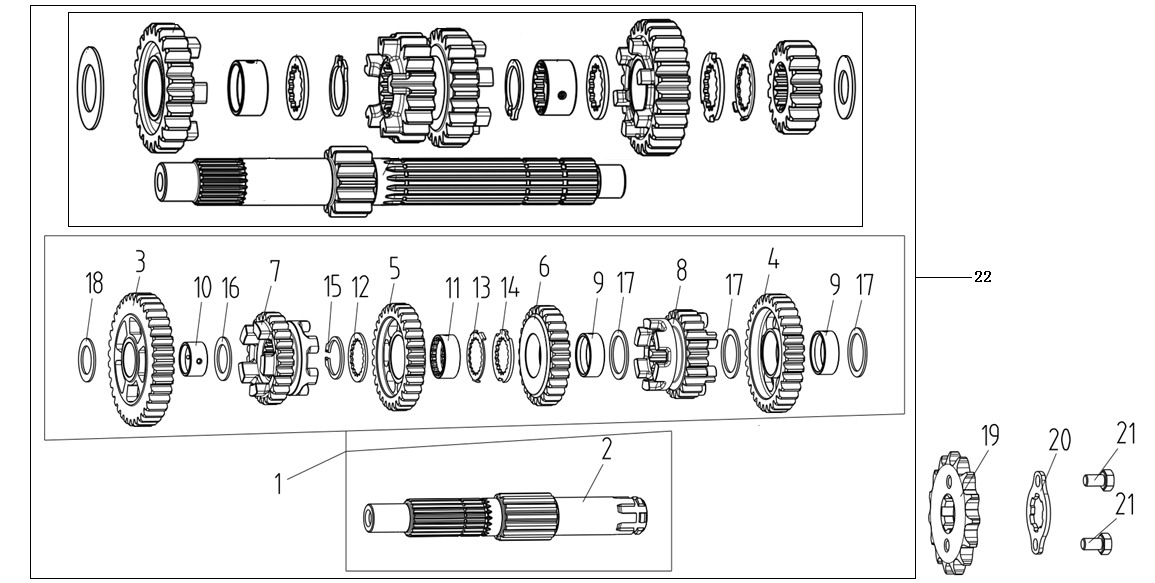

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E16-01 | COUNTERSHAFT COMP. | 1 SET | B | ||
| E16-02 | COUNTERSHAFT | 1 PCS | C | NOT FOR SERVICE | |
| E16-03 | GEAR,COUNTERSHAFT FIRST | 1 PCS | C | NOT FOR SERVICE | |
| E16-04 | GEAR,COUNTERSHAFT SECOND | 1 PCS | C | NOT FOR SERVICE | |
| E16-05 | GEAR,COUNTERSHAFT THIRD | 1 PCS | C | NOT FOR SERVICE | |
| E16-06 | GEAR,COUNTERSHAFT FOURTH | 1 PCS | C | NOT FOR SERVICE | |
| E16-07 | GEAR,COUNTERSHAFT FIFTH | 1 PCS | C | NOT FOR SERVICE | |
| E16-08 | GEAR,COUNTERSHAFT SIXTH | 1 PCS | C | NOT FOR SERVICE | |
| E16-09 | COLLAR | 2 PCS | C | NOT FOR SERVICE | |
| E16-10 | COLLAR | 1 PCS | C | NOT FOR SERVICE | |
| E16-11 | COLLAR | 1 PCS | C | NOT FOR SERVICE | |
| E16-12 | WASHER,SPLINE | 1 PCS | C | NOT FOR SERVICE | |
| E16-13 | WASHER,FLANGE | 1 PCS | C | NOT FOR SERVICE | |
| E16-14 | WASHER,SPLINE | 1 PCS | C | NOT FOR SERVICE | |
| E16-15 | CHECK RING,ELASTIC | 1 PCS | B | NOT FOR SERVICE | |
| E16-16 | CHECK RING,SHOULDER | 1 PCS | C | NOT FOR SERVICE | |
| E16-17 | CHECK RING,SHOULDER | 3 PCS | C | NOT FOR SERVICE | |
| E16-18 | CHECK RING,SHOULDER | 1 PCS | C | NOT FOR SERVICE | |
| E16-19 | SPROCKET,COUNTERSHAFT DRIVING | 1 PCS | A | ||
| E16-20 | PLATE,COUNTERSHAFT DRIVING SPROCKET FIXING | 1 PCS | B | ||
| E16-21 | BOLT,HEXAGON | 2 PCS | C | ||
| E16-22 | MAINSHAFT&COUNTERSHAFT KIT | 1 SET | B |

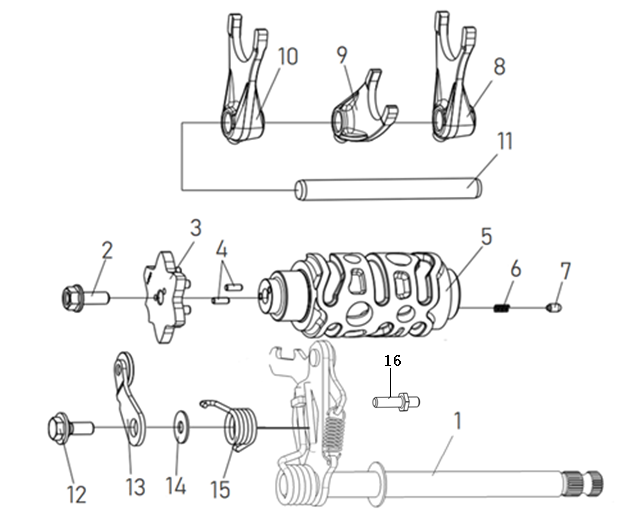

Assembly diagram
| Ref | Part Name | Part Number | Qty | Grade | Notes |
|---|---|---|---|---|---|
| E17-01 | ARM COMP.,GEAR CHANGE | 1 SET | B | ||
| E17-02 | SHIFT CONTACT,GEAR INDICATOR SWITCH | 1 PCS | C | ||
| E17-03 | PLATE,DRUM STOPPER | 1 PCS | C | ||
| E17-04 | PIN,DOWEL | 2 PCS | C | ||
| E17-05 | DRUM COMP.,GEAR SHIFT | 1 PCS | C | ||
| E17-06 | SPRING,COMPRESSION | 1 PCS | B | ||
| E17-07 | SHIFT CONTACT,GEAR INDICATOR SWITCH | 1 PCS | C | ||
| E17-08 | FORK,GEAR SHIFT | 1 PCS | C | ||
| E17-09 | FORK,GEAR SHIFT | 1 PCS | C | ||
| E17-10 | FORK,GEAR SHIFT | 1 PCS | C | ||
| E17-11 | SHAFT,SHIFT FORK GUIDE | 1 PCS | C | ||
| E17-12 | CHECK PLATE ASSY. | 1 PCS | C | ||
| E17-13 | BOLT,CHECK PLATE | 1 PCS | C | ||
| E17-14 | WASHER,PLAIN | 1 PCS | C | ||
| E17-15 | SPRING,TORSIONAL | 1 PCS | B | ||
| E17-16 | JACK BOLT,GEAR CHANGE ARM | 1 PCS | C |
No parts match your filters.
Wear-grade legend
- AA - High wear
- BB - Medium wear
- CC - Low wear
- DD - Not user-serviceable
Wear grades are Voge's classification of how often each part typically needs replacement. "NOT FOR SERVICE" parts (in the notes column) are internal components - replace the parent assembly instead.
