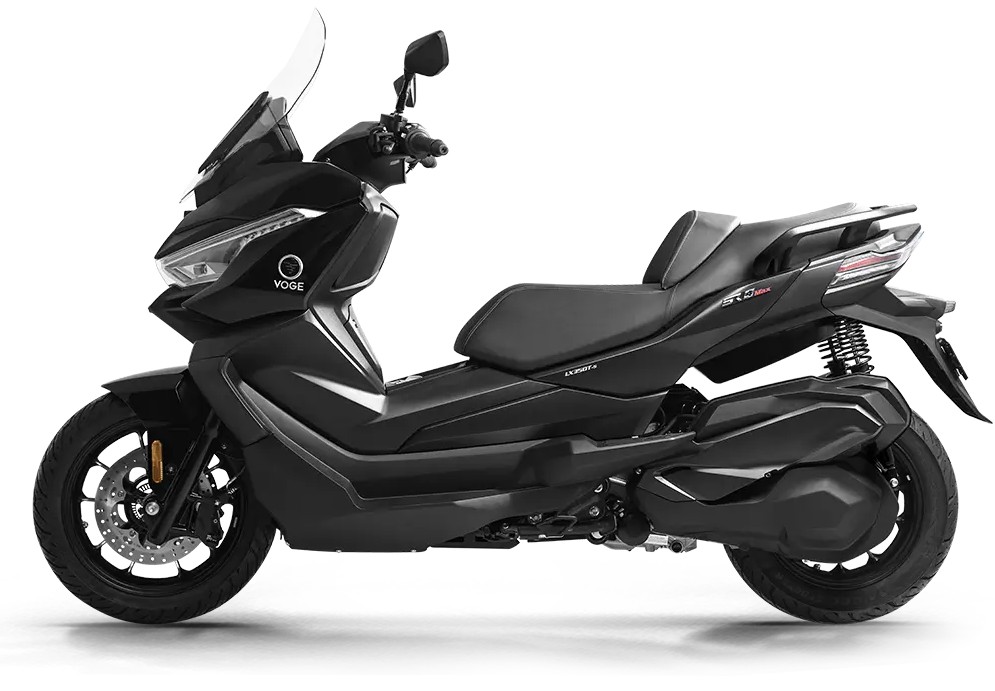

SR4 Max
2024 - 2025
- Power uncertain: The owner’s manual specifies 25 kW at 7,500 rpm on PDF page 74, but the KS350 engine repair manual specifies 21.25 kW at 7,500 rpm on PDF page 7. We cannot verify which value is correct.
- Torque uncertain: The owner’s manual specifies 35 N·m at 6,000 rpm on PDF page 74, but the KS350 engine repair manual specifies 30 N·m at 6,000 rpm on PDF page 7. We cannot verify which value is correct.
- 214 kg
- 761 mm
- Capacity uncertain: The owner’s manual specifies 12.8 L on page 20, but 1.3 L on page 74. We cannot verify which value is correct.
At a glance
A workshop value marked is not tied to a manual page on this site. Check it against the PDF under Manuals before you work from it. Performance and dimension figures carry no mark, since nothing is filled or torqued to them. Where a value names a manual, the name links to it.
Performance
- Maxi-Scooter
- Power uncertain: The owner’s manual specifies 25 kW at 7,500 rpm on PDF page 74, but the KS350 engine repair manual specifies 21.25 kW at 7,500 rpm on PDF page 7. We cannot verify which value is correct.
- Torque uncertain: The owner’s manual specifies 35 N·m at 6,000 rpm on PDF page 74, but the KS350 engine repair manual specifies 30 N·m at 6,000 rpm on PDF page 7. We cannot verify which value is correct.
- 129 km/h
- 3.47 L/100 km
Capacities & Fluids
- Capacity uncertain: The owner’s manual specifies 12.8 L on page 20, but 1.3 L on page 74. We cannot verify which value is correct.
- Specification uncertain: The owner’s manual specifies 1.8 L of 5W-40 oil rated API SJ or above on page 61, but 1.9 L of 10W-40 oil rated API SL on page 74. We cannot verify which specification is correct.
- 1.4 L
Engine
- 349.8 cc Single, SOHC 4-valve, water-cooled
- 80 × 69.6 mm
- 11.5:1
- NGK LMAR8J-9E
- Intake 0.16-0.24 / Exhaust 0.34-0.42 mm
Transmission
- CVT, dry centrifugal clutch
Brakes, Wheels & Tires
- ABS + TCS
- Twin 265 mm disc, 4-piston (J.Juan)
- 265 mm disc, 1-piston (J.Juan)
- Pirelli 120/70-15 / 150/70-14
Dimensions & Weight
- 214 kg (curb)
- 761 mm
- 1,565 mm
- 167 mm
- 2,185 × 805 × 1,390 mm
Electronics & Equipment
- TFT with Bluetooth + dashcam Wi-Fi
- 12 V 8 Ah
Trim & Pricing
- Black, White
- 2 years, unlimited mileage (extendable to 5)
Also for this bike
Latest for SR4 Max
Features & equipment
Show all 13 features
Instrument panel
- TFT display
- Bluetooth
- Dashcam Wi-Fi
- Tire pressure (TPMS)
Equipment
- Switchable traction control (TCS)
- Keyless start
- Emergency brake signal (ESS)
- Heated grips
- Heated seat
- Adjustable windshield
- HD front camera
- Full LED lighting
- Under-seat storage
Troubleshooting
All troubleshooting1 issue, most recently updated first, from owner and reviewer reports that Voge has not verified.
-
Recovery After Flashing the Wrong Firmware
Flashing firmware intended for another Voge model onto the SR4 Max dashboard leaves the screen corrupted and unusable. As long as the Sansan Dashboard Assistant app still connects, the cluster can be recovered by reflashing the correct SR4 Max firmware over a phone hotspot. Files and full procedure below.
